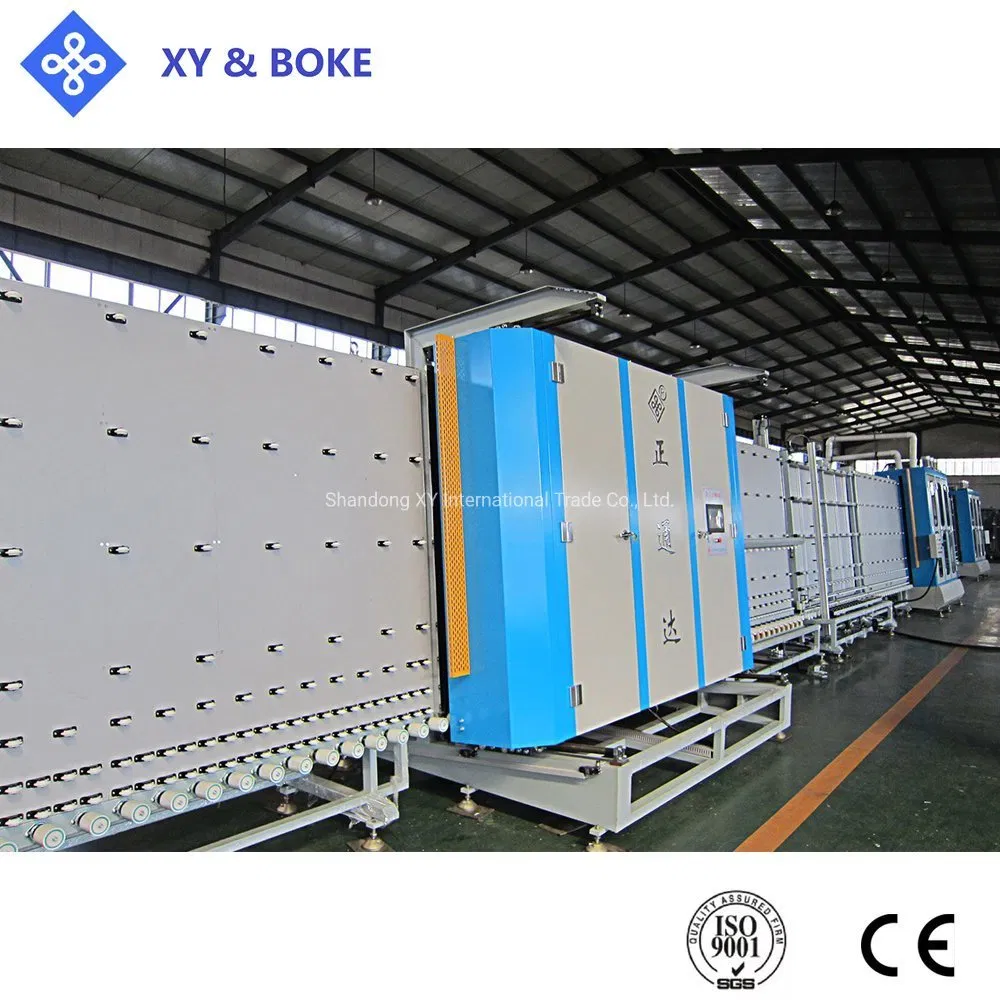

Full Automatic Insulating Glass Production Line with Argon Gas Filling Function Online for Double Glazing Glass Processing Igu Making in Window and Door Glass

1 / 5

Full Automatic Insulating Glass Production Line with Argon Gas Filling Function Online for Double Glazing Glass Processing Igu Making in Window and Door Glass

Customization:	Available
Certification:	CE, CE, ISO
Condition:	New

Send Inquiry

Product Description

Basic Specifications

Model NO.

LBP2000Q

Control System

Automatic, CNC, PLC Control, Touch Screen Control

Glass Thickness Range

3-60mm

Warranty

2 Years

Type

Insulating Glass Production Line

Structure

Vertical

Weight

7800kg

Gas Filling

With Argon Gas Filling Online

Capacity

800 m² Per Day

Max Glass Size

2000*3000mm

Min Glass Size

450*200mm

Production Capacity

200 Sets/Year

Product Description

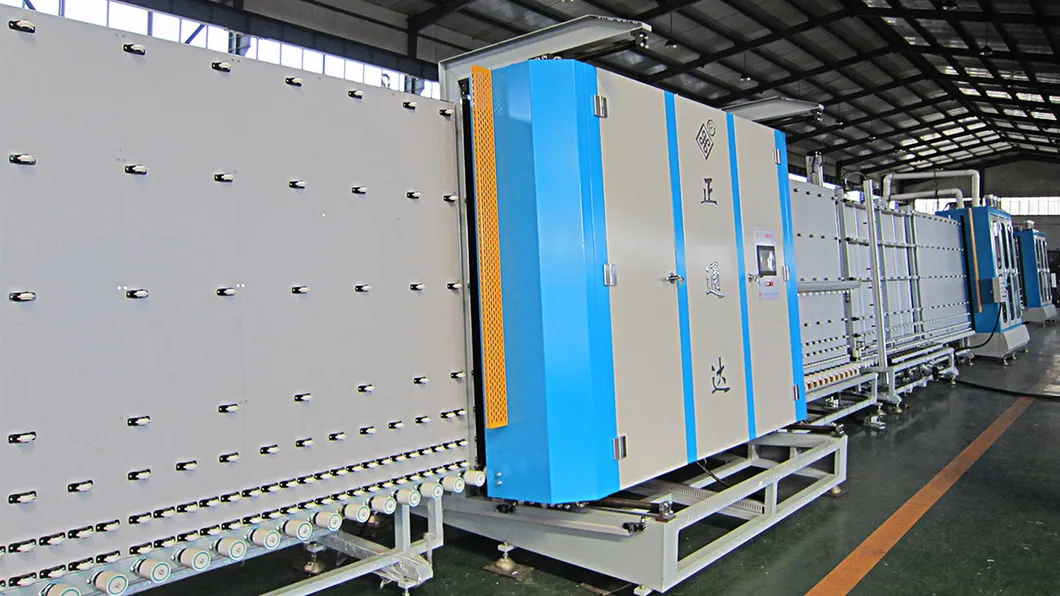

Insulating Glass Production Line LBP2000Q with Inert Gas Filling Online

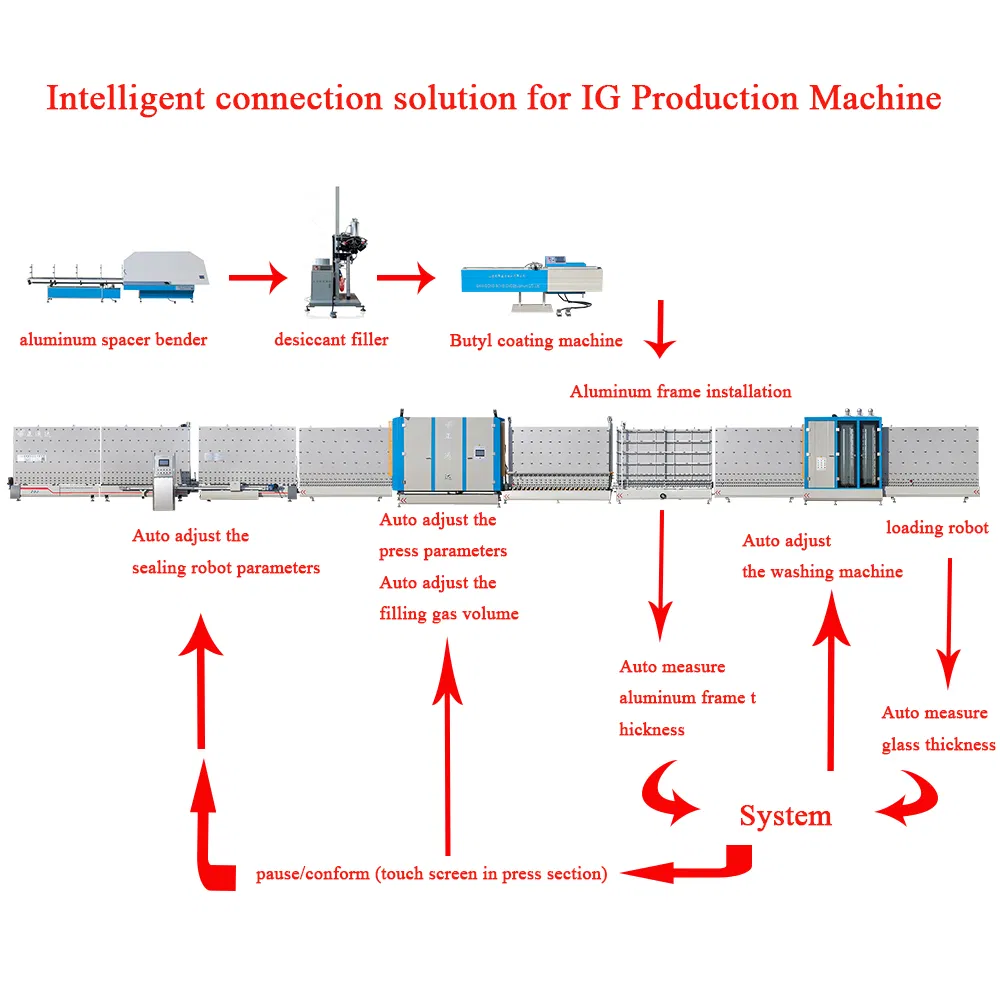

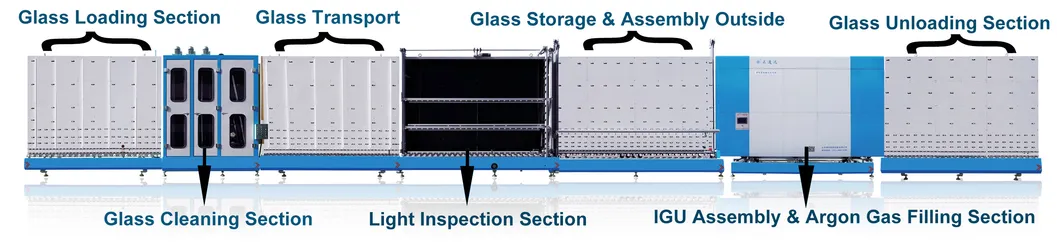

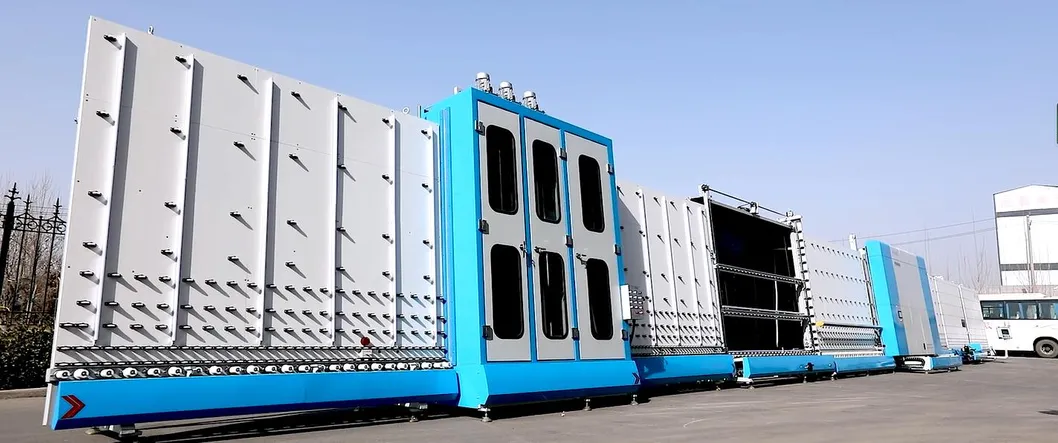

This Vertical Insulating glass machine is a comprehensive solution composed of seven essential sections: 1) loading, 2) washing and drying, 3) transmission and storage, 4) light inspection and spacer bar attaching, 5) transmission, 6) inside assembly and inert gas filling, and 7) storage and unloading. It is specifically designed to process Low-E glass effectively at high speeds.

Key Advantages

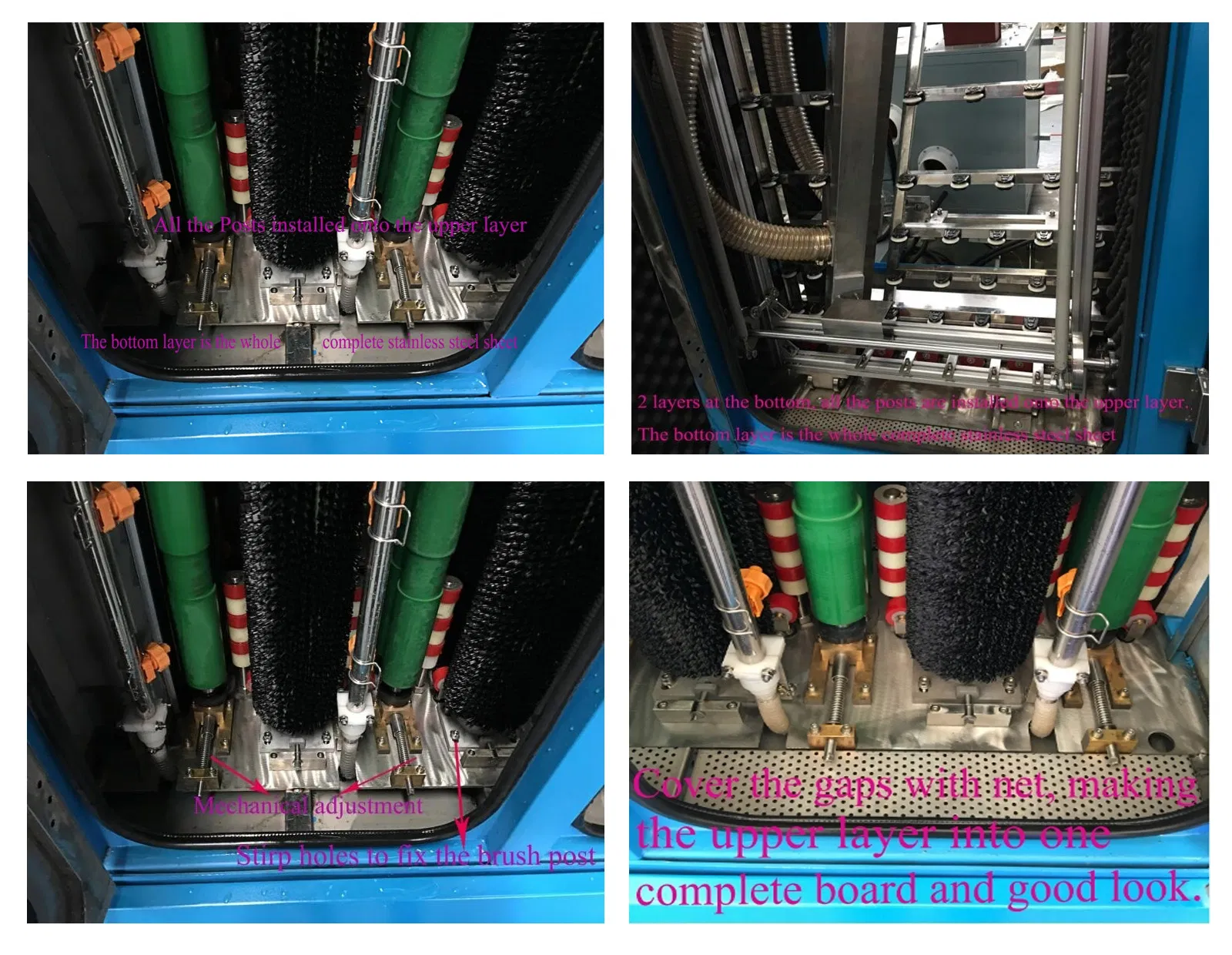

Three pairs of high-quality brushes (DuPont brand) suitable for Low-E glass.
Automatic identification of coated glass and Low-E glass sides.
Waterproof bearings without oil lubricant (SKF brand from Sweden).
Washing body constructed from stainless steel and anti-rusting materials.
PLC and electrical elements from Schneider (France).
Automatic inert gas filling efficiency exceeding 95%.

Technical Specifications

Parameters	Specifications
Model	LBP2000Q
Max processing glass size	3000*2000mm
Min processing glass size	450*200mm
Single glass thickness	3-15mm
Cleanout speed	3-10m/min
Work speed	15-45m/min
Power supply	3P, 380V/50Hz
Total power	41.35 Kw (include heater 10Kw)
Inert gas type	Argon, Nitrogen, etc.
Inert gas efficiency	More than 95%
Total weight	8500Kg
Outline Dimension	2280025003180mm

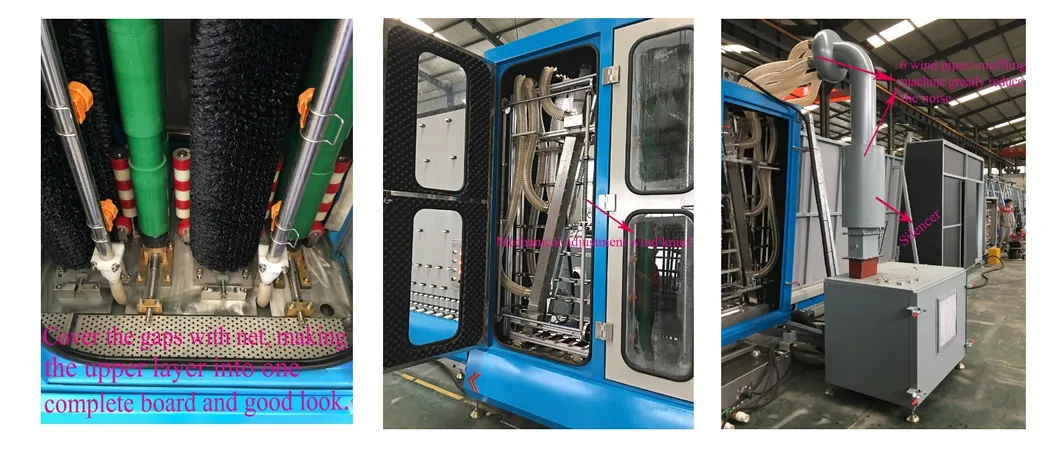

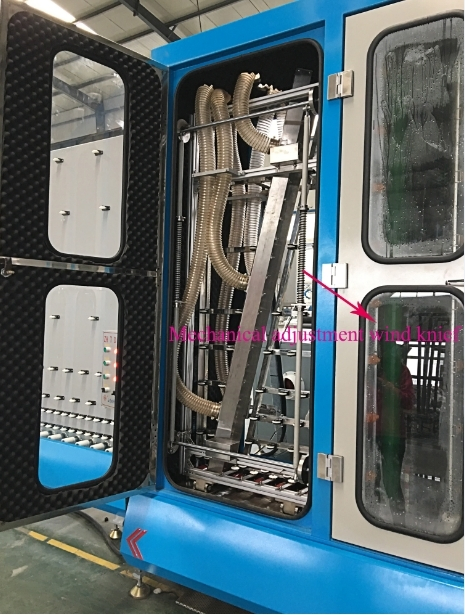

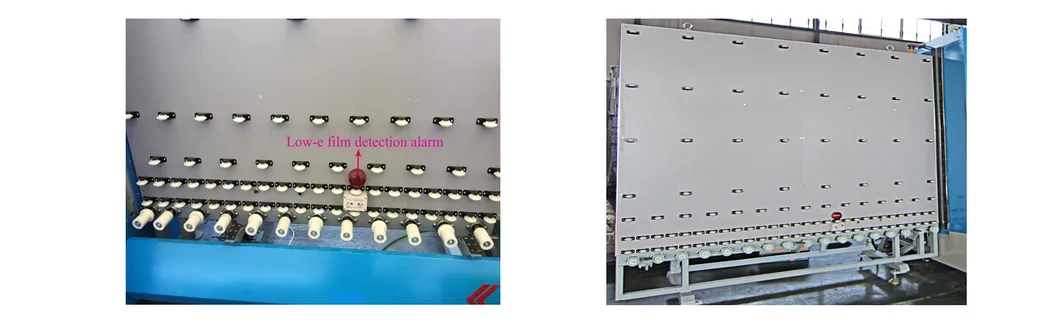

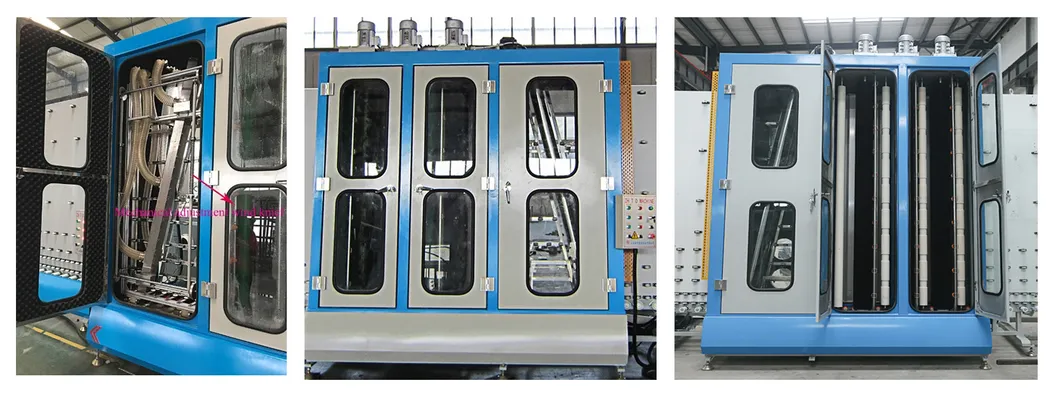

Loading & Washing Sections

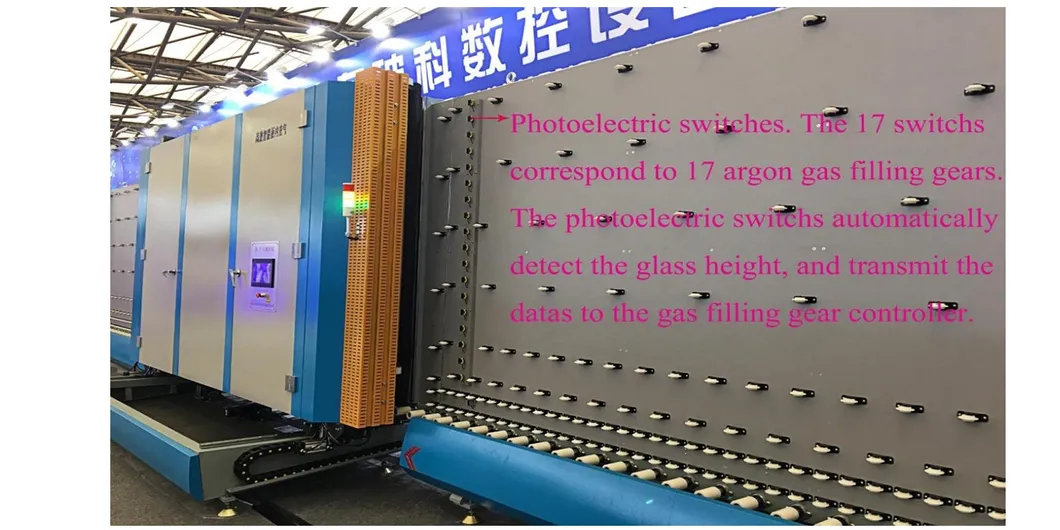

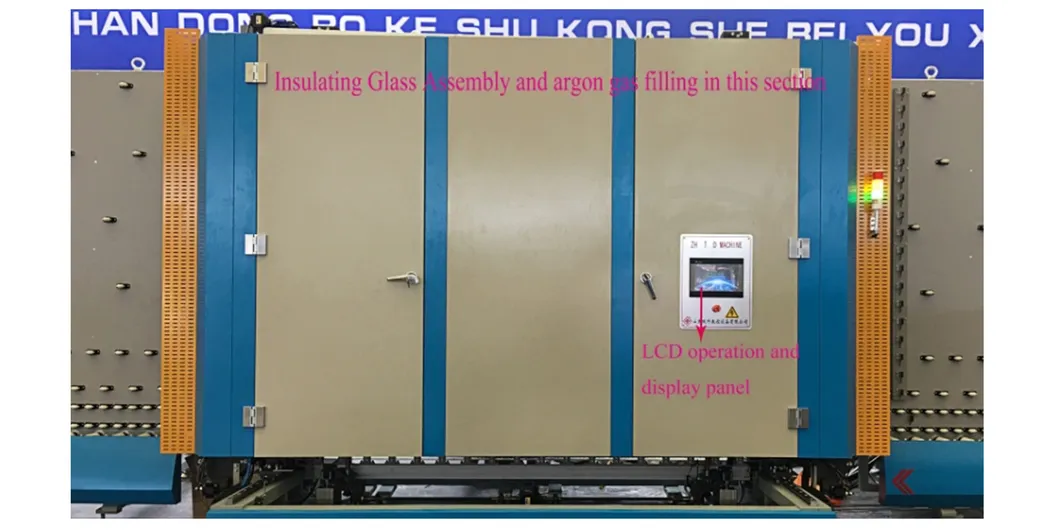

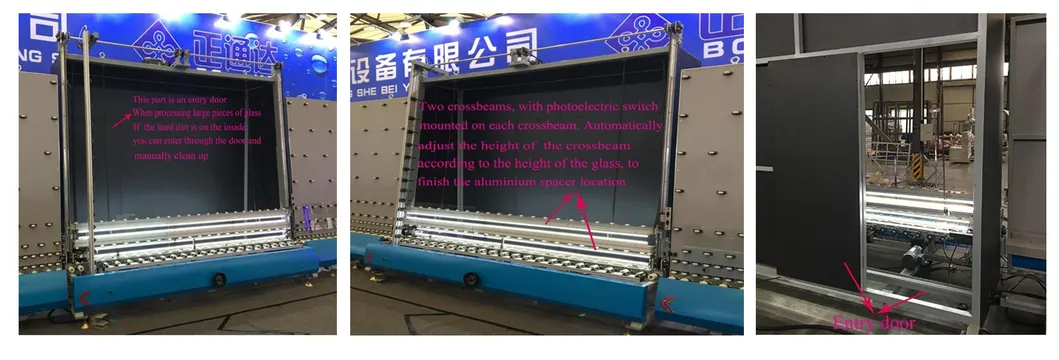

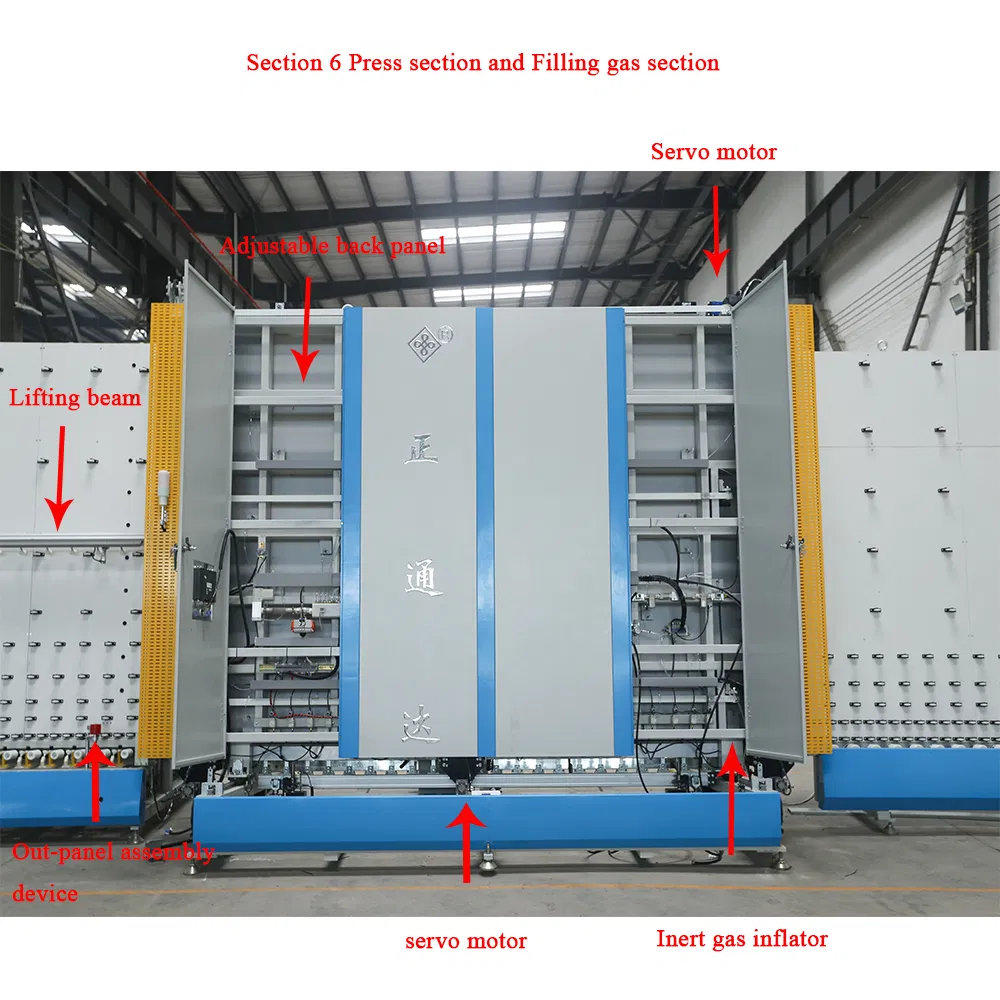

Inspection & Gas Filling Sections

Imported Components

Part Name	Origin	Brand
Photoelectric switch	USA	BANNER
Optical fiber switch	Japan	KEYENCE
Selection/Push switch	France	SCHNEIDER
PLC / Transducer / Touch Screen	Taiwan	Delta
Bearings for brushes	Sweden	SKF
Vacuum Sucker	Korea	YSC
Hydraulic valve	Taiwan	YUTIEN
Magnetic valve	Taiwan	AIRTAC

Product Gallery

Frequently Asked Questions

1. Are you a professional manufacturer?

Yes, we are a professional manufacturer of insulating glass production lines with over 21 years of experience in the industry.

2. What specific products are available in your range?

We produce complete Insulating Glass Production Lines (with and without online gas filling), Automatic Sealing Robots, Butyl Coating Machines, Automatic Aluminum Spacer Bending Machines, Desiccant Filling Machines, and Glass Washing Machinery.

3. What is the standard delivery time?

Normally, the delivery time is about 30 days. For certain standard products or special cases, we can achieve delivery within 2 weeks depending on current stock and specifications.

4. What payment methods do you support?

We accept standard international payment methods, including T/T (Telegraphic Transfer) and L/C (Letter of Credit).

5. Is the gas filling efficiency guaranteed?

Yes, our online gas filling system is designed to achieve an efficiency of more than 95%, meeting high international standards for thermal insulation performance.

6. Can the machine handle Low-E glass?

Absolutely. The line is equipped with three pairs of soft brushes (DuPont brand) and an automatic identification system to ensure Low-E coating is processed without damage.
