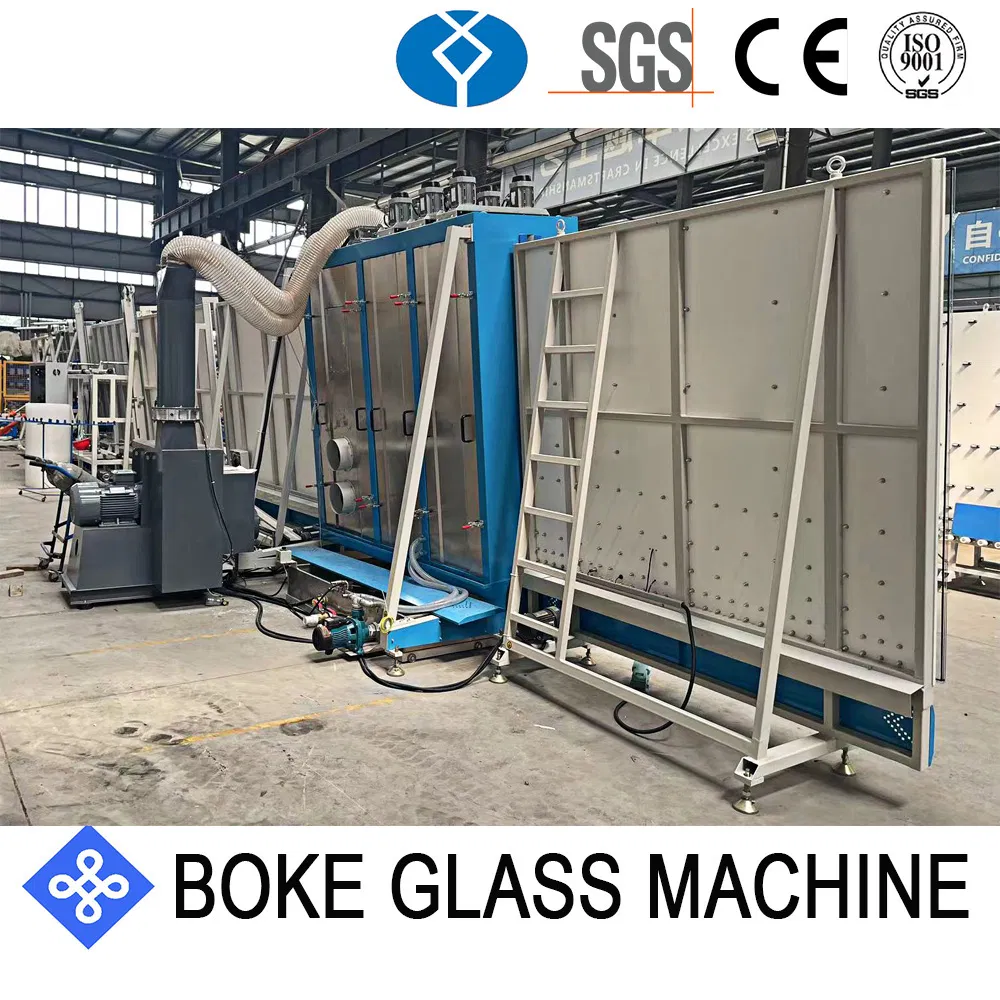

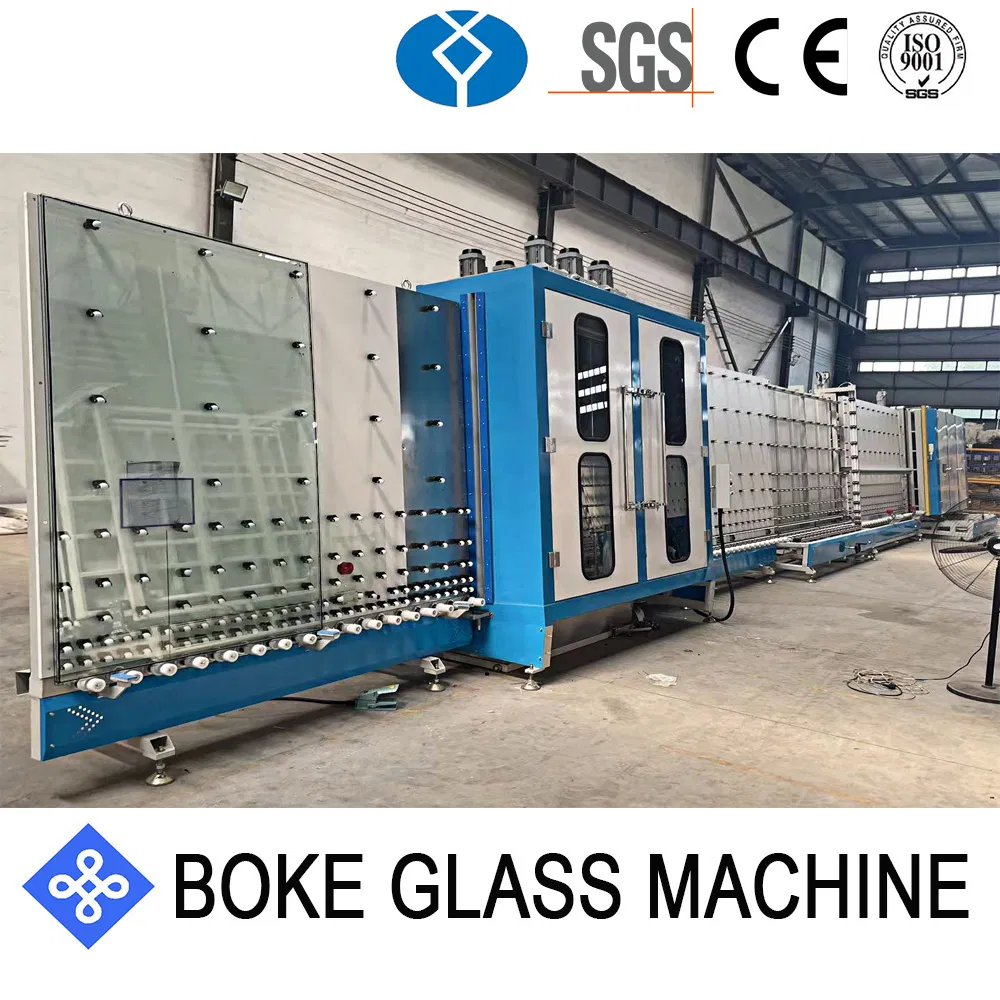

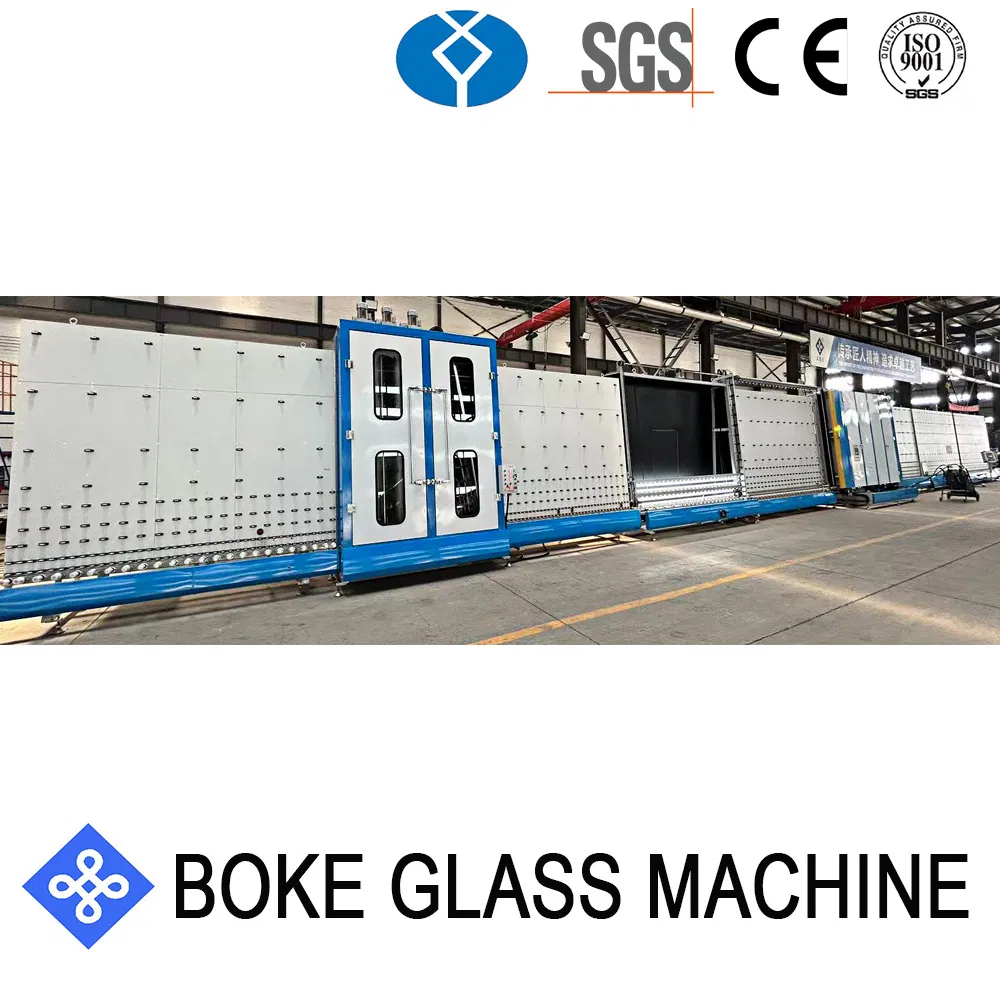

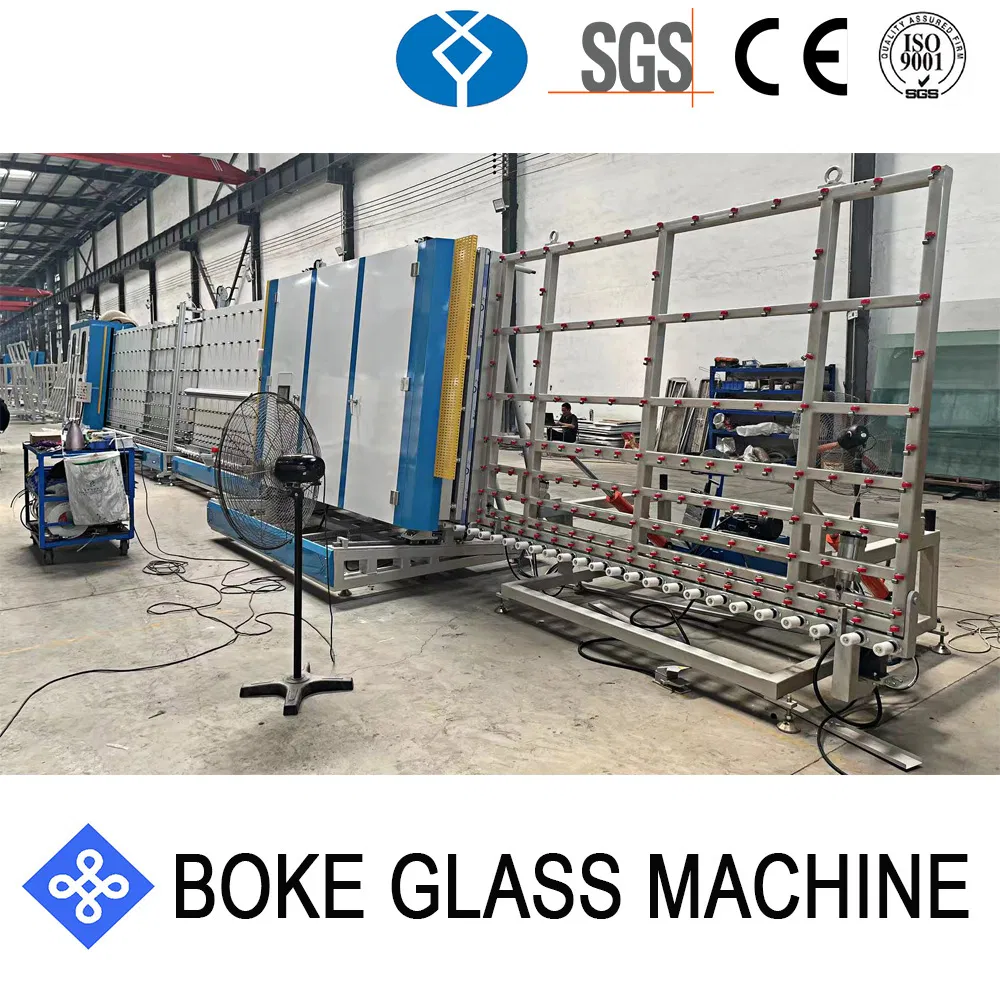

Automatic Insulating Glass Production Line with Horizontal Glass Fliping Function Suitable for Stepped Glass

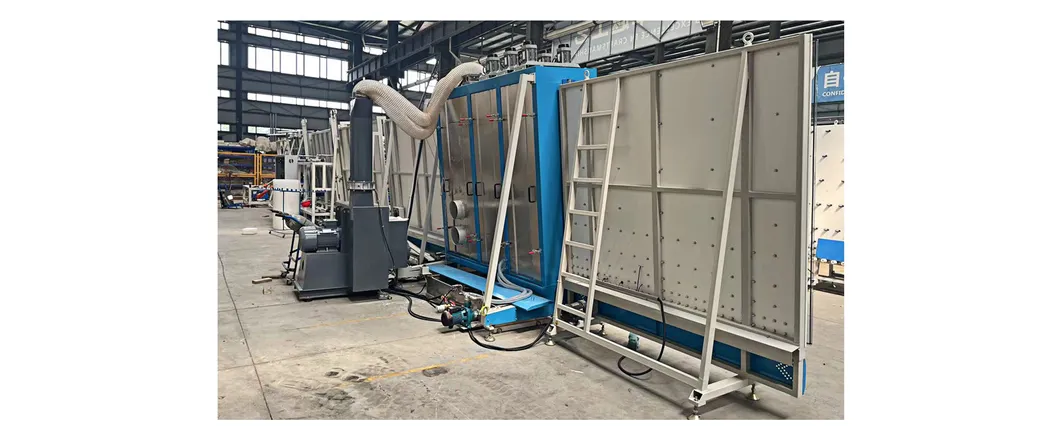

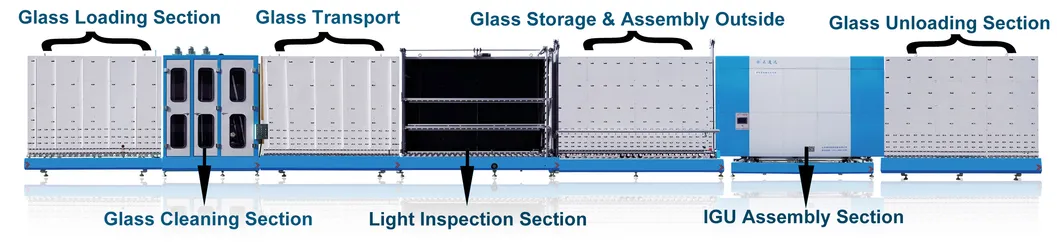

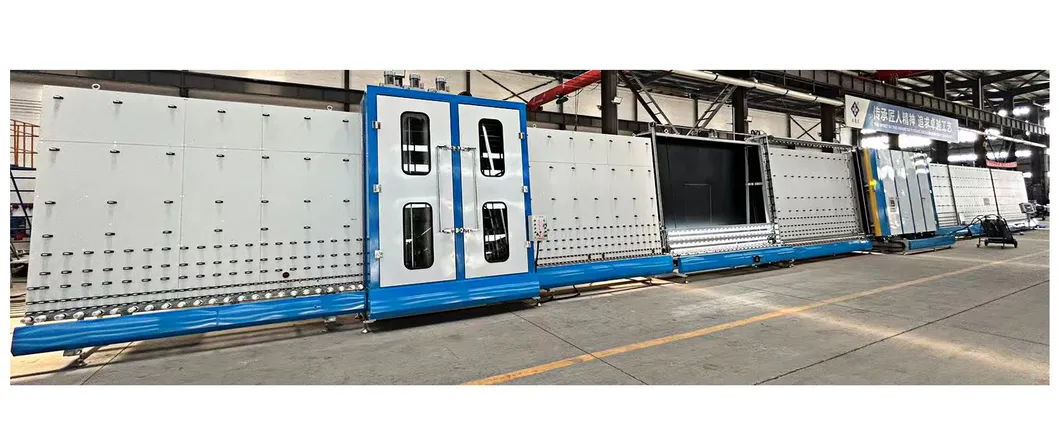

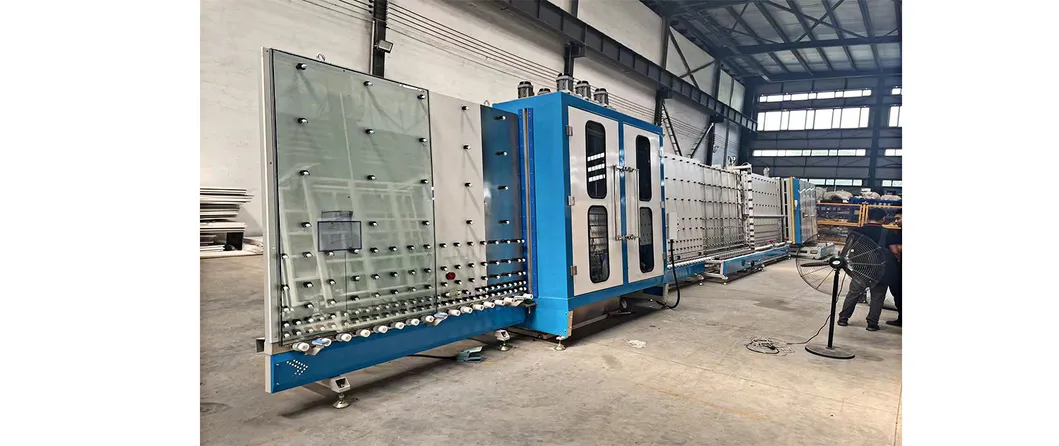

This Vertical Insulating glass machine is a comprehensive production line composed of 7 specialized sections: loading, washing and drying, transmission, light inspection, assembly, pressing, and unloading. Designed for high efficiency, it effectively processes Low-E glass at high speeds.

• Automatic Coating Detection: Automatically distinguishes the coating side of Low-E glass with alarm indicators.
• Premium Components: Utilizes SKF oil-less waterproof bearings from Sweden and Schneider electrics from France.
• Stainless Steel Construction: The washing body uses anti-rust materials ensuring long service life and cleanliness.
• Versatile Processing: Handles 3-18mm thickness glass and supports double/triple layer insulating glass.
• Gas Filling Function: Integrated inert gas filling with efficiency exceeding 92%.
• Smart Memory: Glass position memory function for quick error recovery and improved uptime.

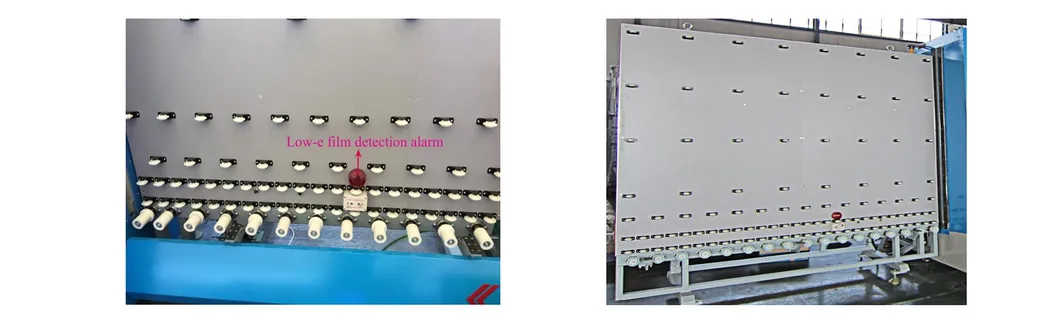

Section 1: Loading & Diagnosis
Features high-quality backboards and NC machining for stability. Includes automatic Low-E detection.

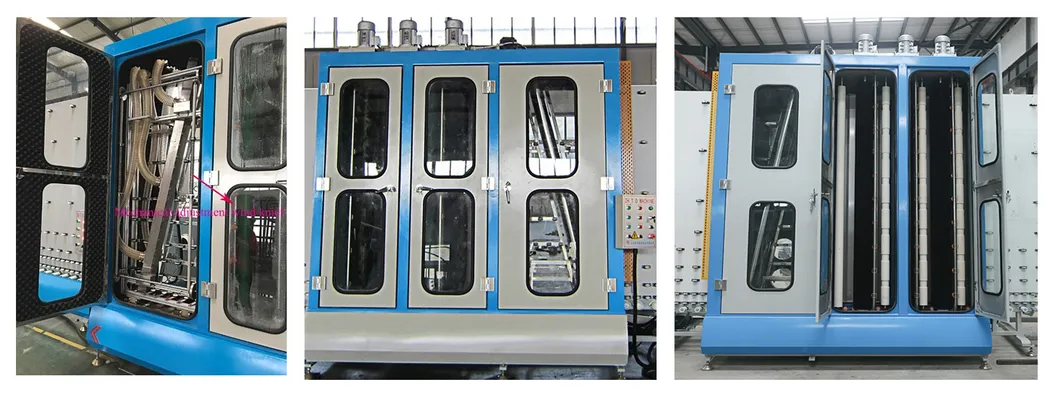

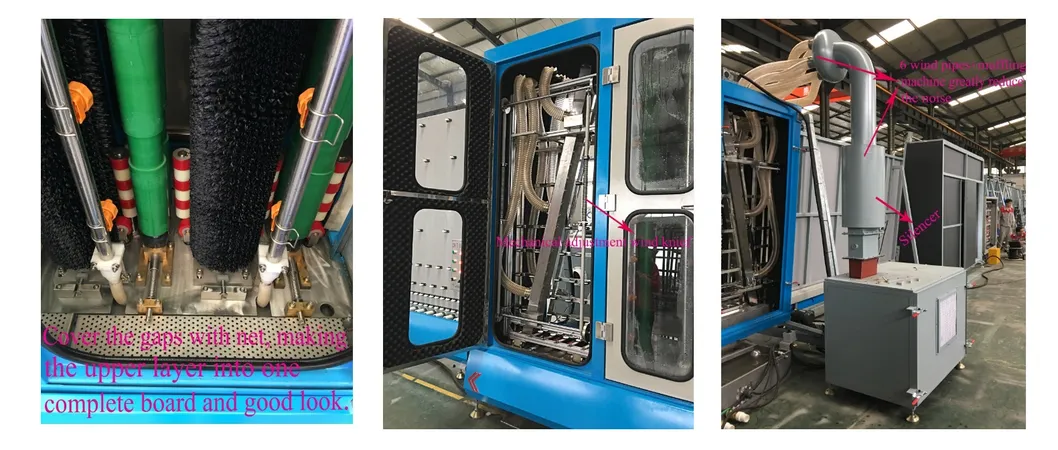

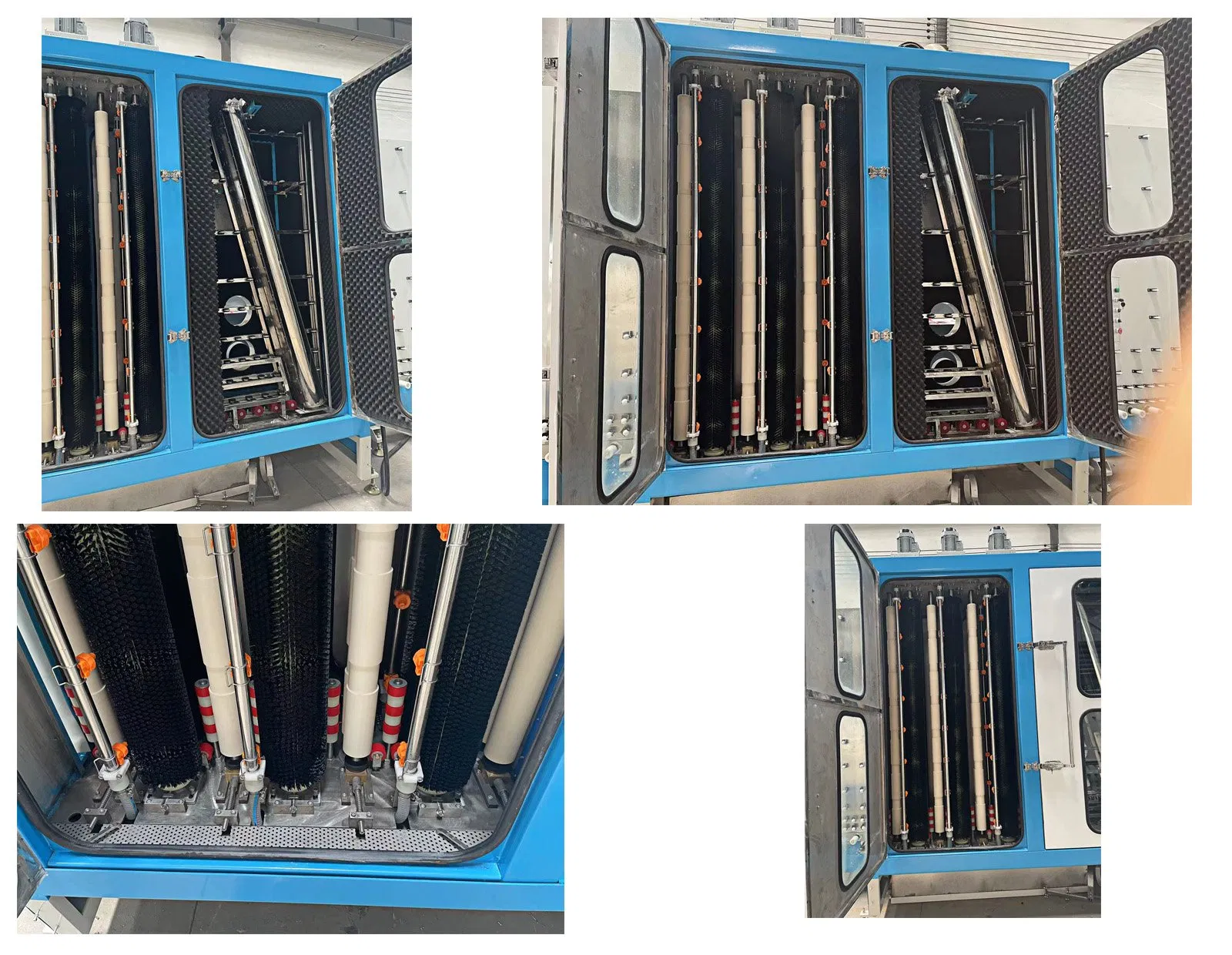

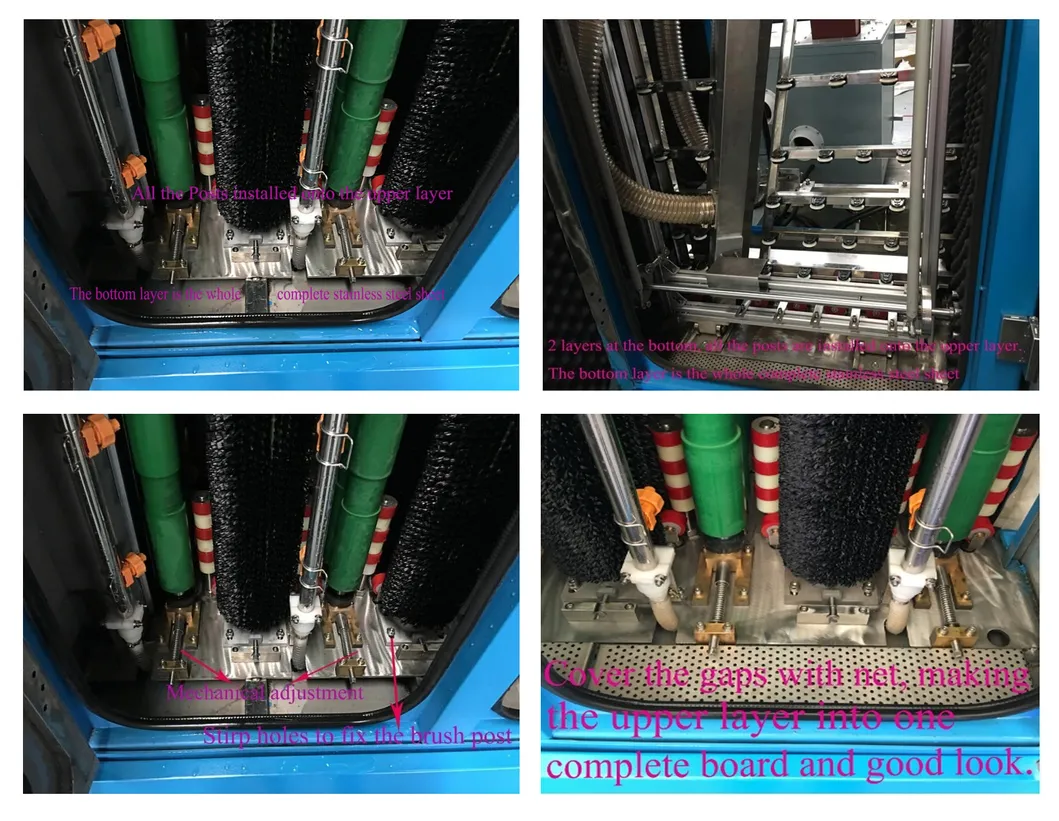

Section 2: Washing & Drying
Equipped with 15kw fans and dual pairs of adjustable wind knives. Uses high-temperature nylon brushes for delicate coating protection.

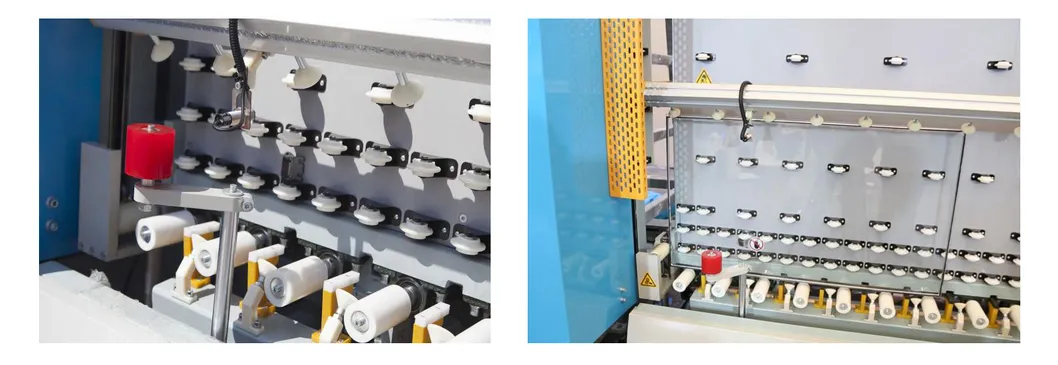

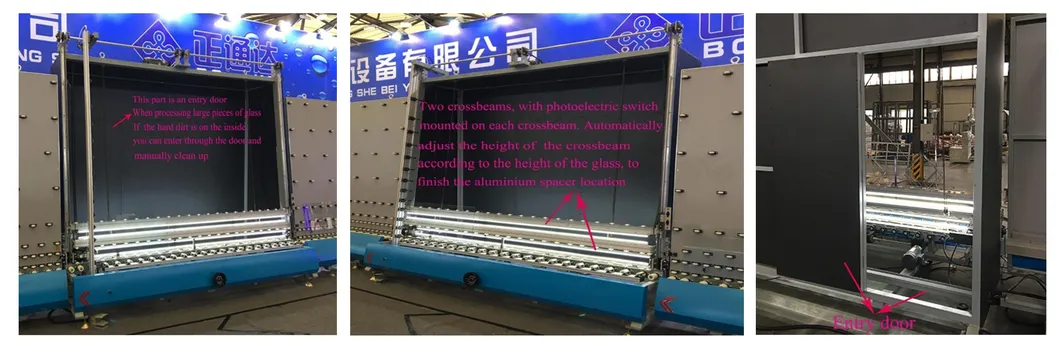

Section 4-5: Inspection & Assembly
Internal entry design allows workers to manually clean persistent dirt. Manipulators realize automatic assembly without manual pushing.

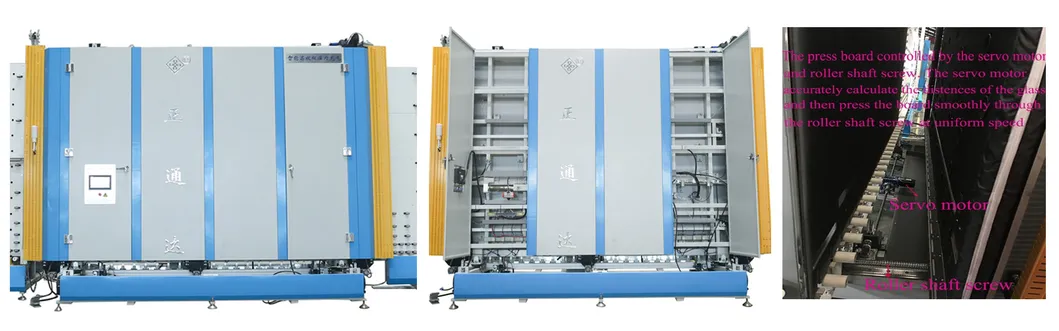

Section 6: Pressing Section
Controlled by servo motors and roller shaft screws for uniform pressure. Capable of multiple compressions for extra-large glass.

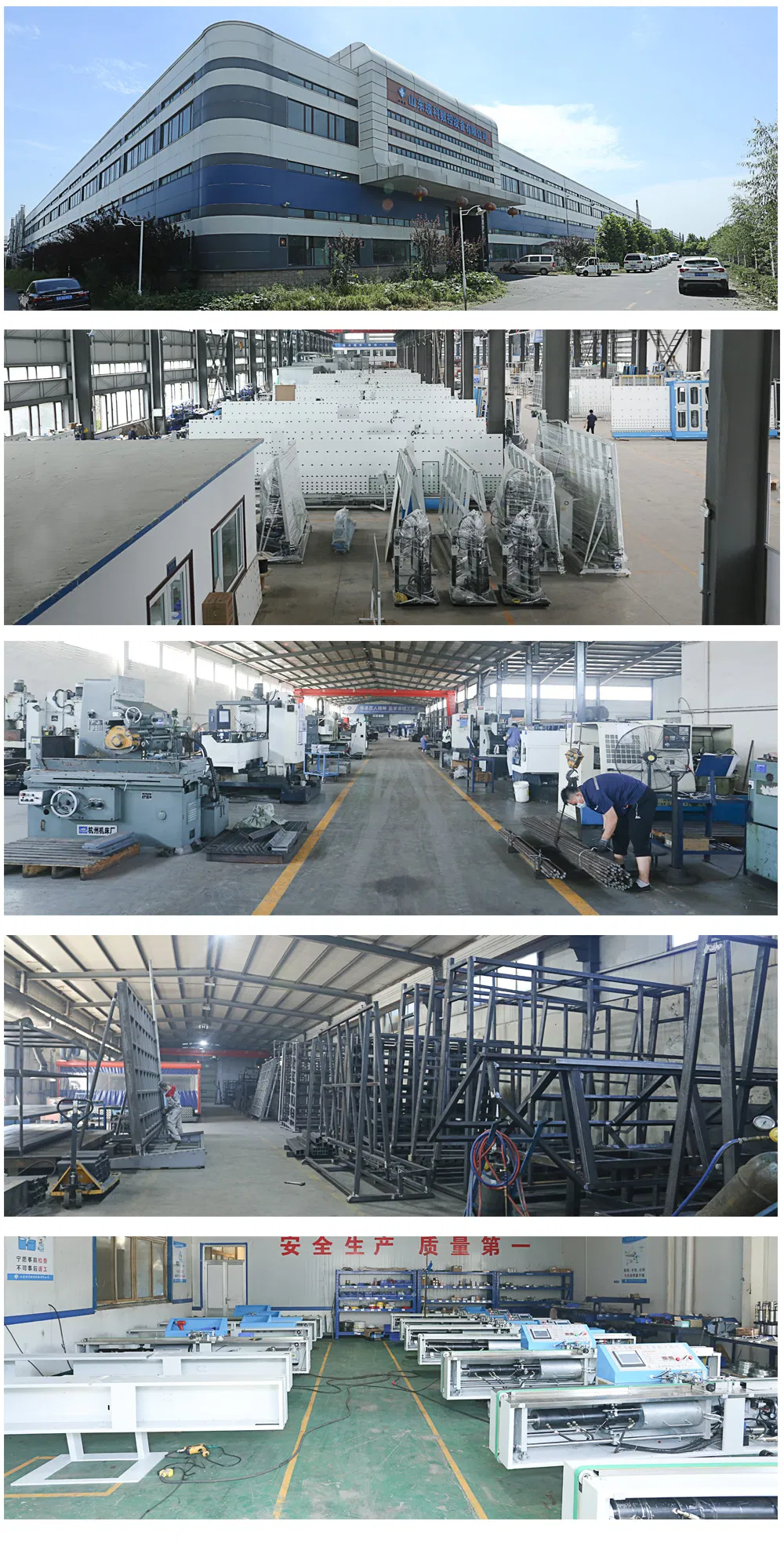

With over 21 years of experience in the field of insulating glass production, we provide professional manufacturing and scientific research for middle and high-grade glass equipment. Our machinery is ISO9001 and CE certified, representing the latest fabrication methods in the global market.
