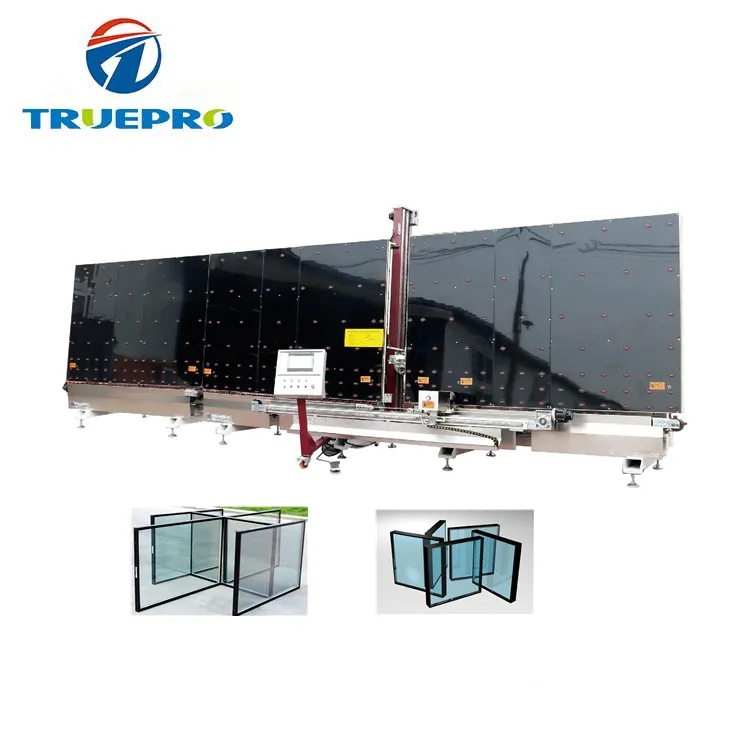

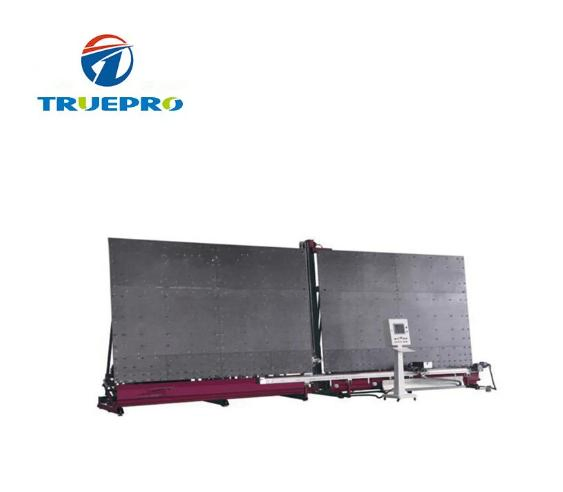

Vertical Insulating Glass Silicone Sealant Sealing Robot
Basic Information
Max. Processing Size
2500*3000mm
Min. Processing Size
300*450mm
Production Capacity
200 Sets/Year
Machine Features
-
✔
High Automation: Designed for glass deep processing, reducing labor intensity and improving production efficiency.
-
✔

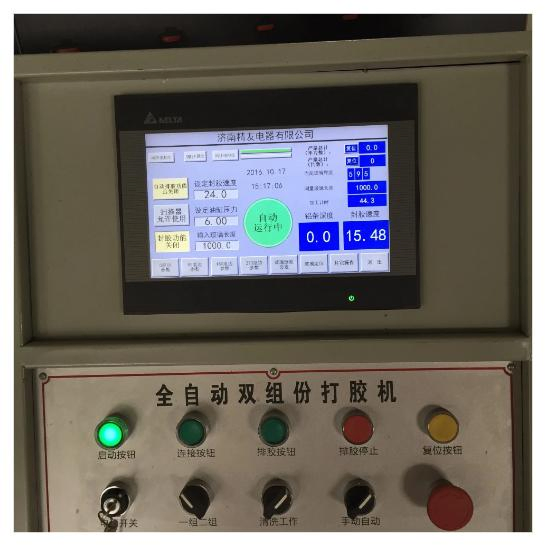

Touch Screen Interface: Simple man-machine operation with a built-in memory function.
-
✔
Perfect Sealing: Glass edges and corners are filled without air bubbles, providing a smooth surface without the need for corner paring.
-
✔
Independent Supply: One-button operation to switch between sealant types quickly (Model B).
-
✔
Space Saving: Machine width of 1.5m ensures a small footprint.
-
✔
Japan YASKAWA Servo: World-famous control system ensures stable performance and high-precision sealant output.
-
✔

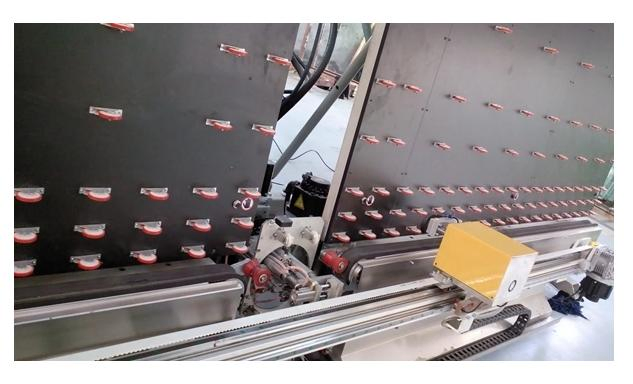

Clean Edges: Special V-type transmission belt prevents sealant sticking and ensures glass cleanliness.
-
✔
Versatility: Suitable for processing triple glazing and features high-speed positioning.
Technical Parameters
| Specification |
Detail Details |
| Product Model | JYT-2500 |
| Power Supply | 380V/50HZ |
| Total Power | 18KW |
| Air Supply | 0.6-0.8Mpa |
| Max. Glass Size | 2500*3000mm |
| Min. Glass Size | 300*450mm |
| Conveyor Speed | 5-40m/min |
| Machine Dimension | 10000x1500x3600mm |
| Weight | 3000kg |

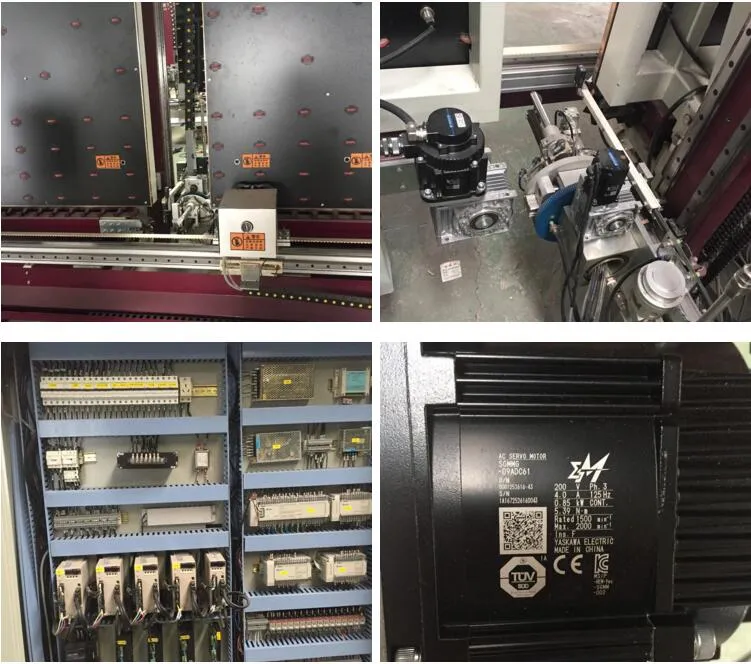

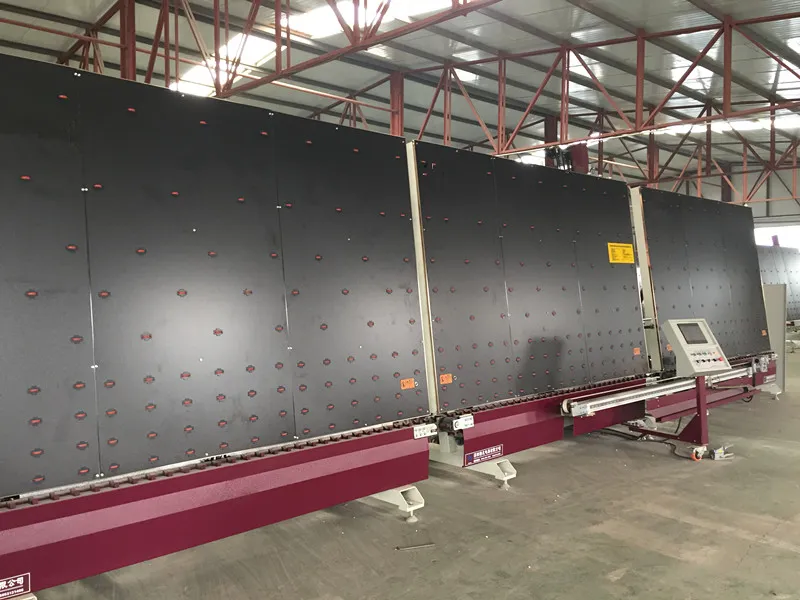

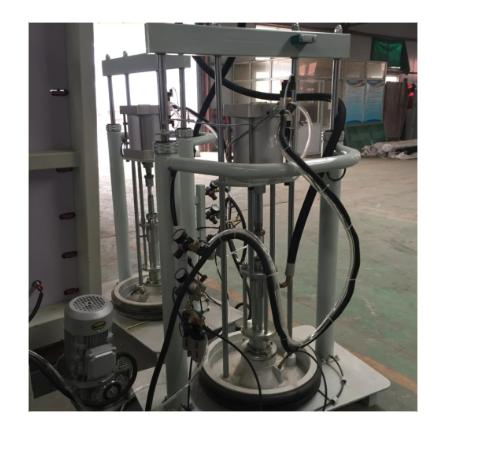

Machine Details Display
Frequently Asked Questions
What is the lead time for shipment?
Usually, shipment is arranged within 15 days after receiving the deposit. For customized machine requests, the lead time is typically extended to 25 days or more.
How is technical support handled for machine issues?
If the machine is within the guarantee period, we provide free replacement components. Additionally, we can dispatch professional engineers to your facility for repairs.
Is equipment operation training provided?
Yes. We provide comprehensive training. Professional engineers can be sent to your site for installation, fine-tuning, and operator training to ensure smooth workflow.
Does this robot support triple glazing processing?
Yes, the JYT-2500 is specifically designed to handle triple glazing units effectively alongside standard insulating glass.
What is the precision of the sealing system?
The system utilizes a Japan YASKAWA servo control system, ensuring high-speed counting, high-precision sealant output, and an extremely smooth surface finish.
How do you prevent sealant from contaminating the machine?
The machine is equipped with a special V-type transmission belt to avoid sealant sticking, and the mixer includes an anti-blocking device for easy cleaning.
