| Model NO. | BL-J02 |
| Control System | Automatic, PLC Control, Semi-Automatic |
| Power Supply | 380V 50Hz |
| Total Power | 4kw |
| Aluminum Bar Spec | 5.5-26.5 |
| Max Aluminum Bar Size | 2000*2000mm |
| Min Aluminum Bar Size | 300*300mm |
| Overall Dimension | 4800*1330*1650mm |
| Air Pressure | 0.7MPa |
| Item | BL-J02 (Automatic) | BL-J03 (Semi-Automatic) |
|---|---|---|
| Total Power | 4.0KW | 2.0KW |
| Air Pressure | 0.7MPA | 0.7MPA |
| Spec of Aluminum Bar | 5.5-26.5MM | 5.5-26.5MM |
| MAX. Aluminum Bar Size | 2000*2000MM | 2500*2500MM |
| Min Aluminum Strip Size | 300*300MM | 350*350MM |
| Bending Angle Error | ±0.3° | ±0.3° |
| Bending Speed | <20S/UNIT | / |

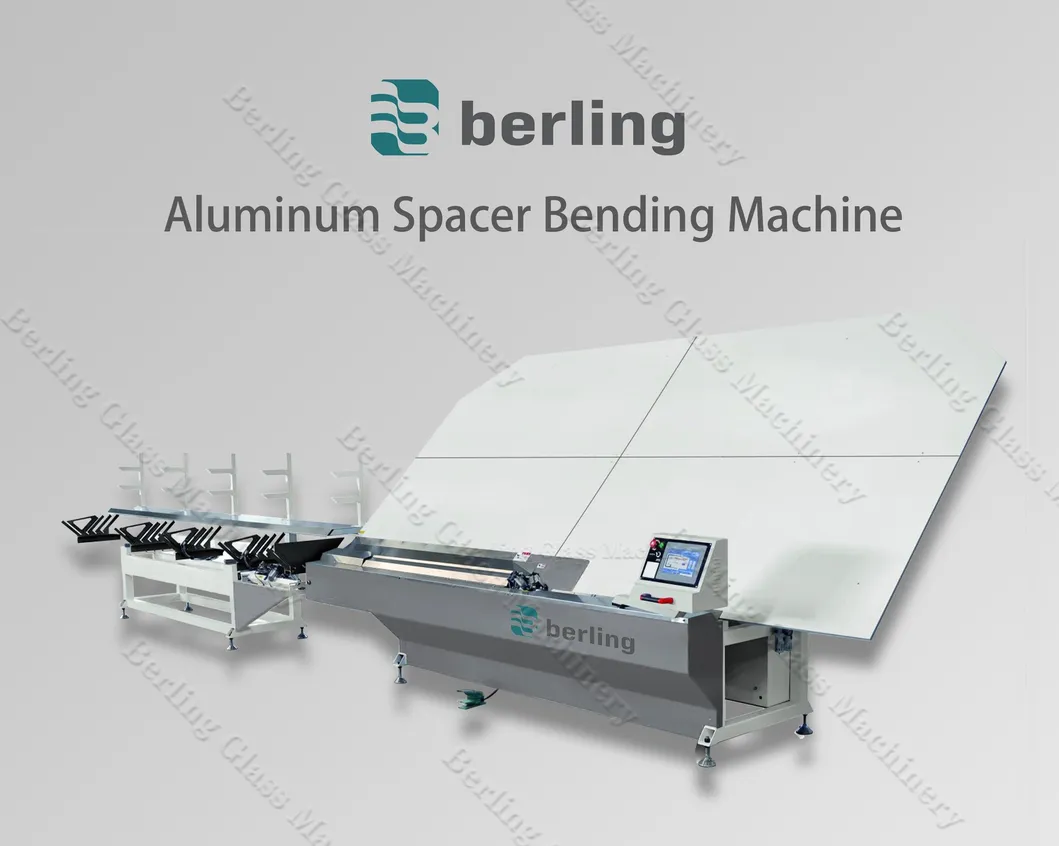

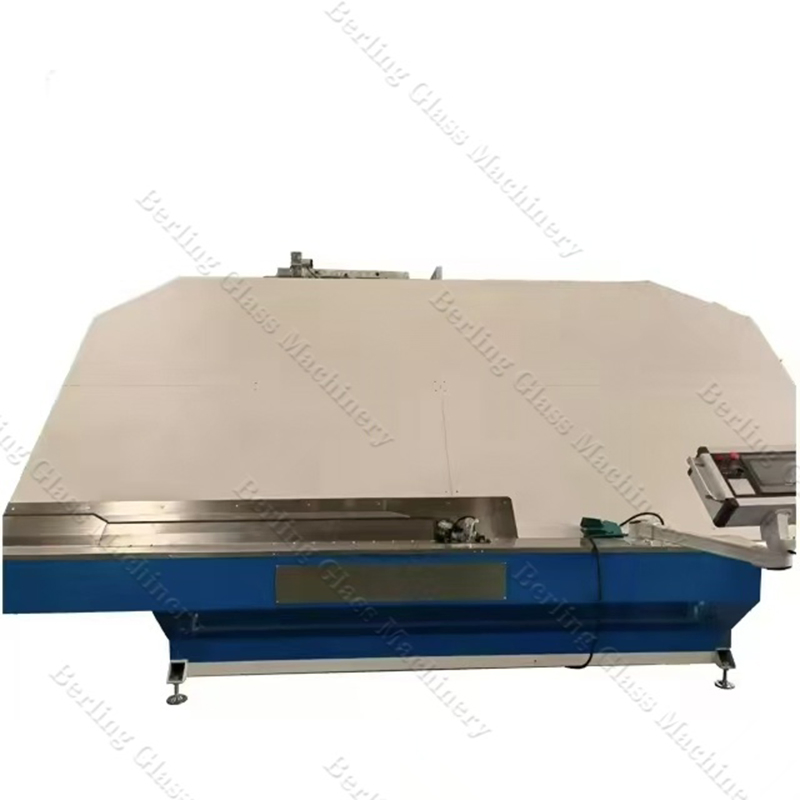

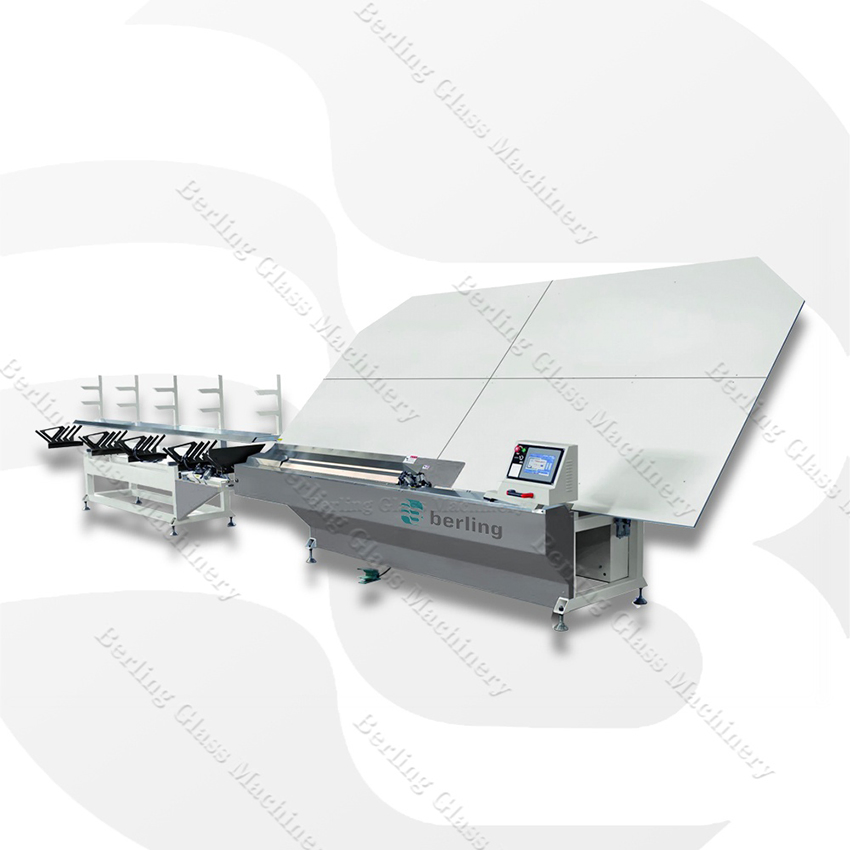

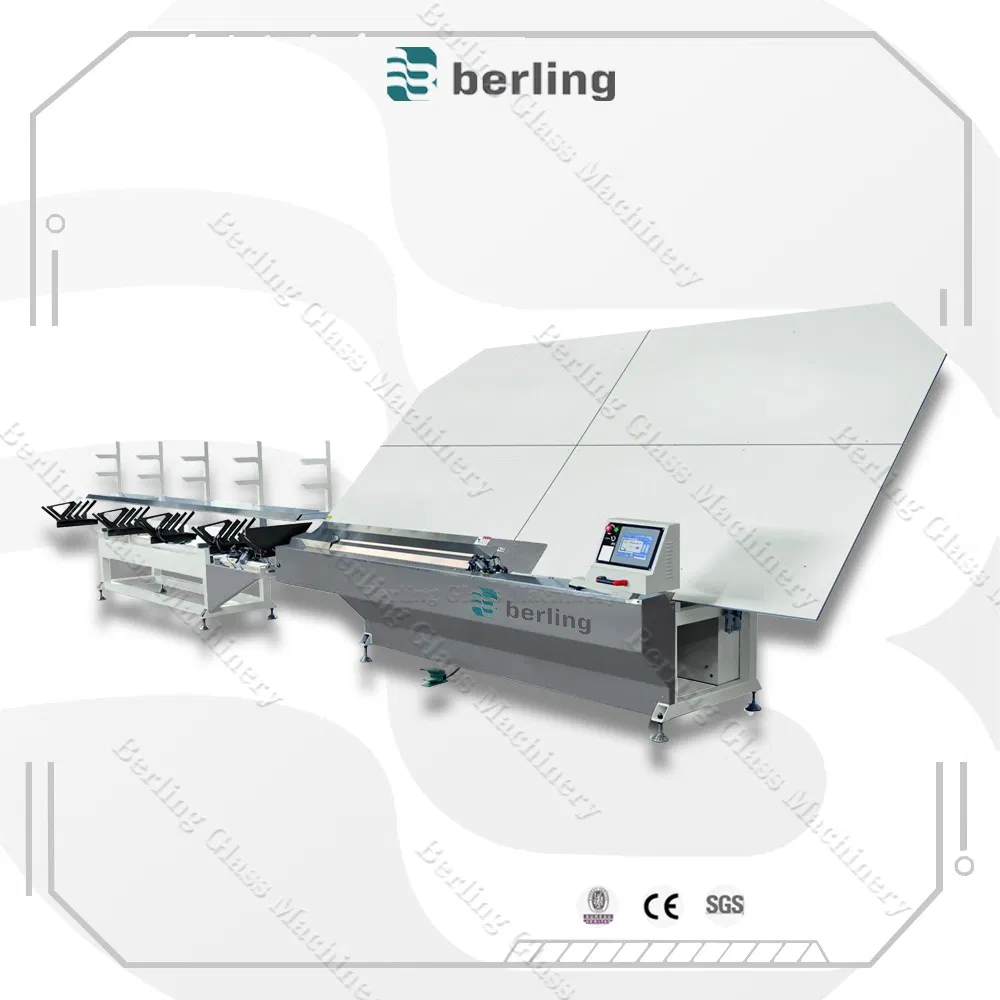

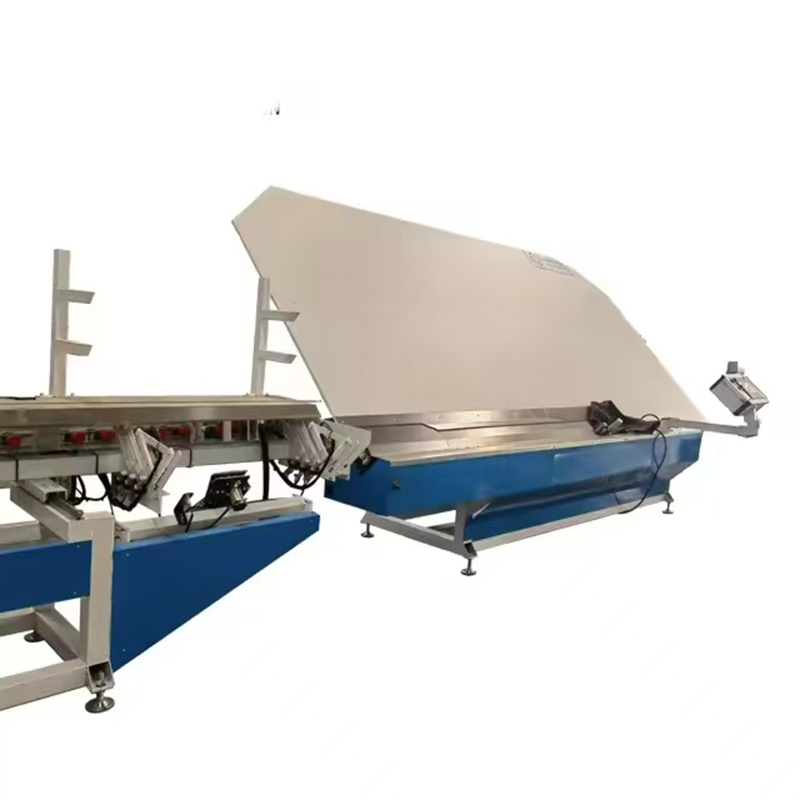

The fully automatic aluminum spacer bending machine is a specialized equipment for manufacturing grooved aluminum insulating glass. It replaces traditional production methods such as four-side pin-type assembly. This equipment can produce various convex polygonal aluminum frames from a single aluminum strip, significantly enhancing frame strength and ensuring superior sealing for longer insulating glass life. Optional laser printing is available for LOW-E glass production.

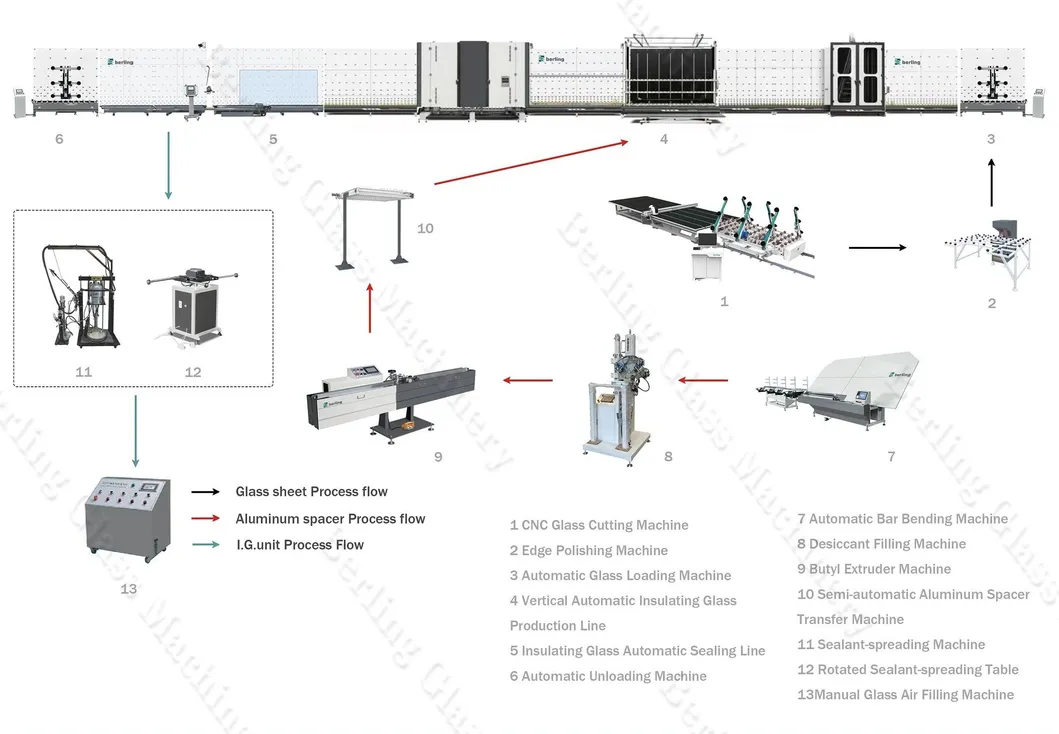

We provide a comprehensive selection of individual machines and full production lines. Our focus is on the success of your glass processing business, offering maintenance support and repair parts. Main product lines include: Insulating Glass Production Lines, Glass Washing Machines, Automatic Cutting Machines, Polishing, Laminating Machinery, Drilling/Milling, Laser Cutting, and Aluminum Spacer Bending Machines.
