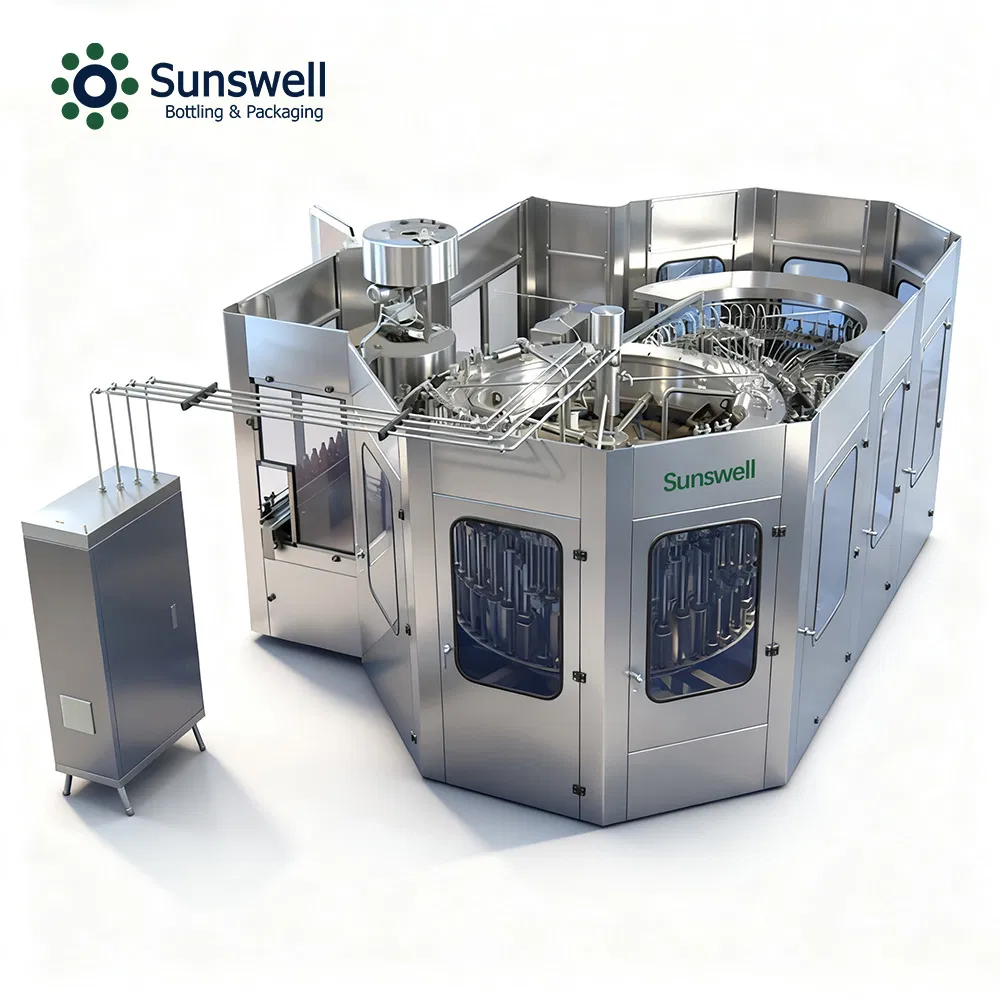

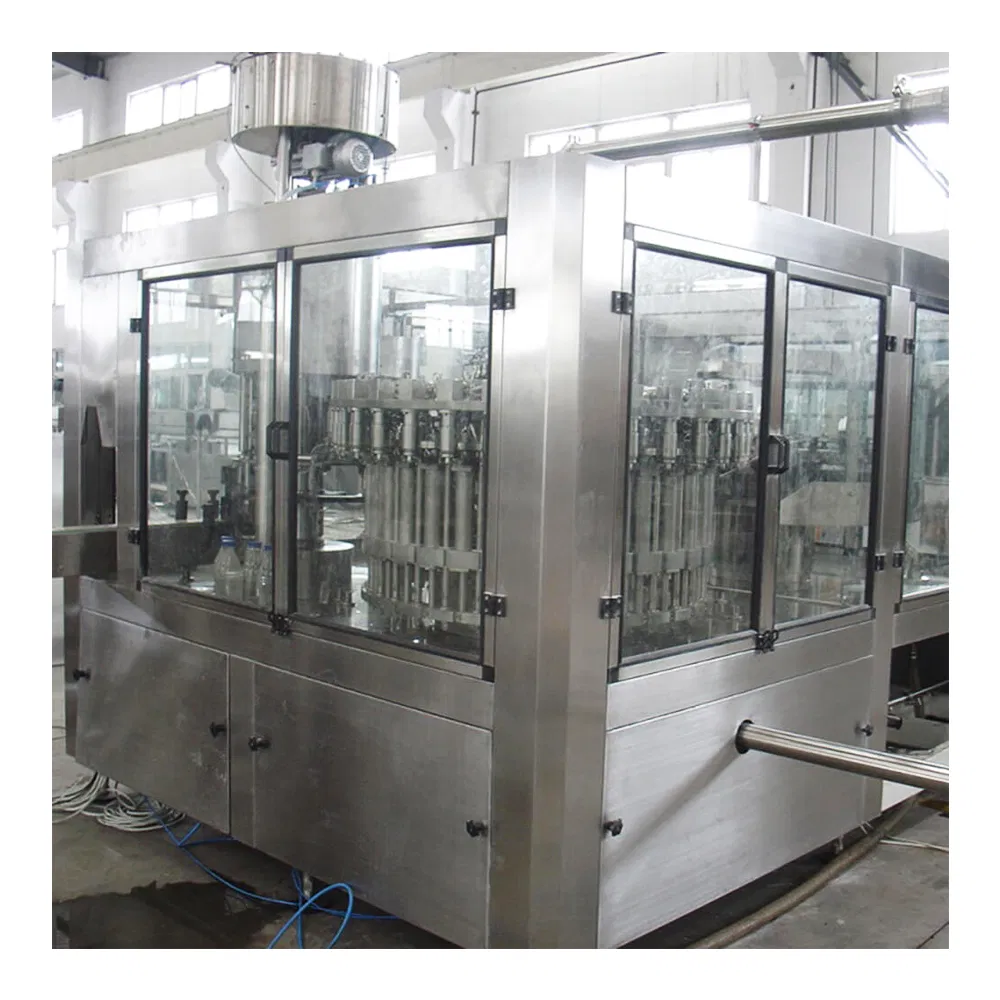

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

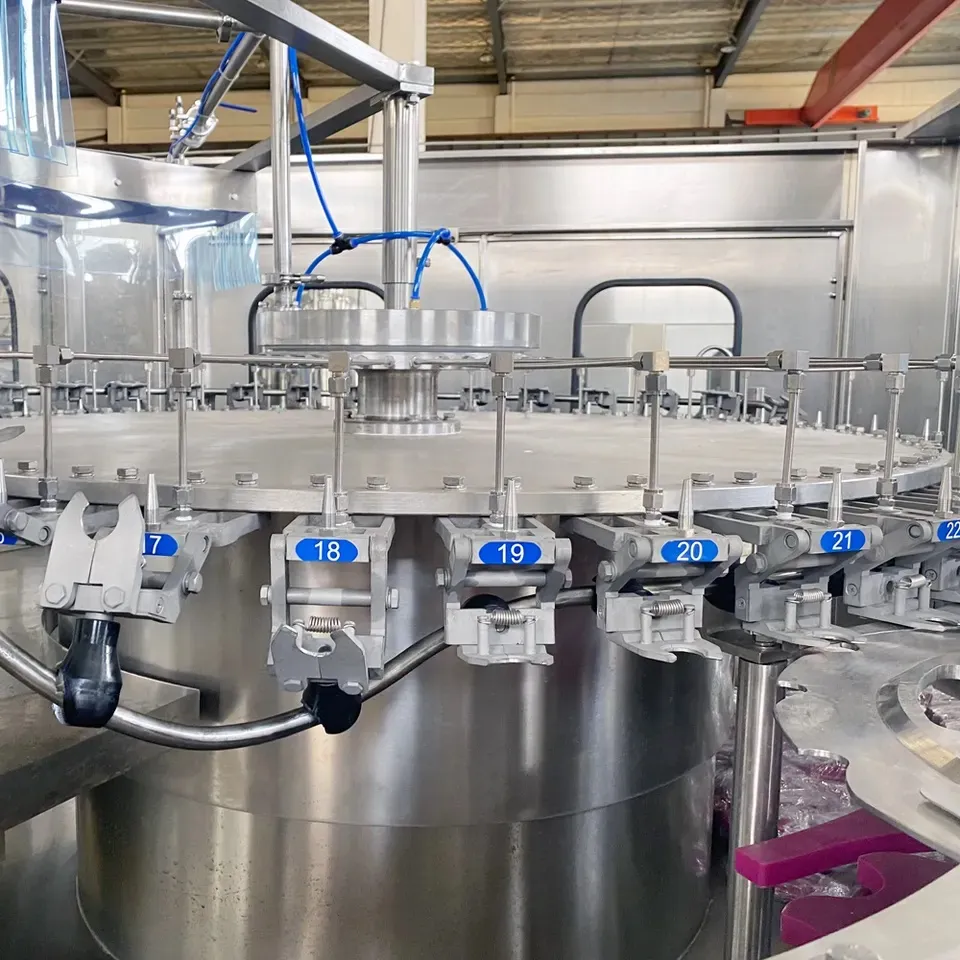

- Spring cramps are used in the bottle washing process. Empty bottles can be turned over 180° along the conveying rail. Efficient internal and external washing.
- Adopts original overturn and double-opened bottle clip (SUS304), hygienic and durable. Equipped with efficient spray nozzles with 15° angle for water saving.

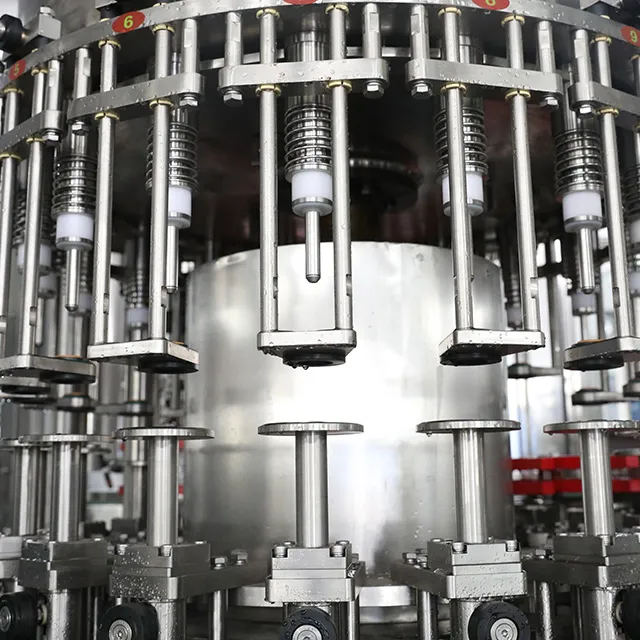

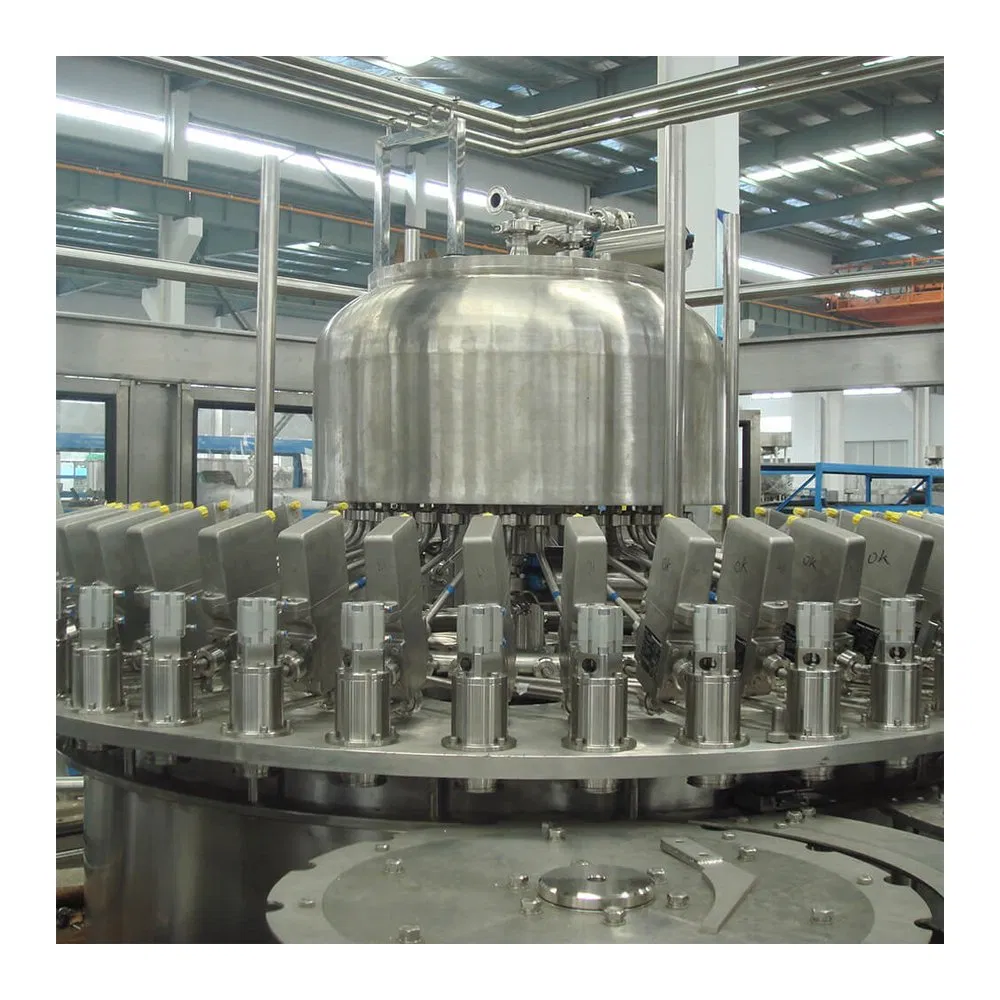

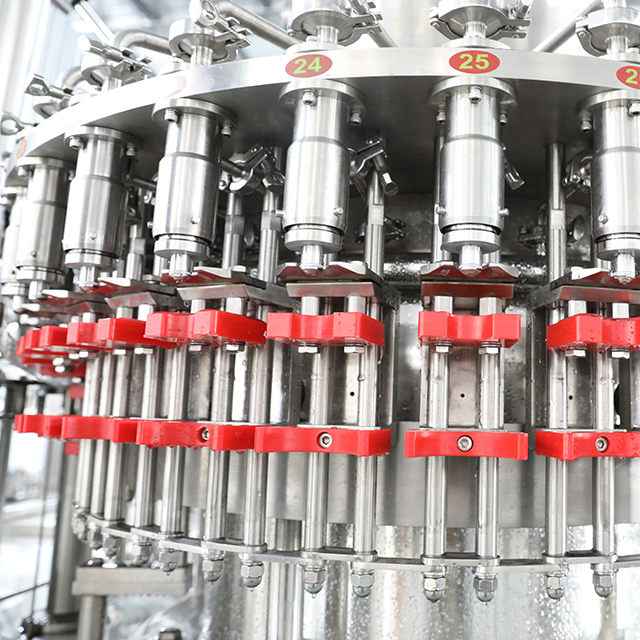

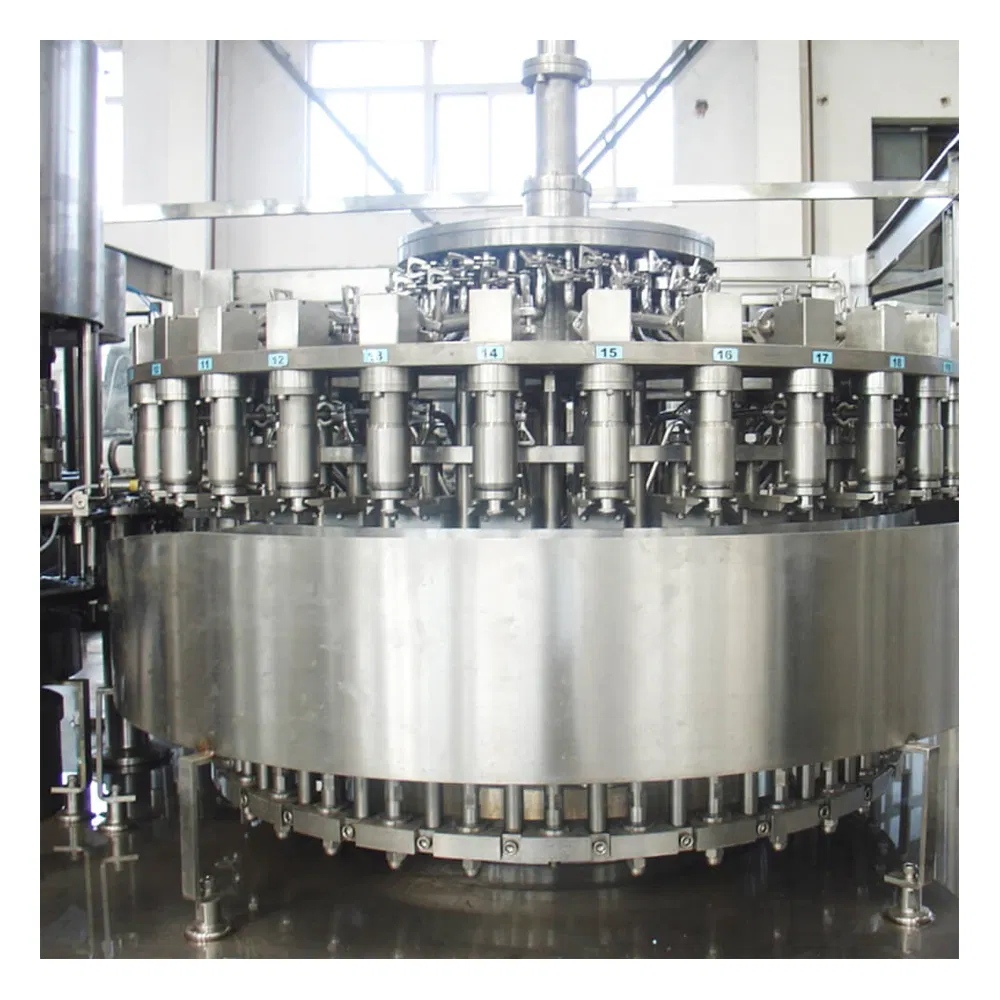

- Reasonable hygienic design, stable operation with control accuracy within ± 2mm. Filling valve material is SUS304.
- Features liquid level automatic control and valve elevator lift. Juice or hot beverages can backflow via return tank to maintain filling temperature.

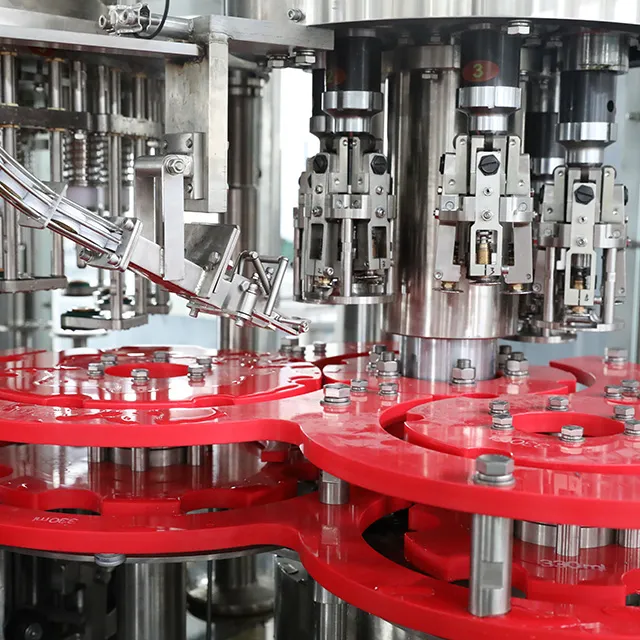

- High-precision screw capping with magnetic torque adjustment. Ensures caps are not damaged while maintaining reliable sealing.
- Photoelectrical control stops the machine automatically if no cap is present or if a cap is faulty.
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF606015 |
| Heads (W-F-C) | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 60-60-15 |
| Capacity (600ml B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 25000-30000 |
| Bottle Spec (mm) | φ=50-110 H=170-330 | 330-2250ml | |||||
| Motor Power (kw) | 2.2kw | 2.2kw | 3kw | 5.5kw | 7.5kw | 15kw |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 12800 |
