| Model NO. | DXGF14-12-5 |
| Type | Piston Filling Machine |
| Automatic Grade | Fully Automatic |
| Material Type | Liquid |
| Filling Principle | Isobaric Filling |
| Capacity | 3500bph |
| Bottle Size | 200ml-2000ml |
| Power | 2.2 Kw |
| Weight | 4200kg |
| Dimensions | 2360 * 1770 * 2650 (mm) |

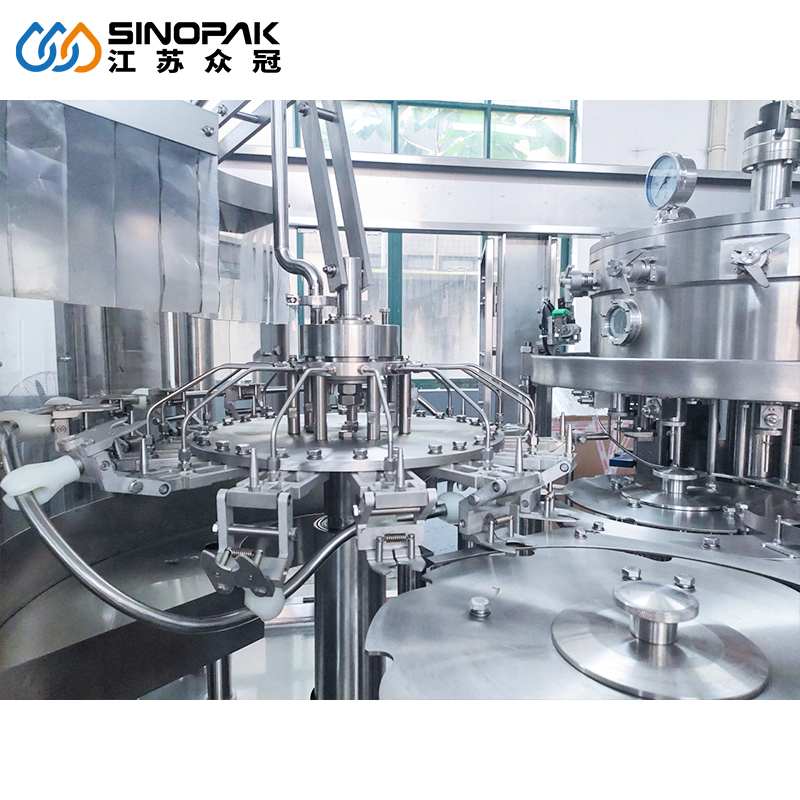

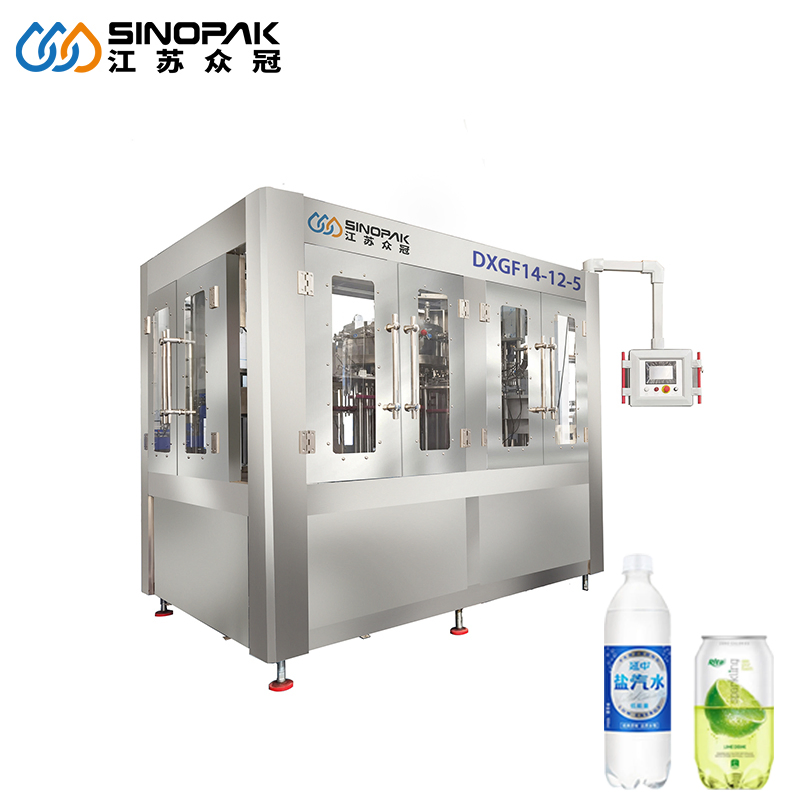

This carbonated beverage filling machine integrates washing, filling, and rotary capping functions into one unit. It is a fully automatic and high-efficiency liquid packaging solution. Suitable for carbonated beverages containing gas, all parts in contact with the medium are crafted from high-quality stainless steel or food-safe materials, meeting strict sanitation requirements. Sealing components are made of heat-resistant rubber to withstand high-temperature sterilization processes.

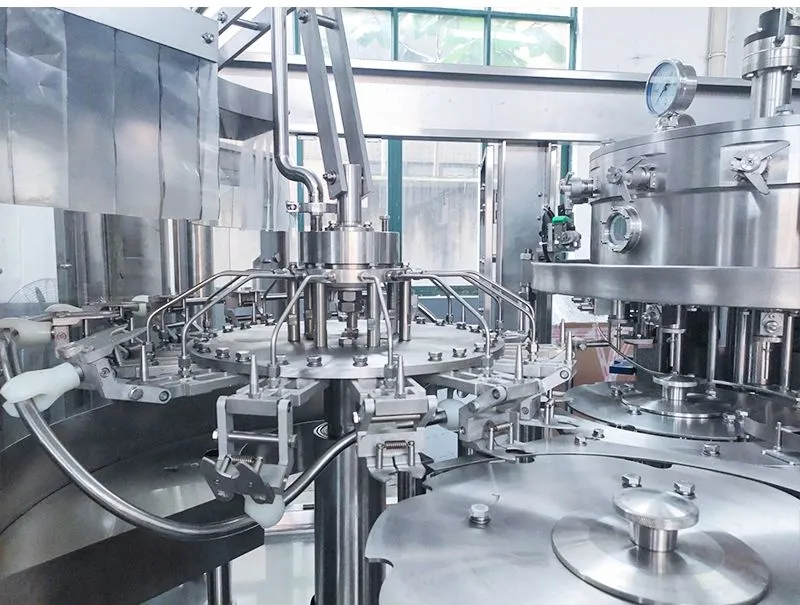

Equipped with a rotary rinsing turret and fixed nozzles. Bottle grippers securely take bottles from the inlet star-wheel, invert them over spray nozzles for thorough rinsing, and return them to an upright position.

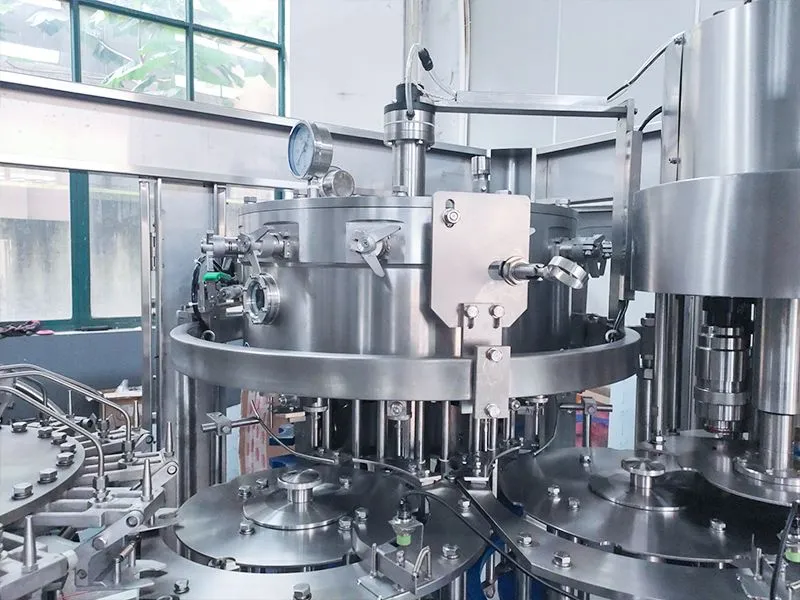

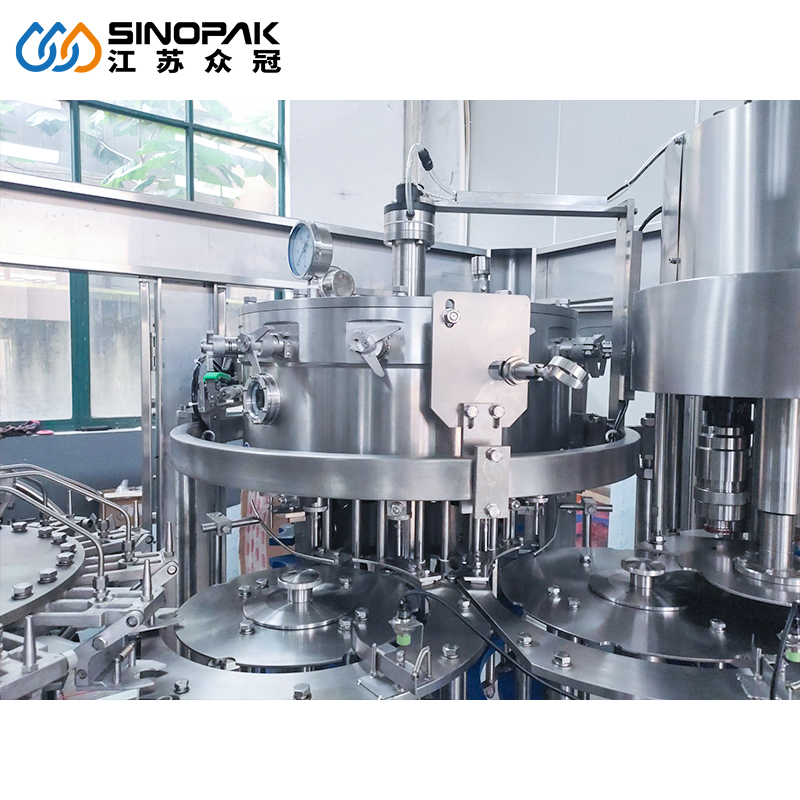

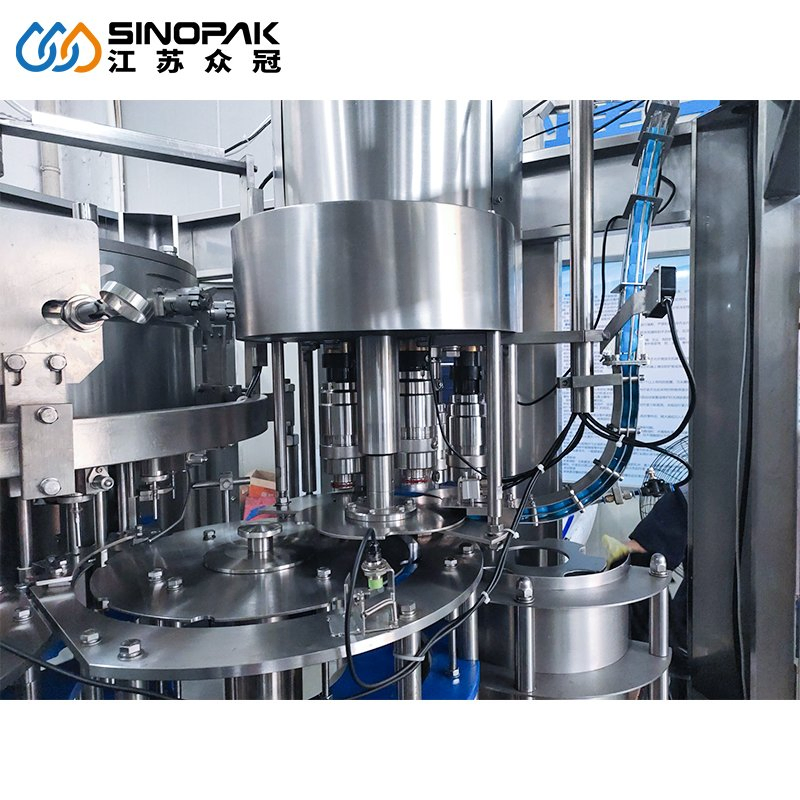

Utilizes a micro negative pressure filling system with a unique reflux design to save costs. Includes high-accuracy SUS304 construction nozzles and automatic liquid level controllers.

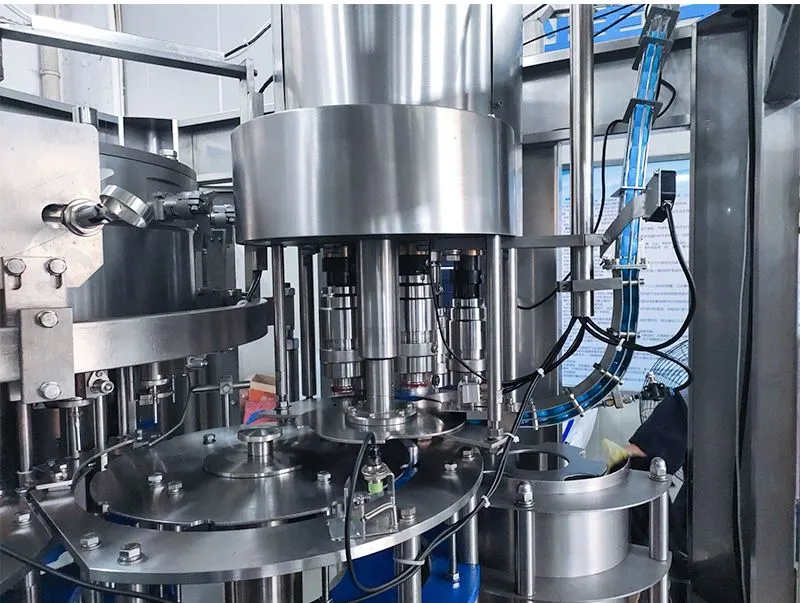

Features an anti-rotation knife system that keeps bottles upright during the capping process. The capping head realizes grabbing, covering, and screwing actions via cam-driven movements.

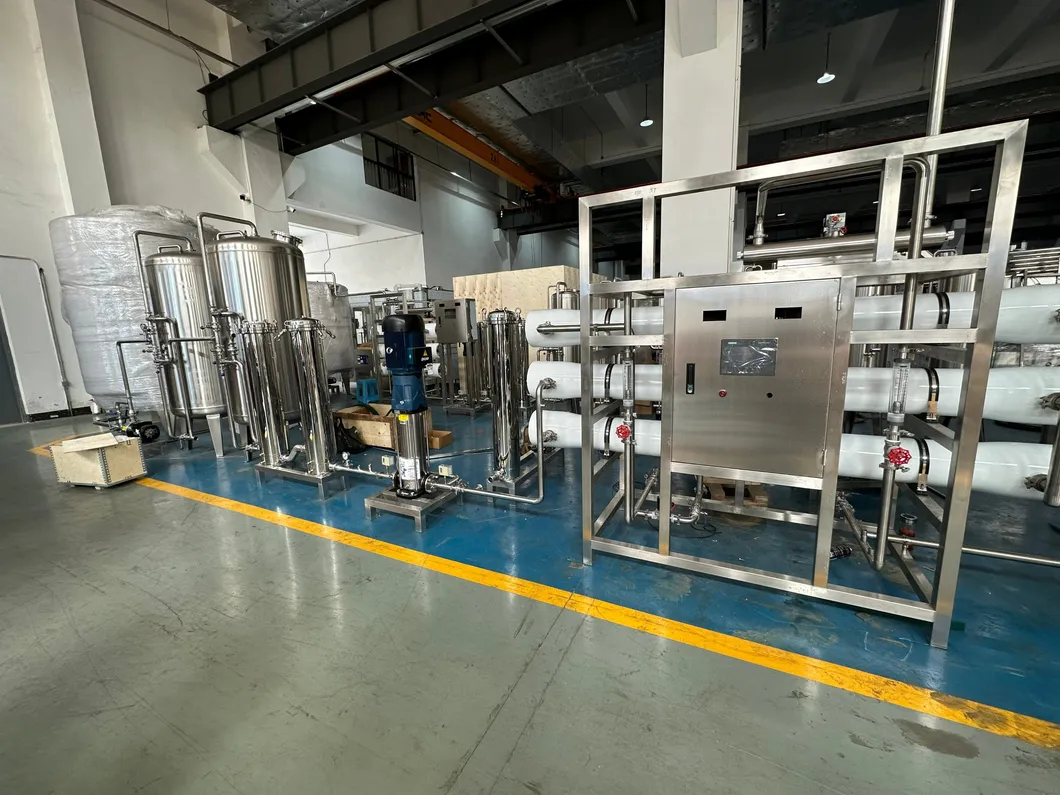

Water Treatment System
Multi-stage filtration including Silica sand, Active carbon, and Reverse Osmosis.

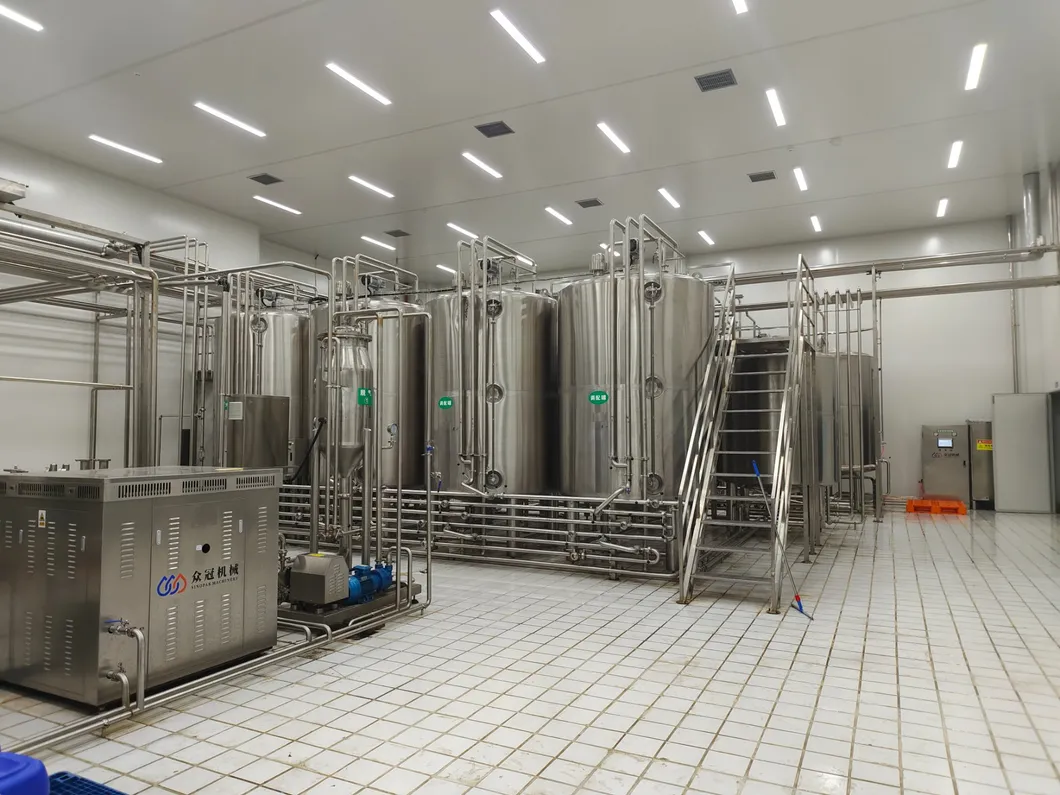

Preparation & Mixing System
Sugar melting and blending tanks for precise syrup-to-water ratios.

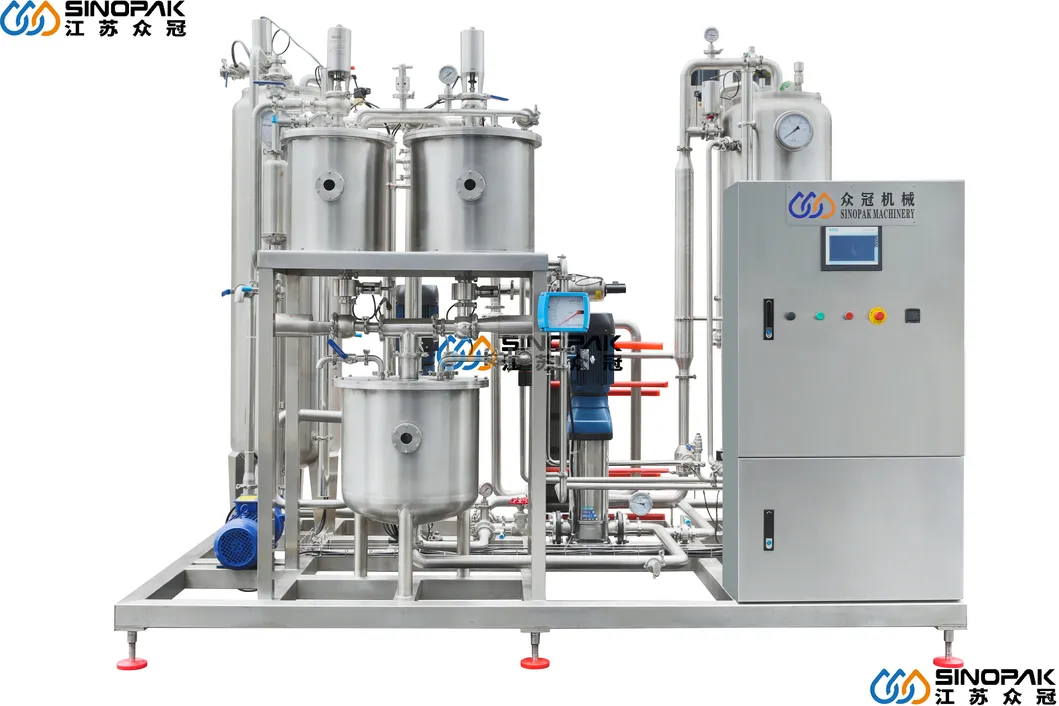

CO2 Mixing System
Vacuum deoxidation and double carbonization for high gas content (up to 4.0x).

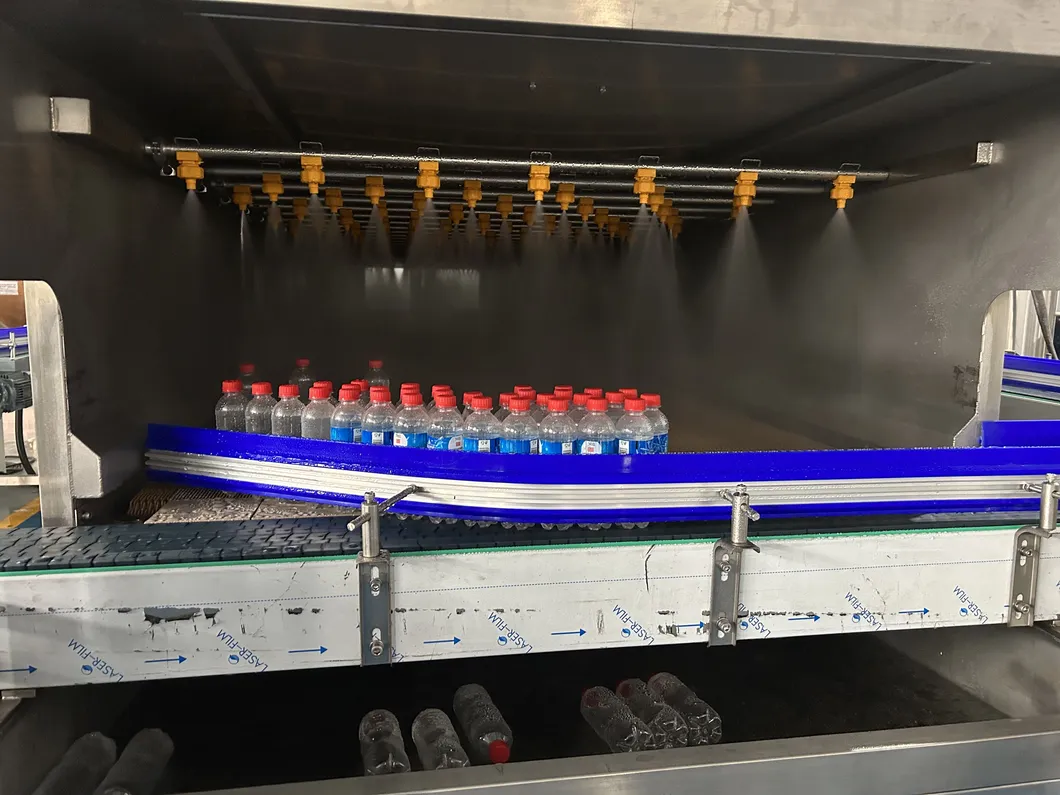

Bottle Spray Warmer
Three-section steam recycling design to stabilize bottle temperature.

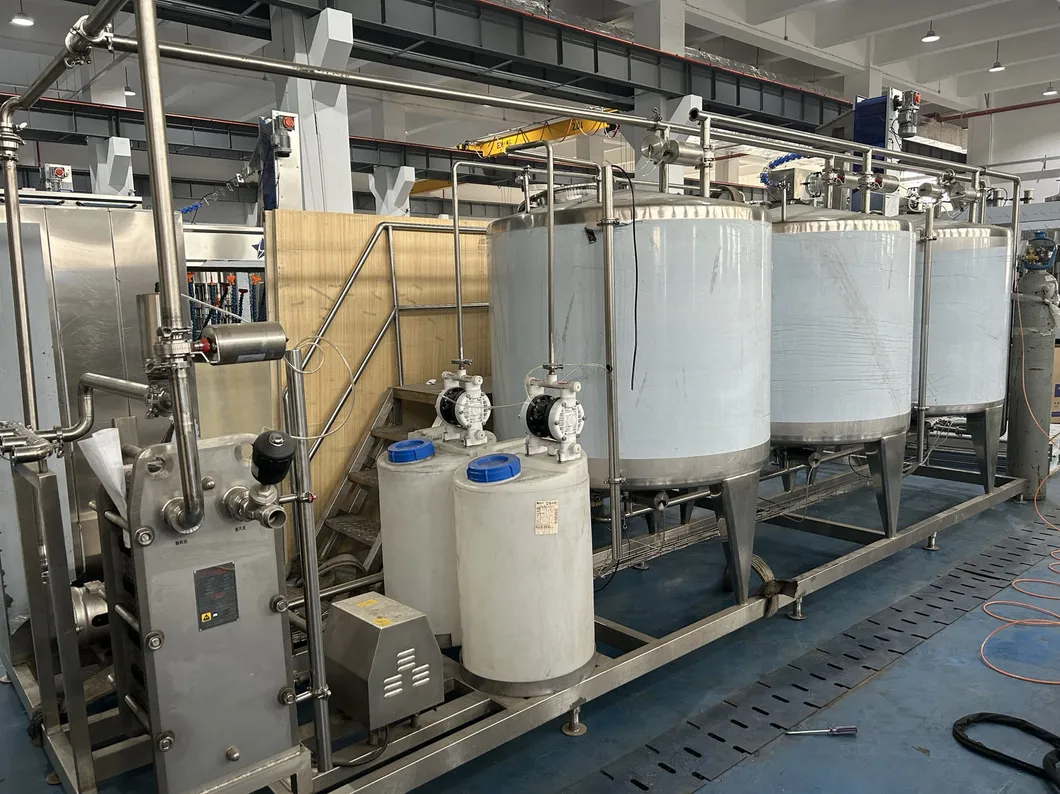

CIP Cleaning System
Automated cleaning with acid, alkali, and water tanks for hygiene.

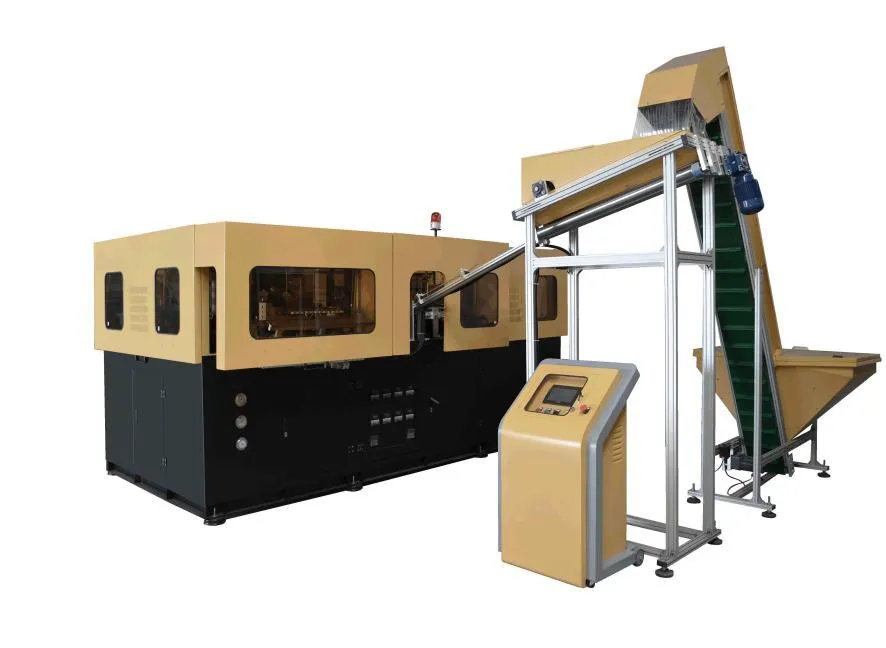

Bottle Blowing Machine
Automatic preform loading and uniform heating with low energy consumption.
Hot Melt Glue Labeling
High-speed OPP film labeling with 30% lower production costs.

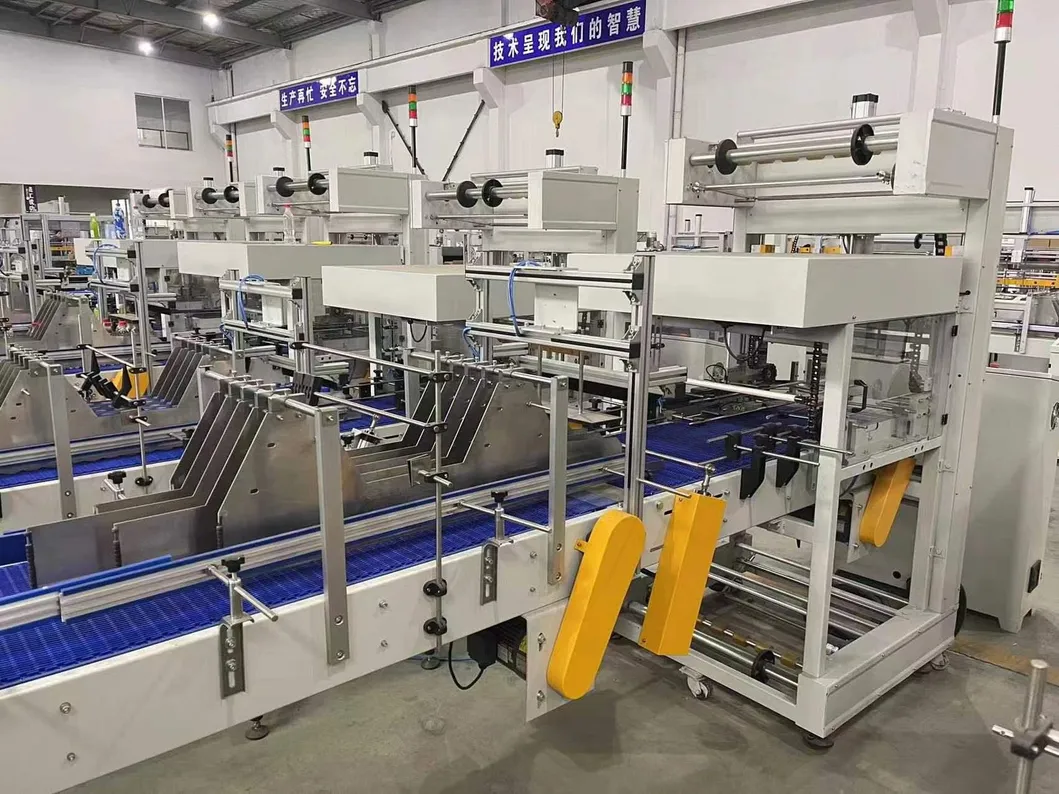

Shrink Film Wrapping
PLC controlled automatic unscrambling, sealing, and cooling.
| Component | Specification |
|---|---|
| Washing/Filling/Capping Nos | 14 / 14 / 5 |
| Capacity | 3500 BPH |
| Suitable Bottle | PET Circular/Square with Screw Cap |
| Bottle Volume | 200ml to 2000ml (Customized) |
| Bottle Dimensions | Dia 50-115mm; Height 160-320mm |
| Air Pressure | 0.3-0.4 Mpa |
| Filling Theory | Isobaric Filling |
