Note: With many years of experience and development, we have obtained the full capacity to offer complete and professional Turnkey Projects for you. It is quite worthy of your choice. Welcome to visit and consult us.

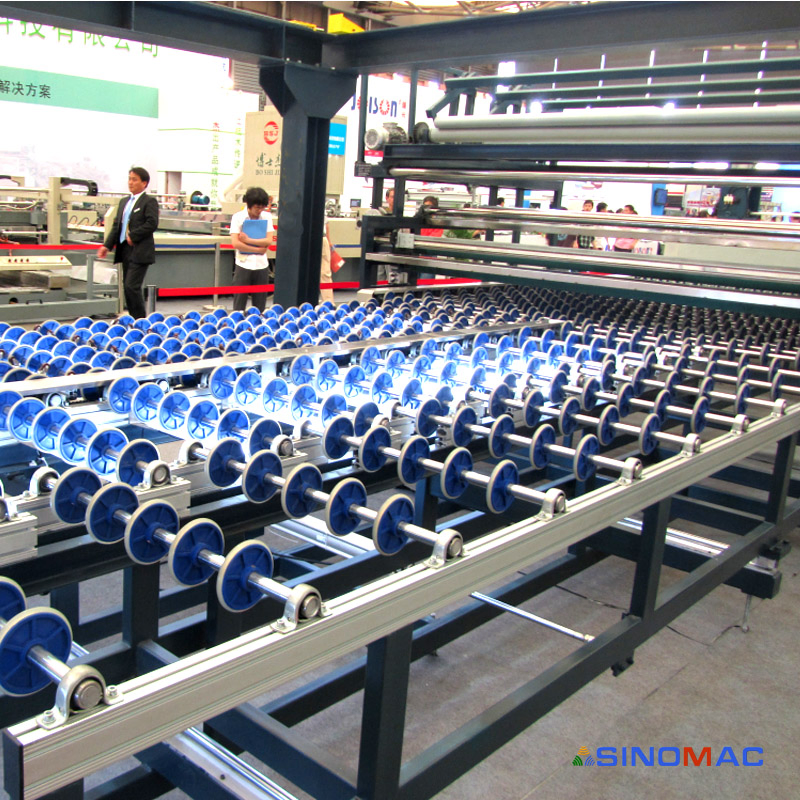

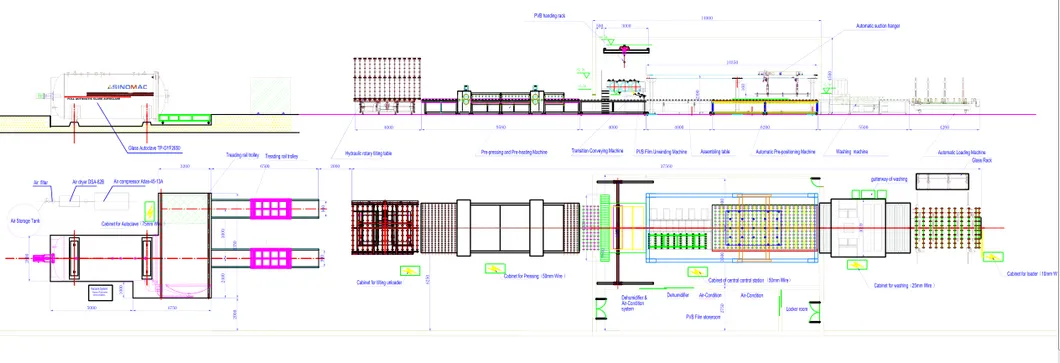

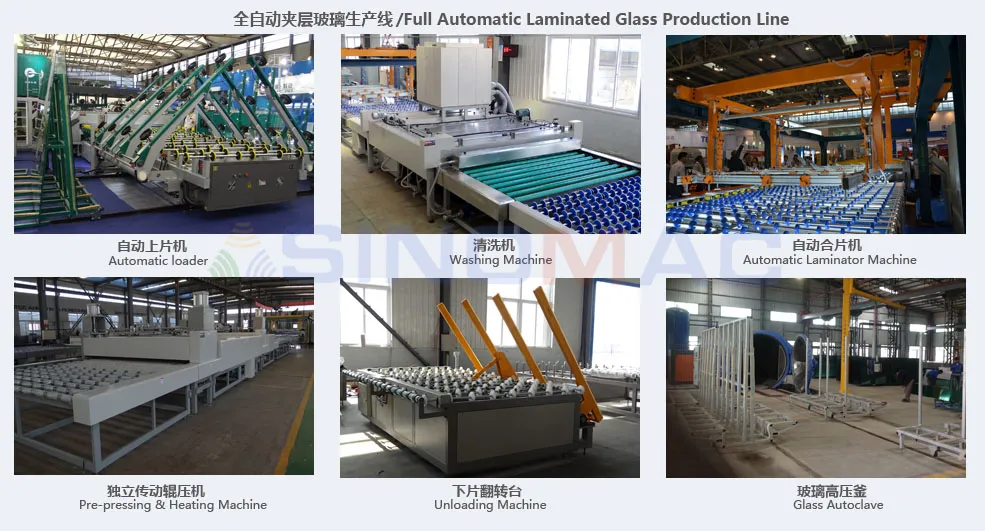

For Flat Laminated Glass: Loading → Washing → Assembly Automatic → Pre-heating and Pressing → Unloading → High Pressing into Autoclave → Final Product
For Bent Laminated Glass: Washing → Assemble by Hand → Vacuum in Autoclave → High Pressing in Autoclave → Final Product

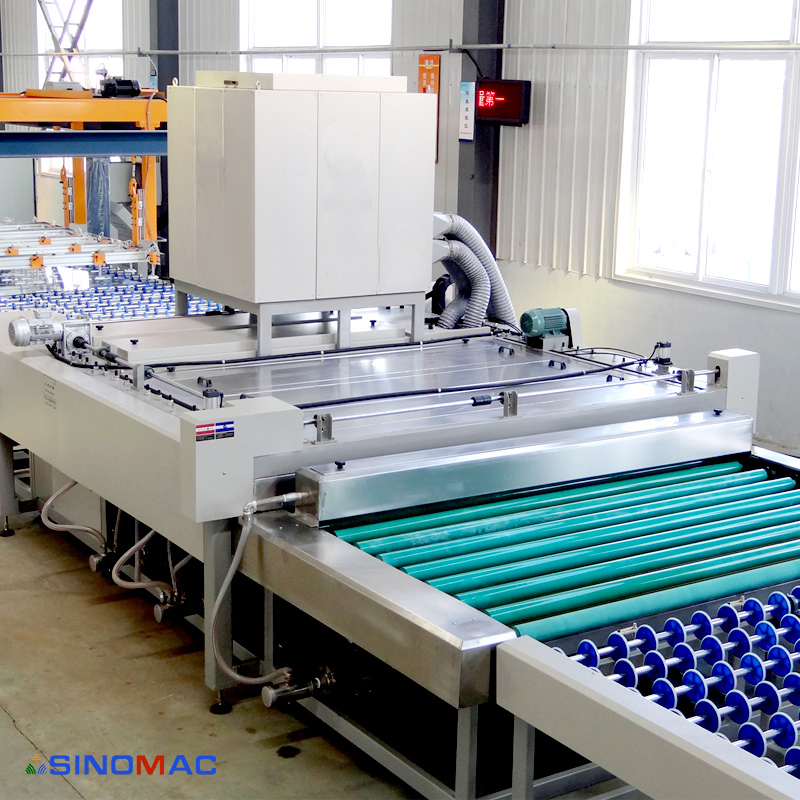

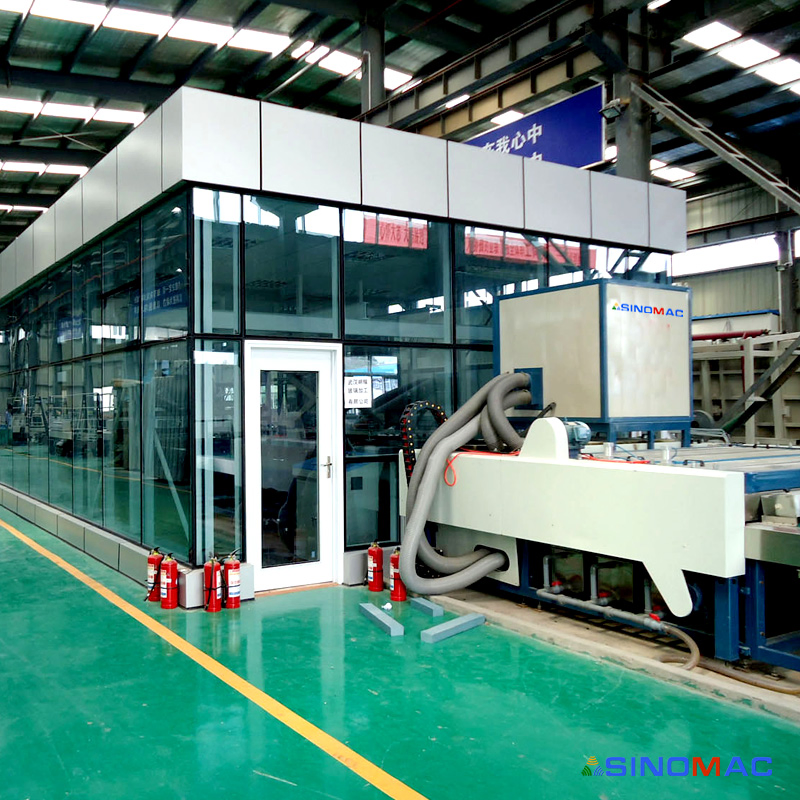

Washing and Drying: Core equipment featuring adjustable rubber rollers, brush rollers, and air-knives. The upper section can be elevated by 400mm for maintenance. Specifically designed to handle hard LOW-E and coated glass without damage.

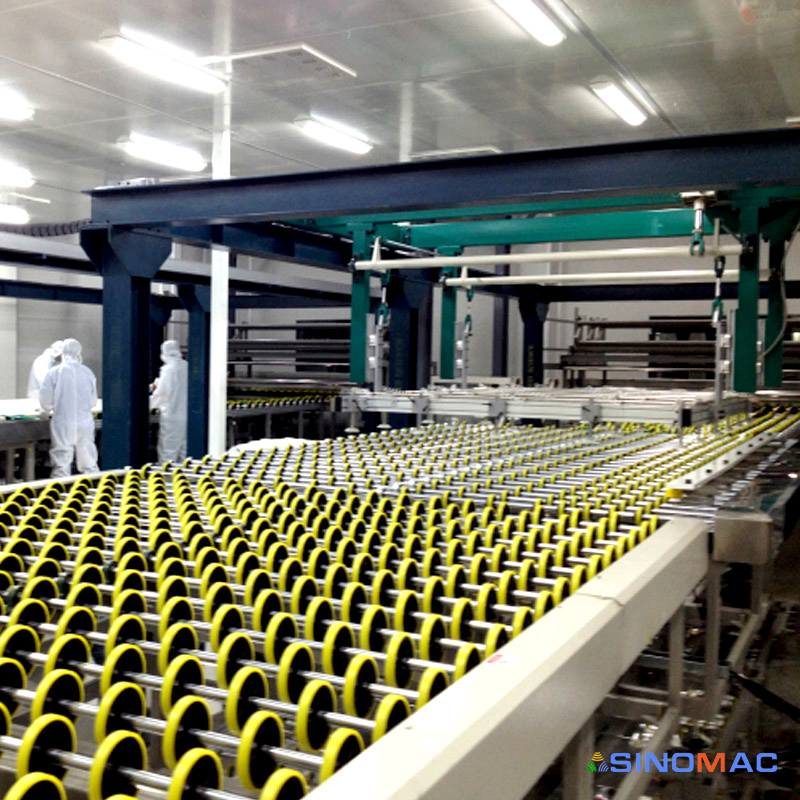

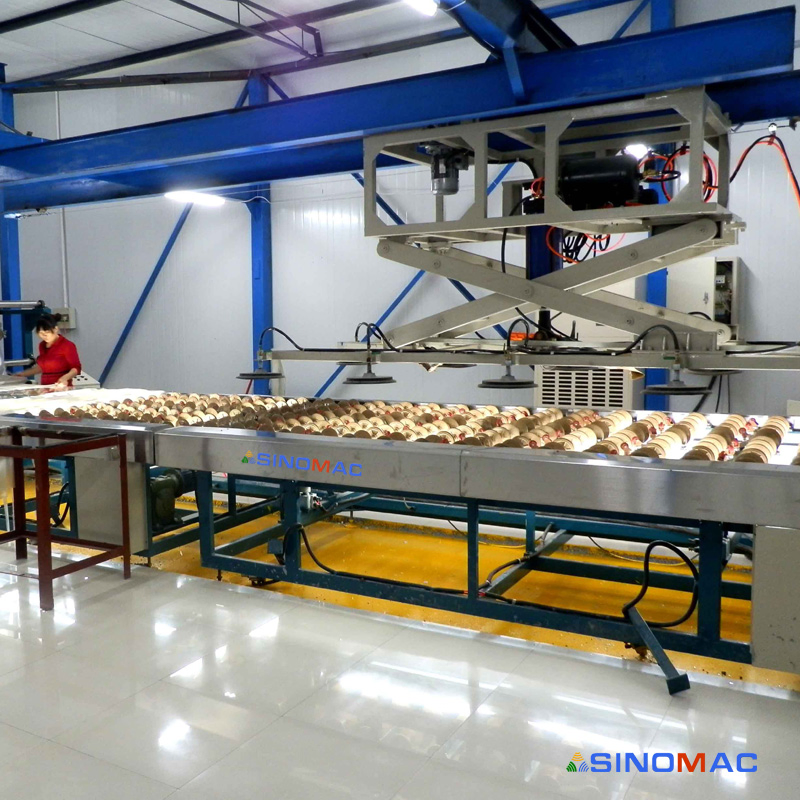

Laminating Section: Includes servo-driven automatic suction hangers and motor-driven PVB unwinding. Features both automatic and manual modes for high-speed glass transfer and efficiency.

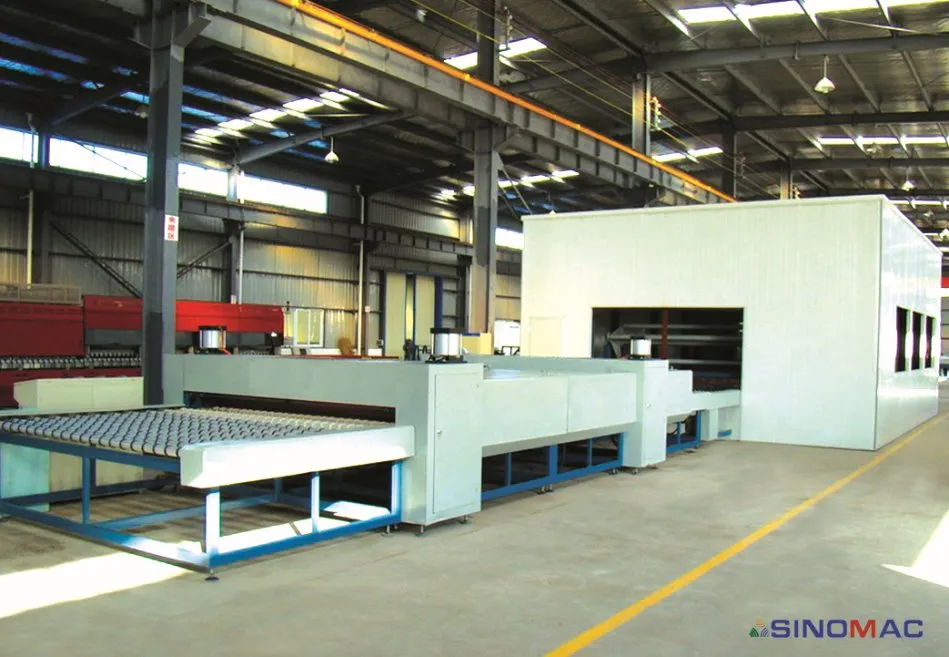

Pre-pressing & Heating: Reasonable structure with gear transmission and quartz tube heating. Precision clearance adjustment via PLC ensures product accuracy.
Autoclave: Forced convection system with safety-optimized PLC control and HMI interface for energy saving and reliability.
| Model | Max. Glass Size | Min. Glass Size | Glass Thickness | Total Power | Capacity |
|---|---|---|---|---|---|
| SN-JCX2060A | 2000×6000 mm | 420×300 mm | 4-80 mm | 302.5 Kw | 1200 sqm/8h |
| SN-JCX2560A | 2500×6000 mm | 420×300 mm | 4-80 mm | 335.5 Kw | 1500 sqm/8h |
| SN-JCX2580A | 2500×8000 mm | 420×300 mm | 4-80 mm | 358 Kw | 1800 sqm/8h |
| SN-JCX3080A | 3000×8000 mm | 500×400 mm | 4-80 mm | 503 Kw | 2000 sqm/8h |
| SN-JCX3280A | 3200×8000 mm | 500×400 mm | 4-80 mm | 565 Kw | 2350 sqm/8h |
