| Model NO. | ZNJ2540I/II |
|---|---|
| Control System | Automatic, Touch Screen Control |
| Glass Thickness Range | 12-56mm |
| Warranty | 1 Year |
| Servo Motor | Yaskawa |
| Power Supply | 380V 7kw |
| Max. Glass Size | 2500*4000mm |
| Min. Glass Size | 300*300mm |
| Transport Package | Sea Worthy Package |
| Specification | 8033*1400*2950mm |
| Production Capacity | 30 Sets/Month |

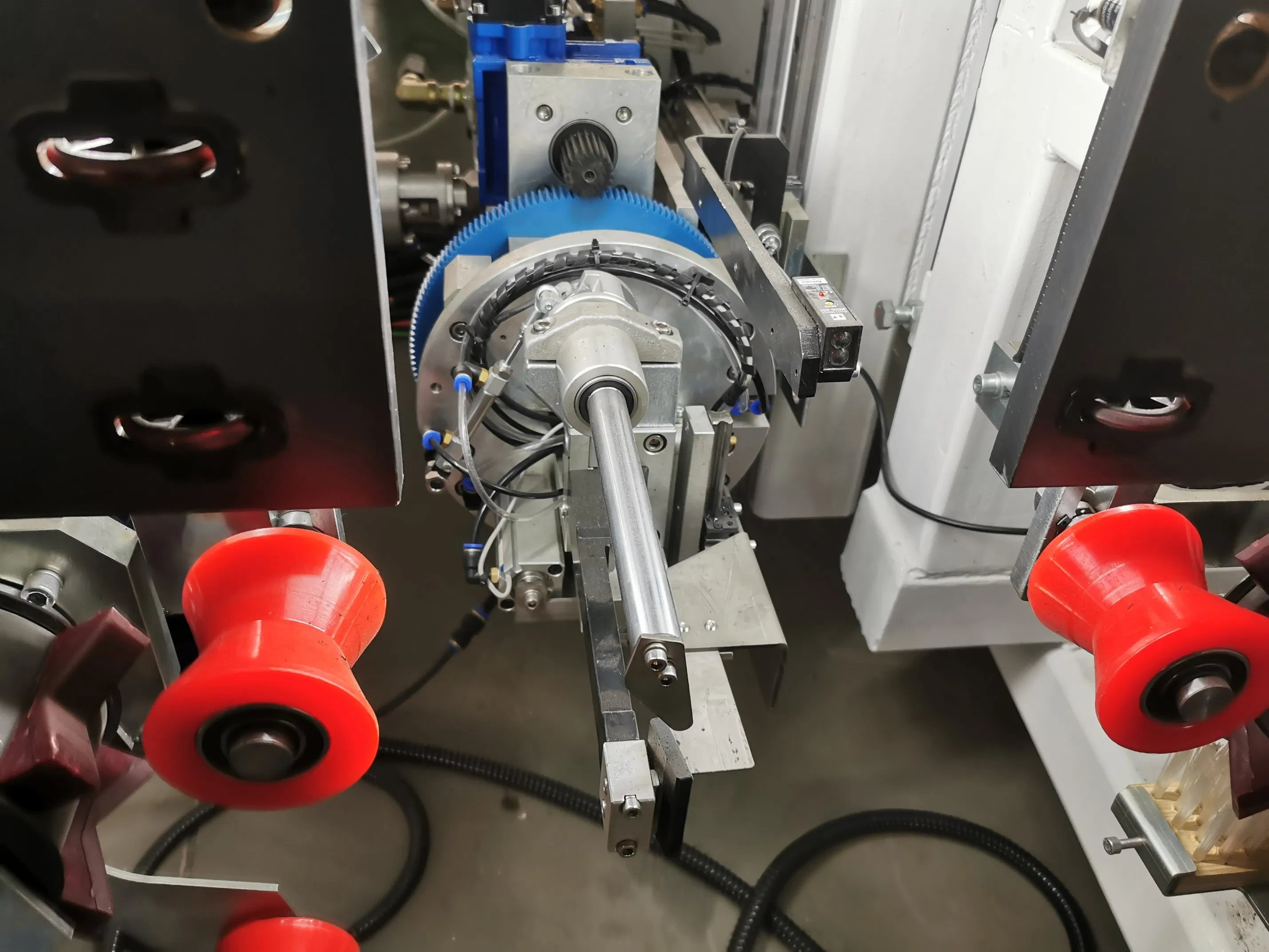

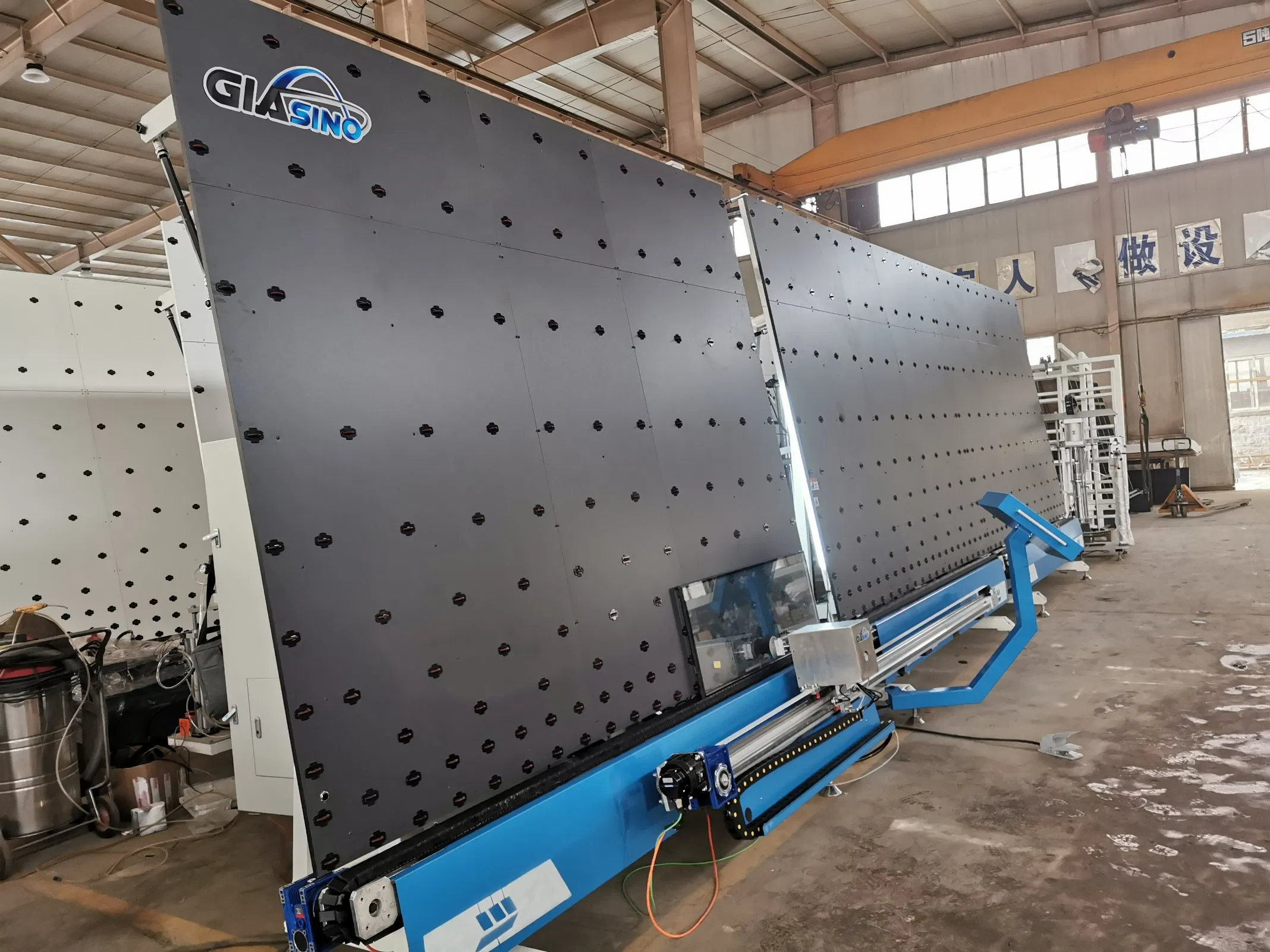

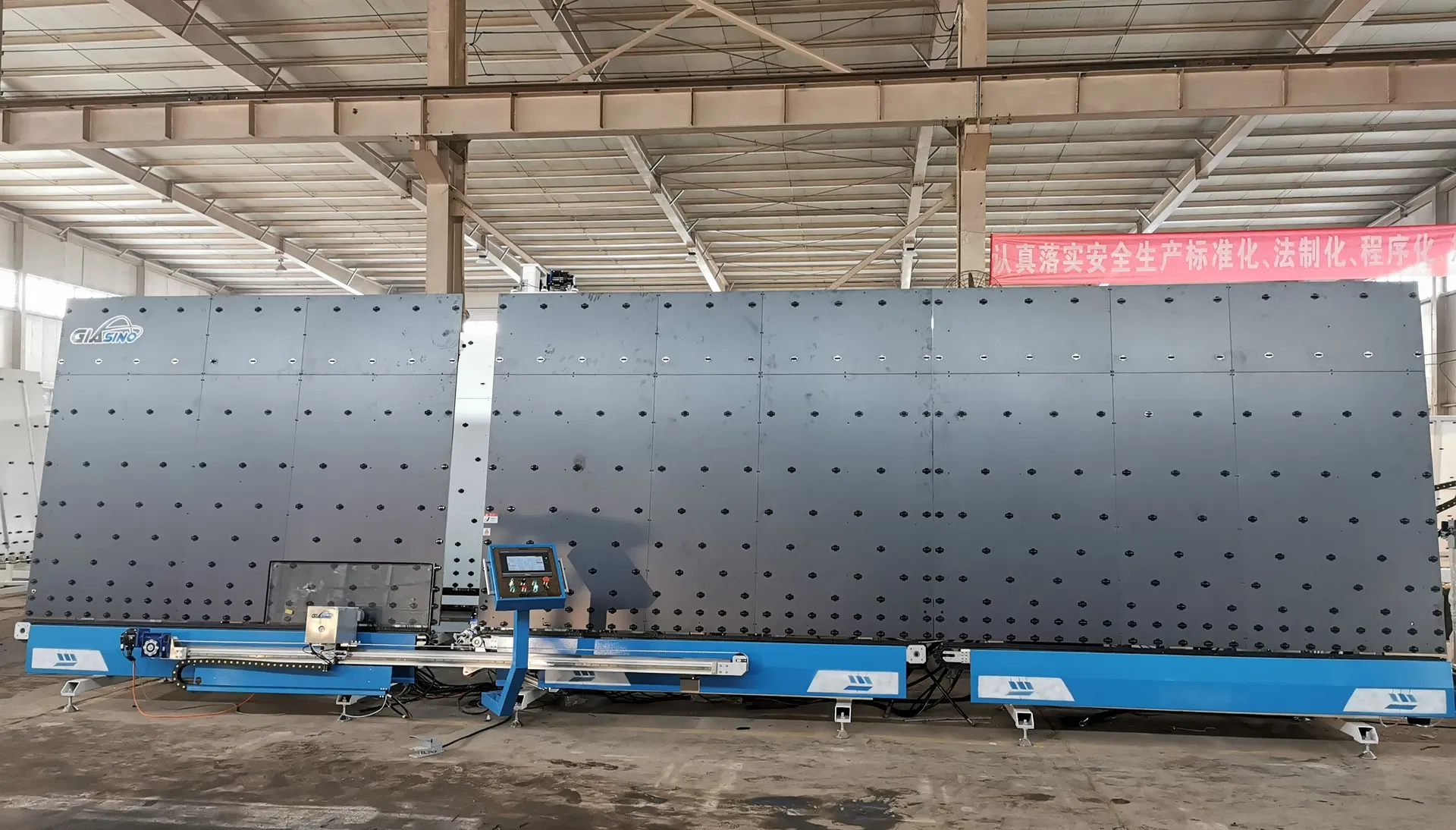

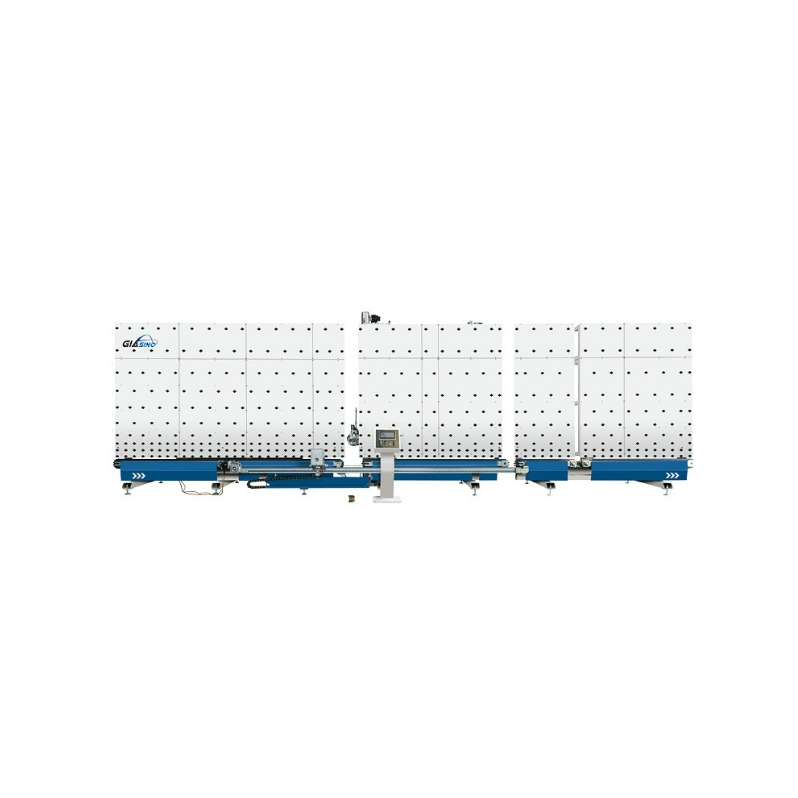

Solve Your Pain Points: Tired of high labor costs, uneven sealing, and slow production? Our Automatic Insulating Glass Sealing Robot is designed to fix these issues—combining high automation, top-tier components, and space-saving design, it's the ideal choice for insulating glass factories.
Bubble-free sealing, no corner correction needed.

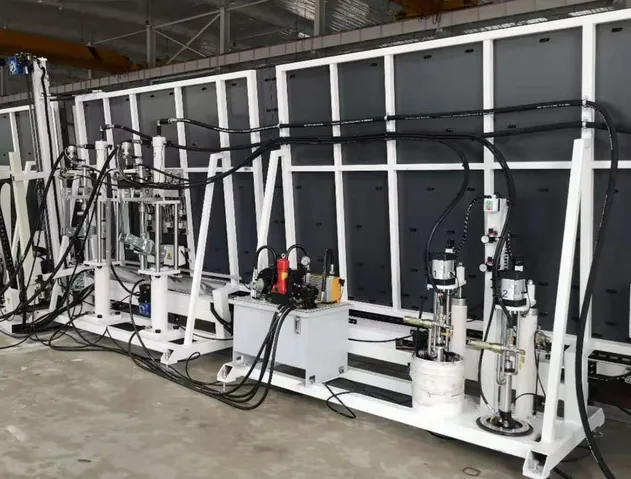

Dual sealant supply (Model II) + one-click switch.

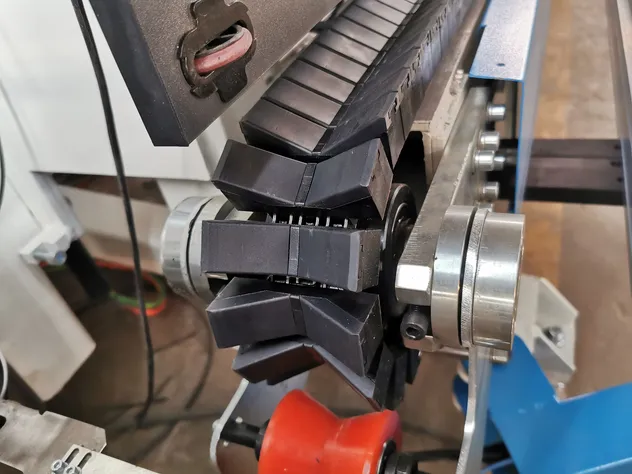

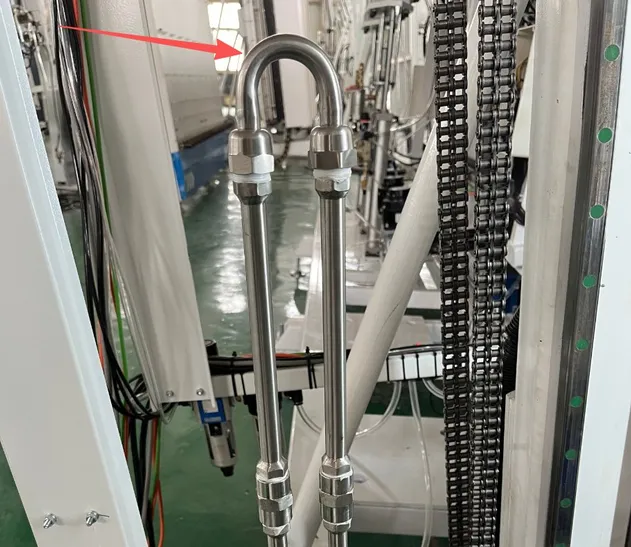

Anti-clog mixer + replaceable V-belt for low downtime.
3-glass pre-storage + high-speed positioning for smooth conveying.

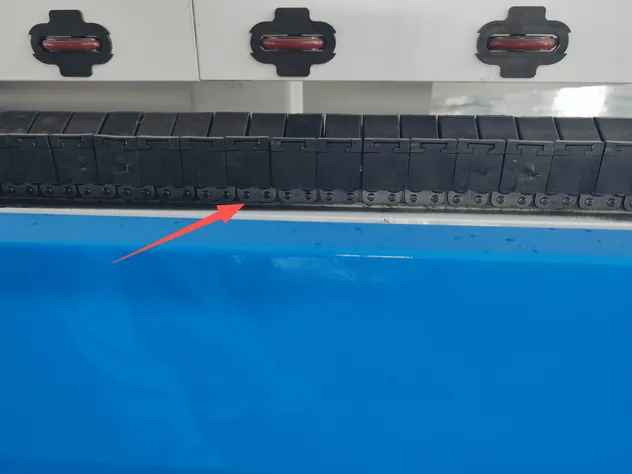

| Ultra-High Efficiency | - 3-glass pre-storage reduces waiting time. - Handles double, triple, and step glass. - Chain-type transmission avoids deviation. |
|---|---|

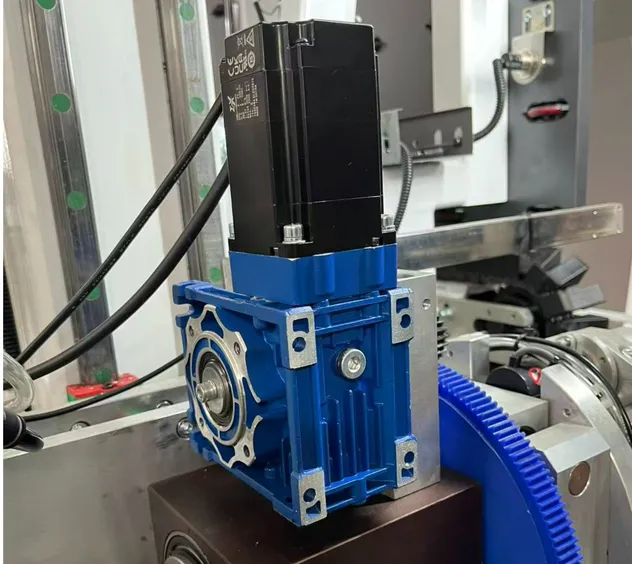

| Top-Grade Quality | - Yaskawa servo system for smooth dispensing. - V-type belt keeps glass edges clean. - Handles pieces from 300*300mm. |

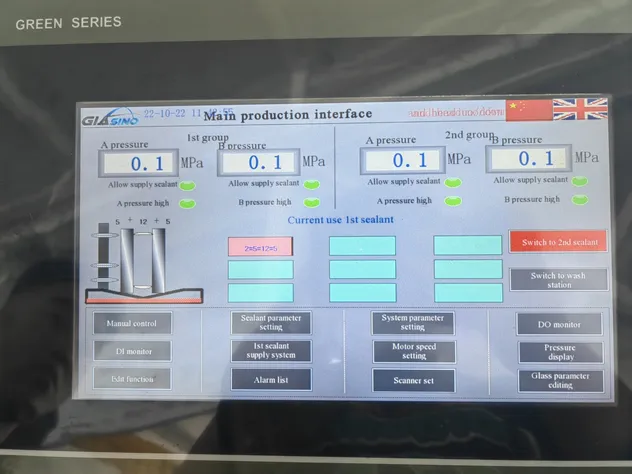

| Easy Operation | - Intelligent touch screen (Ethernet communication). - One-click mixer cleaning. |
| Space-Saving | - 1.4m width fits narrow workshops. - Switch between sealants in 1 second. |
| Models | ZNJ2025 | ZNJ2540 |
|---|---|---|
| Max. glass size | 2500*2000mm | 4000*2500mm |
| Min. glass size | 300*300mm | 300*300mm |
| Glass thickness | 12~56mm | 12~56mm |
| Working speed | 5~40m/min | 5~40m/min |
| Dimension | 8030*1400*2950mm | 8630*1400*3500mm |
| Power | 7kW | 7kW |
| Squeeze pressure | 32MPa | 32MPa |

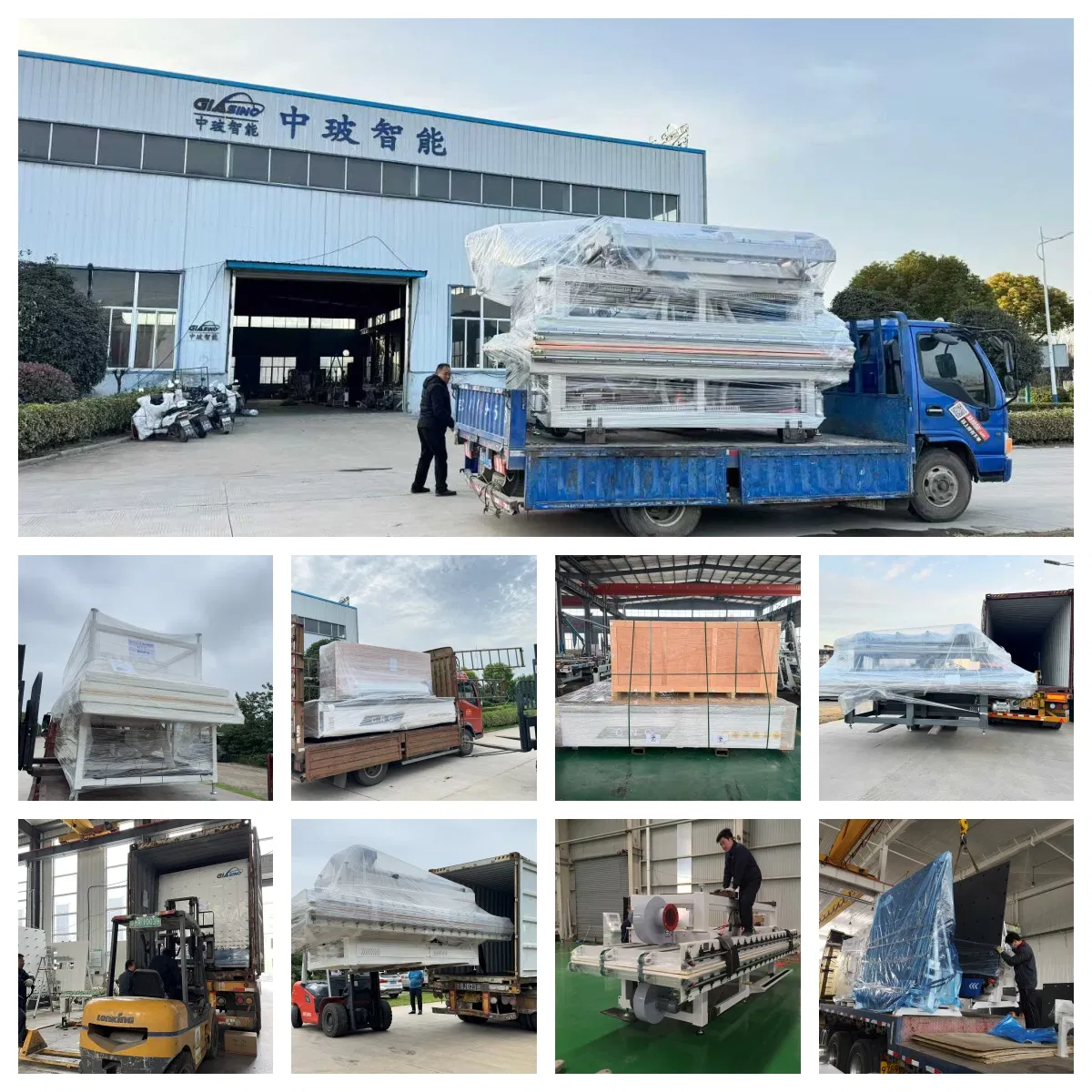

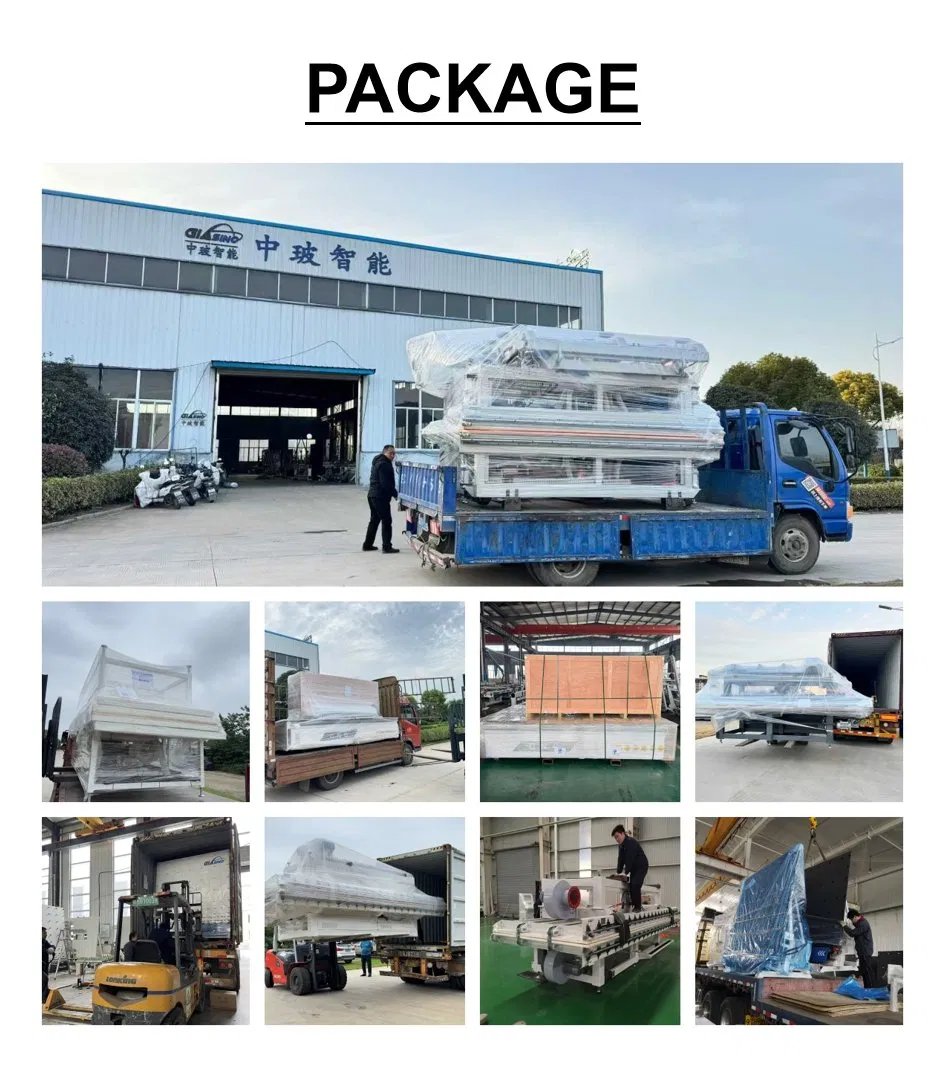

The entire equipment is tightly covered with cling film to prevent rain exposure during transportation or moisture damage during sea shipping. Packing straps secure the equipment to prevent collisions or shaking during transit, ensuring safety and protecting the surface for subsequent installation.
