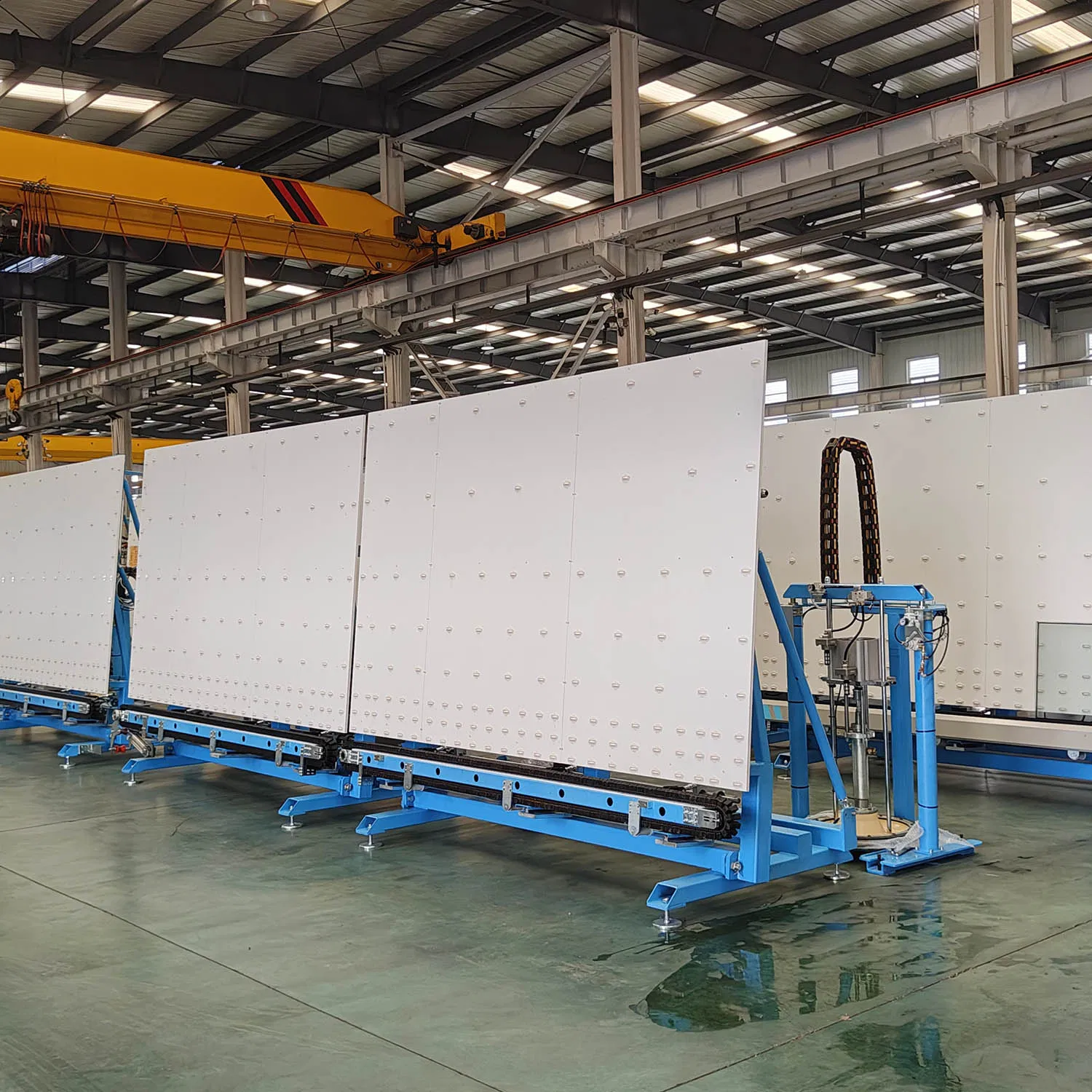

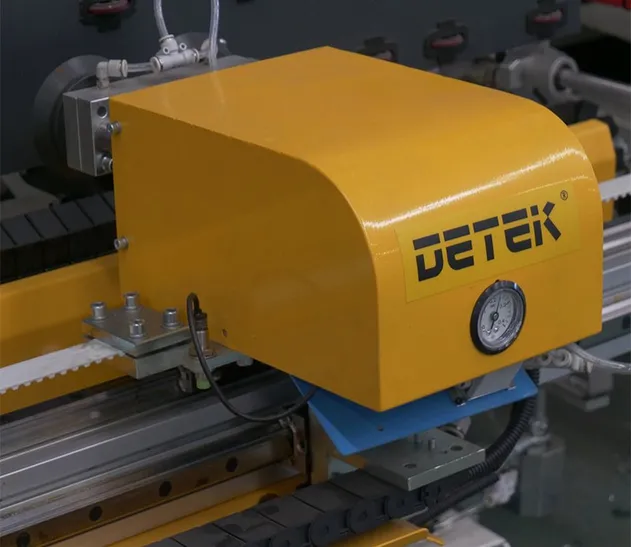

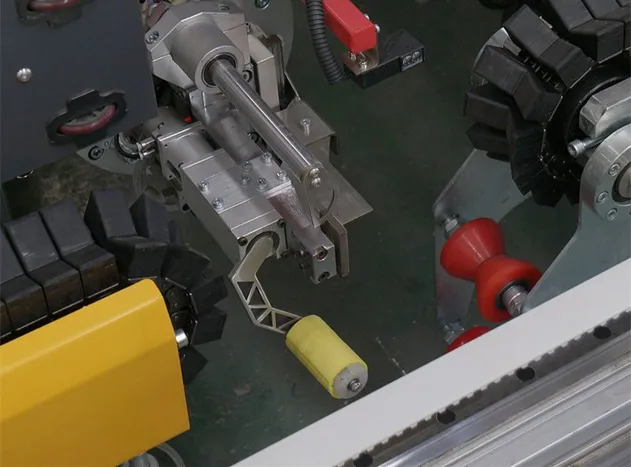

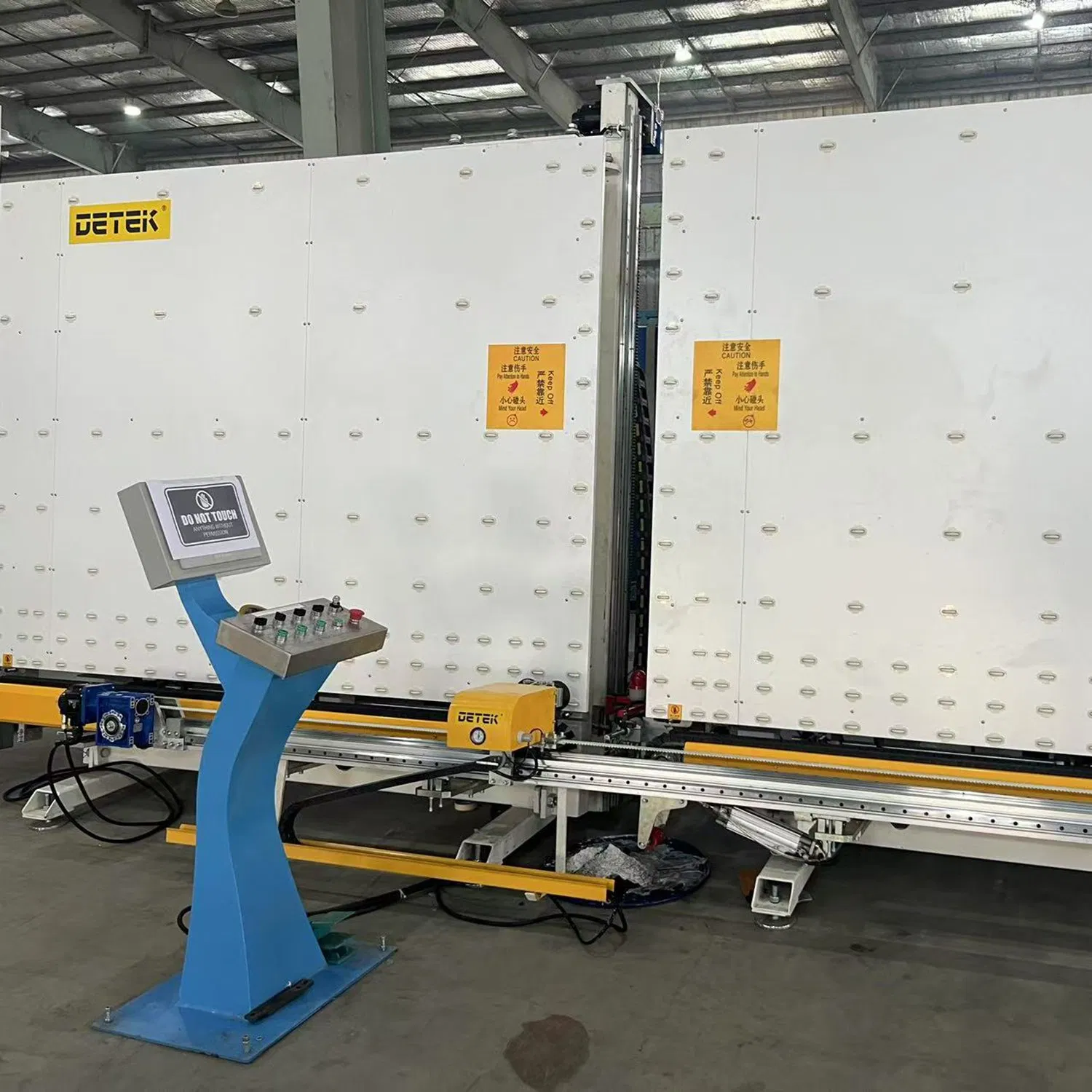

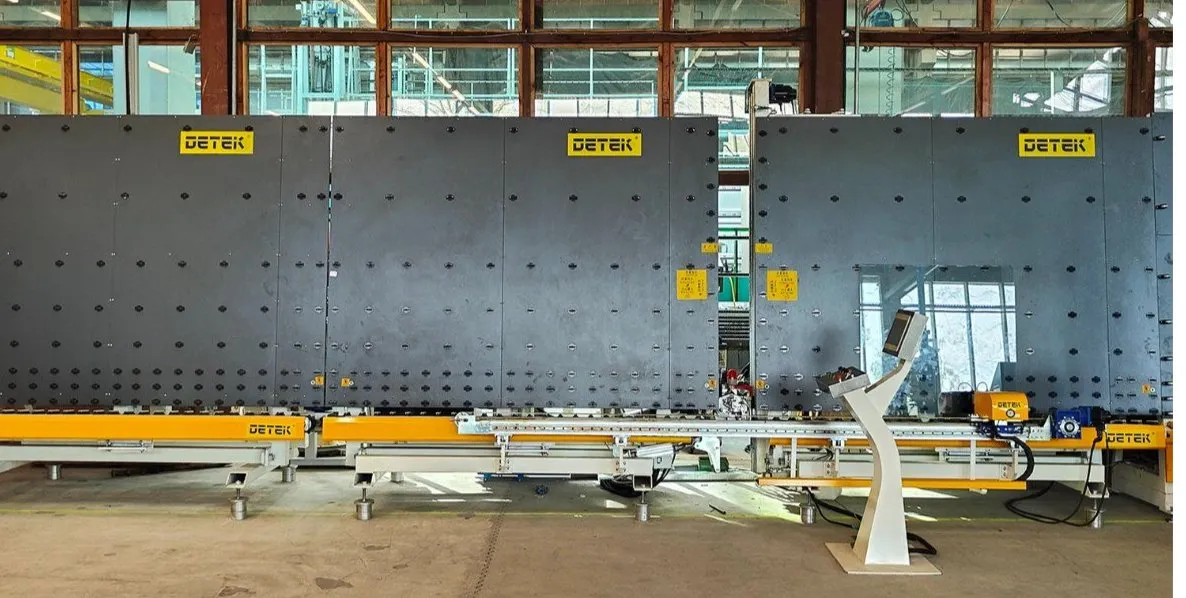

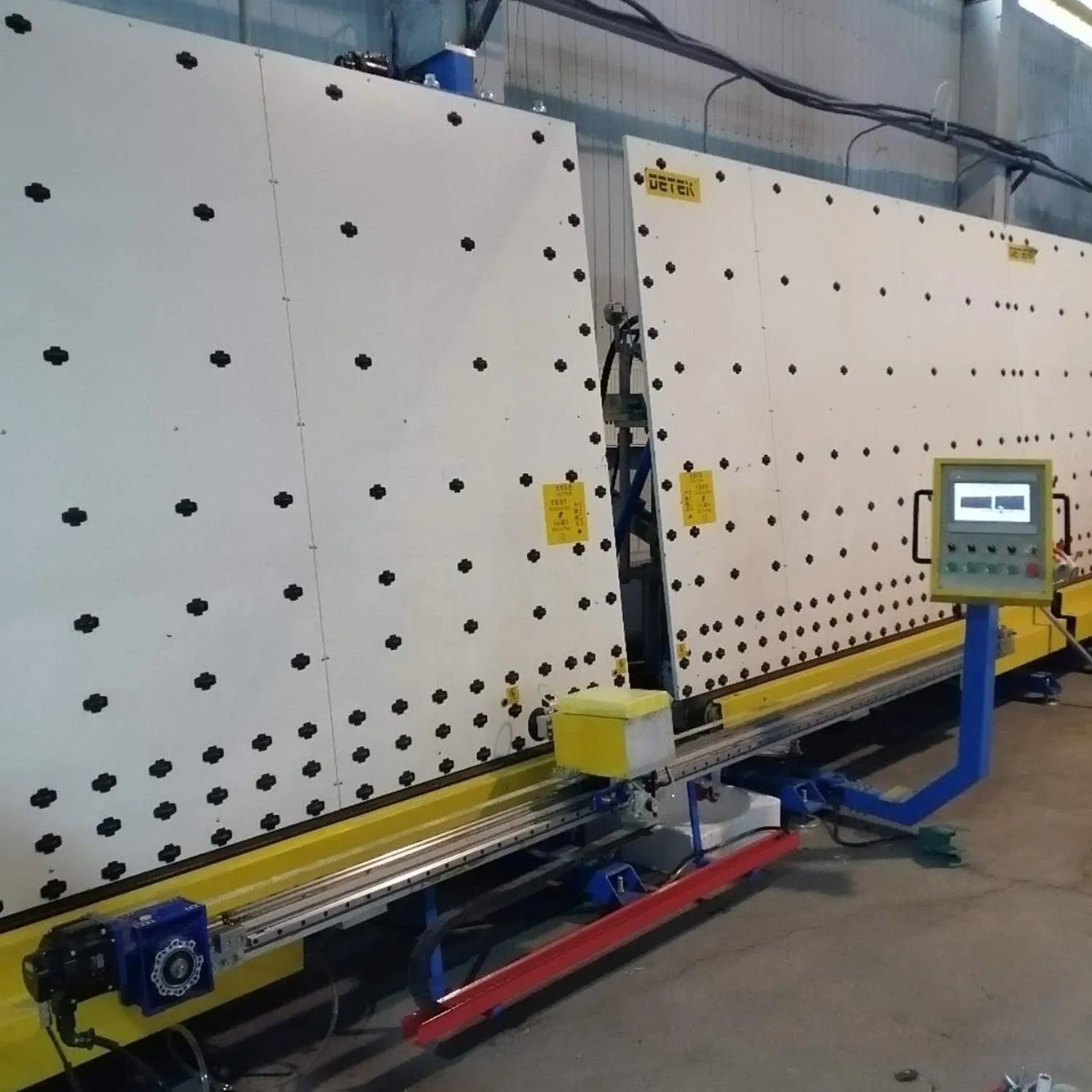

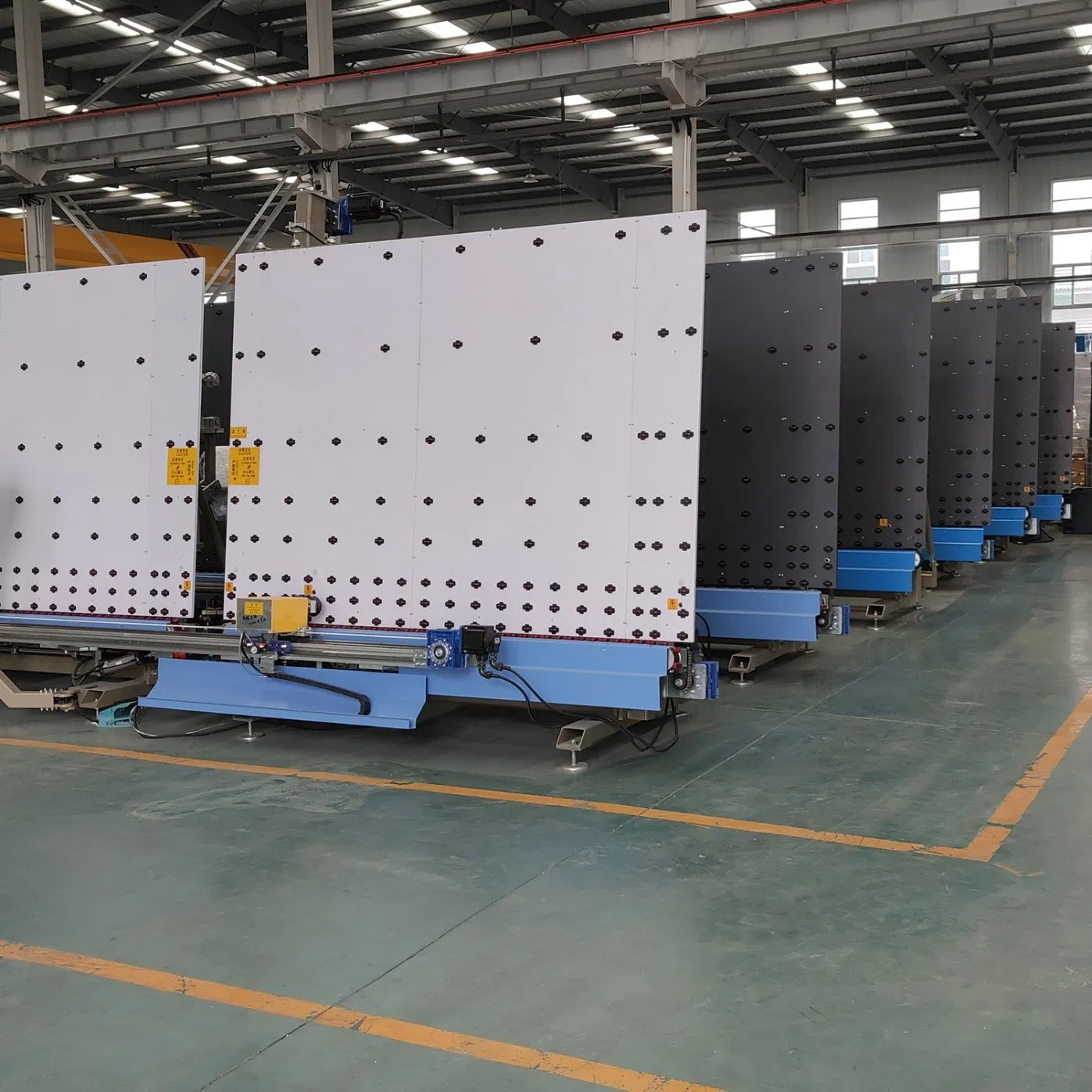

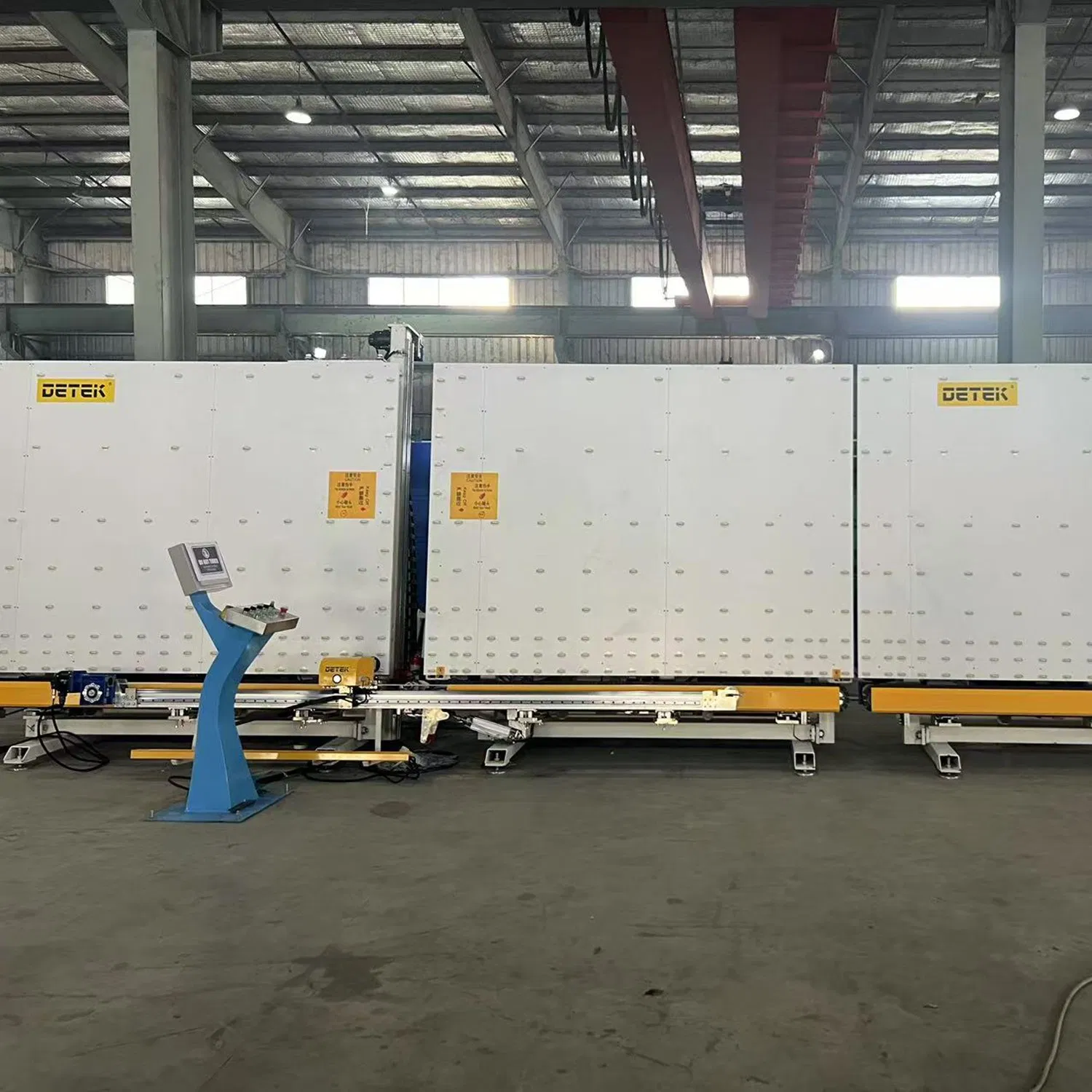

ASR2030 Automatic secondary sealant sealing robot
The ASR2030 is a fully automated secondary sealant application robot used in Insulating Glass Unit (IGU) production, designed to dispense silicone or polysulfide sealants. As a critical piece of equipment that directly influences the service life of insulating glass, it ensures consistent high-quality IGUs for glass processors.
| Model NO. | ASR2030 | Customized | Available |
|---|---|---|---|
| Glass Thickness | 3-19 mm | Brand Parts | SMC / Yaskawa |
| Sealing Speed | 5-40m/Min | Sealing Depth | 3-18mm |
| Air Pressure | 0.6-0.8MPa | Production Capacity | 500 sets/Year |
| Direction | Right to Left / Left to Right (Optional) | ||

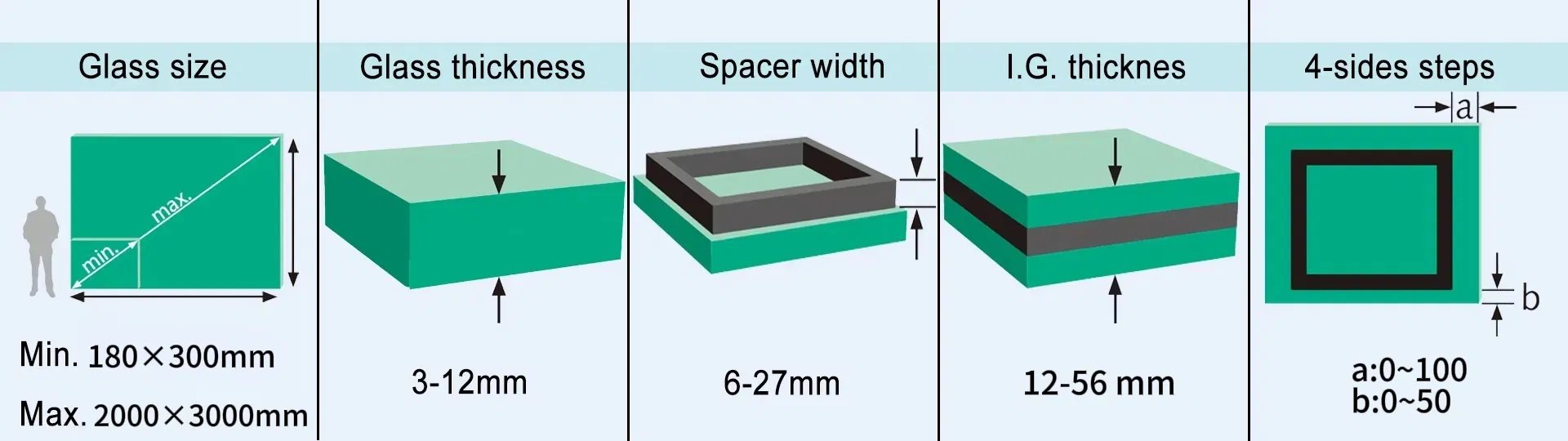

| Max. IGU size | 2000×3000mm |
| Min. IGU size | 300×300mm |
| IGU thickness | 12-56mm |
| Sealing depth | 3-18mm |
| Power supply | 3P 380V 50HZ 7KW |
| Air pressure | 0.6-0.8Mpa |
| Max. squeeze pressure | 32Mpa |
| Sealing speed | 5-40m/min |

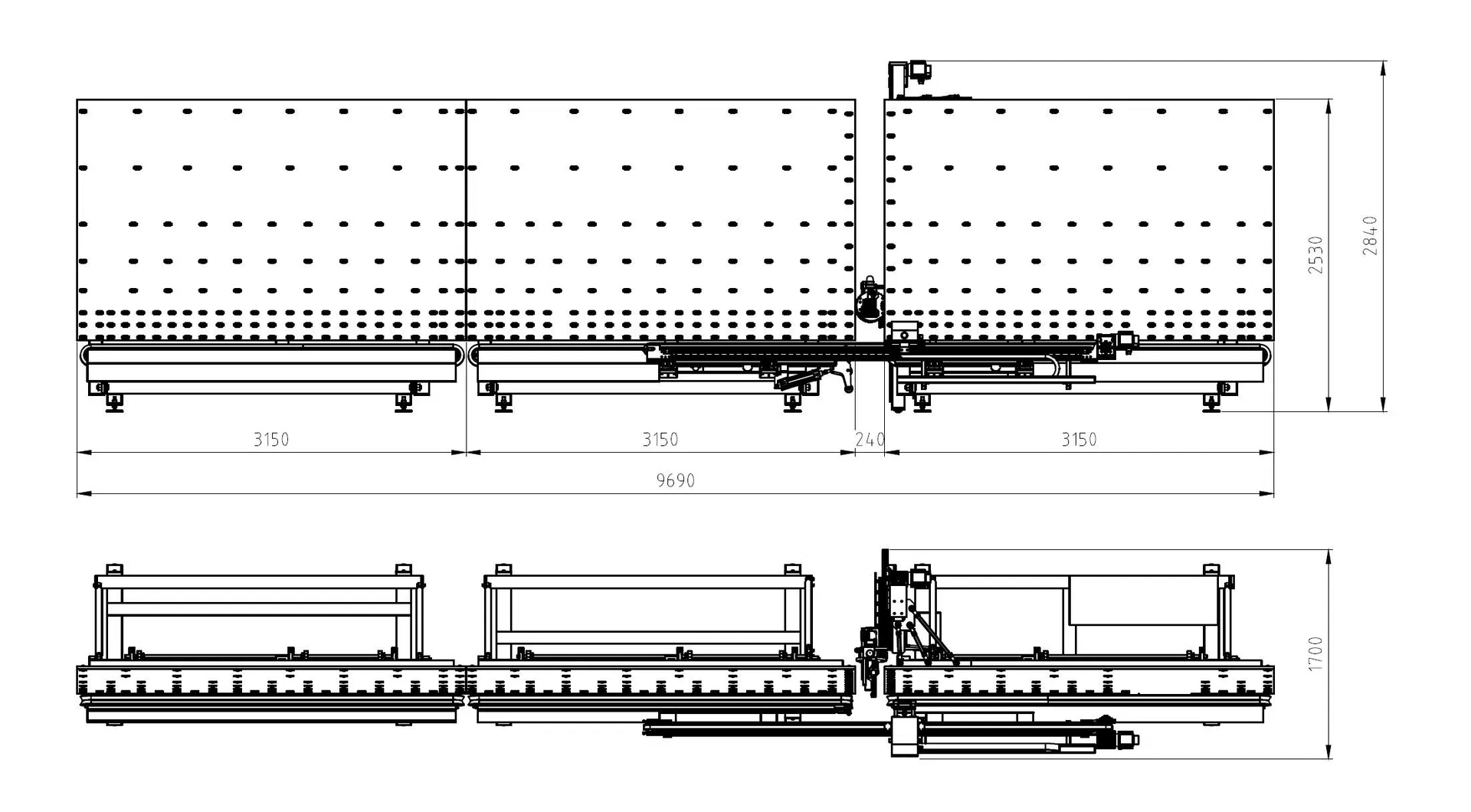

| Dimension | 9680×1400×2900mm |
| Component Name | Brand | Origin |
|---|---|---|
| PLC / Servo Driver / Motor | Yaskawa | Japan |
| Touch Screen | WEINVIEW | Taiwan |
| Inverter | TECO | Taiwan |
| Electrical (Breaker/Contactor/Relay) | Schneider | France |
| Sensors | AUTONICS | S. Korea |
| Solenoid / Air Cylinder | Airtac | Taiwan |
| Proportional Valve / Regulator | SMC | Japan |

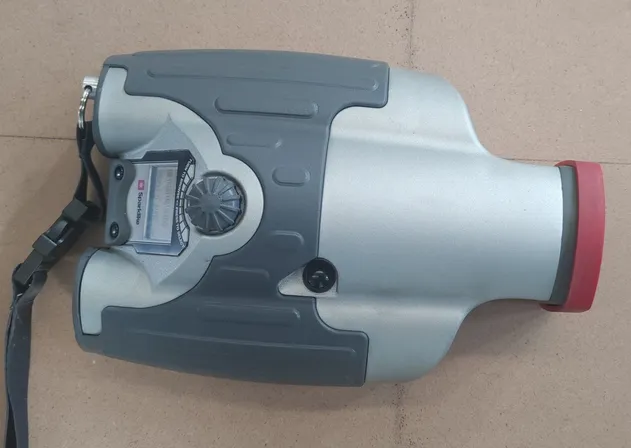

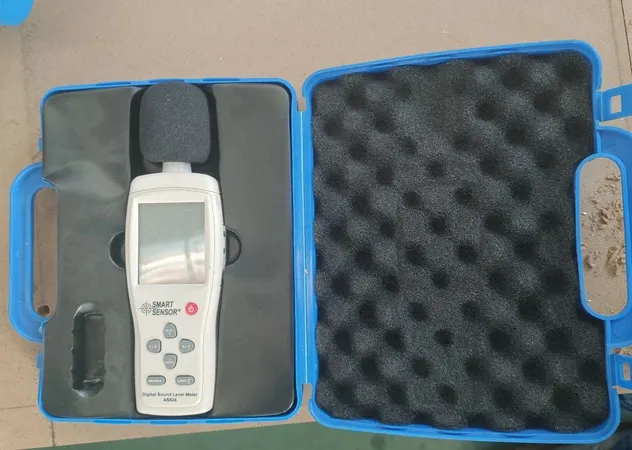

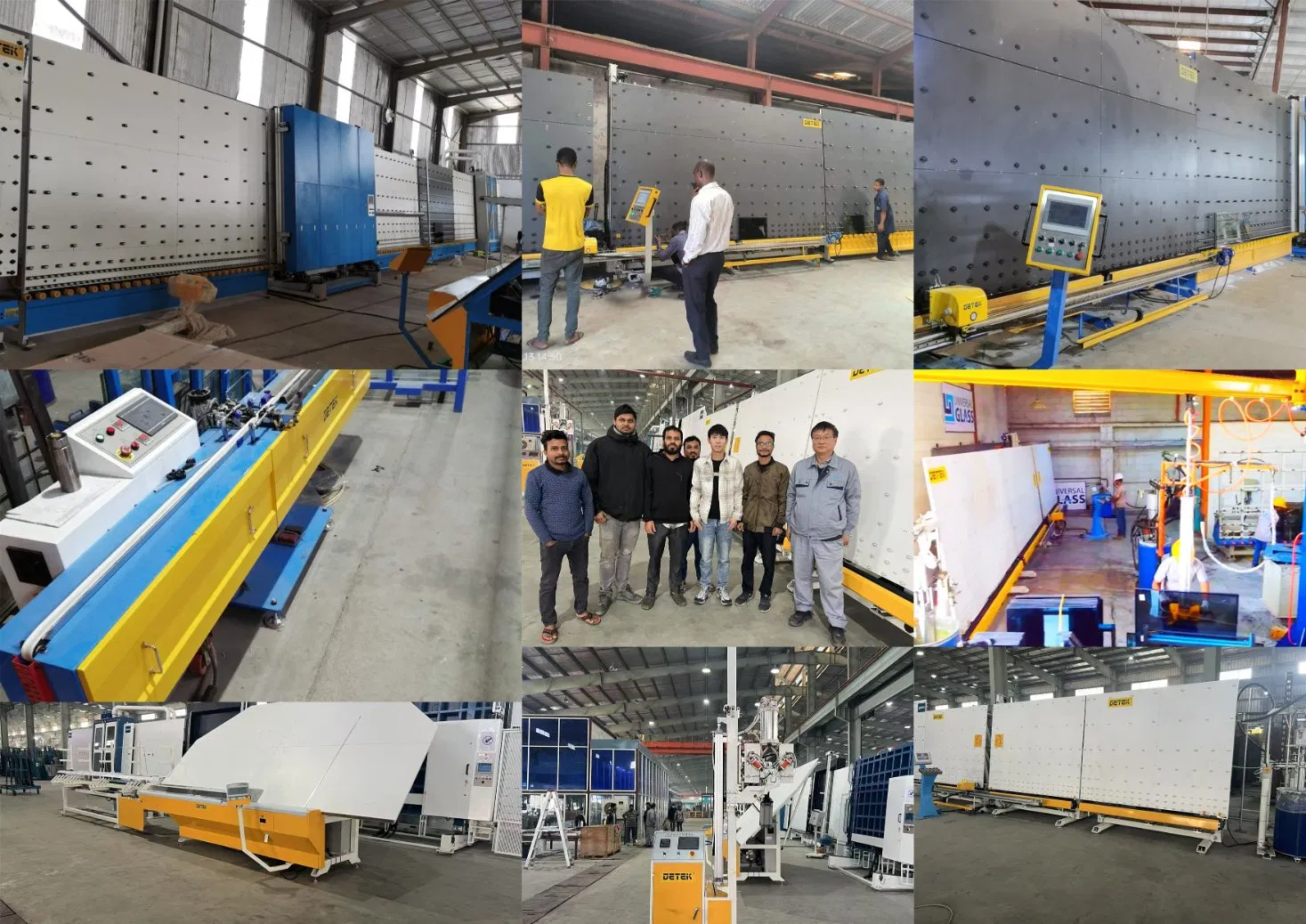

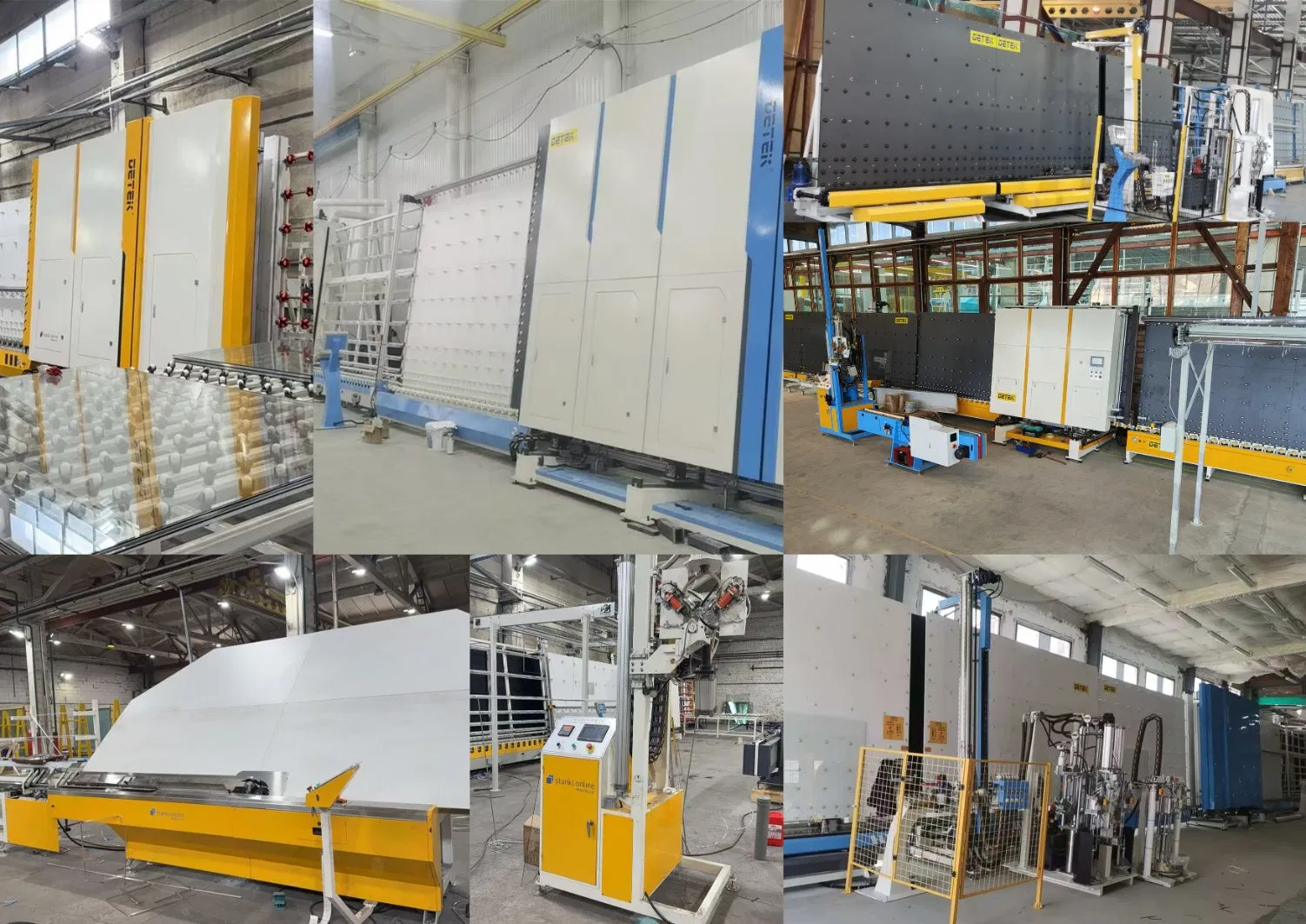

Equipped with an advanced machining center including laser cutting, bending, milling, and professional testing tools like argon gas testers and decibel meters to ensure machine precision.
