| Model NO. | ABM02 |
| Aluminum Bar Specification | 6~27mm |
| Bending Angle Error | 0.30 Degree |
| Key Selling Points | Easy to Operate, Automatic, High-Accuracy |
| Core Component | Pressure Vessel, Motor, Gear, PLC, Pump, Engine |
| Type | Glass Bending Machine |
| Structure | Vertical |
| Condition | New |
| Warranty | 1 Year |
| Production Capacity | 60 set/Per Quarter |

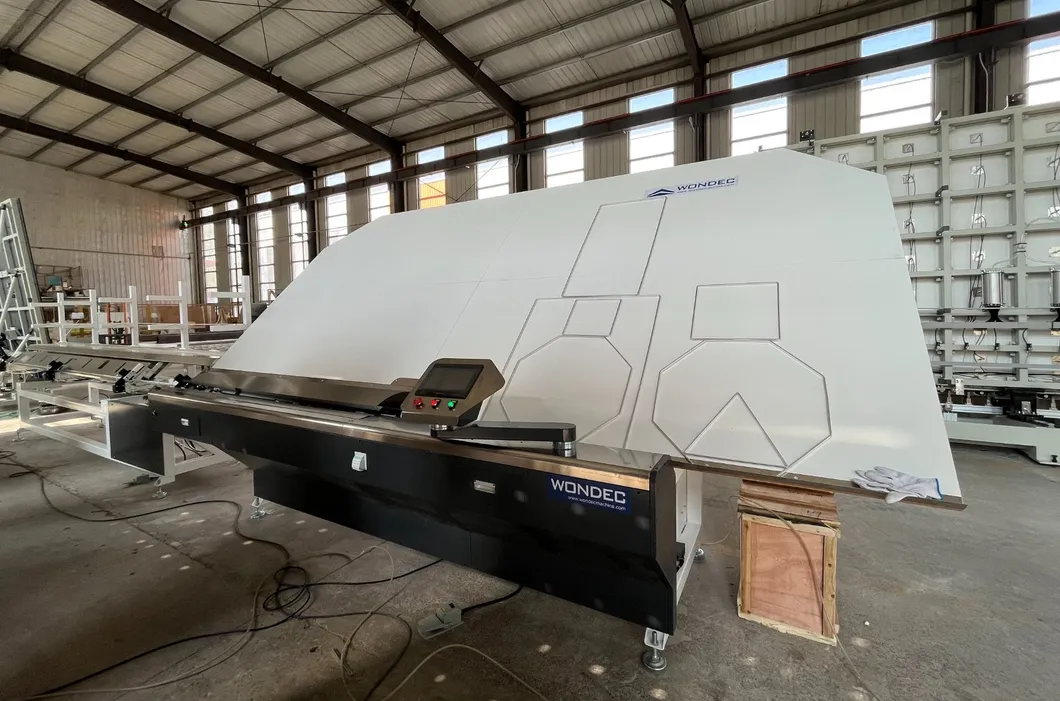

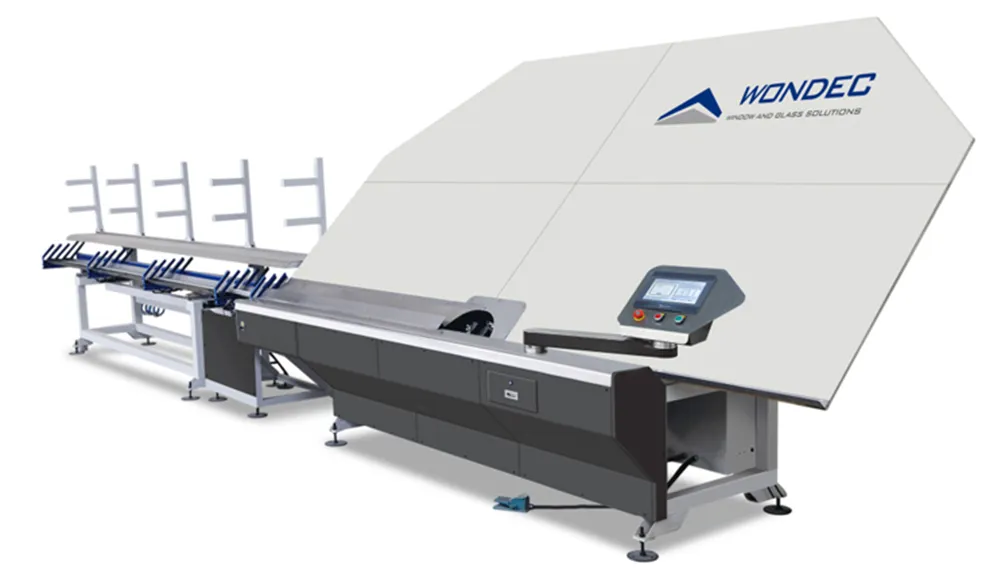

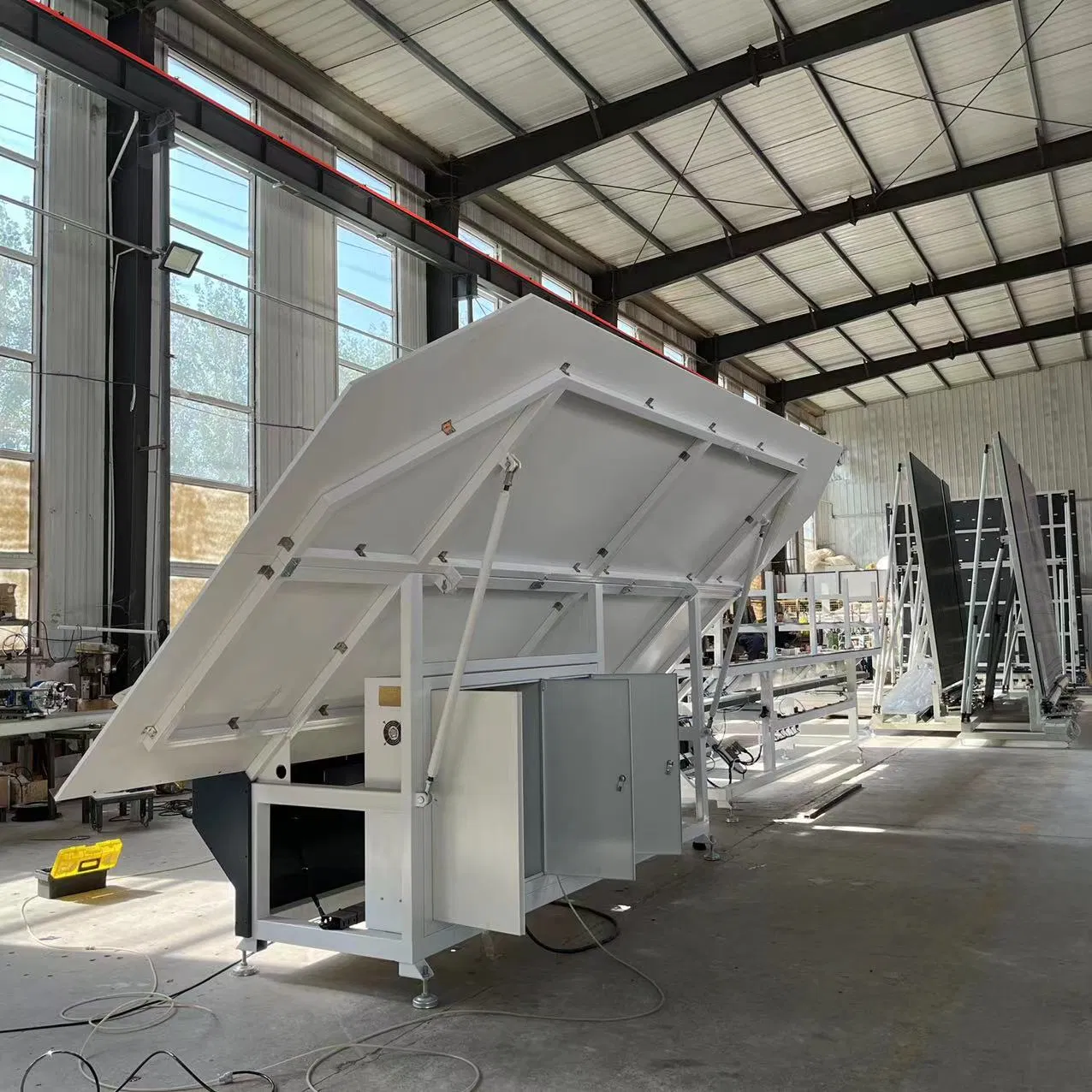

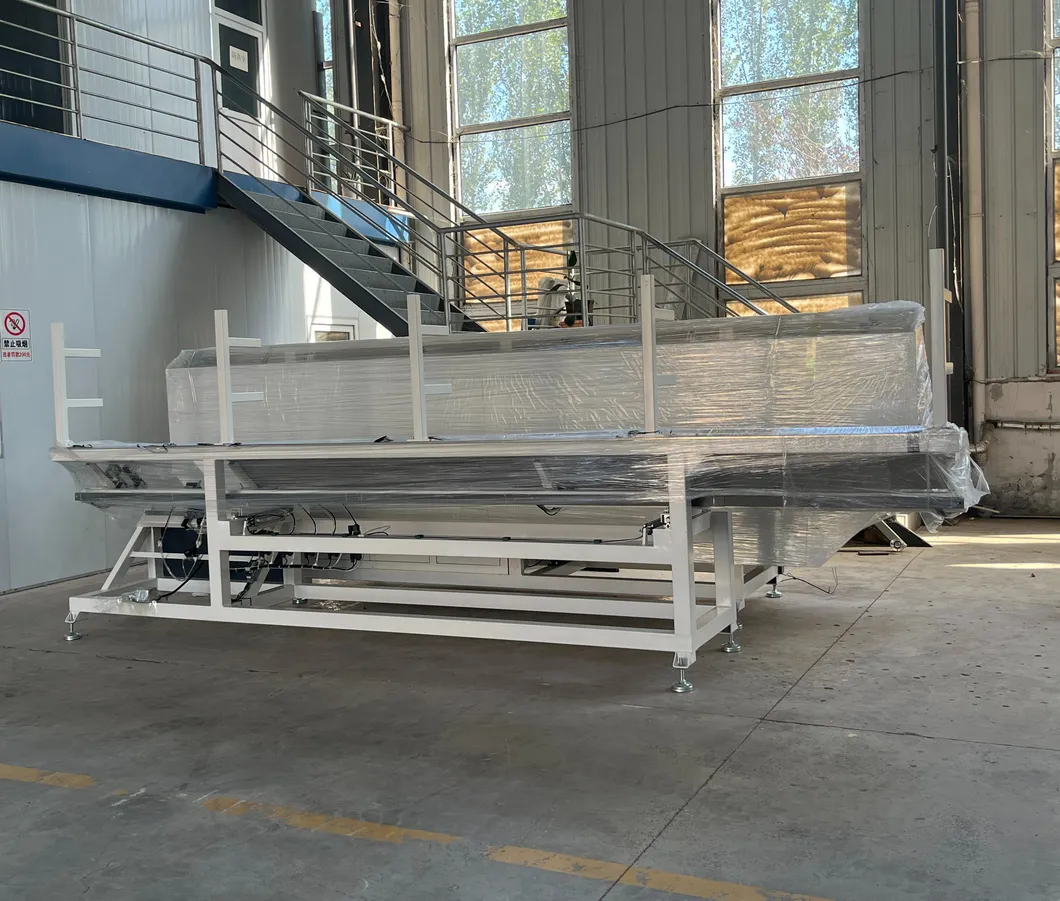

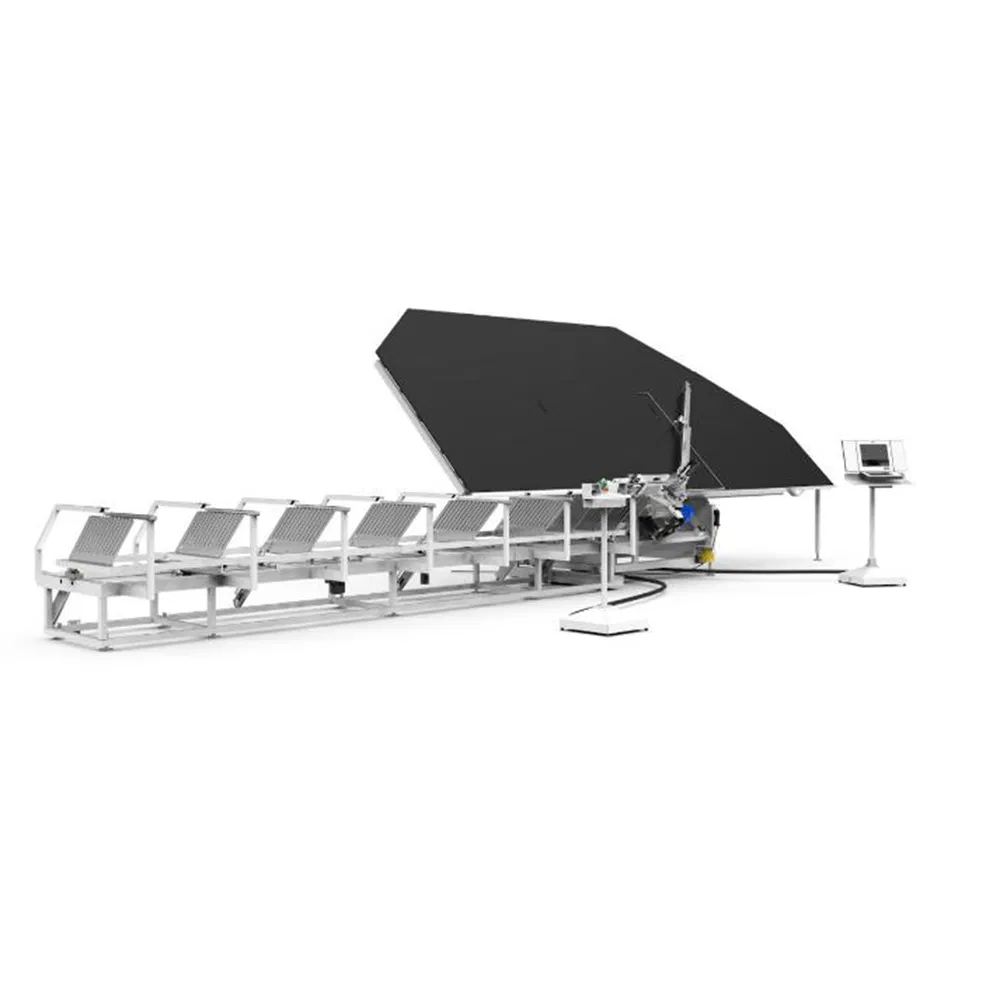

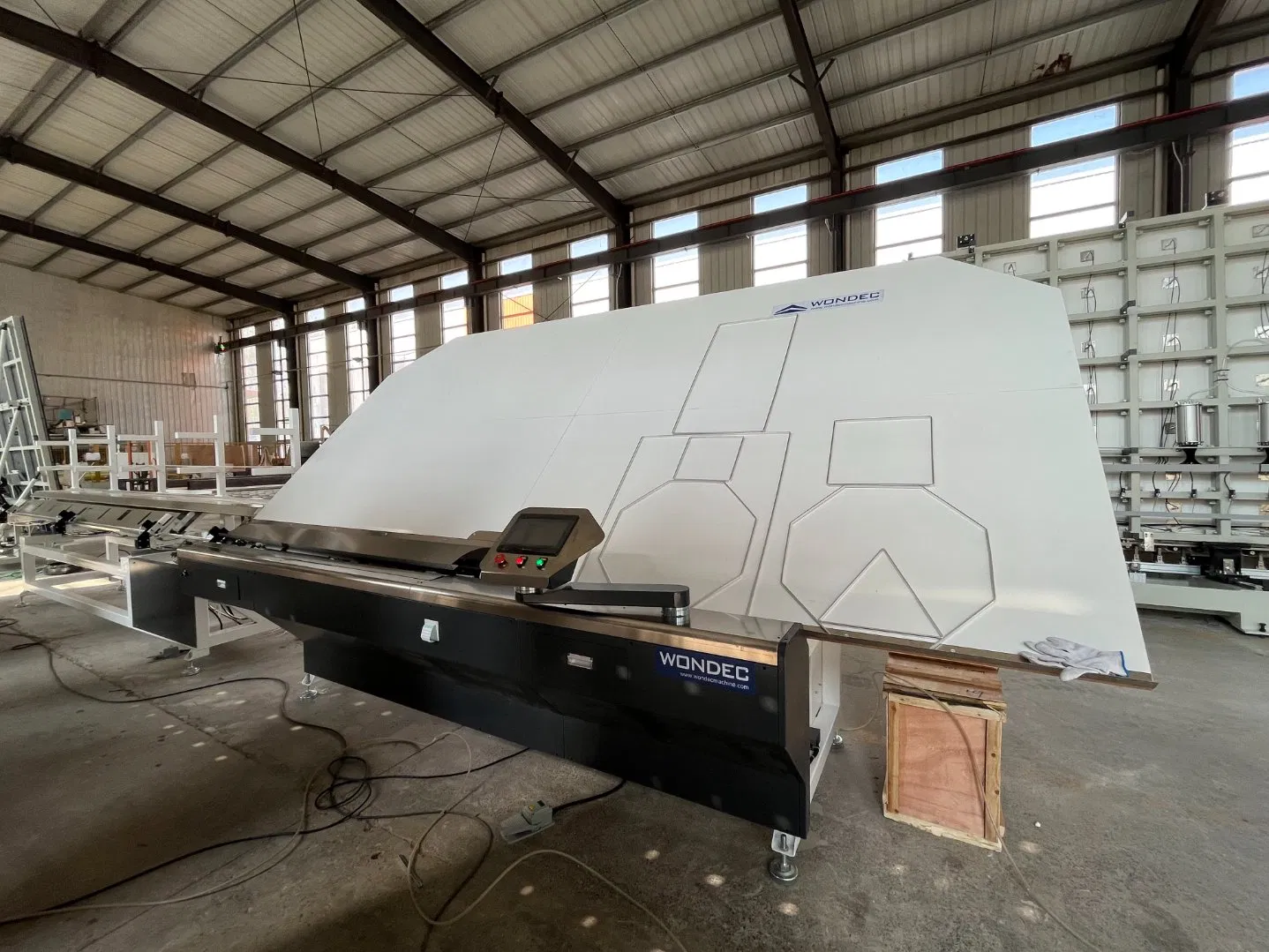

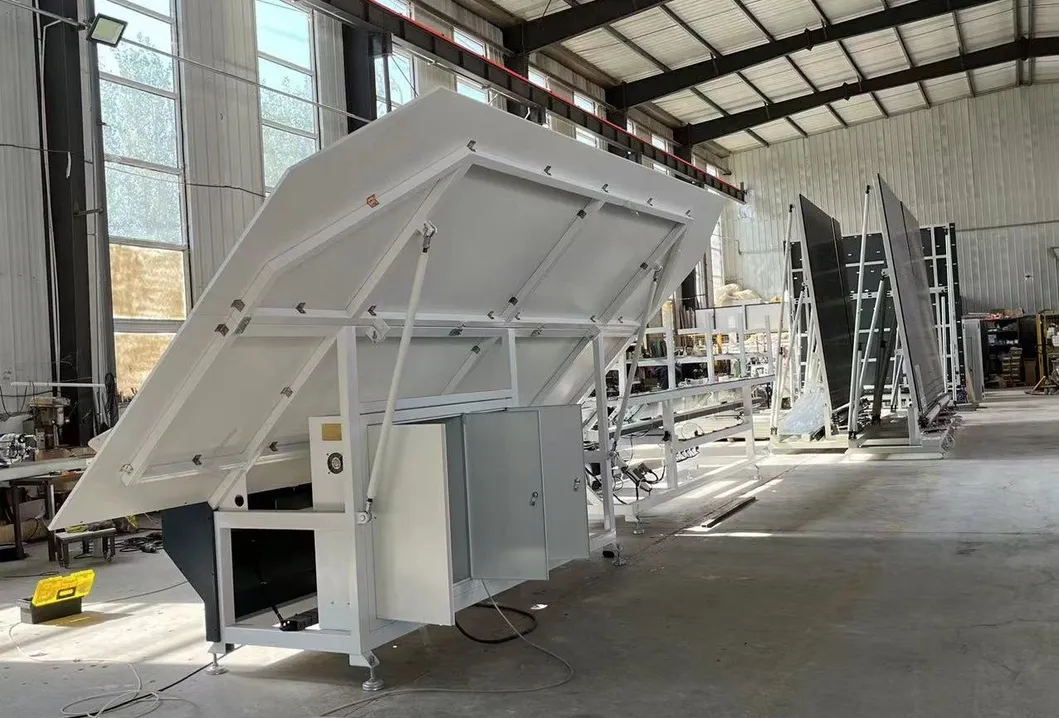

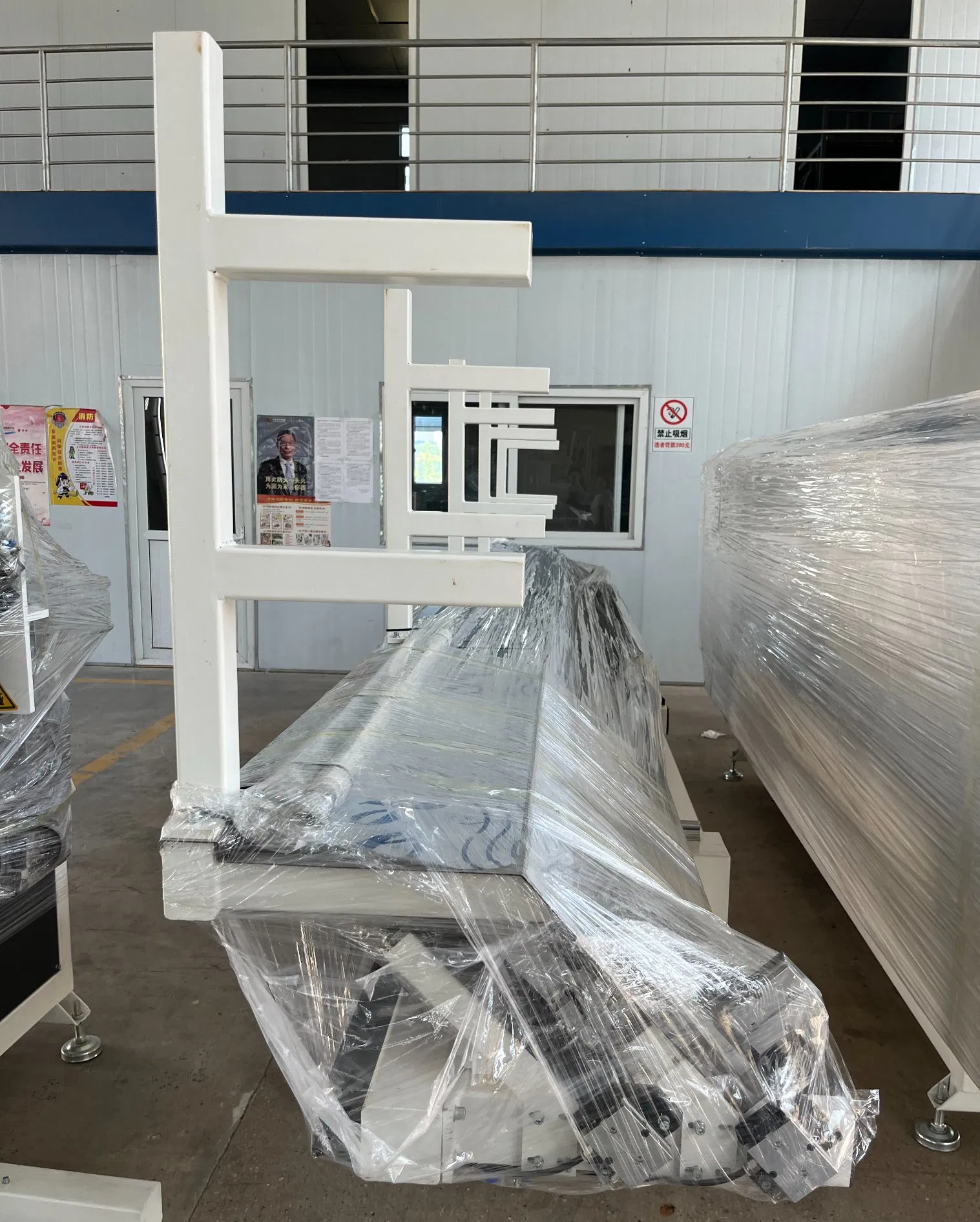

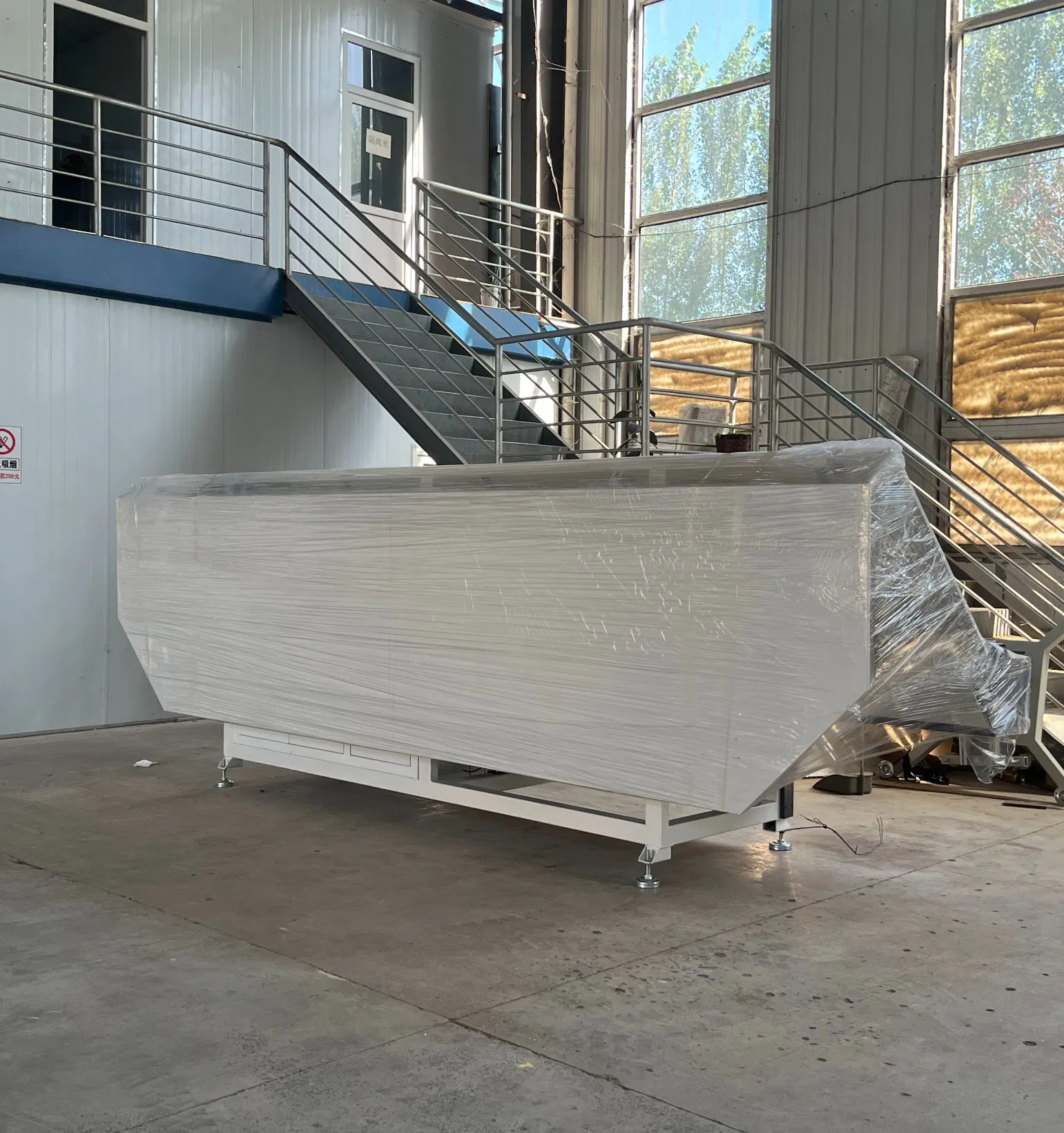

ABM02 Automatic Spacer Bending Machine
This machine is used for bending aluminium spacer; it can finish locating, bending, and cutting aluminium spacer automatically in one cycle. It is conventional type, and the specific configuration can be discussed based on requirements.
| Technical Data | |||
|---|---|---|---|
| Input voltage | 380V/50Hz | Total power | 4 KW |
| Air pressure | 0.7Mpa | Spacer specification | 6-27mm |
| Max. spacer size | 2500*2500mm | Min. spacer size | 200*250mm |
| Bending angle error | 0.3 degree around | Feeding speed | 0-90m/min |
| Weight of Machine | 1500kg | Overall dimension | 10000x2200x2600mm |
Pre-sales Service:
- Layout Design: Building floor plan and equipment footprint according to your requirement.
- Technical Drawings: Providing technical drawings based on the equipment layout.
After-sales Service:
- Production Progress: Weekly production reports provided.
- Installation: Equipment installation, debugging, and personnel training services.
- Documentation: English operation manuals and lifetime maintenance support.
- Warranty: One year after installation (excluding wearing parts).
