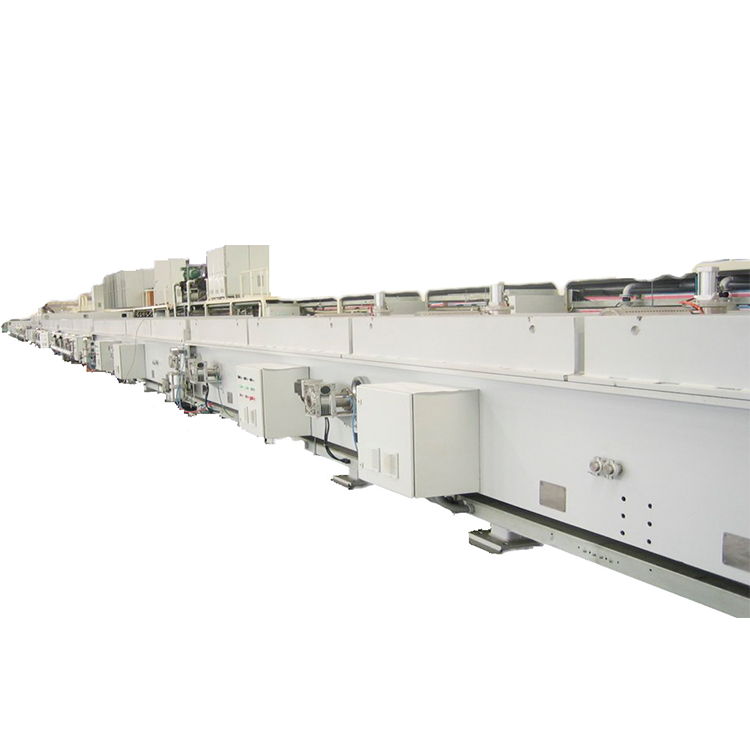

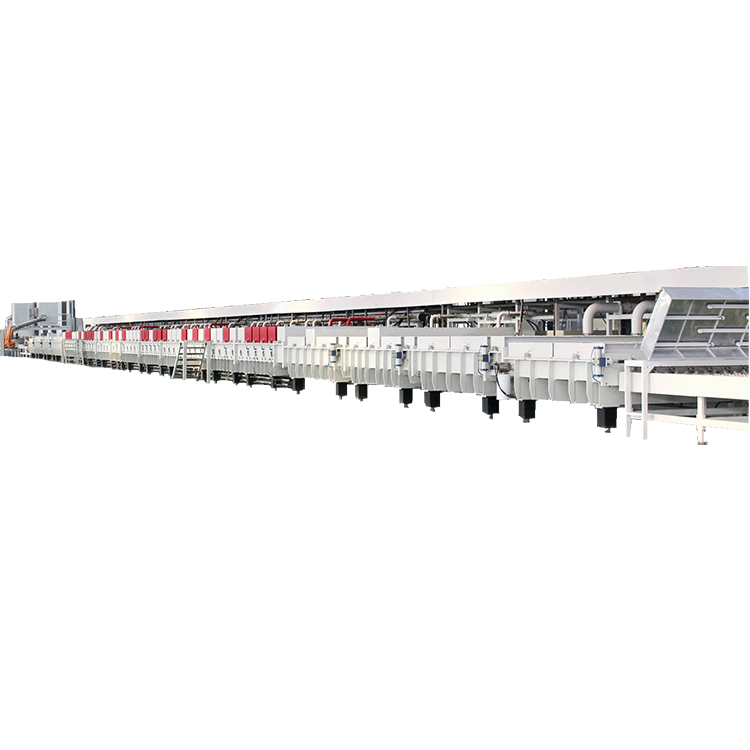

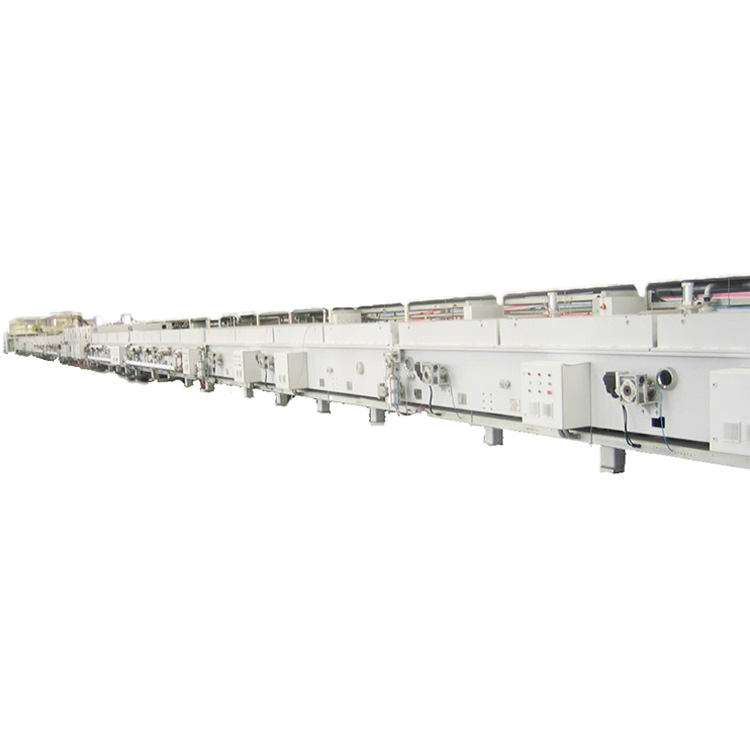

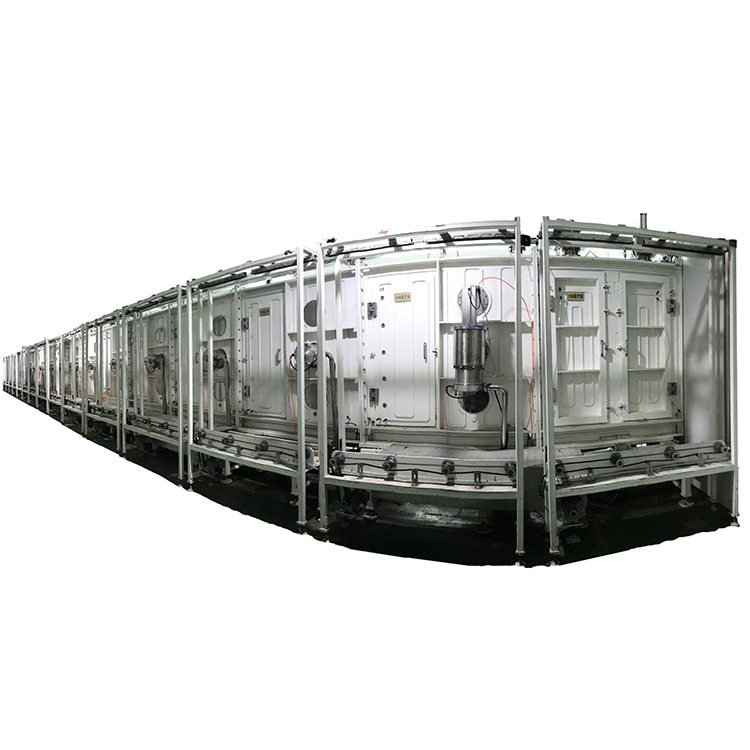

Flat Glass Panel Automatic Vacuum Coating Mirror Production Line
This horizontal type dual-end continuous sputtering production line is designed for high-efficiency mirror manufacturing. It utilizes advanced vacuum technology to ensure superior film quality.

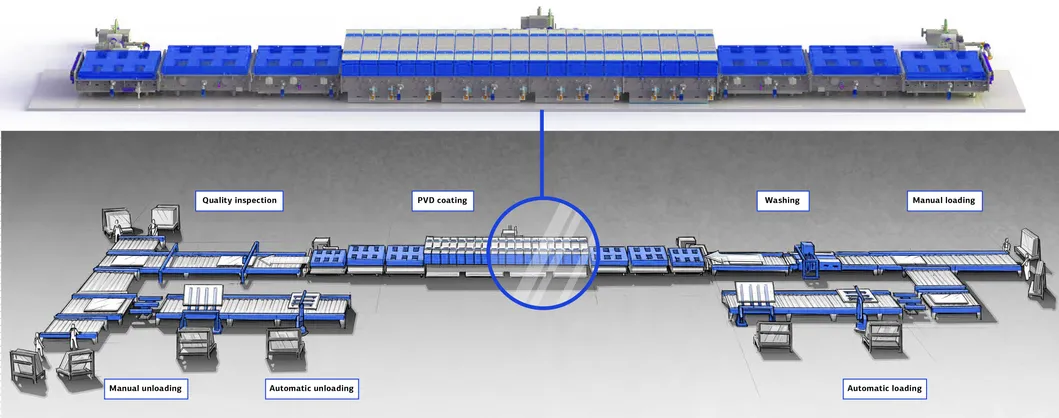

The vacuum coating production line is usually connected by more than three vacuum chambers to form a continuous working vacuum coating machine.

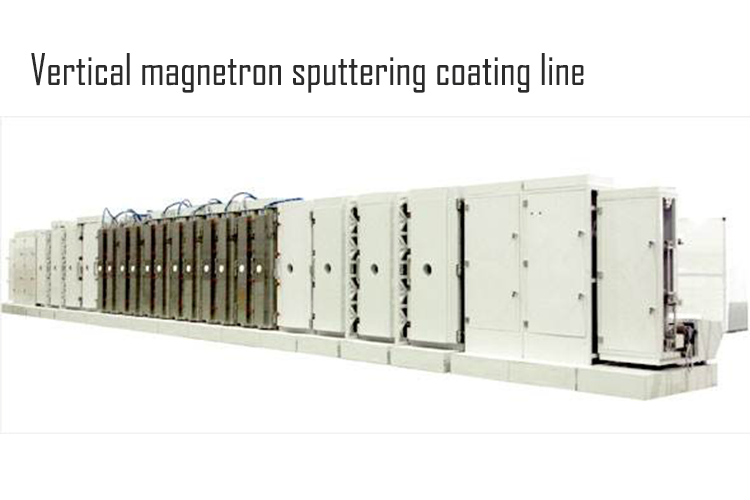

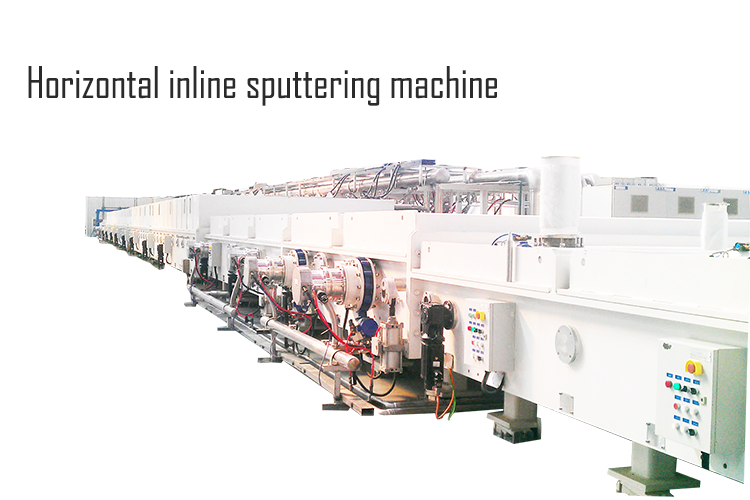

We provide both vertical and horizontal magnetron sputtering coating lines, customized according to customer specifications.
Based on technical requirements, various magnetron sputtering cathodes (Rotary or Planar) can be integrated to handle different raw materials for specific coatings.
| Chamber Type | Vertical and horizontal method of multi-chamber |
| Applied Material | Glass, Wafer, plastic, metal materials |
| Tact Time | 120 sec or less (Static method); 90 sec or less (Dynamic method) |
| Coating Source | Sputter source: Rotary cathode, Planar cathode |
| Coating Material | Metal (Al, Ti, Cr, Cu, NiCr, Ni, Ag); Reactive (TiO2, Nb2O5, SiO2, SiAlOx, MoOx) |
| Power Supply | DC, Pulse DC, MF |
| Thickness Uniformity | ±10% or less (Static film); ±5% or less (Moving film) |
| Fields of Application | Household appliances, exterior mobile devices, mirror manufacturing industry |
