Customization: Available
Certification: CE, CE, ISO
Condition: New
Send Inquiry

Product Description

📊

Basic Specifications

Model
LBP2500Q
Control System
PLC Control, Touch Screen
Glass Thickness
3 mm - 19 mm
Max Processing
3600*2500mm
Min Processing
450*200mm
Total Power
44.85kw
Washing Speed
3-10m/Min
Production Capacity
800 m² Per Day
⚙️

Product Description

The Vertical automatic insulating glass flat press production line is a professional solution for Insulating Glass Units (IGU) production, including double and triple glazing glass. This line is highly suitable for glass processing companies and window/door fabricators.

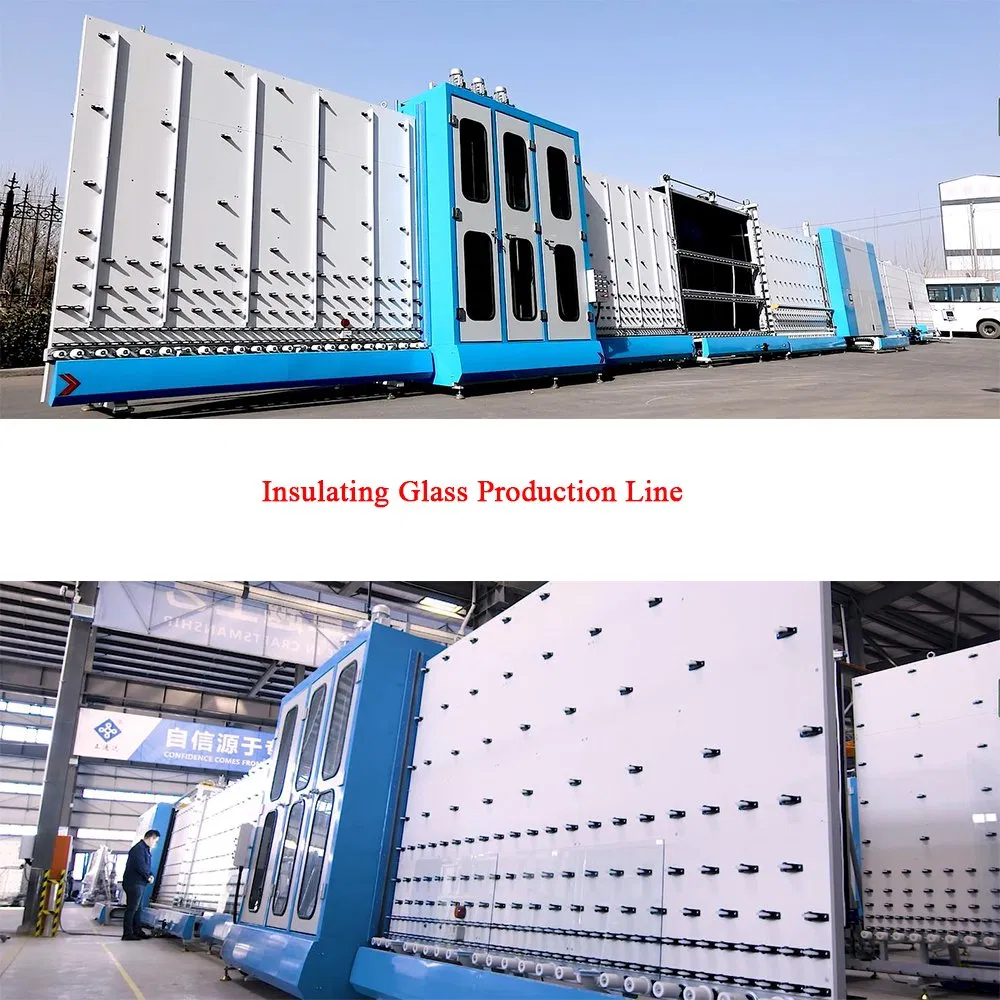

IGU Production Line

This advanced system integrates:

  • Automatic loading, washing, and drying sections.
  • Light inspection and precision spacer frame location.
  • Automatic out-panel assembly and transmission.
  • Large stroke press with online inert gas filling capability.
  • Fully automated glass transportation throughout the entire process.
📋

Technical Parameters

Parameter Item Specification Data (LBP2500Q)
Max. processing glass size3600*2500 mm
Min. processing glass size450*200 mm
Single glass thickness3-15 mm
Max. Insulating glass thickness52 mm
Production Capacity110 pc/h
Inert gas typeArgon, Nitrogen, etc.
Gas concentrationMore than 90%
Outline dimension24600*2500*3680 mm
🌟

Key Machine Features

Energy Saving Feature

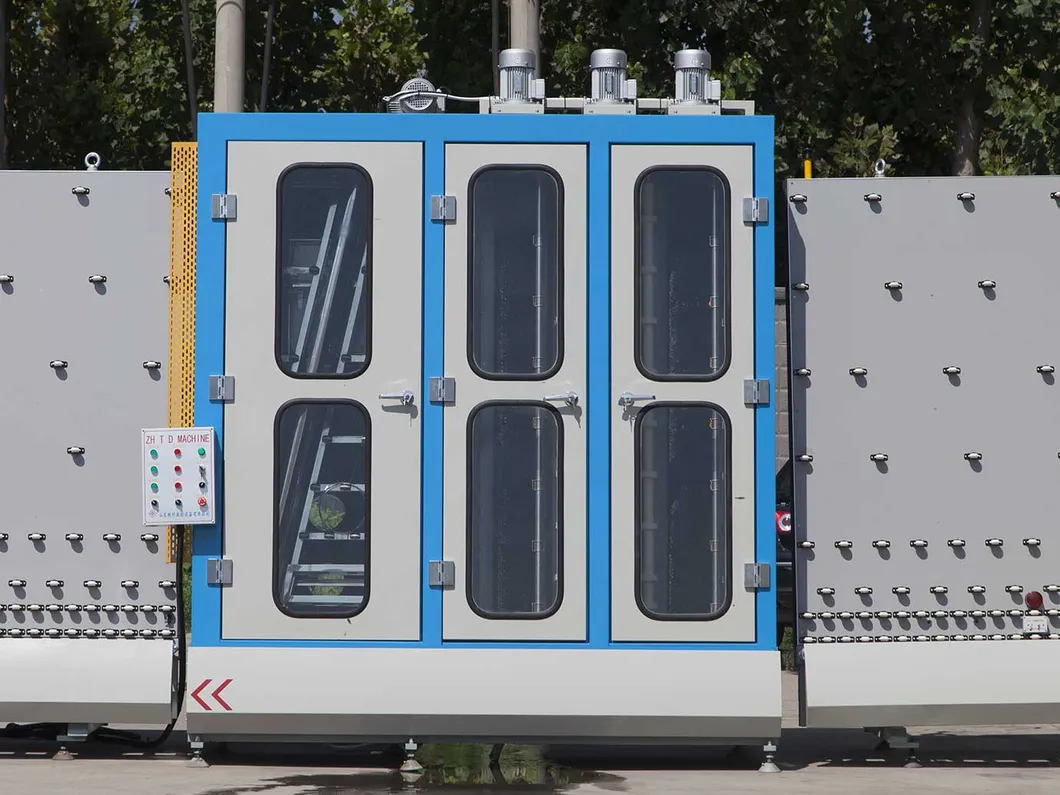

Washing Section

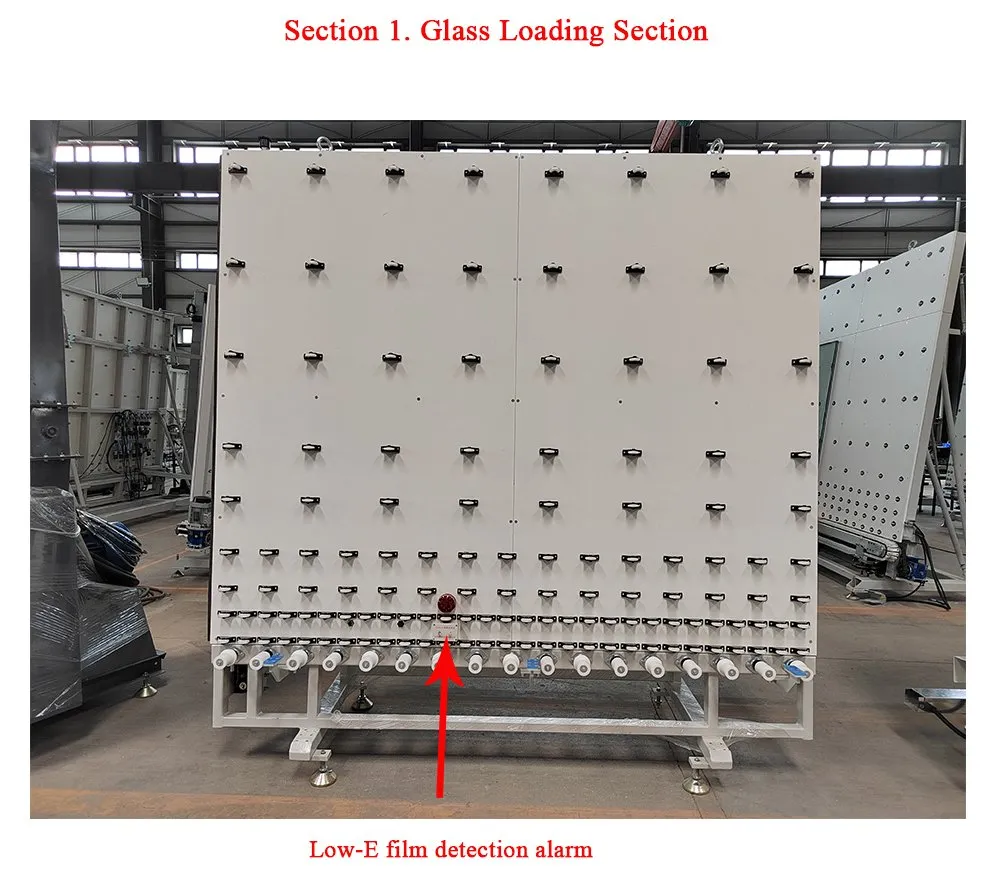

  • Energy Efficiency: Automatically stops running when no glass is detected on the loading table, saving 30% energy.
  • Low-E Detection: Automatically distinguishes the coating side of Low-E glass with an alarm system.
  • Premium Cleaning: Washing section uses 5mm stainless steel and 3 pairs of soft DuPont nylon brushes for scratch-free cleaning.

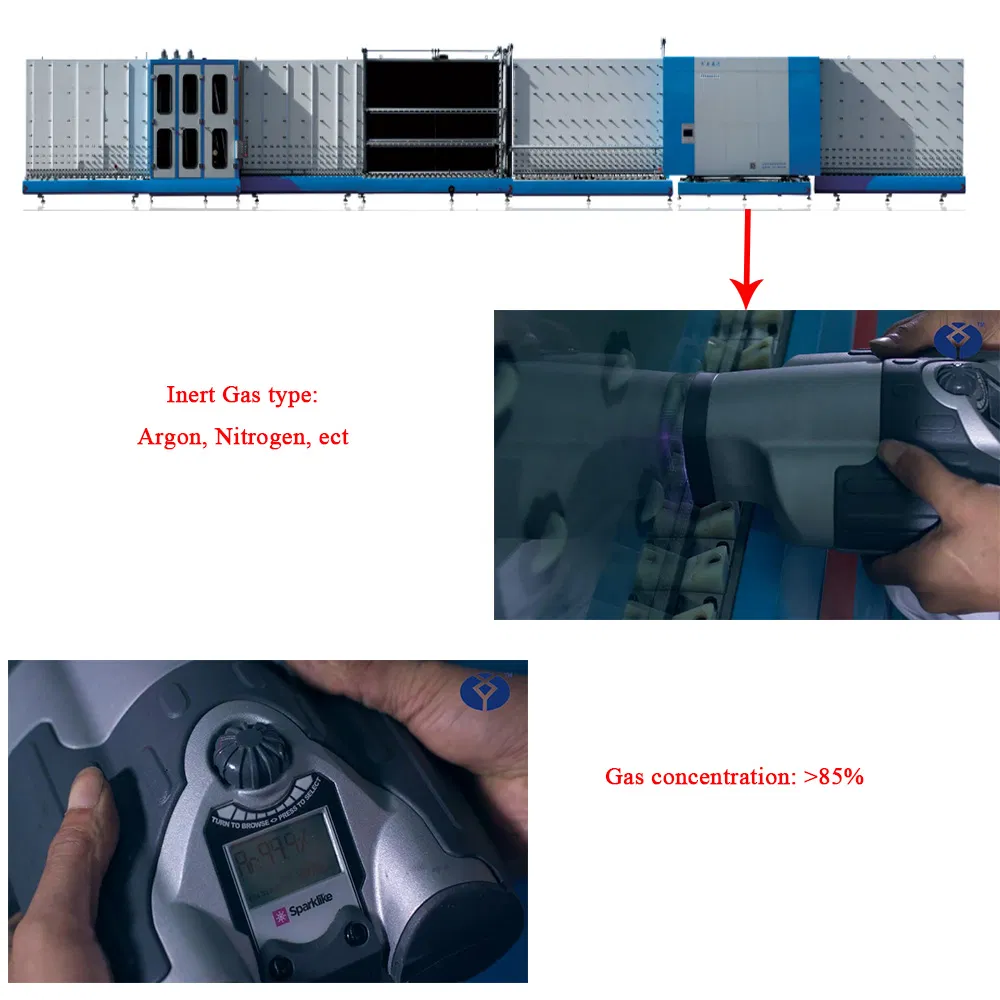

  • Gas Filling System: On-line gas filling with over 92% concentration and direct inflation valves for maximum efficiency.
  • Precision Press: Servo-controlled plate pressure ensures zero deformation of the aluminum frame.
💎

Global Quality Components

Component Name Country of Origin Brand
PLC & Touch ScreenTaiwanDelta
Photoelectric SwitchUSABANNER
AC Contact DeviceFranceSCHNEIDER
Vacuum SuckerKoreaYSC
Bearings for brushesSwedenSKF
Hydraulic ValveTaiwanYUTIEN
📸

Detailed Visuals

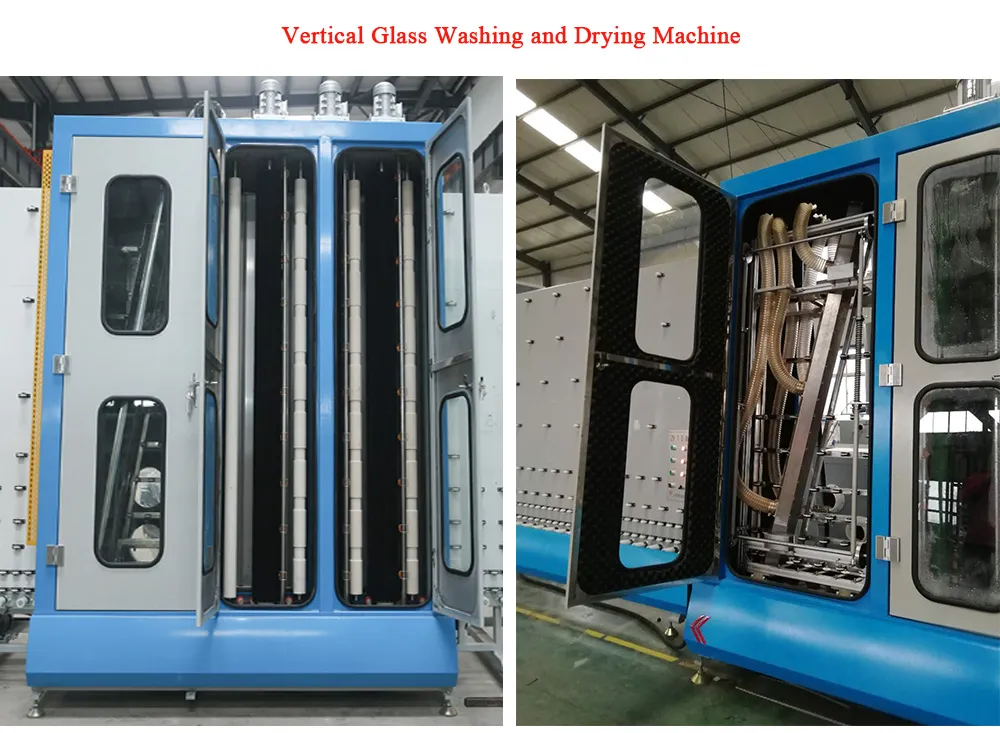

Drying Section

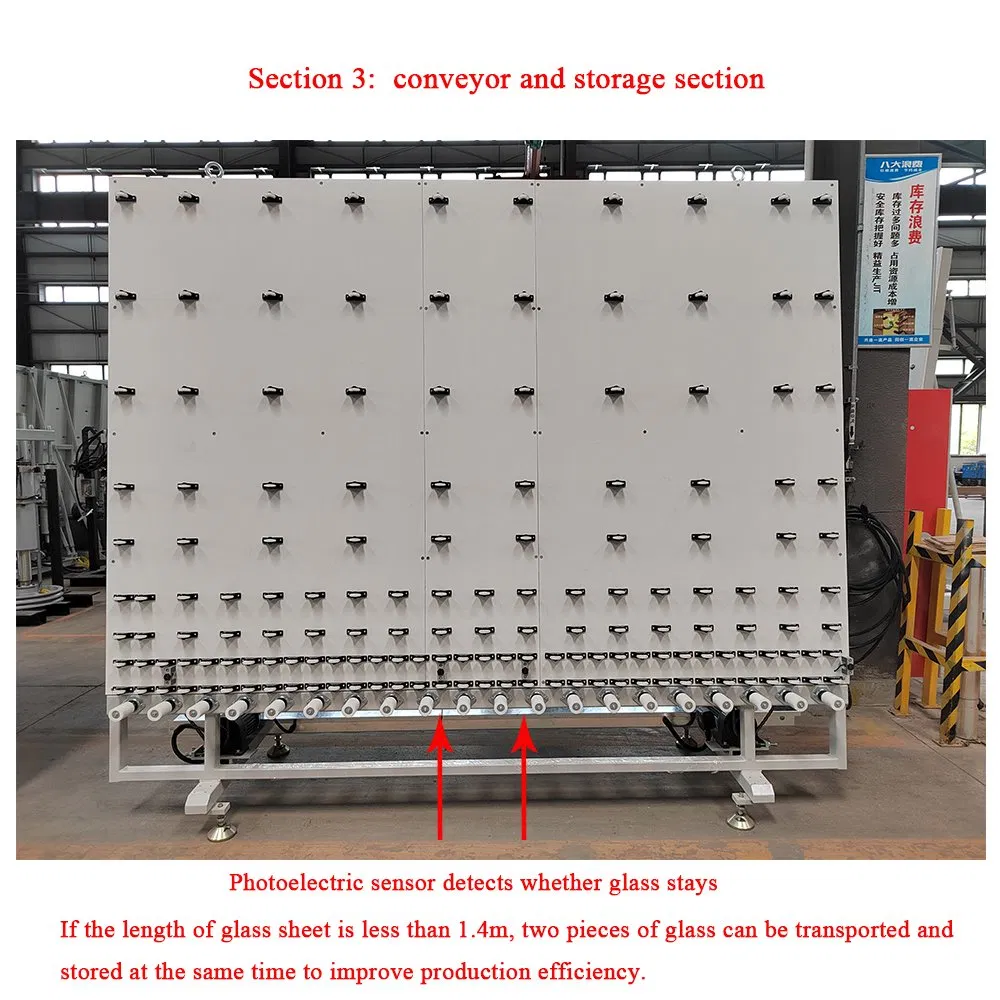

Transfer Section

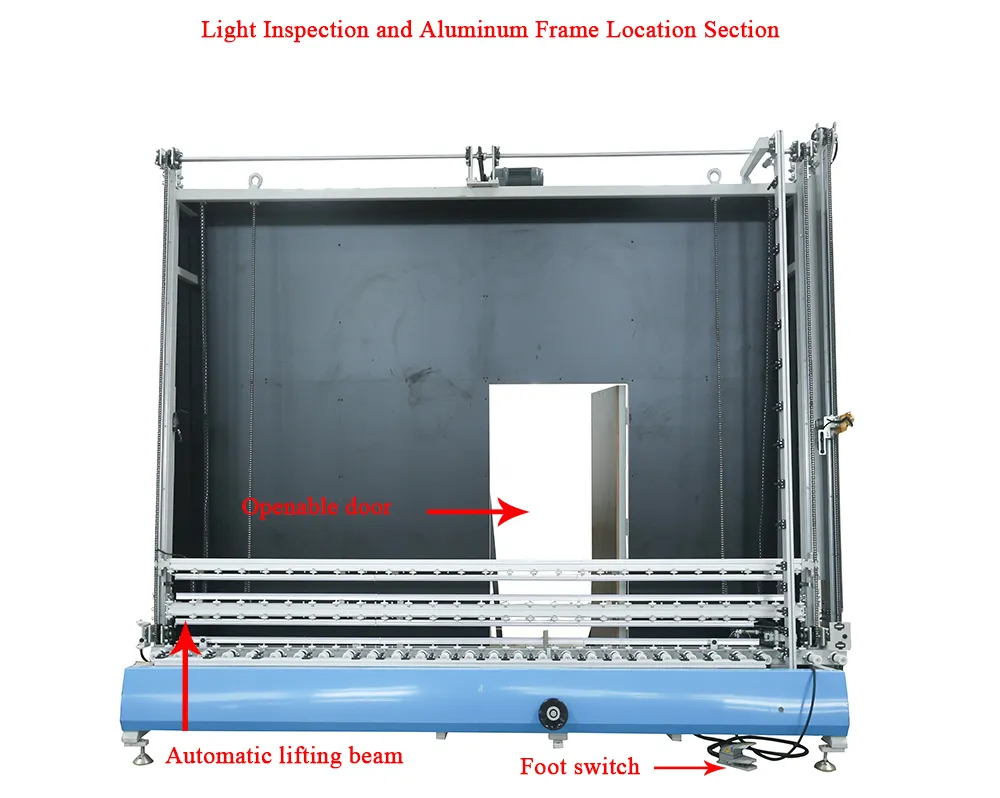

Lifting Beam

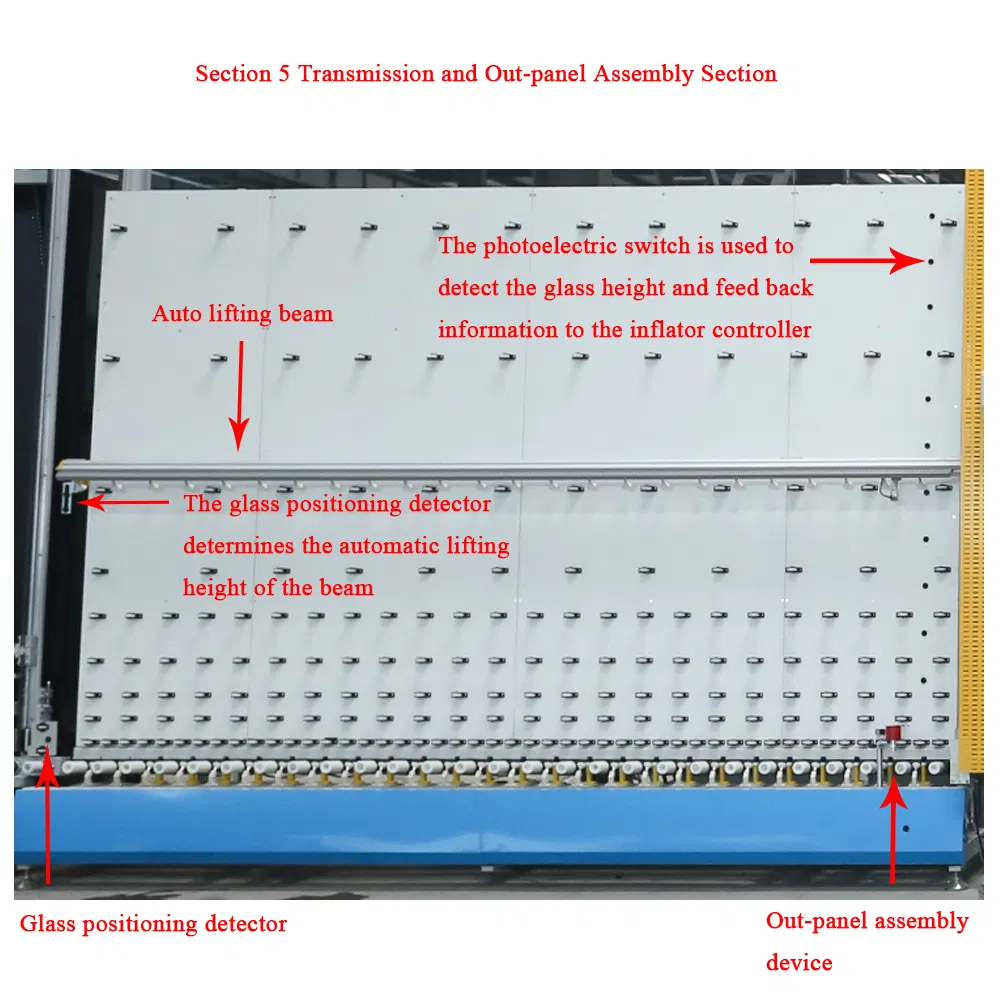

Assembly Detail

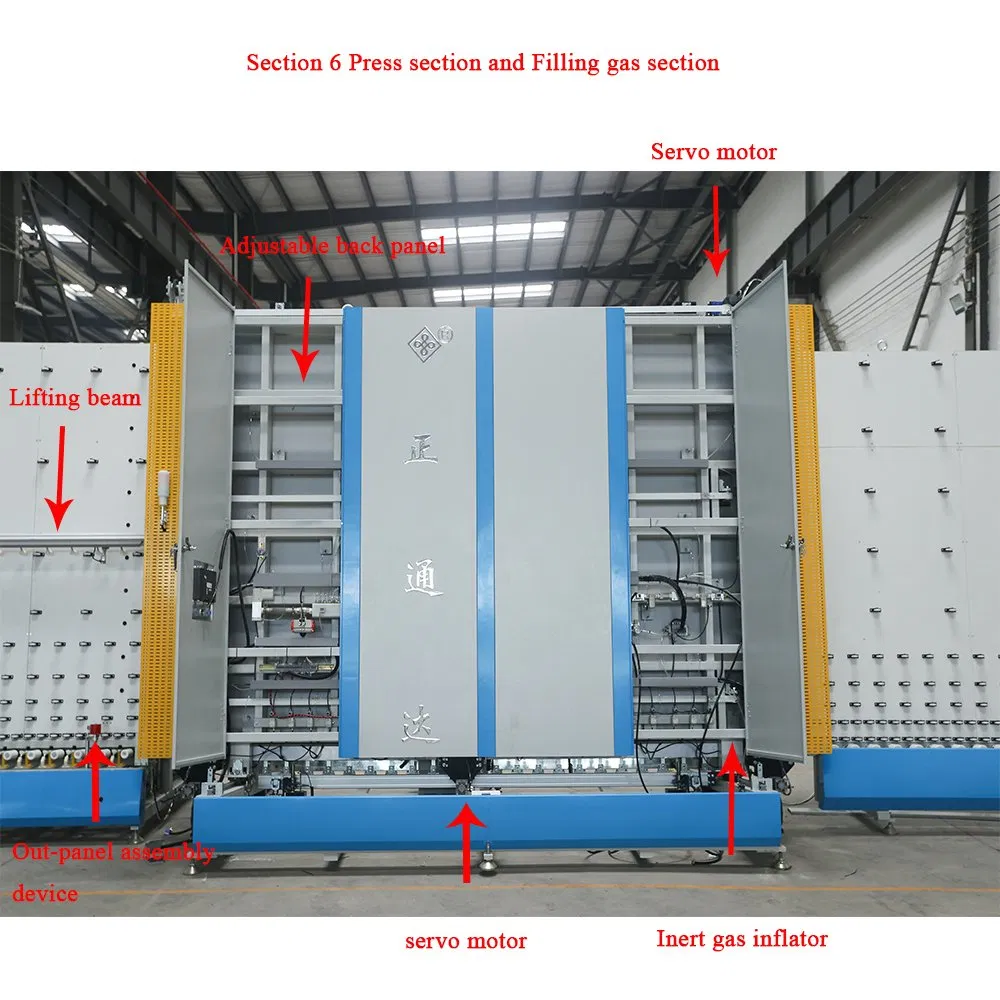

Press Plate
Gas Valves
📜

Compliance & Certifications

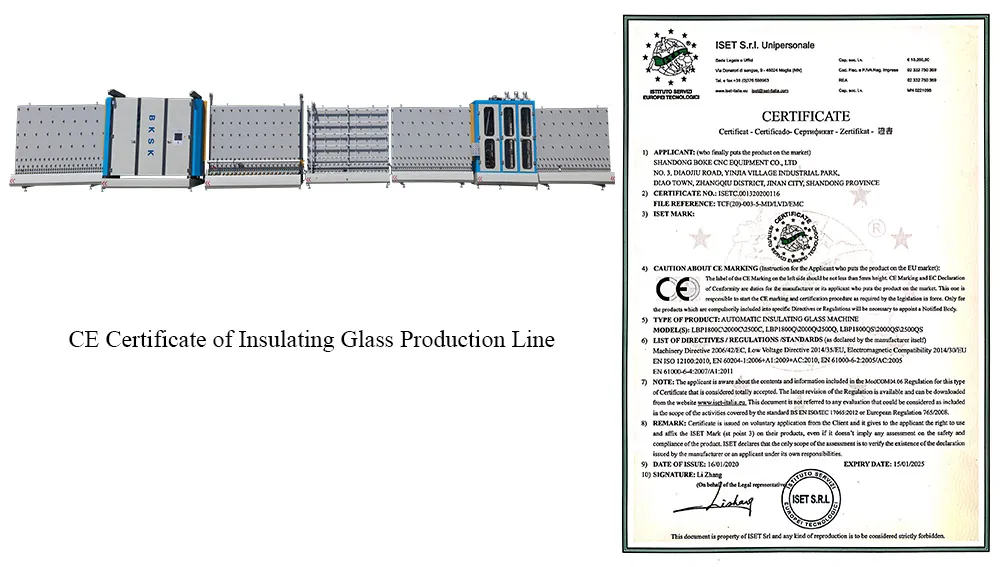

CE Certificate

Our production lines fully comply with CE and ISO international quality standards, ensuring safe and reliable operation.

🏆

Why Choose This Production Line

  • Industry Expertise: Built with 20 years of technical experience in the insulating glass field.
  • Proven Track Record: Over 5,000 units supplied globally as of 2020.
  • Quality Assurance: Manufactured under strict ISO9001:2008 quality management systems.
  • Innovative Design: Features multiple proprietary patent rights for glass processing.
  • Professional Support: Comprehensive after-sales service team providing technical guidance and maintenance.
❓

Frequently Asked Questions

1. What types of glass can this production line process?
The line is designed for flat glass, Low-E coated glass, tempered glass, and other standard architectural glass with thicknesses ranging from 3mm to 19mm.
2. How long is the typical delivery time after placing an order?
The standard lead time is approximately 45 working days for a complete production line and 30 working days for single machines.
3. What is the efficiency of the on-line gas filling system?
The system achieves a gas concentration of over 92%, exceeding international standards. After 48 hours, the retention remains above 85% due to high-precision sealing.
4. Does the machine support triple or stepped IG units?
Yes, the production line can be configured to produce double IG units, triple IG units, shaped IG units, and stepped IG units.
5. What kind of warranty and after-sales service is provided?
We offer a 12-month quality guarantee on the machine (excluding wearing parts) and provide lifetime technical service and maintenance support.
6. Is the washing section resistant to corrosion?
Absolutely. The entire washing and drying section is constructed from high-grade stainless steel (5mm thickness) and other corrosion-resistant materials to ensure a long service life.
