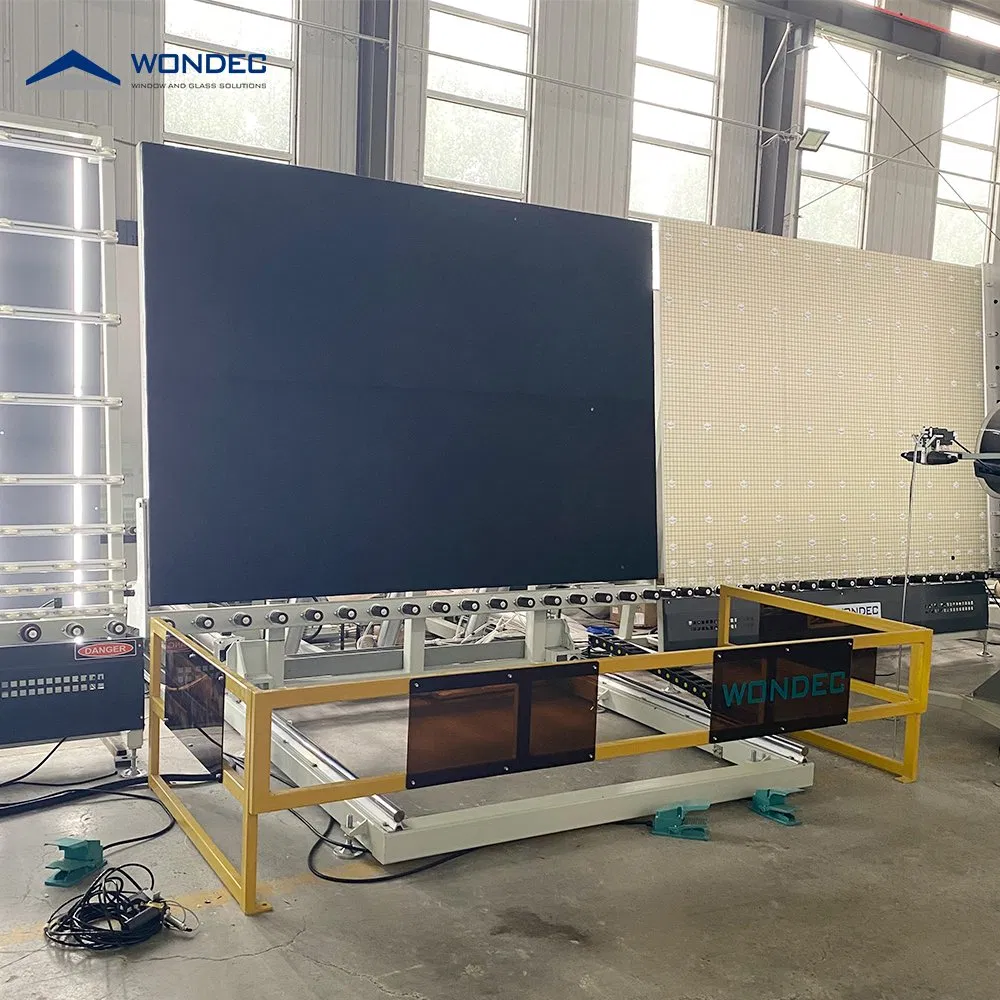

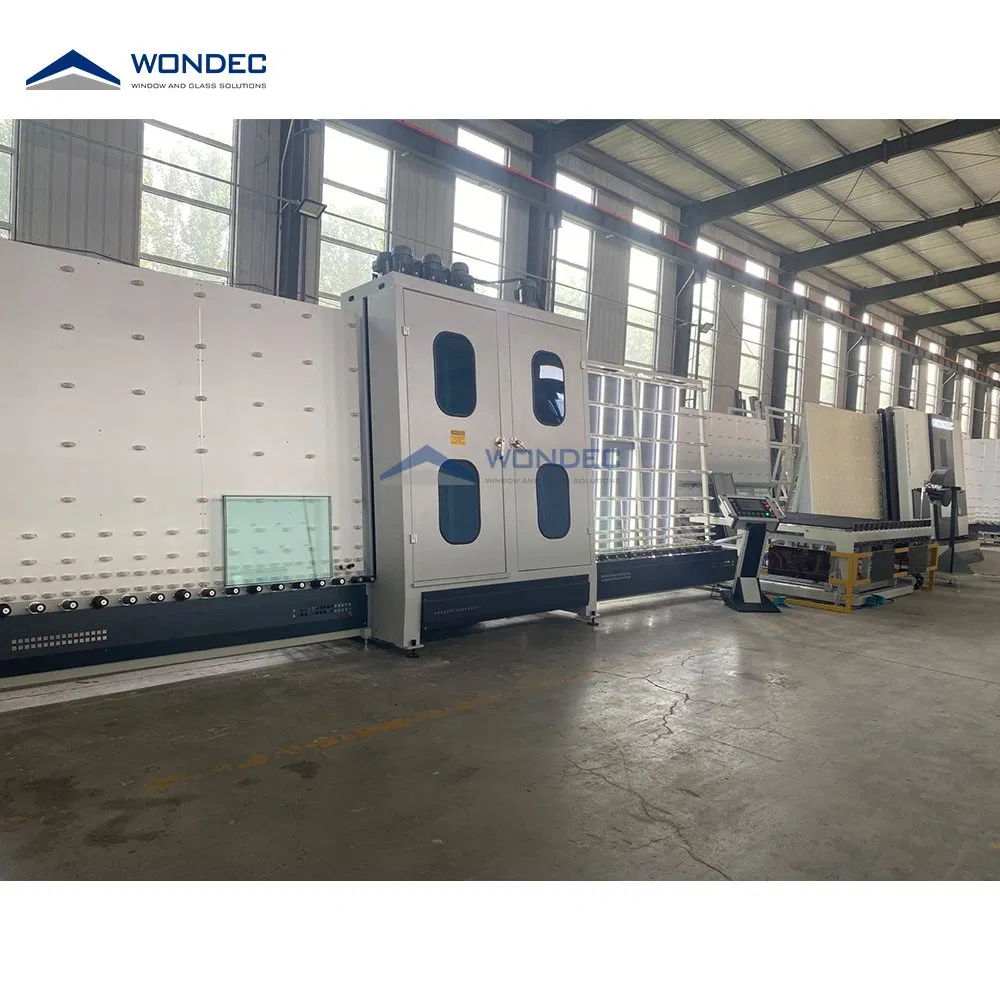

2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
1 / 5
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making
2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making

2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line for Double Glazed Hollow Glass Making

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
WLBZ2025-CF
Power
24kw
Max. I.G. Unit Thickness
12~80mm
Working Speed
2~48m/Min
Type
Insulating Glass Production Line
Structure
Vertical
Glass Washing Type
Ultrasonic Glass Washing
Glass Edging Type
Glass Double Edging
Condition
New
Warranty
1 Year
After-sales Service
Video Technical Support
Transport Package
Plastic Film
Specification
18760*3500*2850 mm
Origin
China
HS Code
84752990
Production Capacity
10sets/Month
★

Product Description

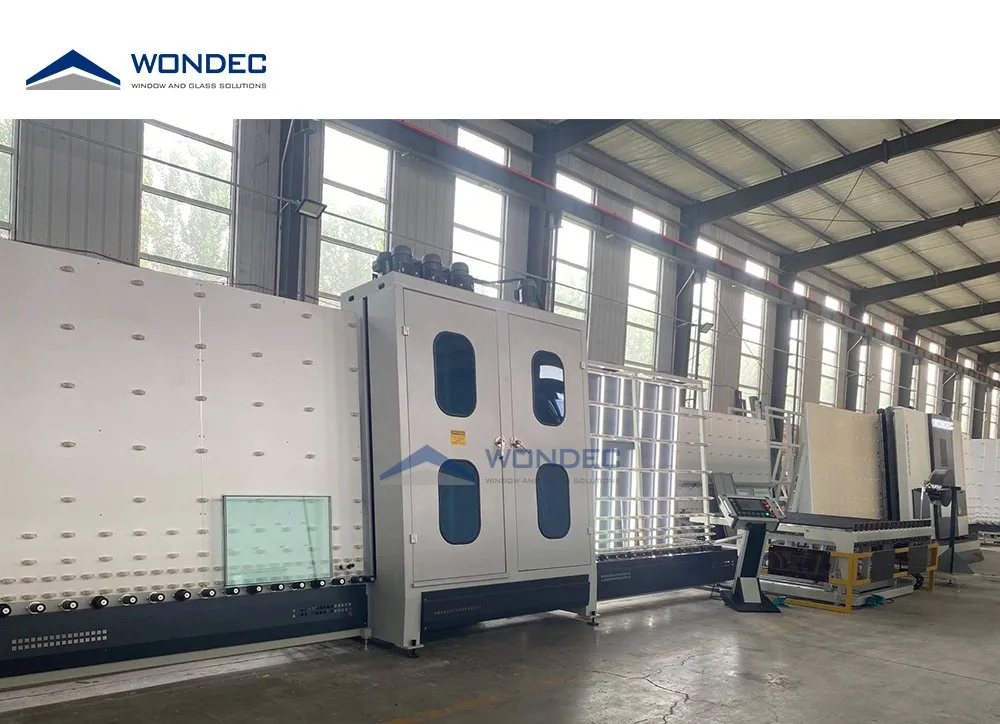

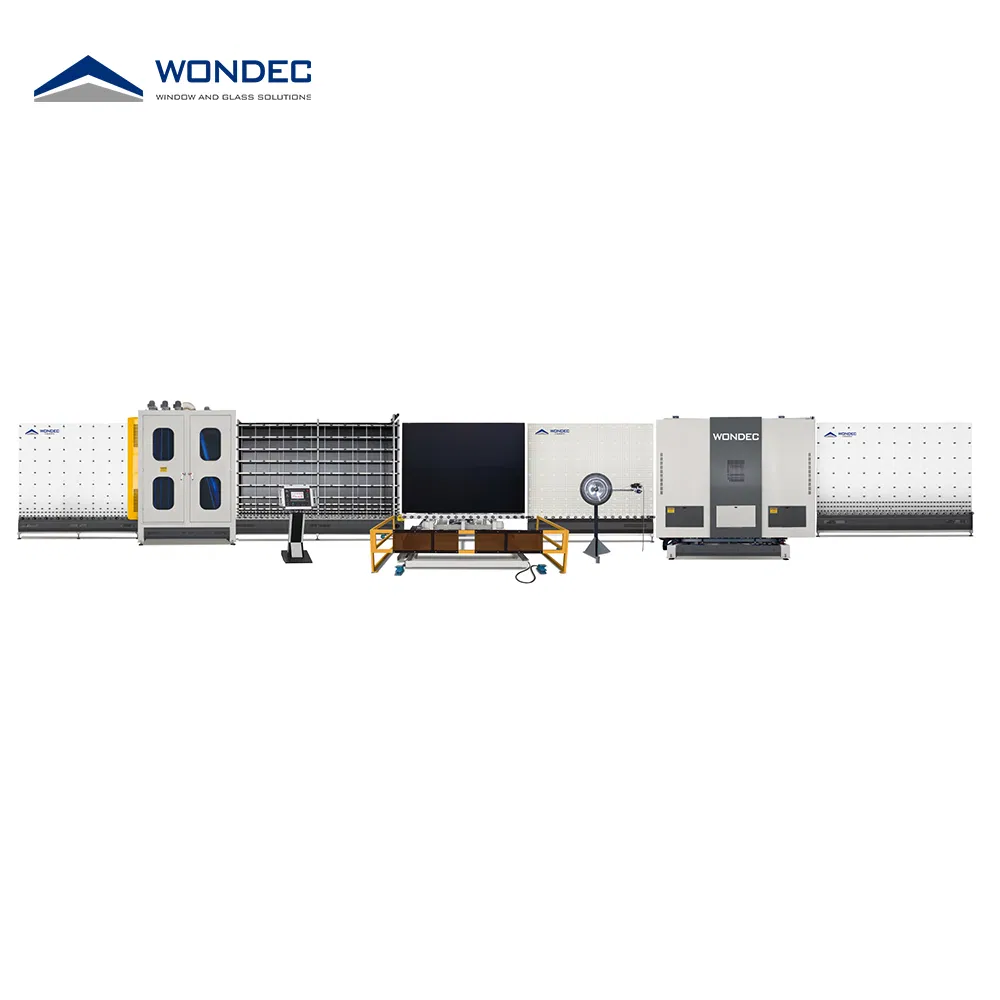

2000*2500mm Automatic Vertical Super Spacer Insulating Glass Production Line For Double Glazed Hollow Glass Making
This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance.
Automatic Vertical Insulating Glass Line Product Detail

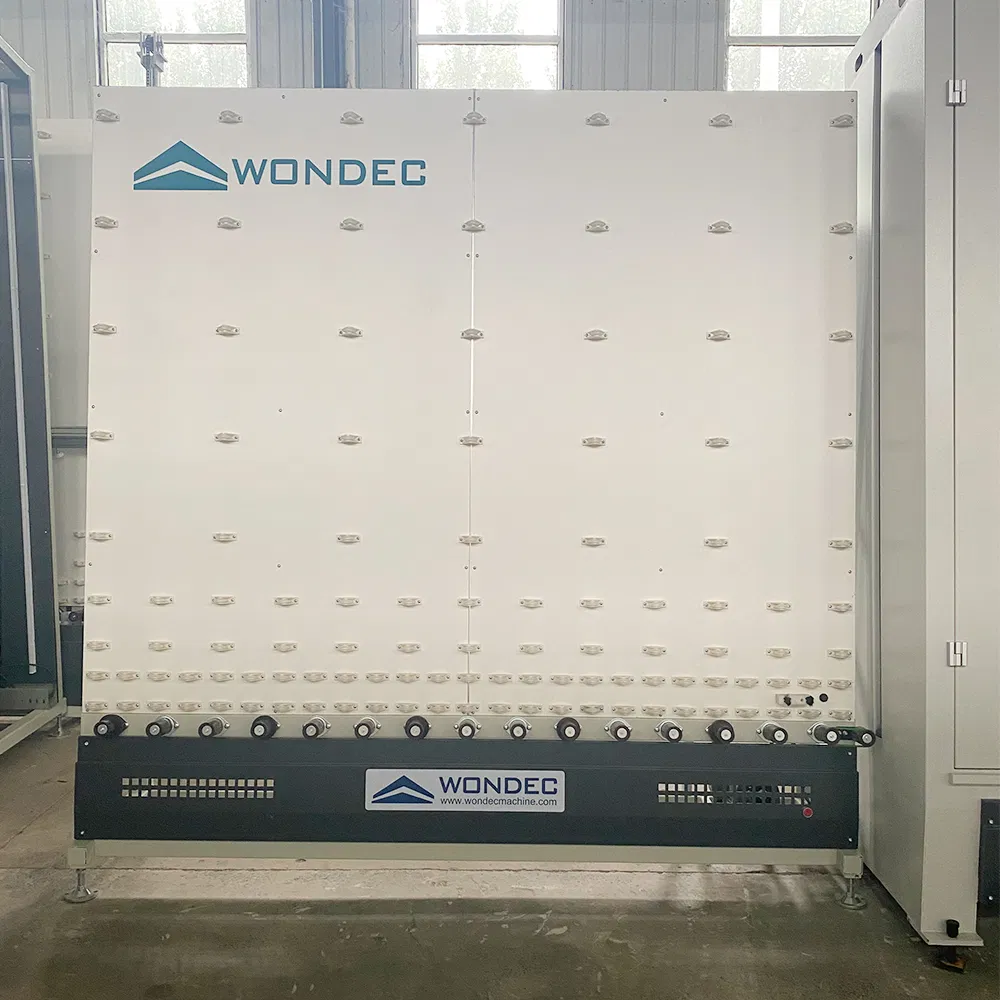

Section 01: Input conveyor

This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.
Input conveyor

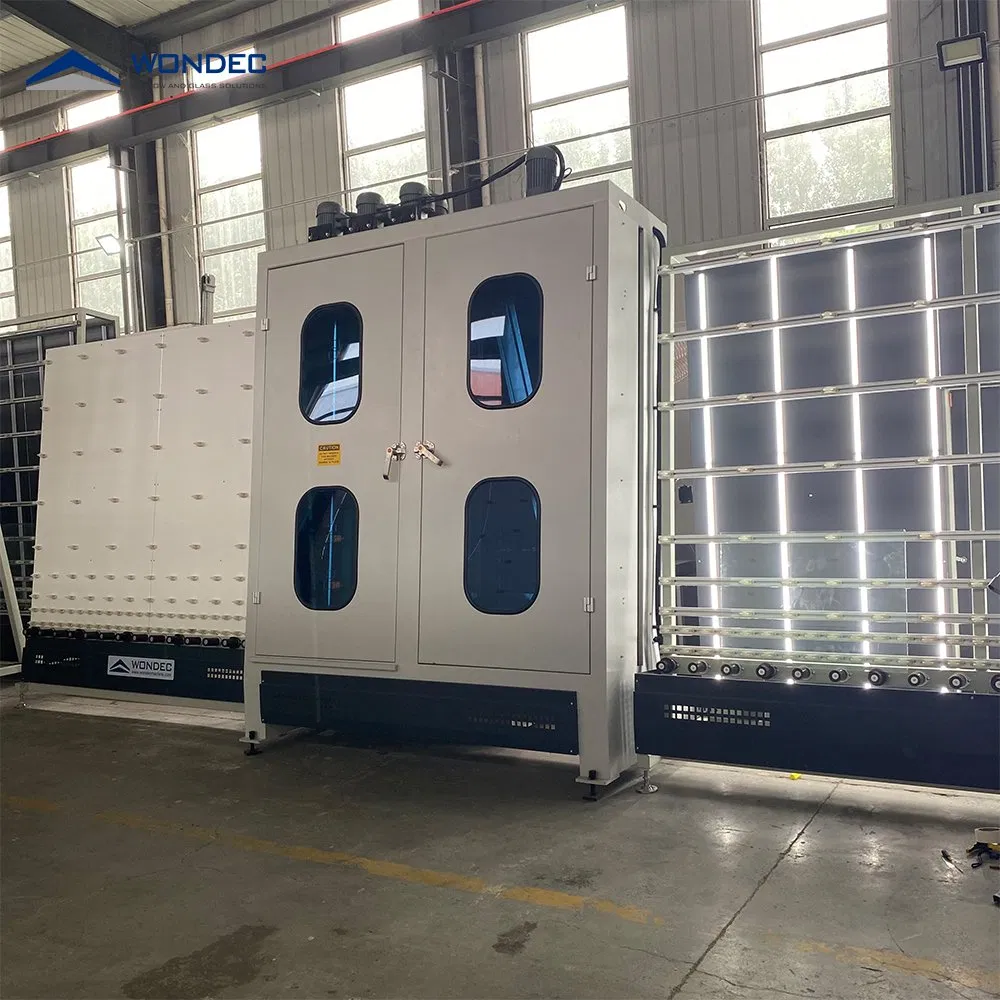

Section 02: Glass washing and drying section

1. Stainless steel material and corrosion-resistant material adopted for all washing area, water tank, and waterway system.
2. The 6 brushes are driven by 6 motors independently, which will not affect the other motors working.
3. The connection mode of brush and motor is coupling, ensuring no slip or motor idling.
4. Soft brushes (0.1 mm) for Low-E glass and hard brushes (0.2 mm) for ordinary glass.

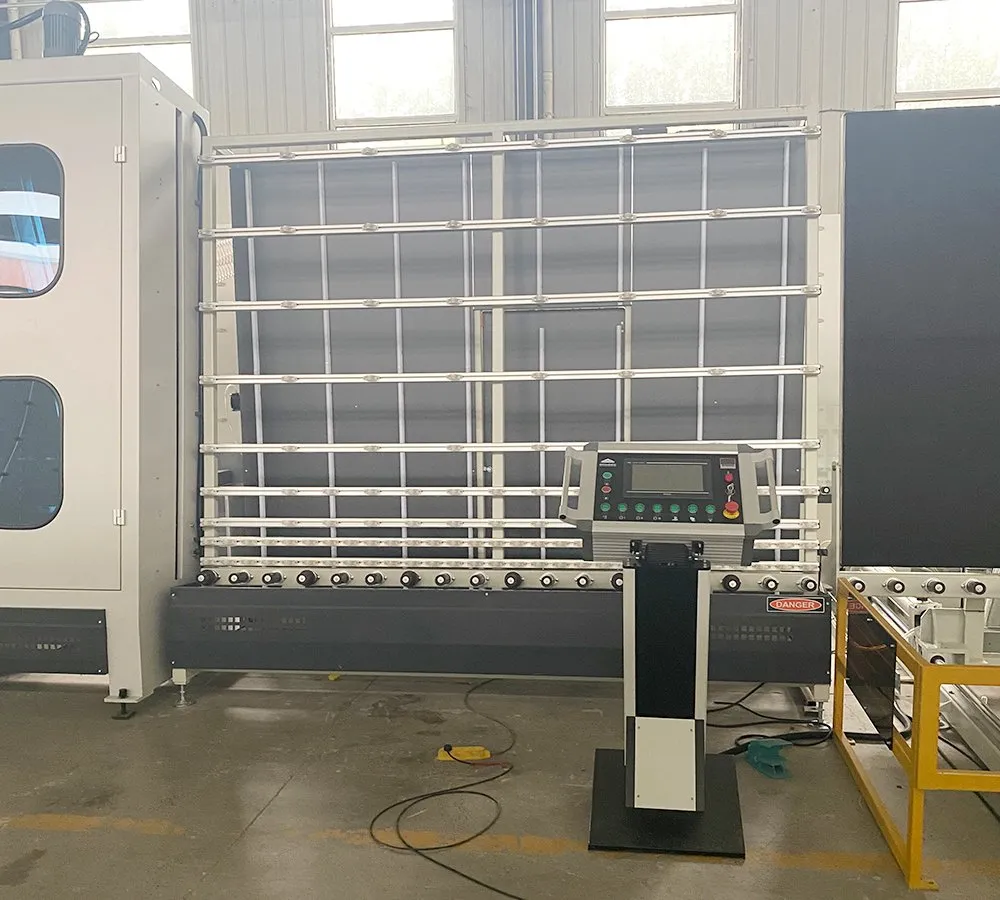

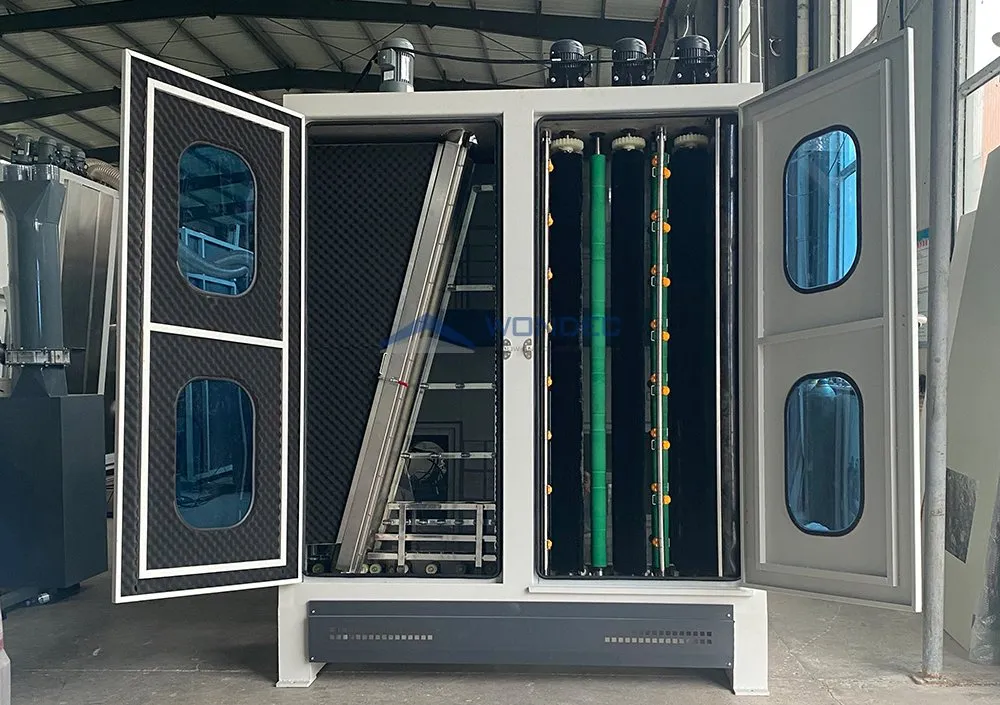

Washing section

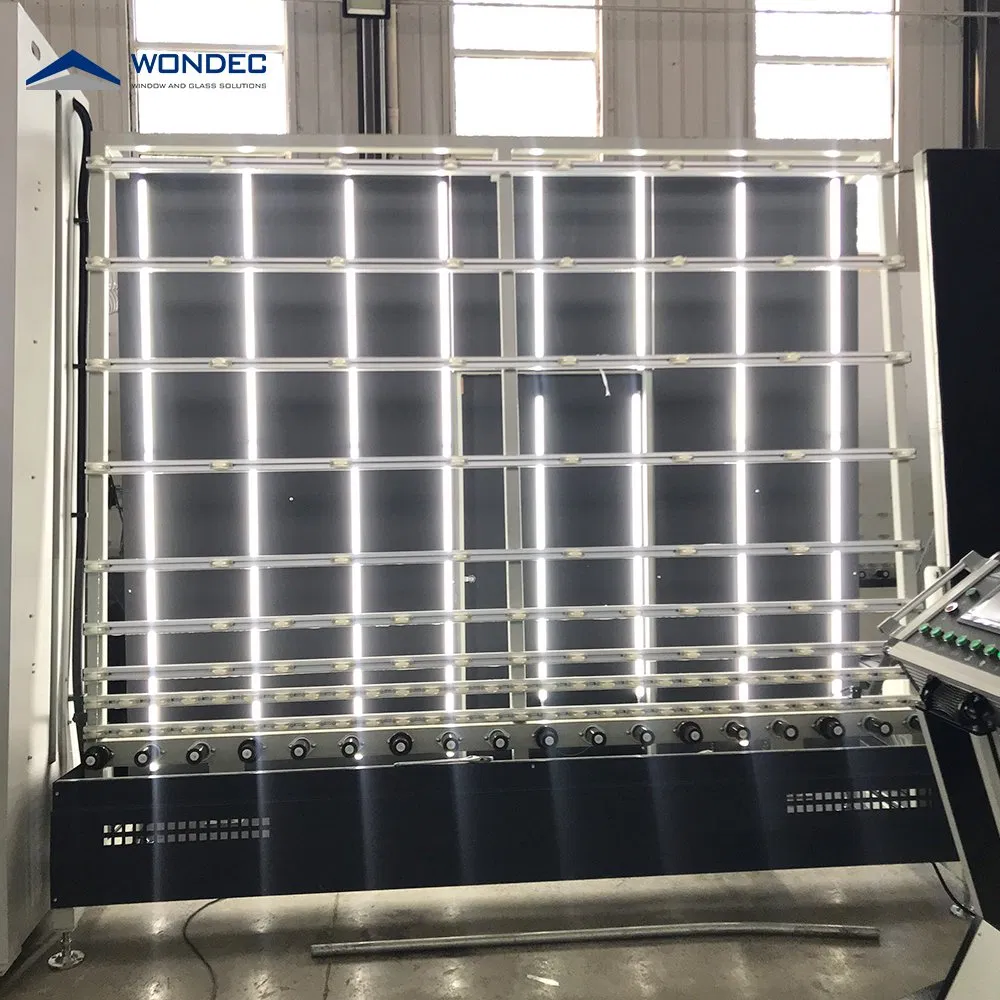

Section 03: Glass Inspection conveyor

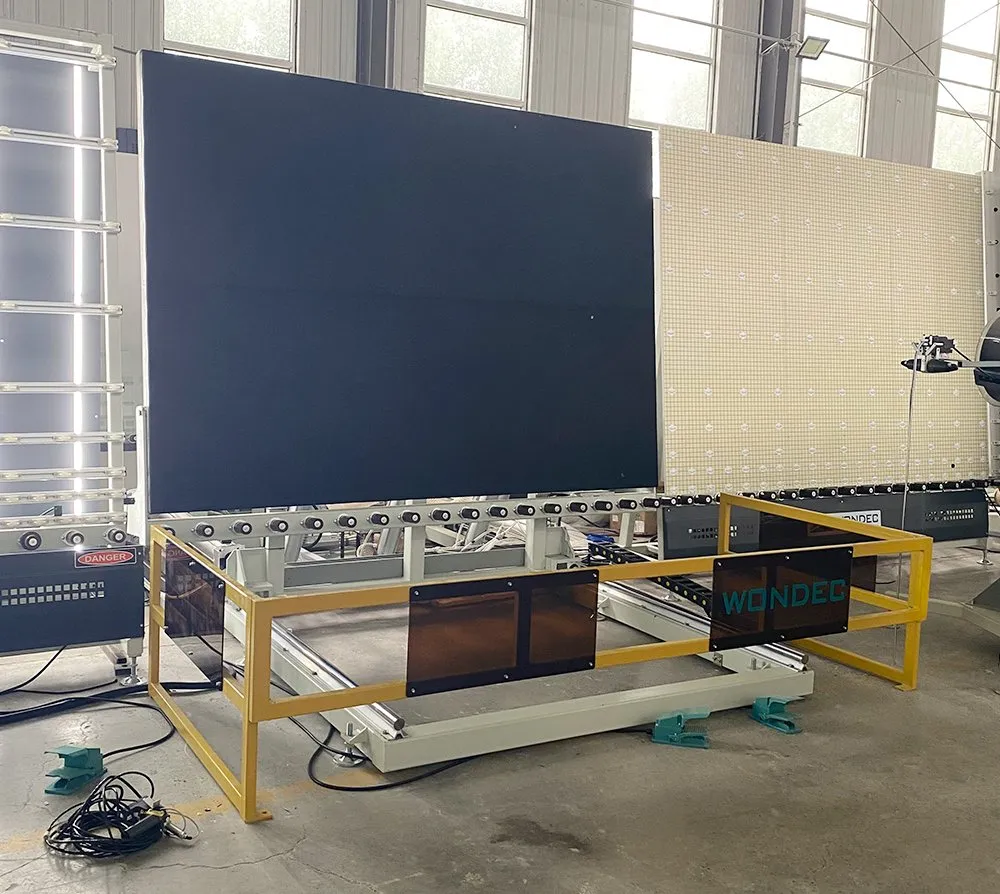

Inspection conveyor 1

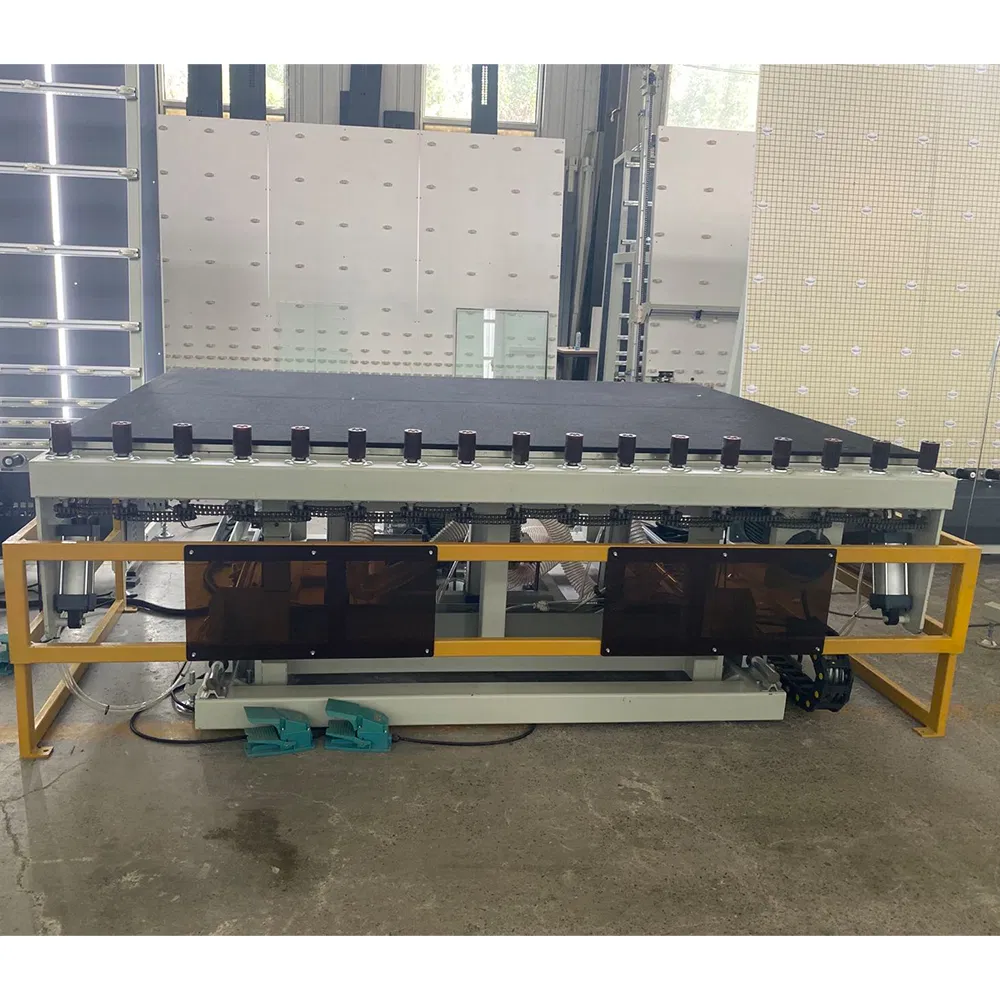

Inspection conveyor 2

Section 04: Tilting table for Super Spacer manual application

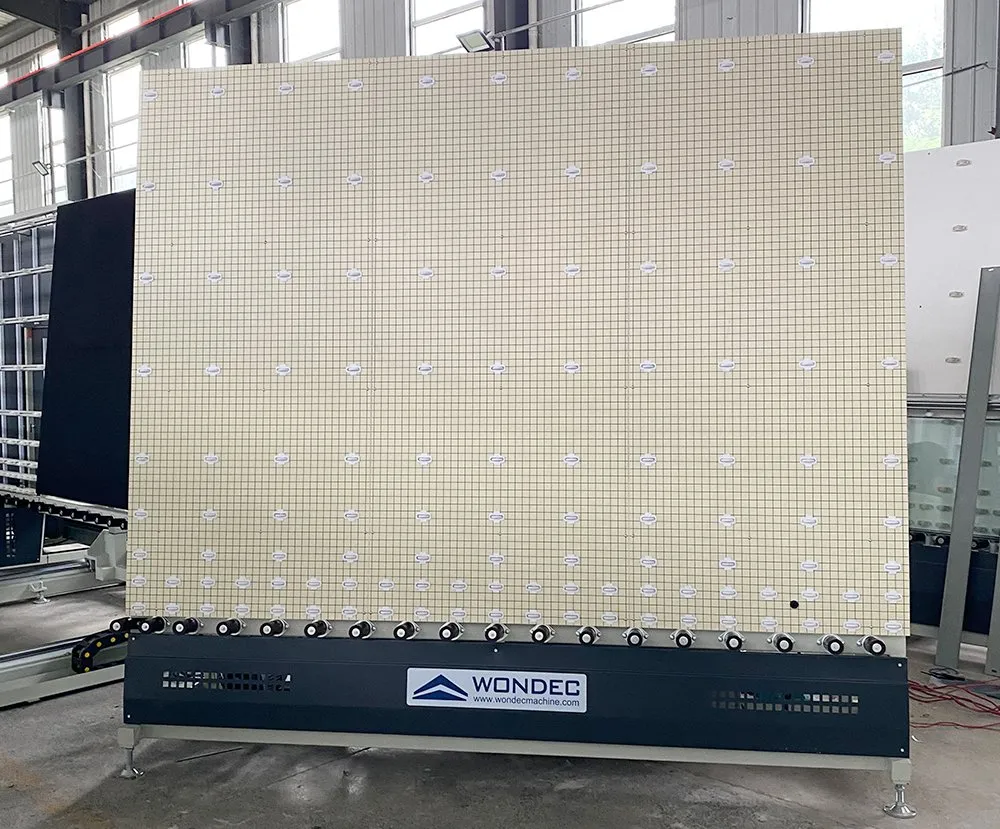

Tilting table

Section 05: Georgian bars application

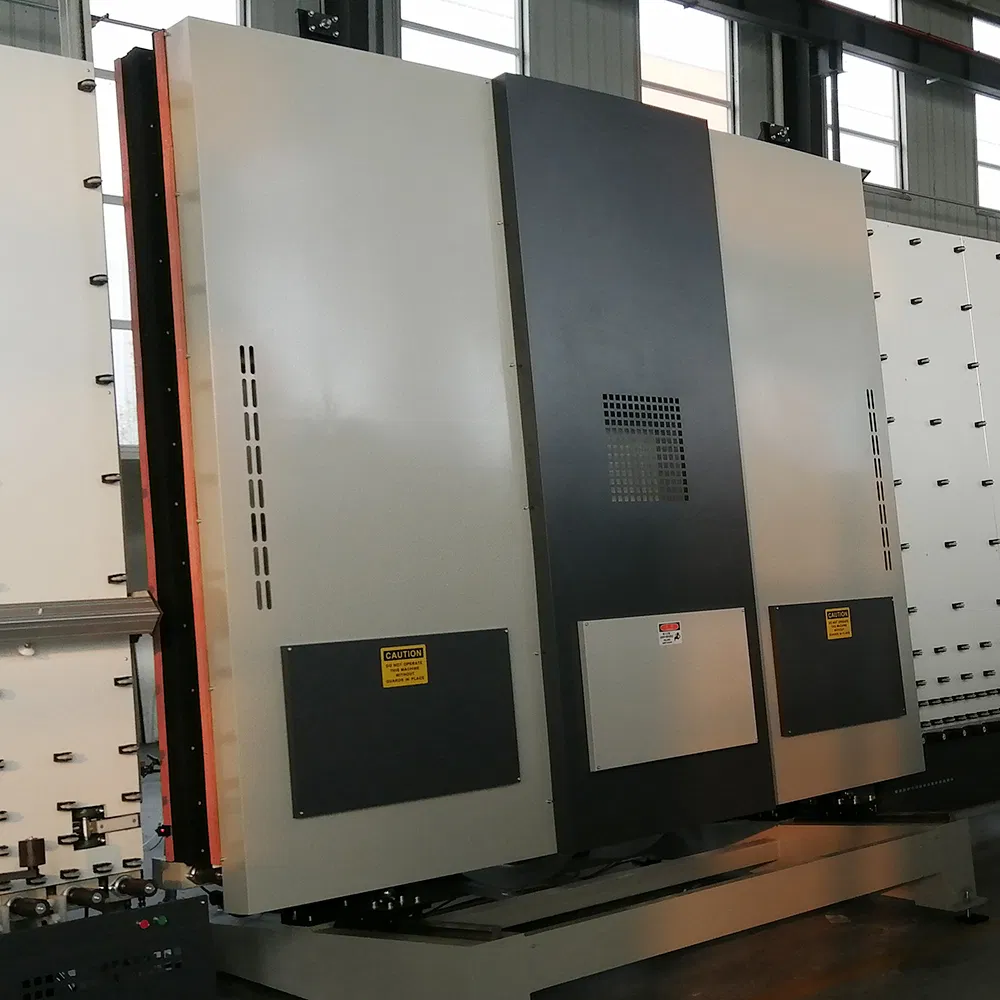

Georgian bar 1

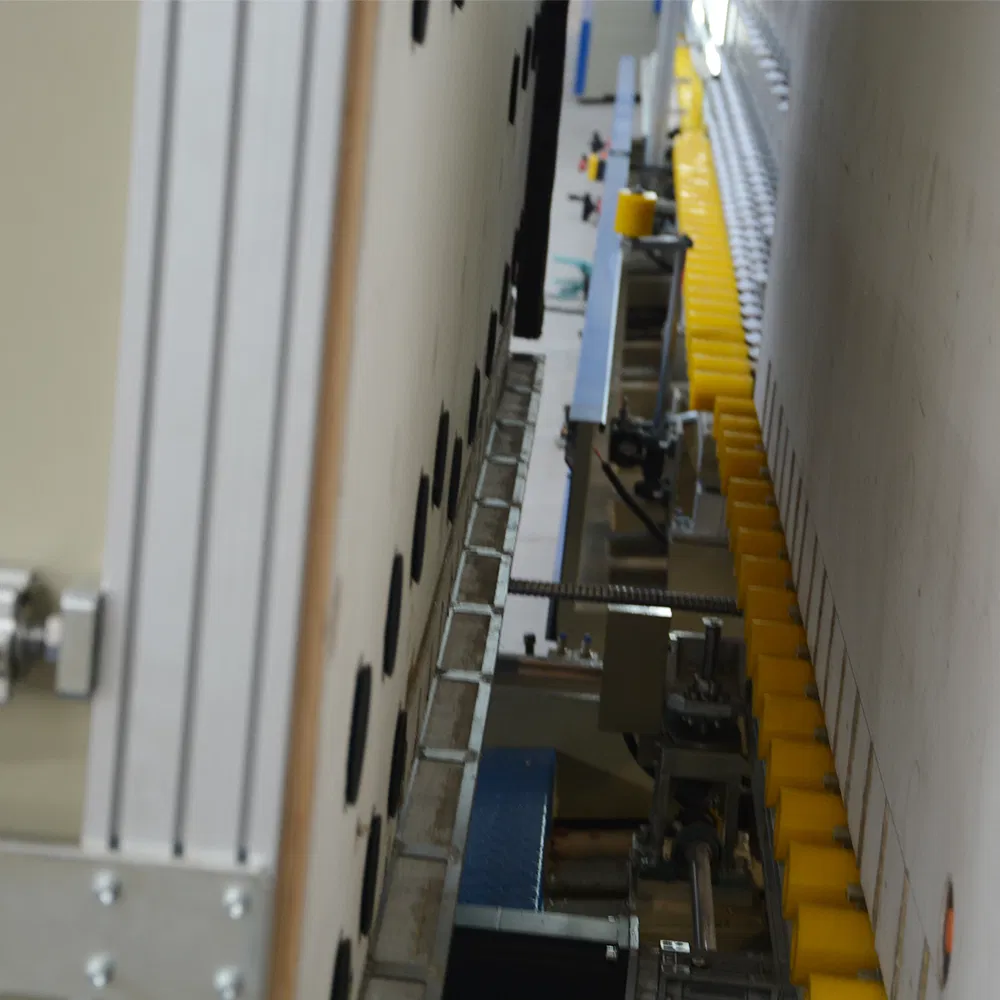

Georgian bar 2

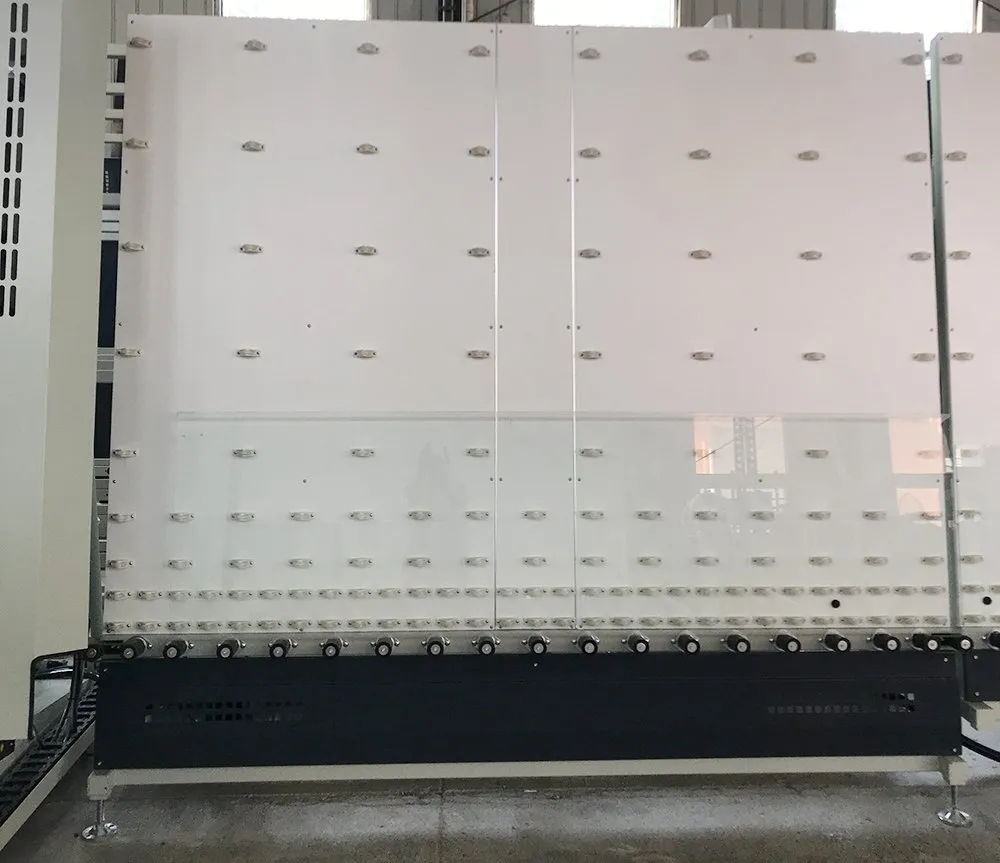

Section 06: Inside assembly & panel press with online argon gas inflation

1. Denser steel frame for a stronger machine body.
2. The panel press is controlled by Servo motor.
3. Two-layer front pressing plate frame for long-term flatness.
4. Partitioned suction cups work according to glass size.
5. Automatic online gas filling for double & triple IGU from bottom side.
Panel press section

Section 07: Output conveyor

Used to transmit and store glass units to improve efficiency. Can be connected with sealing robots.
⚙

Technical Parameters

Max. glass size2000*2500mm
Min. glass size500*300mm
Pane glass thickness3-12mm
Max. Insulating glass thickness12-80mm
Glass washing speed3-12m/min
Working speed2-48m/min
Air pressure0.8m³/min
Water electrical conductivity≤40µS/cm
Overall dimension18760*3500*2850mm
Models comparison Detailed dimensions
🏢

Production Environment

Factory Floor
Manufacturing process
Assembled machines
Quality Control
?

FAQ

Are you a manufacturer?
Yes, we are a professional manufacturer with more than 10 years of experience in this specialized glass machinery area.
Can the machine be customized to our local voltage?
Yes, we can customize our machines to match your specific local industrial voltage requirements.
What is the process after payment is made?
Once the deposit is confirmed, we arrange production immediately. After finishing and testing, we provide a performance video for your feedback before packing and shipment.
Can you help arrange the shipment?
Yes, we work with reliable shipping partners who provide fast delivery and competitive pricing. We can manage the entire shipment process based on your needs.
How do we install the machine upon receipt?
We provide specific operation manuals and detailed explanation videos. Additionally, each customer has access to a technical support group for real-time online assistance.
What materials are used for the washing section?
The entire washing area, water tank, and waterway system are constructed from high-quality stainless steel and corrosion-resistant materials for durability.
