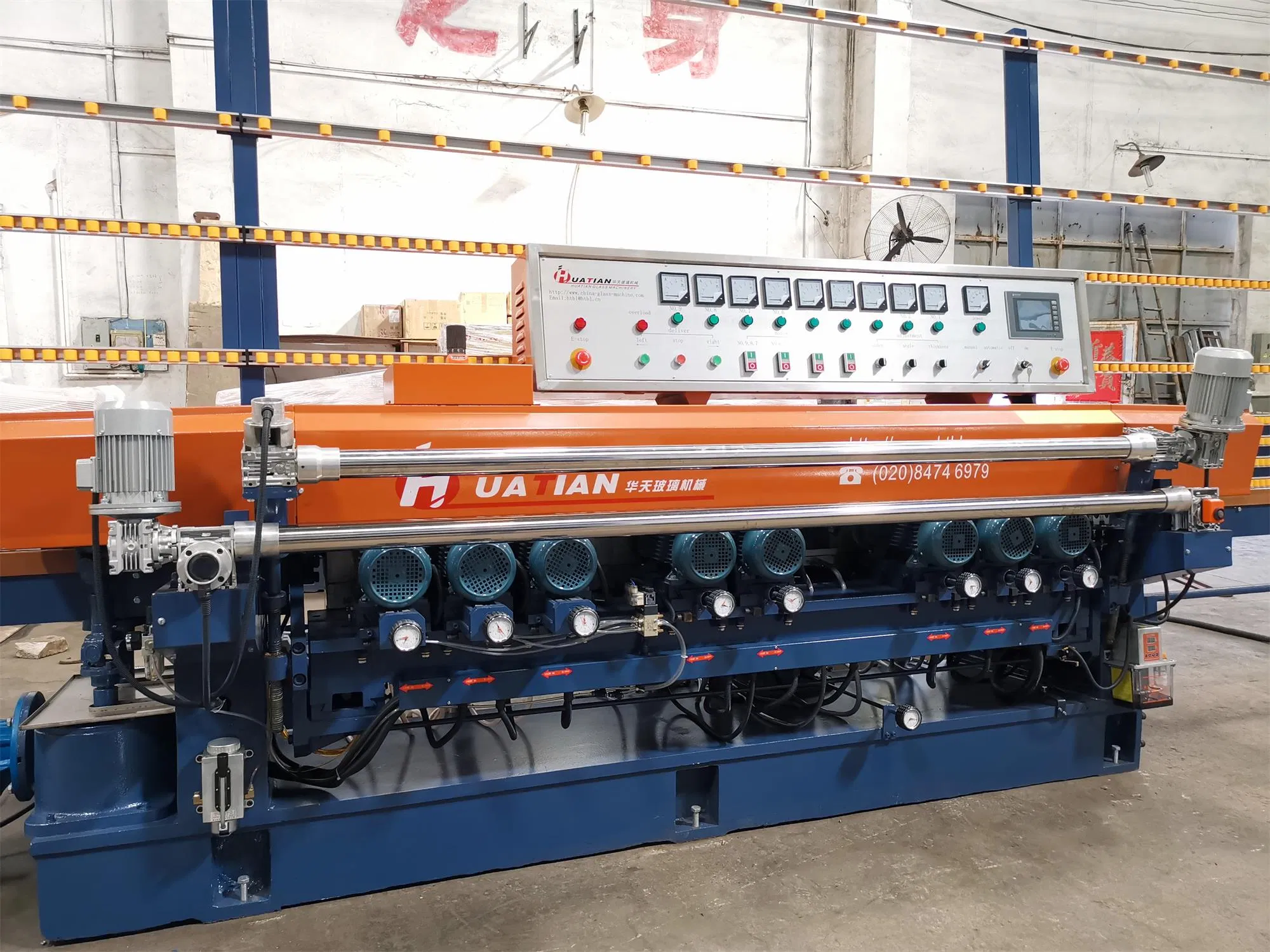

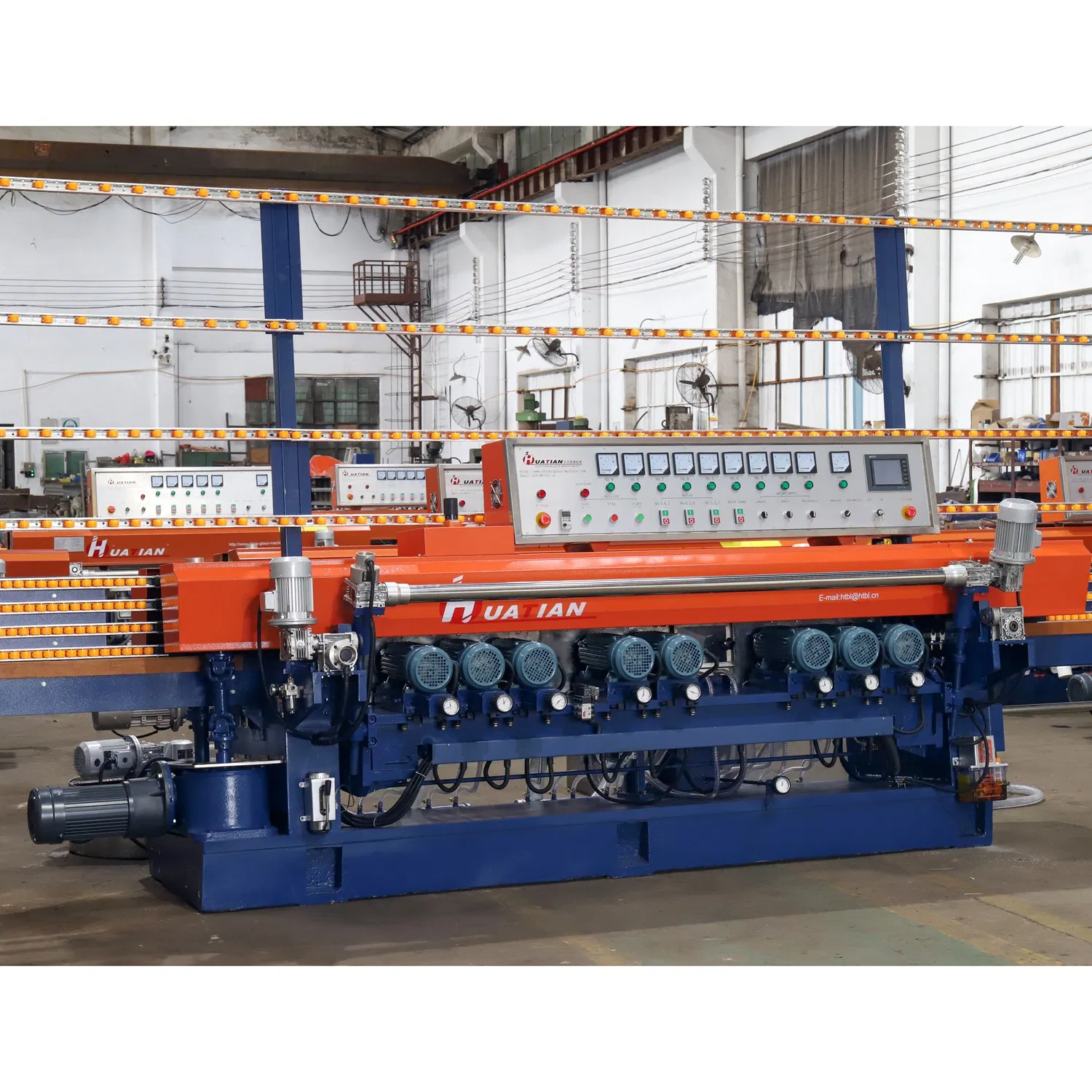

9 Wheels Spindles Float Glass Straight Line Mirror Beveling Edging Machine

1 / 5

9 Wheels Spindles Float Glass Straight Line Mirror Beveling Edging Machine

Customization:	Available
Warranty:	One Year
Color:	Blue and White

Send Inquiry

Product Description

🔷 Basic Specifications

Model NO.

HZM261TP

Type

Glass Edging Machine

Structure

Vertical

Grinding Heads

Control System

Manual / PLC Option

Package

Poly Film / Standard Export Packing

Condition

New

Tank Material

Stainless Steel

Wheel Origin

Made in Italy

Power

18.5KW

HS Code

84642010

Specification

CE Certified

📊 Technical Parameters

Grinding speed	500~2500mm/min
Pneumatic polishing motor	NO.7, 8, 9
Thickness of processed glass	4 ~ 20mm
Bevel angle	3° ~ 20°
Max glass size	3000 x 3000mm
Min glass size	30 x 30mm
Weight	5000 KG
Dimensions	700(L) x 1200(W) x 2500(H)mm

📝 Product Features

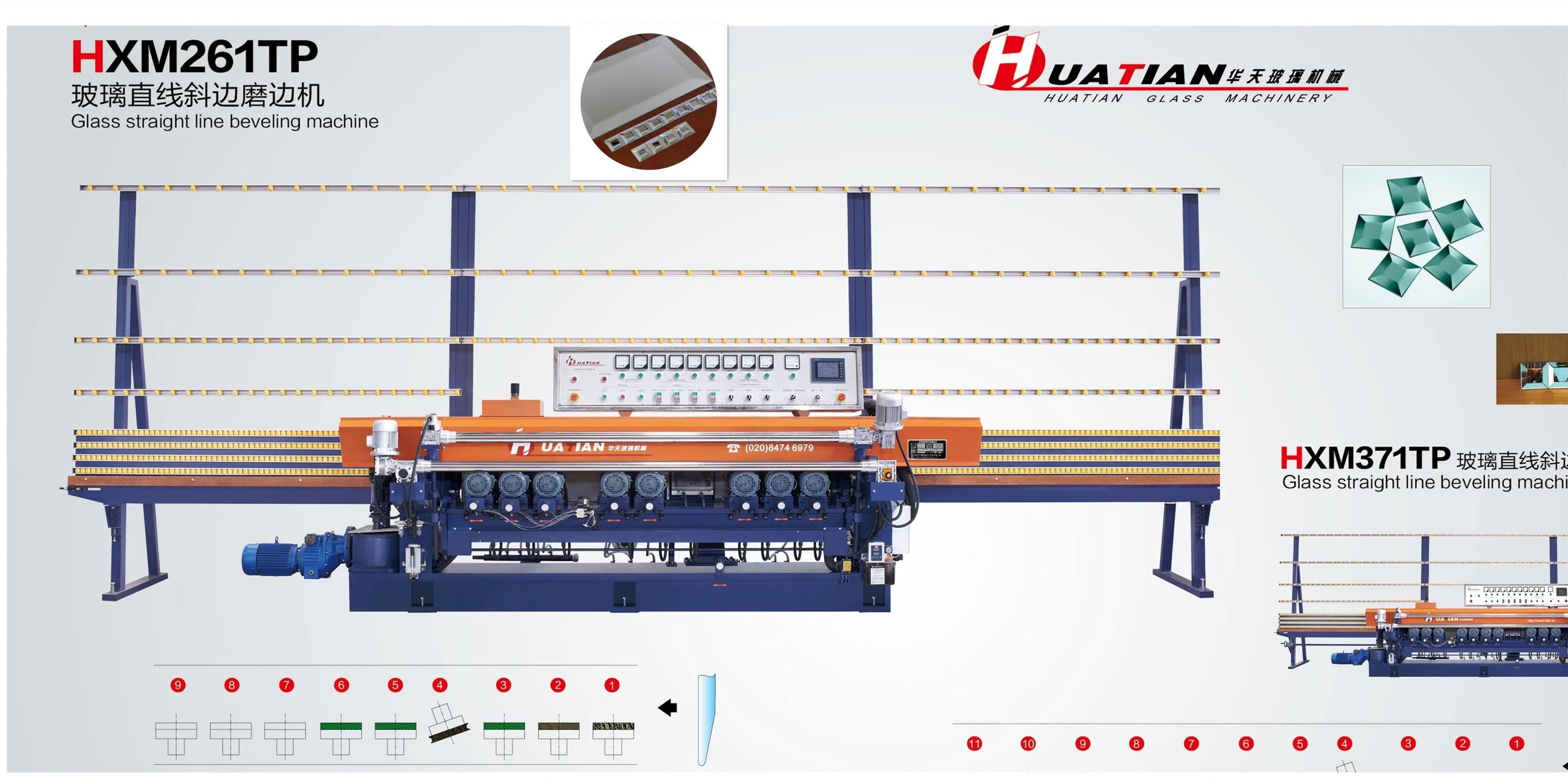

The Glass Straight Line Beveling Machine is designed for high-precision grinding and polishing of glass bevels across various sizes and thicknesses.

Integrated Process: Grinding and polishing of bevels along with bottom edge grinding can be completed in a single pass.

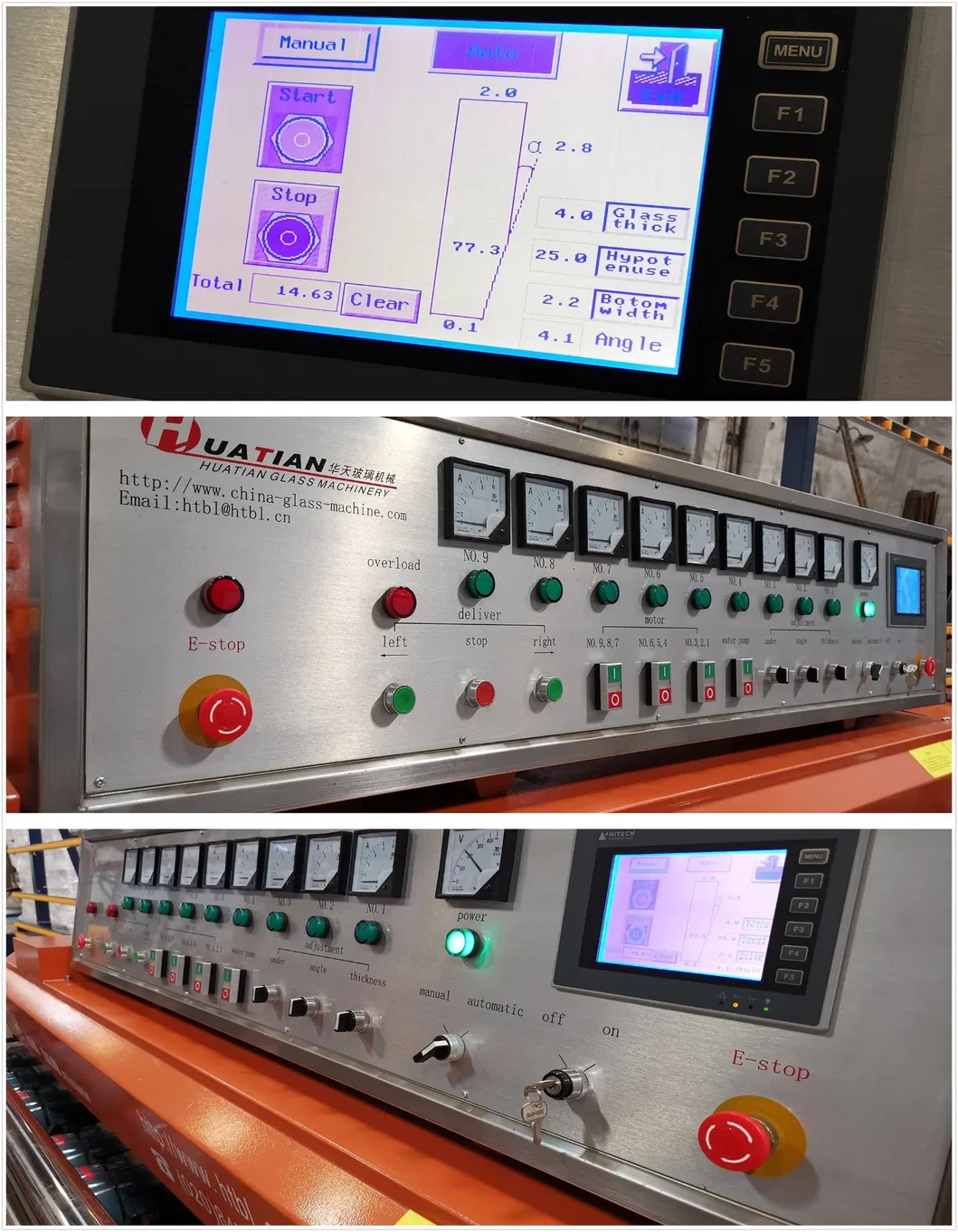

Dual Operation Modes: Offers both manual and automatic operation. The PLC system with a touch screen allows for easy parameter setting.

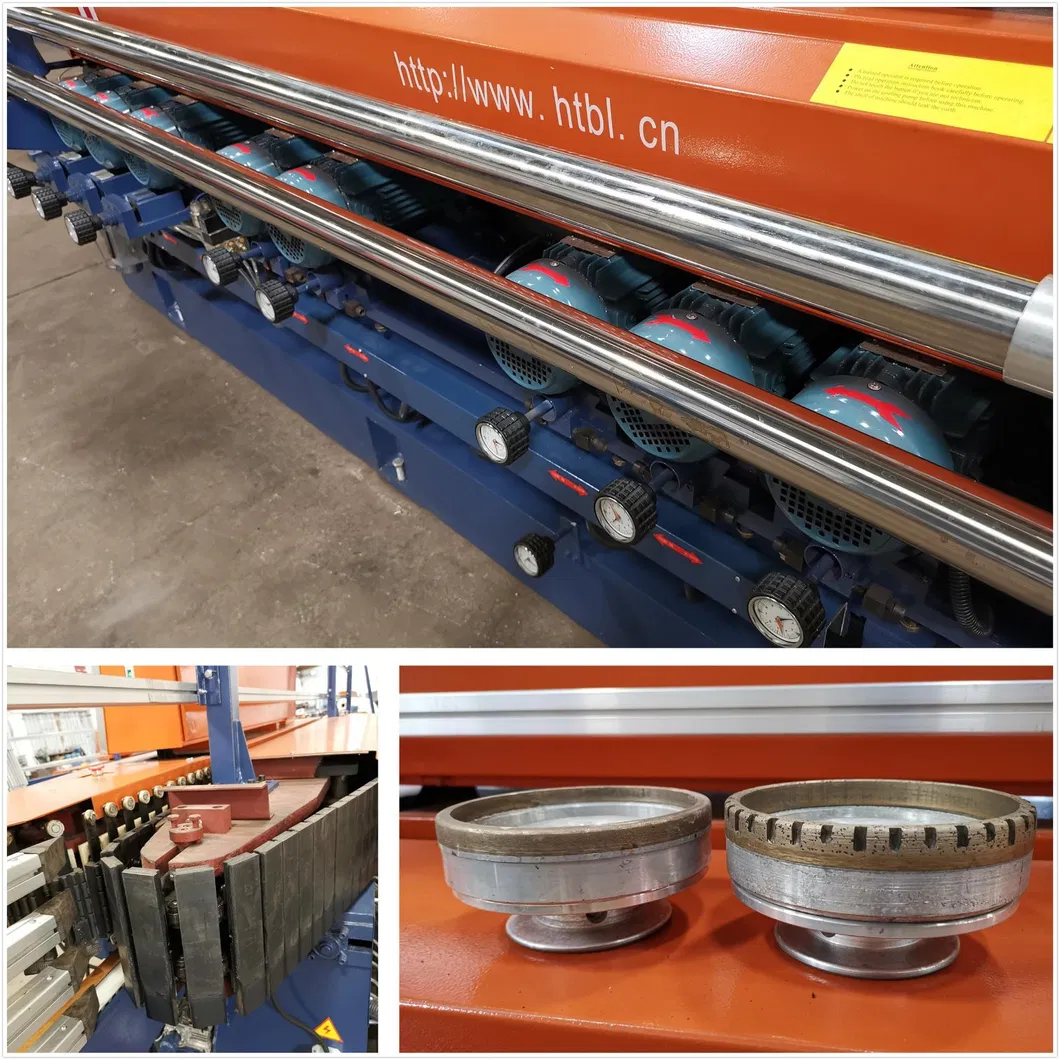

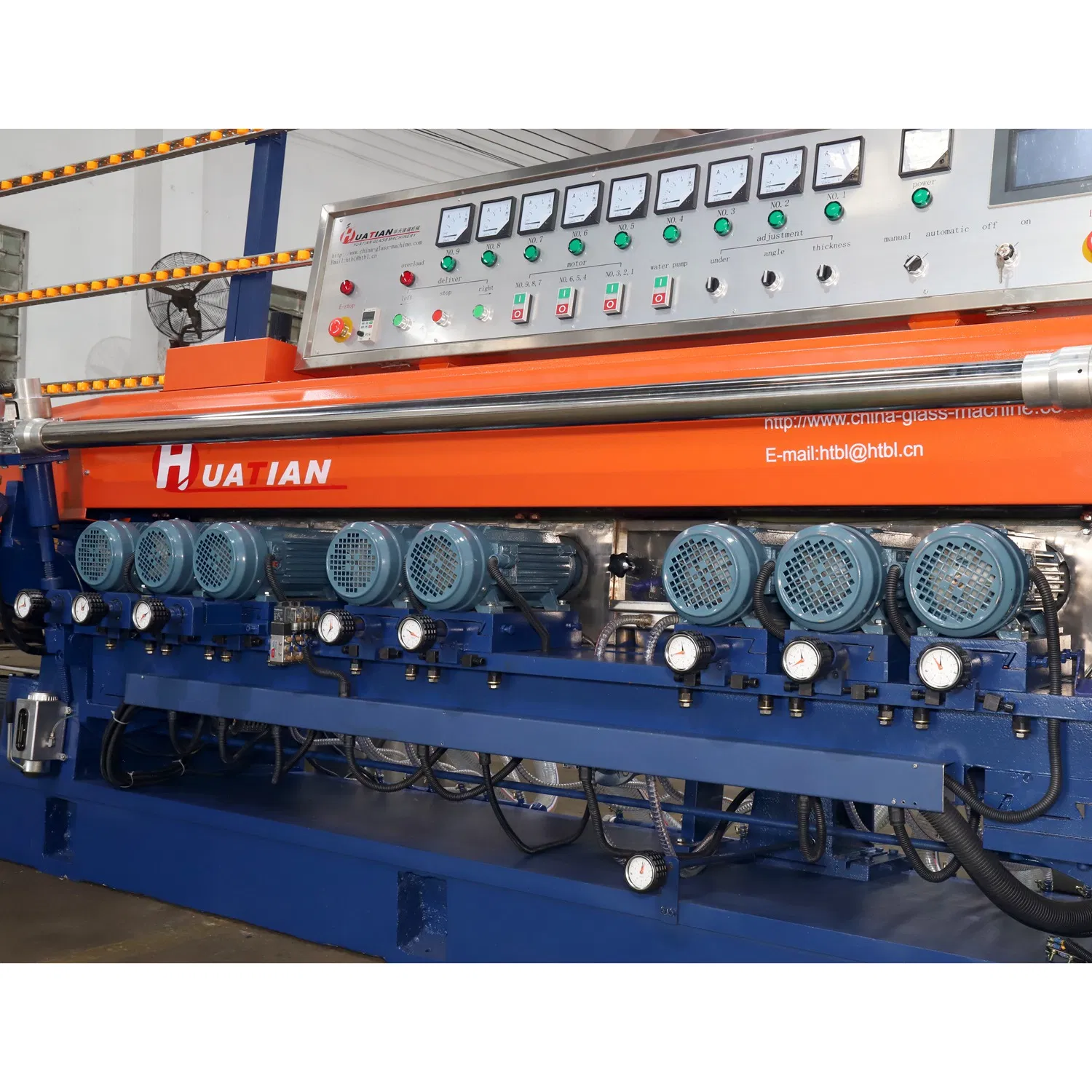

Advanced Configuration: Equipped with two wheels for rough grinding, four wheels for fine grinding, two pneumatic polishing wheels, and one bottom grinding wheel.

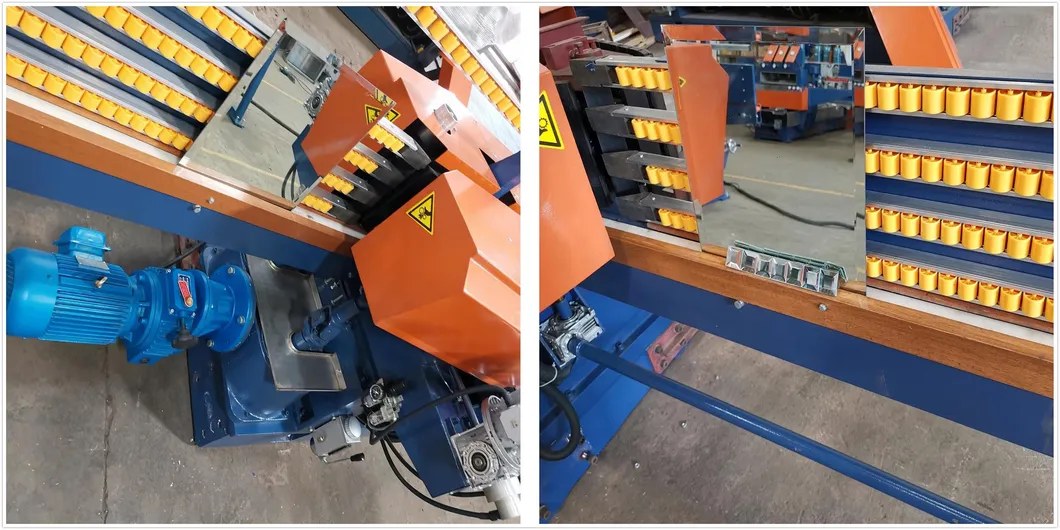

Adjustable Components: Front pads can be adjusted vertically to process small-sized glass pieces effectively.

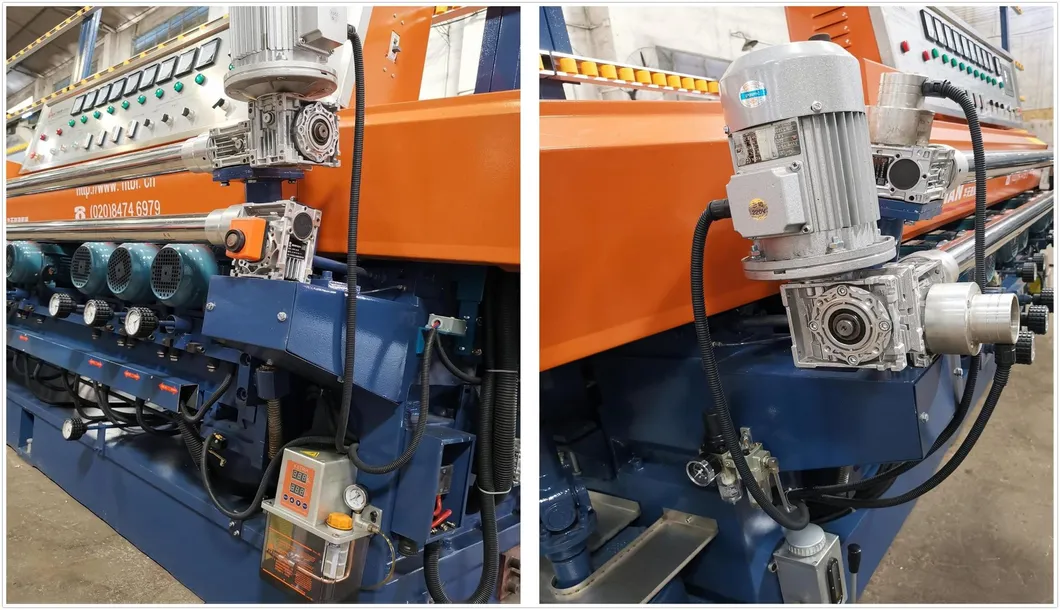

Variable Speed: Driving speed is adjustable via a stepless reducer, allowing for random adjustments within the available speed range.

🖼️ Product Showcase
