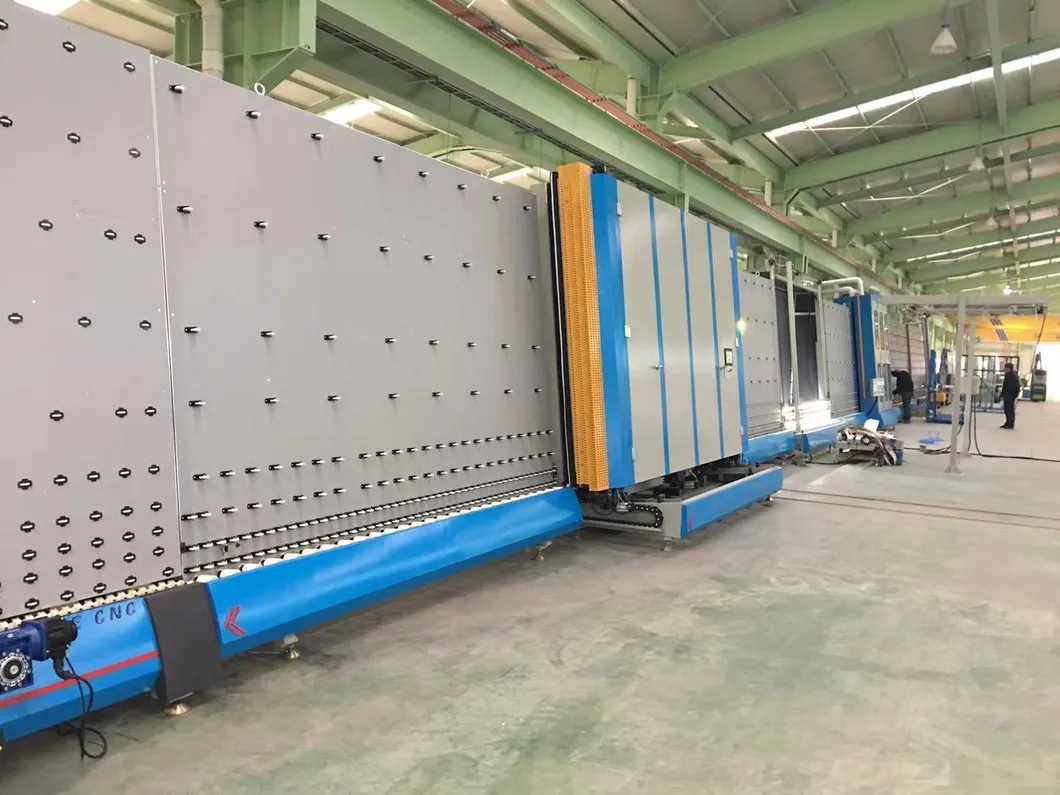

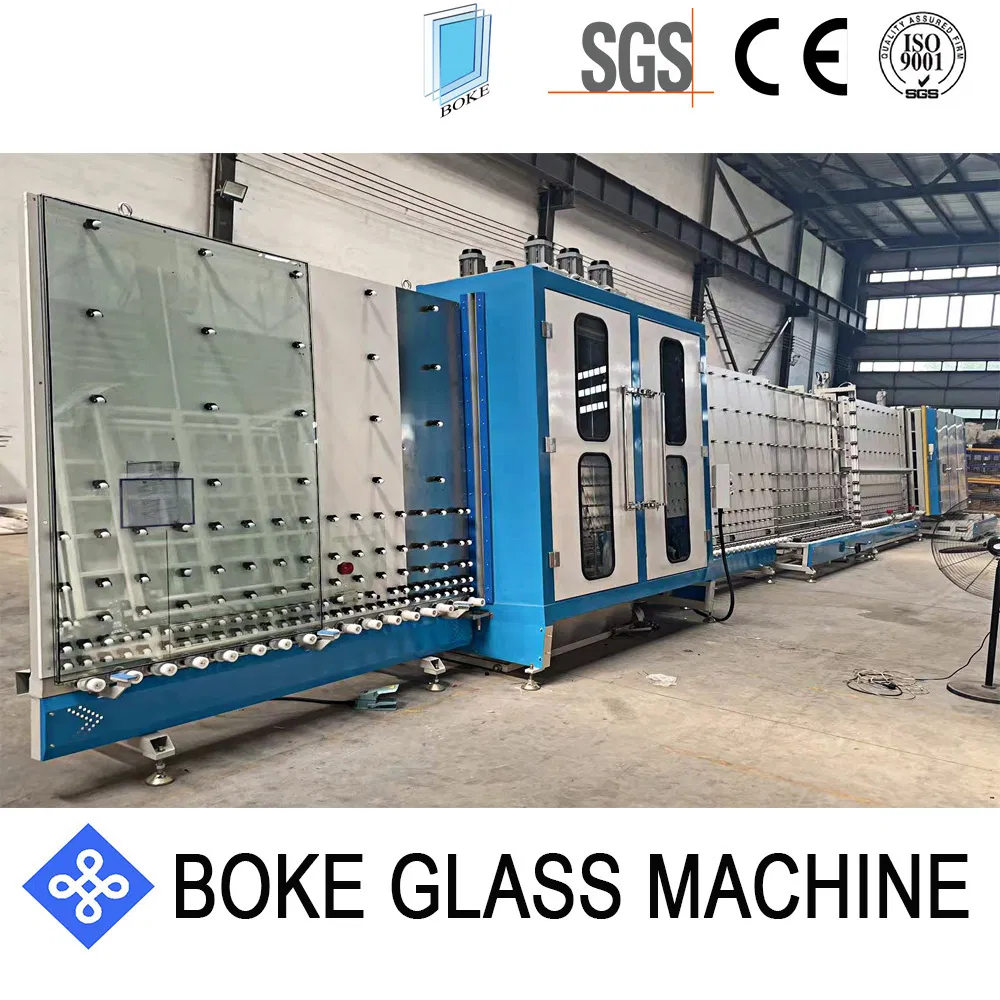

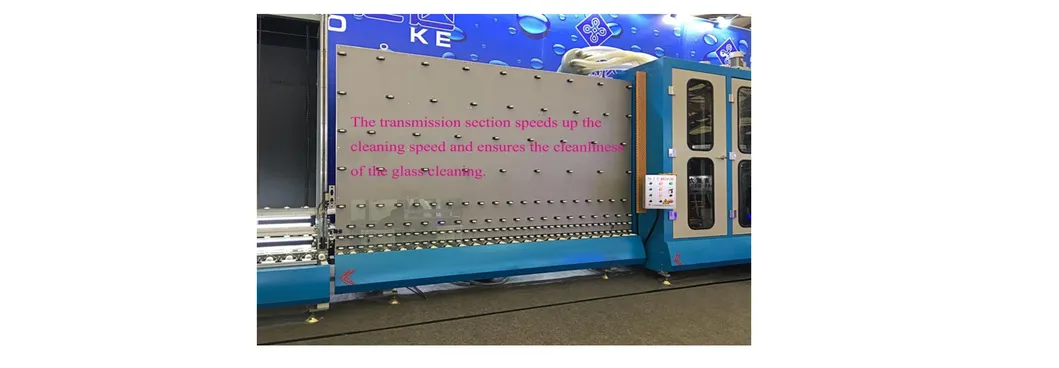

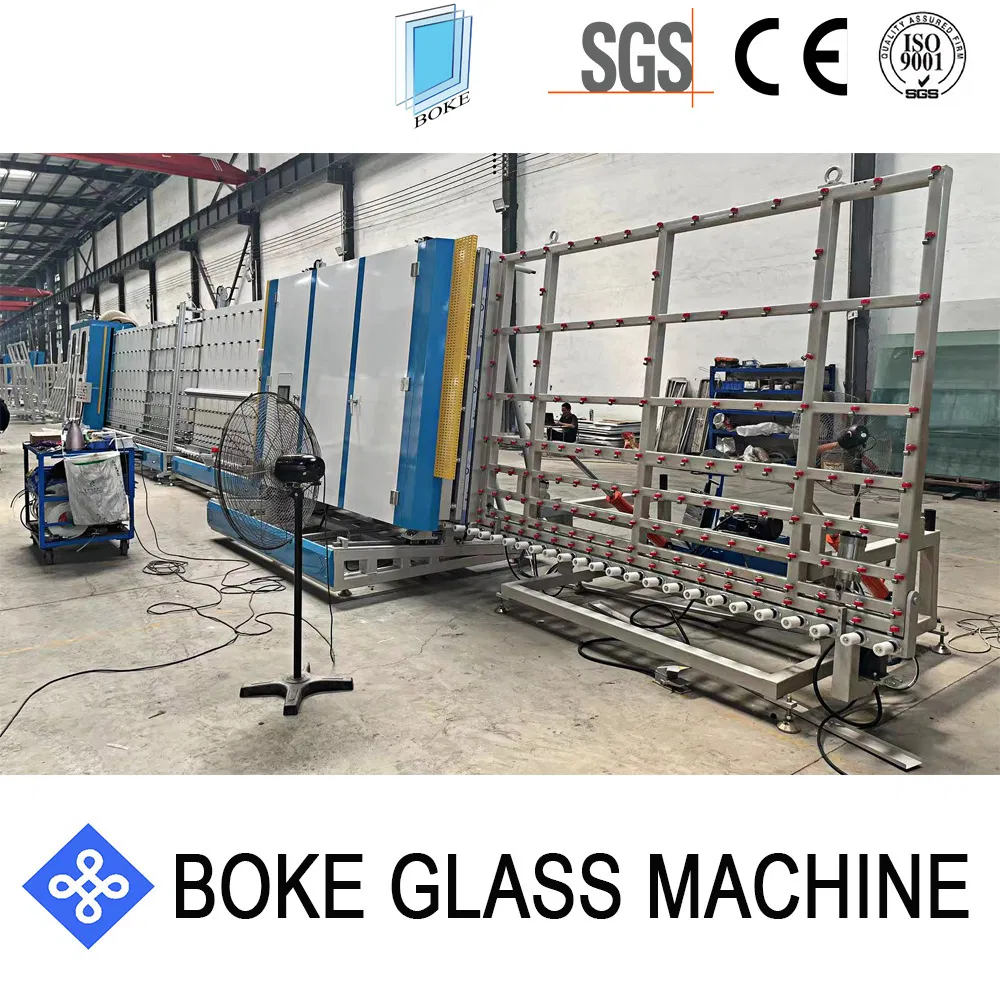

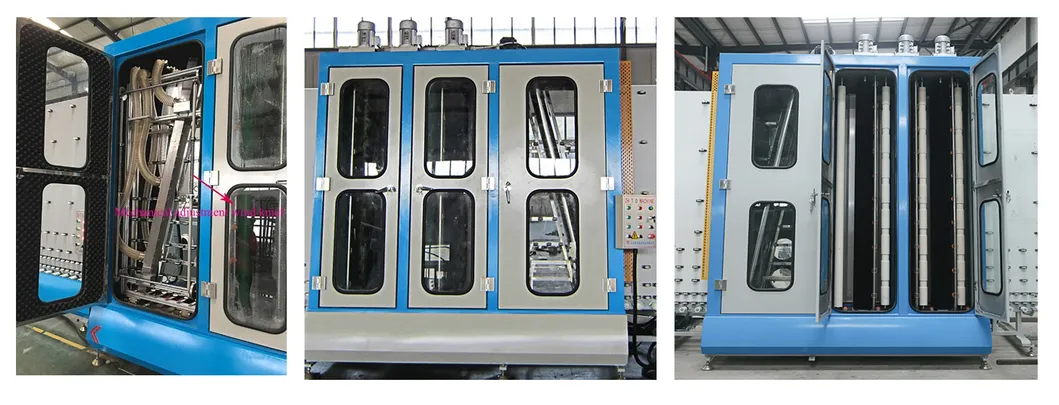

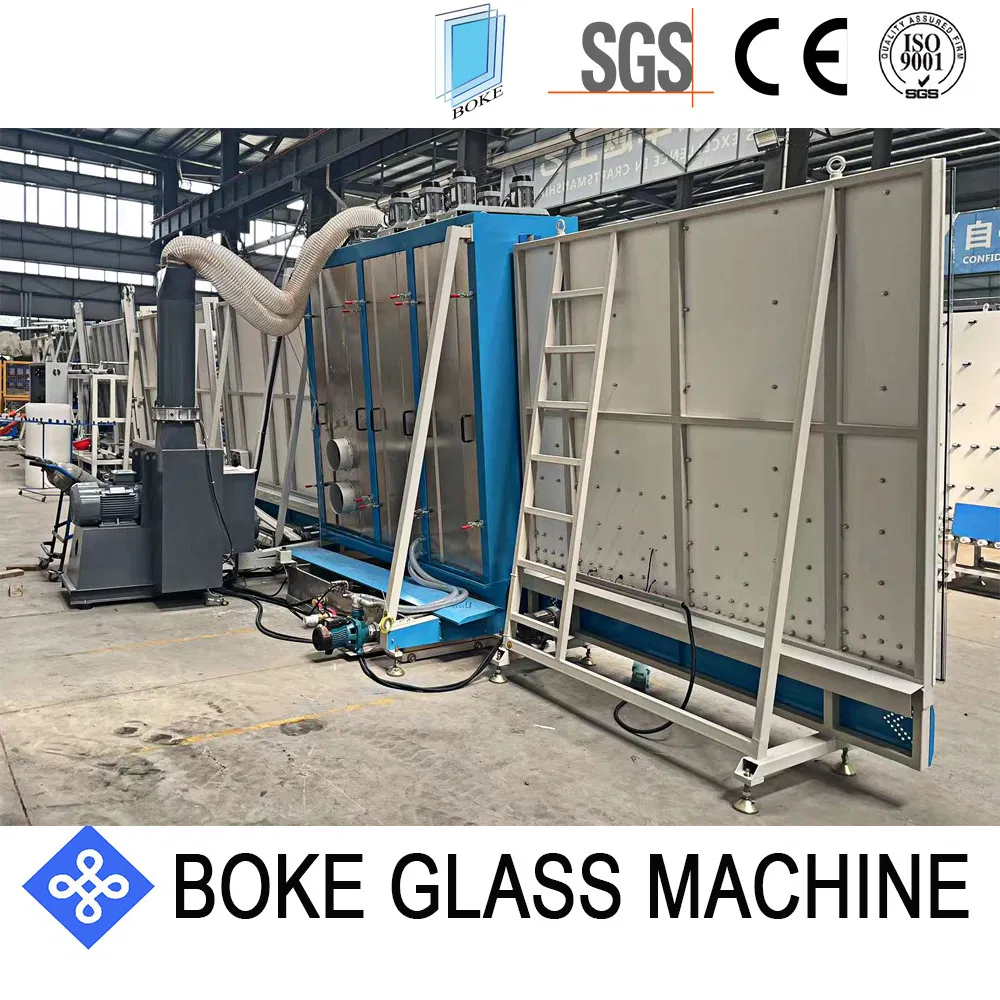

This Vertical Insulating glass machine is a comprehensive solution for high-speed production, specifically designed to wash Low-E glass effectively. The line integrates loading, washing, drying, transmission, light inspection, spacer bar attaching, and automatic gas filling.
| Parameter | Value / Specification |
|---|---|
| Model | LBP2500Q |
| Max processing glass size | 3600*2500mm |
| Min processing glass size | 450*200mm |
| Single glass thickness | 3-15mm |
| Cleanout speed | 3-10m/min |
| Work speed | 15-45m/min |
| Power supply | 3P, 380V/50Hz |
| Total power | 44.85Kw (including 10Kw heater) |
| Inert gas type | Argon, Nitrogen, etc. |
| Inert gas efficiency | More than 95% |
| Total weight | 10500Kg |
| Outline Dimension | 24600*2500*3680mm |

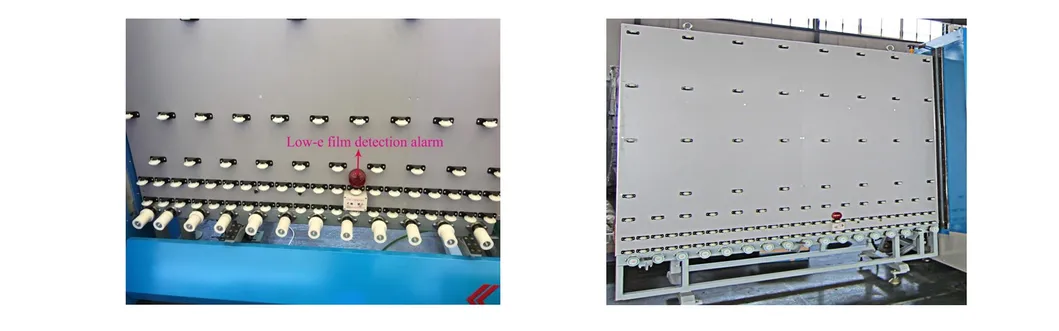

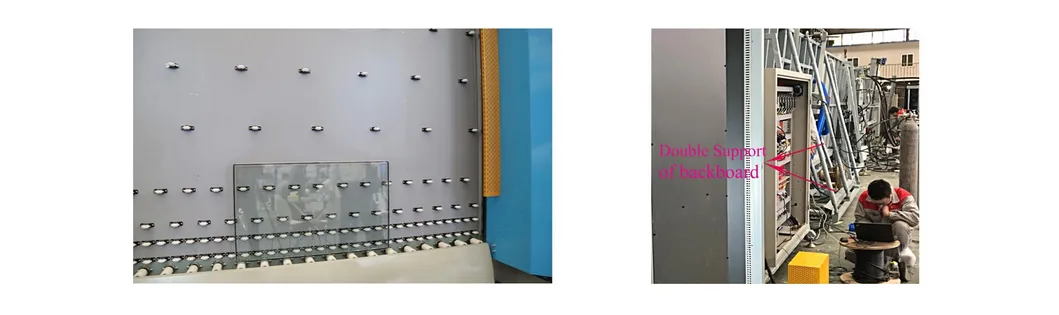

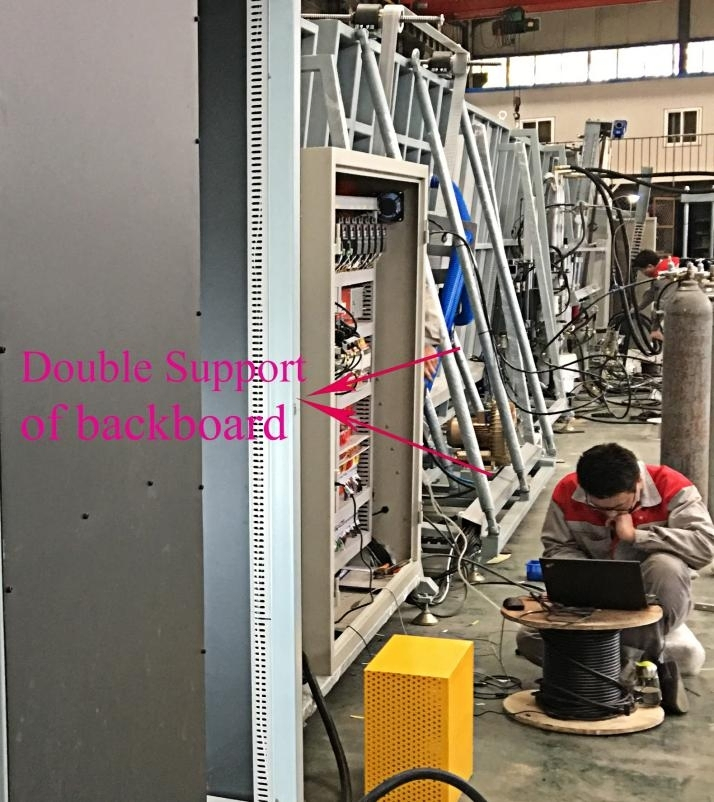

Features an automatic diagnosis system for Low-E glass. The backboard is high-quality Aosong board through NC machining, ensuring stability and acid resistance.

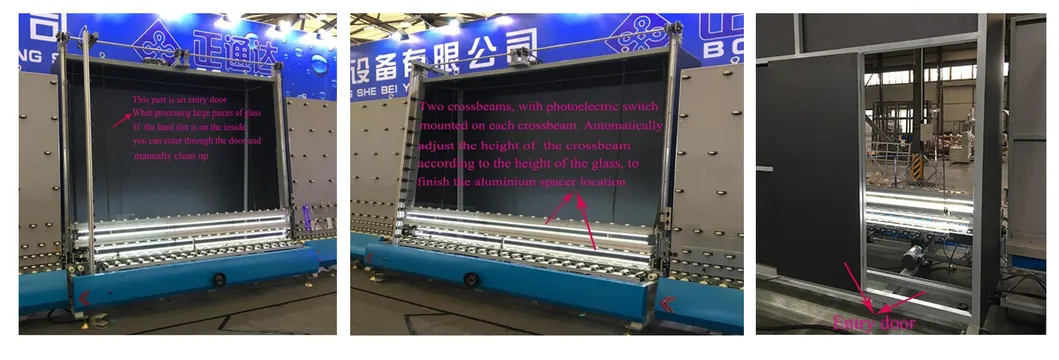

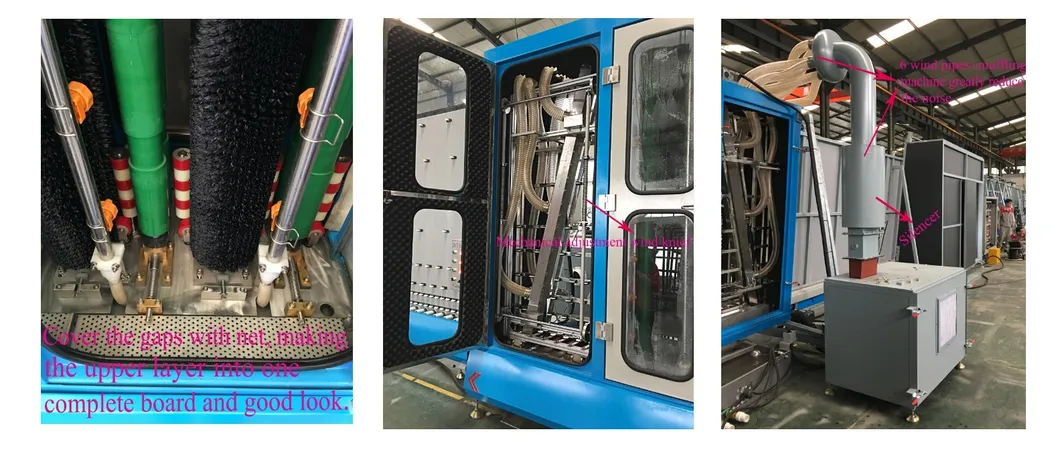

Includes a manual entry design for workers to clean hard dirt from the glass surface. Photoelectric switches automatically induce glass height for precise spacer positioning.

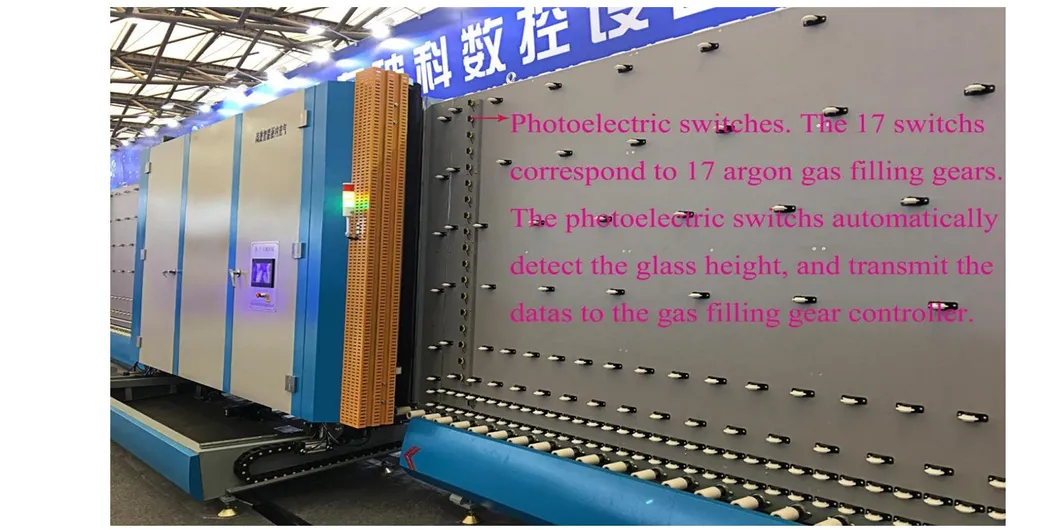

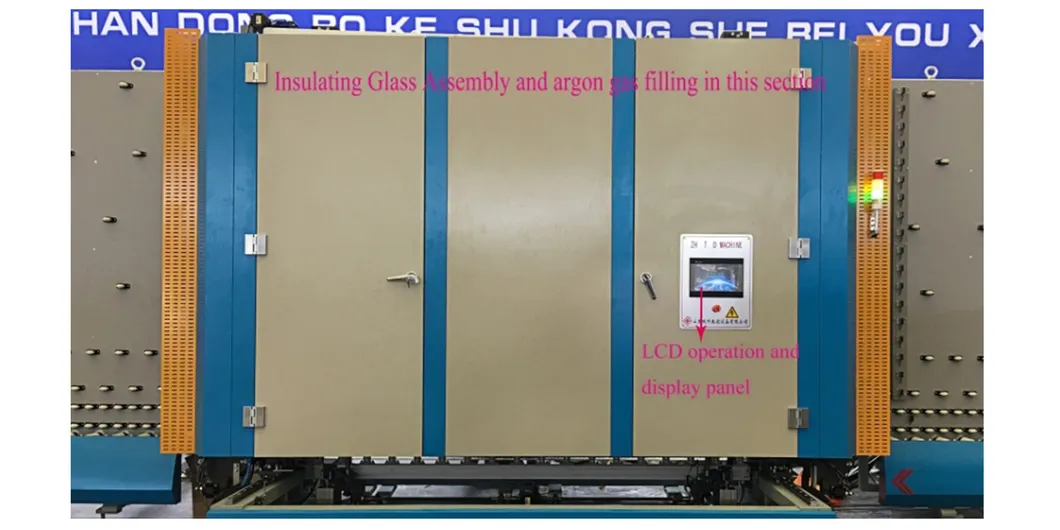

Equipped with 17-18 photoelectric switches for precision gas filling. The press board is controlled by a servo motor and roller shaft screw for uniform pressure distribution.
| Component Name | Brand | Country of Origin |
|---|---|---|
| Photoelectric/Limit Switch | BANNER | USA |
| PLC / Transducer / Touch Screen | Delta | Taiwan |
| Main Electrical Components | SCHNEIDER | France |
| Bearings for Brushes | SKF | Sweden |
| Optical Fiber Switch | KEYENCE | Japan |
| Vacuum Sucker | YSC | Korea |
| Pneumatic Valves | AIRTAC | Taiwan |

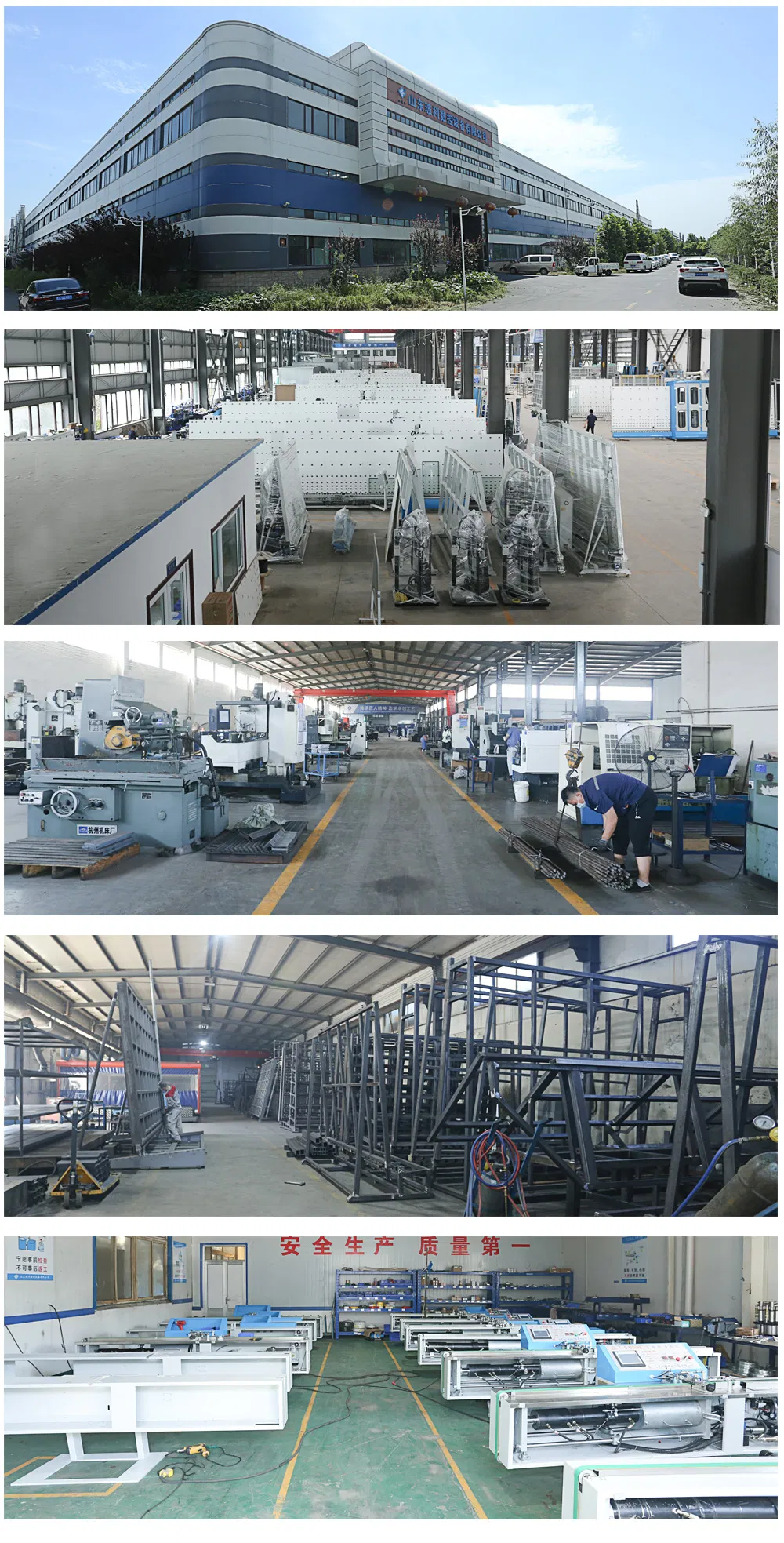

With over 21 years of specialized experience in insulating glass production, we integrate advanced scientific research and global service networks. Our facility utilizes modern fabrication methods to ensure all machinery meets high-tech standards and carries CE Certification.
