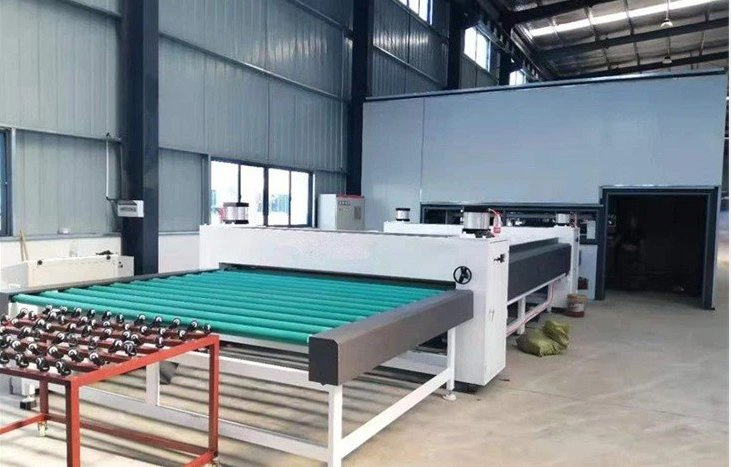

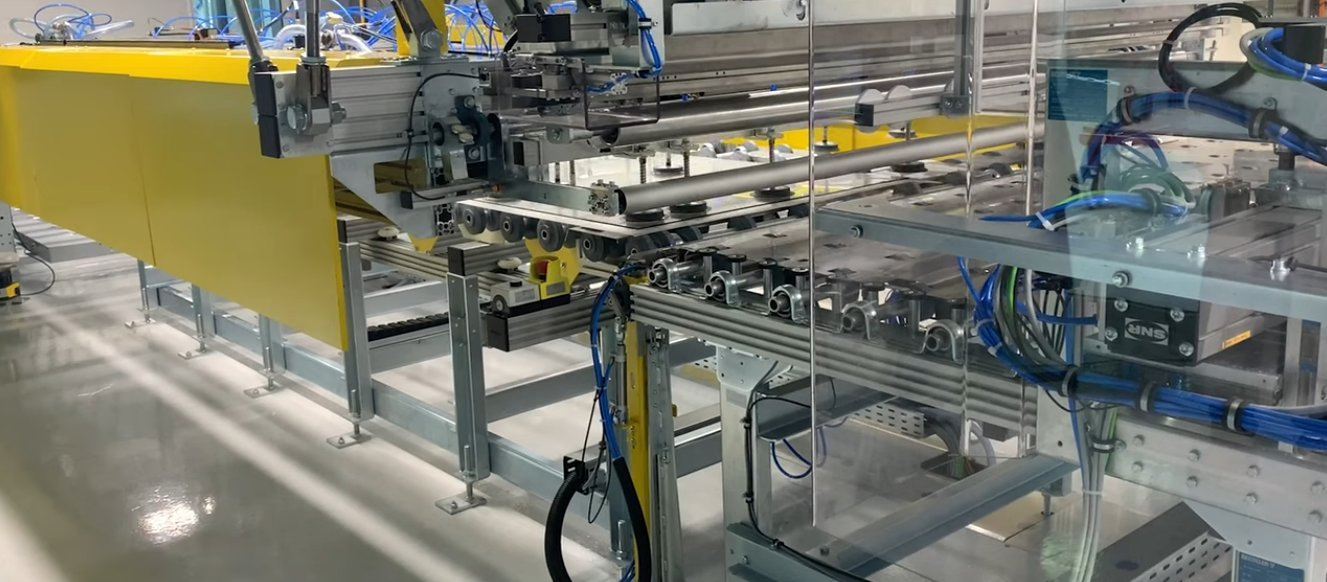

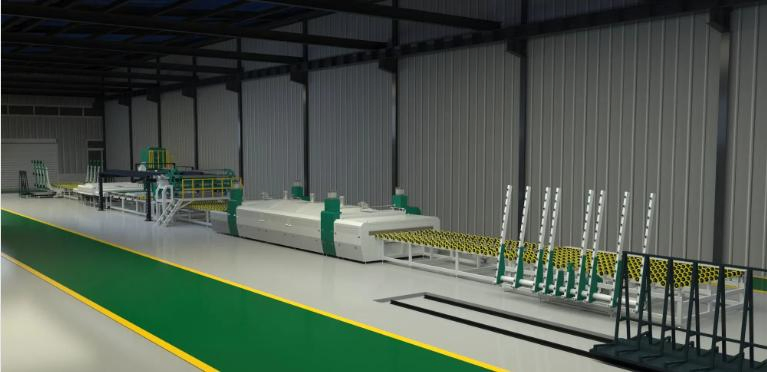

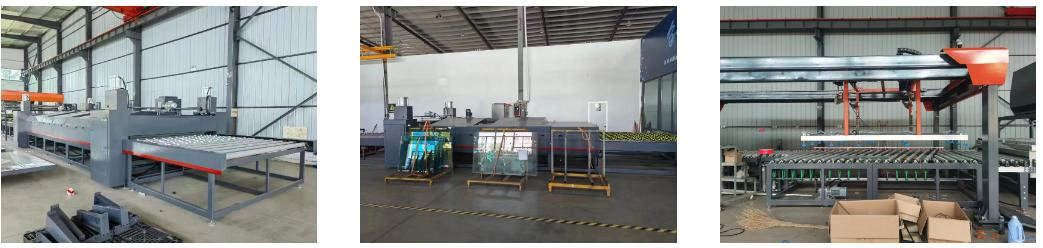

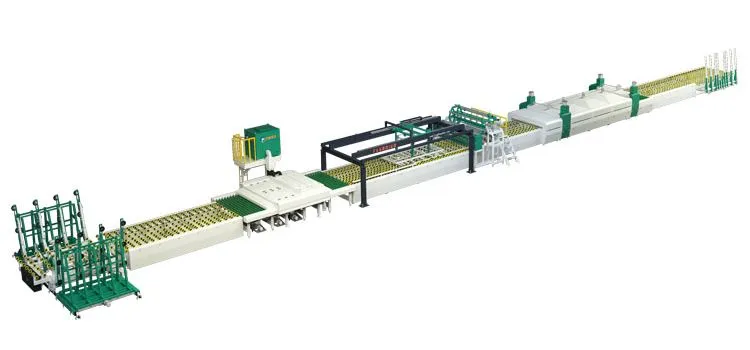

The full automatic laminated glass production line adopts a PLC centralized control system, frequency conversion, and 3 sets of HMI interface operations. The whole line is composed of the automatic loading table, glass washing and drying machine, high-precision positioning conveyor, double-station glass combining machine, frequency conversion transition conveyor, infrared roller pressing machine, and flip-type unloading machine.
| Parameter | Specification |
|---|---|
| Machine Model | HHFD-L2500 |
| Rated Power | 540KW |
| Processing Size | Max: 2500X6000mm | Min: 400mmx600mm |
| Glass Thickness | 4~60mm |
| Floor Space (L*W) | 63000mm × 8000mm |
| Voltage | 220-440V 50-60Hz 3-phase AC |
| Working Period | 4-6h |
| Working Temperature | 60-135ºC |
| Net Weight | 50t |
| Operation System | Siemens PLC |
| Productivity | 400-600 Sq.m/cycle |
| No | Item | Model | Remarks |
|---|---|---|---|
| 1 | Full-automatic loading station | HHFDSP25A | Double-arm turn-over, 0-20m/min |
| 2 | Glass cleaning and drying | HHFDQX25A | Low-E glass compatible, energy saving |
| 3 | Side-push positioning conveyor | HHFDDW25 | Stack error accuracy ≤ 0.5mm |
| 4 | Assembling table | HHFDHP25 | Open-close type, adjustable speed |
| 5 | Suction hanger | HHFDGD25A | Servo motor control, no trace on glass |
| 6 | Pre-press machine | HHFDGY25 | Independent roller press, forced convection cycle |
| 7 | Unloading machine | HHFDXP25 | Mechanical unloading |

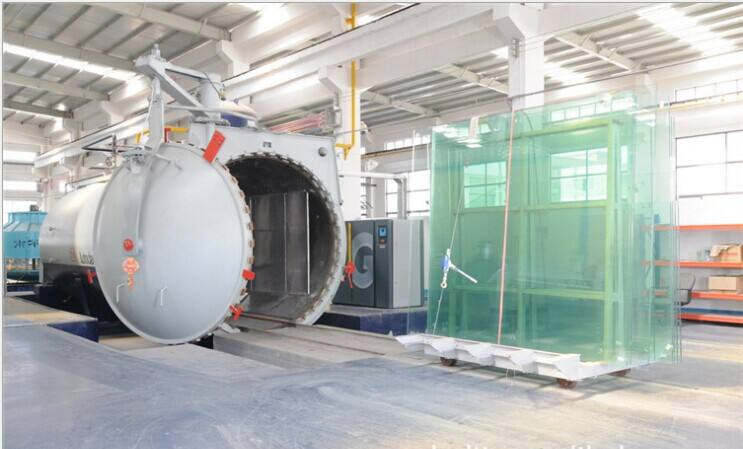

| 8 | Autoclave | HHFD-G2860 | Inner diameter 2860, fits 2.5m x 6m glass |
Providing high-quality flat glass processing machinery, service, and supplies. Specializing in innovative and reliable equipment for fabricating, handling, and processing flat glass. Each machine is characterized by innovative features, long-lasting durability, and high reliability.
