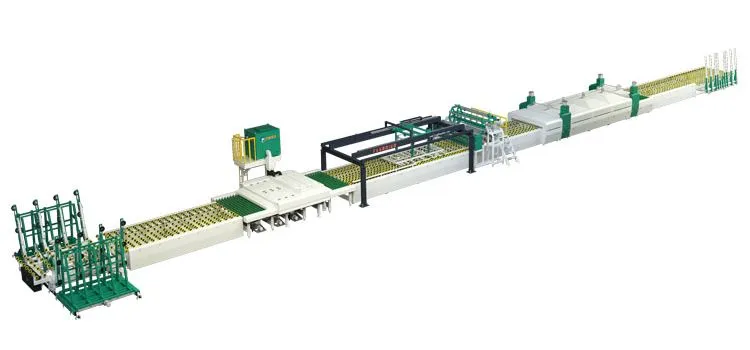

Automatic PVB Film Laminating Production Line with Autoclave

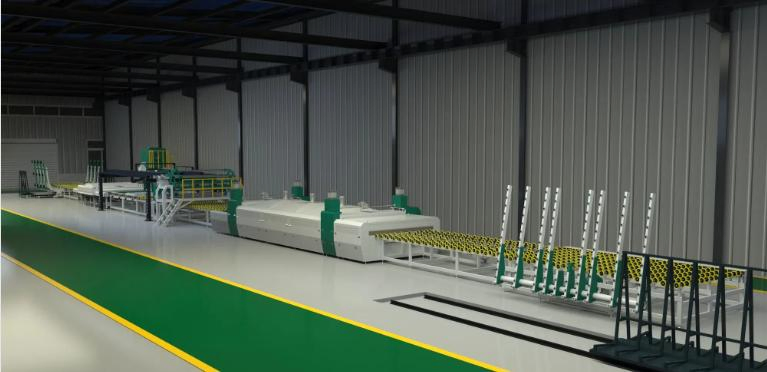

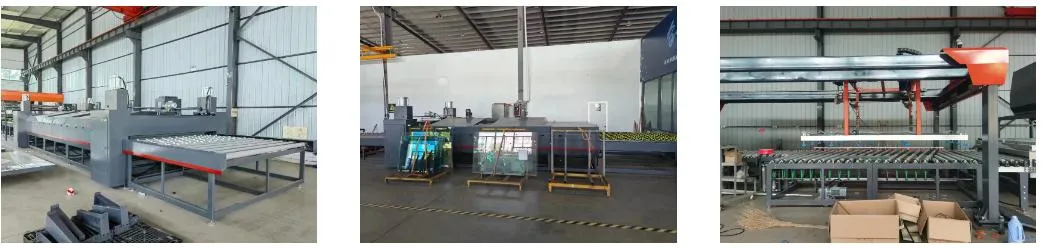

The full automatic laminated glass production line adopts a PLC centralized control system with frequency conversion and 3 sets of HMI interface operations. The whole line is composed of an automatic loading table, glass washing and drying machine, high-precision positioning conveyor, double-station glass combining machine, frequency conversion transition conveyor, infrared roller pressing machine, and flip-type unloading machine.
| Specification Item | Details |
|---|---|
| Machine Model | HHFD-L2500 |
| Rated Power | 540KW |
| Processing Size | Max: 2500 x 6000mm | Min: 400 x 600mm |
| Glass Thickness | 4~60mm |
| Floor Space Required | 63000mm × 8000mm |
| Voltage | 220-440V, 50-60Hz 3-phase AC |
| Working Temperature | 60-135ºC |
| Productivity | 400-600 Sq.m/cycle |
| No. | Item | Model | Key Remarks |
|---|---|---|---|
| 1 | Mechanical Loading Station | HHFDSP25A | Double-arm turn-over, 0-20m/min |
| 2 | Cleaning & Drying | HHFDQX25A | Low-E glass compatible, energy saving |

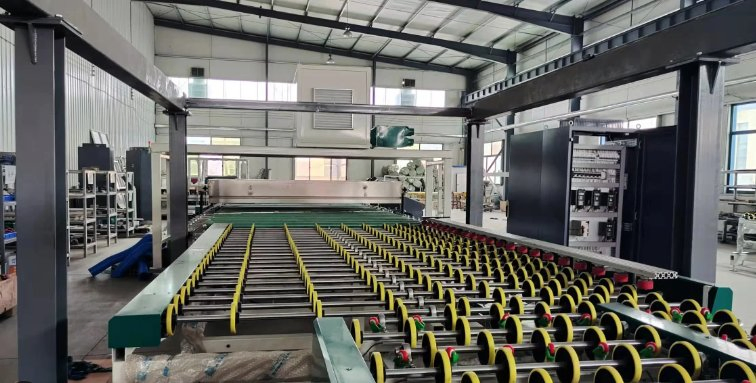

| 3 | Positioning Conveyor | HHFDDW25 | Stack error accuracy ≤ 0.5mm |
| 4 | Assembling Table | HHFDHP25 | Open-close type, adjustable speed |

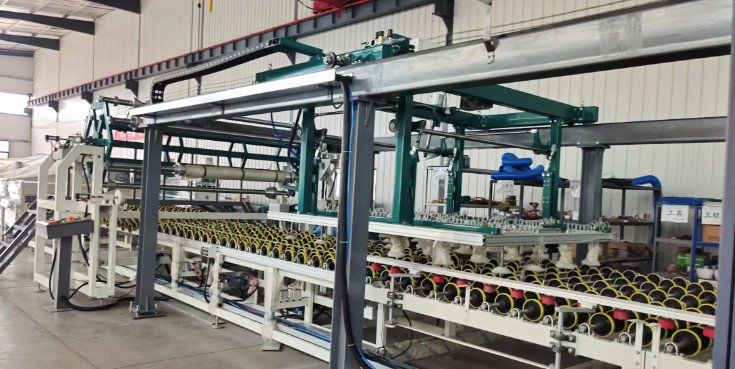

| 5 | Suction Hanger | HHFDGD25A | Servo motor control, no trace on glass |

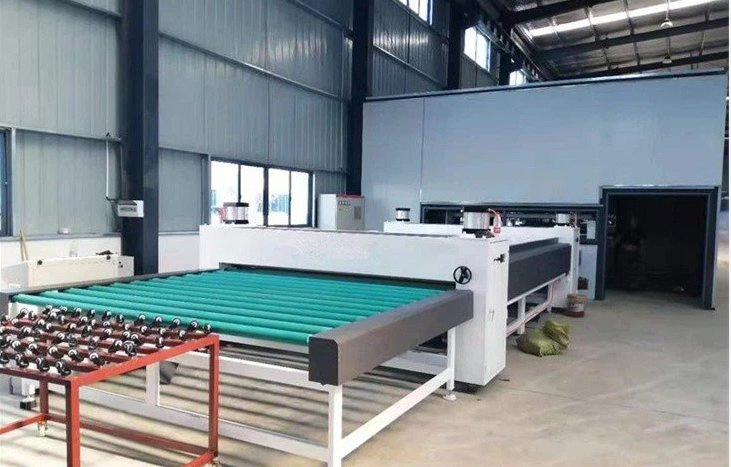

| 6 | Pre-press Machine | HHFDGY25 | Forced convection cycle heating |

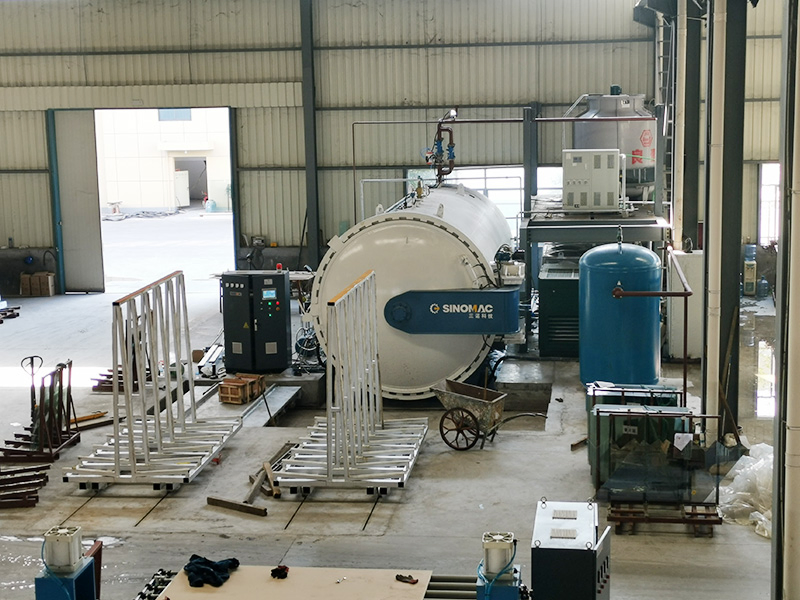

| 7 | Autoclave | HHFD-G2860 | Inner diameter 2860mm, forced convection |
