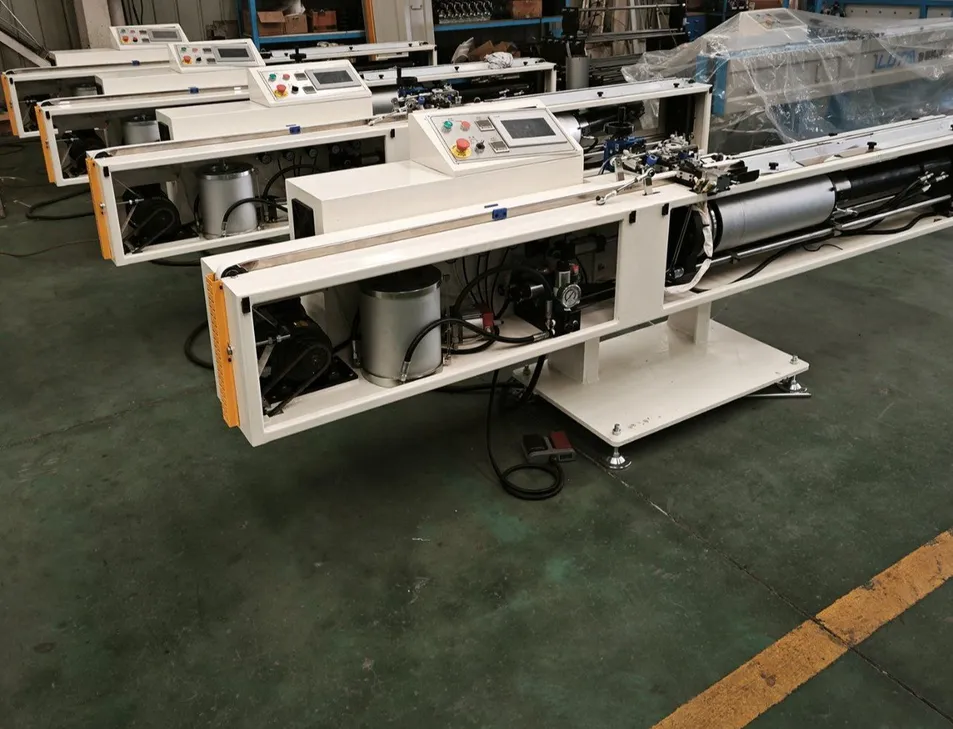

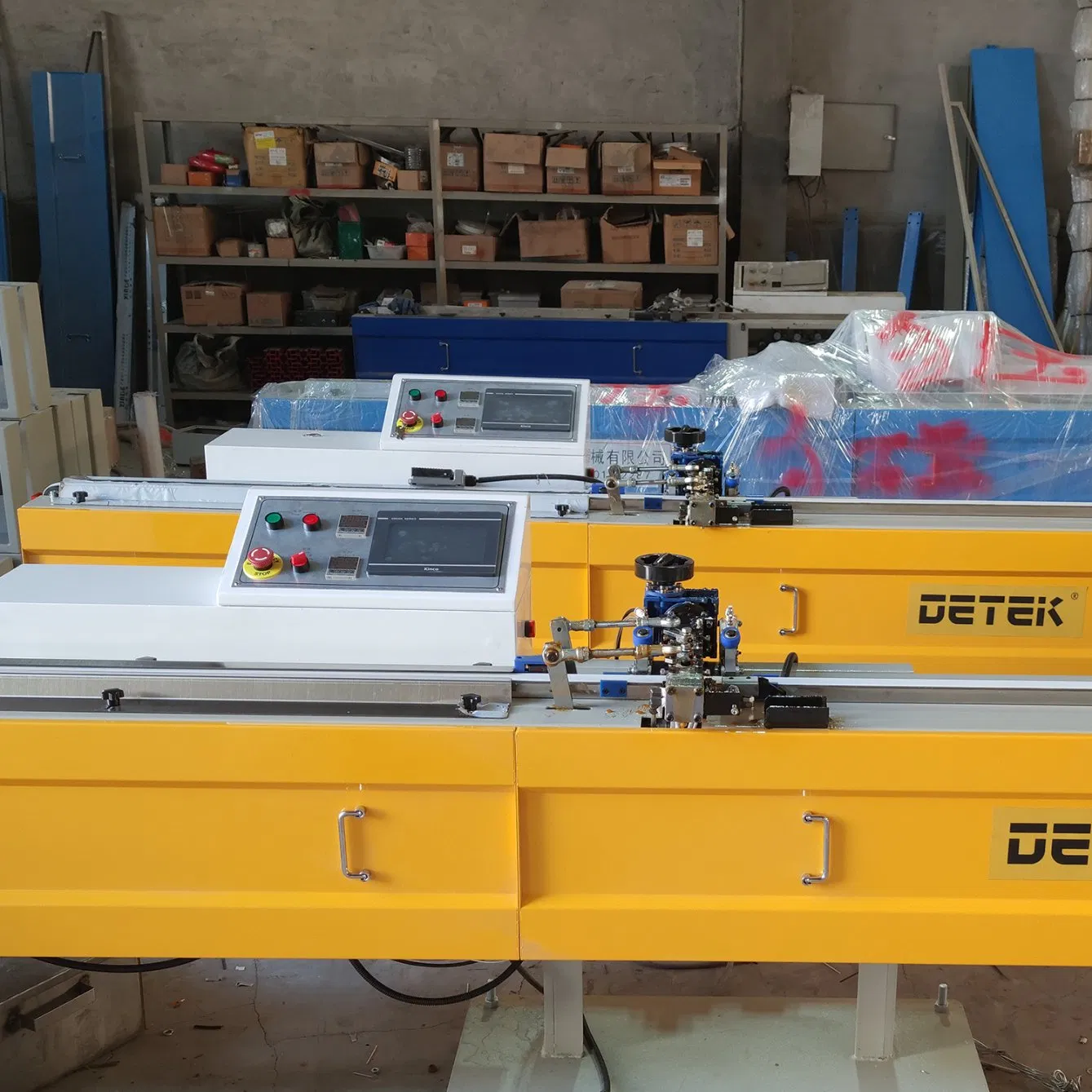

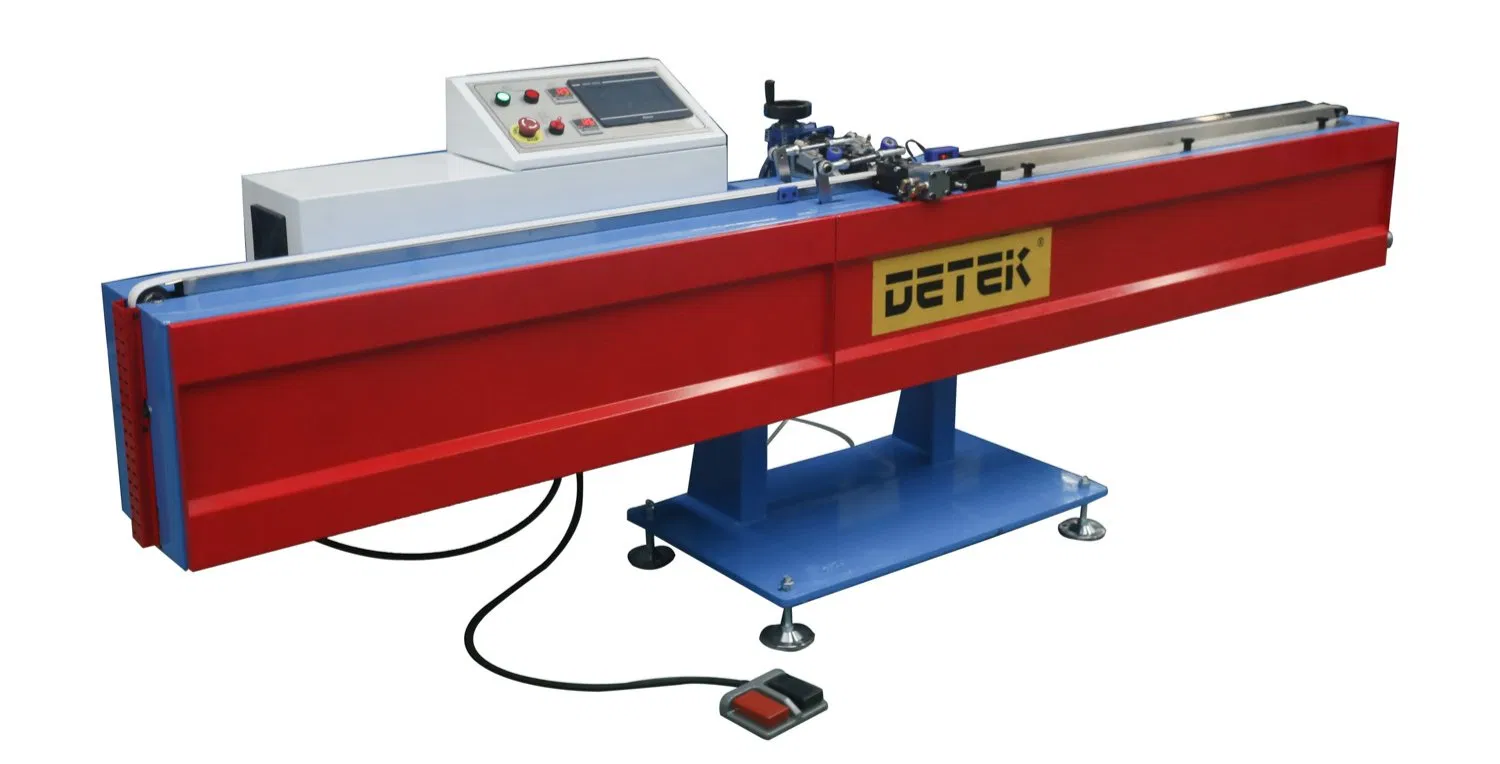

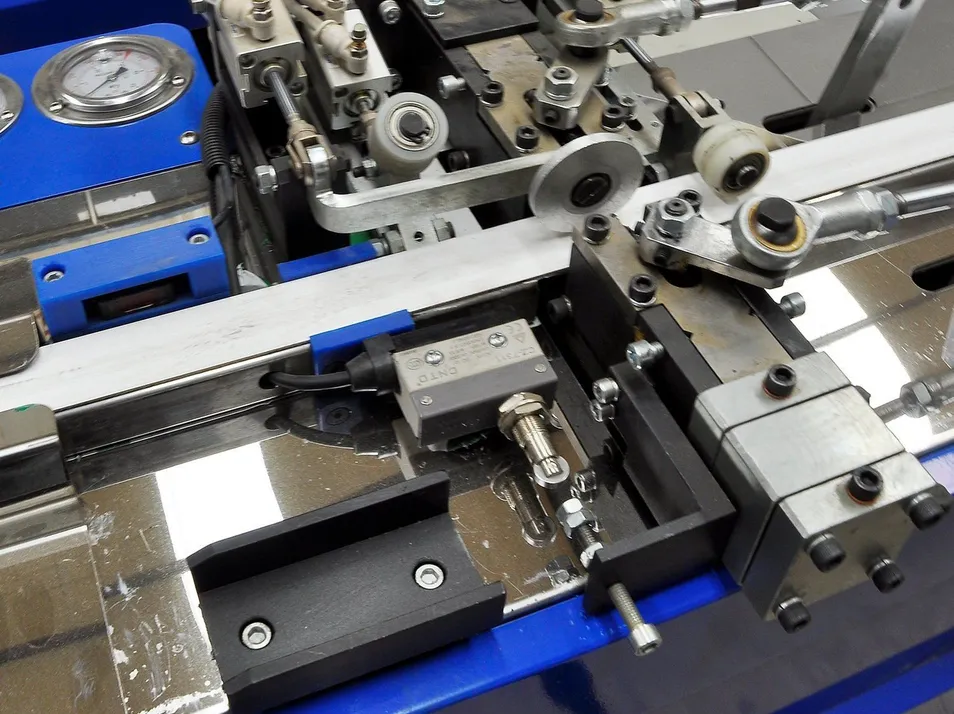

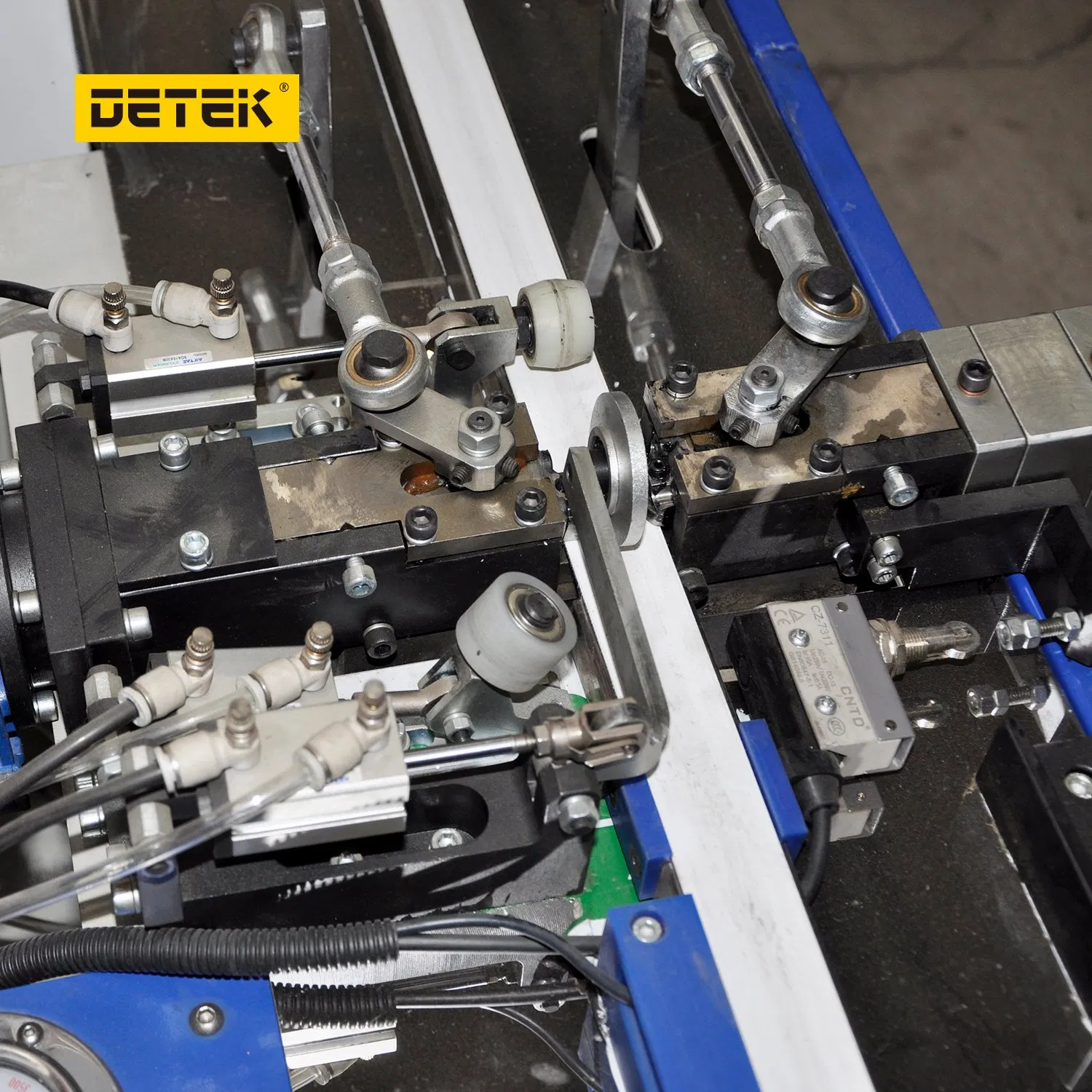

The JT05 butyl extruder machine is specifically designed to apply primary butyl sealant to aluminum spacers for insulating glass units. Featuring a large, user-friendly electrical control panel, this machinery ensures ease of operation and precision in the primary sealant spreading process.
| Parameter | Value |
|---|---|
| Total power | 3P 380V 50HZ 1.45KW |
| Butyl pressure | 15-20Mpa |
| Butyl temperature | 110-140℃ |
| Conveyor speed | 15-30 m/min |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 0.4m3/min |
| Aluminum spacer width | 6-27mm |
| Butyl cylinder diameter | 200mm |
| Dimension | 3000mm×620mm×1102mm |
| Weight | 500Kg |
| Part Name | Brand | Origin |
|---|---|---|
| Pneumatic pump | MAXIMATOR | Germany |
| Sensor / Proximity switch | Omron | Japan |
| Temperature controller | Omron | Japan |
| Breaker / Contactor / Relay | Schneider | France |
| PLC / Touching screen | XINJIE | China |
| Solenoid / Air cylinder / Inverter | Airtag | Taiwan |
| Power supply | MW | Taiwan |

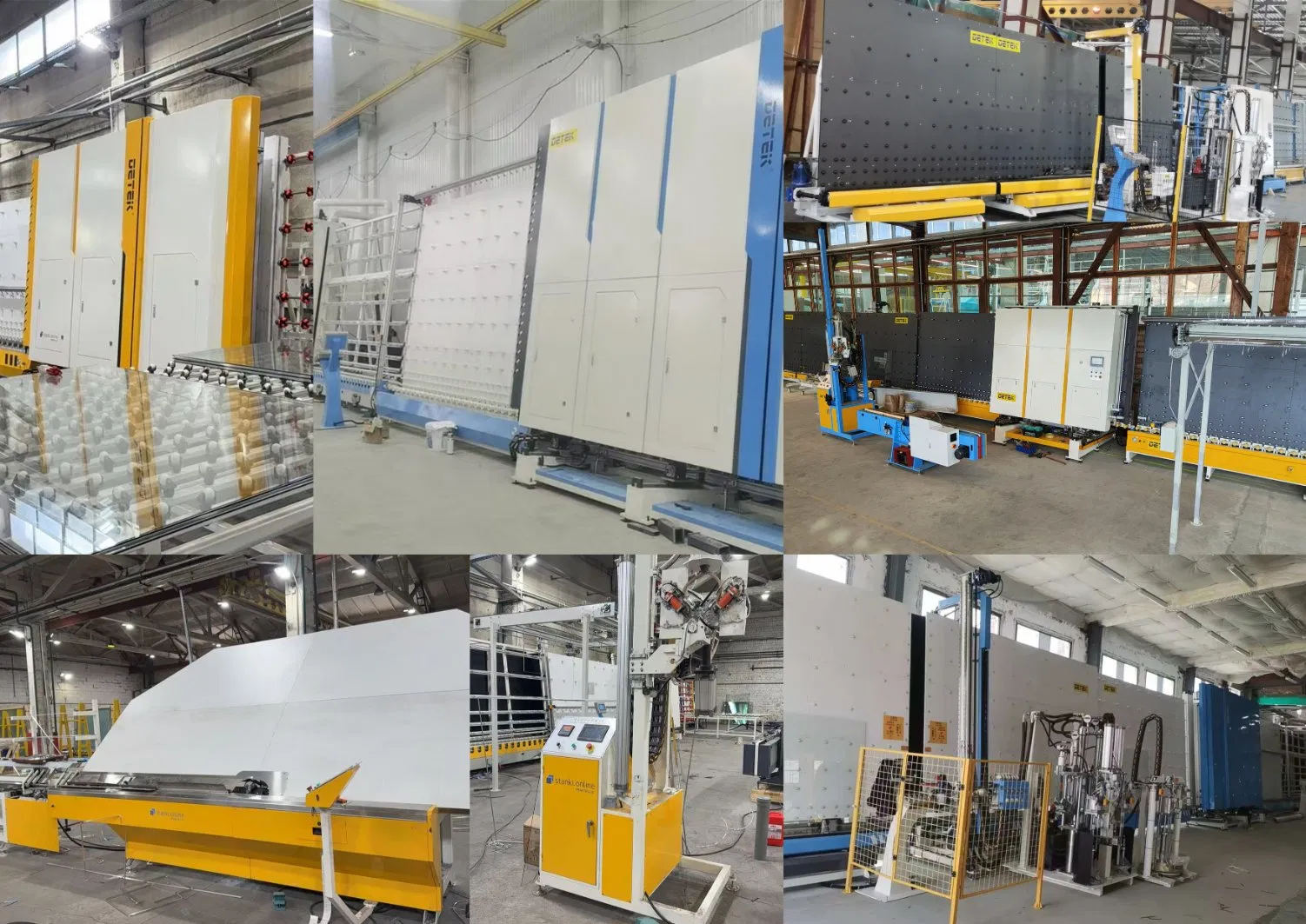

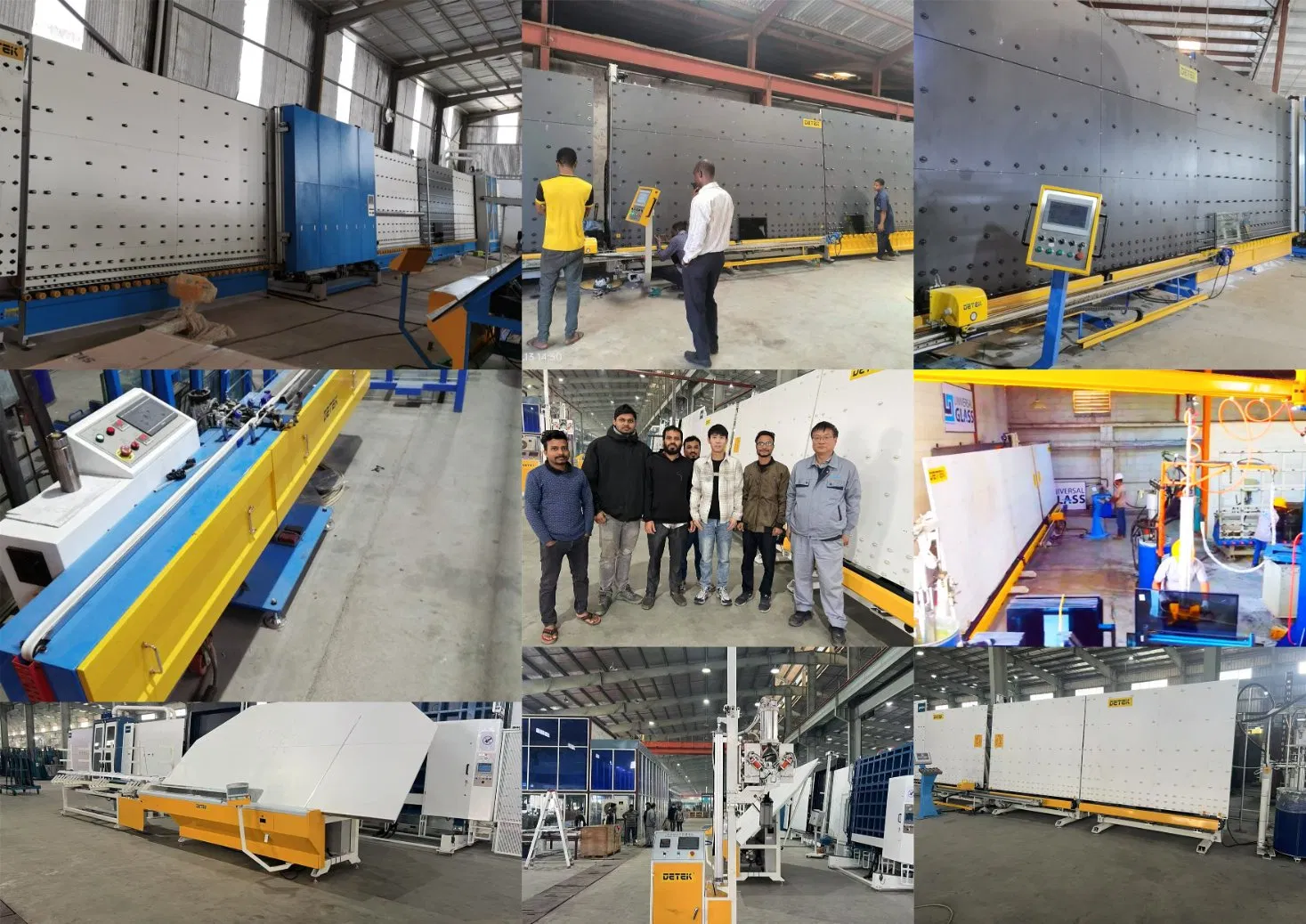

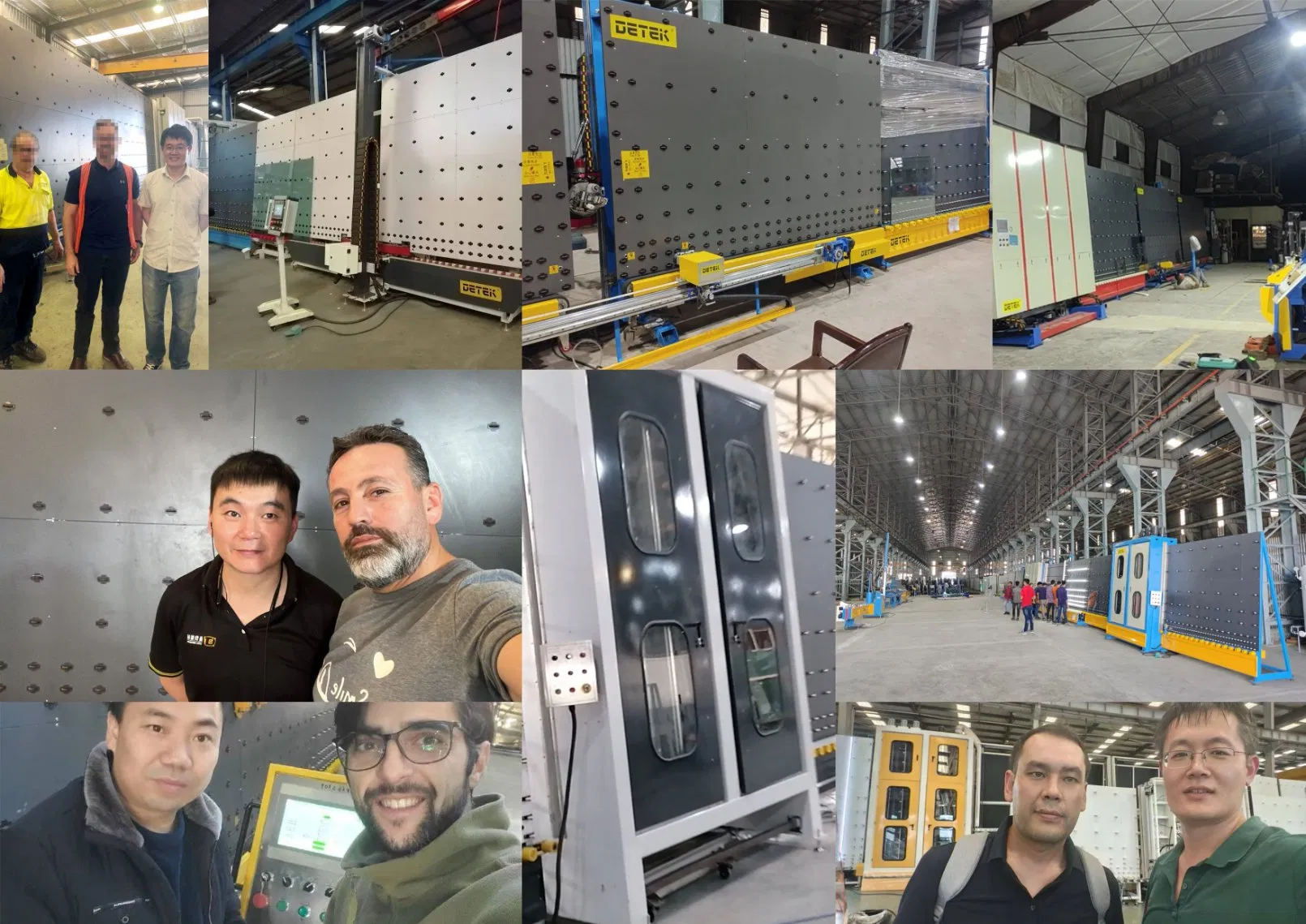

The manufacturing facility spans 20,000 sqm, equipped with its own machining center, laser cutting, bending, and plastic spray capabilities. The production team focuses on high efficiency and stable machine performance.

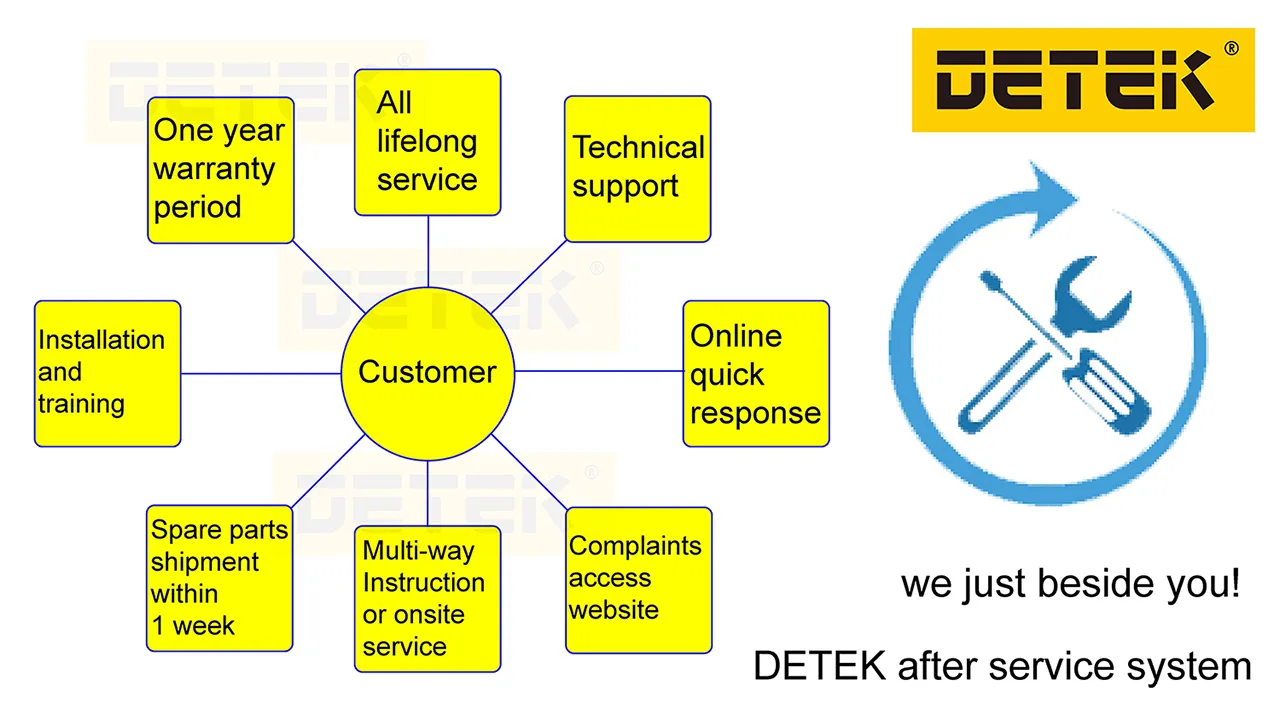

Experienced technical engineers provide instant after-service care. Spare parts can be provided within 72 hours, and on-site instruction is available upon request.
