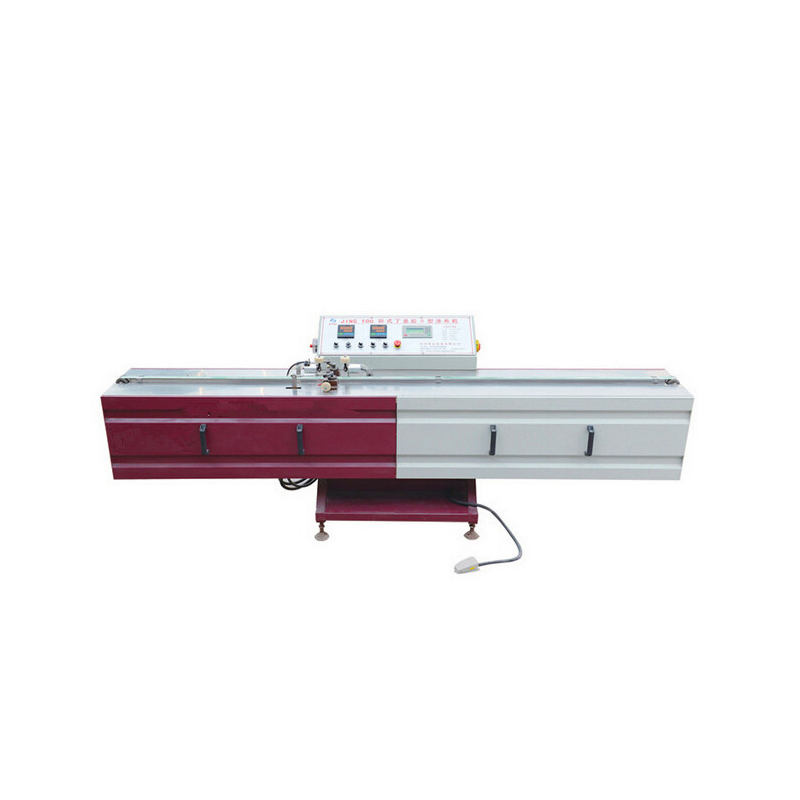

Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
1 / 5
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine
Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine

Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine

Customization: Available
Certification: CE, ISO, FDA, UR, PCI, PDA
Control System: PLC
Send Inquiry

Product Description

Double Glazing Butyl Sealant Spreading Insulating Glass Processing Butyl Extruder Machine

Technical Specifications
Power(W)
3kw
Squeeze Pressure
12-16MPa
Working Speed
0-45m/Min
Supply Gas Pressure
0.6-0.8MPa
Adjustable Range
4-27mm
PLC Control System
Xinjie
Adjust Method
Button Adjust
Grinding Head
16
Structure
Horizontal
Specification
3000*740*340mm
Product Description & Features

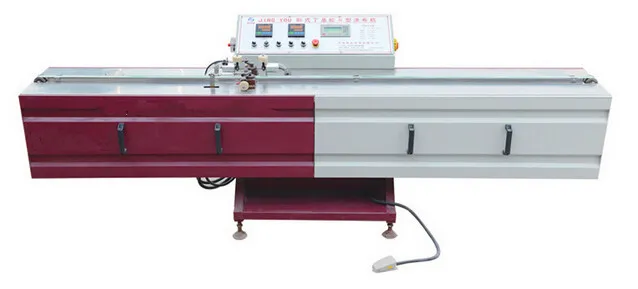

Butyl Extruder Machine Overview
  • Designed for the first sealing of insulating glass and butyl sealant coating.
  • Capable of coating both straight lines and arc shapes of aluminium spacers.
  • Integrated PLC system for precise automatic sealant temperature control.
  • Ensures high efficiency with uniform coating effects across all workloads.
  • Adjustable sealant mouth distance: Easy and convenient adjustment without releasing pressure or fastening screws.
Main Parameters
Parameter Value Parameter Value
Model JYJ-02 Power Supply 380V 50Hz
Squeeze Pressure 12-16 MPa Working Speed 0-45m/min
Supply Gas Pressure 0.6-0.8MPa Adjustable Range 4-27mm
Boundary Dimension 3000*740*340mm Condition New
Detailed Product Views

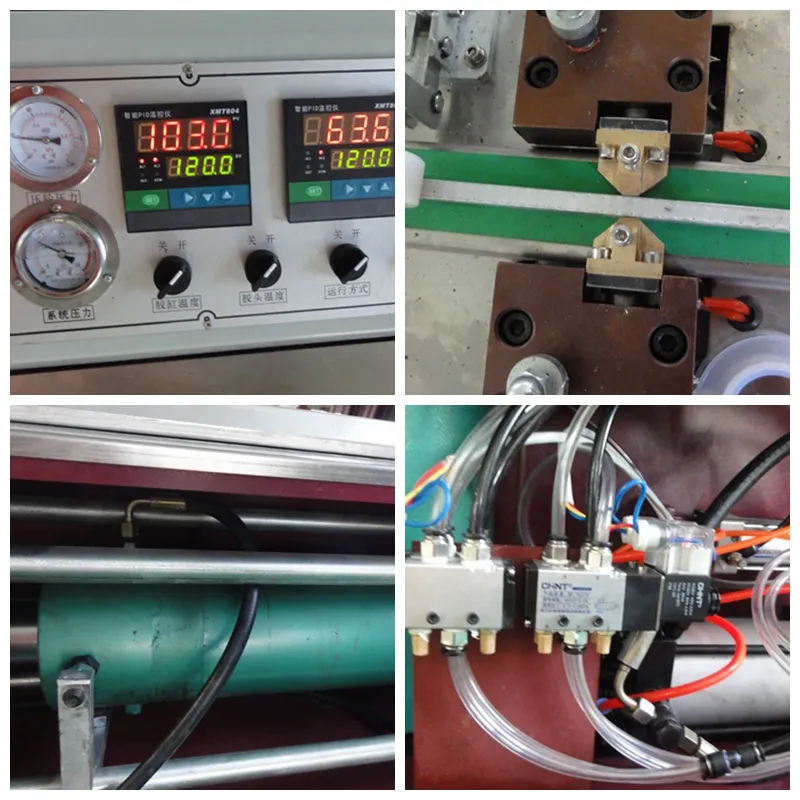

Machine Detail 1
Machine Detail 2
Machine Detail 3
Machine Detail 4
Machine Detail 5
Machine Detail 6
Frequently Asked Questions
What types of glass spacers can this machine handle?
This machine is designed for coating both straight line and arc-shaped aluminium spacers used in insulating glass production.
Is the coating temperature adjustable?
Yes, the temperature of the sealant is automatically controlled via a high-precision PLC system to ensure optimal coating consistency.
How easy is it to adjust the sealant width?
The distance between the sealant mouths can be adjusted within a range of 4-27mm. This process is very convenient as it does not require releasing pressure or manual screw fastening.
What is the maximum production speed?
The machine features an adjustable working speed ranging from 0 to 45 meters per minute, allowing for high-efficiency output.
What are the power and gas requirements?
The machine requires a 380V 50Hz power supply and a gas pressure of 0.6-0.8 MPa for optimal operation.
What kind of control system does the machine use?
It utilizes a professional Xinjie PLC control system for reliable performance and easy operation.
