| Model NO. | DJT02 | Glass Thickness | 8-40 mm |
|---|---|---|---|
| Type | Insulating Glass Production Line | Structure | Horizontal |
| Washing Type | Ultrasonic Glass Washing | Edging Type | Double Edging Machine |
| Grinding Heads | 20 | Condition | New |
| Warranty | 12 Months | Glue Pressure | 12-18MPa |
| Glue Speed | 18-40m/Min | Air Source | 0.6MPa |
| Package | Plywood Box | Specification | 3000× 550× 950mm |
| Origin | China | Production Capacity | 5000sets/Year |
| Supply source | 380V 50Hz |
|---|---|
| Total power | 3 KW |
| Squeeze glue pressure | 12-18Mpa |
| Transporting velocity | 18-40m/min |
| Glue pressure | 0.6Mpa |
| Outline dimension | 3000×550×950mm |

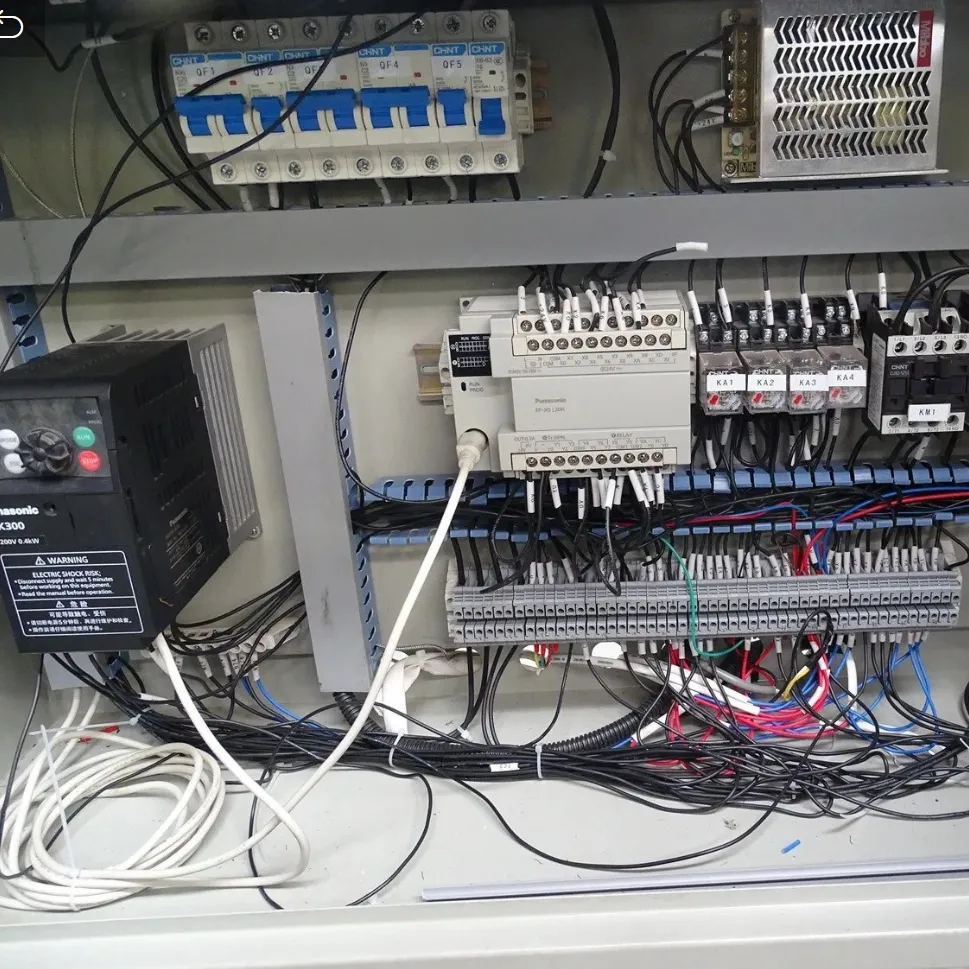

| No. | Main Unit | Brand | Country |
|---|---|---|---|
| 1 | PLC | Panasonic | Japan |
| 2 | Touch screen | Buke / Nylon | China |
| 3 | Frequency transformer | ENC | China |
| 4 | Air-liquid booster pump motor | AIRTAC | Taiwan, China |
| 5 | Hydraulic solenoid valve | Oil research | Japan |
| 6 | Air cylinder | SMC | Japan |
| 7 | Low-voltage apparatus | Schneider | France |
| 8 | Pneumatic component | AIRTAC | Taiwan, China |
| 9 | Power Supply | Ming wei | Taiwan, China |

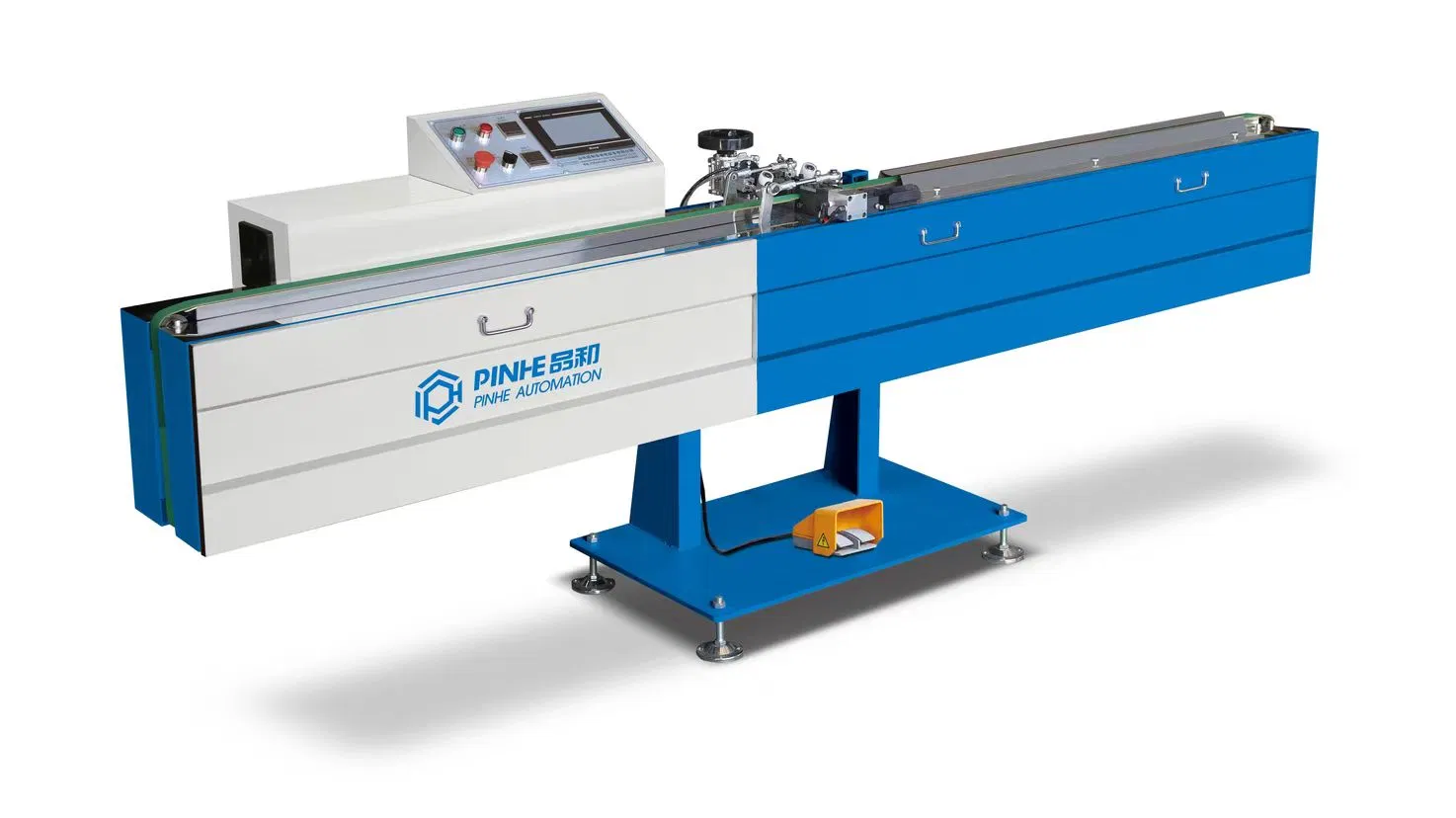

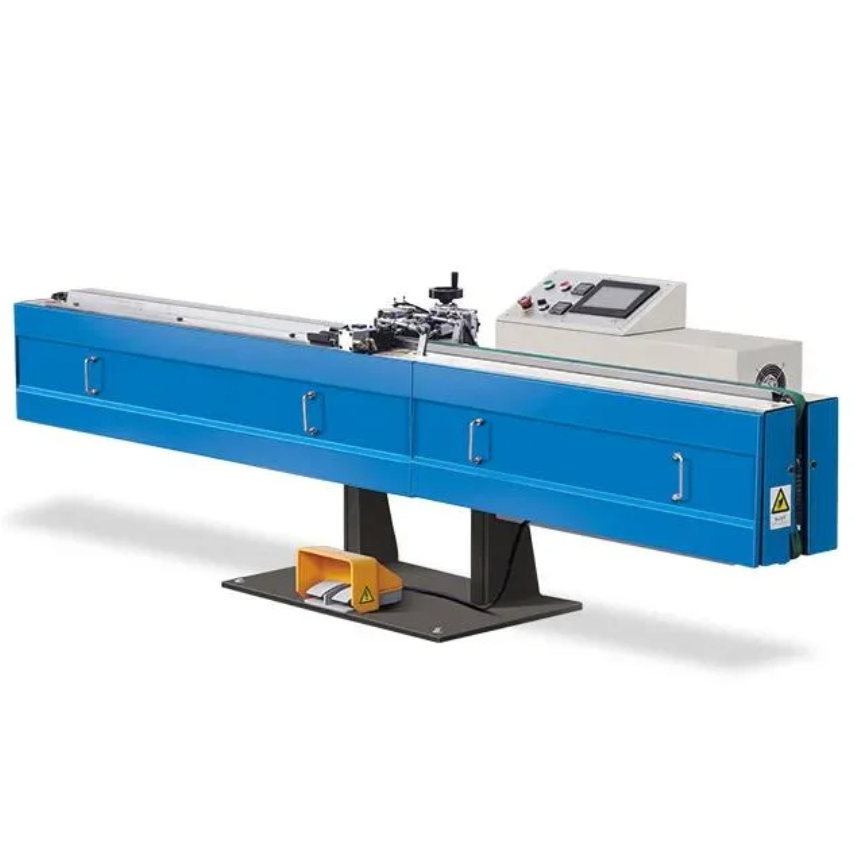

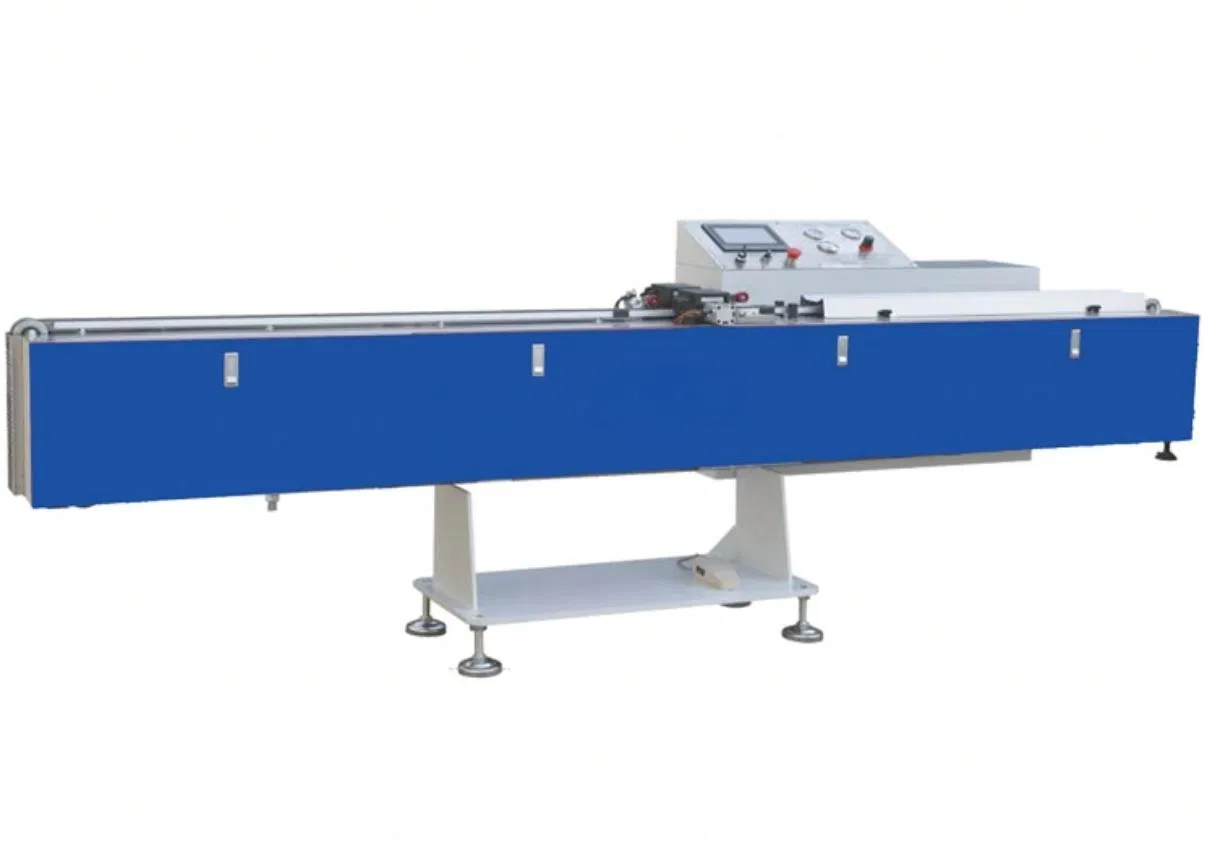

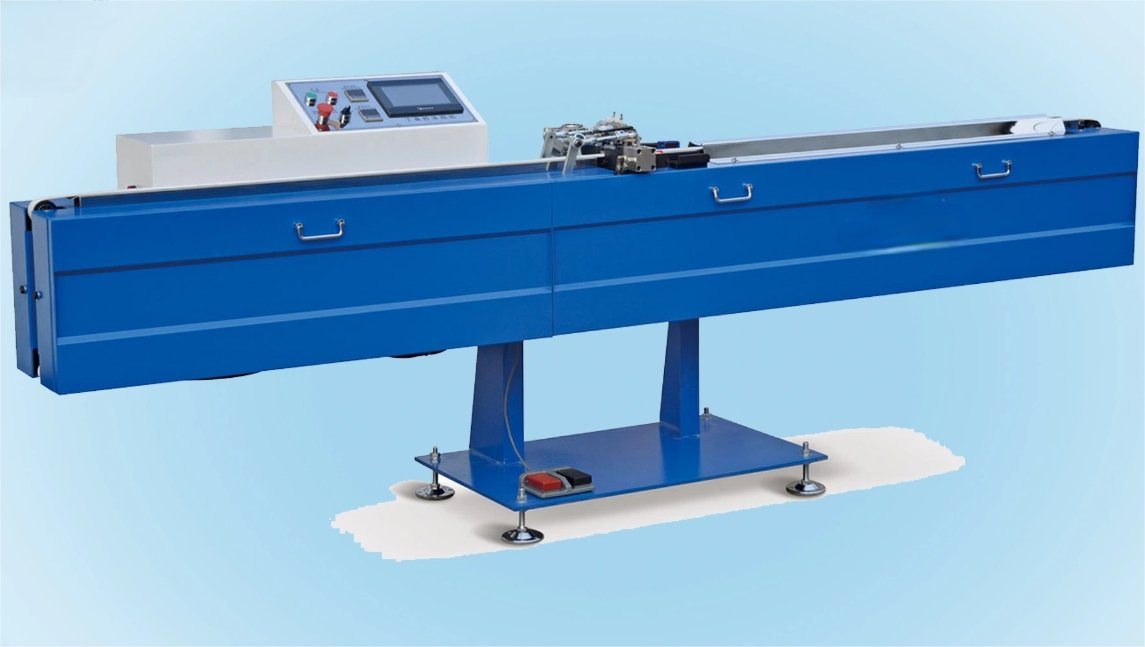

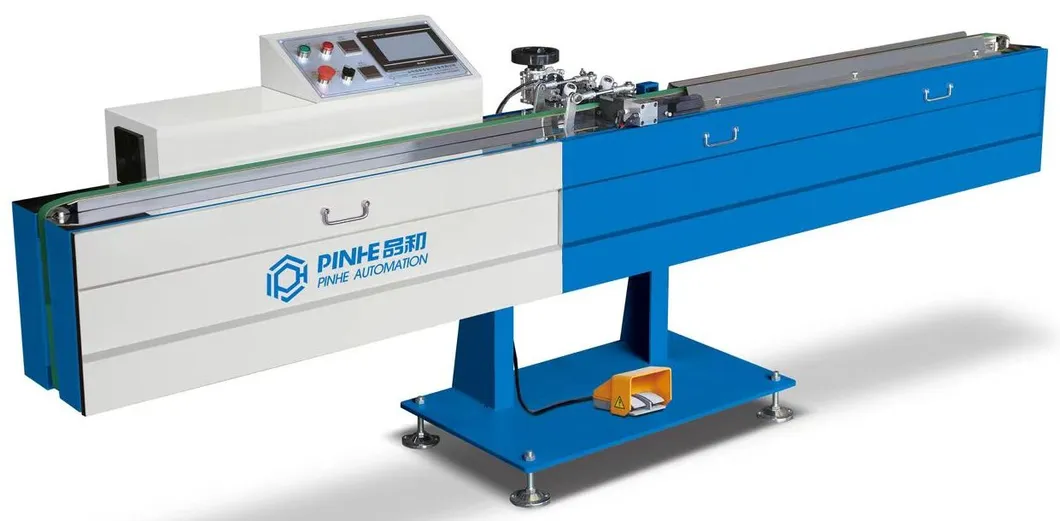

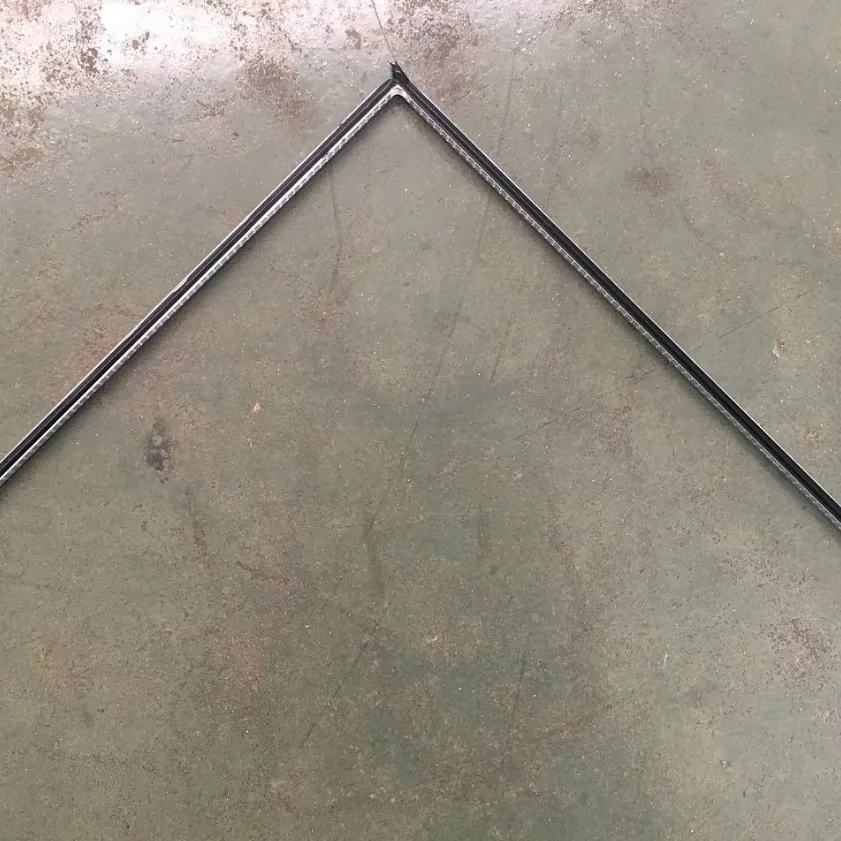

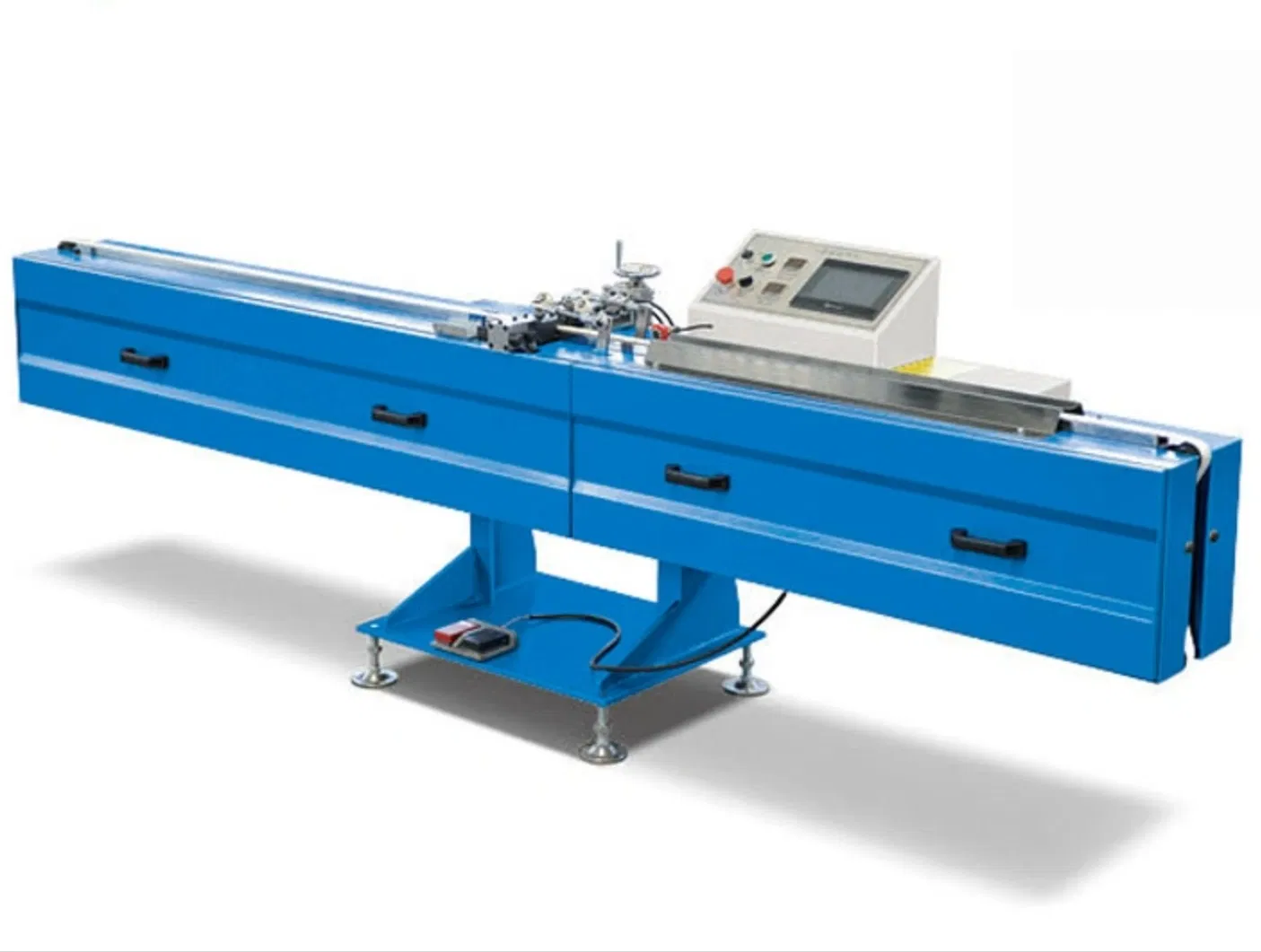

• Suitable for the first seal of insulating glass aluminium spacer.
• Touch screen temperature control with real-time instrument display of glue quantity.

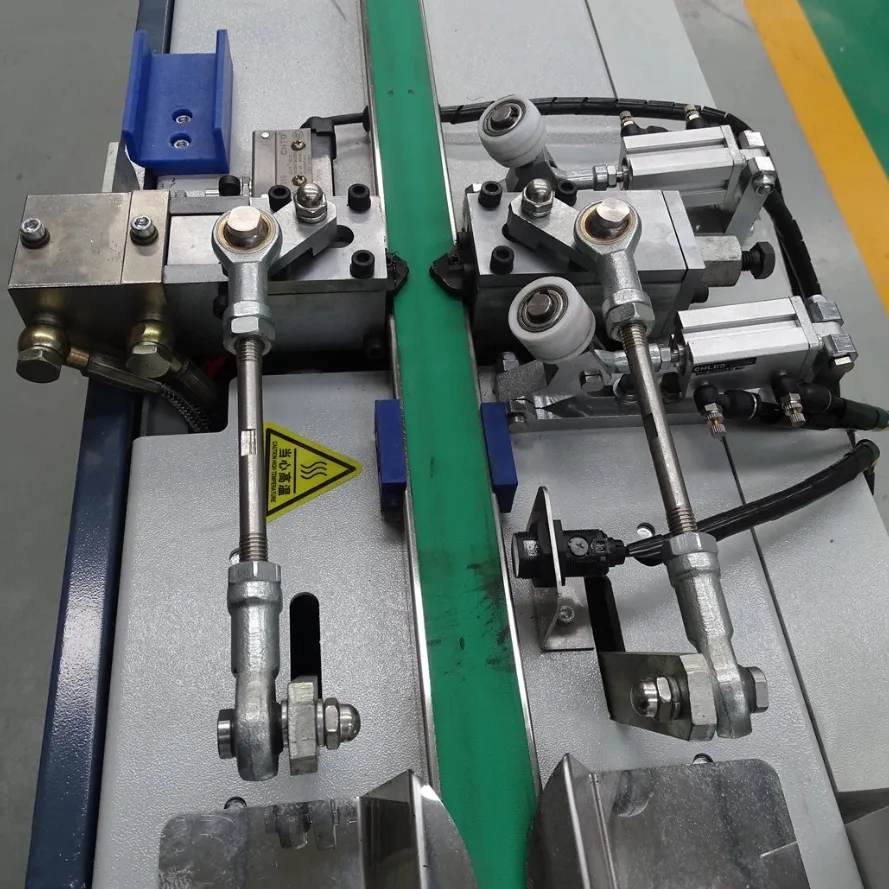

• Width of rubber nozzle automatically adjusts by induction (4-30mms).
• Automatic refueling of fuel tank ensures clean operation.
We are a leading single source provider of high-quality flat glass processing machinery, service and supplies. We continue to search to find the most innovative and reliable equipment manufacturers for fabricating, handling and processing flat glass.
Each manufacturer specializes in a certain type of machinery, characterized by innovative features, long lasting durability and high reliability. As a partner for glass processing solutions, we supply an extensive range of machinery for insulated glass units, window and door fabrication, and façade manufacture.
