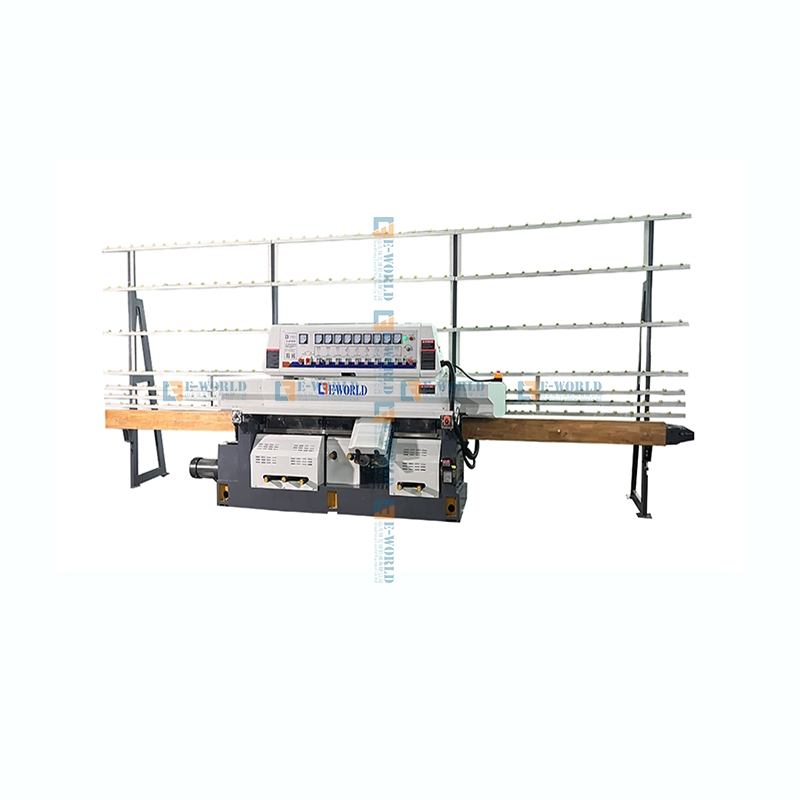

CE Approved 9 Motors Vertical Straight Line Glass Edging Machine

Customization: Available
Certification: CE, ISO, RoHS
Processing Speed: 1-5 m/min

Product Description

Basic Information
Model NO.
E-LD9325
Processing Thickness
3-19 mm
Voltage
380V
Warranty
1 Year After Installation
Name
9 Motors Glass Edging Machine
Minimum Grinding Size
60* 60mm
Feeding Speed
0.5-7m/Min
Control System
PLC
Grinding Head
9PCS
Power
19.75kw
Weight
2500kg
Certificate
CE & ISO & RoHS
Product Description
CE Approved 9 Motors Vertical Straight Line Glass Edging Machine Glass Edging Machine

Brief Introduction

  • Complete coarse grinding, accurate grinding, and polishing of straight-line hemline and corner angle at one time.
  • Adjustable for different processing thicknesses; pre-chamfering grinding head moves synchronously as fore beam.
  • Simple to operate and maintain, ideal for complete glass processing.
  • Equipped with 9 spindles and PLC controller options.
  • Strictly follows CE standards with full CE approval.
Technical Parameters
Quantity of motors9 sets
Minimum grinding size60*60mm
Feeding speed0.5-7m/min
Glass thickness3-19mm
Power19.75 kw
Voltage380V/50Hz or customized
External dimension6800*1000*2500mm
Weight2500kg
Detailed Photos

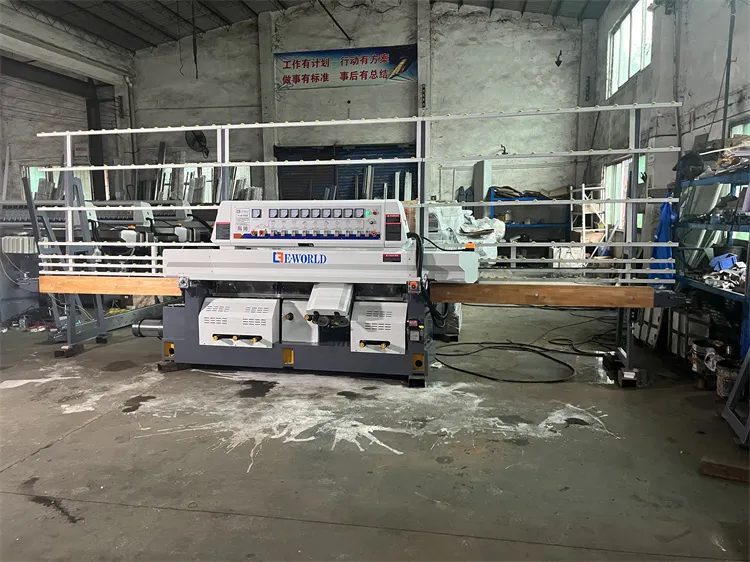

Detail 1

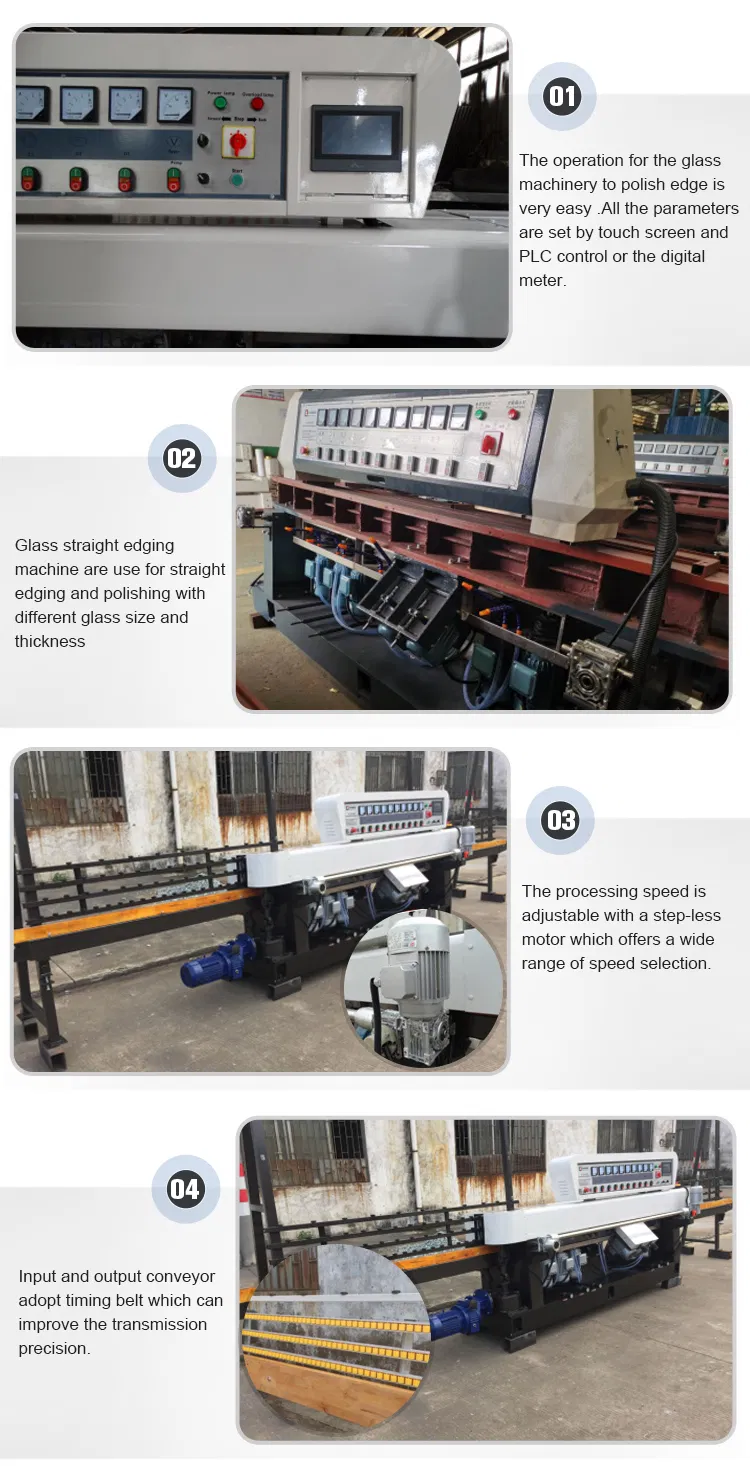

Detail 2

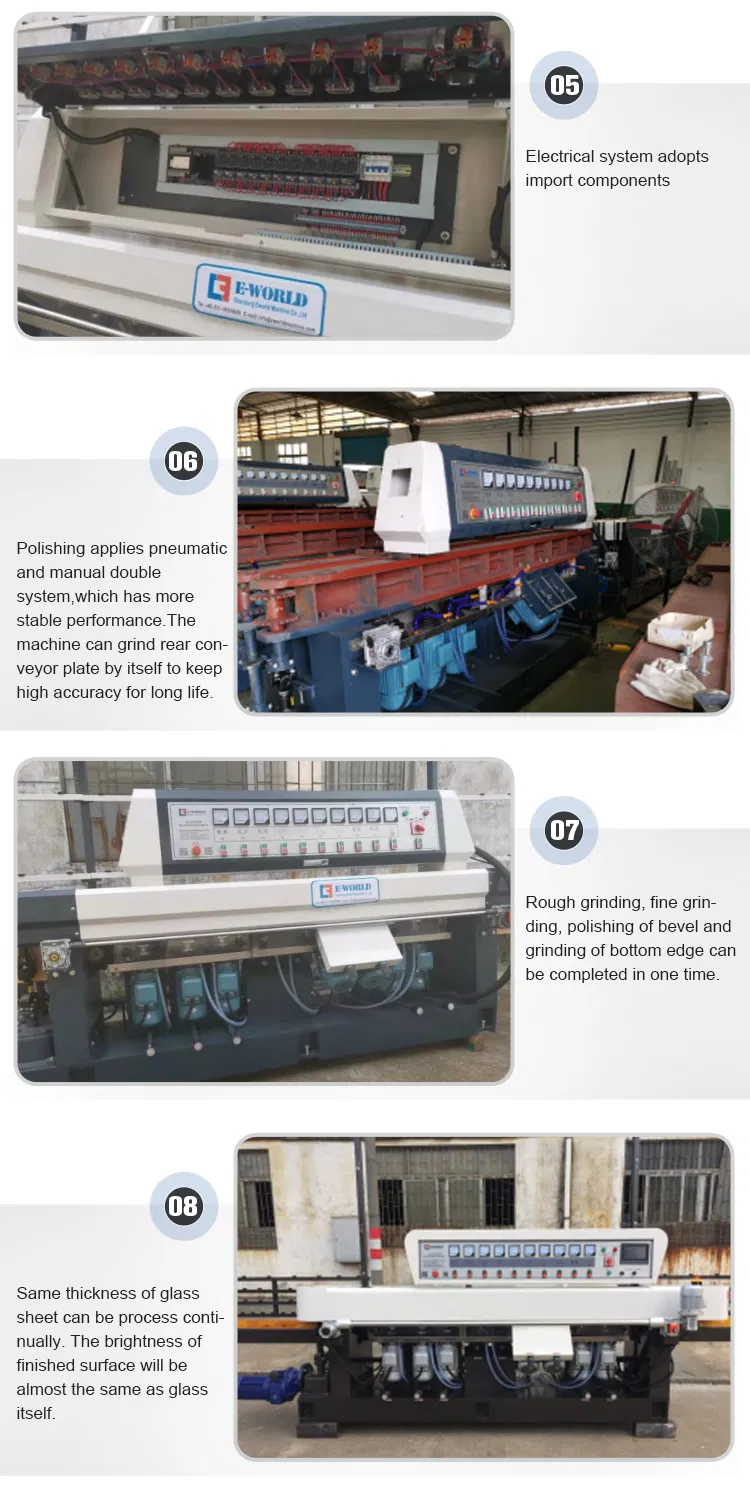

Detail 3
Detail 4

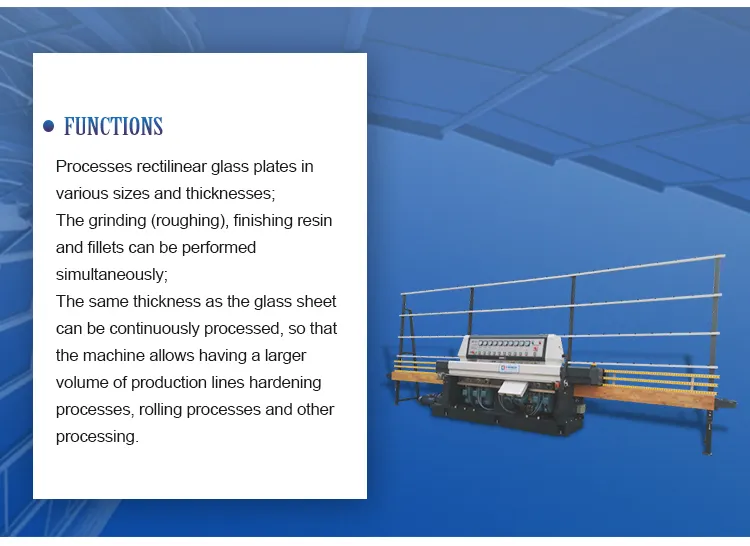

Detail 5

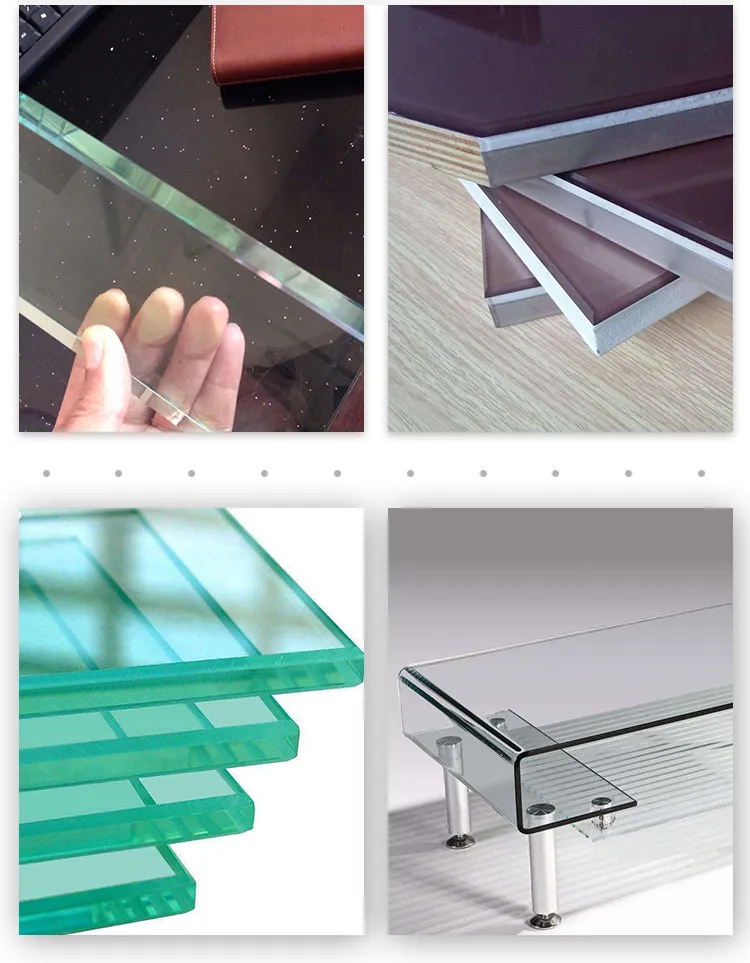

Detail 6
Machine component

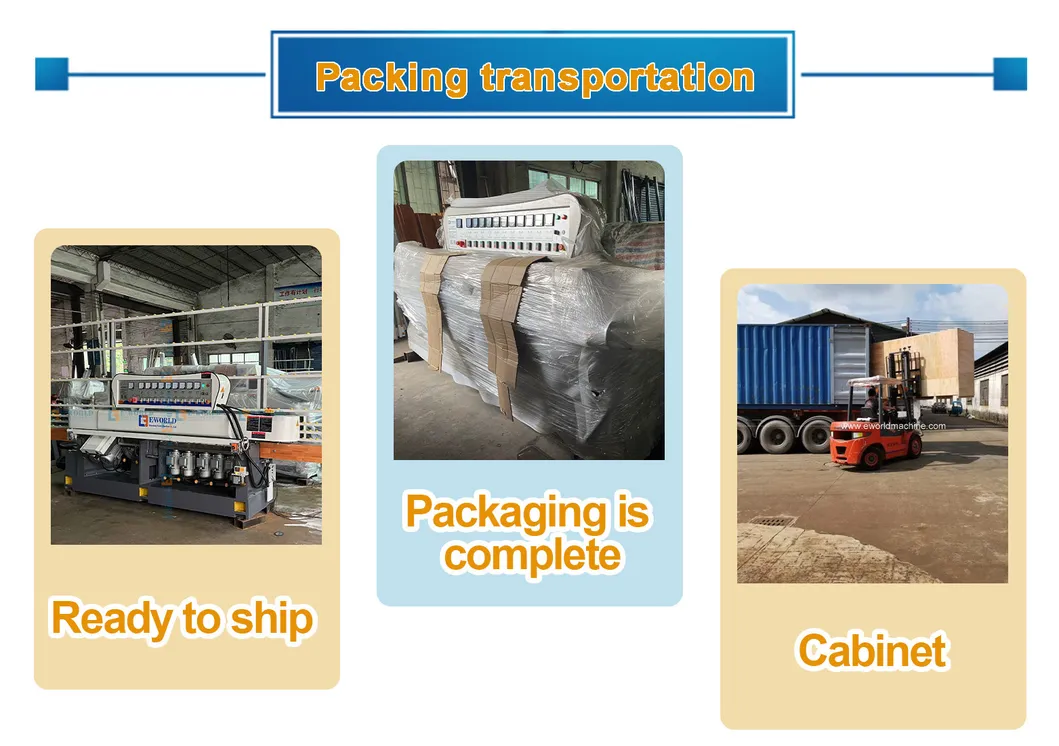

Packaging & Shipping

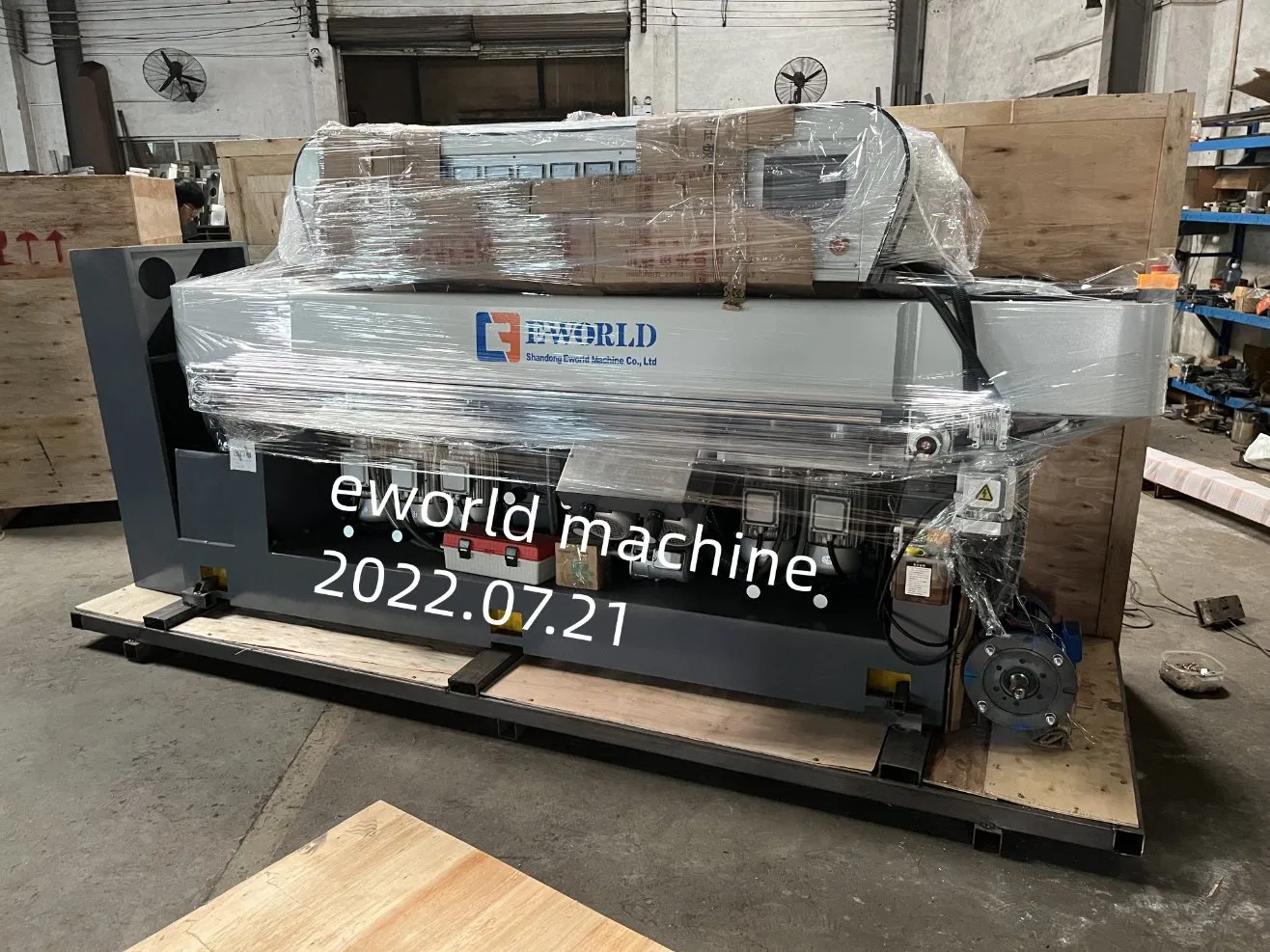

Packaging
Package Size
6800.00cm * 1000.00cm * 2500.00cm
Gross Weight
2500.000kg
Manufacturer Profile

* 20 years factory production experience

* 3 years machine warranty

* 156 exported country experience

* 20000 square meters glass machine & upvc windows machine factory

One of the famous and large manufacturers of glass equipment, window equipment, and CNC equipment. Playing a leading role in glass machinery and window door machines. Advanced products, exquisite techniques, solid working, and cordial services.

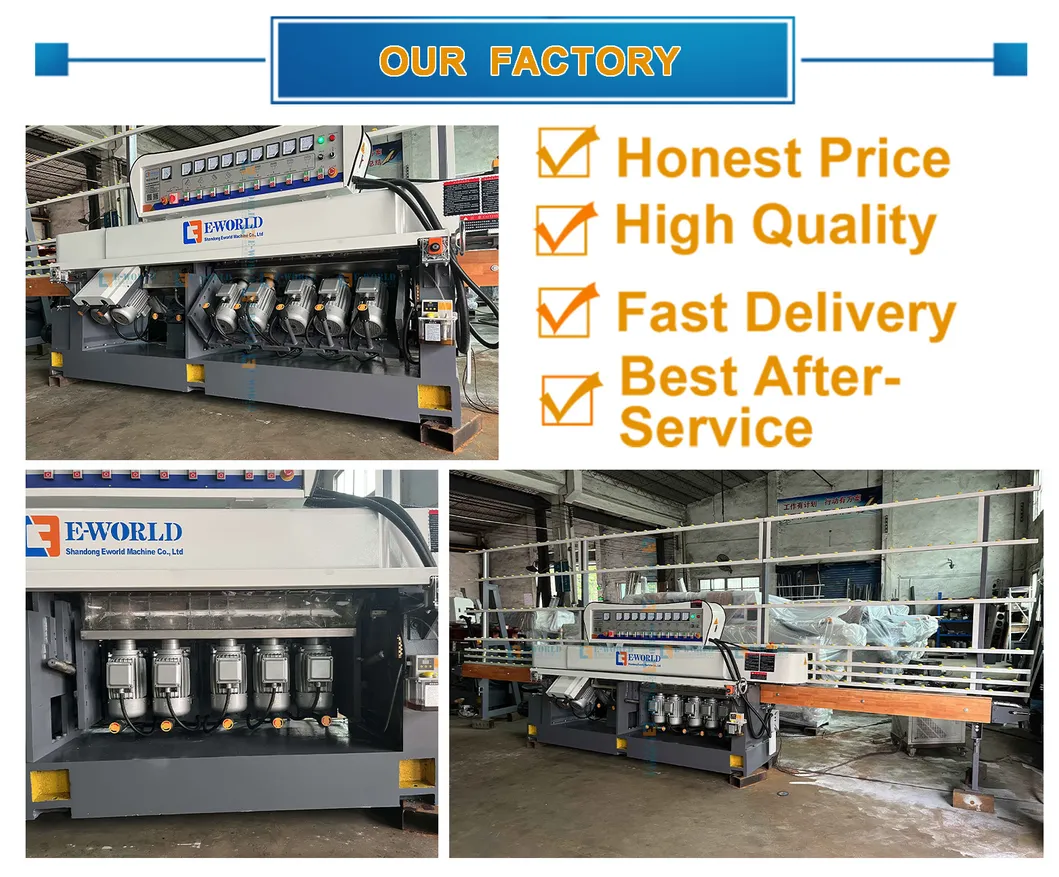

Factory View Certification
After Sales Service
Service
Frequently Asked Questions
Can I visit your factory?
Yes. Many domestic and overseas customers visit our factory every year.
What about the warranty of your equipment? Do you supply spare parts?
Our warranty is one year (12 months), and we can supply spare parts as well.
Do you provide after-sales service?
Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Do you provide production flow charts?
Yes. Our experienced engineers are specialized in designing process flow for various requirements.
Can you test our sample materials?
Yes. You can send your samples to us for testing and analysis to ensure machine compatibility.
