China Toughen Glass Furnace Glass Production Line Mt-Gsw Series

Customization:	Available
Certification:	CE, ISO
Control System:	Industrial Computer

Send Inquiry

Product Description

Basic Information

Model NO.

MT-GSW Series

Glass Thickness

3-19mm

Ceramic Roller

Vesuvius

Insulating Material

Japan

Fiber Rope

France or U.S.A.

PLC System

Omron

Expansion I/O Unit

Omron

Analog Output Unit

Omron

Approach Switch

Omron

Photoelectric Switch

Omron

Encoder

Omron

Type

Glass Tempering Furnace

Structure

Vertical

Condition

New

Warranty

1 Year

Product Description

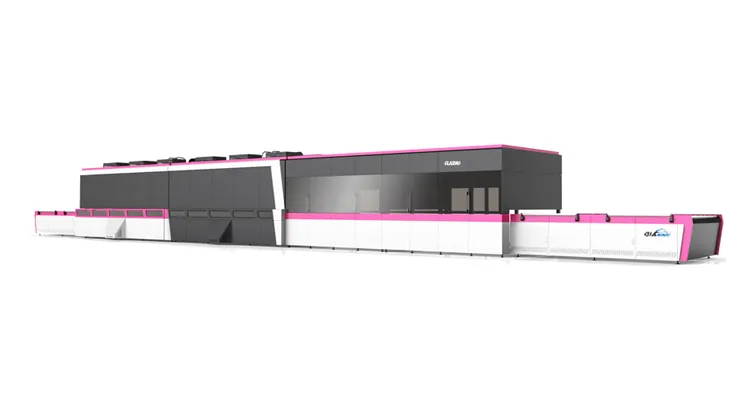

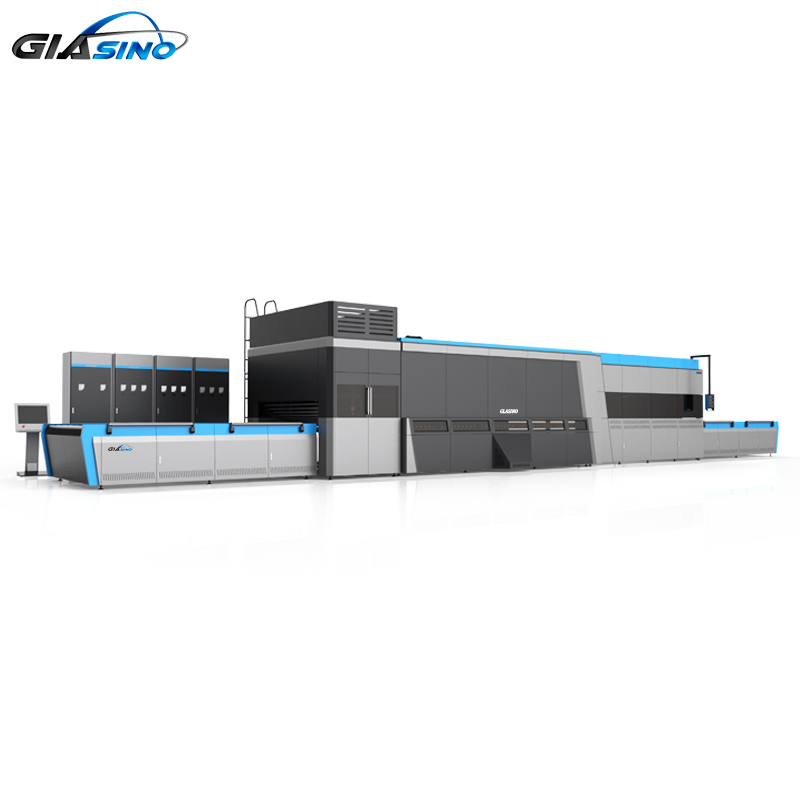

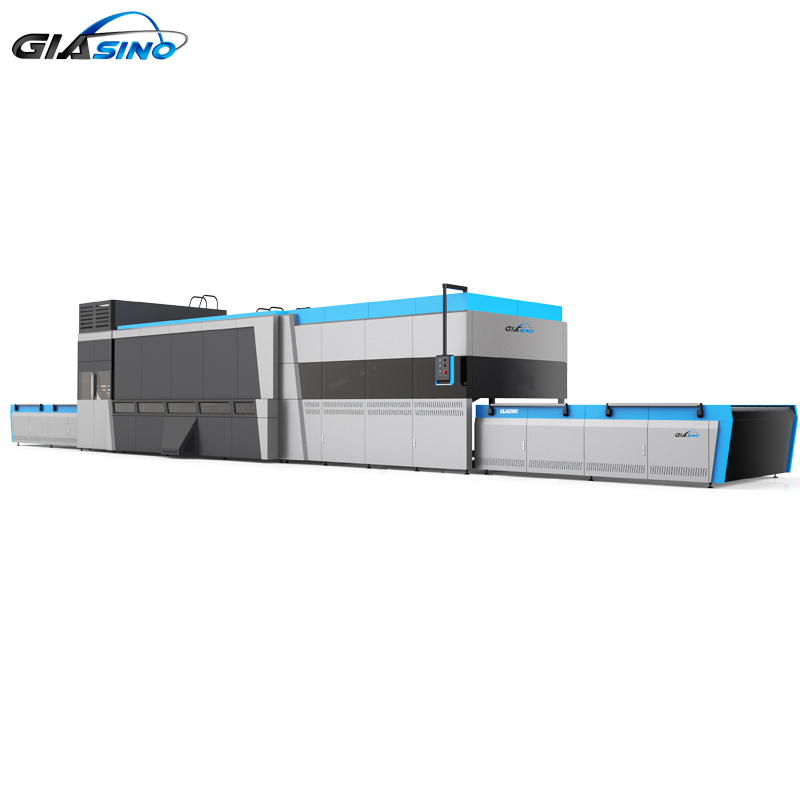

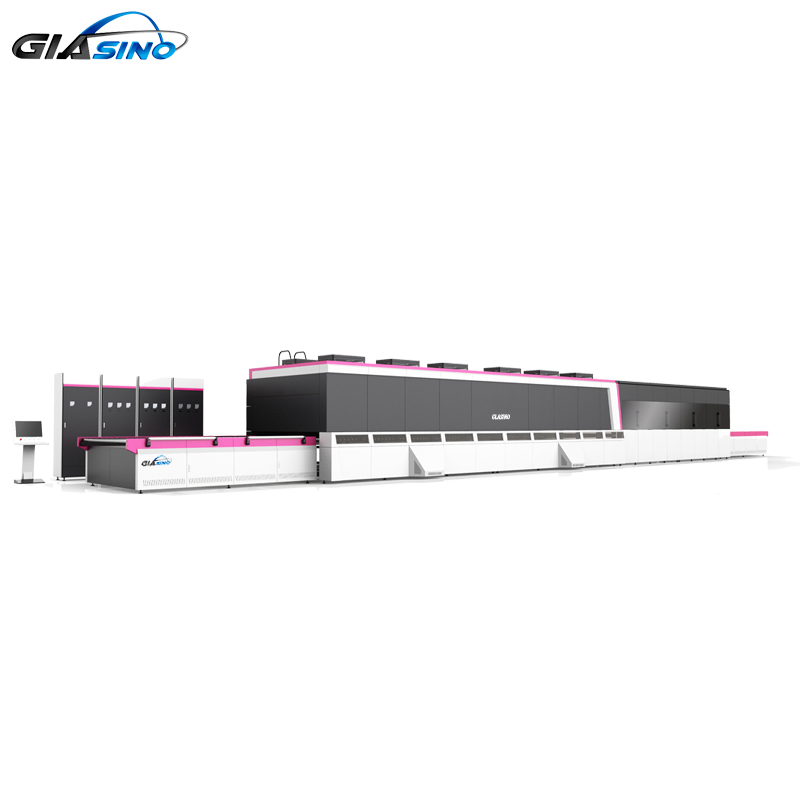

Product Name: MT-GSW Series Double-curvature Glass Tempering Furnaces

Introduction: MT-GSW series double-curvature glass tempering furnace is the most advanced and economic patent product designed for high-precision glass processing.

Type	Glass Thickness (mm)	Max. Size (mm)	Min. Radius (mm)	Max. Depth (mm)	Precision	Yield (load/h)
MT-GSW1608	3.5-6	1600×800	100	100	≤2	36-38
MT-GSW1810	3.5-6	1800×1000	120	120
MT-GSW2012	4-6	2000×1200	120	120
MT-GSW2212	4-6	2200×1200	150	150

1. The yield is calculated for 4mm glass with two working positions.
2. The above sizes are standard; machines can be designed according to special requirements.

Main Technical Features

✓
Glass forming under high temperature ensures a smooth and perfect spherical glass surface.
✓
Special glass forming chamber reduces energy consumption and improves product quality.
✓
Capable of processing various window shields with small/big radius or irregular curved glass.
✓
Easier mould-making and lower cost with faster and convenient mould-changing processes.
✓
Special spire screwy matrix heating and intelligent oven-temperature control ensure equilibrium and high heating speed.
✓
Top quality insulating material and special heat-preservation layers guarantee lowest energy consumption.
✓
Powerful control software provides high automation and a user-friendly interface.

Frequently Asked Questions

What types of glass can the MT-GSW series process?

The MT-GSW series is specifically designed for double-curvature and irregular curved glass, with a thickness range of 3mm to 19mm (specific models optimized for 3.5-6mm).

What control systems are used in this furnace?

The machine utilizes a full suite of high-quality Omron components, including the PLC, expansion I/O units, analog output units, and various switches/encoders for precision control.

How does the furnace achieve energy efficiency?

It uses top-tier insulating materials from Japan and a special spire screwy matrix heating method combined with professional heat-preservation layer arrangements to minimize energy loss.

Can the machine be customized for specific glass sizes?

Yes, while we have standard models like the 1608 and 2212, we can design and manufacture the furnace according to your specific technical and size requirements.

What is the typical production yield?

For 4mm glass with two working positions, the yield typically ranges between 36 to 38 loads per hour, depending on the glass complexity and size.

What components ensure the quality of the glass surface?

The use of Vesuvius ceramic rollers and a special forming chamber ensures that the glass remains smooth and maintains a perfect spherical surface during the high-temperature tempering process.
