Basic Information
Model NO.LV-TFB
Heating MethodConduction, Convection, Radiant
Max Glass Size6000 mm x 12000 mm
Warranty12-24 Months
PLCSiemens
Control ComputerSiemens
Heating TechForce Convection Available
Production Cap100 Sets Per Year
Product Description

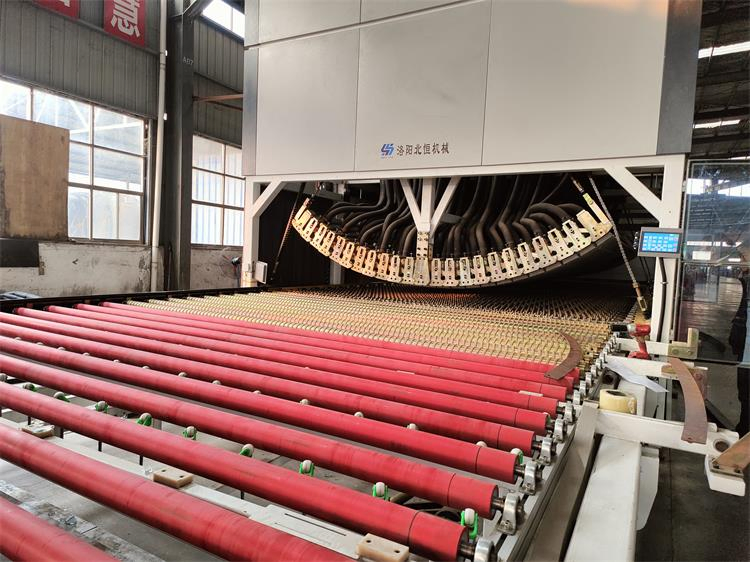

This specialized bent glass tempering furnace is designed for producing high-quality tempered glass for architectural curtain walls, doors, windows, interior decoration, shower rooms, furniture, and home appliances. The machine can be customized for various bent shapes, and different bending types can be combined within a single tempering system.
⚙️

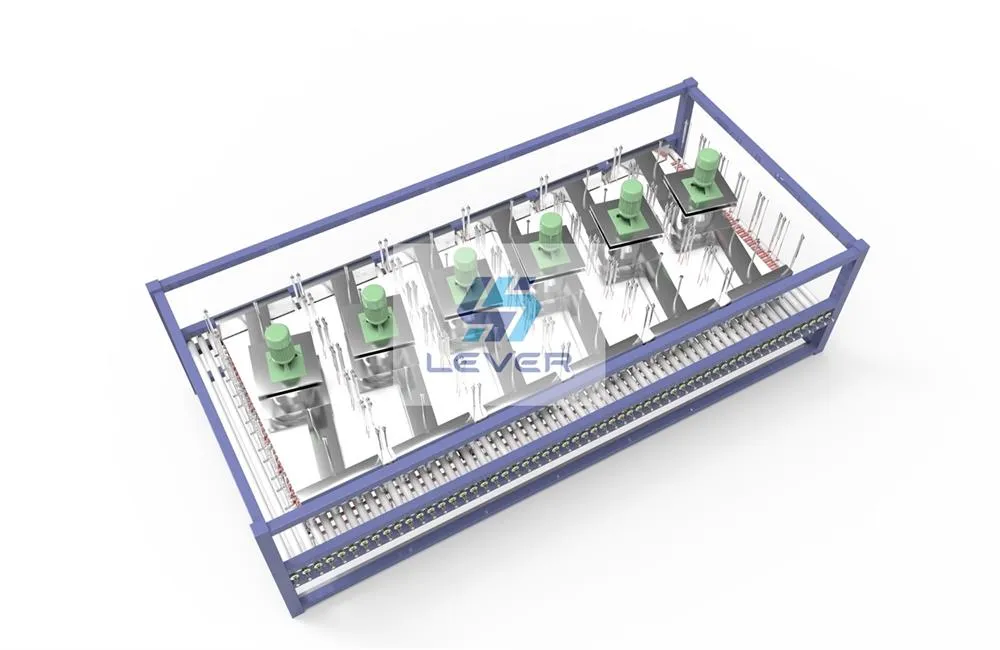

Gapless Forced Convection
Utilizes an optimized fan system at the top oven for even and faster heating, significantly improving finished glass quality with a simple, maintenance-friendly structure.
🌀

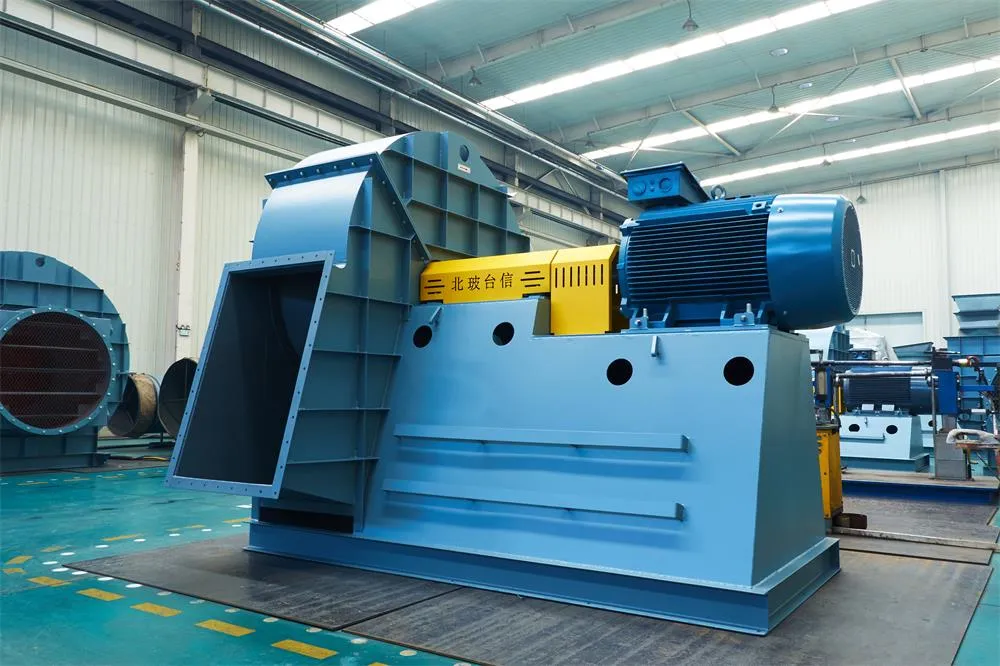

High-Efficiency Blower
Employs Grade 1 energy efficiency 3D impeller technology for superior performance in energy saving and noise reduction.
🌡️
Symmetrical Heating
Upper and lower zones are designed symmetrically with optimized power ratios and PID parameters for stable temperature control.
Technical Features
- Layered insulation technology for energy saving

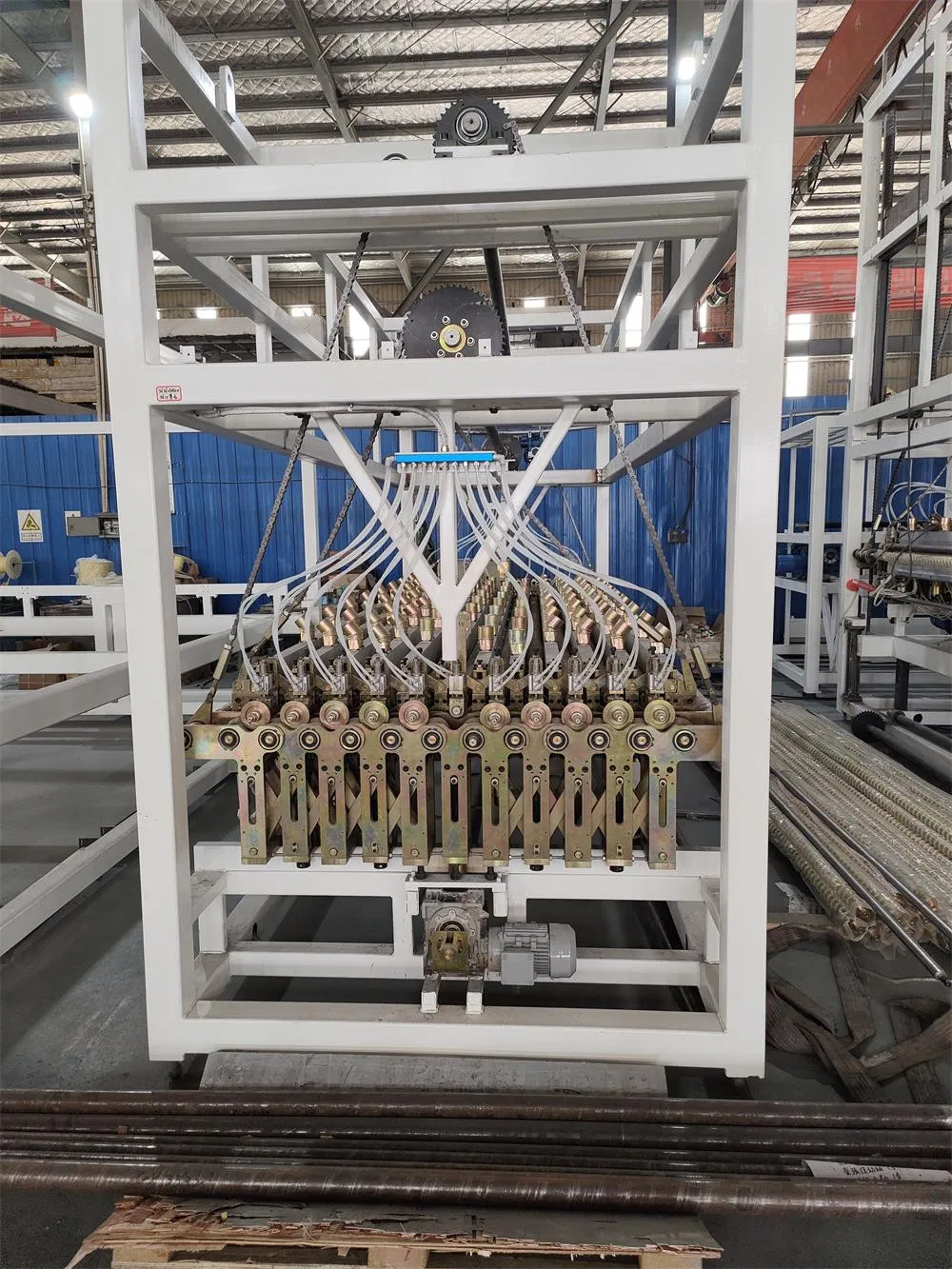

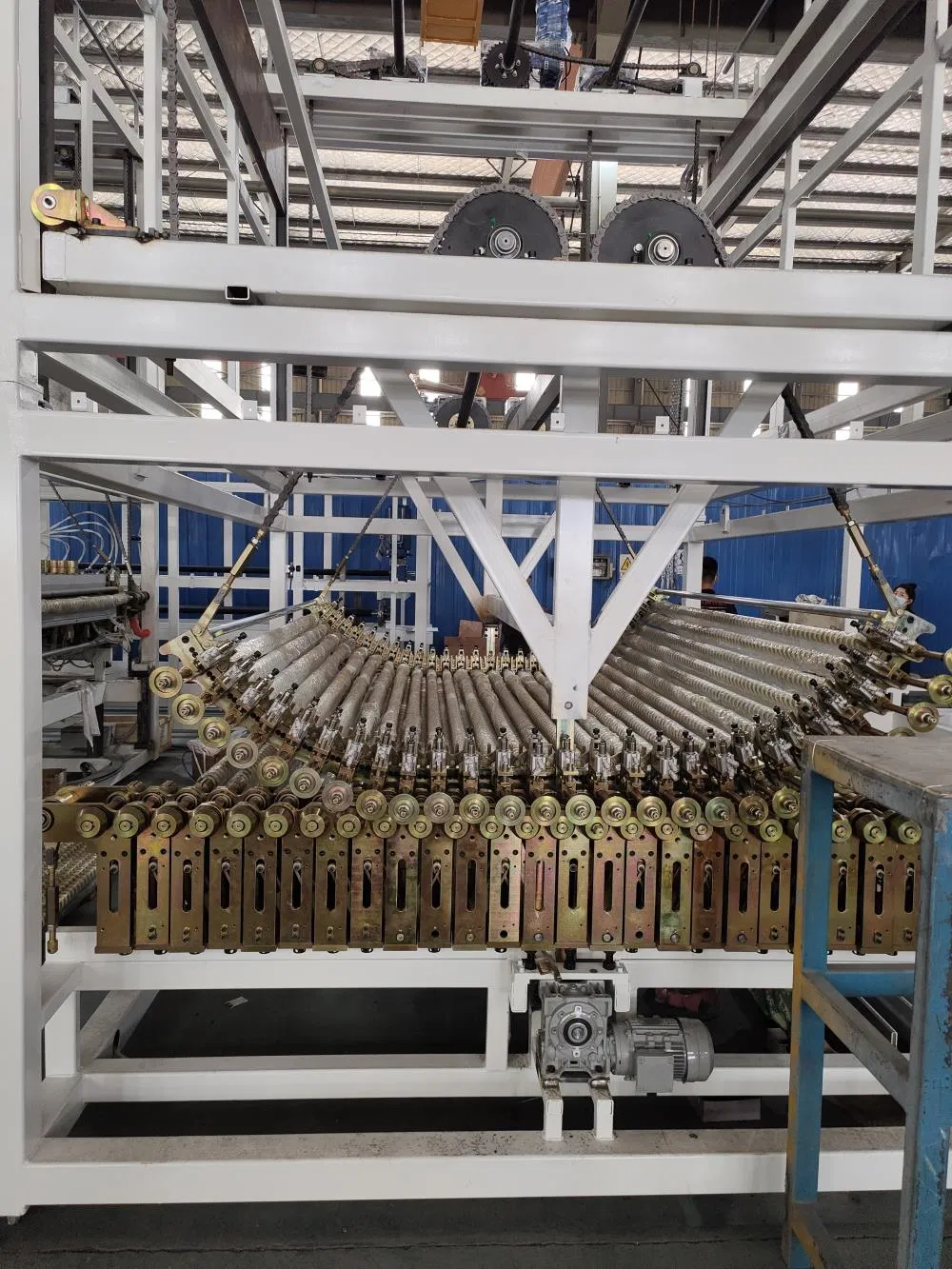

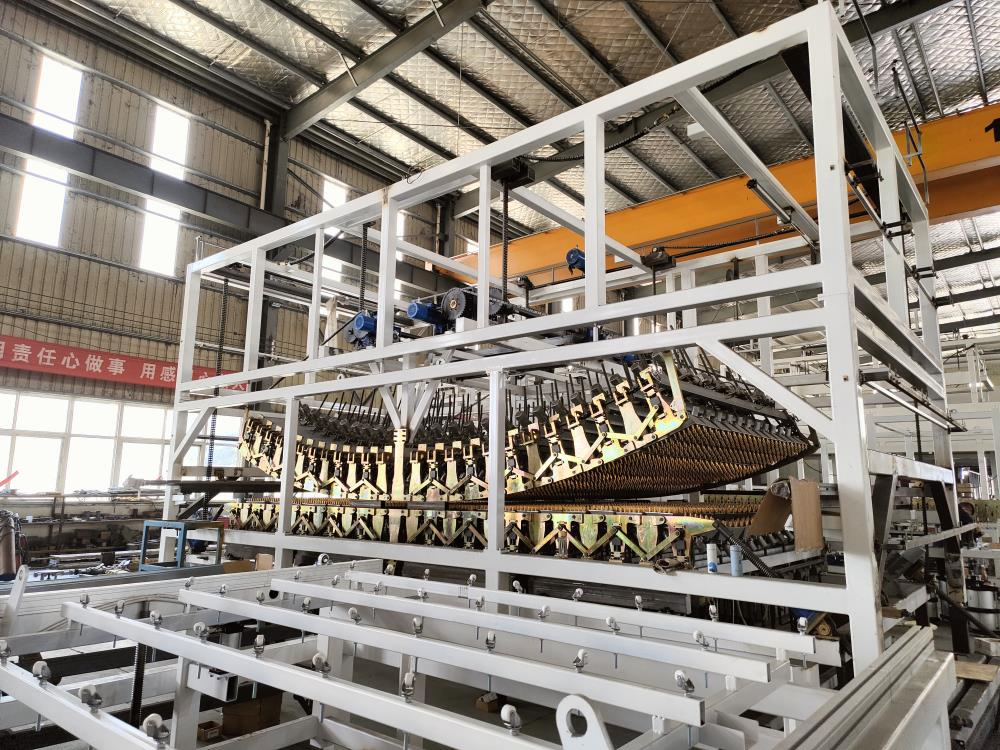

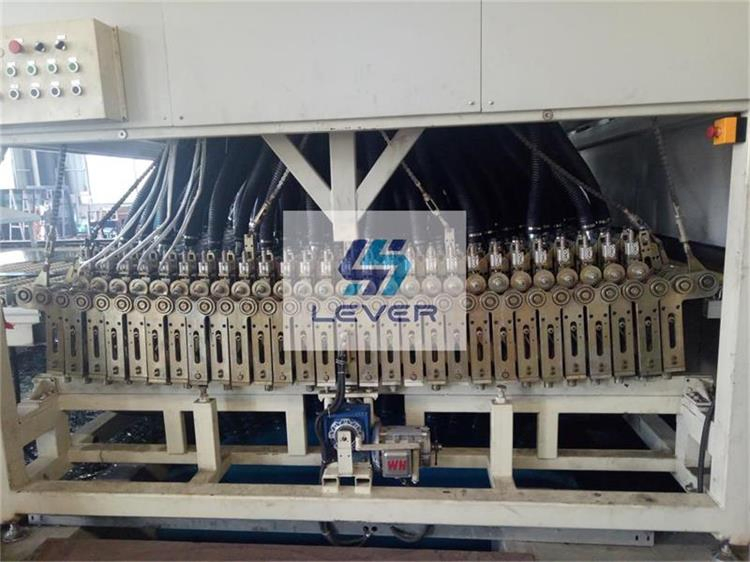

- Concave & convex bending with flexible rollers
- Helix matrix heating structure for independent zone control
- Fault diagnosis system for heating elements
- Dual-link communication for exact temperature measurement
- Automatic sleep mode (500-550°C) for power saving
- Synchronous and asynchronous section running
- Full closed oven body with premium insulation
Suitable Glass Types
Clear & Ultra-clear Float
Reflective Glass
Online Low-E (E≥0.1)
Patterned Glass
Body-tinted Glass
Silk Screen Printed Glass
Main Component Showcase

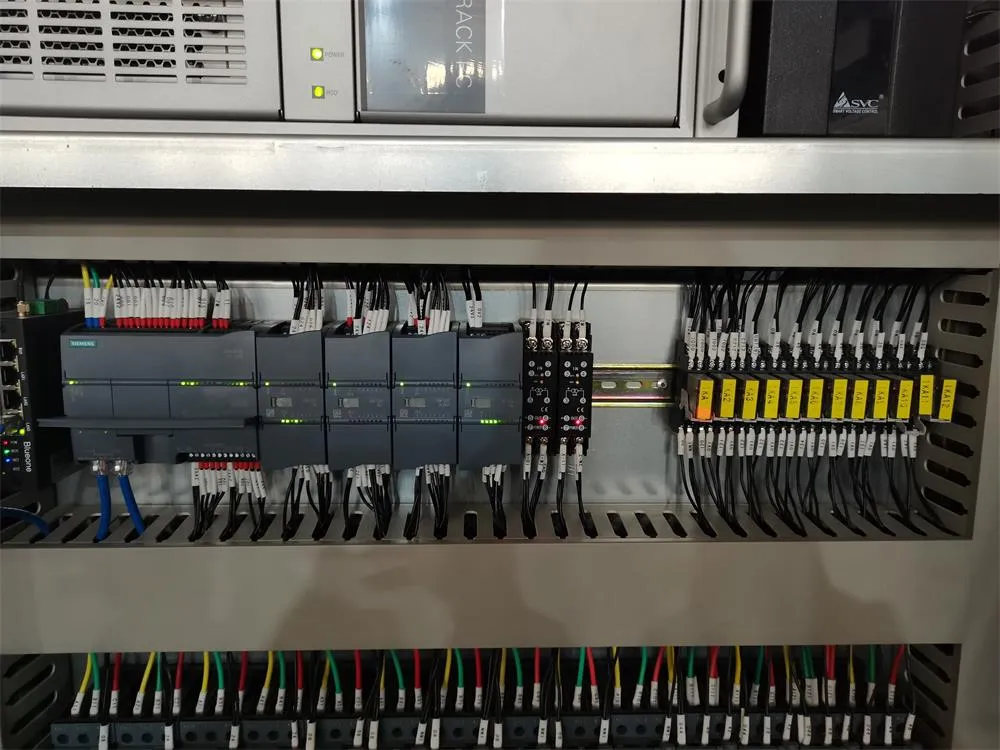

Powerful Siemens PLC System

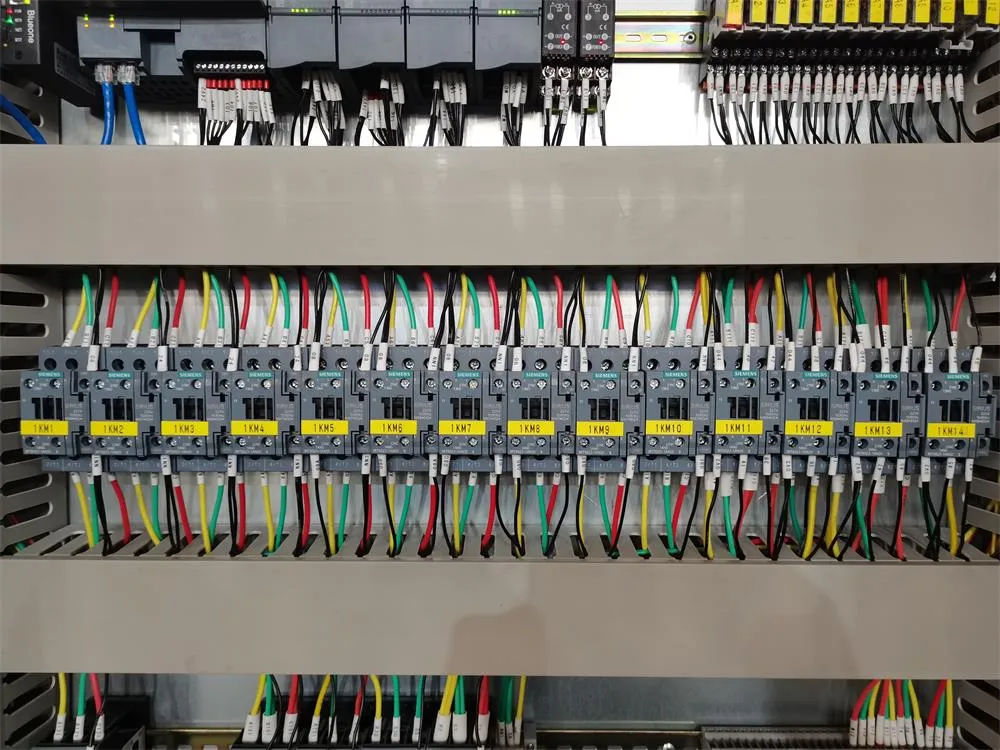

Siemens Contactors

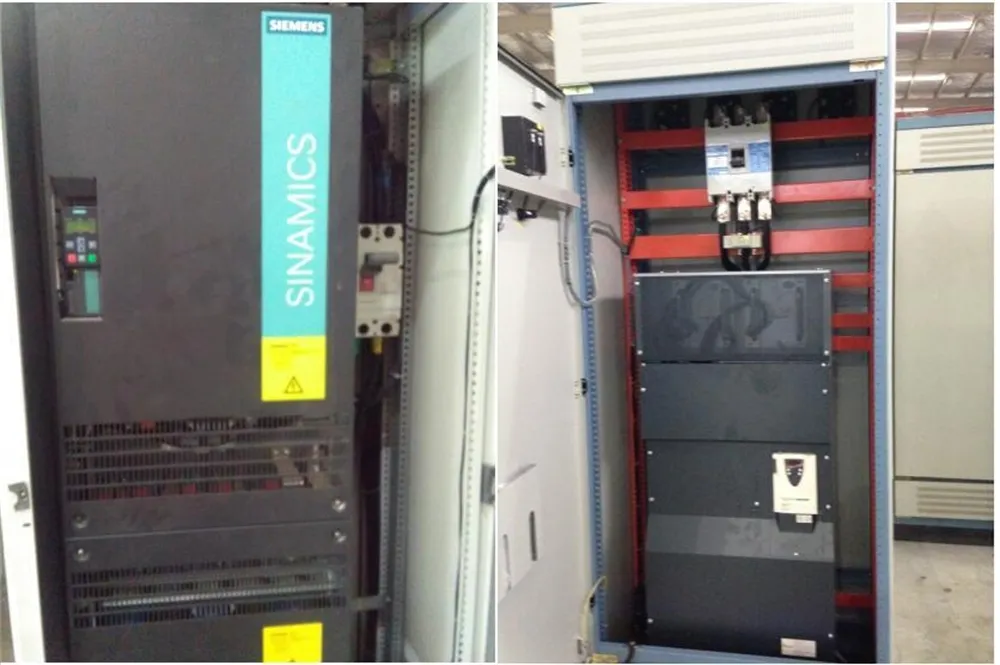

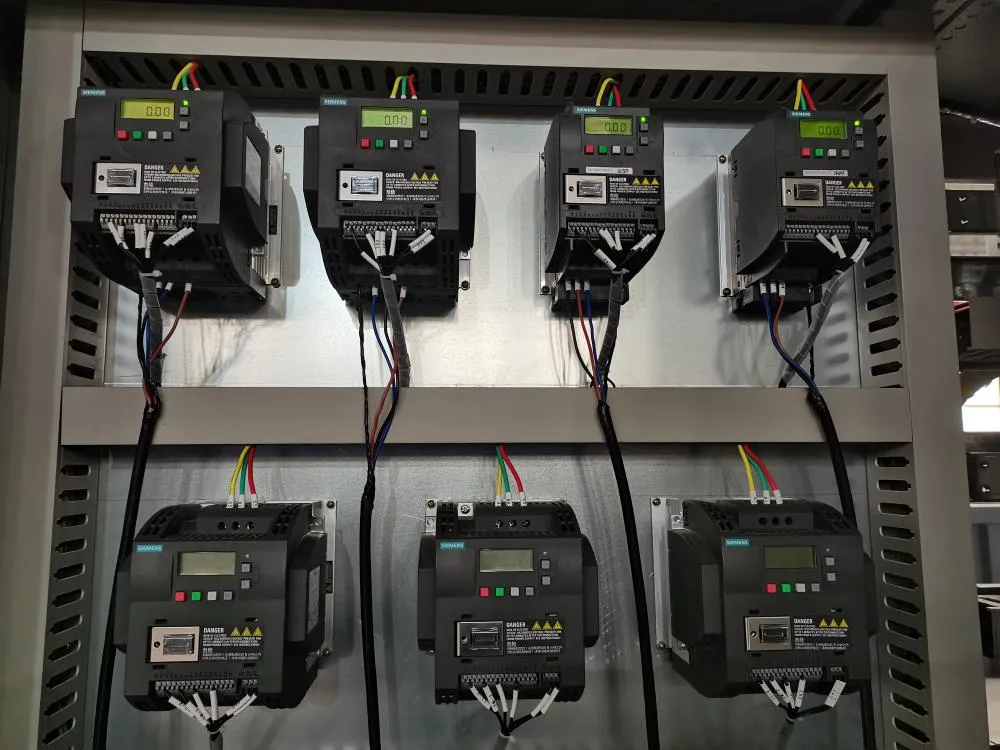

Siemens Inverters

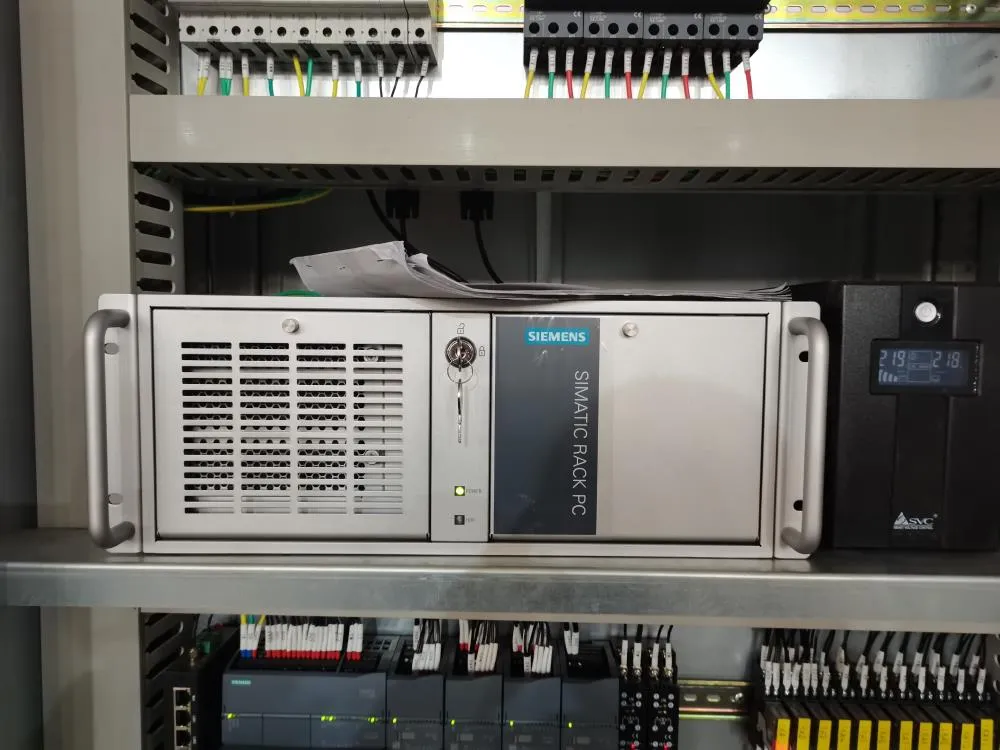

Industrial Control Computer

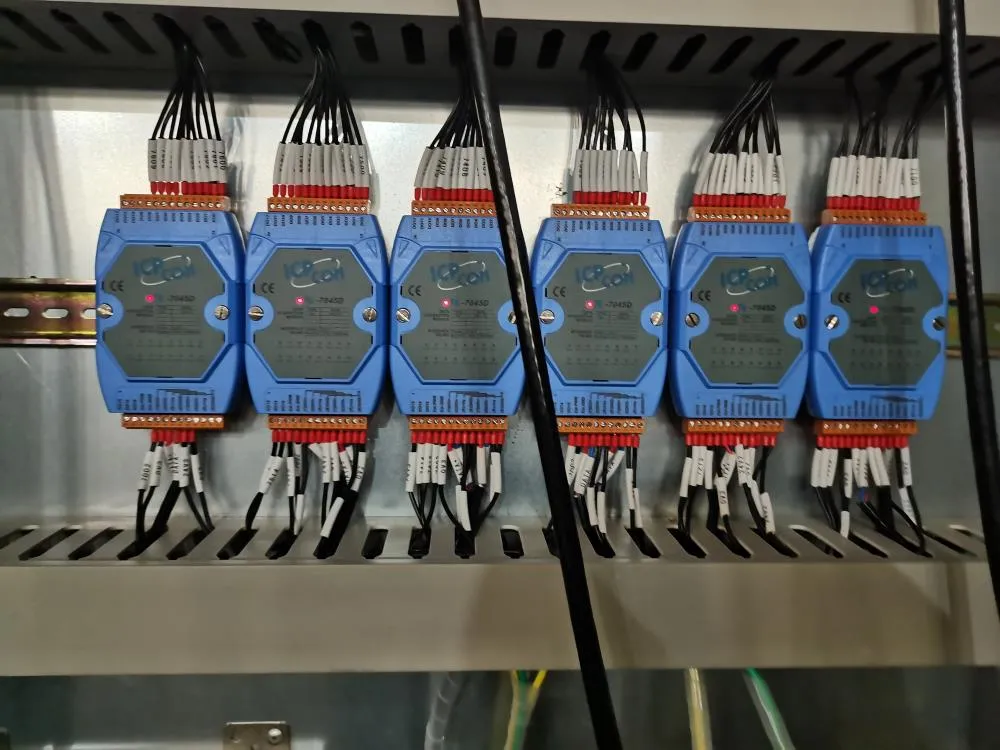

Original Control Modules
Technical Specifications
| Model |
Max Size (mm) |
Min Size (mm) |
Thickness (mm) |
Capacity 5mm (L/H) |
| LV-TF1225 | 1200X2500 | 100x250 | 3-19 | 15-16 |
| LV-TF1836 | 1800X3600 | 100x250 | 4-19 | 15-16 |
| LV-TF2442 | 2440X4200 | 150x320 | 5-19 | 15-16 |
| LV-TF2860 | 2800X6000 | 200x350 | 5-19 | 15-16 |
| LV-TF33120 | 3300X12000 | 200x500 | 5-19 | 14-15 |
Detailed Gallery
Frequently Asked Questions
Q: Can this machine process Low-E glass?
A: Yes, all units can be equipped with a force convection system specifically designed for processing soft Low-E glass efficiently.
Q: What brands are used for critical components?

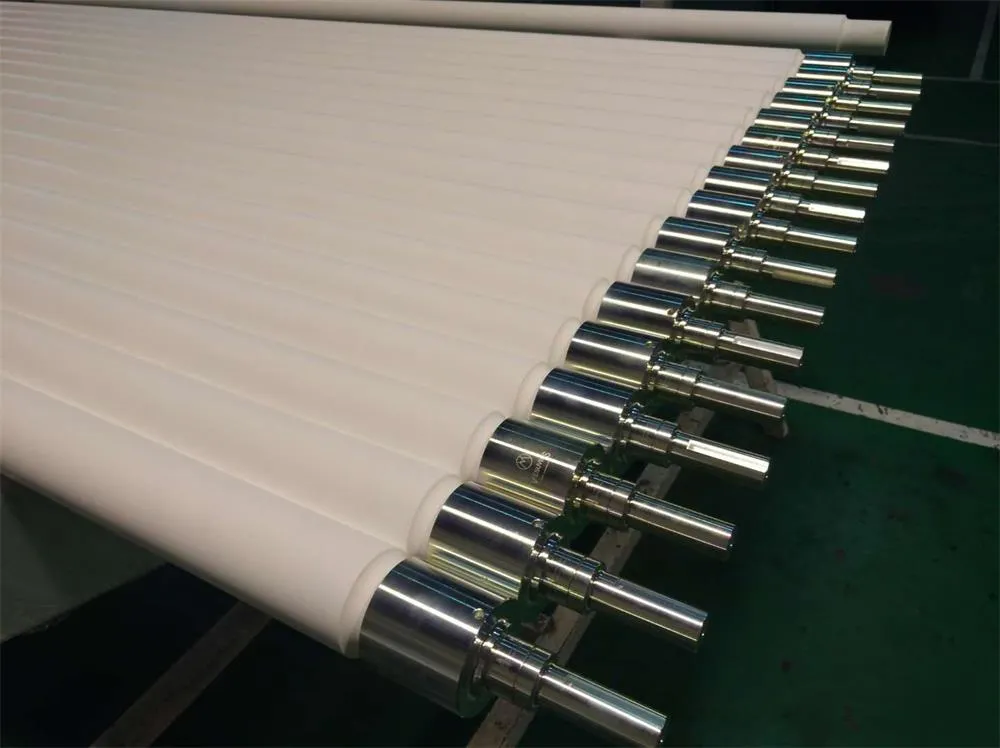

A: We use world-class brands including Siemens for PLC, computer, and inverters, Schneider for electrical parts, and Vesuvius for ceramic rollers.
Q: How does the system ensure heating uniformity?
A: The machine features a gapless parallelogram heating element design and a helix matrix structure, allowing independent temperature control for every area.
Q: Is the bending process automated?
A: Yes, the curvature forming is computer-controlled. Users simply input the required radius data, and the machine adjusts automatically for both concave and convex needs.
Q: What support is provided for new factory setups?
A: We provide full layout design services, equipment selection advice based on target markets, and remote diagnosis services for zero-distance technical support.
Q: How is the machine monitored during operation?
A: It includes a powerful operation prompt facility and fault diagnosis system. All production parameters (temperature, time, pressure) are recorded for history tracking and stability improvement.
