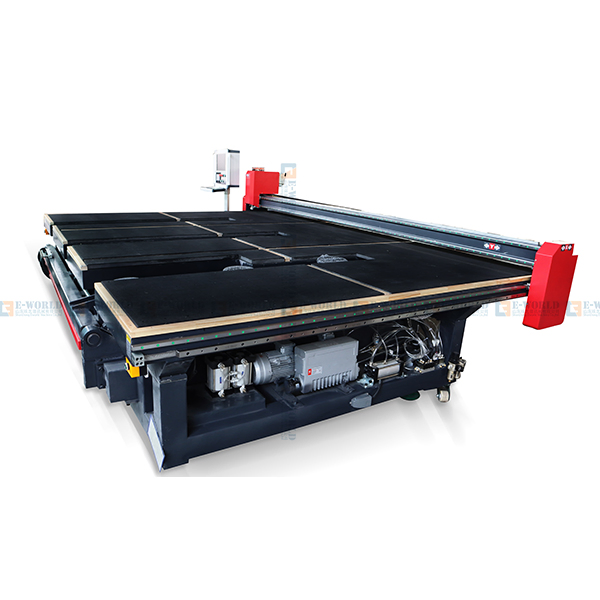

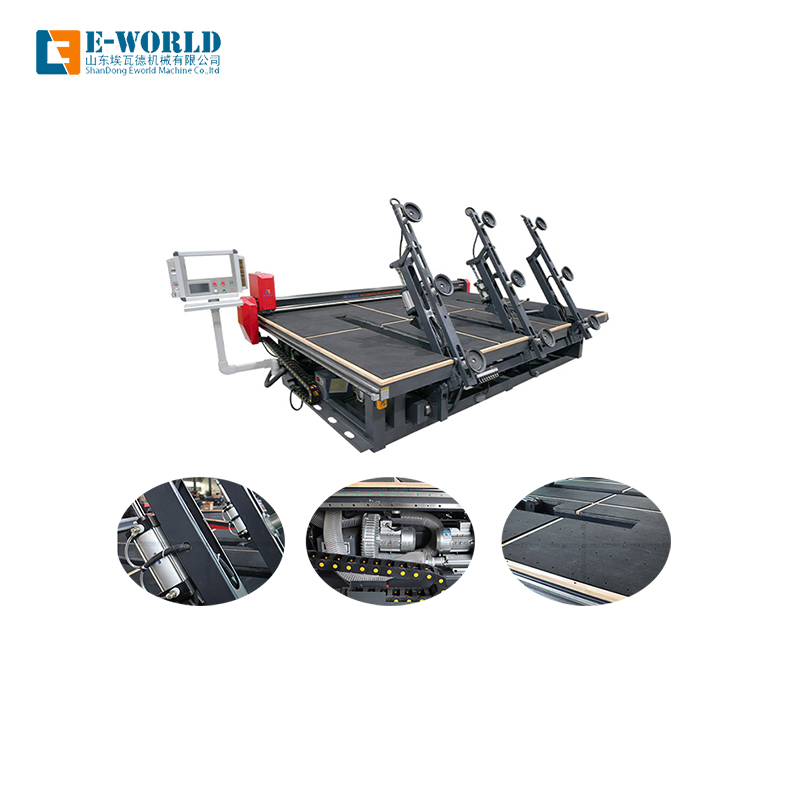

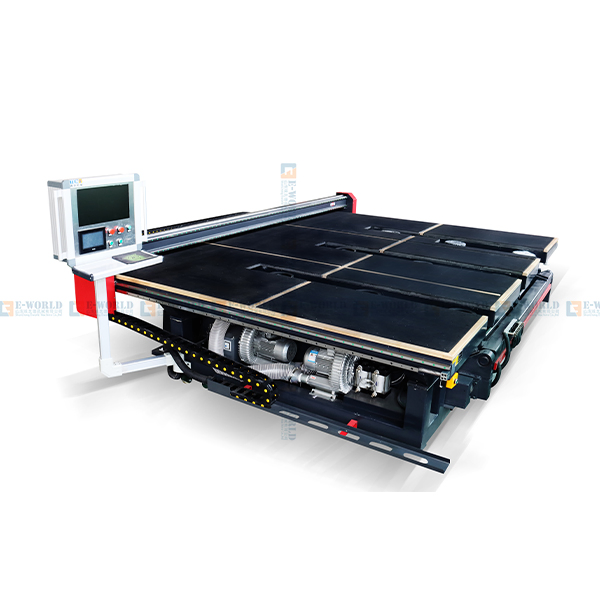

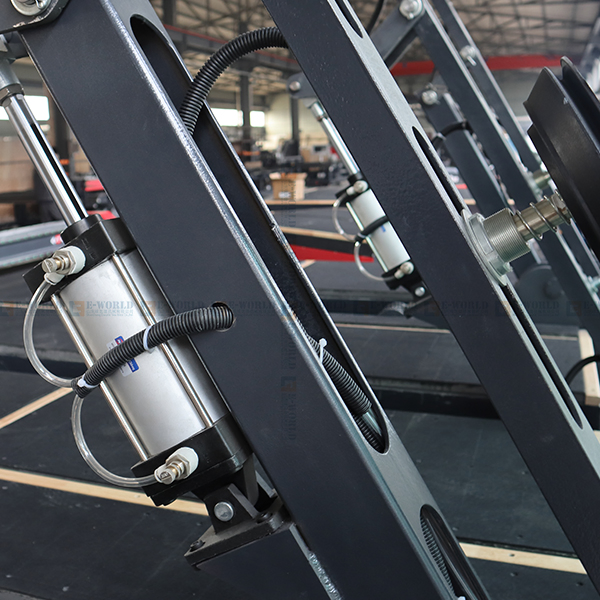

CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
1 / 5
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms
CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms

CNC-3726 Automatic Integrated Glass Cutting Table Machine with 3 Loading Arms

Customization: Available
Certification: CE, ISO
Cutting Method: CNC Cutting
Send Inquiry

Product Description

Basic Specification
Model NO. CNC-3726
Maximum Cutting Thickness 3-25mm
Power Supply 220V
Safety Features Emergency Stop Button, Overload Protection, Safety Sensor
Control System PLC
Structure Horizontal
Specification 4200*3800*900mm
Production Capacity 100%
Automatic Integrated Glass Cutting Solution
This set of equipment is the latest development, which is including loading, taking glass, straight cutting, shape cutting, air flotation, breaking, automatically move and walk (around), remote control. It is currently the most advanced automatic glass cutting system, instead of the traditional automatic glass cutting line (loading table, cutting machine, breaking table). It significantly reduces the labor intensity of workers, with convenient operation, low investment and benefit advantages, greatly reducing the cost.

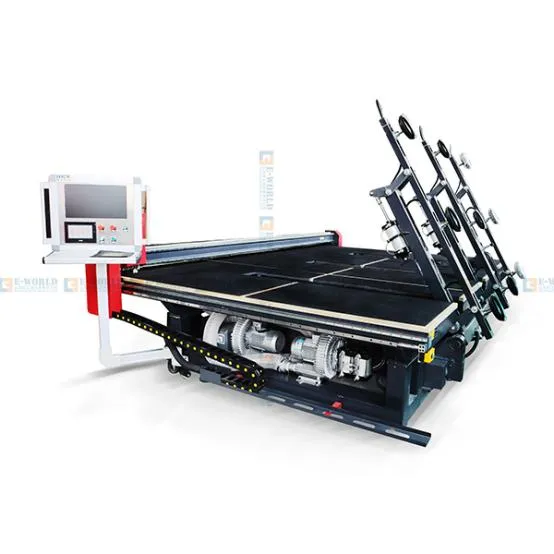

CNC-3726 Automatic Integrated Glass Cutting Table
Glass Cutting Detail 1
Glass Cutting Detail 2

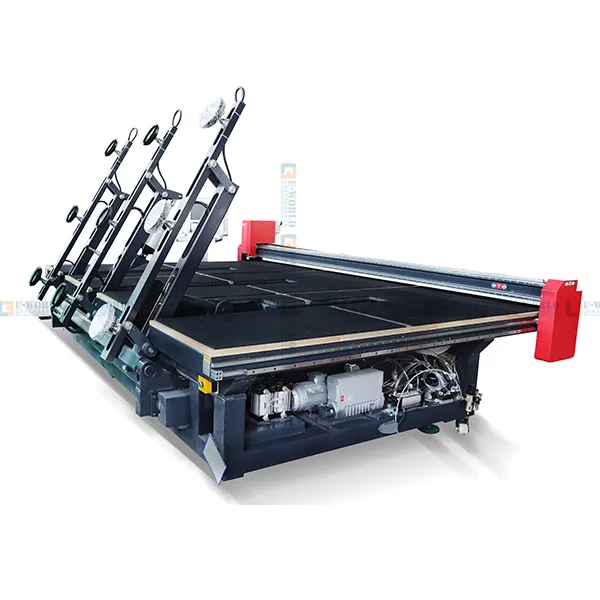

Glass Cutting Detail 3
Core Advantages
  • Flexibility: Mobile device inside the machine, which can be moved to any glass location for loading, cutting, breaking.
  • Security: Remote control operation effectively avoids personal injury. Includes automatic electrical protection detection.
  • Economy: Only needs one person to complete loading, cutting, and breaking, replacing up to 4 workers.
Technical Parameters
Cutting Thickness2-19mm
Cutting AccuracyParallelism: ≤±0.15mm/m
Cutting Speed150m/minute (adjustable)
Outline Size4000×3200×1100mm
Max Cutting Size2440×1830mm
TransmissionX, Y, Z Axis equipped with reliable motors
Oiling MethodAuto oiling
Mechanical & Electrical Excellence

Mechanical Features:

  • Tabletop smoothness ≤±0.2mm/m
  • Rack/Guides imported from Japan and Switzerland
  • Turret uses pneumatic and spring pressure for optimal cutting

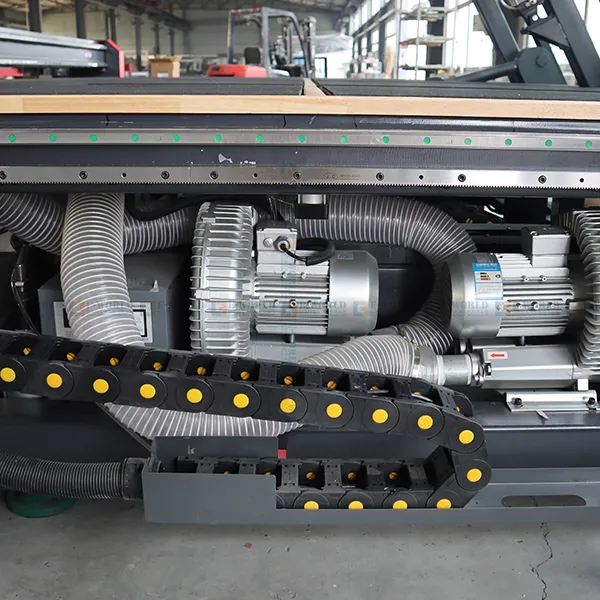

    • Mechanical Details

    Electrical Features:

  • Operated directly by PLC with Microsoft Windows interface
  • Voltage can be customized for global requirements

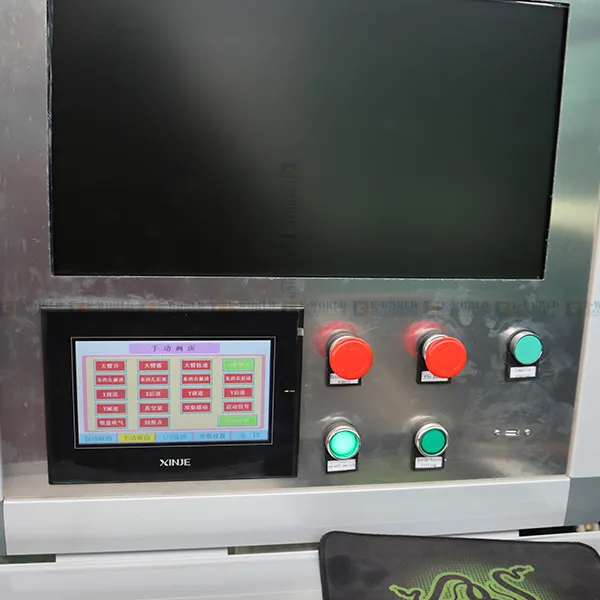

    • Electrical Control
    Air Float Glass Breaking System
    Equipped with an air floating blower system for easy handling and movement of glass sheets. Pneumatically controlled X and Y breaking bars are activated by individual foot pedals to manage large size cutting sections efficiently.

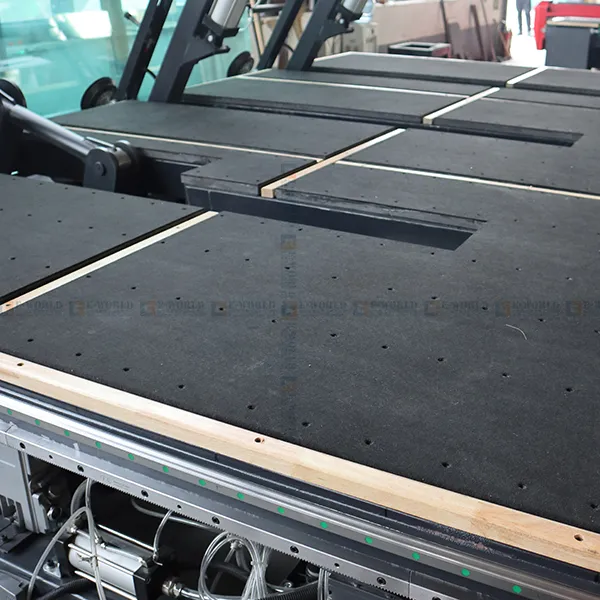

    Breaking Table 1
    Breaking Table 2
    Operating 1
    Operating 2
    Operating 3
    Frequently Asked Questions
    Are you a professional manufacturer?
    Yes, we are a professional manufacture with more than 5 dedicated workshops for glass machinery production.
    What kind of after-sales service do you provide?
    We offer 24-hour after-sale service, reply within 12 hours via email, and have over 12 years of experience in the machinery field with fluent English communication.
    What is the warranty period for the machine?
    Our guarantee is for 18 months. We provide 2 years quality guaranty for the machine (excluding consumables) and offer technical support via email or calling.
    Do you provide equipment operation training?
    Yes, we can send professional engineers to your site for equipment installation, adjustment, and comprehensive operation training.
    How long is the delivery time?
    Standard machines typically take 3-15 days. Customized machines or non-standard requirements take approximately 15 to 30 days.
    What payment methods do you accept?
    We accept various payment methods including L/C, T/T, D/P, and West-union for your convenience.
