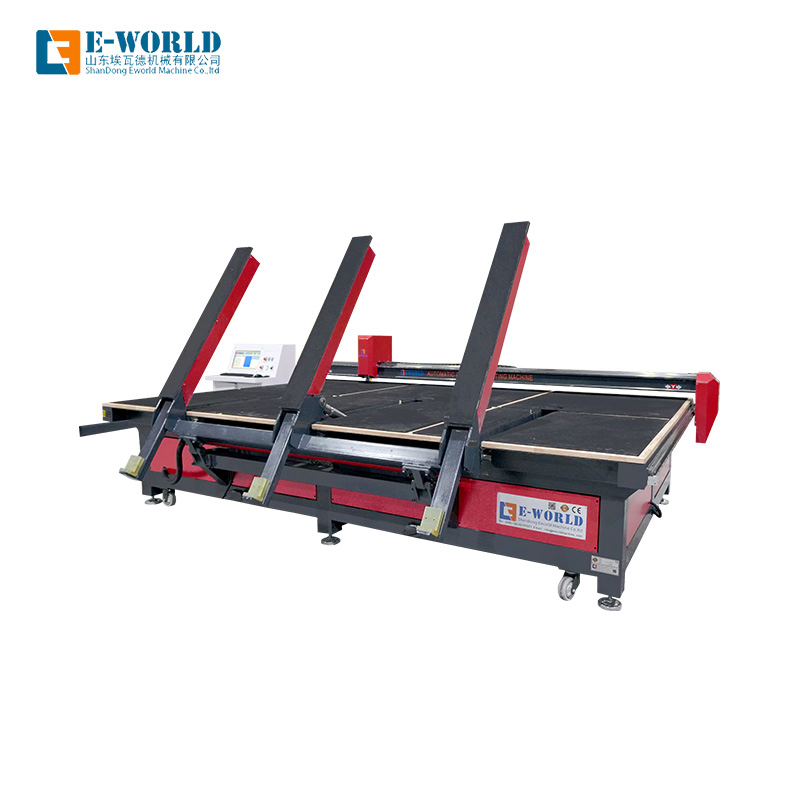

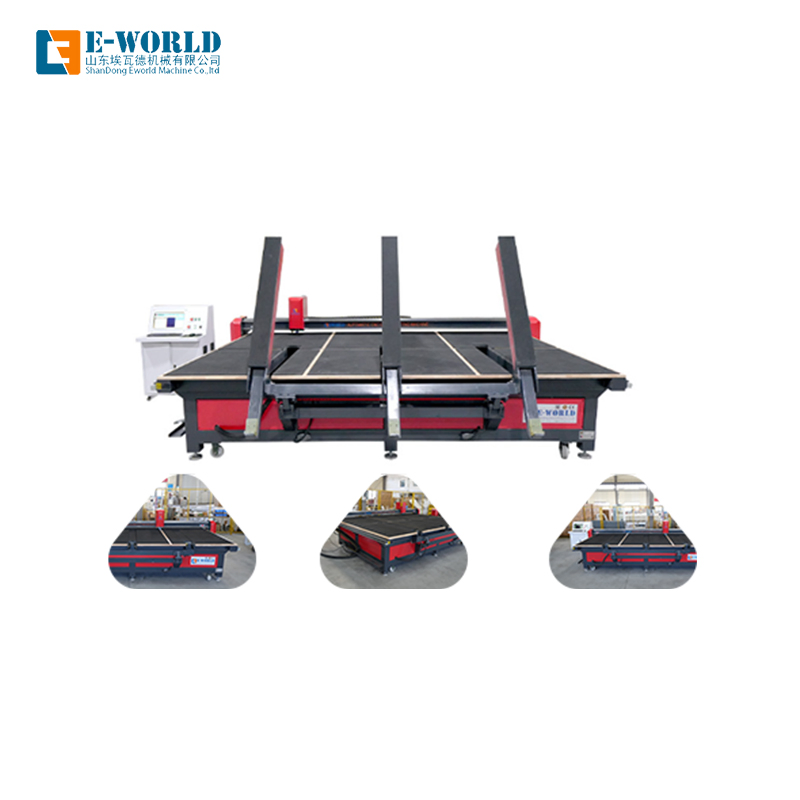

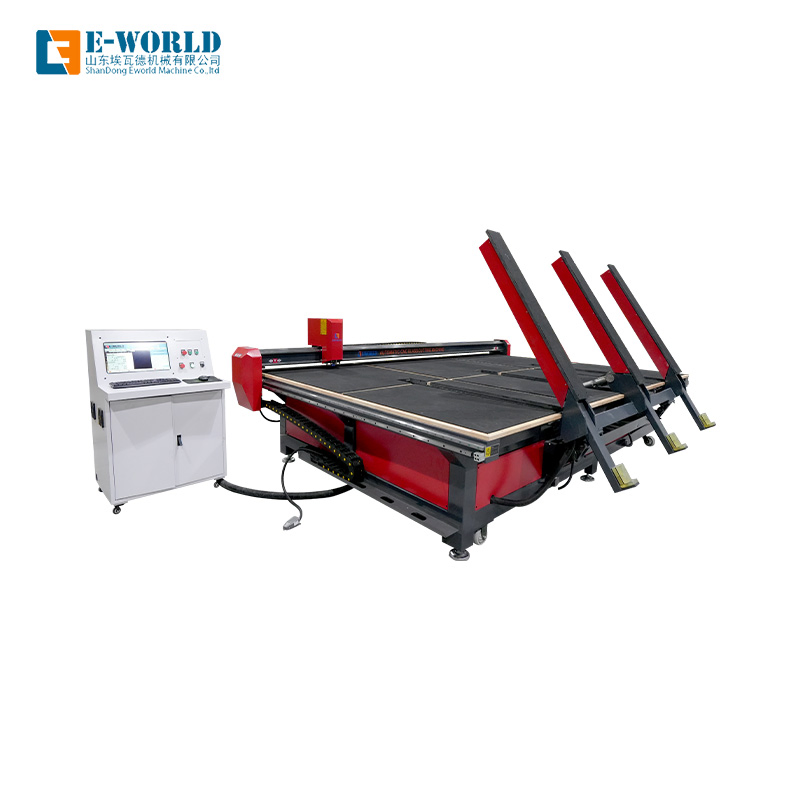

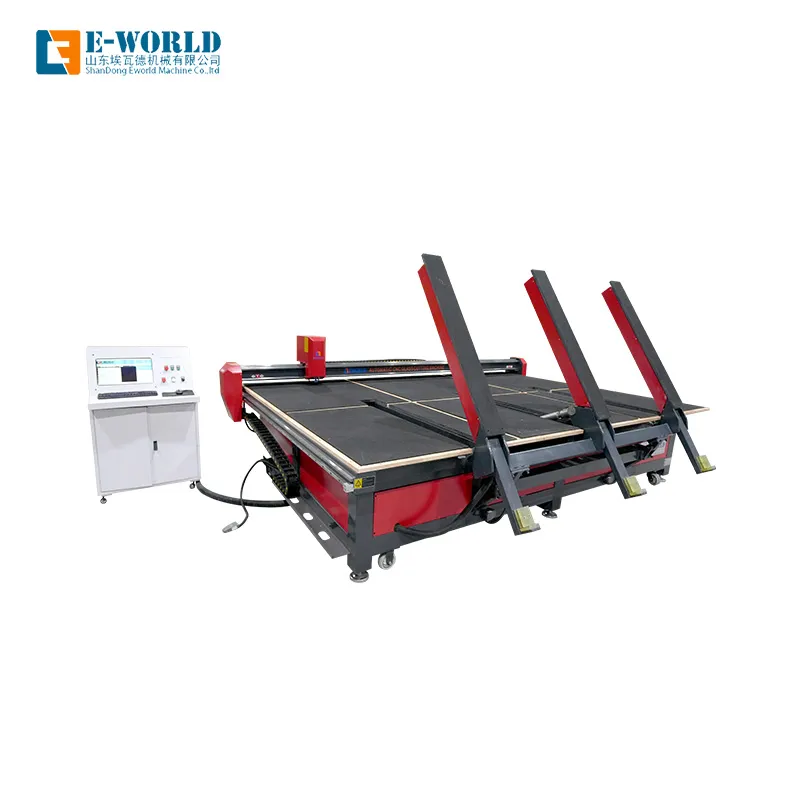

This set of equipment is the latest development, including glass loading, taking, straight cutting, shape cutting, air flotation, breaking, and automatic movement via remote control. It is an advanced automatic glass cutting system designed to replace traditional lines.

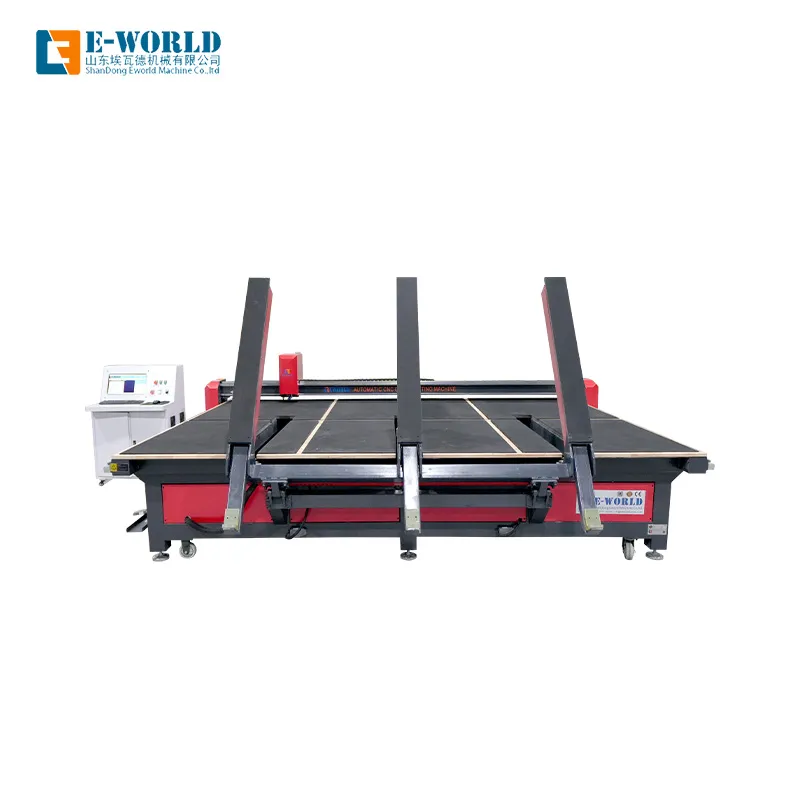

After starting the machine, the arms automatically suck glass from the shelf. Controlled by sensors, the glass automatically finds edges in X and Y directions. Once moved to the designated location, the cutter starts automatically according to the pre-installed graph optimized by the computer.
| Max Cutting Size | 3660*2600mm |
| Glass Thickness | 3-19 mm |
| The Fastest Cycle | 20-40 seconds |
| Cutting Accuracy | Parallelism: ≤±0.15mm/m |
| Cutting Speed | 150m/minute (adjustable) |
| Transportation Device | Air Flotation device |
| Installed Power | 12kw |
| Transmission System | Reliable motor for X, Y, Z Axis |

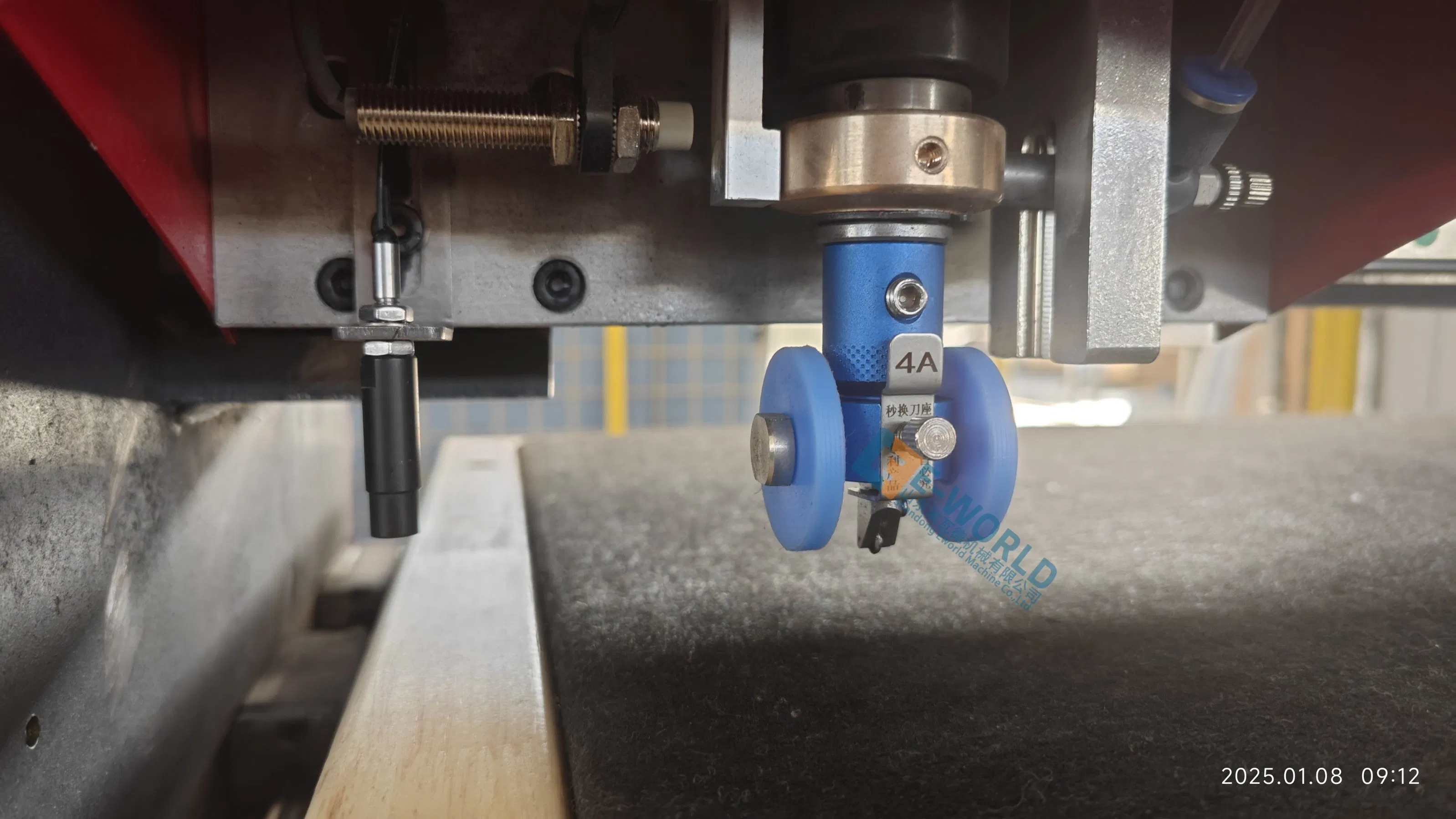

| Cutter Block | Pneumatic and spring; 366° degree rotation |
| Weight | 2350kg |

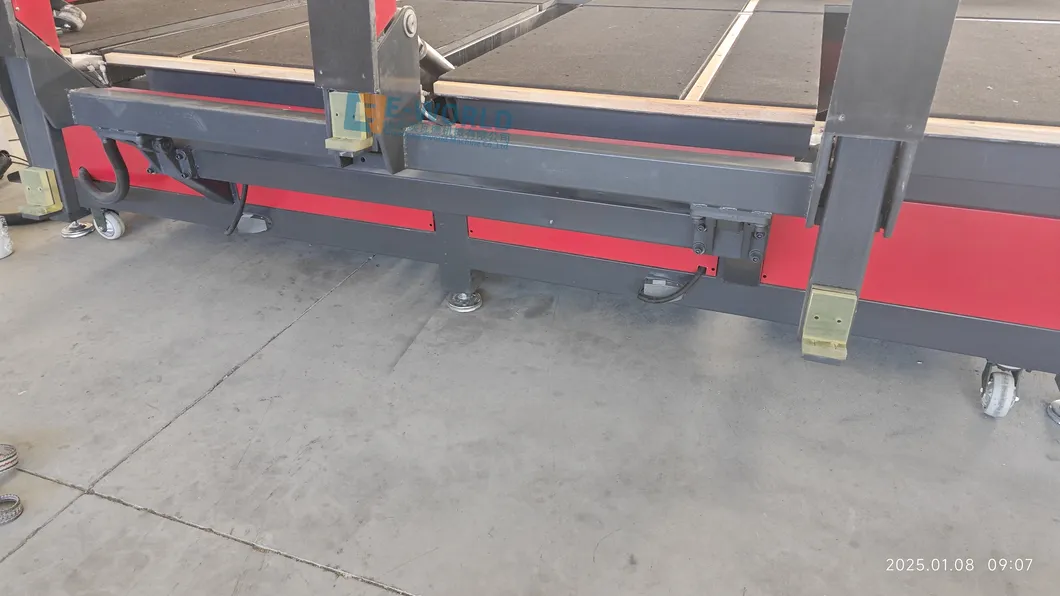

Strong Loading Arms: Three arms support glass safely. One-piece base ensures no deformation.

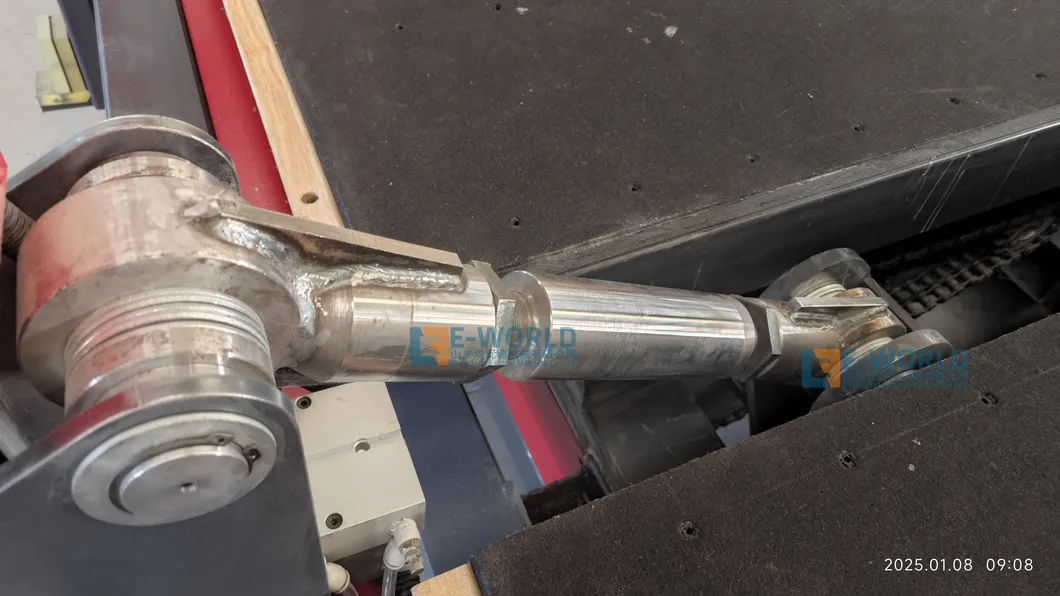

Motor Driven System: Powerful motor for heavy glass loading and precise tilting control.

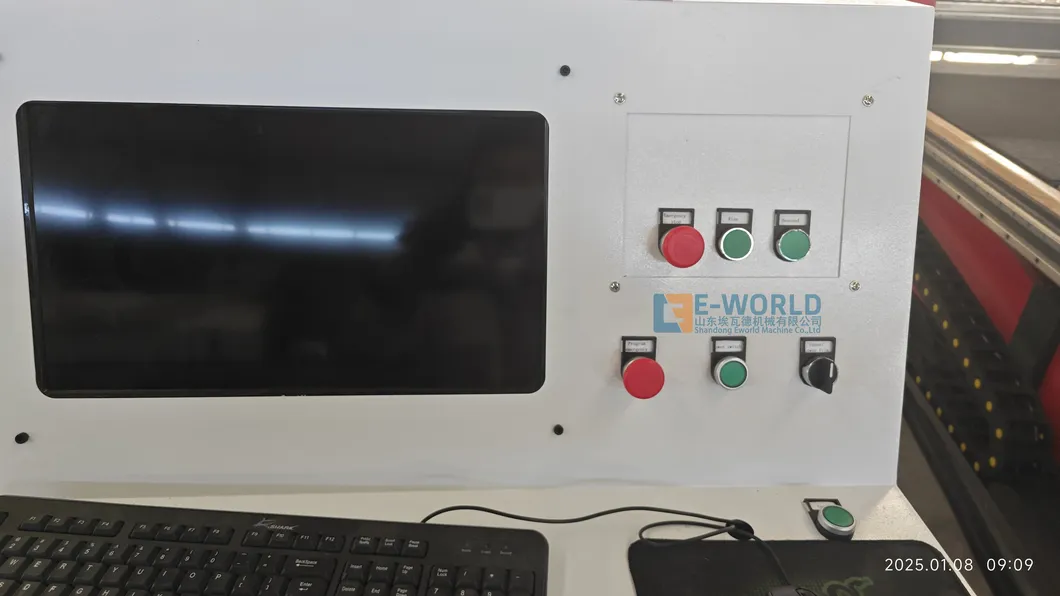

Easy Operation: Simple button-press interface to start the lifting process.

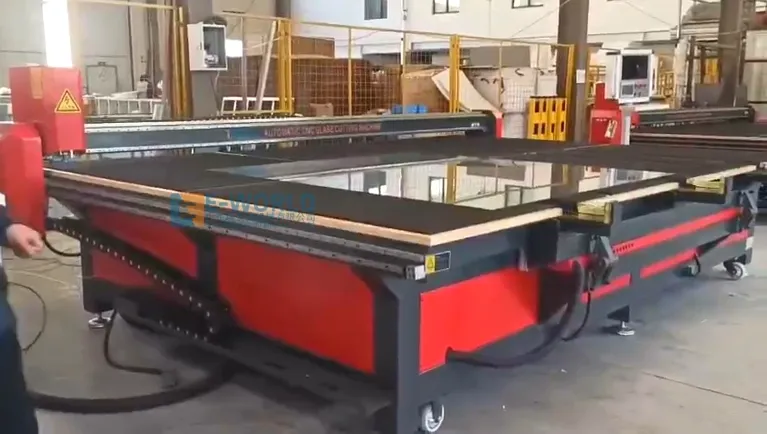

Air Blower: 4KW blower provides air float to easily move heavy glass sheets.
Photoelectric Location: Automatically finds glass position for precision cutting.

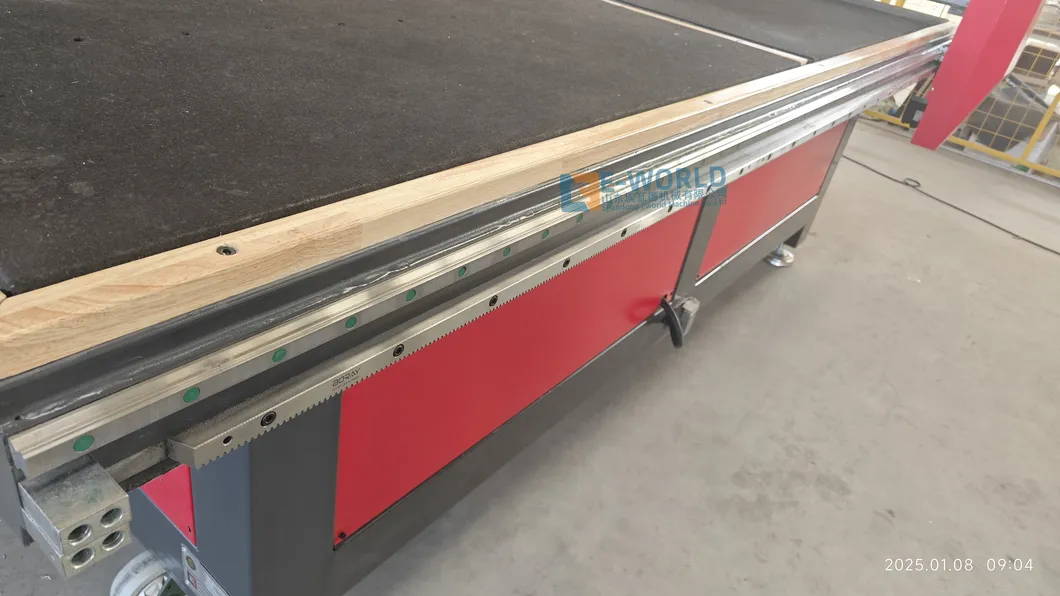

Safety Protocols: Emergency stop and power-off self-locking functions for maximum safety.
