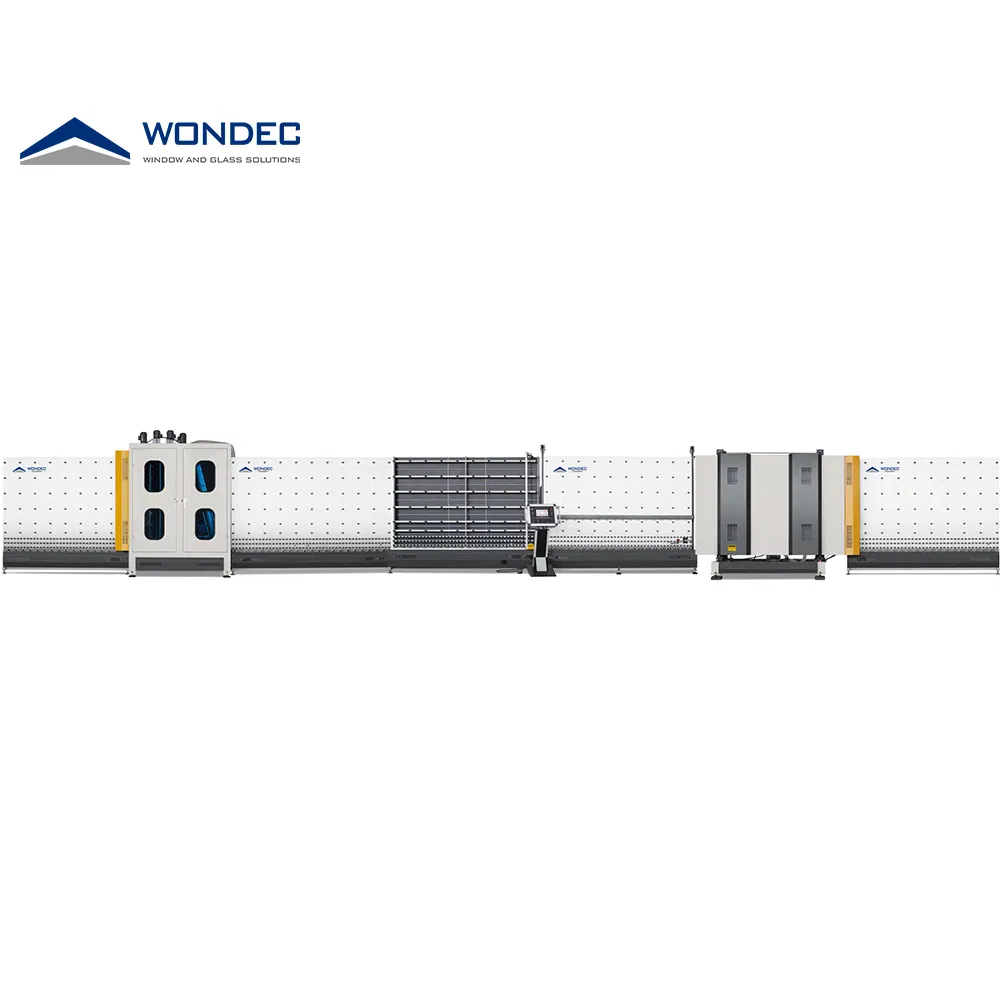

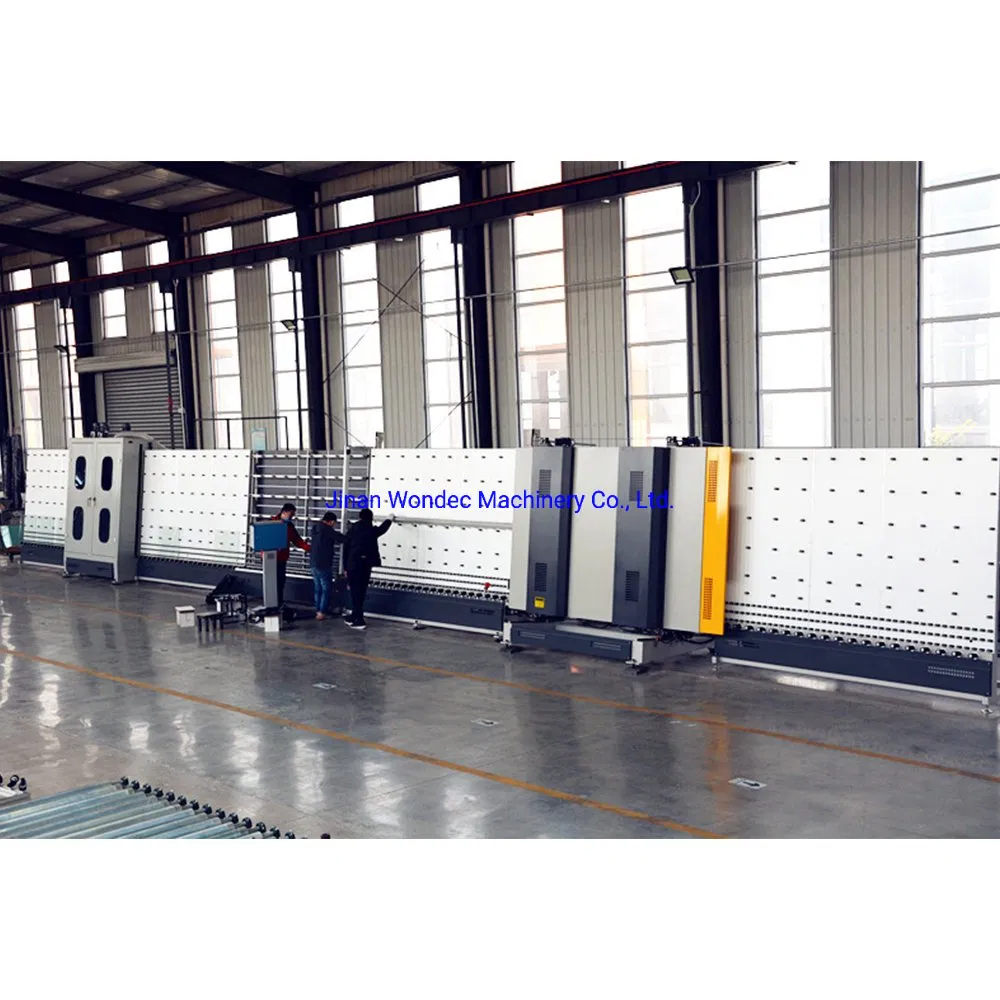

2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
1 / 5
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line
2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line

2000*3000mm CNC Automatic Vertical Low-E Insulating Glass Double Glzed Flat Press Manufacturing Production Line

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
WLBZ2030
Color
Can Be Customized
Key Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Component
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Service
Video Technical Support, Online Support
Type
Insulating Glass Production Line
Structure
Vertical
Machine Type
Ultrasonic Glass Washing Machine
Condition
New
Warranty
1 Year
Production Capacity
60 Units
HS Code
84752990
Product Description

Automatic Insulating Glass Production Line - WLBZ2030

This machine is a conventional type; specific configuration can be negotiated based on requirements. Custom sizes such as 2500*4500MM, 2500*5000MM, and 2500*6000MM are available.

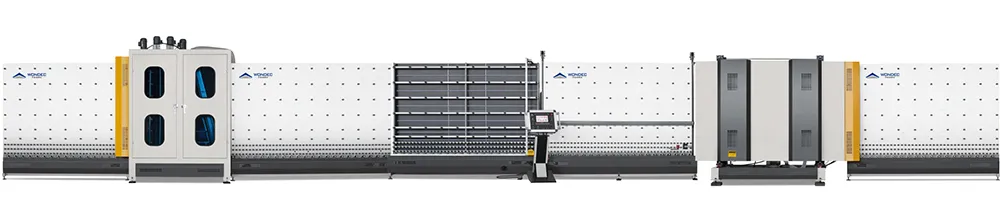

Automatic Vertical Insulating Glass Line
⚙️
The whole production line includes 7 functional sections:
1. Loading section (with Low-E checking)
2. Washing and drying section
3. Conveyor section
4. Lights inspection and aluminum spacer locating section
5. Outside assembly section
6. Inner assembly and panel press section
7. Unloading section
Detailed Photos

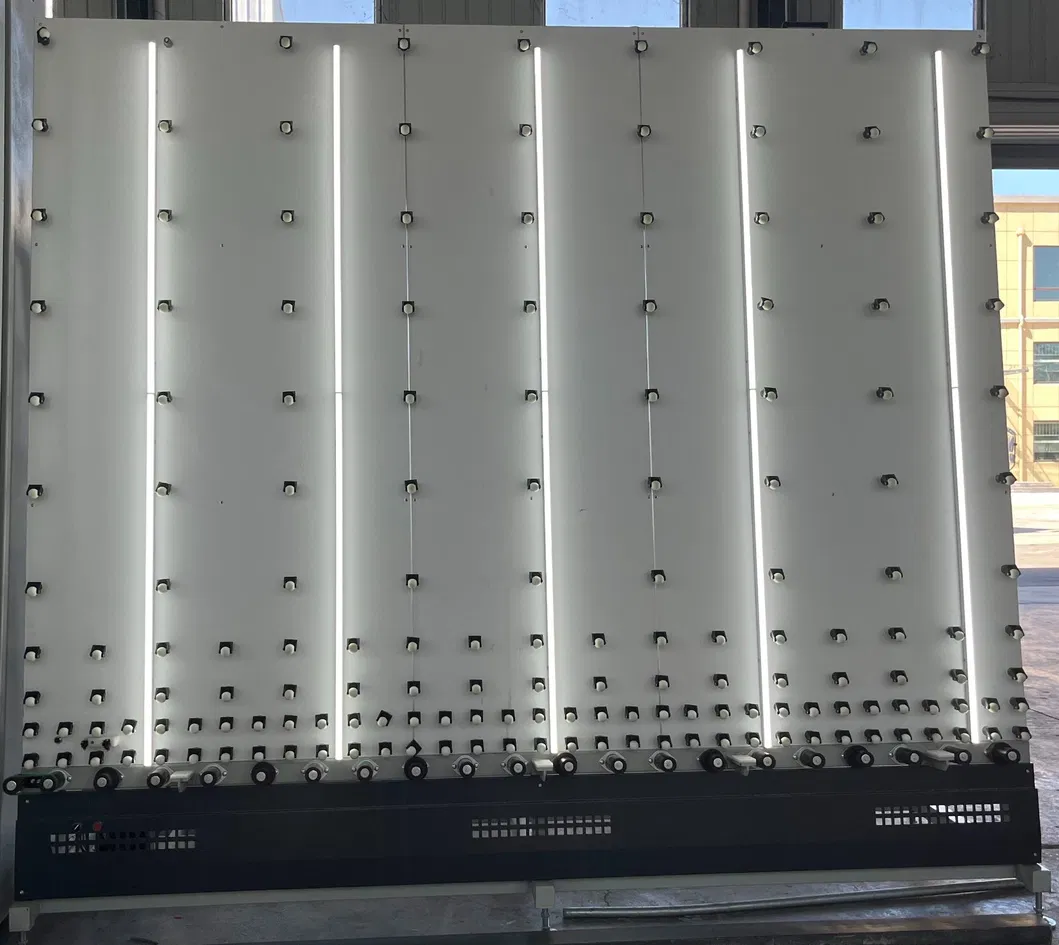

Machine Detail 1

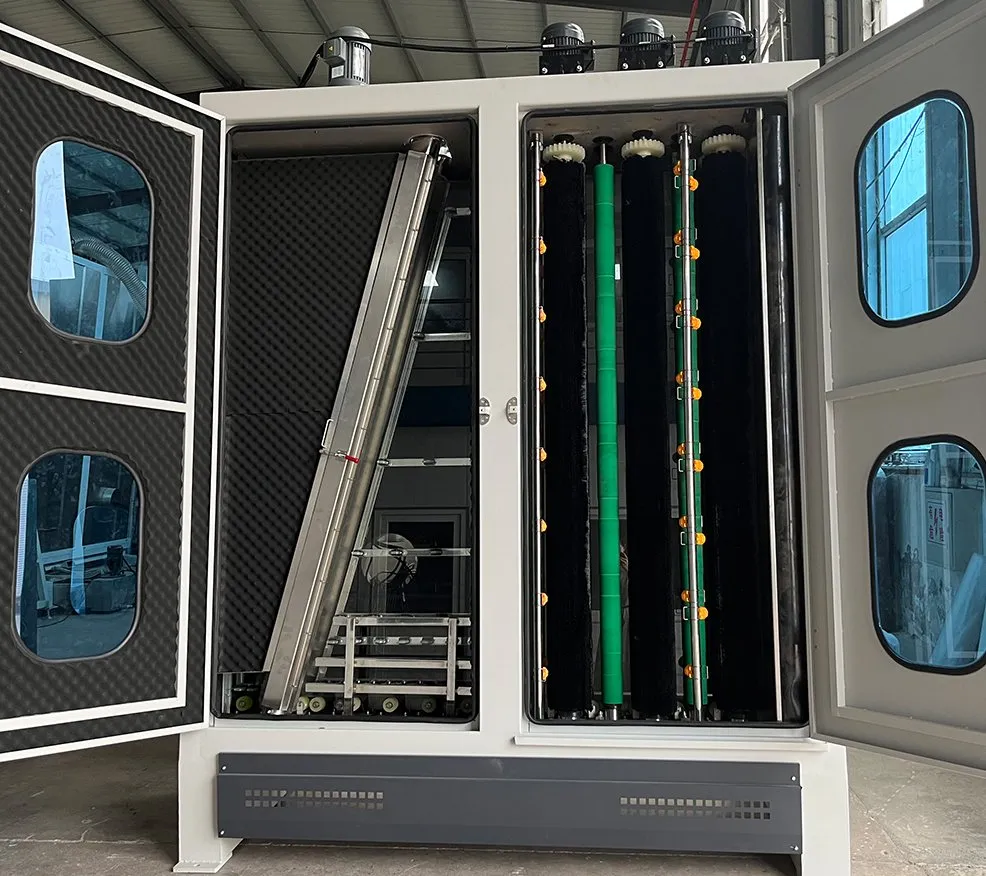

Machine Detail 2

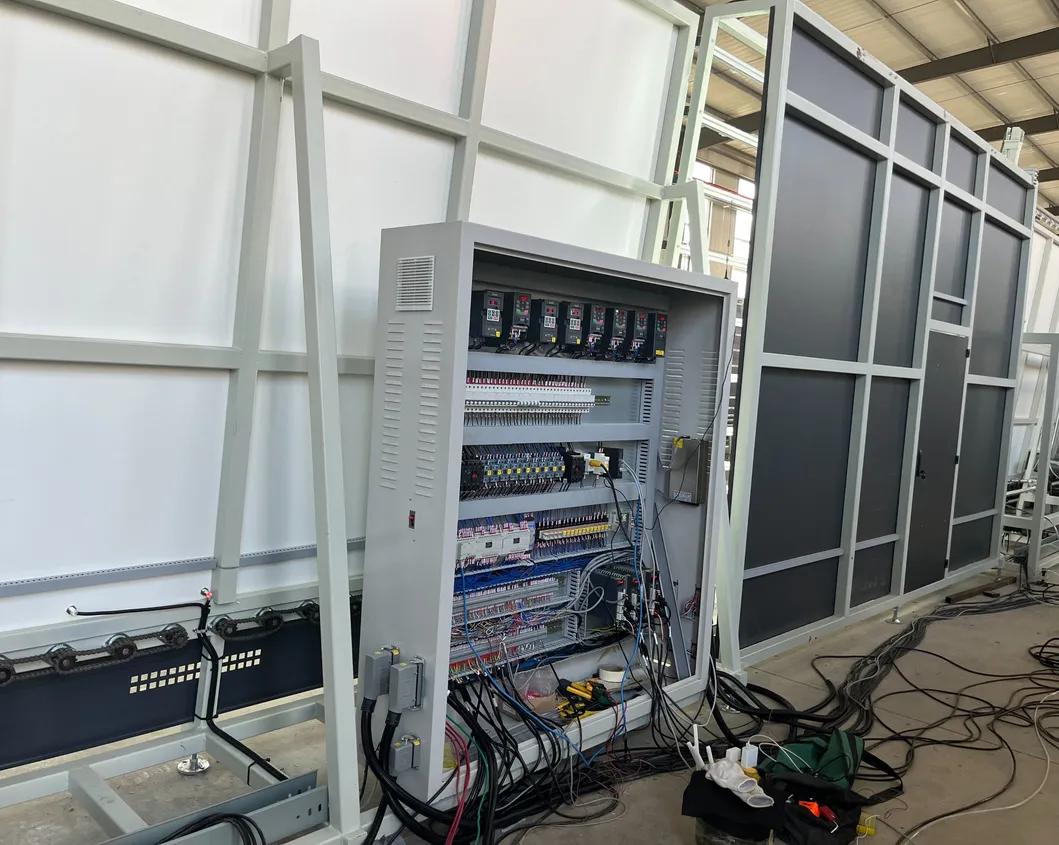

Machine Detail 3
🔹

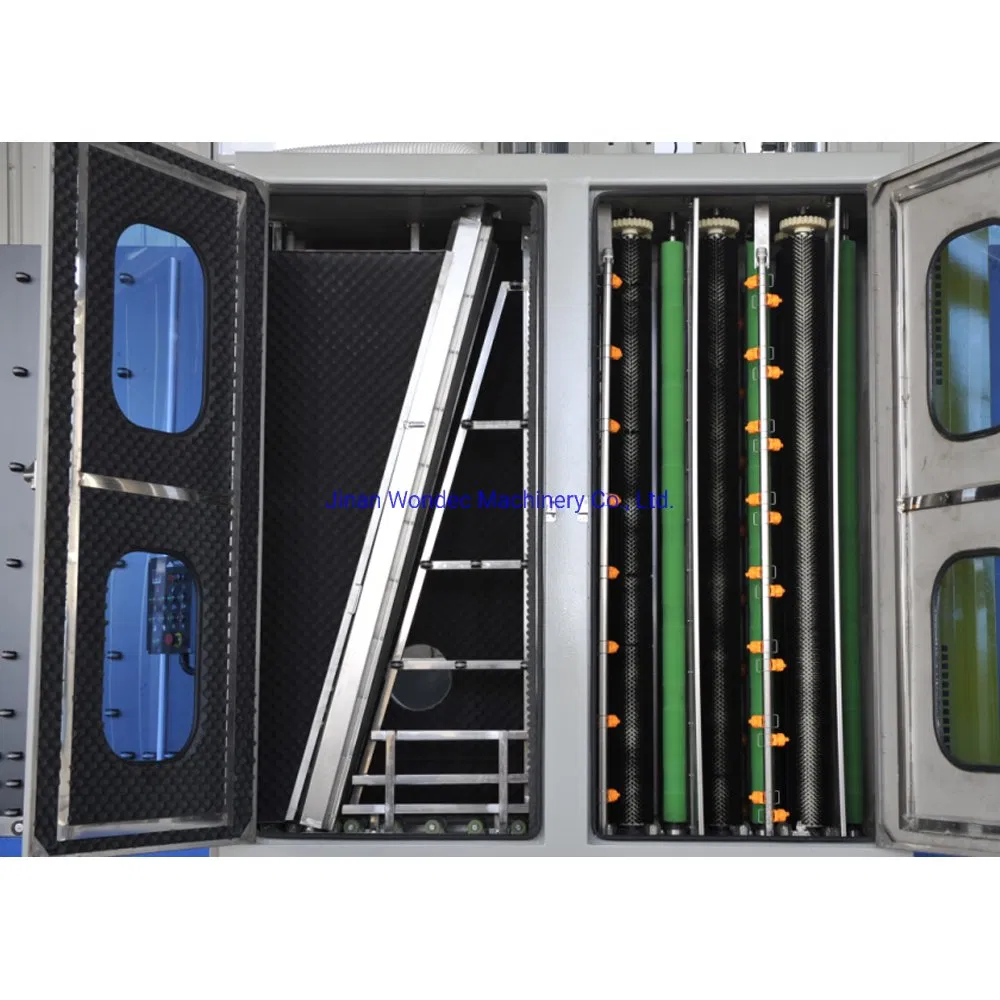

Section 01-02: Loading & Washing: Features carbon fiber conductive brushes for Low-E glass detection. All washing areas are made of stainless steel and corrosion-resistant materials. 3 pairs of brushes are driven by independent motors.

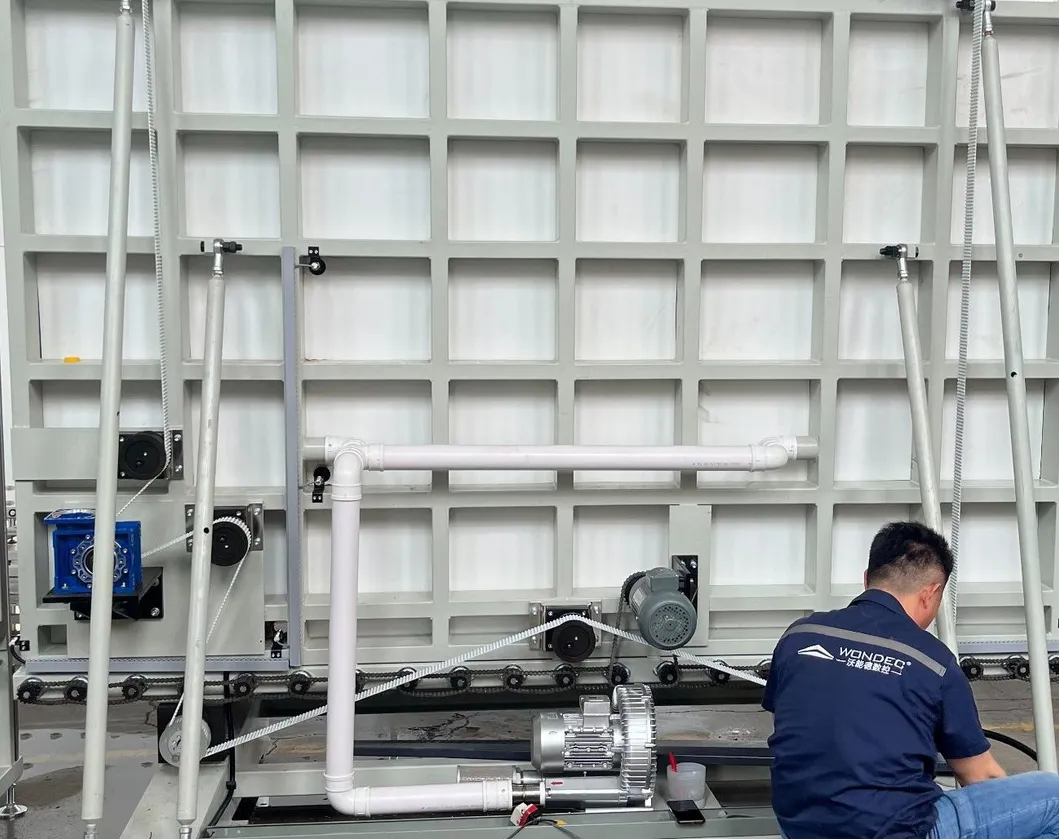

Washing Section

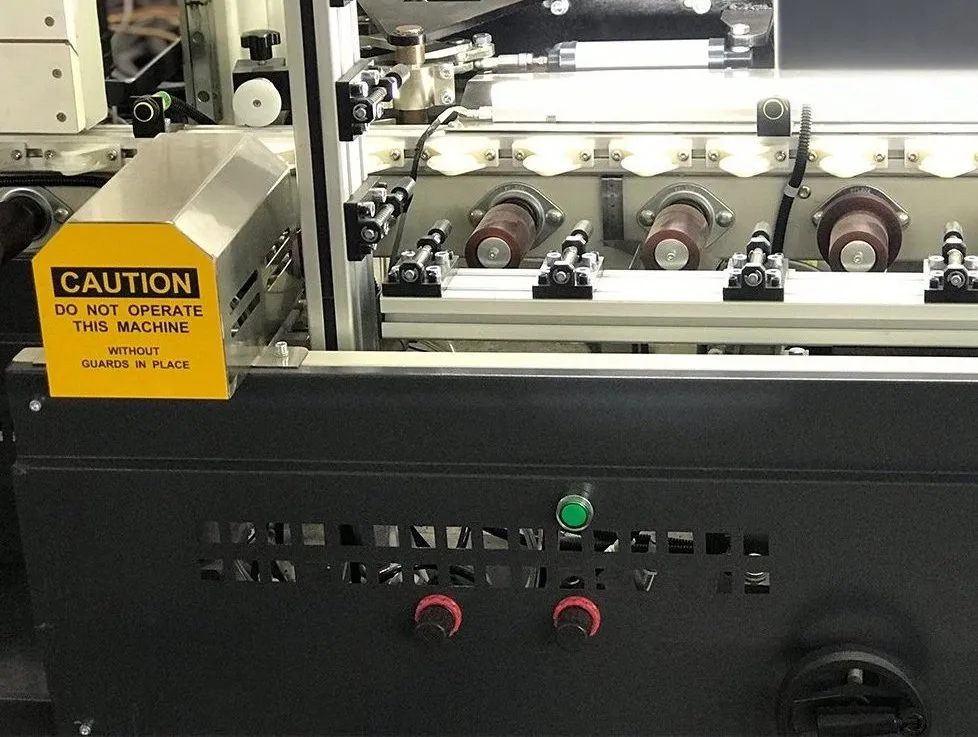

Conveyor Section
Inspection Section
🔹
Section 04-06: Inspection & Pressing: Equipped with high-quality LED lamps for energy-saving inspection. The panel press uses a dense steel frame and is controlled by a servo motor for extreme accuracy and flatness.

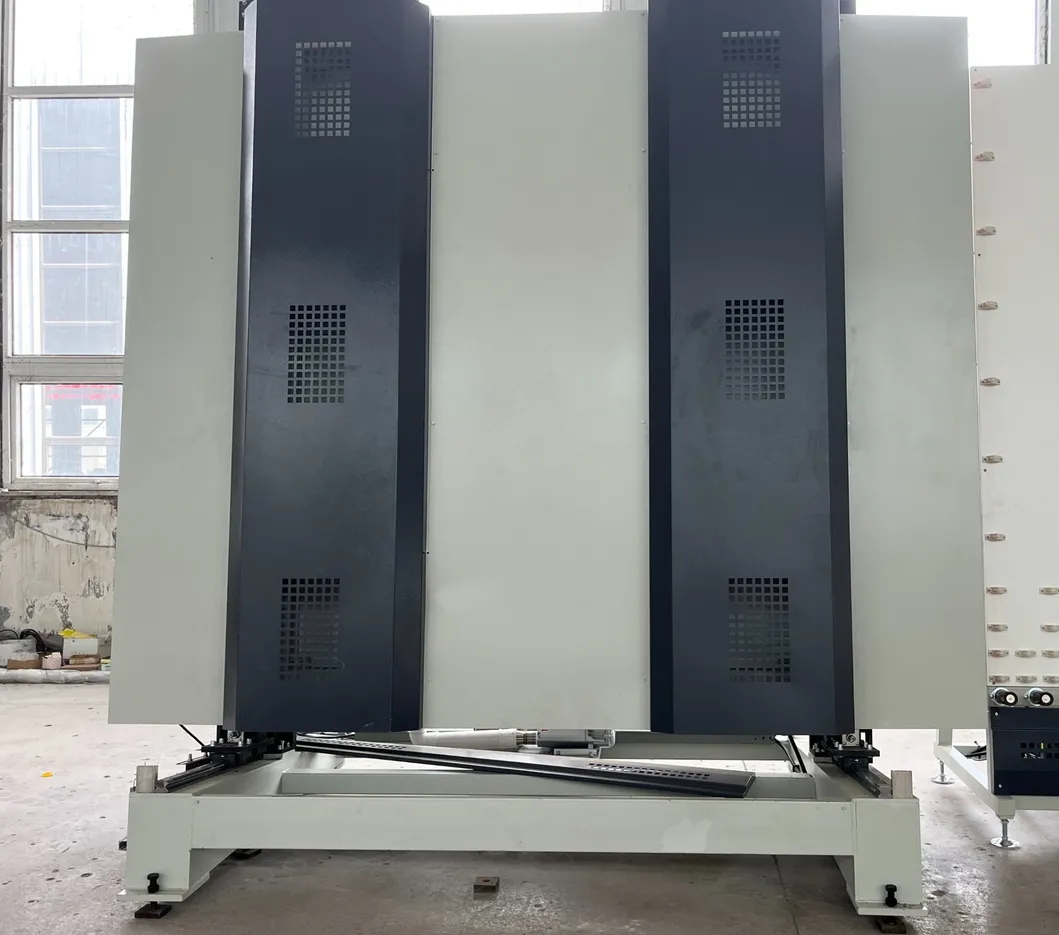

Pressing Section
• Servo motor controlled pressing.
• Capable of double, triple, and quadruple glass production.
• High capacity: approx 800pcs per 8-hour shift.
Technical Parameters
Technical Parameter WLBZ2030
Total Power29kw
Max Glass Size2000x3000mm
Min Glass Size300*500mm
Single Glass Thickness3~12mm
Max I.G. Unit Thickness12~80mm
Glass Washing Speed3~12m/min
Working Speed2~48m/min
Air Flow0.8m³/min
Water Electrical Conductivity≤40μs/cm
Overall Dimension21300*2500*2900mm
Production Workflow

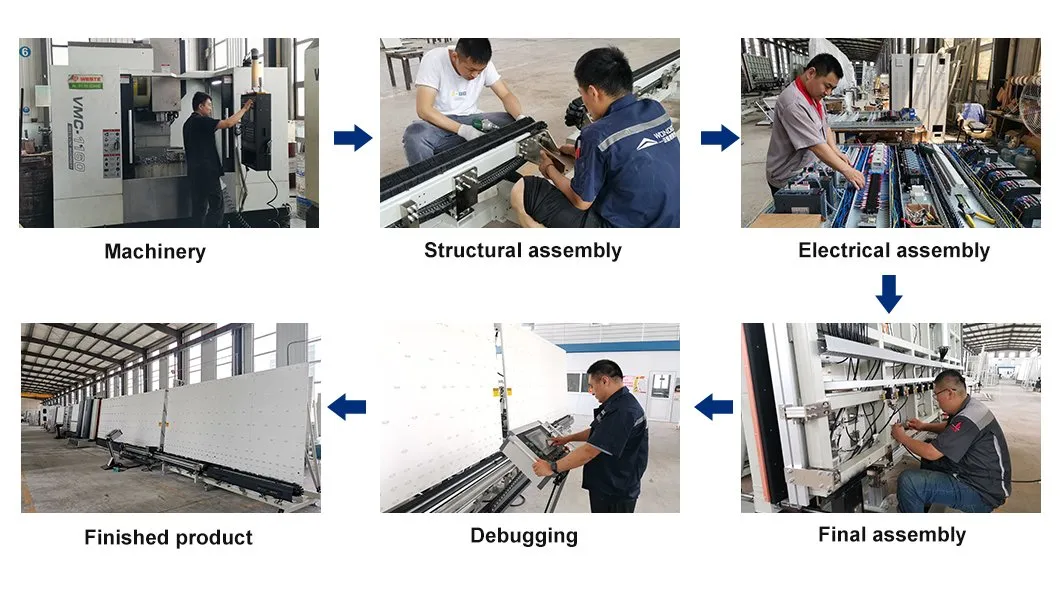

Production Workflow Diagram
Packaging & Shipping
Packaging and Shipping
Service & Support
📋
Pre-sales: We provide technical drawings based on equipment layout and building floor plans to optimize your equipment footprint.
🛠️
After-sales: Weekly production reports, full equipment installation, debugging, personnel training, and English operation manuals are provided. One-year warranty with lifetime maintenance.
Why Choose Us
Excellence in manufacturing Quality Control Global Certificates
Frequently Asked Questions
Which countries are your products exported to?
Our equipment has been exported to over 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
How do we operate the glass processing machinery?
We provide comprehensive paper instructions in English and offer professional training until your staff can operate the machine proficiently.
How do you ensure quality control?
The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected before use, and the complete machine is tested before leaving the factory. Testing videos are available before delivery.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in this field. We provide not just machinery, but complete production solutions.
What happens if the machine has a problem after ordering?
Free parts are provided during the warranty period for any machine issues. We offer 24/7 technical support via phone, WhatsApp, and email to ensure lifetime maintenance.
Can you provide installation services in my country?
Yes, we can arrange for engineers to install the machine at your factory and provide on-site training for your personnel once the equipment arrives.
