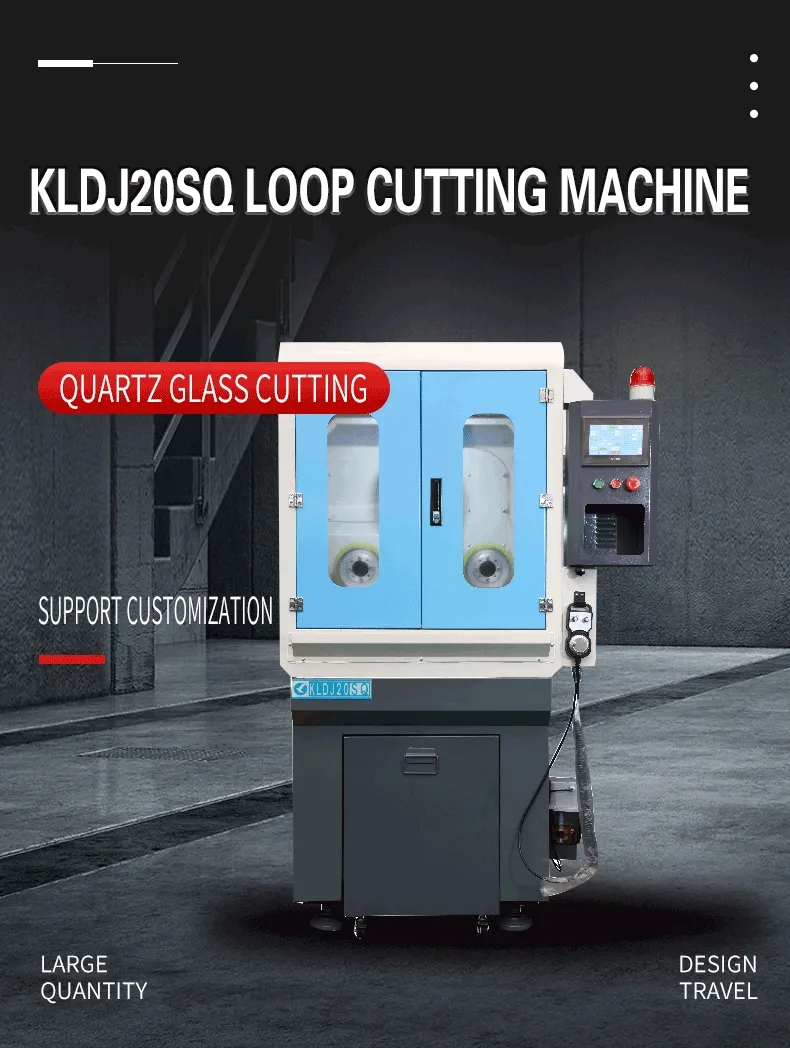

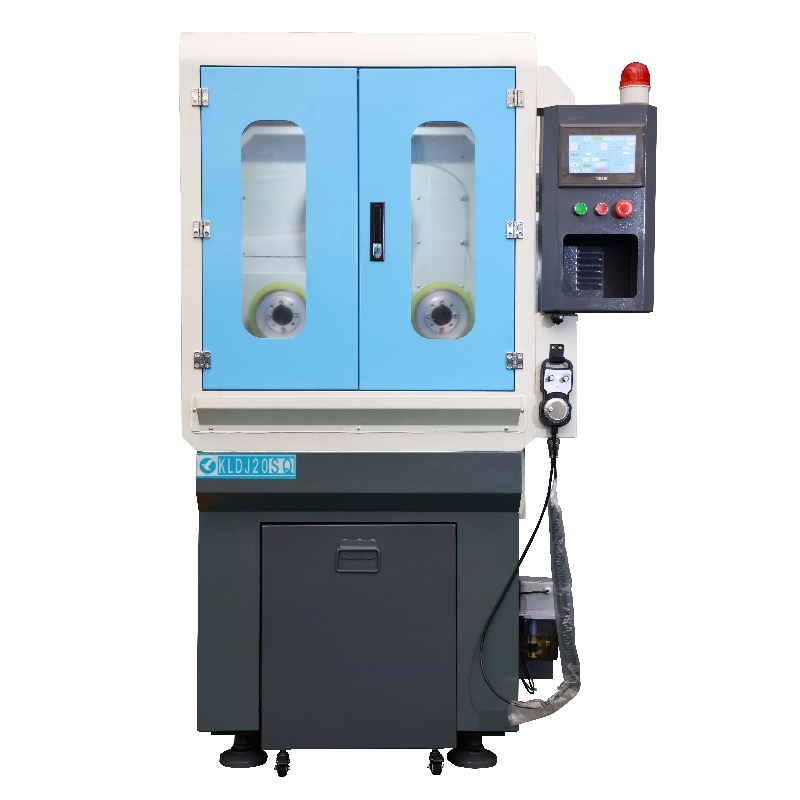

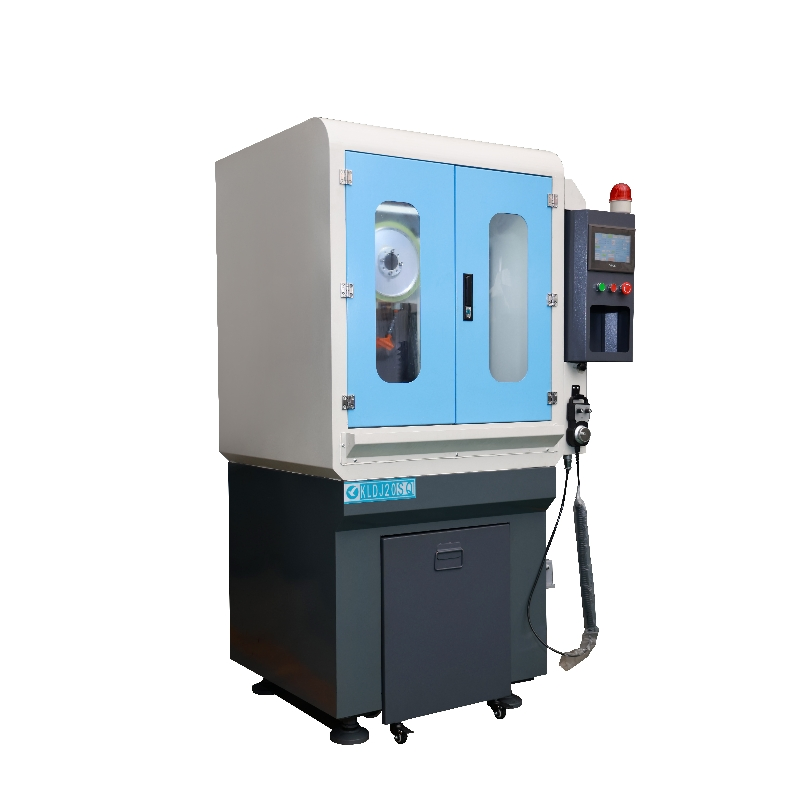

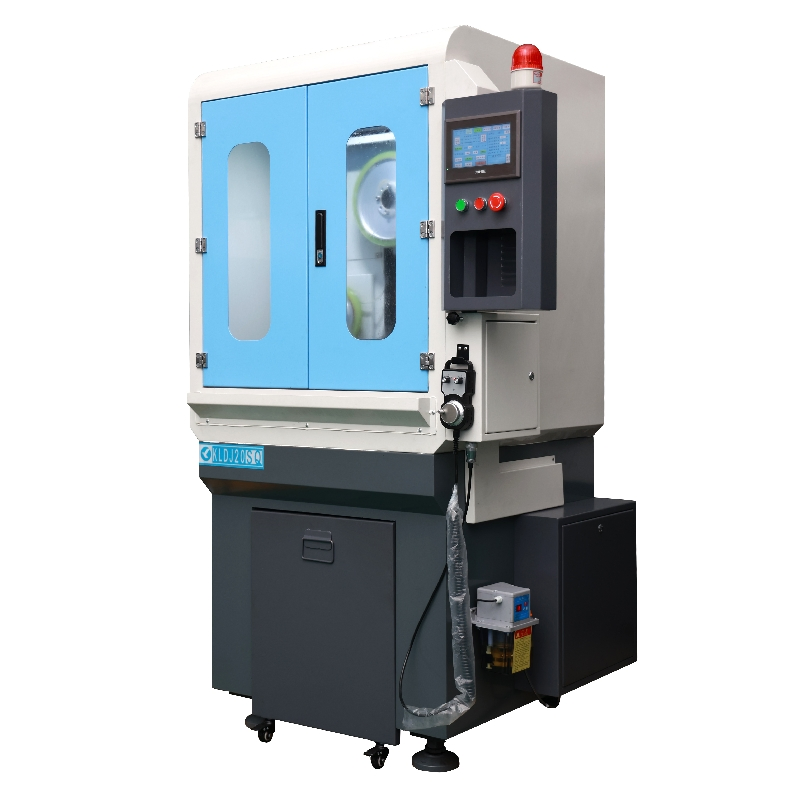

Precision-Engineered CNC Diamond Wire Saw Cutting Machine
The diamond wire saw for glass is a state-of-the-art cutting machine designed to deliver fast, precise, and smooth cuts on various glass materials. This advanced tool employs a diamond-embedded wire loop, ensuring clean and accurate slicing, making it ideal for high-speed production environments where quality and efficiency are paramount.

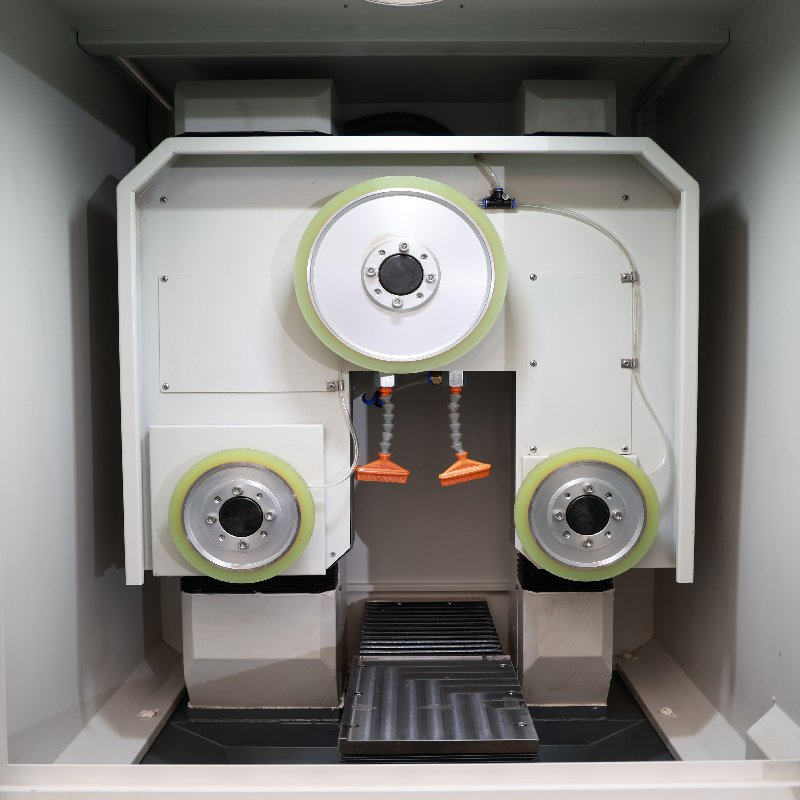

The wire loop design allows for continuous cutting at high speeds, approximately 60 meters per second, without the need to reverse direction. This results in a smoother cut surface with minimal kerf loss, significantly reducing material waste.
| KLDJ20SQ Equipment Specifications | |
|---|---|
| Workbench size | 200×280 mm |
| Linear axis travel | Y250×Z250 mm |
| Maximum product size | 200×250×230 mm |
| Maximum linear velocity | 2000 m/min |
| Processing efficiency | 0.1 ~ 1000 mm/min |
| Positioning accuracy | ± 0.01 mm |
| Processing accuracy | ≤ 0.03 mm |
| Surface roughness | Ra ≤ 1.25 |
| Equipment power | 4 Kw |
| Equipment weight | 400 Kg |
| Equipment body size | 1000×800×1850 mm |

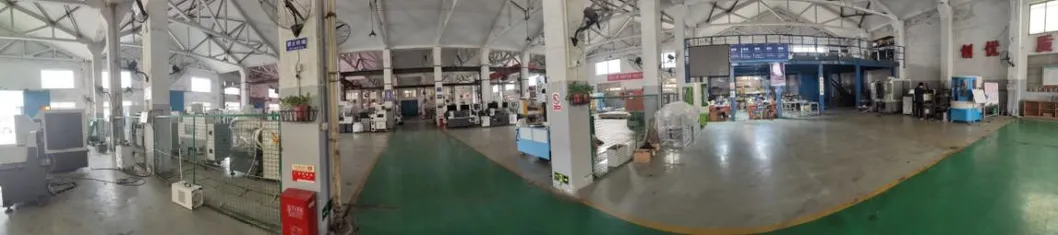

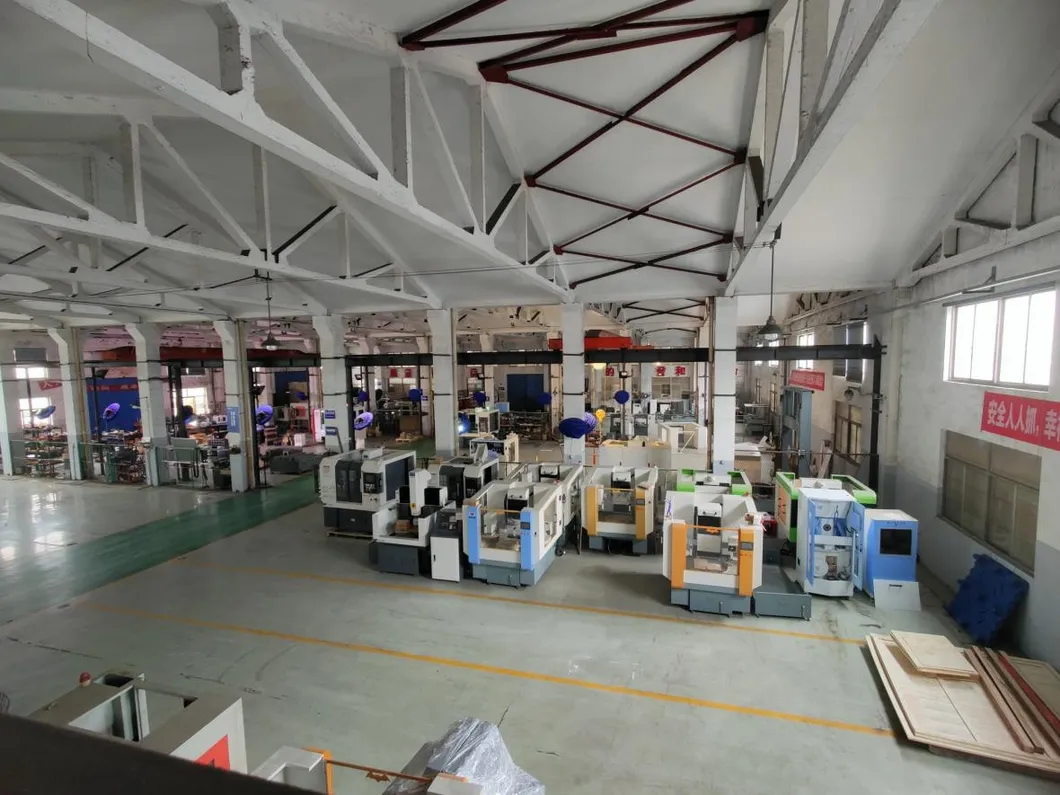

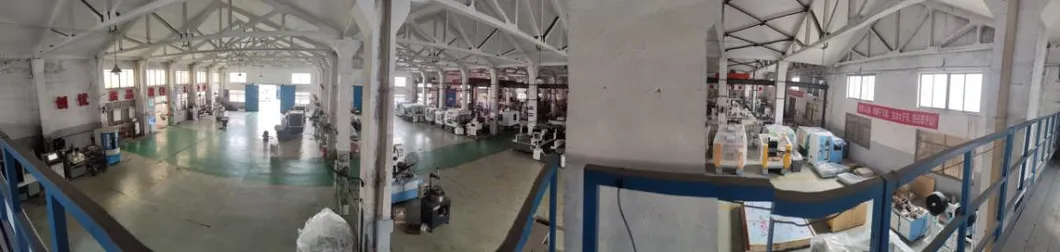

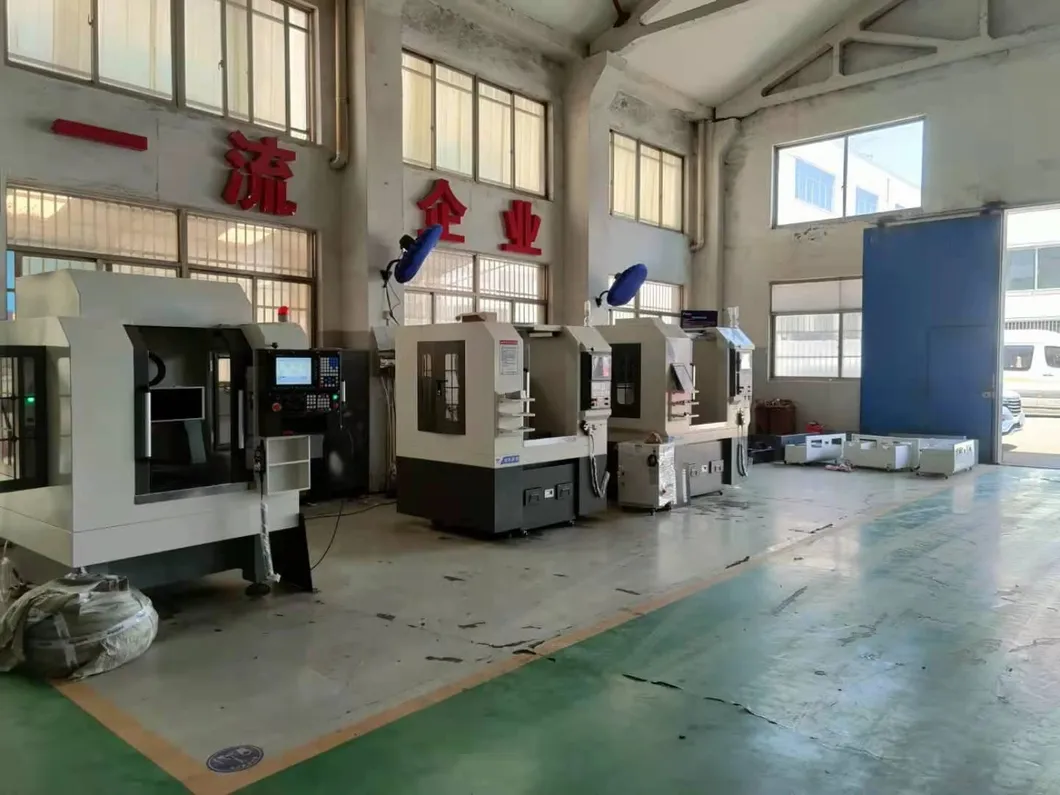

We are a professional manufacturer that develops and manufactures CNC cutting, engraving, and milling machines. Since 1998, we have achieved major milestones in CNC numerical control technology and precision engineering.
