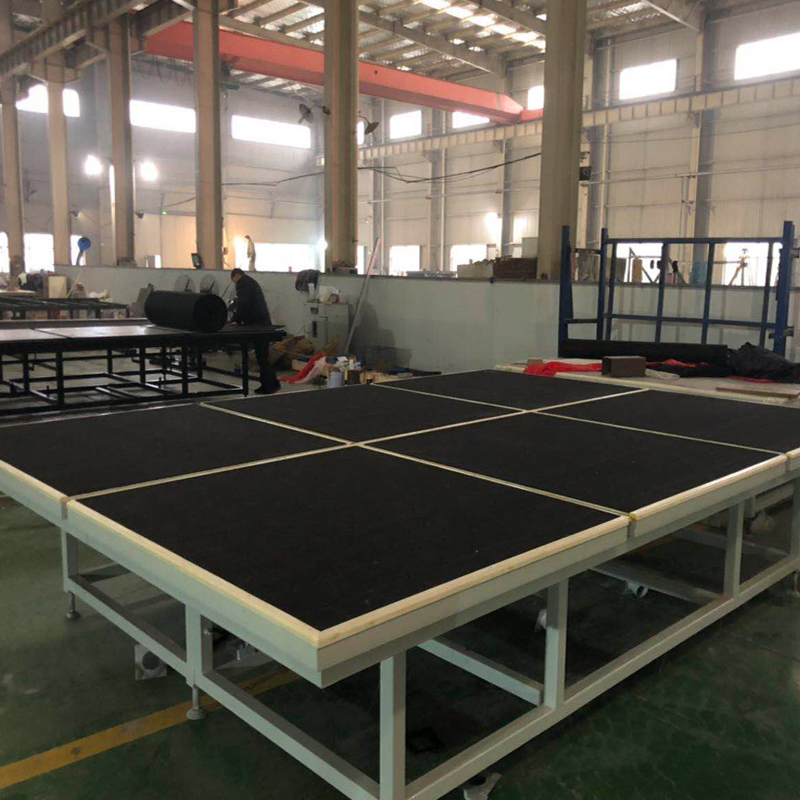

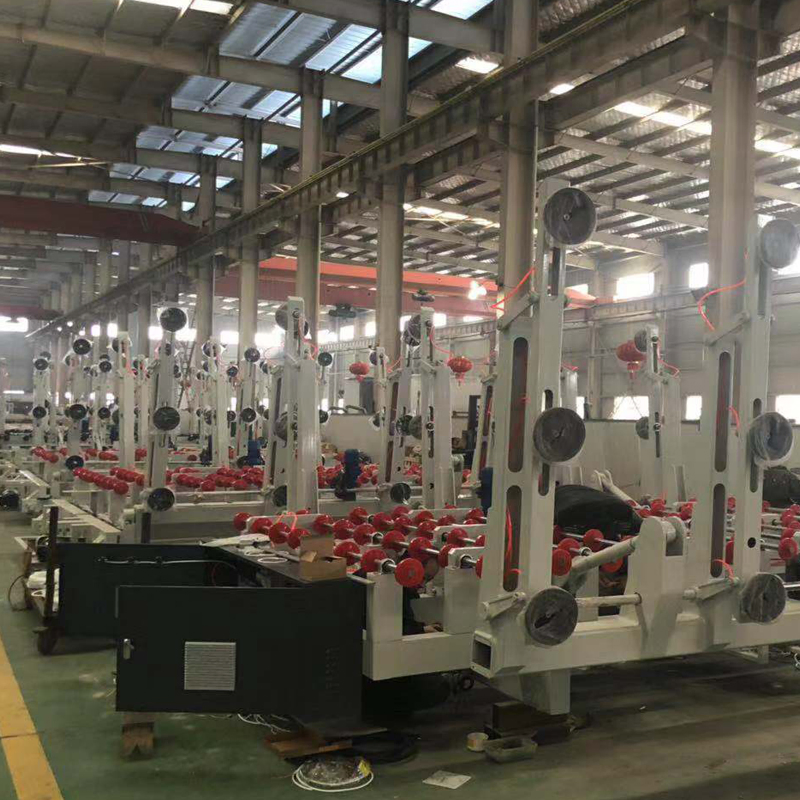

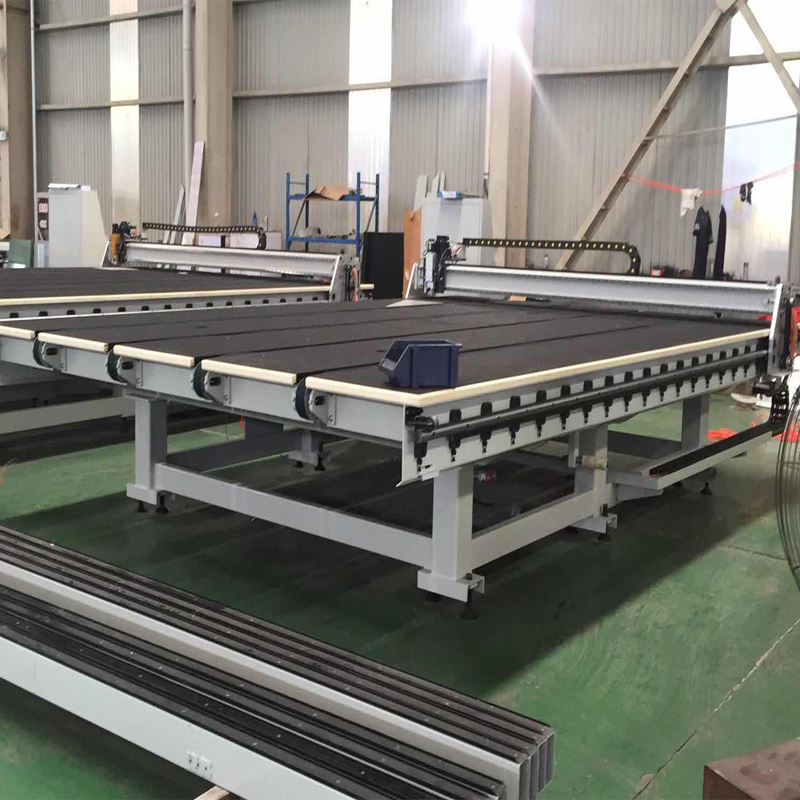

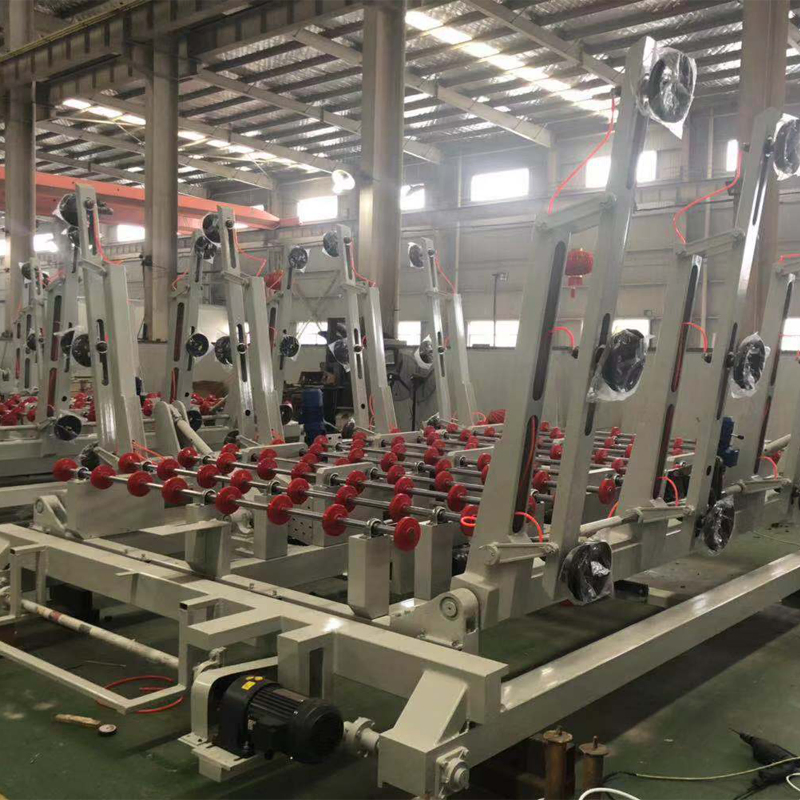

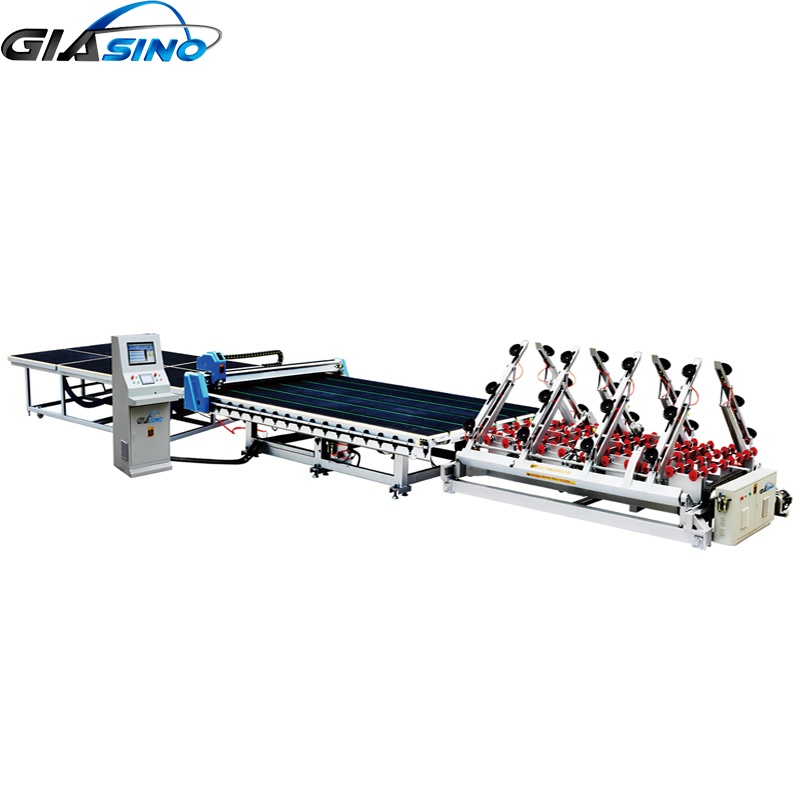

CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
1 / 5
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line
CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line

CNC Glass Cutting Line for Float Glass Horizontal CNC Automatic Glass Cutting Table/Machine/Production Line

Customization: Available
Certification: CE, ISO
Control System: Galil USA
Send Inquiry

Product Description

Basic Information

Model NO.
GS-CNC-4228
Glass Thickness
3-19mm
Max. Glass Sheet Size
4200*2800mm
Dimensions (L*W*H)
5320*3100*1300mm
Max. Cutting Speed
160m/Min
Air Pressure
0.6~0.8MPa
CNC System
Galil (USA)
Optimization Software
Optima (Italy)
Servo Motor
Yaskawa (Japan)
Pneumatic Parts
Airtac (Taiwan)
Low Voltage Electric
Schneider (France)
Production Capacity
30sets/Month

Product Description

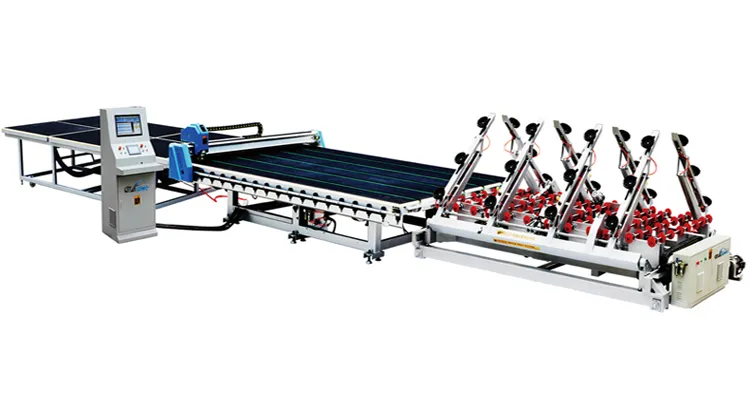

CNC-4228 Automatic Glass Cutting Machine (Double-drive model)

CNC Glass Cutting Machine

Mechanical Characteristics:

Mn bridge steel (Q345A) with perfect surface treatment
Perfect machine body structure ensures no deformation
Japan SMC valve controls cutting pressure by thickness
Cutter head 360 degree rotation with up/down buffers
High density water-proof table with imported antistatic felt
3D edge searing system for high precision automatic location
Automatic lubrication system synchronized with cutter head
Air float function and belt transmit for easy handling

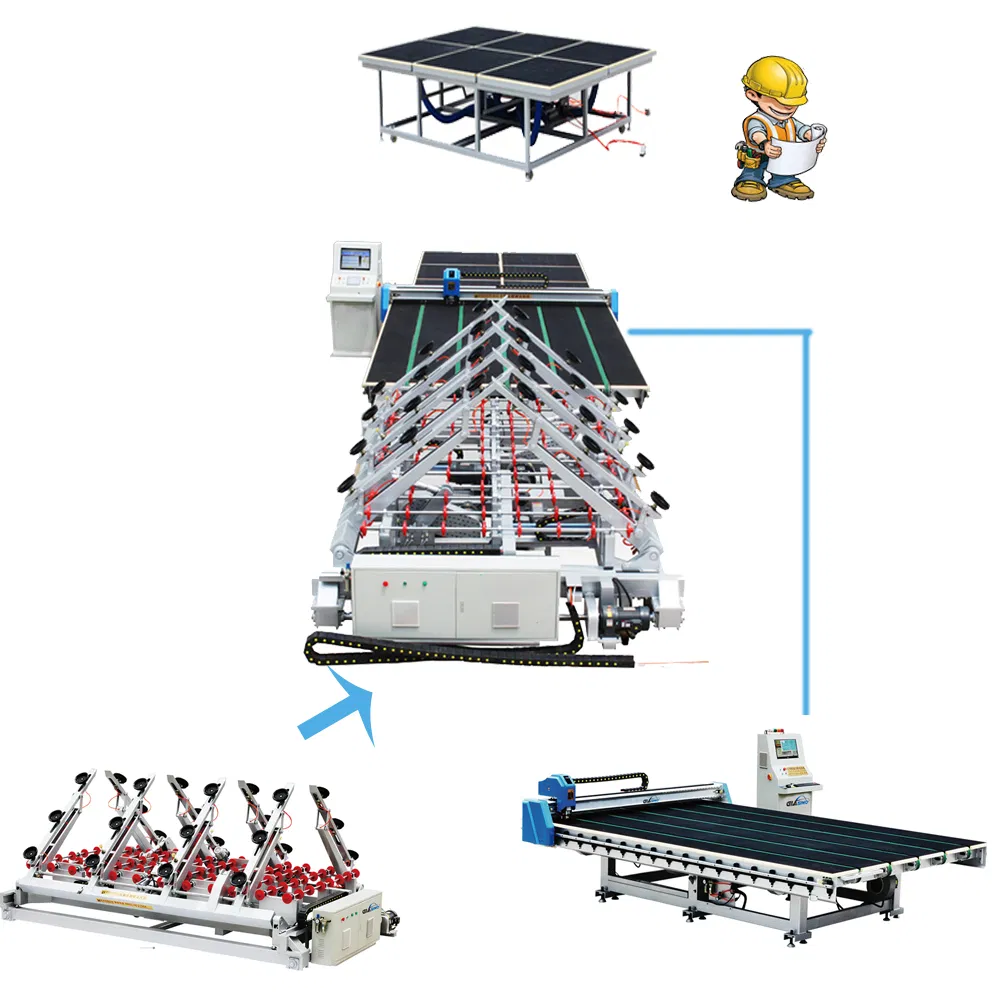

Cutting Head Detail CNC Machine Parts Automatic Glass Cutting

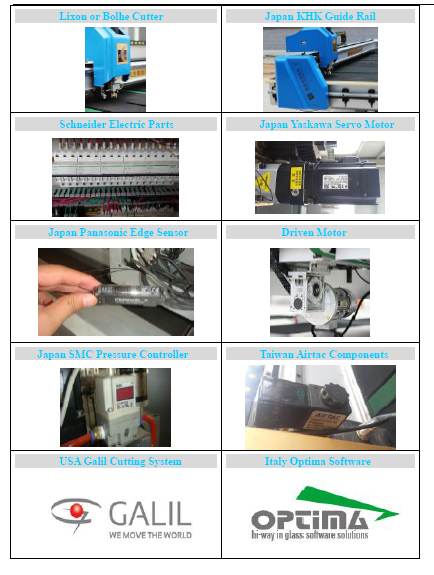

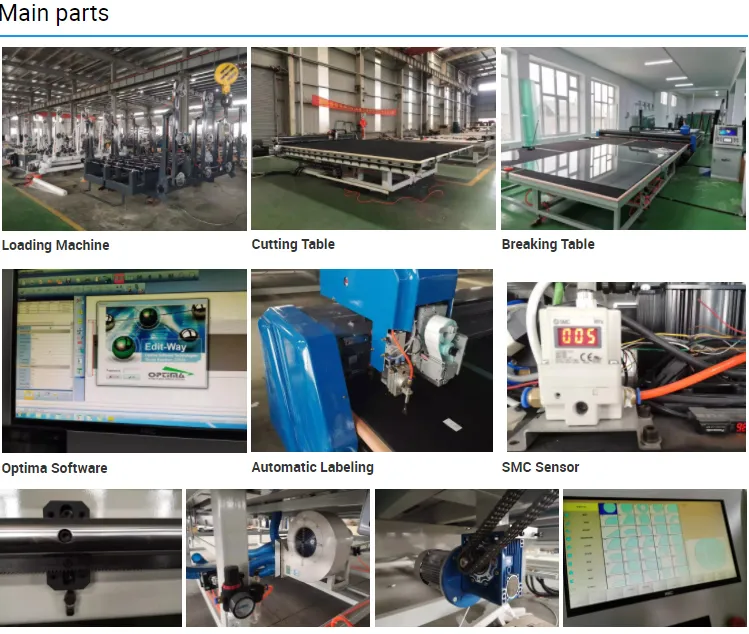

Main Mechanical & Electric Parts:

Rack and rail: KHK Japan / Guide rail: Hiwin Taiwan
Cutter wheel and holder: Bolhe Germany
CNC System: Galil (USA)
Optimization Software: Optima (Italy) / Guiyou
Servo Motor: YASKAWA (Japan)
Pneumatic: Airtac (Taiwan) / Electric: Schneider (France)

Technical Parameters

Model Max. Glass Size Thickness Dimensions (L*W*H) Max. Speed Air Pressure
CNC-1512 1500*1200mm 2~19mm 2480*2240*1275mm 150m/min 0.6~0.8MPa
CNC-2620 2600*2000mm 2~19mm 3560*2912*1300mm 150m/min 0.6~0.8MPa
CNC-4228 4200*2800mm 3~19mm 5320*3100*1300mm 160m/min 0.6~0.8MPa
CNC-5133 5100*3300mm 3~19mm 6150*4212*1300mm 160m/min 0.6~0.8MPa
CNC-6133 6100*3300mm 3~19mm 7150*4212*1300mm 160m/min 0.6~0.8MPa

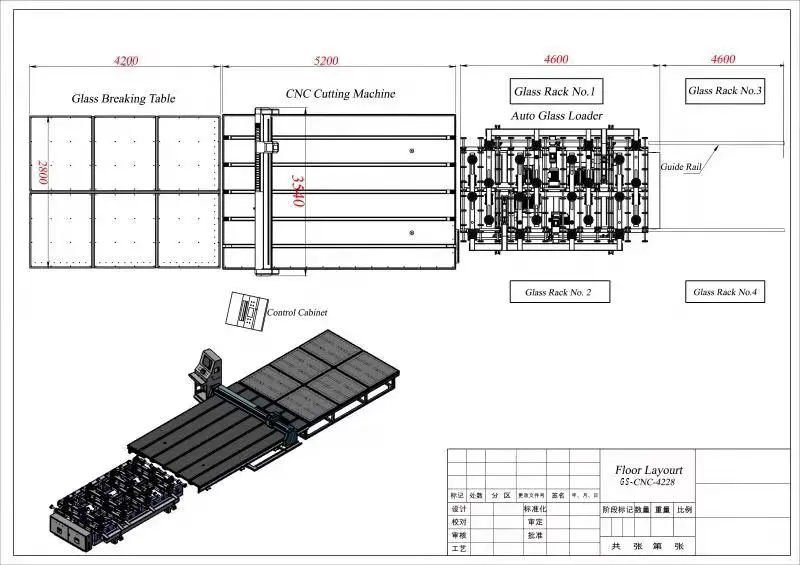

Product Structure Glass Processing Detail Production Line

Frequently Asked Questions

What is the maximum glass cutting speed of the GS-CNC-4228?
The GS-CNC-4228 model features a high-performance double-drive system that achieves a maximum cutting speed of up to 160 meters per minute.
What range of glass thickness can this machine process?
The machine is designed to handle float glass with a thickness range of 3mm to 19mm, making it versatile for various industrial applications.
Which control systems are integrated into the machine?
It utilizes a high-precision Galil CNC system from the USA and is paired with Optima optimization software from Italy for efficient glass nesting and cutting.
How does the machine ensure cutting precision for different glass types?
It uses a 3D edge searing system for automatic location and a Japan SMC valve to precisely control cutting pressure based on the specific thickness of the glass.
Does the machine require manual lubrication for the cutter head?
No, the machine is equipped with an automatic lubrication system that works in perfect synchronization with the cutter head to ensure smooth operation and longevity.
What are the air pressure requirements for operation?
The machine operates efficiently within an air pressure range of 0.6 to 0.8 MPa, using high-quality pneumatic parts from Airtac.
