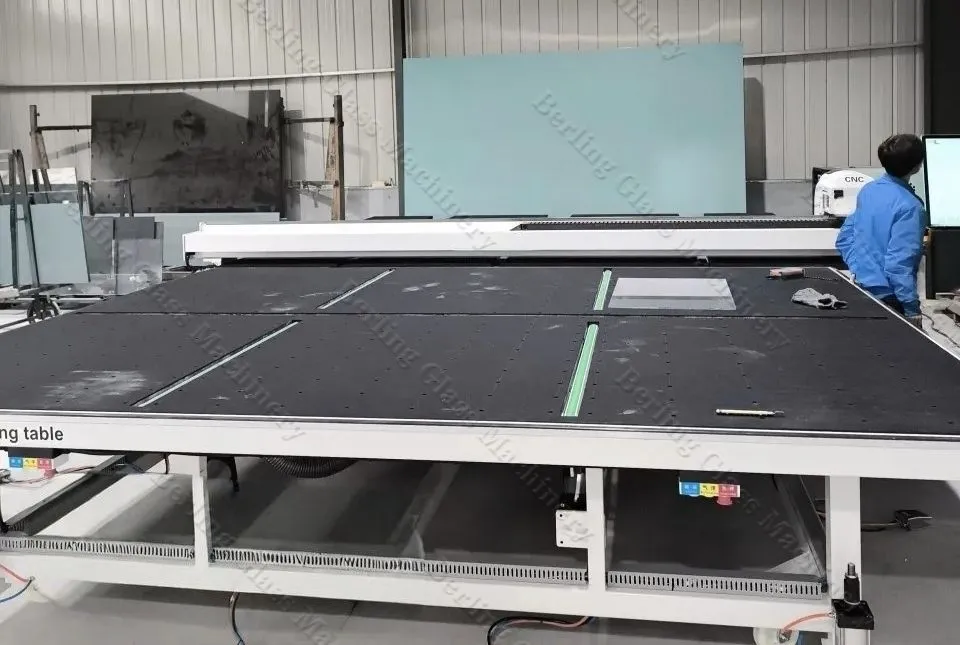

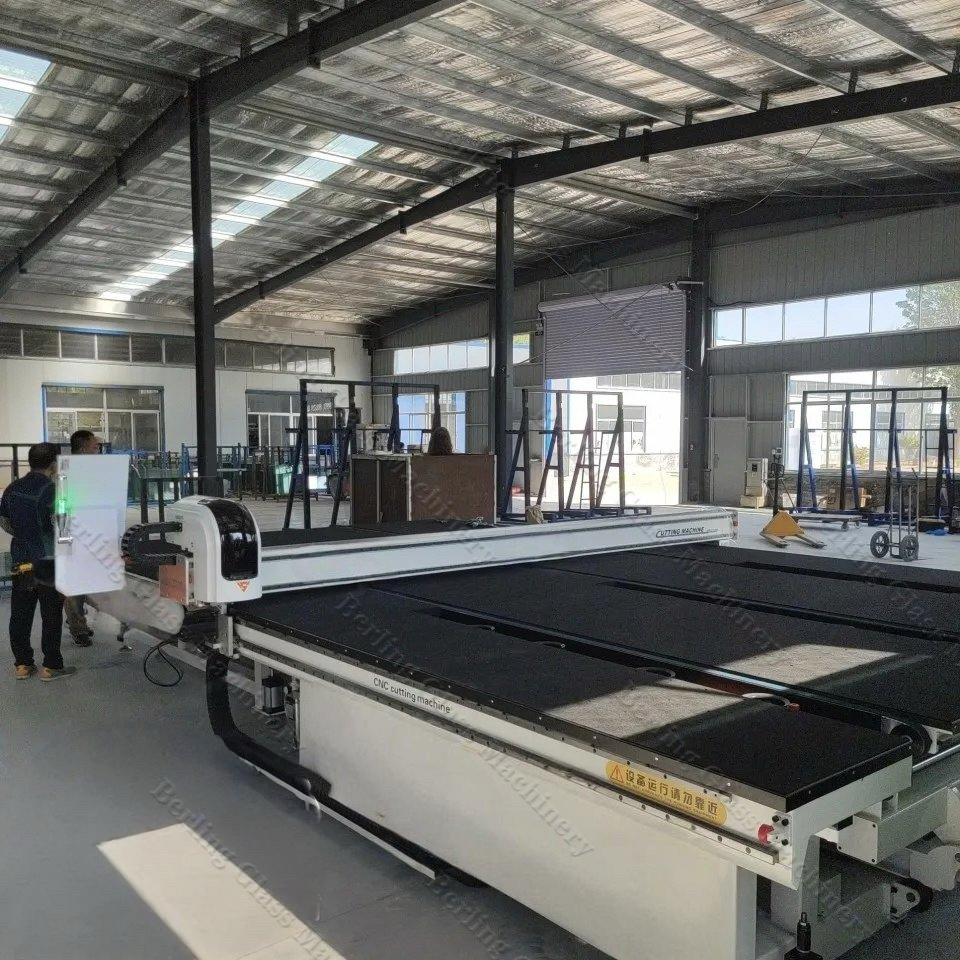

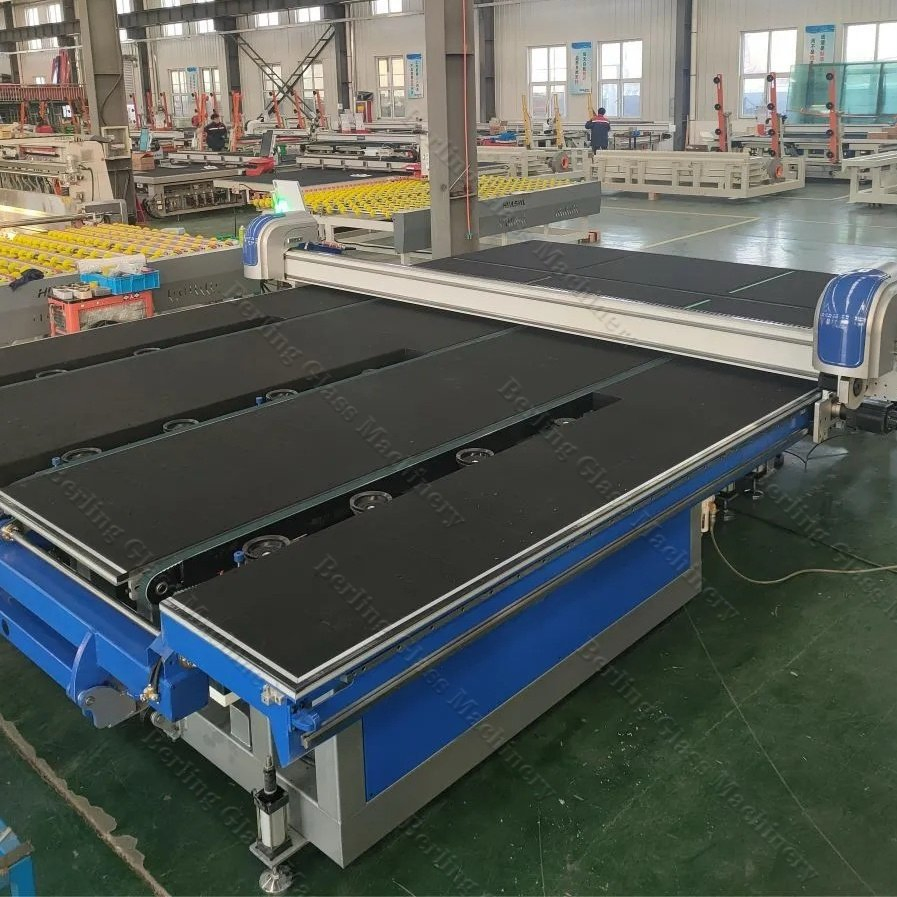

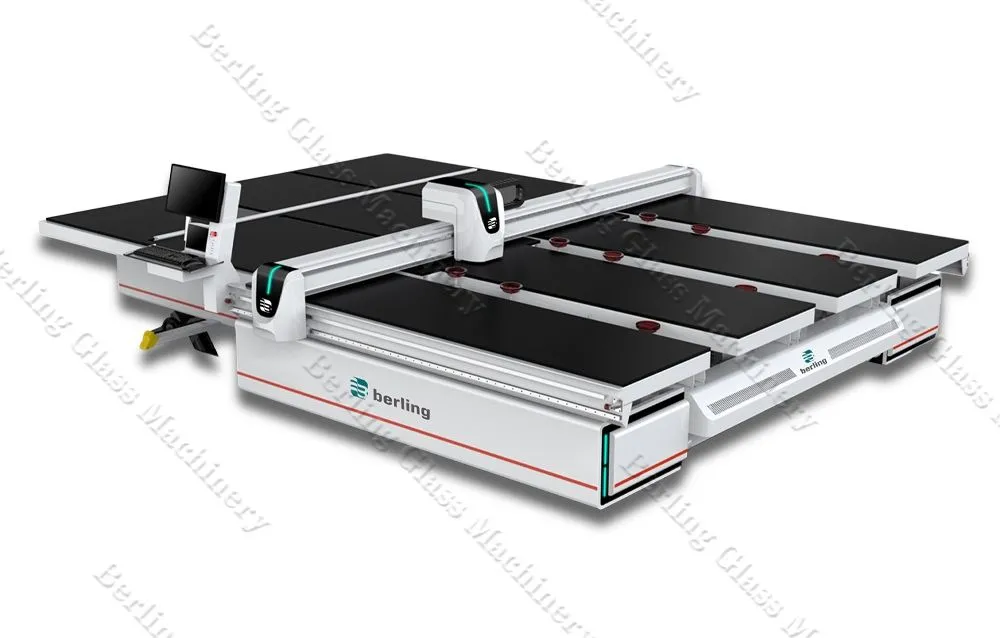

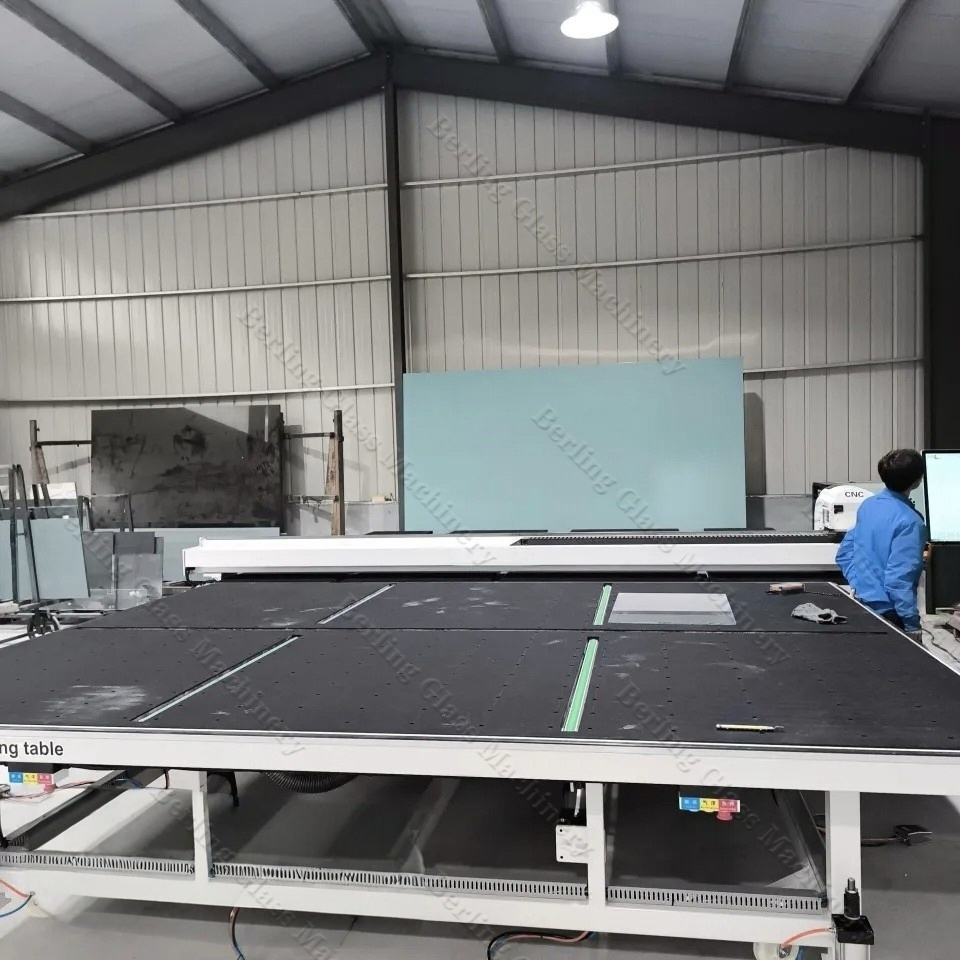

The Glass Cutting Machine with Automatic Loading is an advanced, high-efficiency solution designed for precise glass cutting and intelligent material handling. Integrating an automatic glass loading system with a CNC glass cutting table, it significantly reduces labor costs, improves safety, and increases production efficiency.
| Model | Max. Glass Size | Thickness | Dimensions (L*W*H) | Max. Speed | Air Pressure | Table Height | Loading Speed |
|---|---|---|---|---|---|---|---|
| BLCM-2420 | 2440*2000mm | 3~19mm | 3100*2400*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-2621 | 2600*2100mm | 3~19mm | 3100*2400*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-2721 | 2700*2100mm | 3~19mm | 5700*4860*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-3826 | 3660*2440mm | 3~19mm | 5700*4860*1600mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |
| BLCM-3829 | 3660*2800mm | 3~19mm | 6000*4400*1630mm | 180m/min | 0.6MPa | 880±30mm | 15-40s |

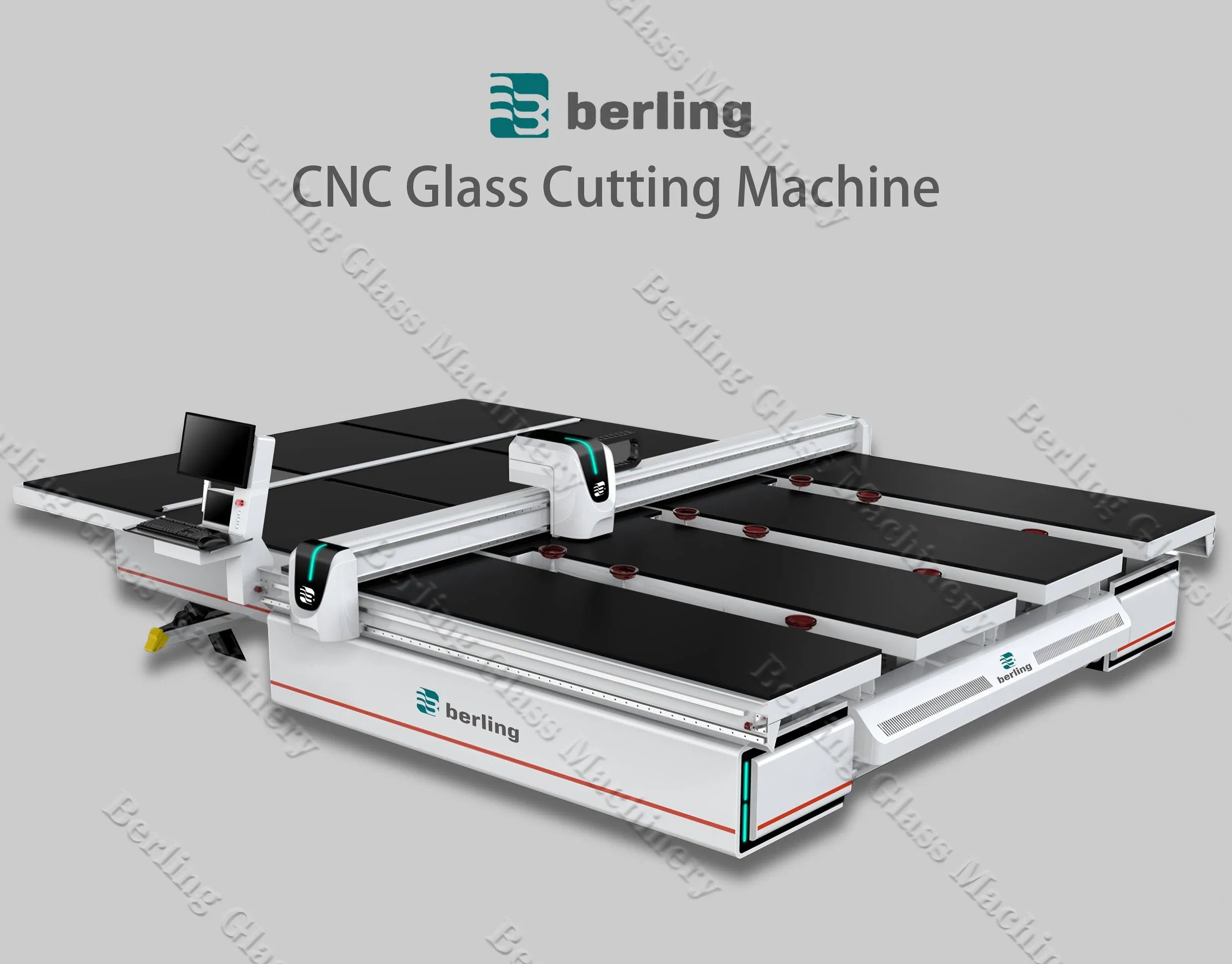

The CNC glass cutting machine integrates high precision, automation, and intelligence. It uses computer numerical control technology to achieve precise cutting of straight lines, curves, and complex patterns. It features a positioning accuracy of ±0.01mm and supports CAD/CAM drawing imports.

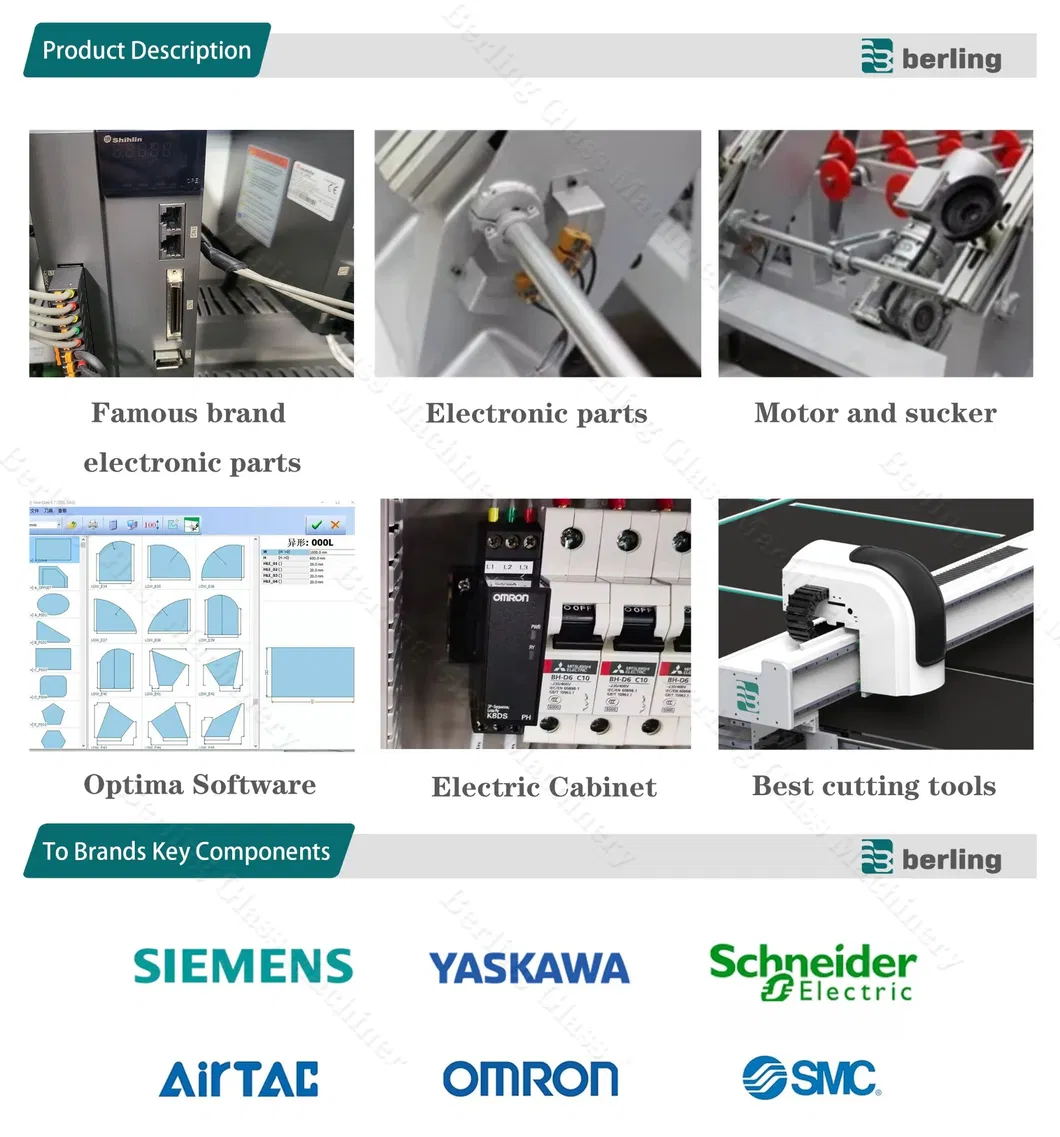

Driven by servo motors, the system ensures smooth edges and high material utilization. The automated process reduces manual intervention, while intelligent layout optimization minimizes waste. It is ideal for architectural decoration, home appliances, and photovoltaics.
Flexibility: Mobile devices inside the machine allow loading, cutting, and crushing at any position of the glass.
Safety: Operated via remote control to prevent personal injury. Equipped with automatic detection and electrical protection devices.
Economy: Replaces traditional 4-person teams with a single-operator system, handling loading, cutting, and breaking automatically.
We provide a wide range of glass processing machinery, tools, and mechanical services. From individual machine selection to full production line planning, our focus is on selection, maintenance, and repair to make your business successful.
