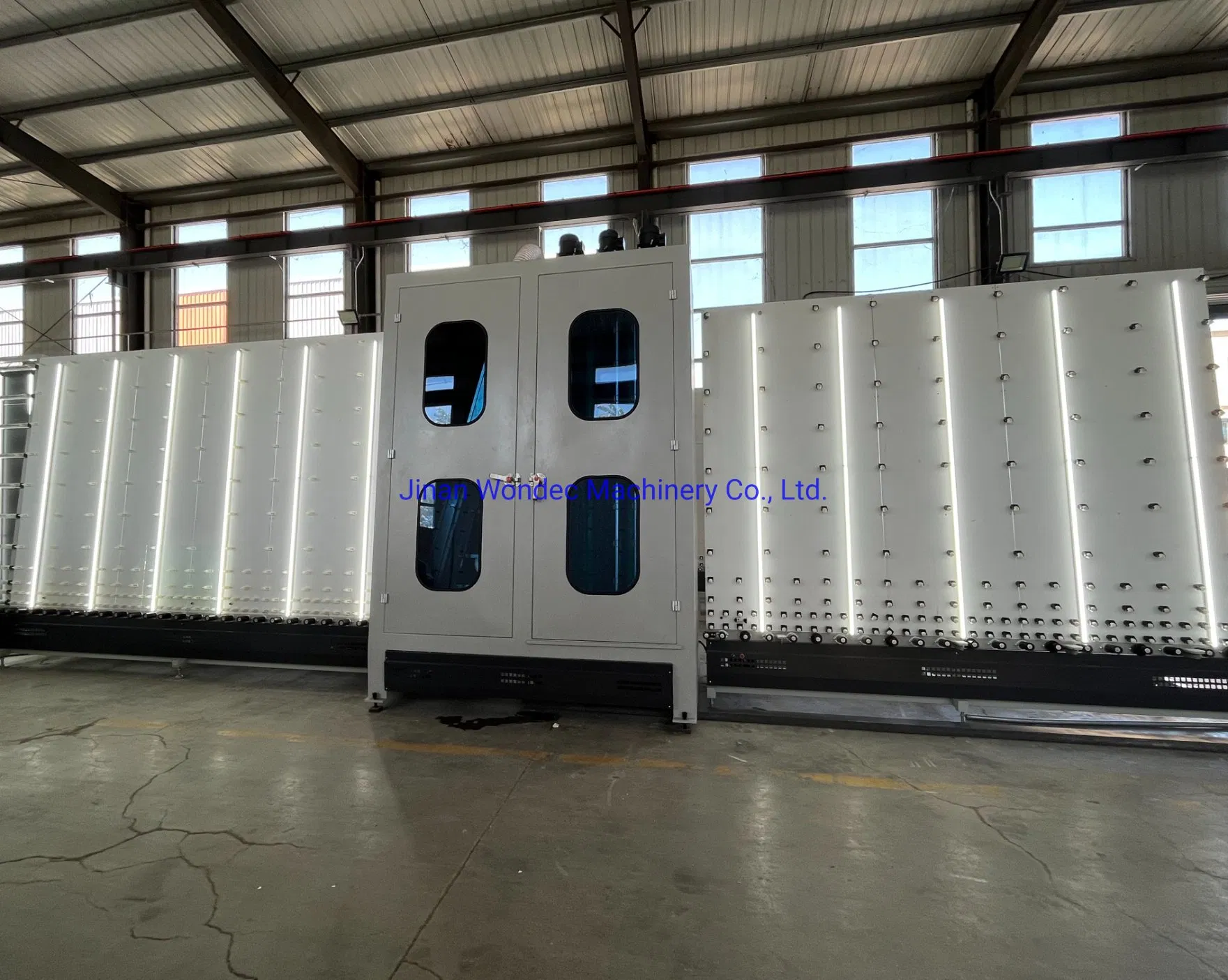

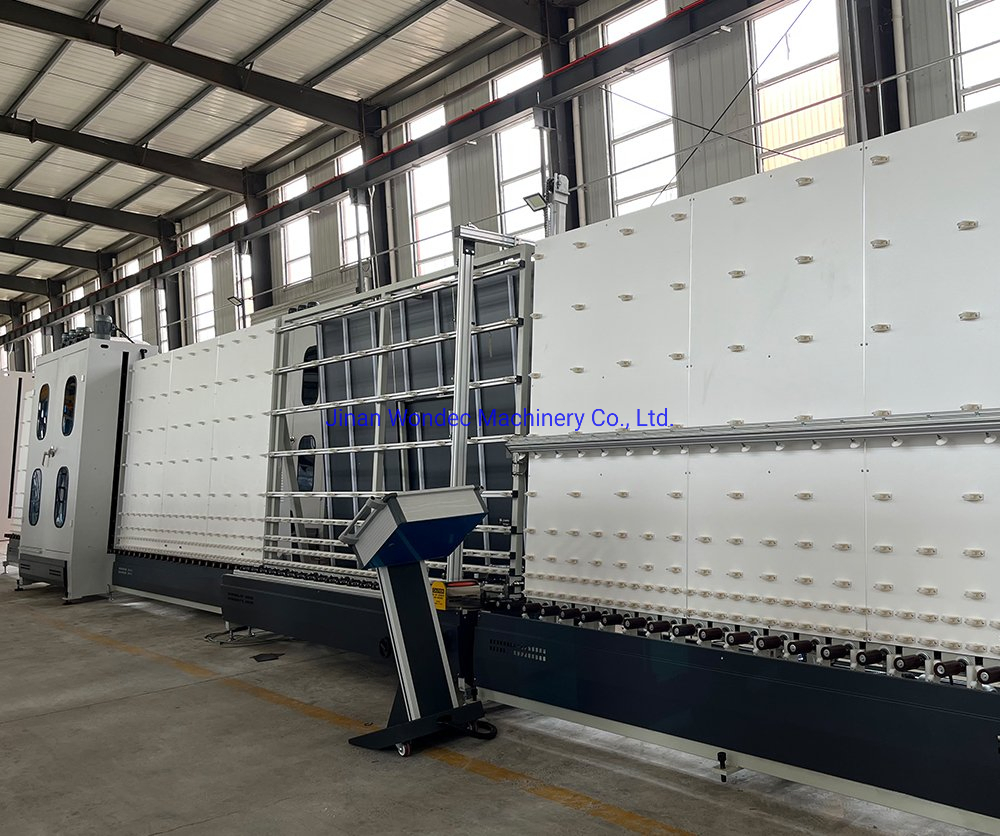

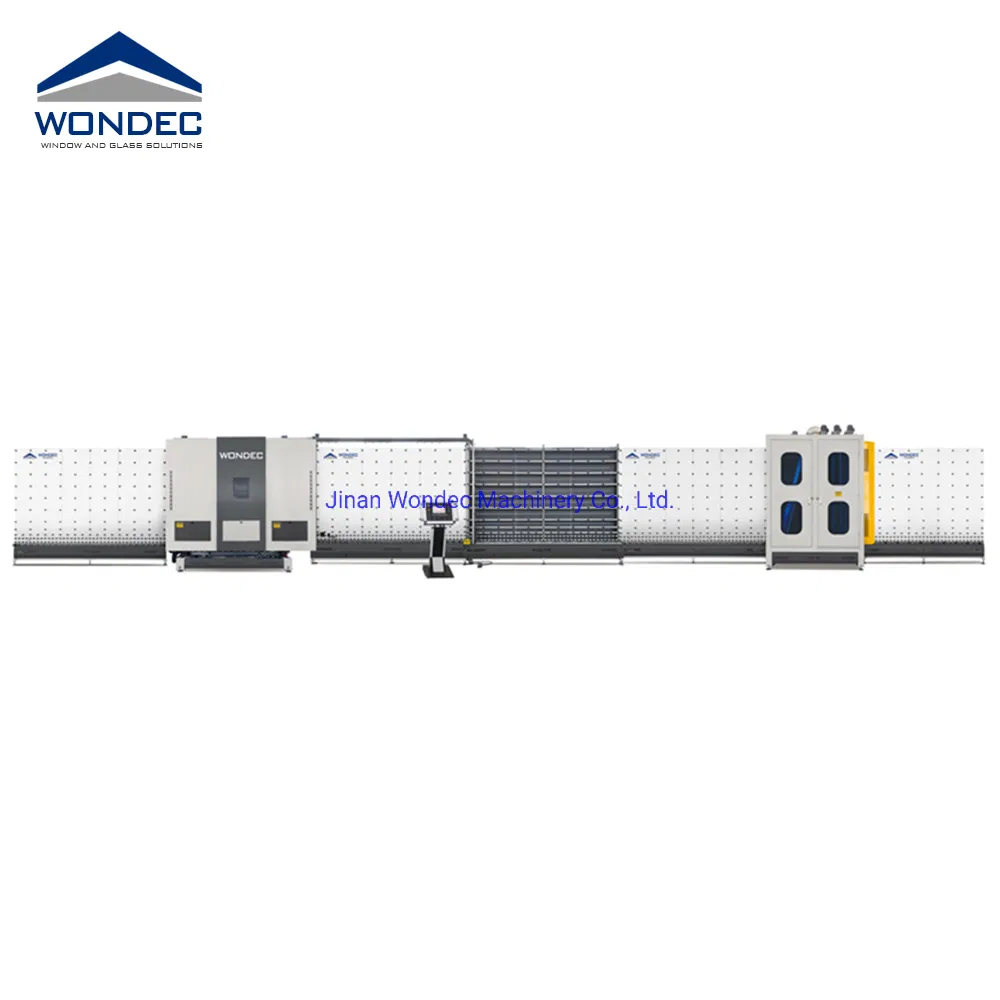

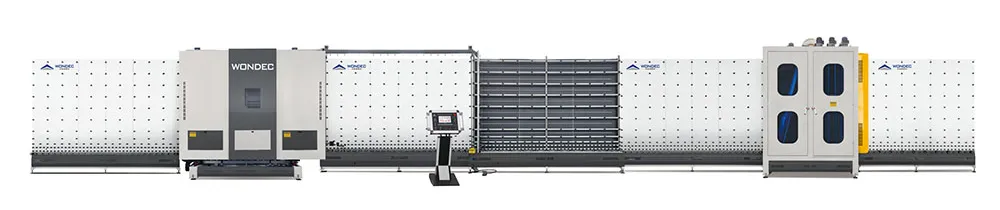

Proven quality and flexible construction set for the most diverse requirements. This insulating glass line is specially designed for the production of coated insulating glass units with a wide range of fixed spacers.
Model: WLBZ2025-C

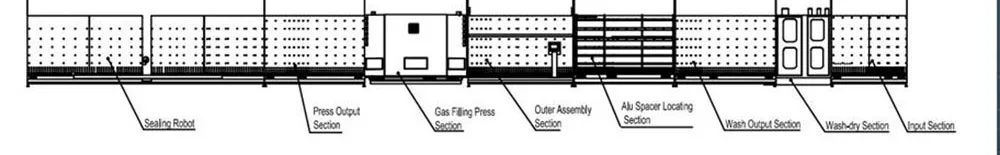

Section 01: Conveyor Section
Transmits glass into the washing and drying section. Features carbon fiber conductive brushes for Low-E glass detection.

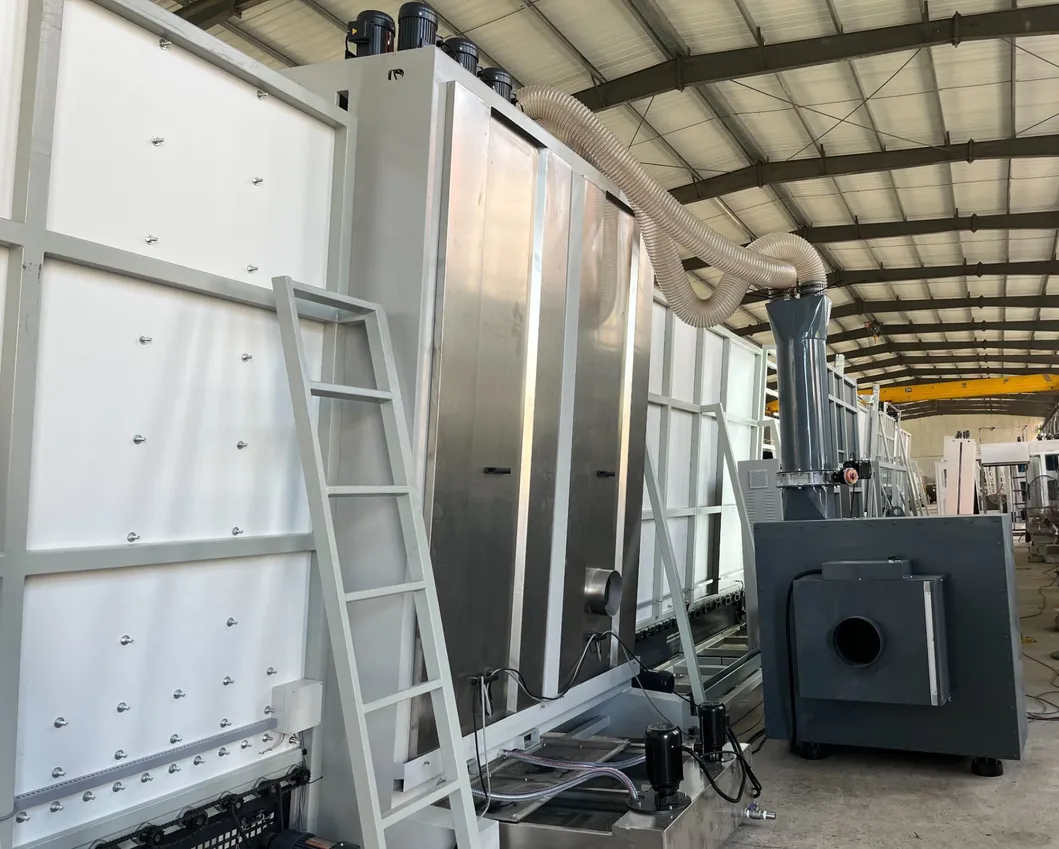

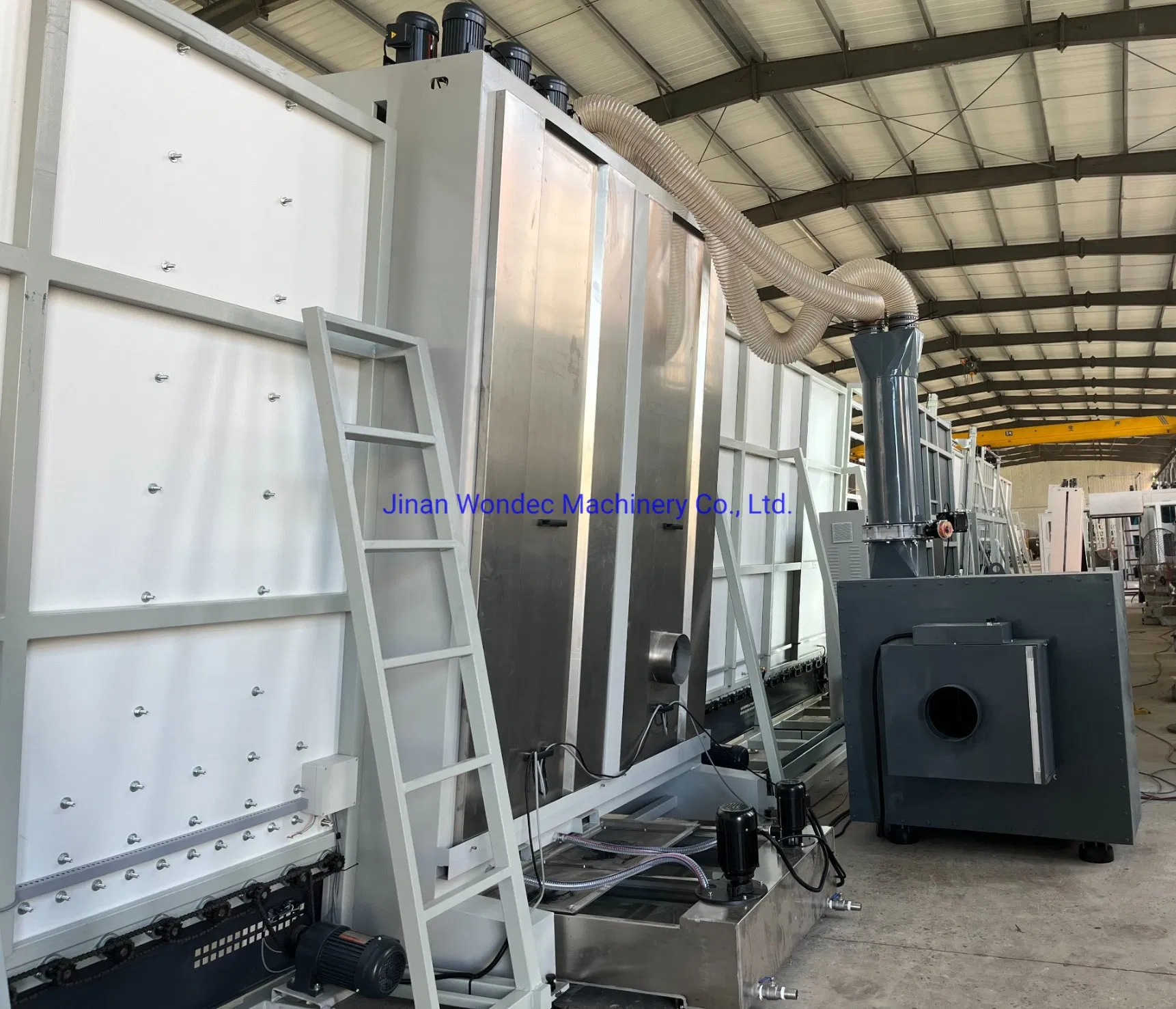

Section 02: Glass Washing and Drying
Stainless steel and corrosion-resistant materials. 3 pairs of brushes driven by independent motors.
Section 03: Conveyor Section
Adopts 2 motors for transmission efficiency, allowing two small glasses to park simultaneously.

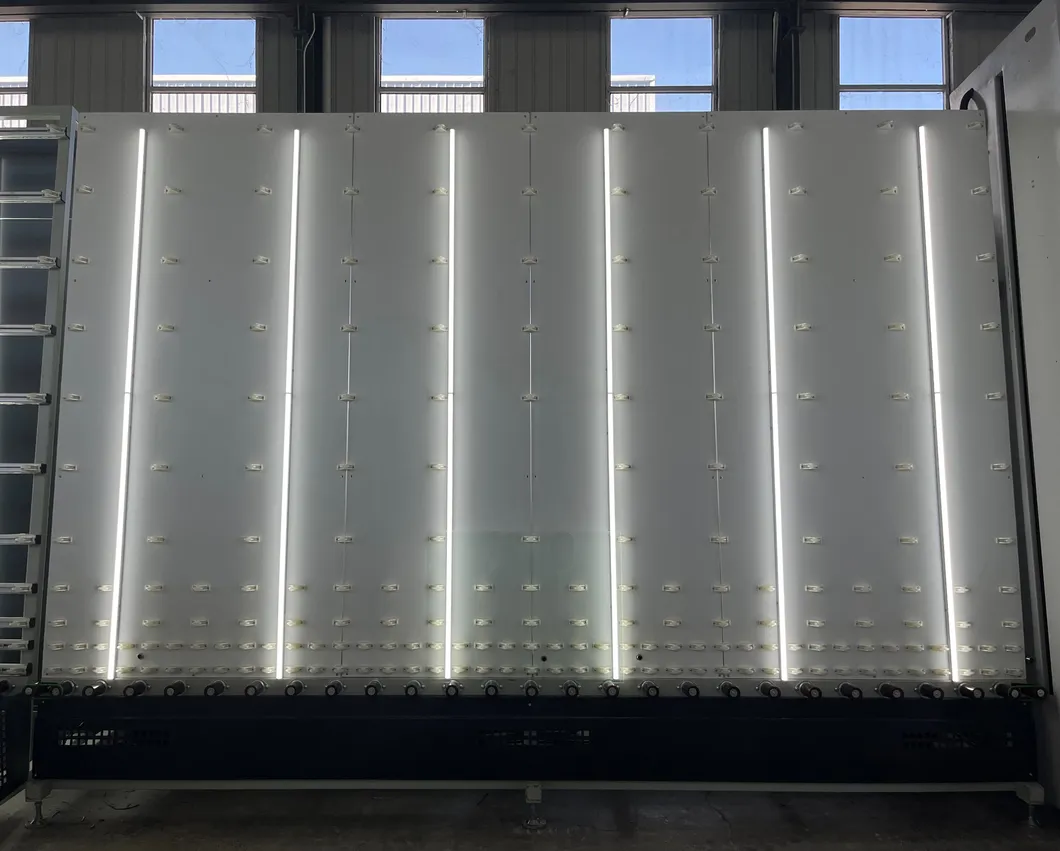

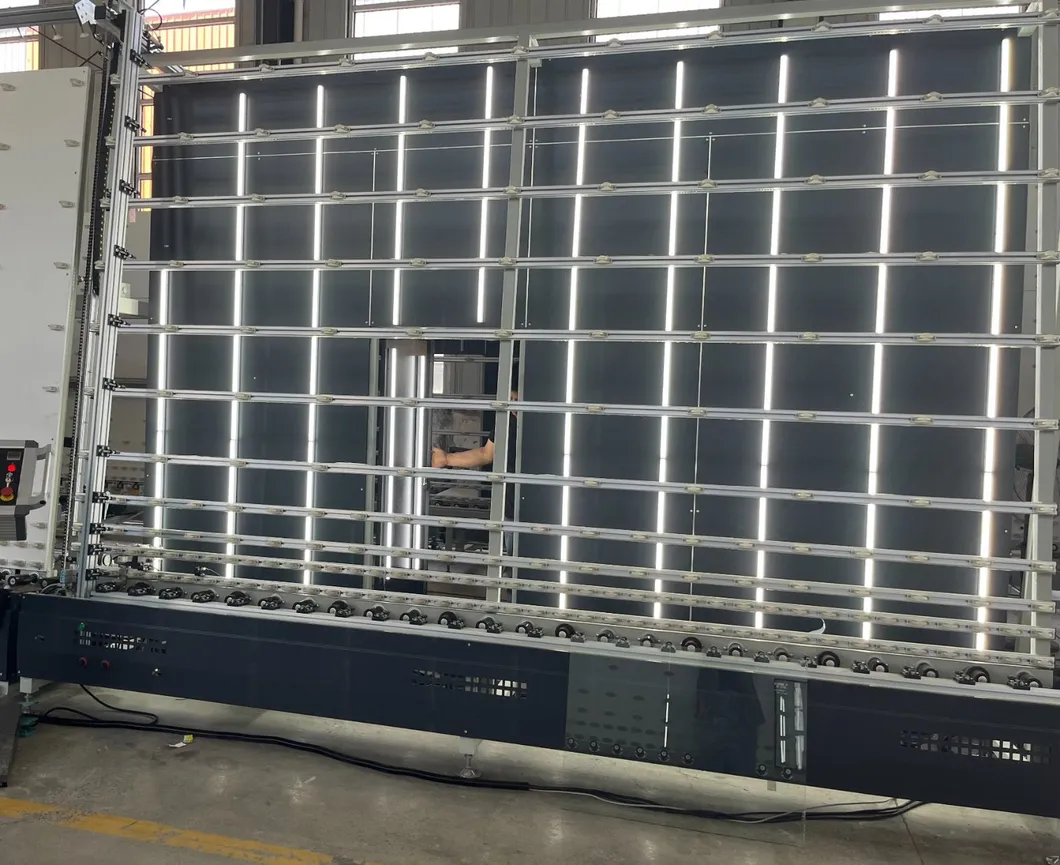

Section 04: Inspection & Spacer Locating
Aluminum-alloy profiles with LED lamps for energy-saving light inspection.

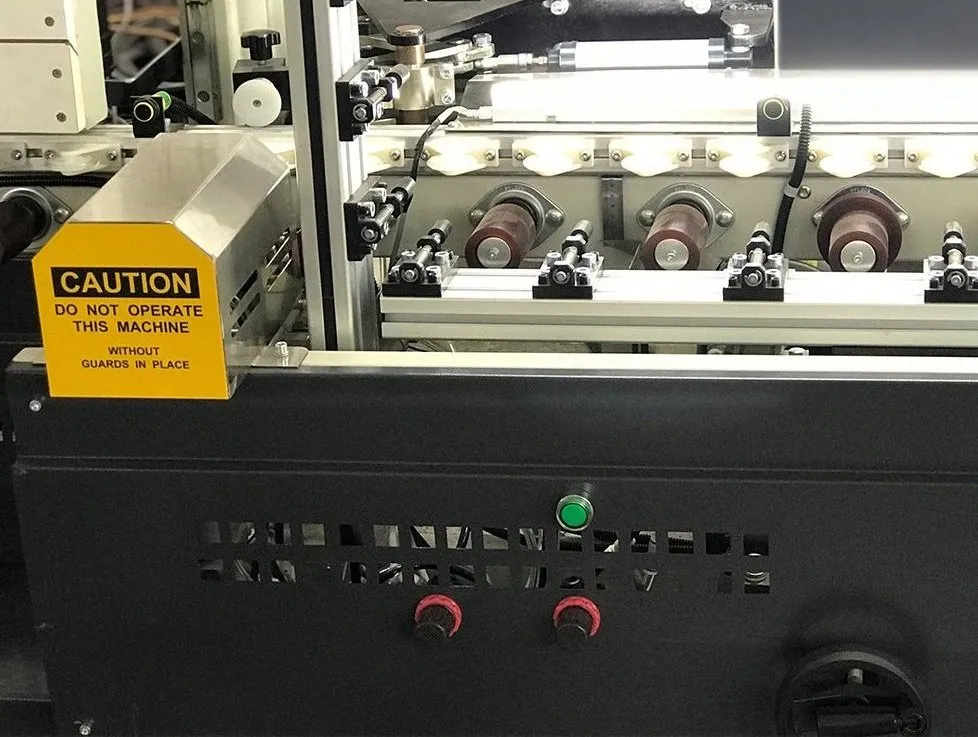

Section 05: Outside Assembly
Fast and efficient with a low failure rate.

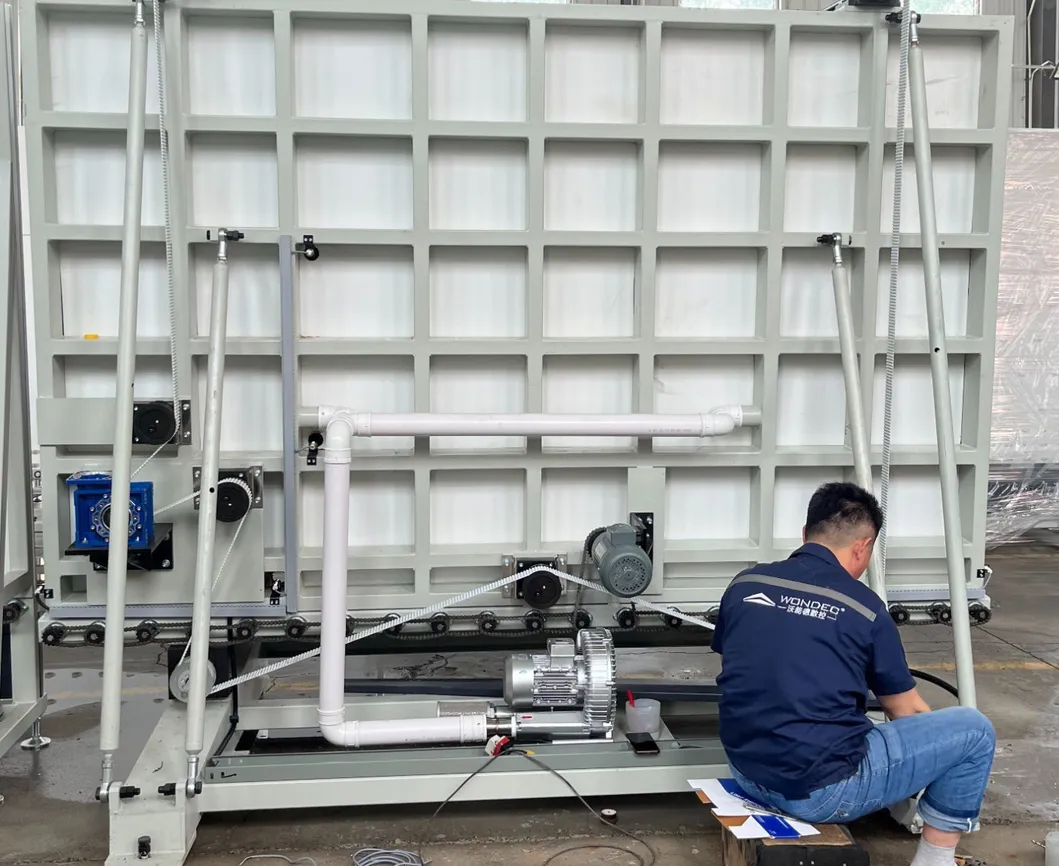

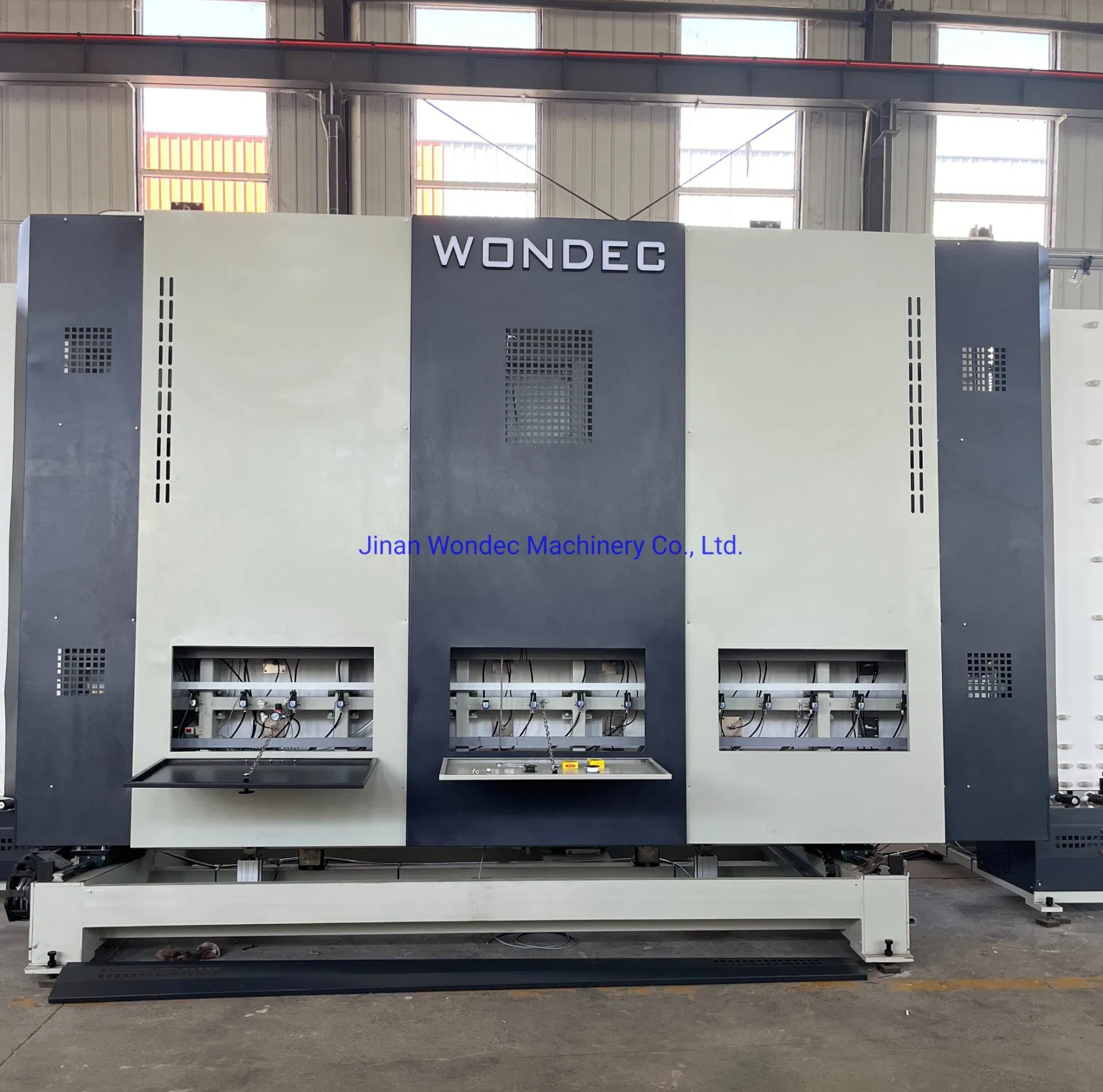

Section 06: Panel Press with Gas Filling
Controlled by Servo motor with a denser steel frame for machine stability.
Section 07: Unloading Section
Used to store and transmit finished glass units, compatible with sealing robots.
| Parameter | WLBZ2025 Specification |
|---|---|
| Total Power | 29kw |
| Max Glass Size | 2000x2500mm |
| Min Glass Size | 300*500mm |
| Single Glass Thickness | 3~12mm |
| Max I.G. Unit Thickness | 12~80mm |
| Glass Washing Speed | 3~12m/min |
| Working Speed | 2~48m/min |
| Overall Dimension | 20000*2500*2900mm |
Pre-sales:
- Custom layout based on your building floor plan.
- Technical drawings based on equipment footprint.
After-sales:
- Weekly production reports.
- Equipment installation, debugging, and personnel training.
- One-year warranty and lifetime technical service.
