| Model NO. |
ABM02 |
| Voltage |
380V50Hz |
| Air Pressure |
0.7MPa |
| Aluminum Bar Specification |
6-27mm |
| Max. Aluminum Frame Size |
2500*2500mm |
| Min. Aluminum Frame Size |
200*250mm |
| Feeding Speed |
0-90m/Min |
| Type |
Glass Bending Machine |
| Warranty |
1 Year |
| Production Capacity |
20 Sets/Month |

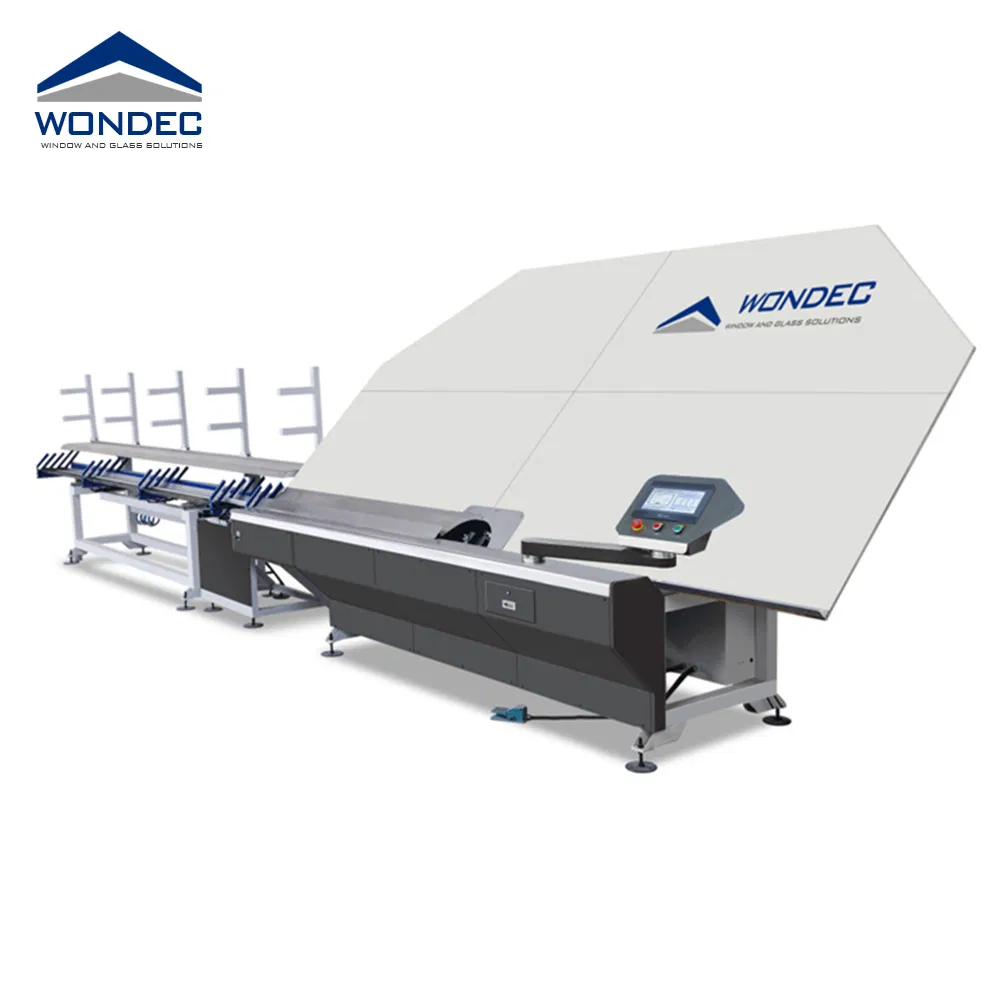

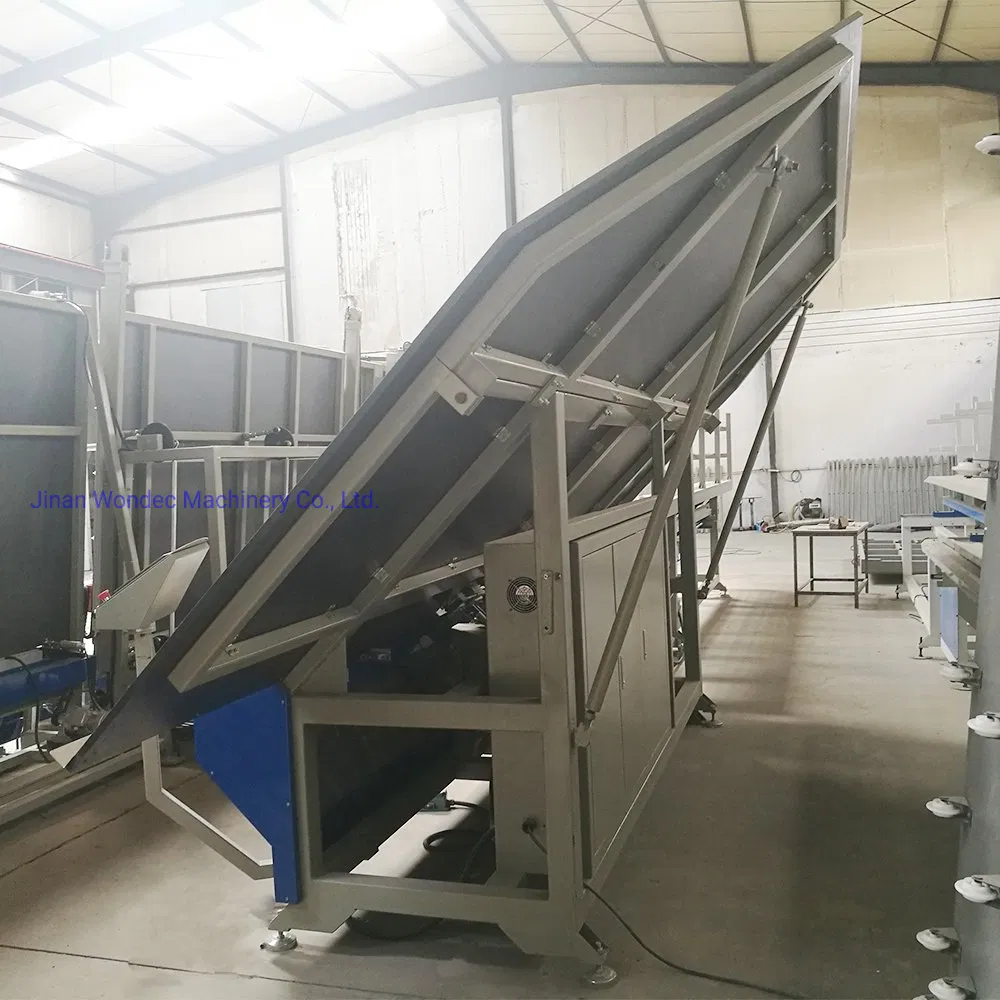

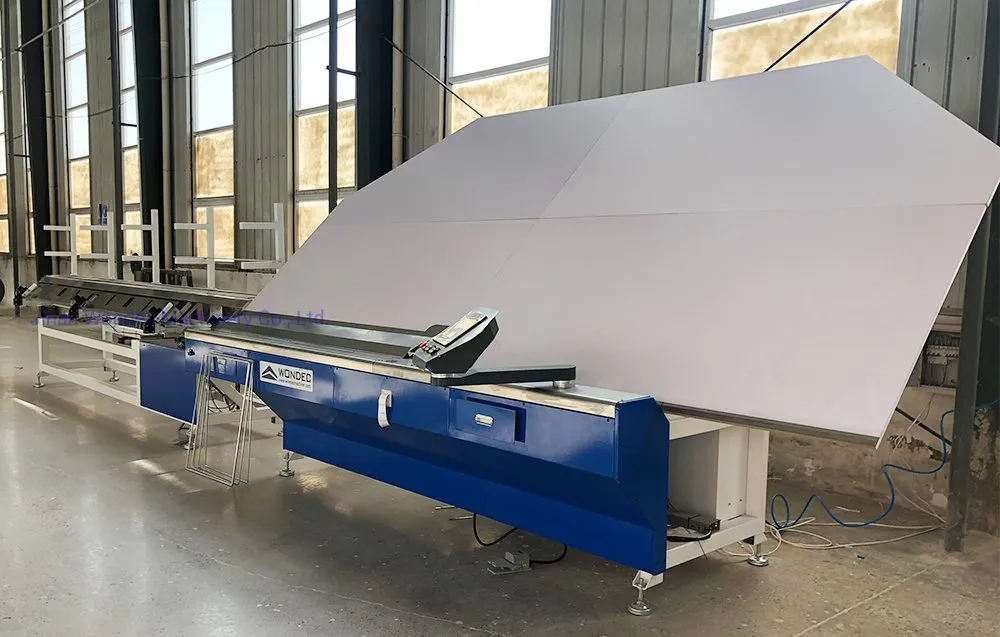

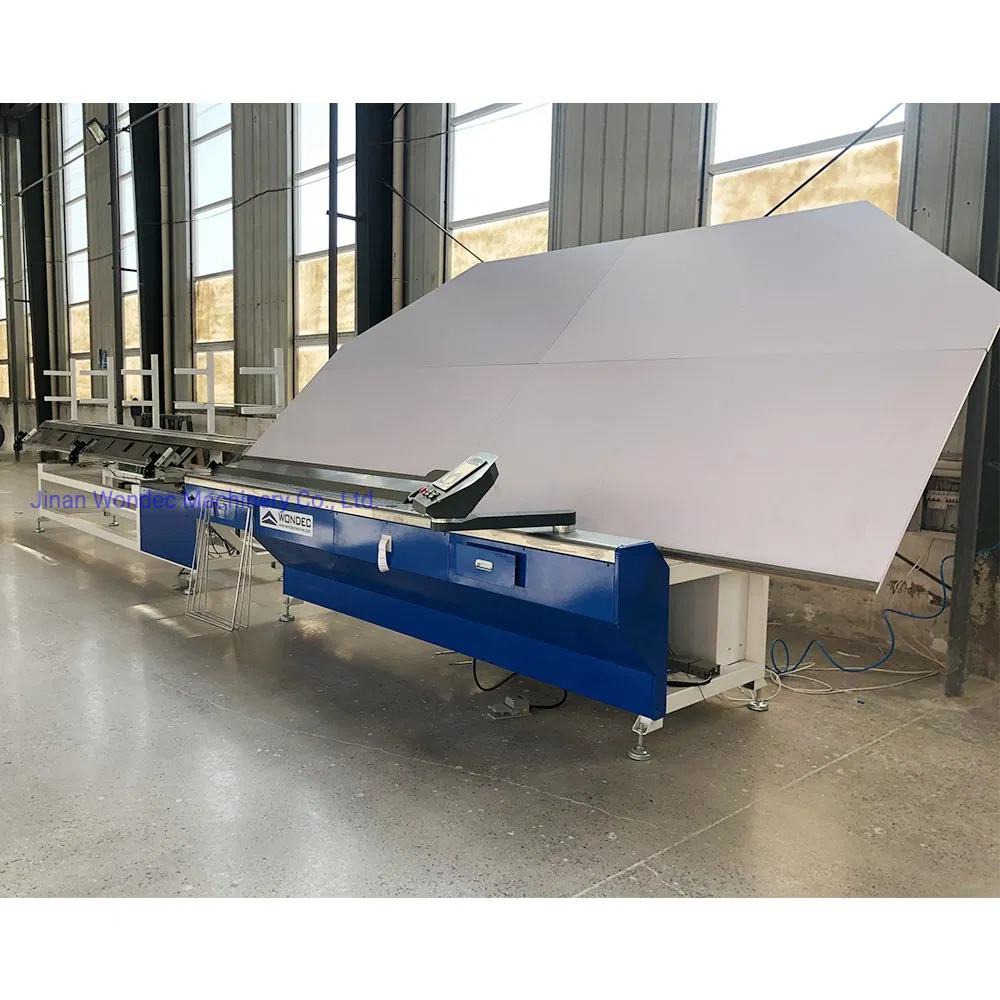

This Full Automatic Insulating Glass Aluminum Spacer Bar Bending Machine is specifically designed for bending aluminum spacers in the production of insulating glass. It operates under a sophisticated PLC system with automatic orientation and bending processes.
Reliable performance and user-friendly operation.
Excellent bending effects, ideal for subsequent butyl rubber application.
PLC control with a touch screen interface for simple operation.
Feeding system utilizes a CNC servo motor for high precision.

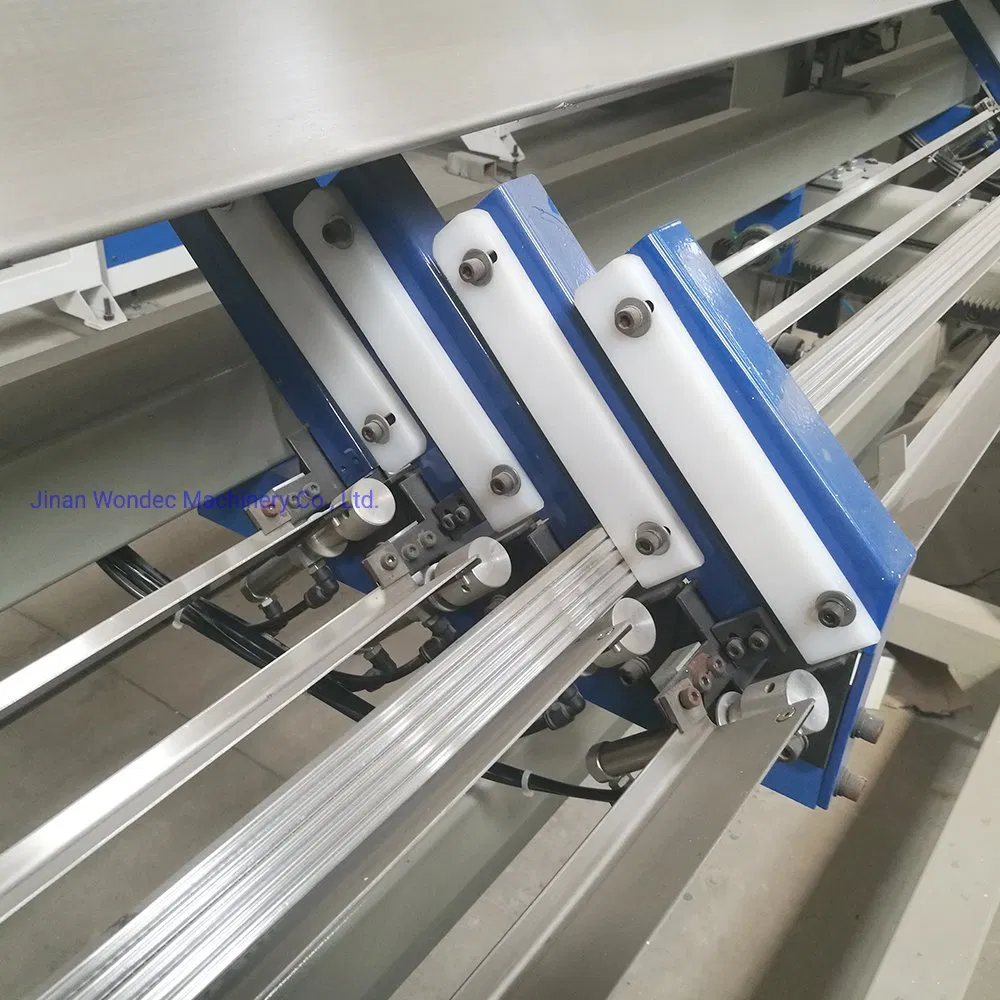

Four Material Storage Slots: Accommodates four different specifications of spacers simultaneously. The system automatically handles bending and cutting, effectively avoiding spacer connection issues and ensuring perfect roundness.
| Power Supply |
380v/50Hz |
| Air Pressure |
0.7Mpa |
| Spacer Specification |
6-27mm |
| Bending Angle Error |
±0.3° |
| Total Power |
4kw |
| Database Capacity |
Simultaneous set 4 specifications * 8 sizes |
| Overall Dimension |
10000*2200*2600mm |
We prioritize the safety of your machinery during transit. Each machine undergoes a rigorous protective process:
Rust Prevention: Protective oil application followed by plastic covering.

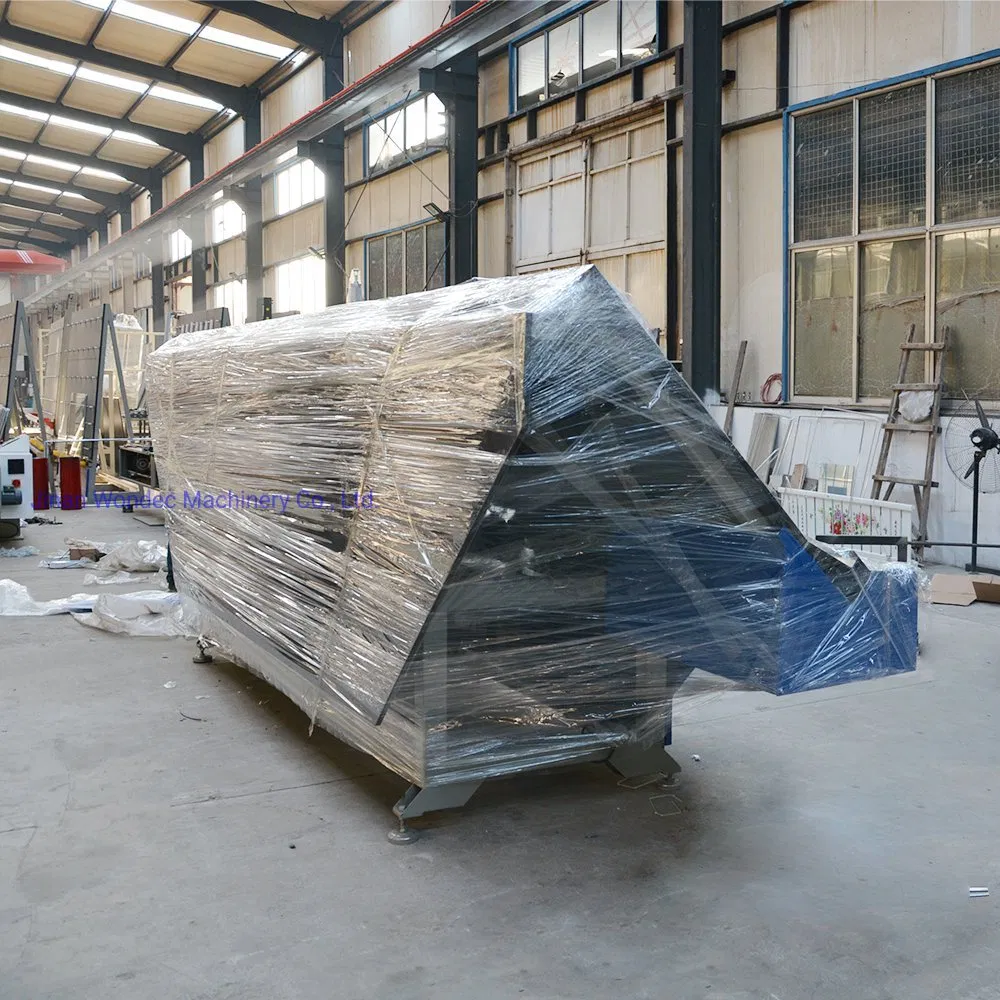

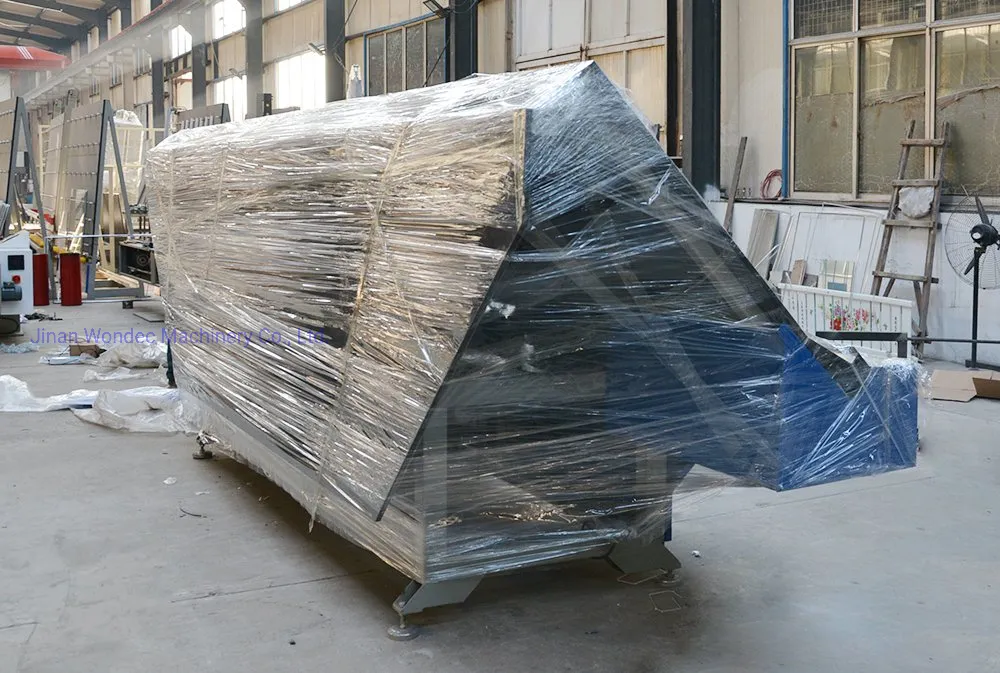

Inner Protection: Stretch film packaging to prevent dusting during long sea voyages.
Outer Packaging: Steel/wooden pallets or full wooden box packaging for maximum security.

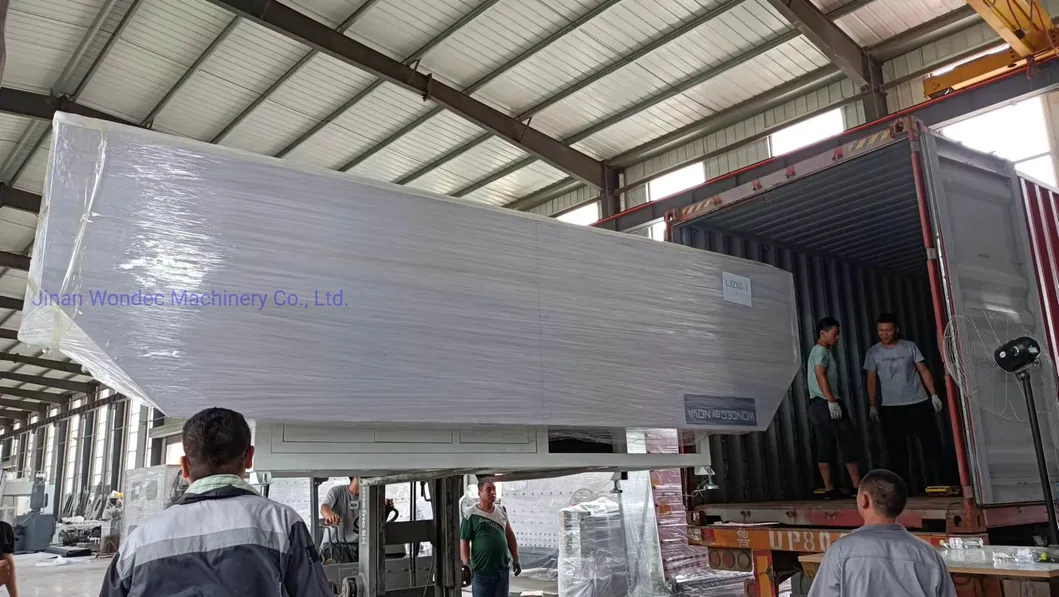

Container Loading: Machines are fixed securely within the container by experienced professionals.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with over 16 years of experience in the glass machinery industry.
What is the delivery time for the machines?
For standard machines, the delivery time is approximately 20 days after receipt of the deposit. For customized machines, please confirm the timeline with our sales representatives.
What kind of after-sale service do you provide?
We respond immediately to machine breakdowns via email or direct communication. If required, we can appoint engineers to assist with installation and worker training at the client's site.
What is the guarantee period?
All machines come with a one-year guarantee, excluding wearing parts. We provide replacement parts for free during this period, though courier fees are covered by the client. We also offer 24-hour online technical support.
Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for installation, adjustment, and comprehensive operation training. Online training support is also available.
Can the machine be customized to our local voltage?
Yes, we can customize the electrical system of the machine to match your local voltage requirements.
