Automastic Insulating Glass Sealing Machine Two Component Sealant Coating Machine CNC Insulating Glass Sealing Machine Ig Glass Insulated Glass Sealing Machine

Customization:	Available
Certification:	CE, ISO, FDA, PCI, PDA, SGS
Control System:	Industrial Computer

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZDJ2500B

Production Name

Auto Insulating Glass Processing Sealing Robot

Max Working Size

2500 x 3500mm

Min Working Size

280 x 400mm

Glass Thickness

3-12mm

Feeding Speeds

5-50m/Min

Power

380V 50Hz 13kw

Air Pressure

0.6~0.8MPa

Overall Dimension

11500×4000×3400mm

Structure

Vertical

Warranty

One Year / Lifetime After-sales Service

HS Code

8475299000

Product Description

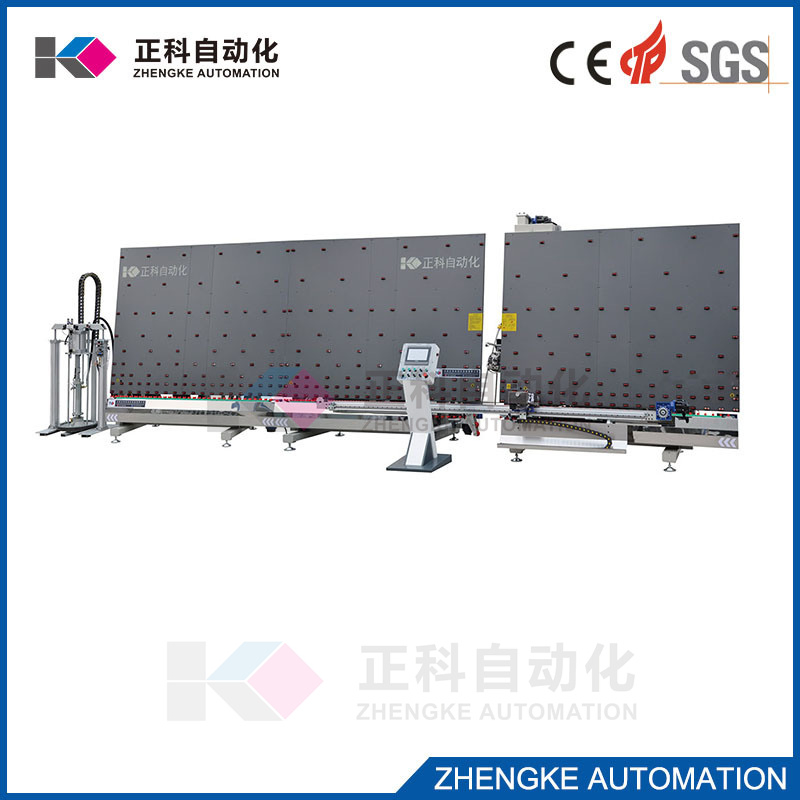

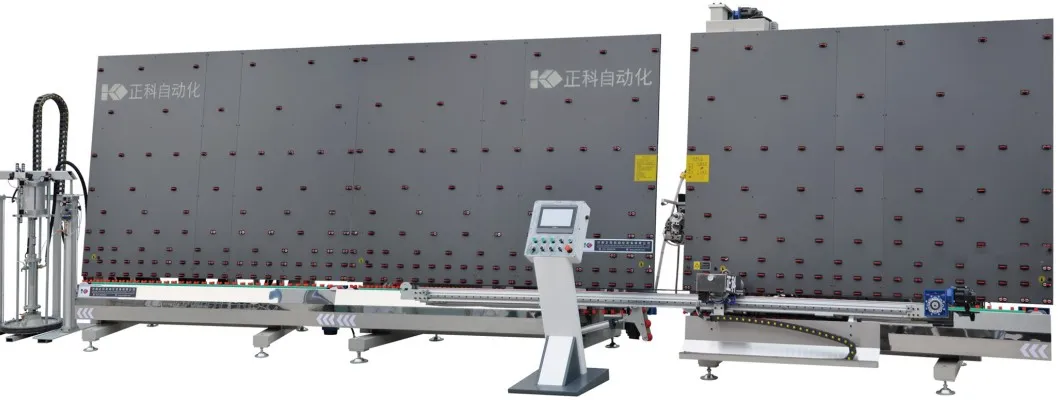

ZDJ2500B CNC Insulating Glass Sealant Coating Line

Equipment Features

Continuous adhesive application for rectangular insulating glass of various sizes with high stability.
Two independent glue supply systems allow for arbitrary switching between sealants (Optional).
Third-paragraph glass pre-storage to enhance operational continuity and production efficiency.
User-friendly Panelmaster human-computer interface for simple and convenient operation.
Full side coating without bubbles and perfect corners without manual trimming.

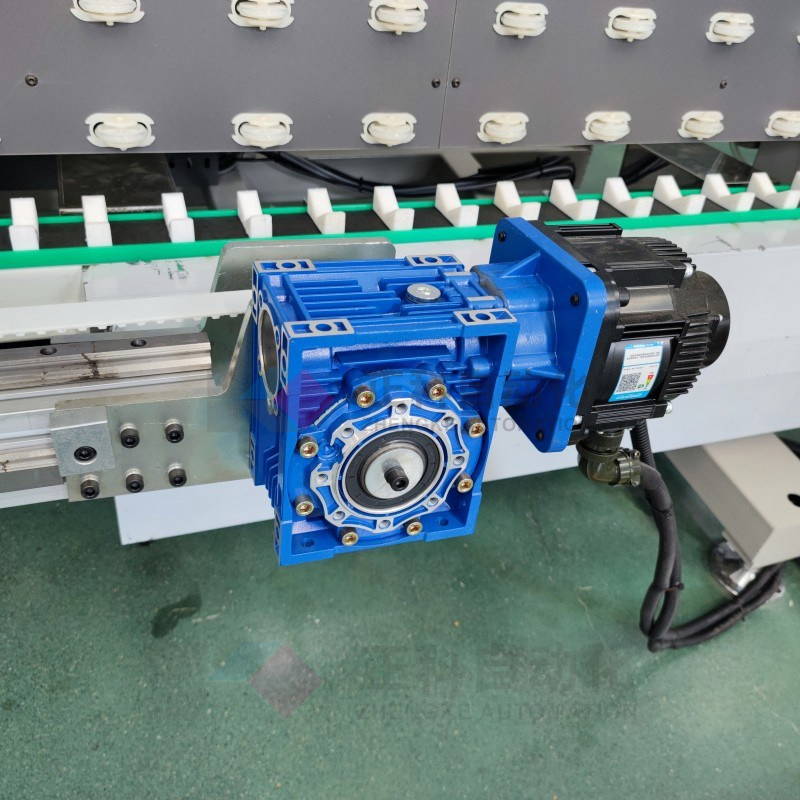

Equipped with world-renowned Yaskawa motion control and servo systems.
Accurate synchronous belt transmission ensures pollution-free operation.
Automatic alarm device for monitoring glue quantity levels.
Glue coating pressure accurately adjusted via Panasonic CNC output.
Support for special-shaped glass coating, including arcs and high-speed iron glass (Optional).

Parameter Item	Specification Details
Voltage Power	380V 50Hz 13KW
Air Pressure	0.5~0.7Mpa
Max Glass Size	2500×3500mm
Min Glass Size	280×400mm
Insulating Glass Thickness	≤60mm
Working Speed	5~50m/min
Max. Dispensing Pressure	≤30Mpa

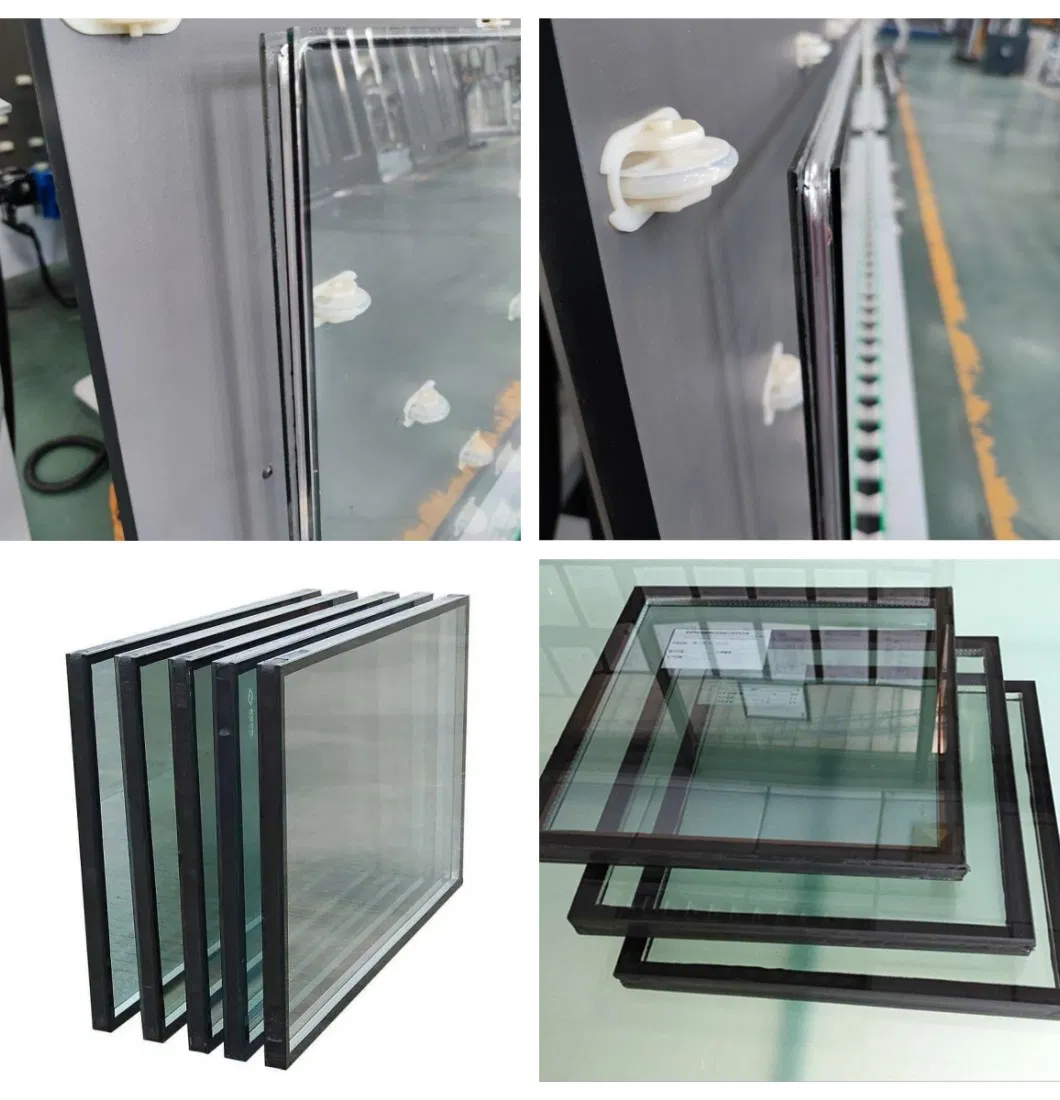

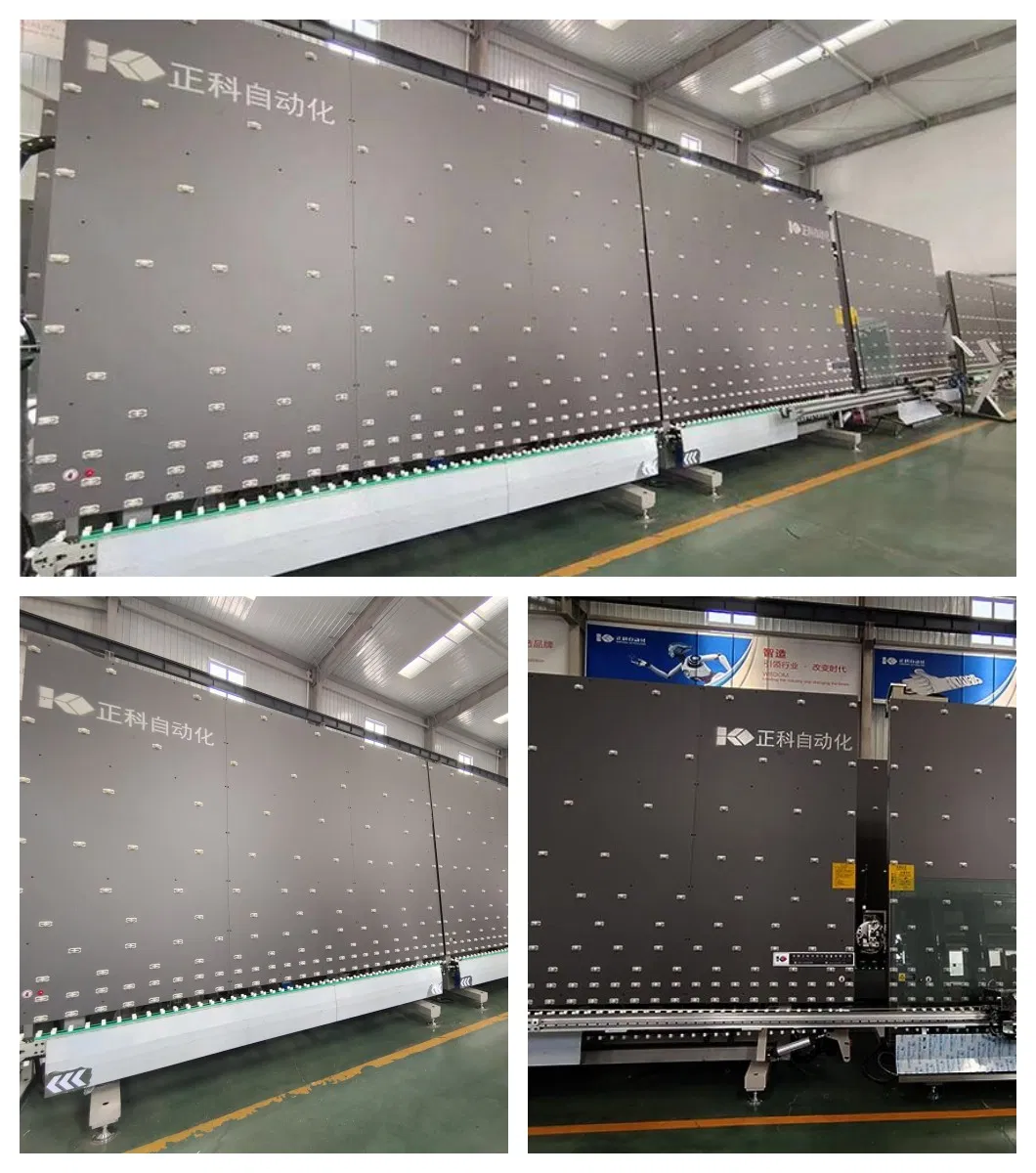

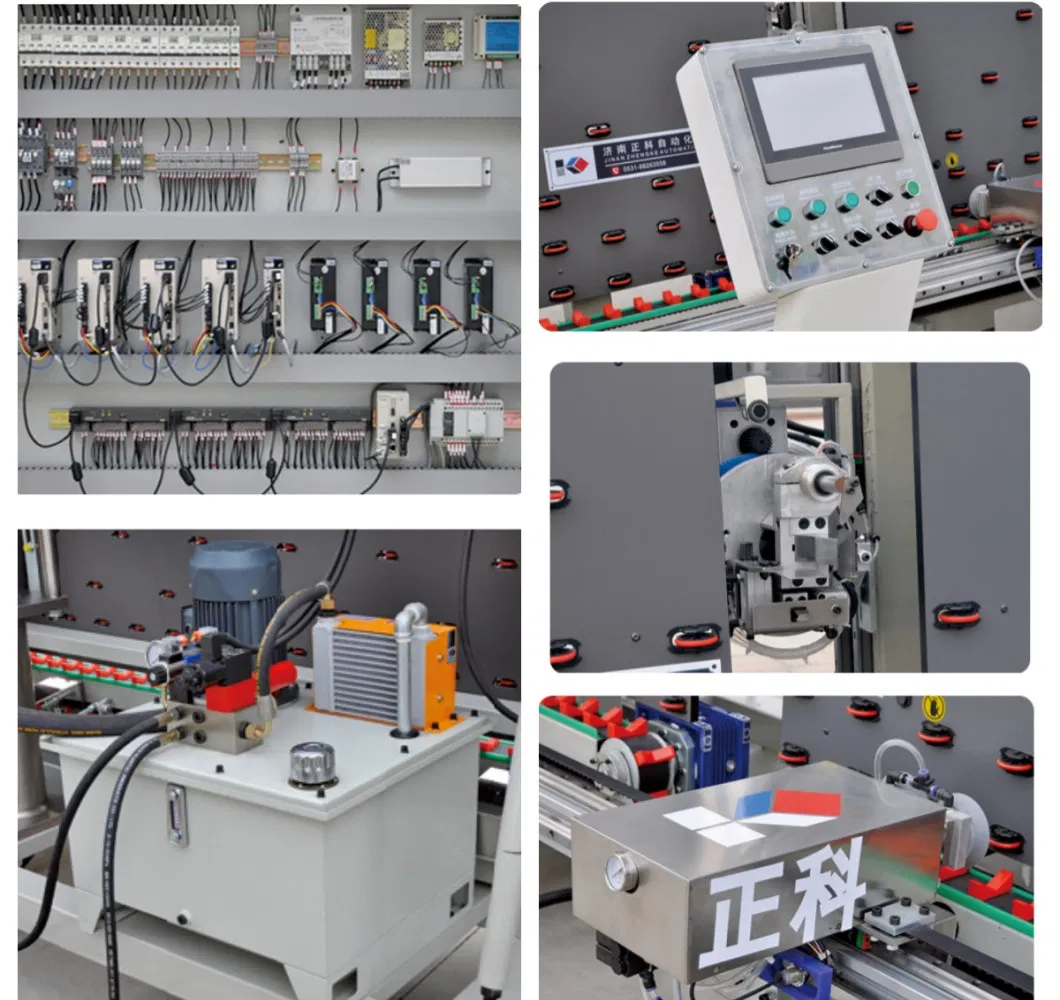

Detail & Sample Photos

Our Advantages

1. Professional Solutions: We provide expert glass production line consultation and customized designs.

2. 24/7 Service: Dedicated online support team ensuring responses within 24 hours.

3. Quality First: Strict quality testing and control systems using advanced production equipment.

4. Competitive Pricing: Direct manufacturer pricing without middleman markups.

5. OEM/ODM Support: Customized design, logos, and packaging options are available.

Frequently Asked Questions

What is the maximum glass size the ZDJ2500B can handle?

The machine can process glass up to a maximum size of 2500mm x 3500mm.

Does the machine support multiple types of sealants?

Yes, it features two independent glue supply systems, allowing for arbitrary switching between different sealants like silicone or polysulfide.

What control system is used in this sealing robot?

It utilizes the world-renowned Yaskawa motion control system and Panasonic CNC output for high-precision operations.

Can it process special-shaped or curved glass?

Yes, the machine supports an optional module for special-shaped glue coating, including arcs and other custom graphics.

What is the warranty period for this equipment?

We provide a one-year standard warranty and lifetime after-sales technical support and service.

How does the machine ensure no air bubbles in the coating?

The automated CNC pressure adjustment and specialized nozzle design ensure the side coating is full and bubble-free, eliminating the need for manual trimming.
