| Model NO. | WLBZ2530-CF |
|---|---|
| Max Glass Size | 2500*3000mm |
| Min Glass Size | 500*300mm |
| Max Ig Unit Thickness | 12-80mm |
| Weight of Machine | 9000 Kg |
| Color | Grey, Blue or Customized |
| Key Selling Points | Easy to Operate, High-Accuracy |
| Type | Insulating Glass Production Line |
| Structure | Vertical |
| Condition | New |
| Warranty | 1 Year |

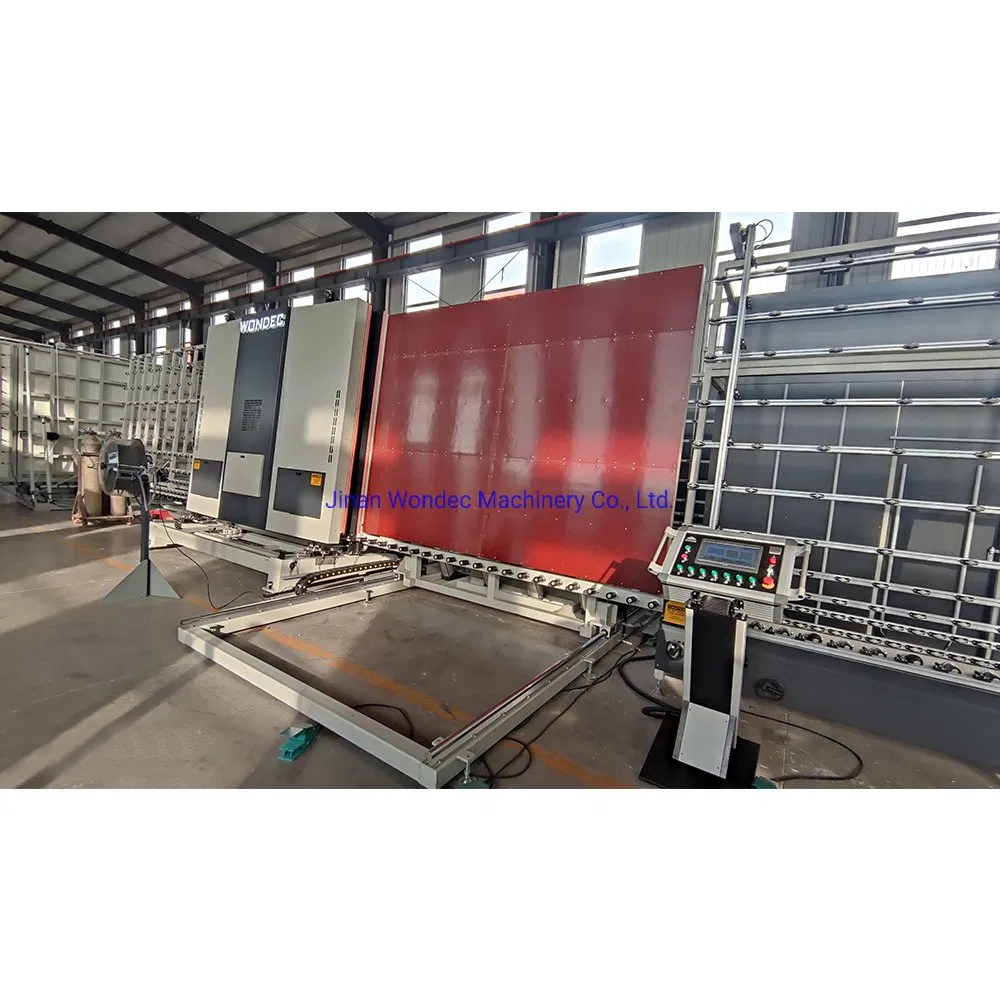

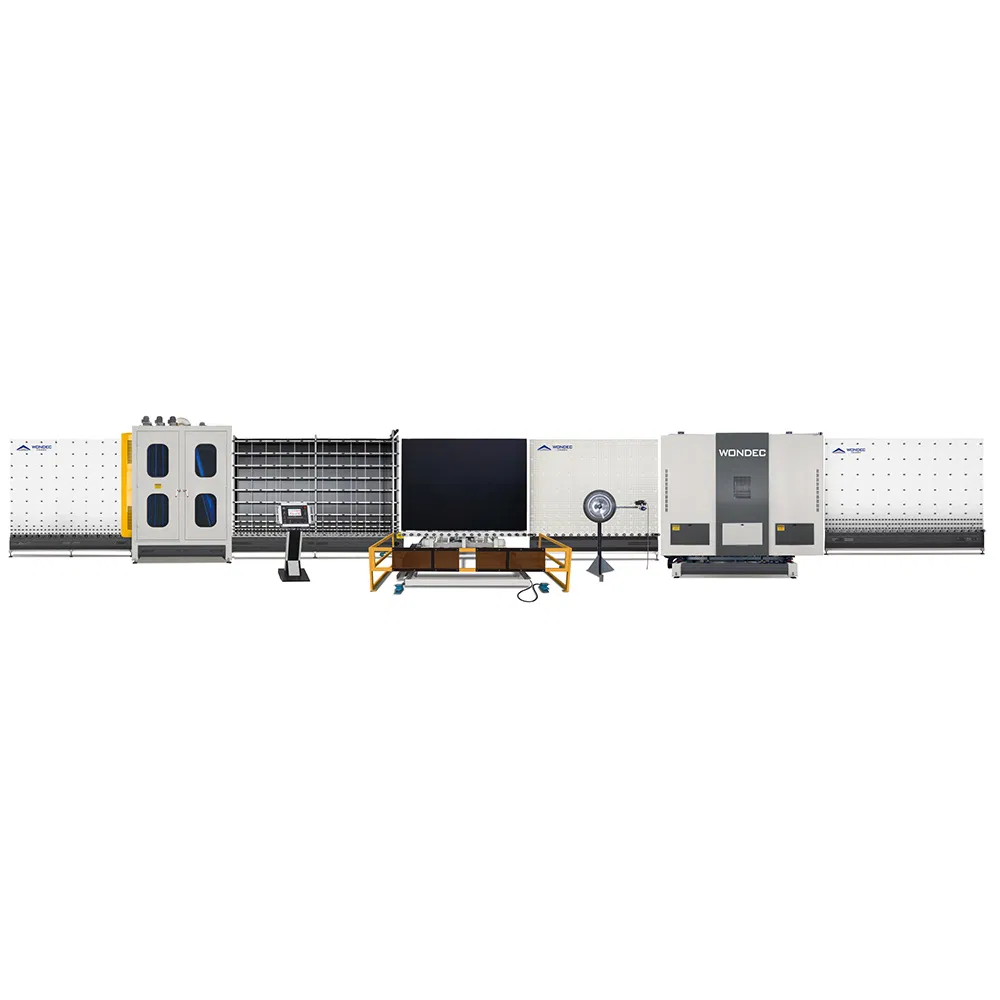

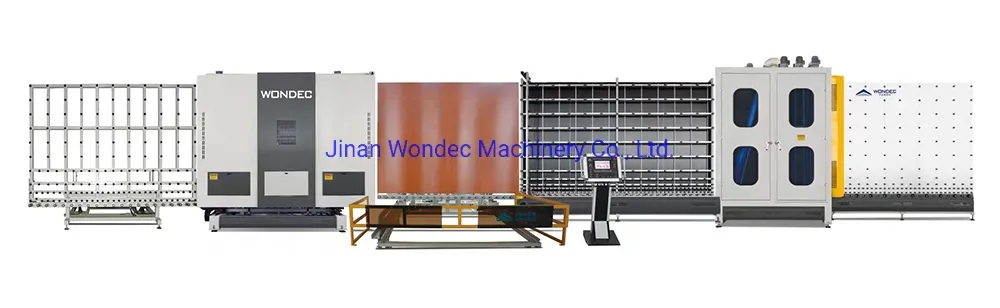

WLBZ2530-CF Insulating Glass Production Line

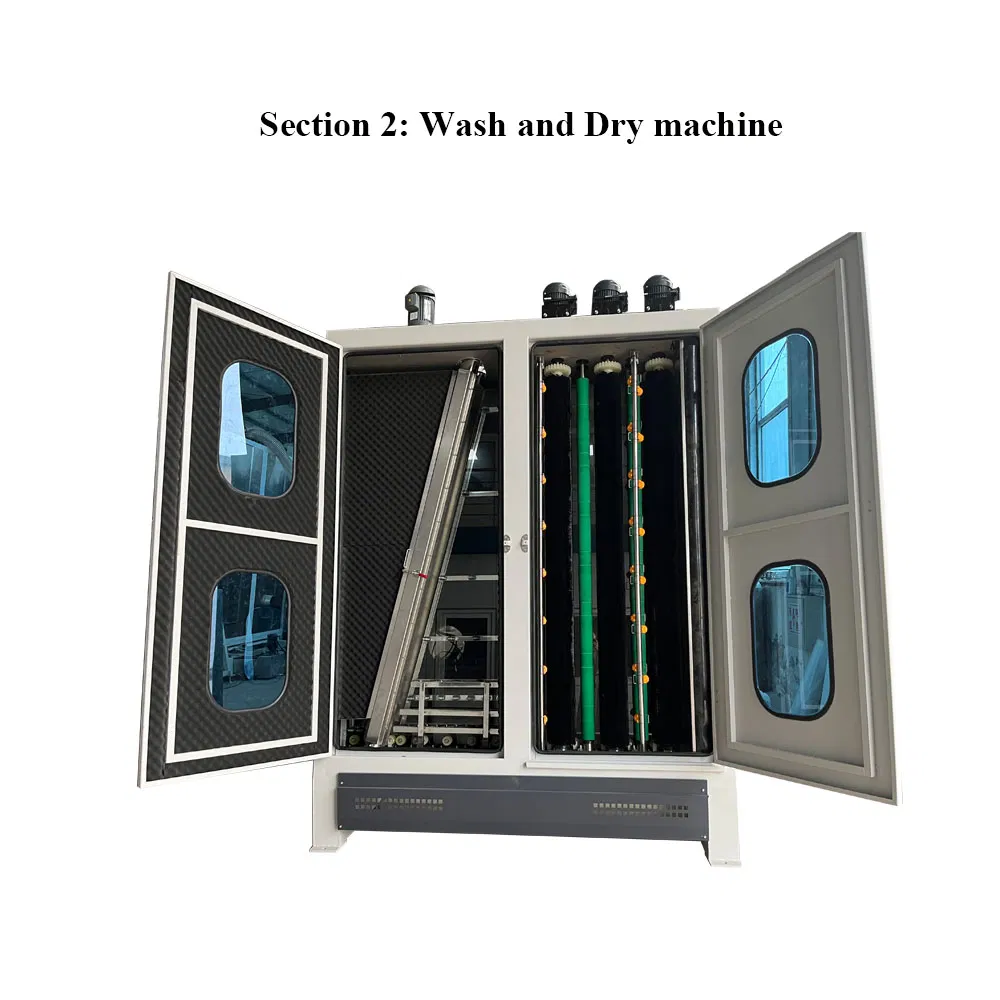

Input & Washing: Carbon fiber conductive brushes are used for coating glass and Low-E detection. The washing zone and water tanks are made of stainless steel with corrosion-proof materials.

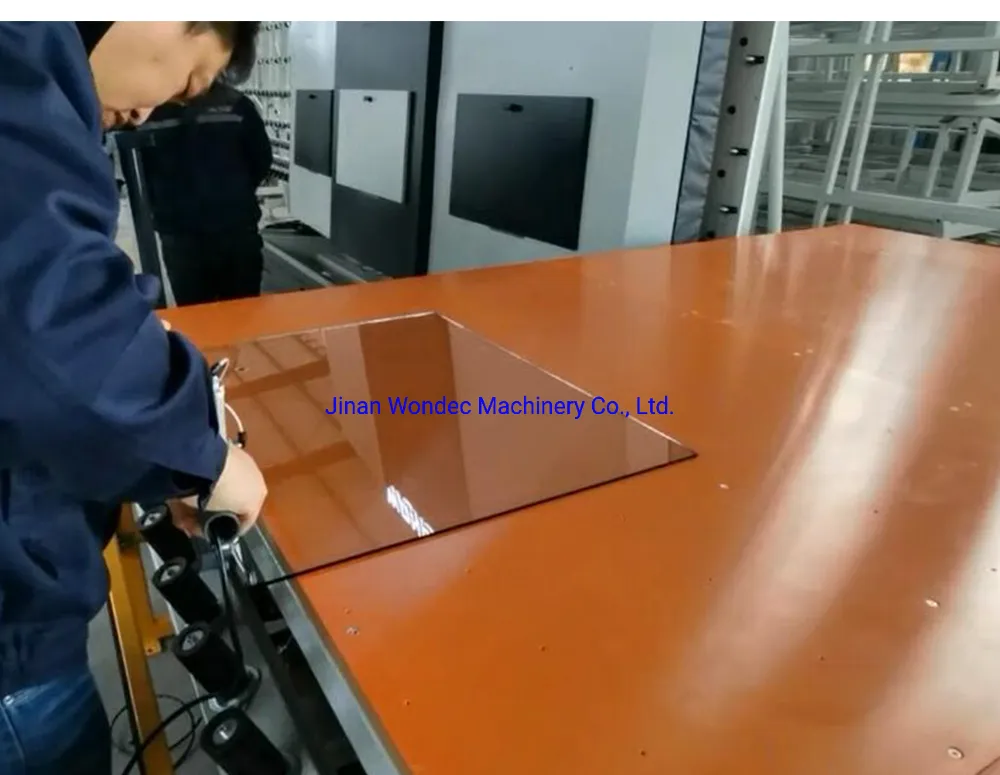

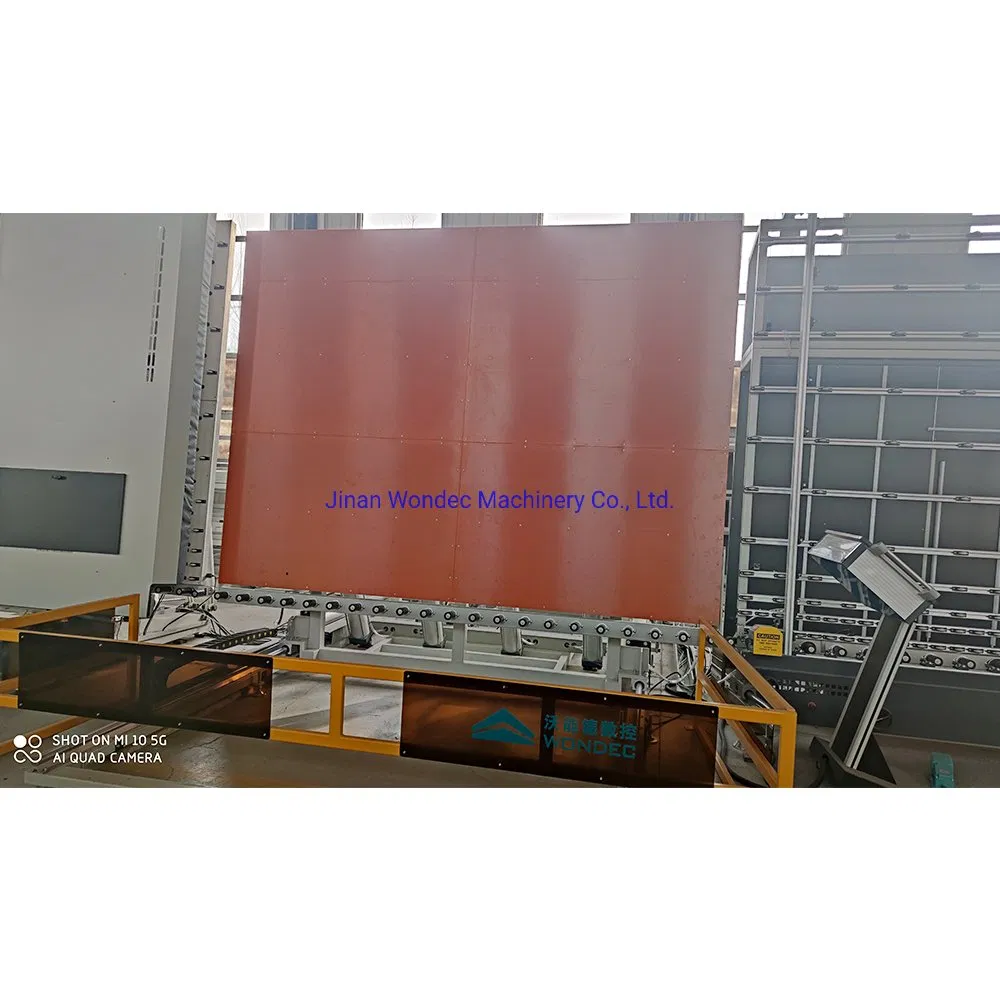

Inspection & Tilting: Open design allows workers to wipe glass easily. The tilting table features suction and release functions for safe placement of spacers.
| Parameter | Specification |
|---|---|
| Max. glass size | 2500*3000mm |
| Min. glass size | 500*300mm |
| Pane glass thickness | 3-12mm |
| Max. Insulating glass thickness | 12-40mm |
| Glass washing speed | 3-12m/min |
| Working speed | 2-48m/min |
| Air pressure | 0.8m³/min |
| Overall dimension | 21640*2100*3050mm |
| Voltage | 220V/60Hz or customized |
| Total power | 24.5kw |
Pre-sales: Equipment footprint layout based on your building plan and detailed technical drawings.
After-sales: Weekly production reports, English operation manuals, onsite installation, and personnel training. Lifetime technical service provided.
