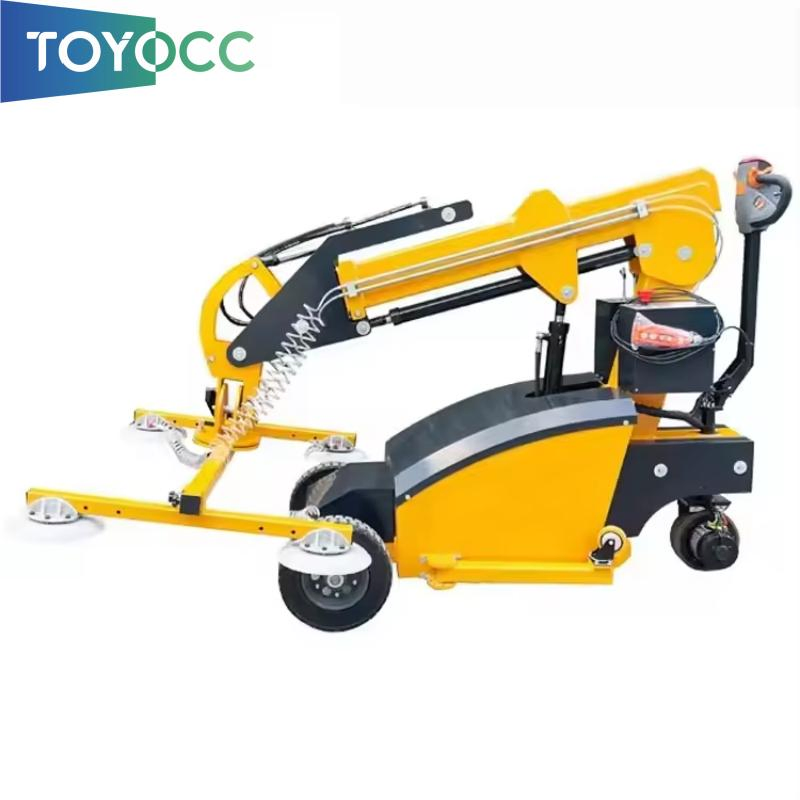

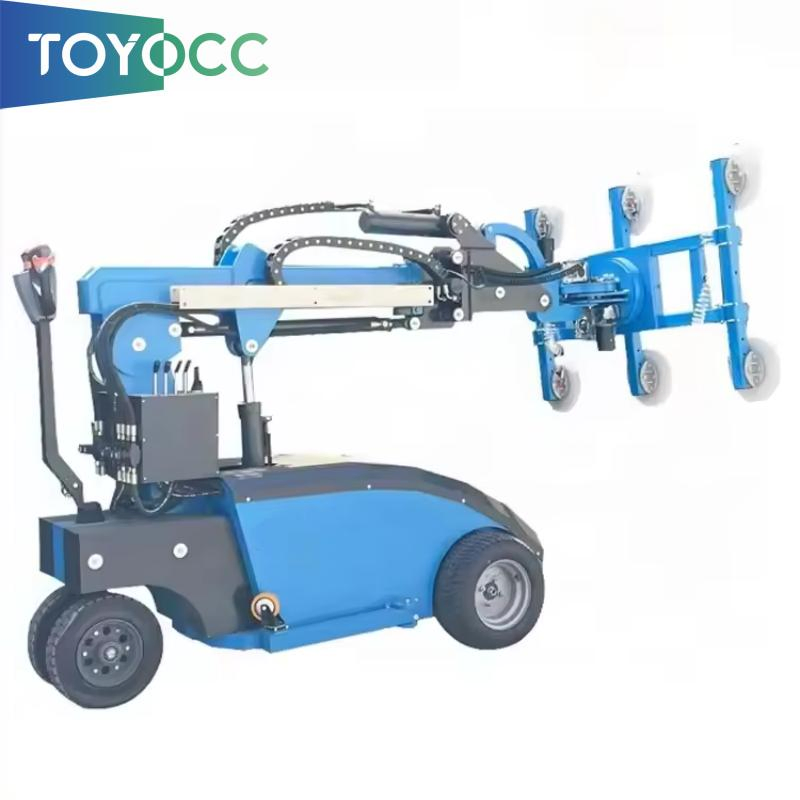

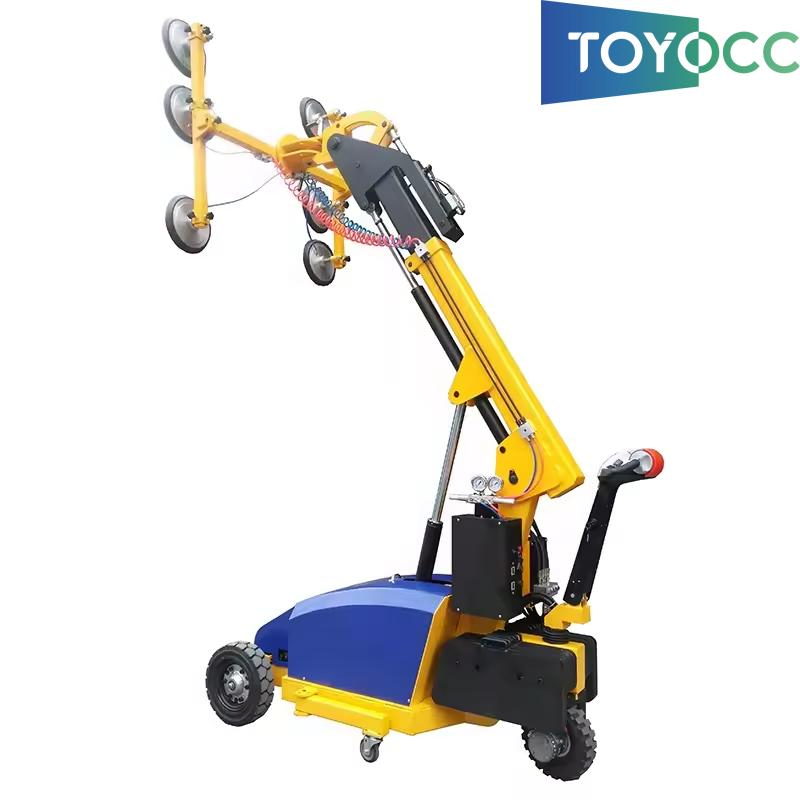

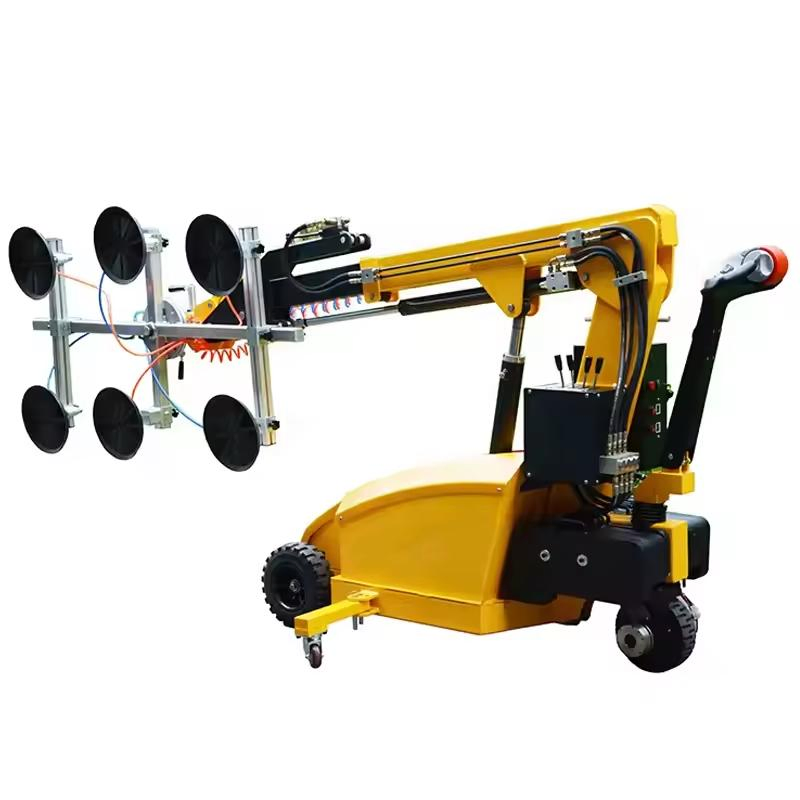

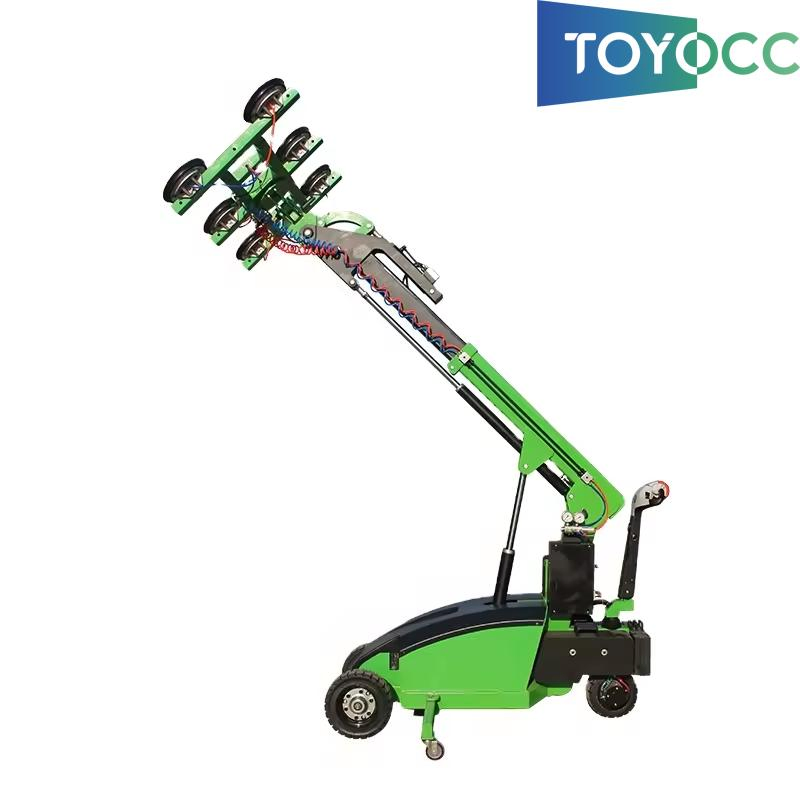

Glass Robot/ Glass Manipulator for Curtain Wall Installing
The manipulator adopts the principle of vacuum suction, which includes the functions of electric suction and deflation, electric flip rotation, manual rotation, and manual tilting, which can easily realize the moving and handling of glass. The machine is light and flexible in operation, and it is a new type of glass handling machinery with energy saving, high efficiency and environmental protection. It is widely used in glass door and window factories, curtain wall glass installation and glass sheet transportation. In factories, warehouses, logistics centers and many other places, the handling of glass panels is safe and efficient, and fully reflects its excellent flexibility, stability and environmental protection performance.
The operation of this equipment using stepless speed regulator can be completed on the joystick. The circuit is designed with accidental power failure and over-current protection. The selected electricity meter has a low-voltage light flashing alarm function.
| Machine Parameters | |
|---|---|
| Loading Capacity | 600kg |
| Suction Pad | 6*Φ300mm |
| Total Weight | 1450kg |
| Packing Size | 2600*1050*1700mm |

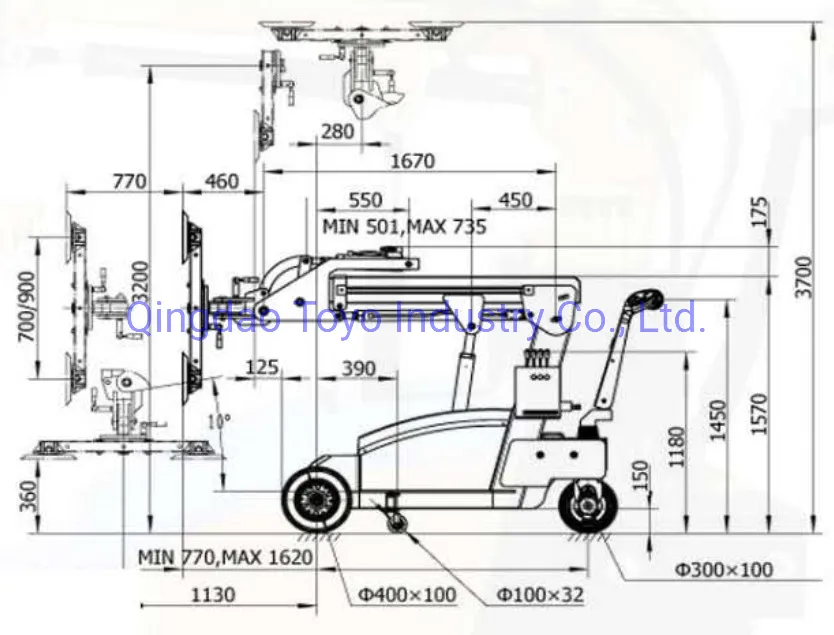

| Maximum lifting height | 3500mm (from ground to center of suction frame) |
| Tilting control | Hydraulic ram, max 130 degrees |
| Rotation control | Maximum rotation 360 degrees |
| Vacuum system | Dual system |
| Wheels | 400mm*100mm solid tire front, 300mm*100mm rear |
| Battery / Charging | 12V,120A*2 / ~8 hours |
| Working Period | ~20 Hours |
