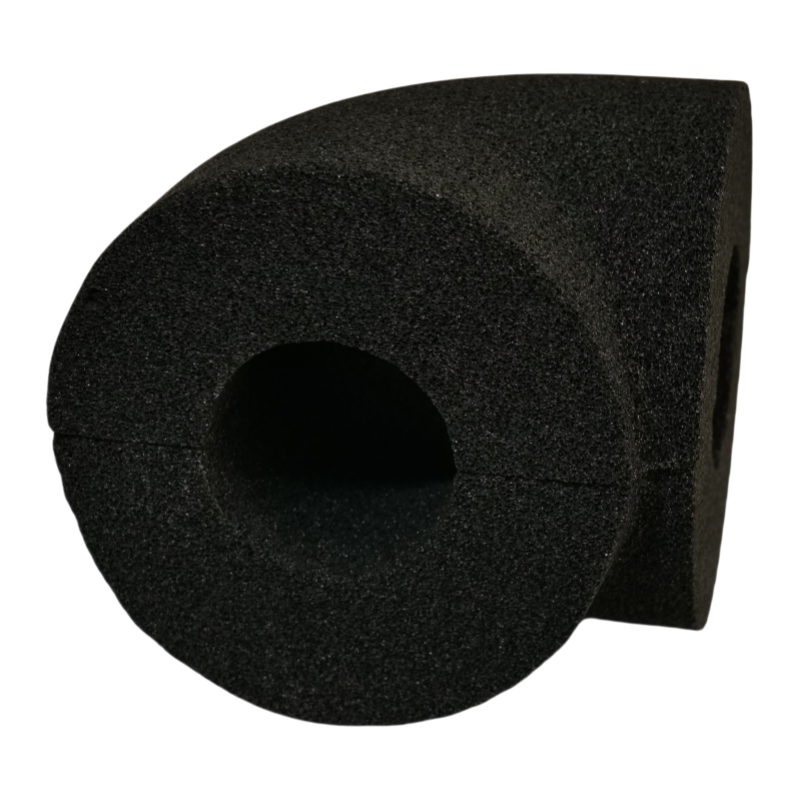

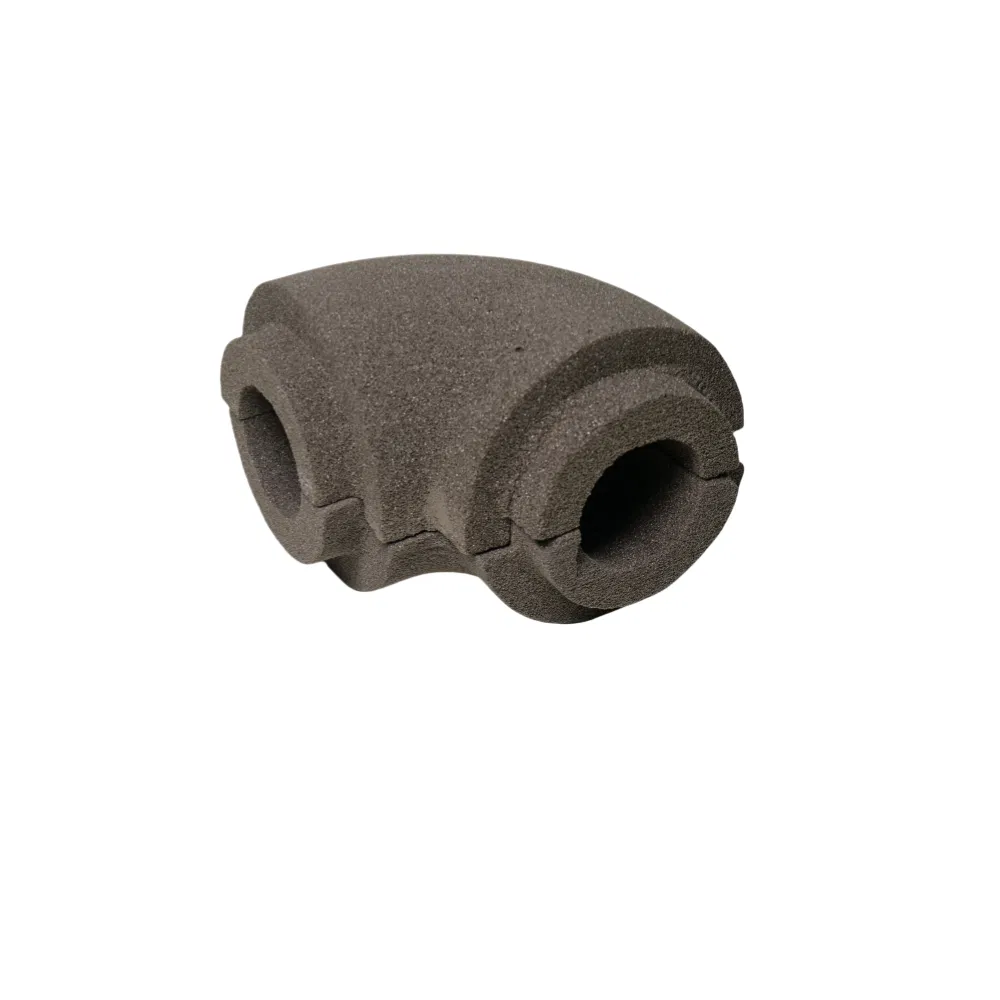

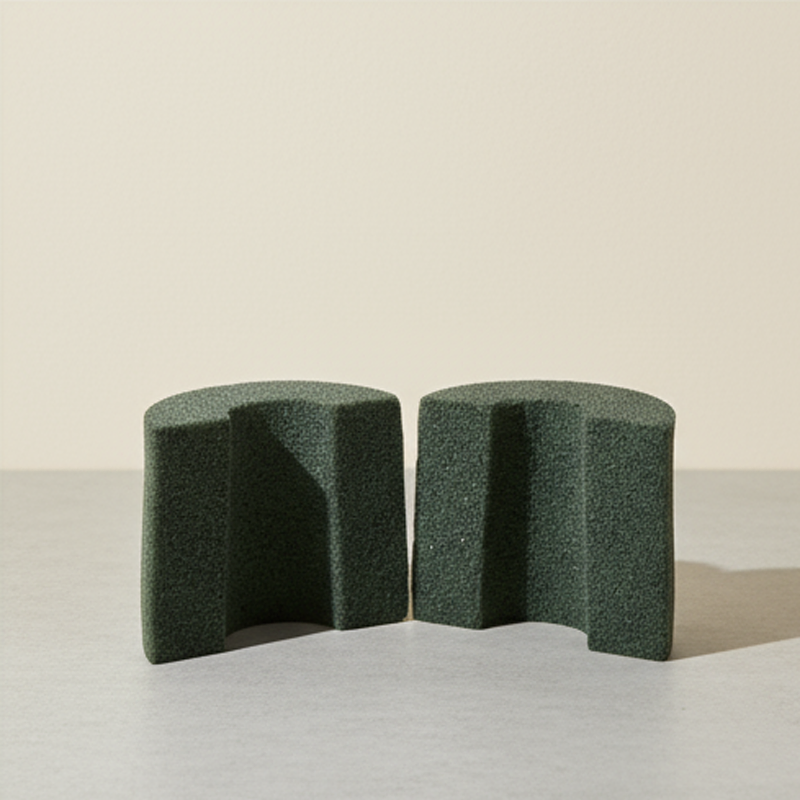

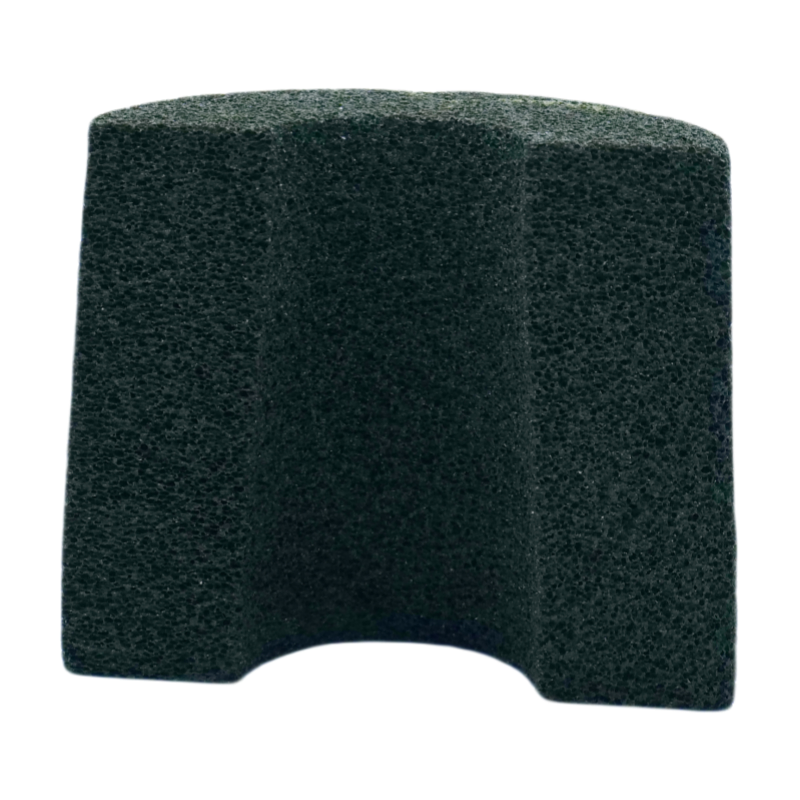

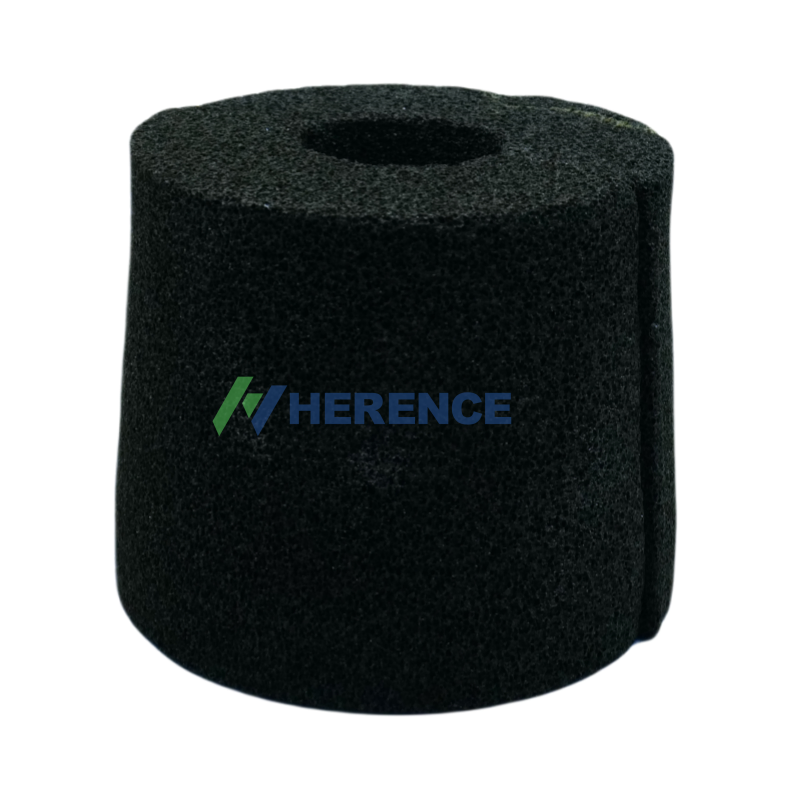

Custom Insulation Foam Glass for Enhanced Thermal Efficiency Performance

Customization: Available
Application: Cold insulation, Fireproof insulation, Heat insulation
Cell Size: 2 mm

Product Description

Basic Information
Model NO.
7150
Color
Black
Compressive Strength
4 MPa / 890 Kpa
Density
150 kg/m³
Environmental Grade
Low VOC, Non-toxic, Recyclable
Sheet Size
800 mm x 800 mm
Thermal Conductivity
0.04 - 0.042 W/(m.K)
Thickness
60 mm
Max Temperature
480℃
Flame Rating
Class A
Water Absorption
< 0.5%
Close Area
99%
📋 Product Description
Insulation Foam Glass

Foam glass is a sophisticated inorganic material designed for superior thermal insulation, flame retardancy, and sound absorption. Manufactured from pure glass, it undergoes a high-temperature foaming process in tunnel kilns, resulting in a stable cell structure.

Stability: Excellent chemical stability, corrosion resistance, and UV resistance.
Durability: Resists decomposition at high temperatures and maintains integrity at low temperatures; weatherproof and aging-resistant.
Versatility: High mechanical strength, easy to process and cut into custom shapes for petrochemical, power, and defense industries.

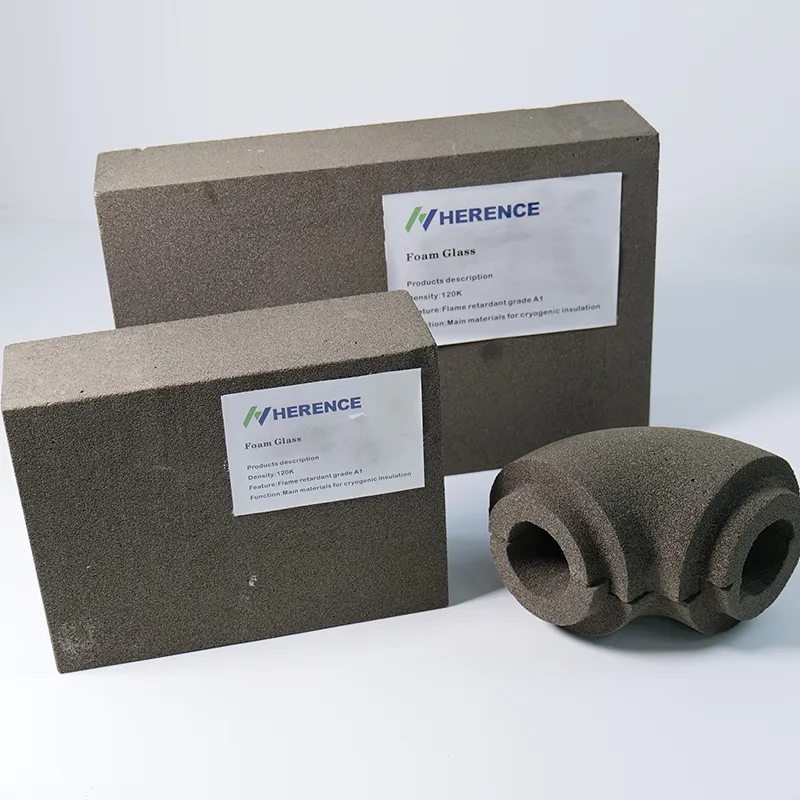

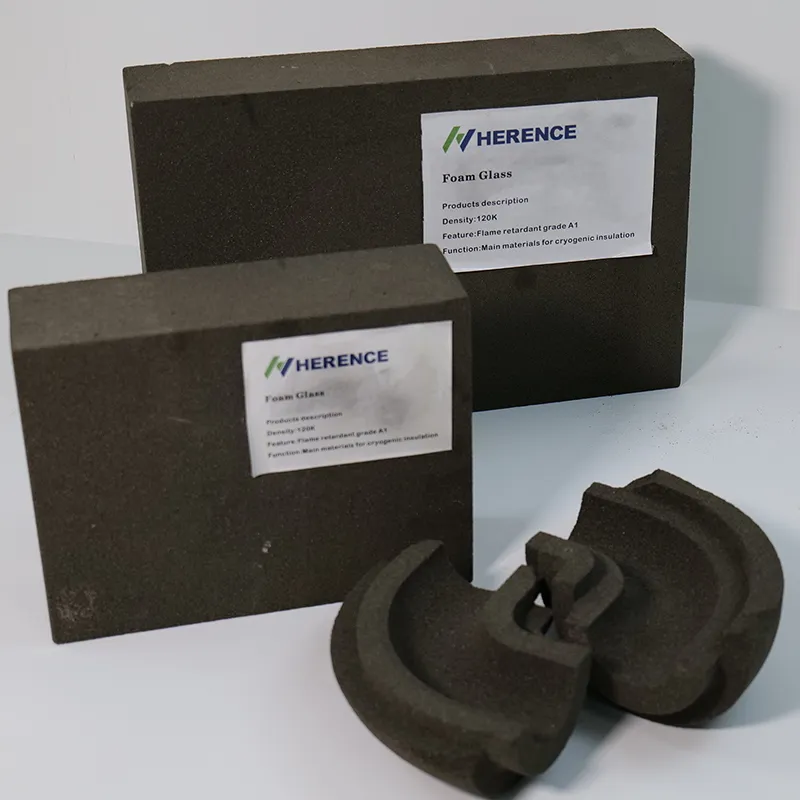

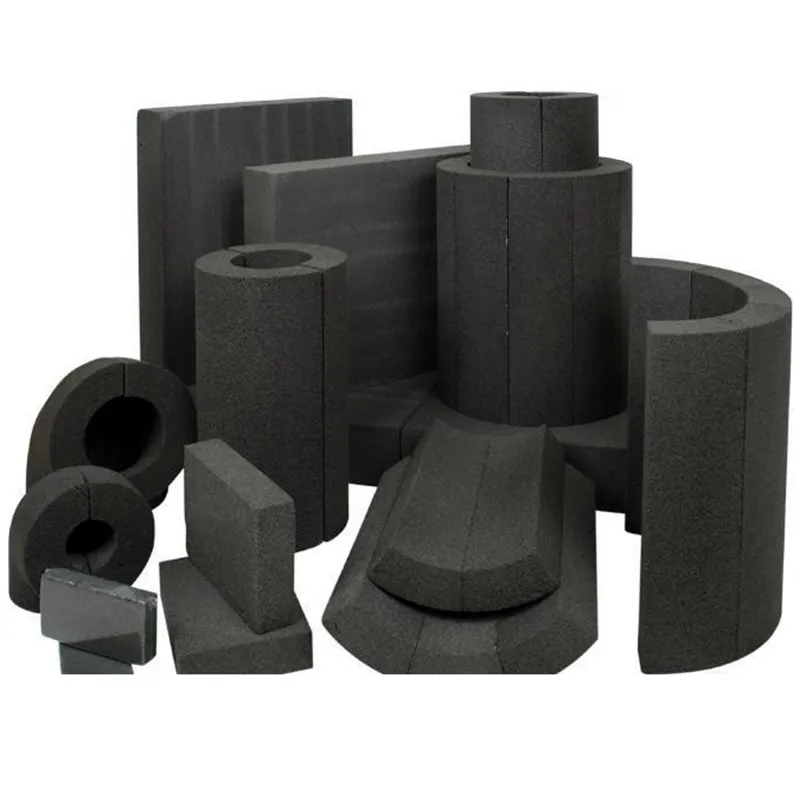

Foam Glass Detail 1 Foam Glass Detail 2 Foam Glass Detail 3
📷 Product Display

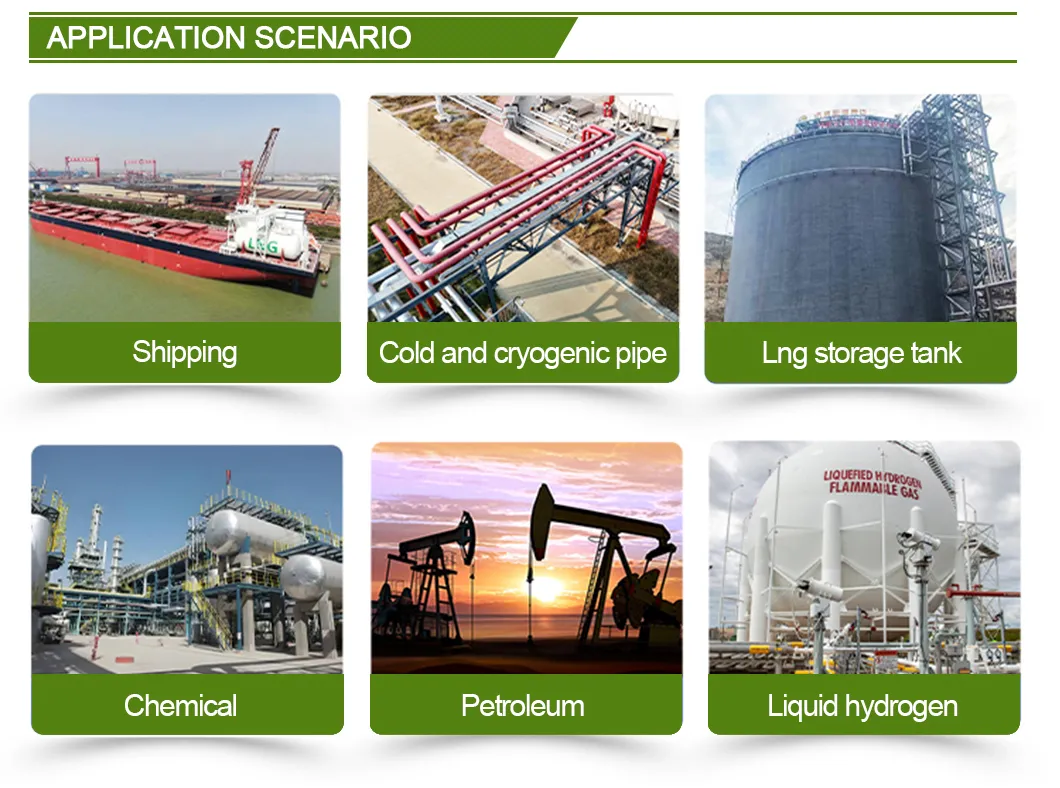

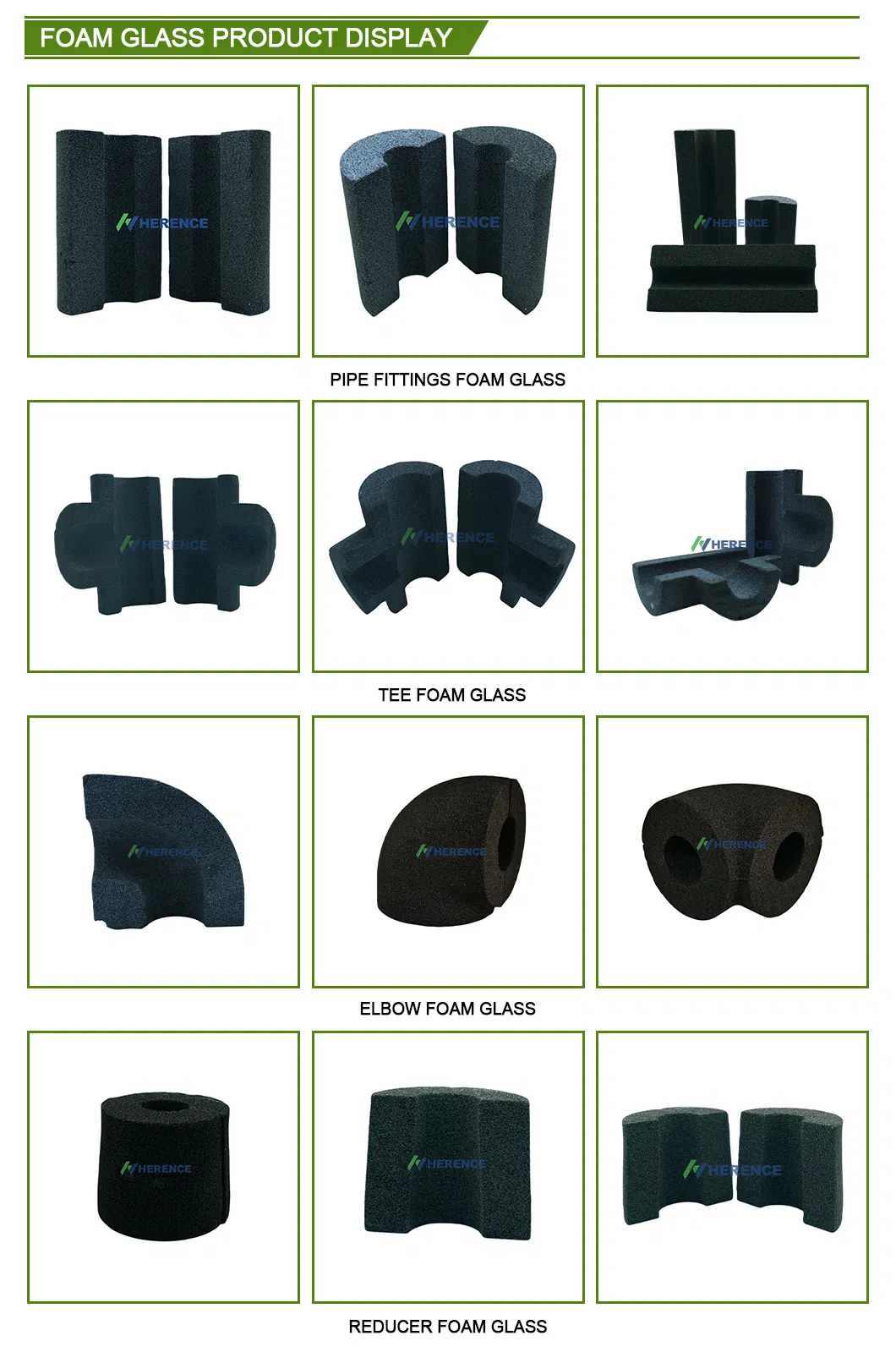

Product Display 1 Product Display 2
Production Process

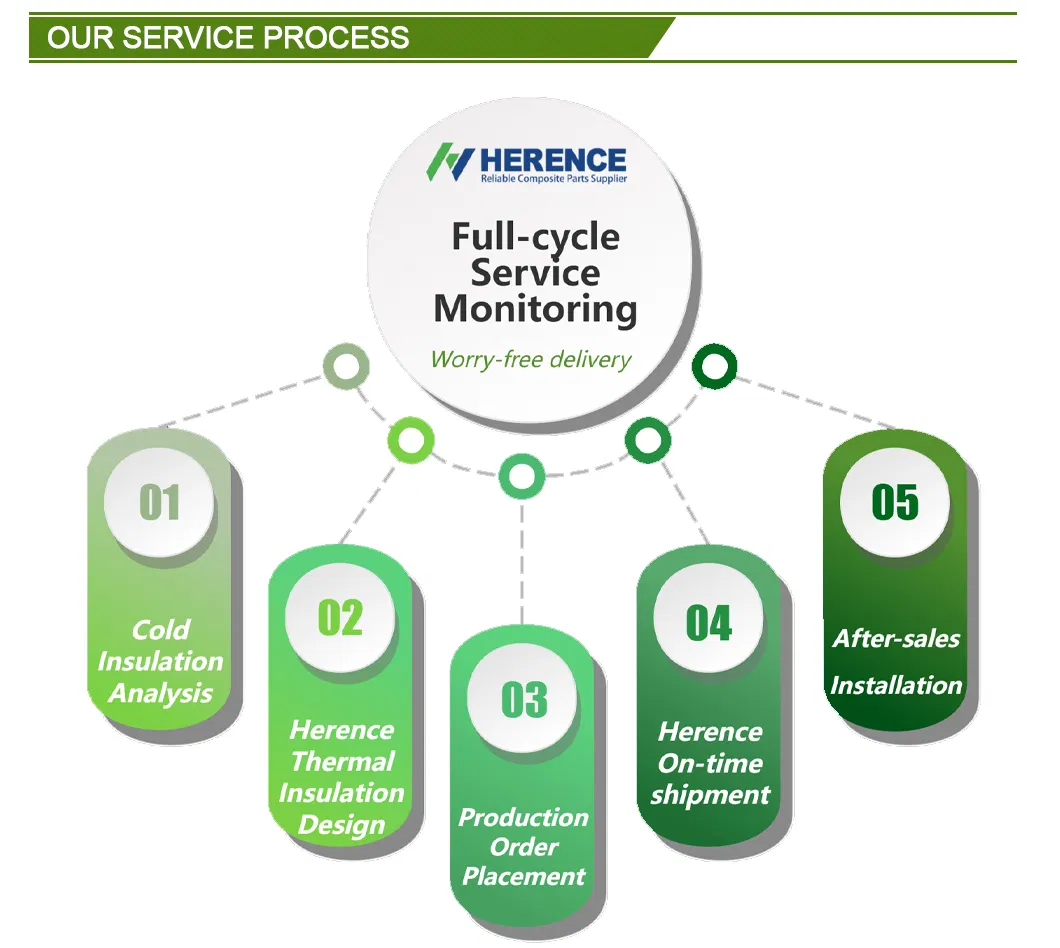

Manufacturing Process

Our production follows rigorous standards, utilizing advanced foamed and composite molding technologies to ensure every component meets ASTM C591 and CINI standards. We specialize in providing cryogenic and ultra-cryogenic insulation solutions for complex industrial applications.

🏭 Professional Expertise

We are an R&D-driven manufacturer dedicated to the global promotion of advanced foamed and composite molded components. Since 2017, we have specialized in cryogenic insulation and lightweight-application solutions.

Our core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite parts, and foam-glass components. Our solutions serve city-gas operators, petrochemical contractors, air-separation plants, nuclear power facilities, and LNG pipelines worldwide.

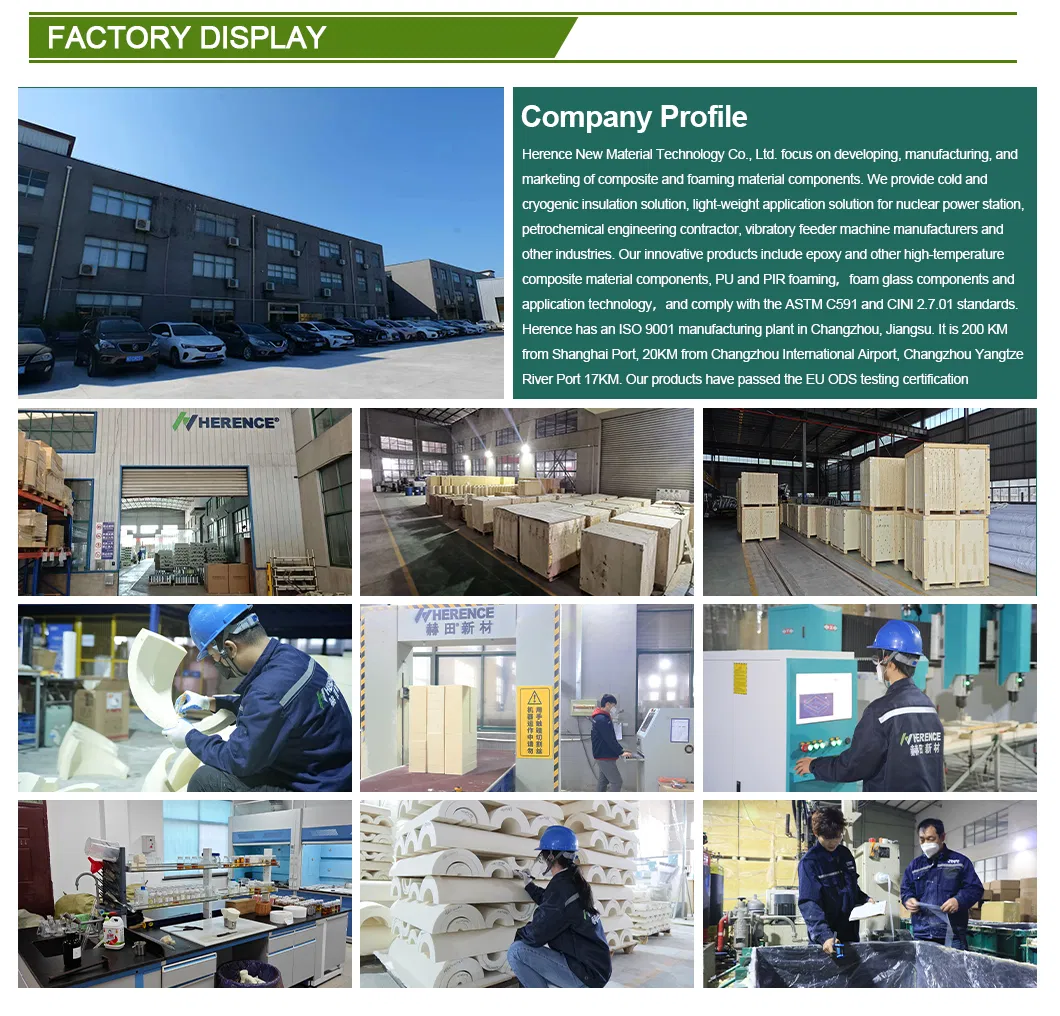

Facility Overview
🎖 Advantages & Certifications

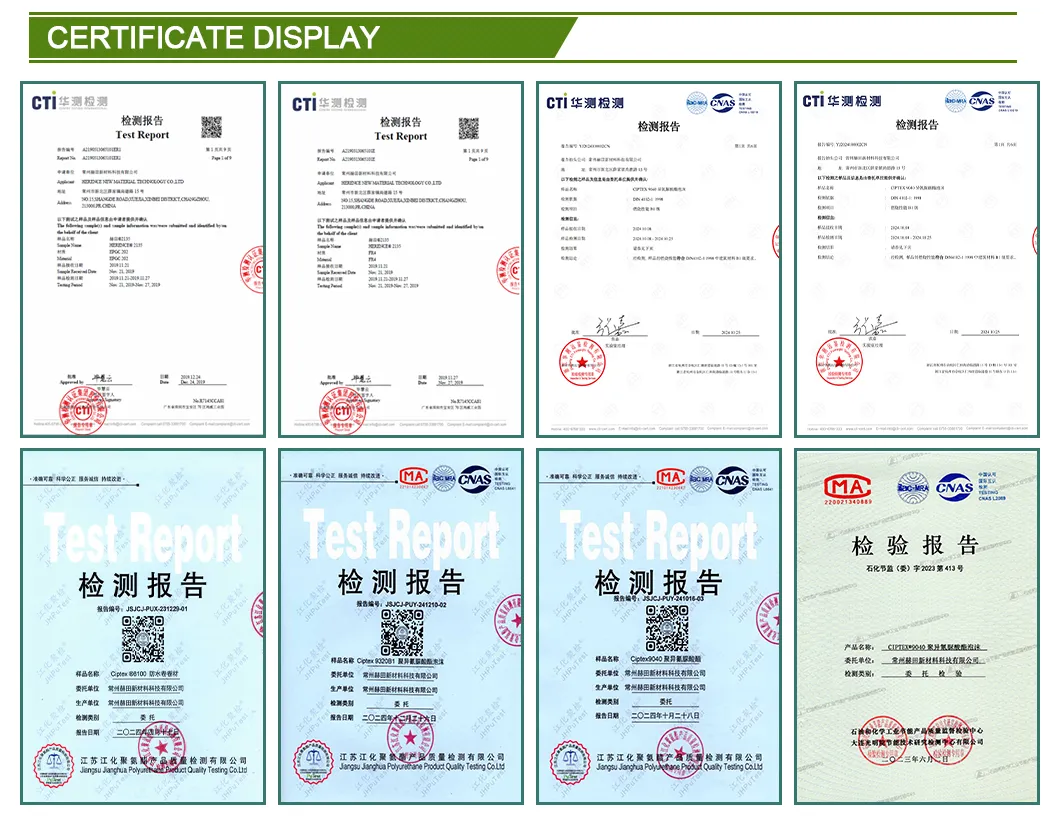

Key Advantages Certificates
📦 Packaging & Shipping
Package Size
100cm * 100cm * 100cm
Gross Weight
120.00kg
Lead Time
10-30 Days (depending on quantity)
Shipping Logistics
Frequently Asked Questions
1. What are the primary benefits of using foam glass insulation?
Foam glass is non-combustible (Class A), has zero water permeability, and offers high compressive strength. It is chemically resistant and maintains its thermal properties for decades.
2. Can you provide custom sizes and shapes?
Yes, we have a professional design team and high-precision cutting equipment to produce foam glass in sheets, pipes, or custom molded shapes according to your technical drawings.
3. What is the typical lead time for an order?
Standard lead times range from 15 to 30 days after the receipt of advance payment, depending on the order volume and customization requirements.
4. Is foam glass environmentally friendly?
Yes, it is a recyclable material, non-toxic, and has low VOC emissions, making it an ideal choice for green building and industrial projects.
5. How is the product protected during international shipping?
We use specialized anti-collision wraps and reinforced packaging boxes. Every shipment is inspected before departure to ensure it arrives in perfect condition.
6. Are samples available for testing?
Yes, we can provide free samples for quality verification. Freight costs can be negotiated and are typically refunded upon the confirmation of a formal order.
