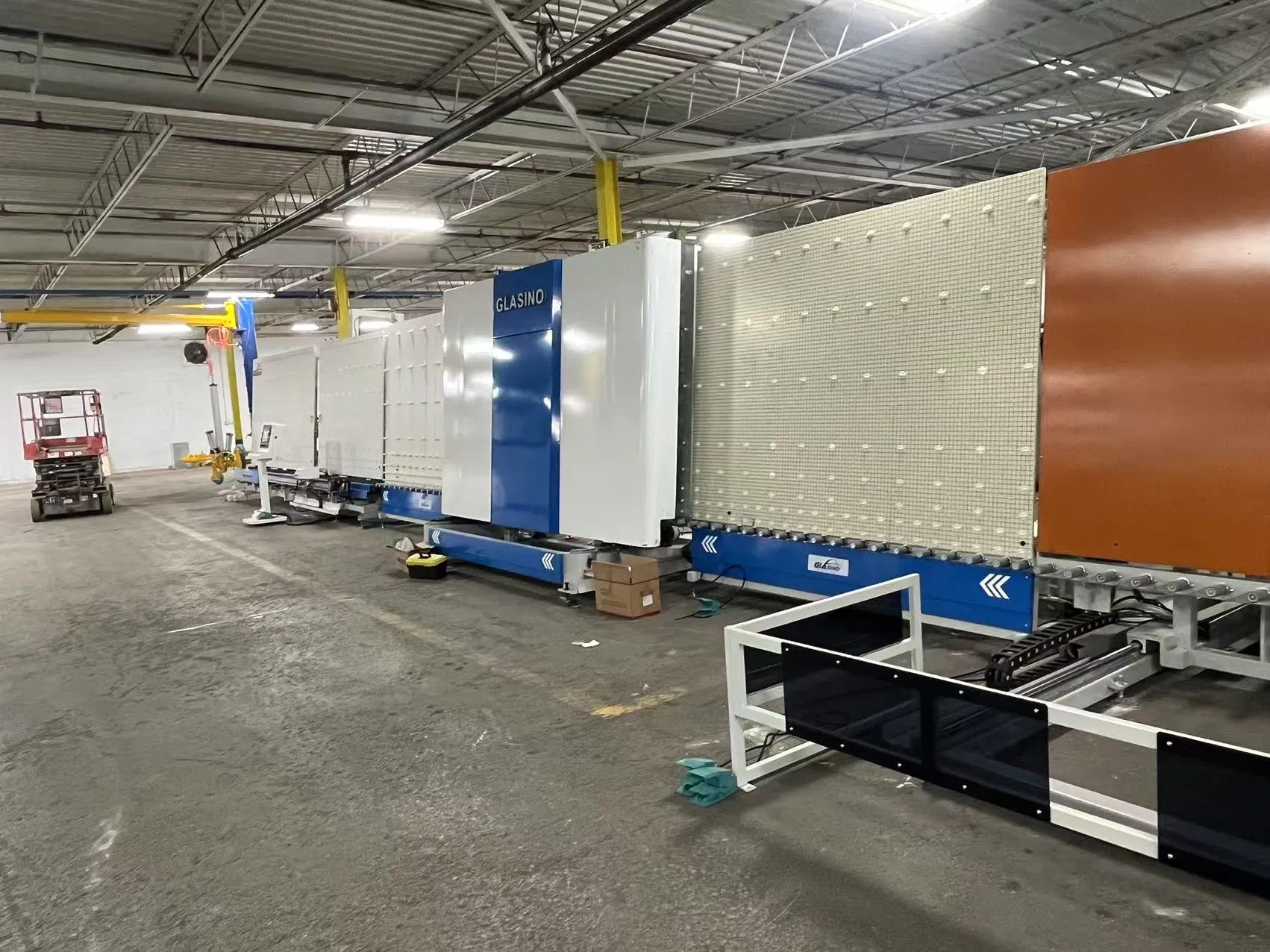

Customized Commercial Automatic Vertical Super Spacer Insulated Glass Production Line with Roll Press and Washing Machine for Low-E Insulating Glass

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Basic Specifications

Model NO.

GSSU2025

Type

Insulating Glass Production Line

Structure

Vertical

Condition

New

Warranty

1 Year

After-Sales

1 Year

Transport

Sea Worthy Package

Capacity

30 Sets/Month

Product Description

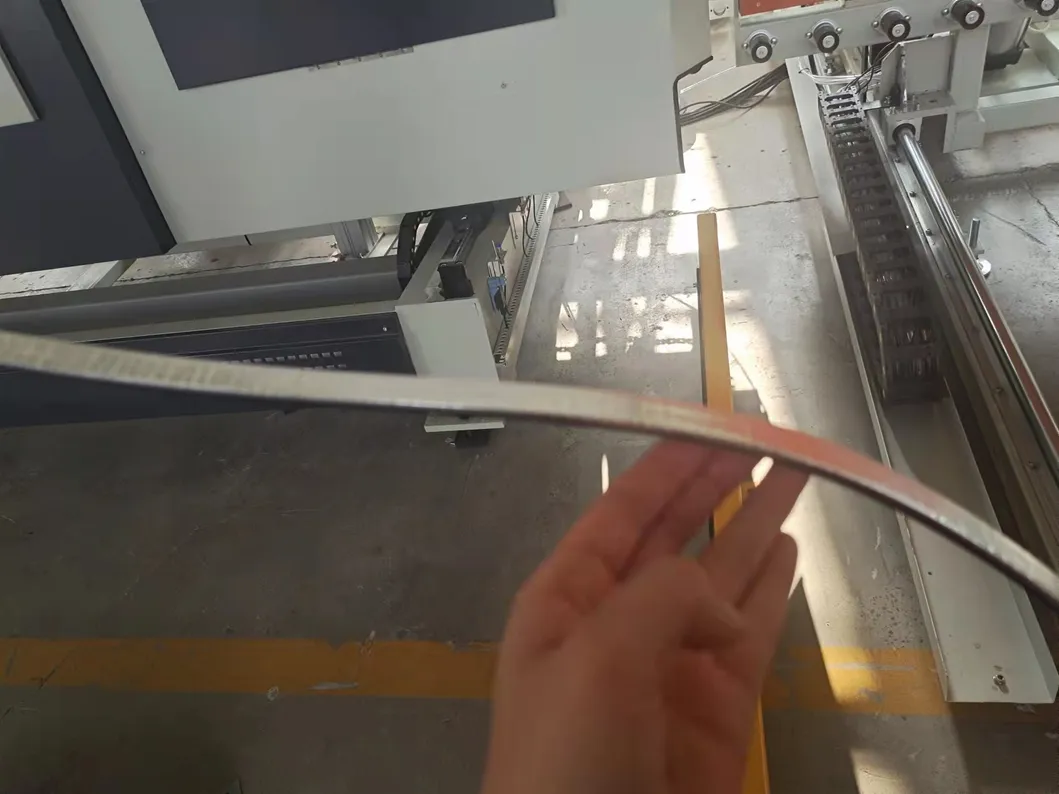

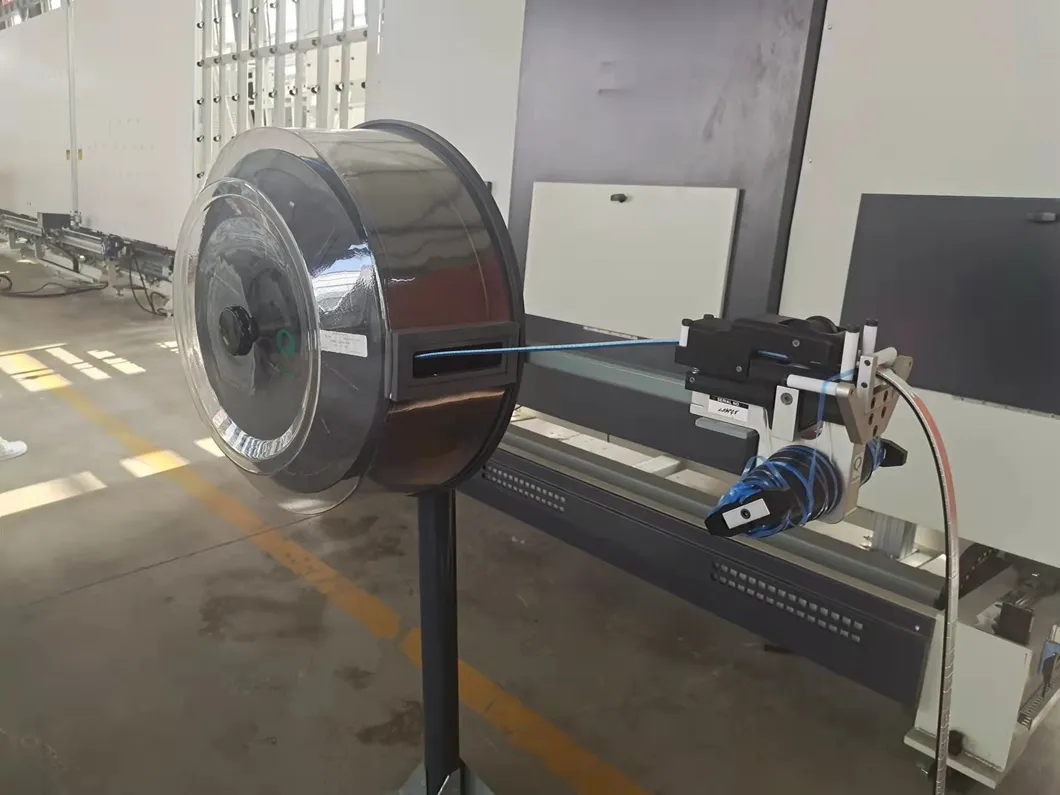

INSULATING GLASS PRODUCTION LINE WITH SUPER SPACER

⚙️

Product Features:

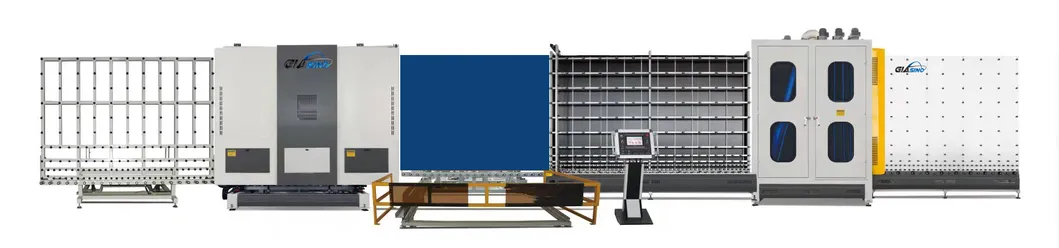

The ZK2500A vertical insulating glass production line handles glass washing & drying, aluminum spacer positioning, IGU automatic assembly, panel pressing, and output conveying. It offers high efficiency, reliable performance, and easy maintenance.

1) Reliable touch screen with easy operation; system parameters can be modified at any time.

2) Working status of sensors and motors is displayed on the touch screen for easy malfunction identification.

3) Dual operation modes: Automatic and Manual. Each section can be controlled separately in manual mode.

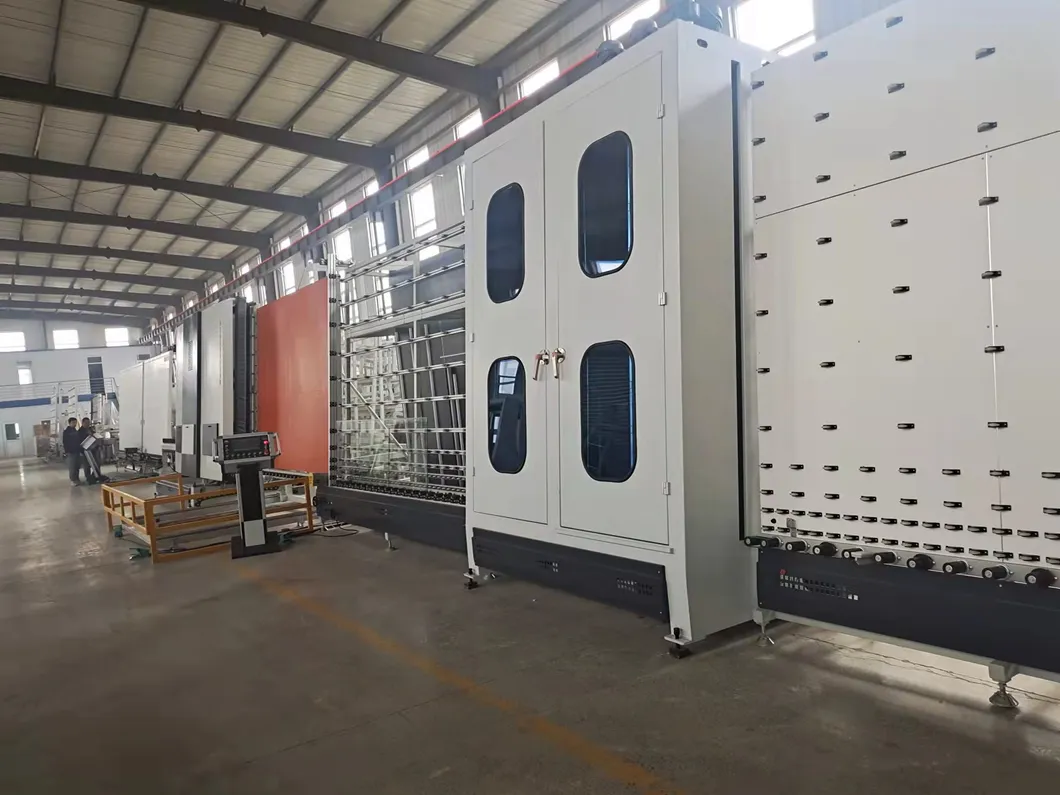

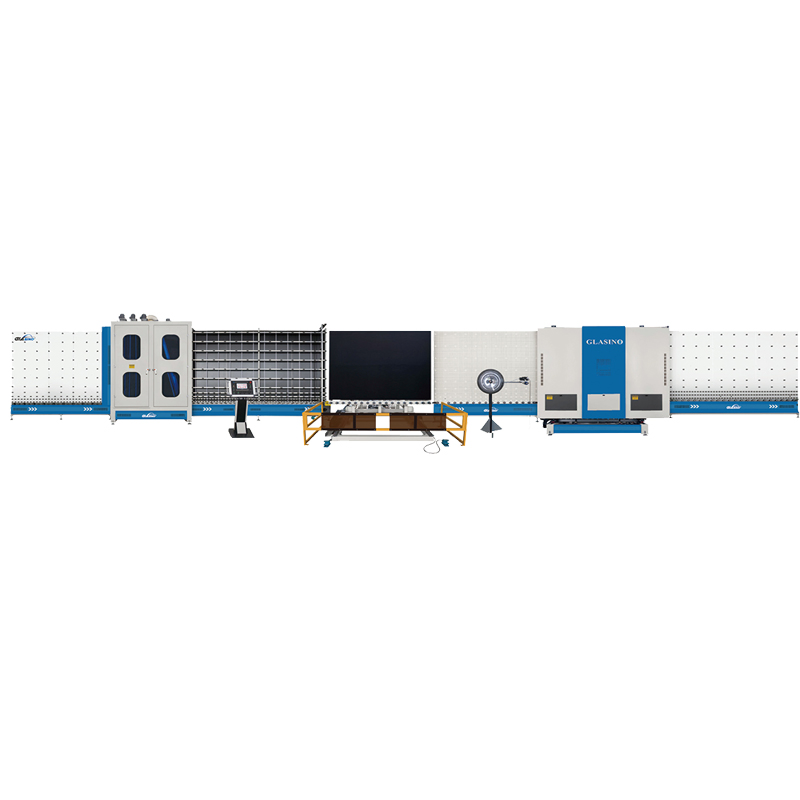

4) Includes 7 core sections: Input conveyor, washing and drying, storage station, light inspection & spacer assembly, outside assembly, panel pressing, and output conveyor.

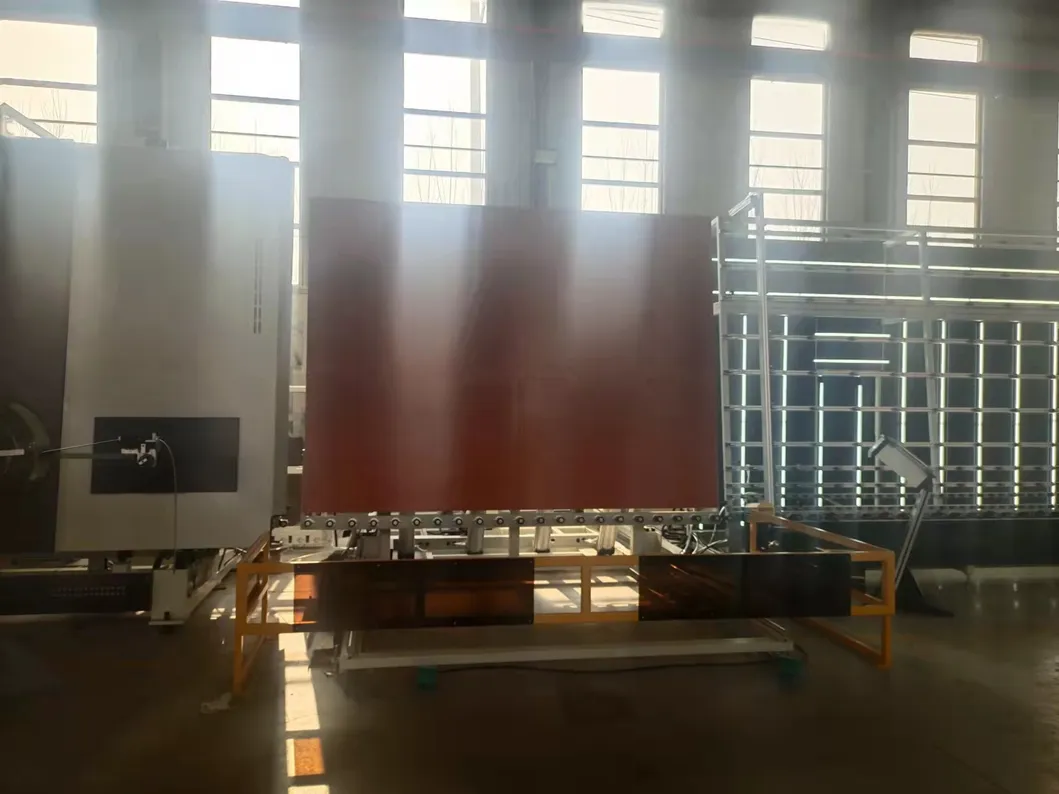

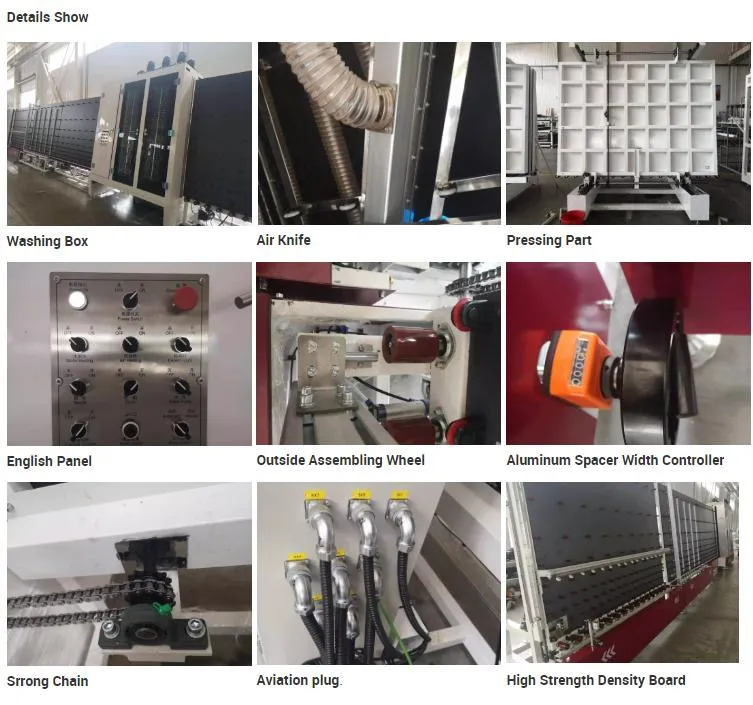

Detailed Photos

Technical Parameters

Max. Glass Size	2500 * 3500mm	Total Power	40KW - 45KW
Min. Glass Size	300 * 500mm	Working Speed	2-45m/min
Single Glass Thickness	3-16mm	Washing Speed	2-15m/min
IGU Total Thickness	12-80mm	Dimensions	Approx. 2480025003400mm

💡

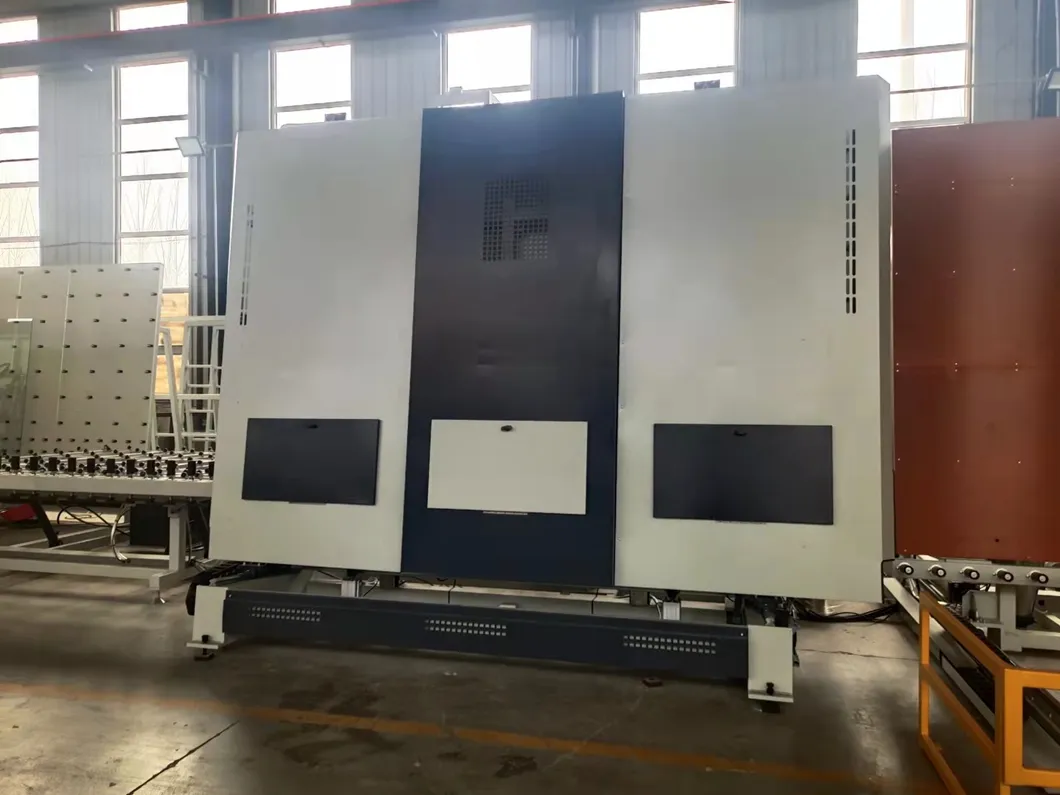

The 06 Section - Plate Pressing:
Servo motor controlled synchronous belt pressing with linear guide rails and ball screws. Realizes automatic pressing and thickness measurement without manual input. Parallel pressing is guaranteed for various insulating glass sizes.

Control System: German Siemens PLC and digital input control system.

Interface: Human-machine touch screen for convenient manual/auto switching.

Connection: Aviation plug method for strong anti-interference and easy maintenance.

Frequently Asked Questions

What is the maximum glass size this production line can process?

The production line can process a maximum glass size of 2500mm * 3500mm.

Does the machine support Low-E glass processing?

Yes, the washing and processing sections are designed to be compatible with Low-E insulating glass.

What control system is used for the ZK2500A?

The equipment is controlled by a high-performance German Siemens PLC and a digital input control system.

How is the glass thickness measured during the pressing stage?

The plate pressing section features a built-in thickness measurement function that allows for automatic pressing without manual input of the glass thickness.

What is the warranty period for this equipment?

The production line comes with a 1-year warranty and 1-year after-sales service support.

Can the machine operate in manual mode?

Yes, it features both automatic and manual operation modes. Each section can be controlled separately in manual mode for maintenance and specific tasks.
