Dgu Facade Glass Automatic Sealing Robot for Insulating Glass Processing Double System Use for Two Different Rubber

1 / 5

Dgu Facade Glass Automatic Sealing Robot for Insulating Glass Processing Double System Use for Two Different Rubber

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

Basic Information

Model NO.

ZNJ2537

Customized

Glass Thickness

3-19 mm

Type

Insulating Glass Production Line

Structure

Vertical

Warranty

1 Year

After-Sales Service

1 Year

Transport Package

Sea Worthy Package

Specification

3500kg

Origin

Jinan

Production Capacity

30 sets/Month

Product Description

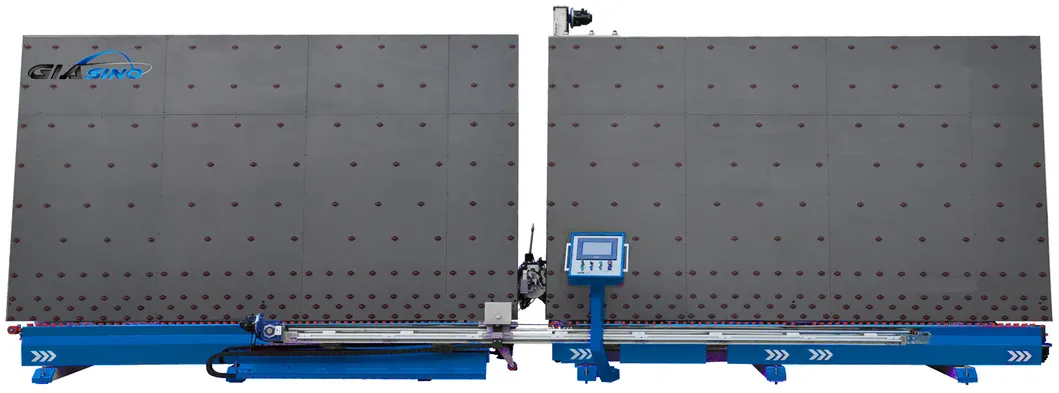

Automatic Insulating Glass Sealing Robot

◈Controlled by Japan Yaskawa servo control system.

◈Use dual system A rubber plunger pump and B rubber plunger pump and hydraulic proportional pump. One key switch system function for different sealants.

◈Quickly switch in the sealant-like. Convenient and fast, improve work efficiency.

◈Touch screen interface for manual operation and fault diagnosis.

◈Two sets of mixer cleaning systems, easy to maintain.

◈Suitable for rectangular and square hollow glass processing.

◈Special sealant depth detection device automatically controls the amount of sealant applied.

◈Hydraulic sealant supply and proportioning system provides stable output and precise A/B component ratios.

◈Automatic sealant discharge function to avoid pipeline blockage.

Technical Parameters

Max. glass size	2500*3500mm	Coating speed	5-40m/min
Coating depth	3-18mm	Power	11Kw
Alu spacer width	6-27mm	Air pressure	1Mpa

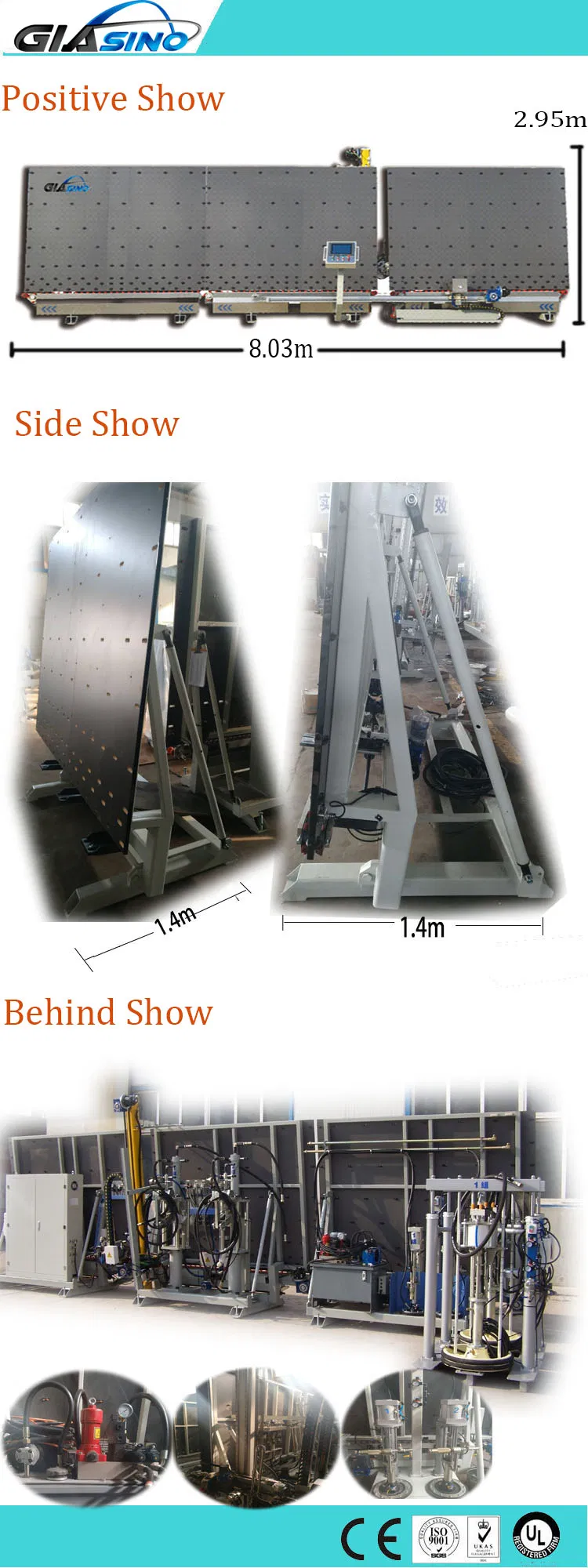

Conveying Speed	5-50m/min	Overall dimension	830030003400mm

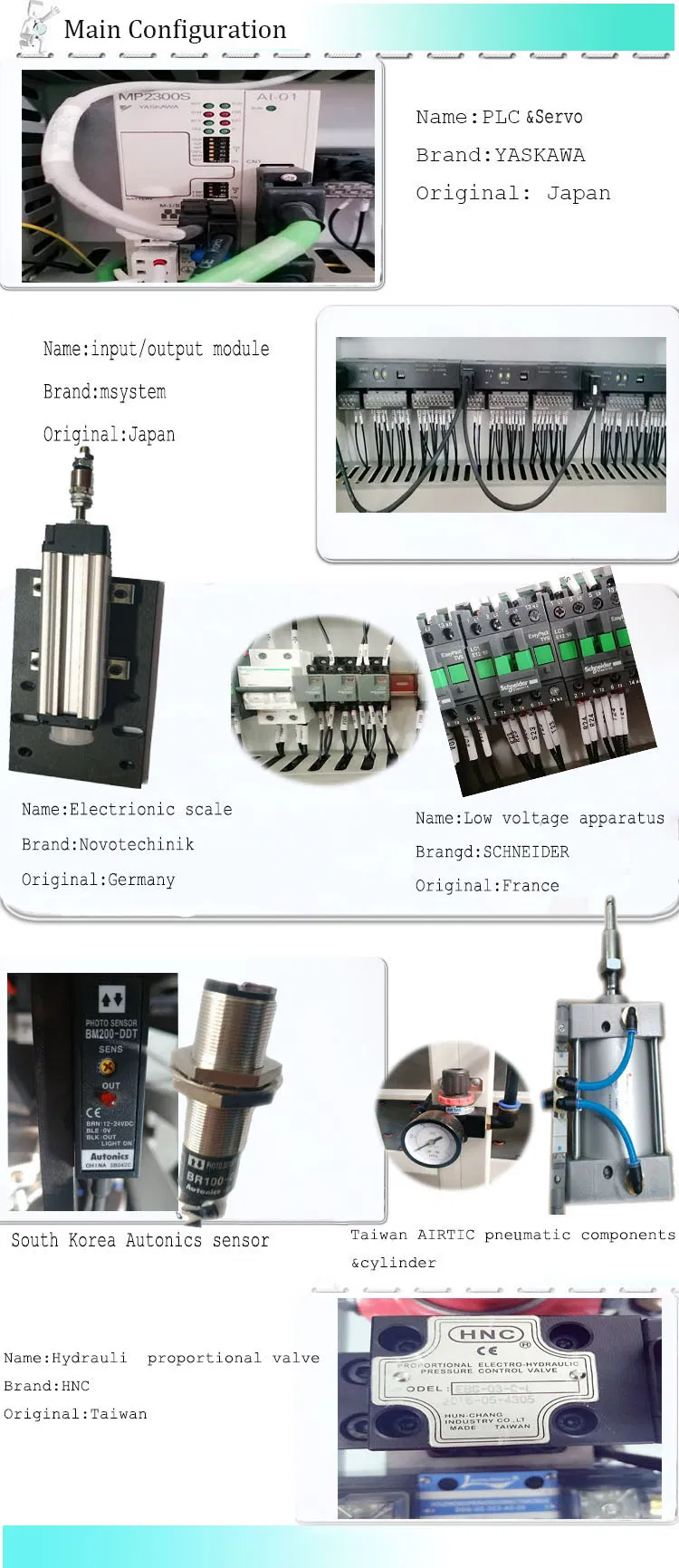

Main Spare Parts Brand

NO	Name	Brand	Country
1	Motion Controller	YASKAWA	Japan
2	Touch screen	PANELMASTER	Taiwan
3	Frequency converter	YASKAWA	Japan
4	AC contactor	SCHNEIDER	France
5	Intermediate relay	SCHNEIDER	France
6	Breaker	SCHNEIDER	France
7	Air cylinder	SMC	Japan
8	Intermediate relay	Weidmuller	Germany
9	Photoelectric switch	AUTONIC	South Korea
10	Solenoid	AIRTAC	Taiwan
11	Servo motor	YASKAWA	Japan
12	Low-voltage electrics	SCHNEIDER	France

Frequently Asked Questions

What is the maximum glass size this sealing robot can process?

The ZNJ2537 model can handle a maximum glass size of 2500*3500mm.

Which control system is used in this equipment?

The machine is powered by a high-precision Japan Yaskawa servo control system for stable and accurate operation.

Does the machine support multiple types of sealant?

Yes, it features a dual system for A and B rubber plunger pumps, allowing users to switch between two different types of rubber quickly with one key.

What types of glass shapes can be processed?

This automatic sealing robot is designed to process both rectangular and square hollow insulating glass.

How is the sealant depth accuracy maintained?

The machine includes a special sealant depth detection device that automatically monitors and controls the amount of sealant applied for a perfect finish.

What is the warranty and after-sales support period?

The product comes with a 1-year warranty and 1-year of after-sales service support.
