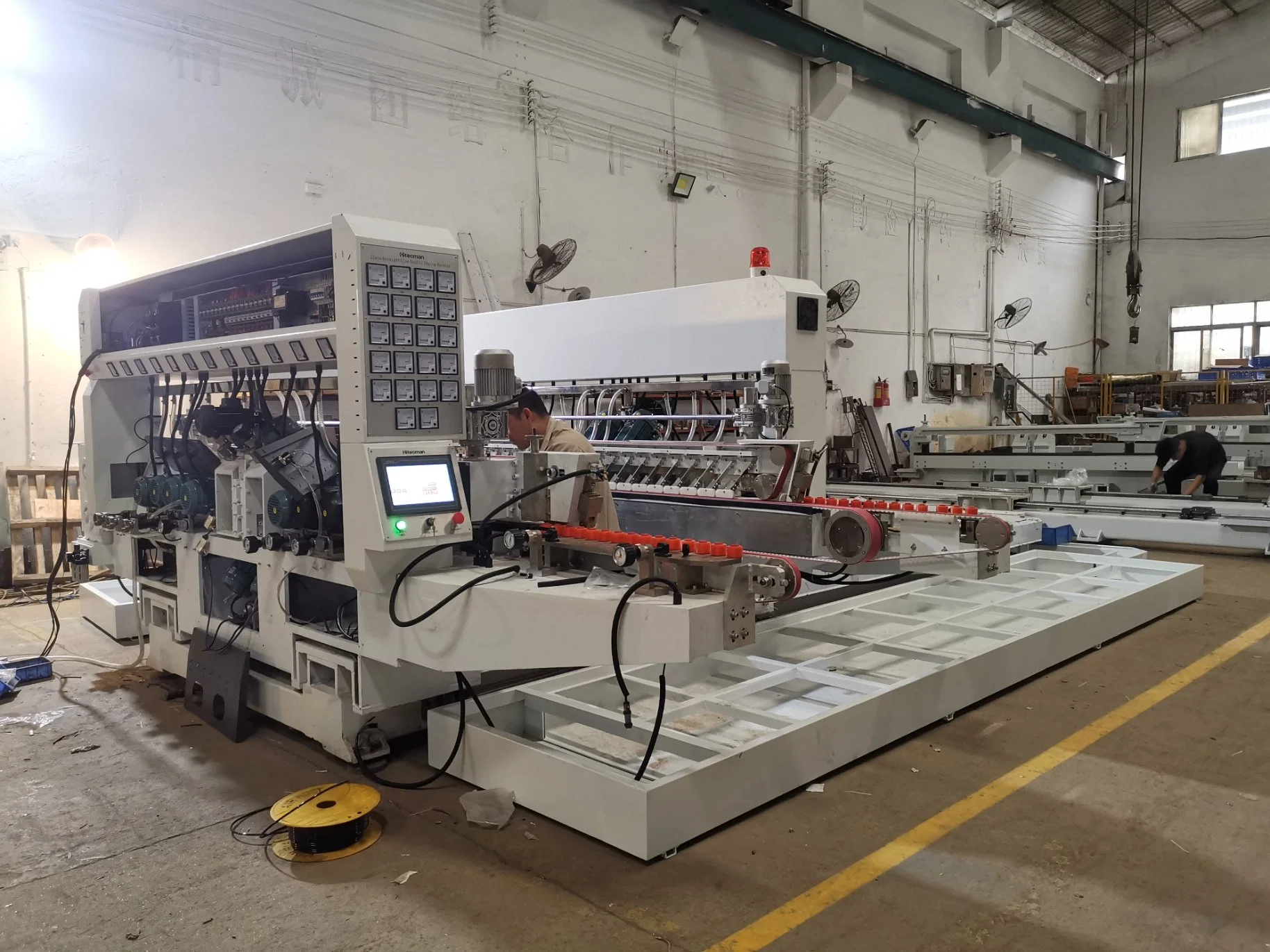

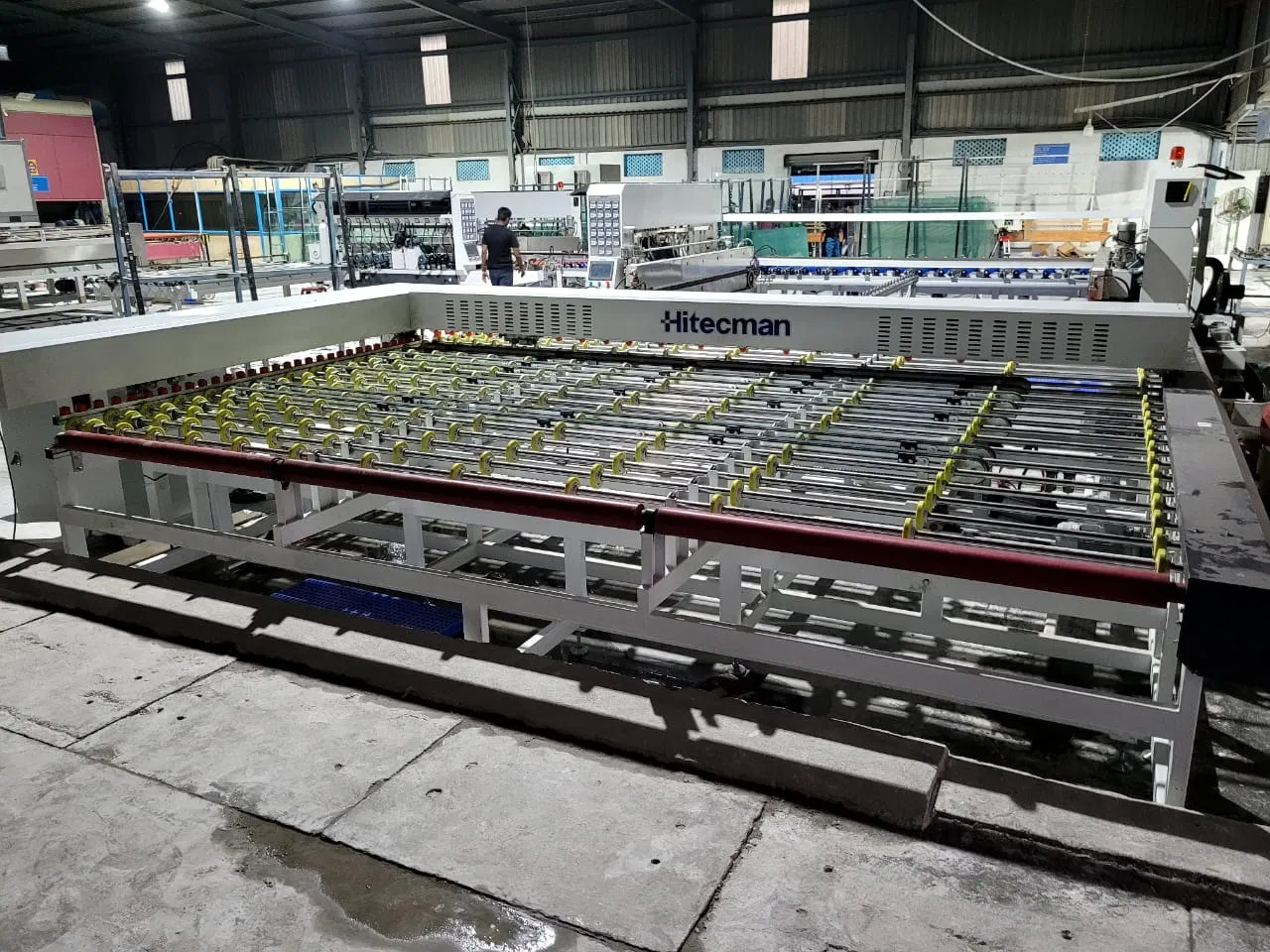

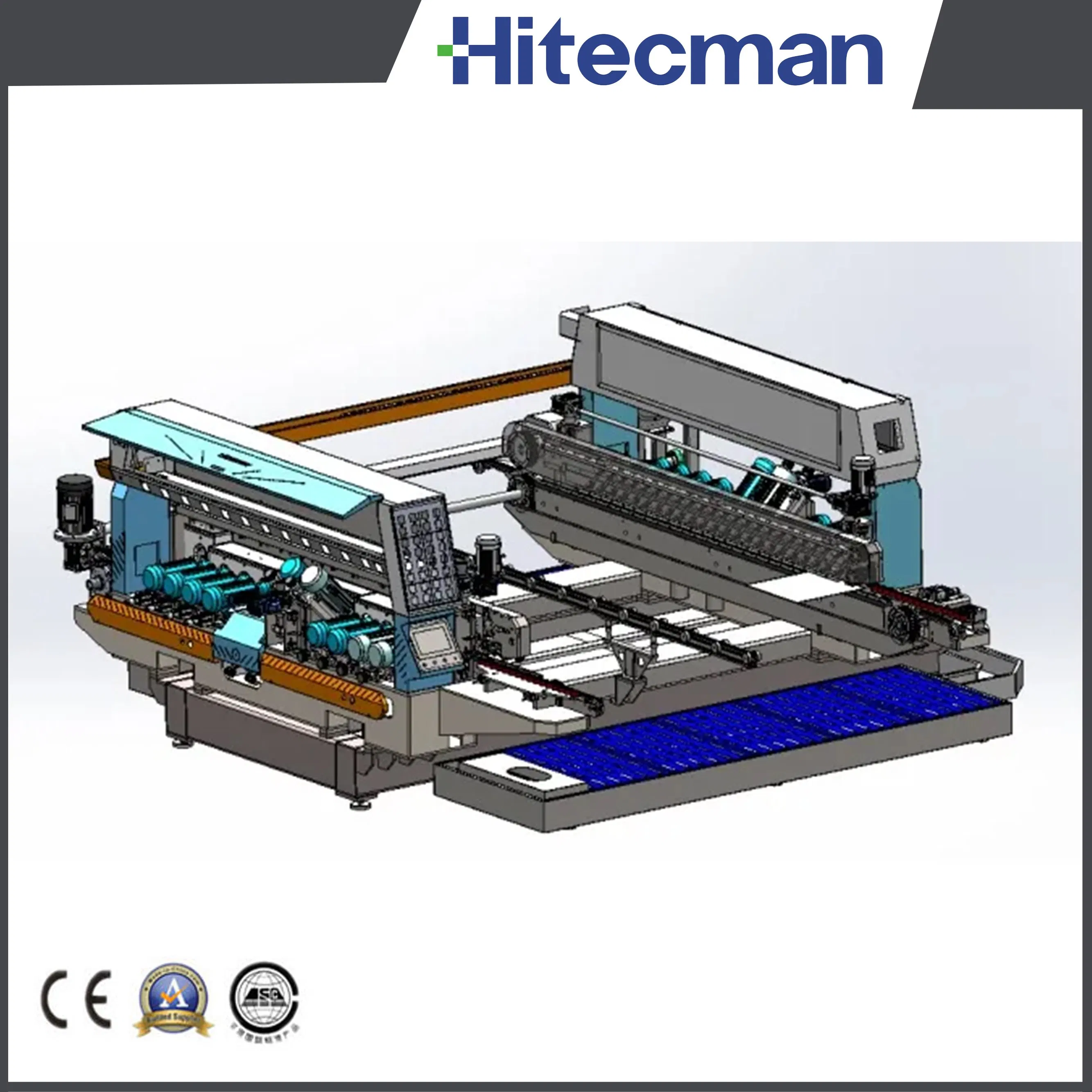

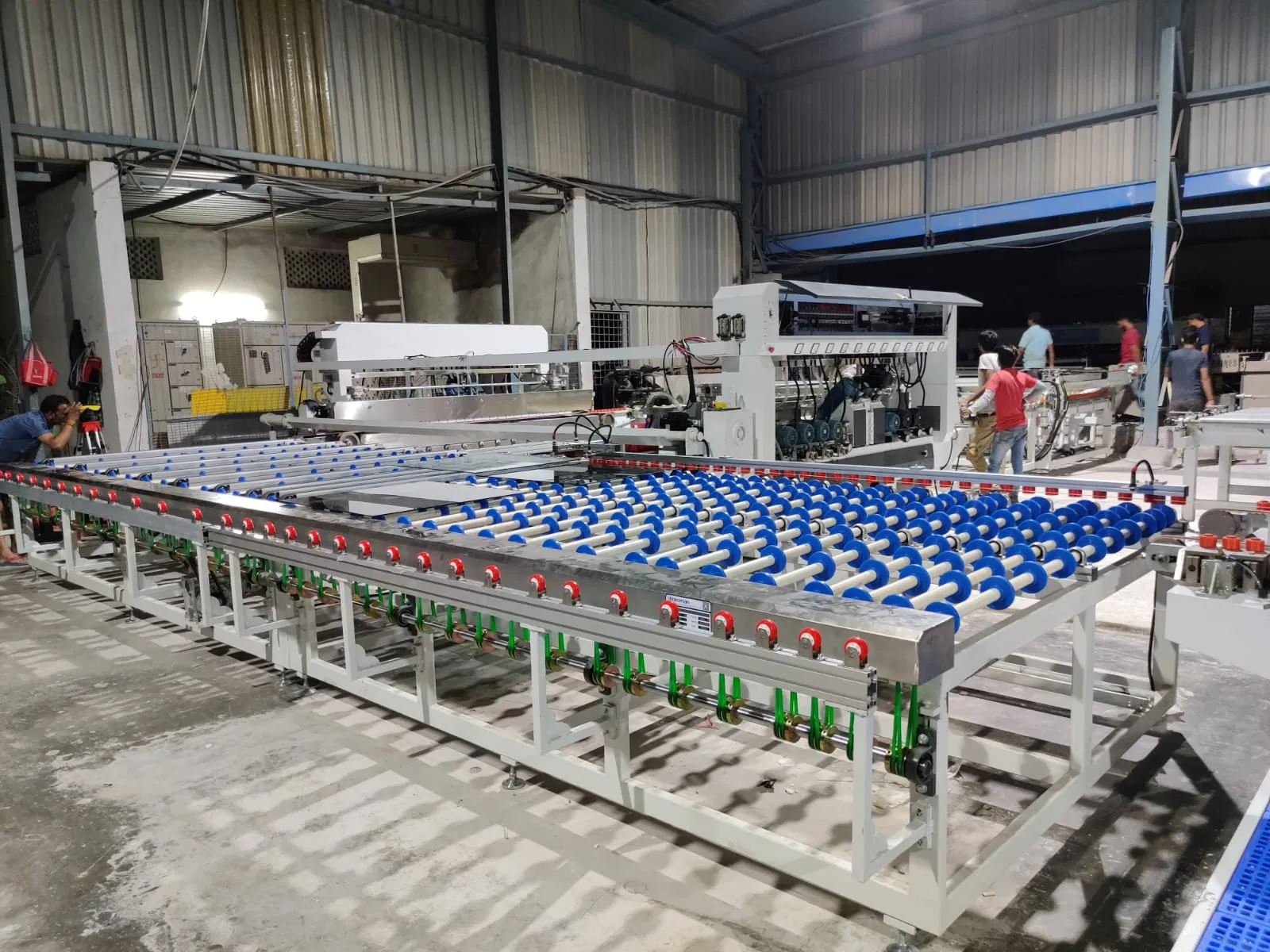

Double Edging Machine for Stone, Marble, Ceramic, Glass

Certification:	CE, ISO
Voltage:	Optional
Warranty:	24 Months

i

Basic Specifications

Model NO.

HEM2042

Glass Thickness

3-20mm

Feature

Strong & Smart

Transmission Speed

0.6-12.0m/Min

Colour

Golden+Blue

Type

Glass Edging Machine

Control System

PLC

Grinding Heads

20

After-Sales Service

24 Months

HS Code

8464201000

Package Size

500cm * 200cm * 200cm

Gross Weight

4000.00kg

★

Machine Features

01

Suitable for processing furniture glass, architecture glass, and home appliance glass. Rough grinding, fine grinding, and polishing are finished automatically in one travel.

02

Equipped with mechanical stepless speed regulator, PLC controller, and Human-Machine Interfaces for easy parameter setting and operation.

03

High efficiency, rigidity, precision, and stability. Manufactured under strict standards to ensure intelligent operation.

04

Foundations welded from Q235A material with heating treatment and baking varnish surface disposal.

05

Machine covers use 201 stainless steel; floor water tanks are welded Q235A material with plastic spraying.

06

Double straight guide rails and double ball screw gapless driving for superior support and positioning.

07

Special waterproof leakage design and reasonable structure for fast and easy maintenance.

08

PLC system supports remote diagnostics and software updates to solve problems timely.

09

Adjustment controlled by servo motor for precision; glass conveyance via motor with reducer connected by rods for perfect synchronization.

⚙

Technical Specification

No.	Description	Parameters
1	Grinder Quantity	20 Pcs
2	Transmission Speed	0.5 ~ 15.0 m/min
3	Thickness of Glass	3 ~ 25 mm
4	Width of Glass	400 ~ 4200 mm
5	Parallel Tolerance	≤0.2 mm/m
6	Diagonal Tolerance	≤0.5 mm/m
7	Finished Product Rate	≥99%
8	Installed Power	~51.65 KW
9	Air Pressure	6 Mpa
10	Total Weight	~8000 Kgs
11	Overall Dimension	4700x6300x2000 mm
12	Power Supply	3P 415V+/-10%, 50Hz

▶

Exhibition & Shipping

?

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional glass processing machinery manufacturer with extensive industry experience since 2006.

What kind of after-sales service do you provide?

We offer 24-hour after-sales service with a dedicated technical team. Communication is barrier-free in fluent English to help solve problems timely.

What is the warranty period for the machine?

Our standard guarantee is for 12 months. We provide 18 hours of technical support via email or video, along with English manuals and video tutorials.

Do you provide equipment operation training?

Yes, we can dispatch professional electrical and mechanical engineers to install, adjust the machines, and train your staff on-site.

Why choose your machines over lower-priced competitors?

We are an innovative enterprise with an experienced technical team. While using top-tier components and functions, our pricing remains highly competitive with superior after-sales support.

Can the software be updated remotely?

Yes, the PLC is equipped with a remote control system, allowing our service team to update or diagnose software issues from afar.
