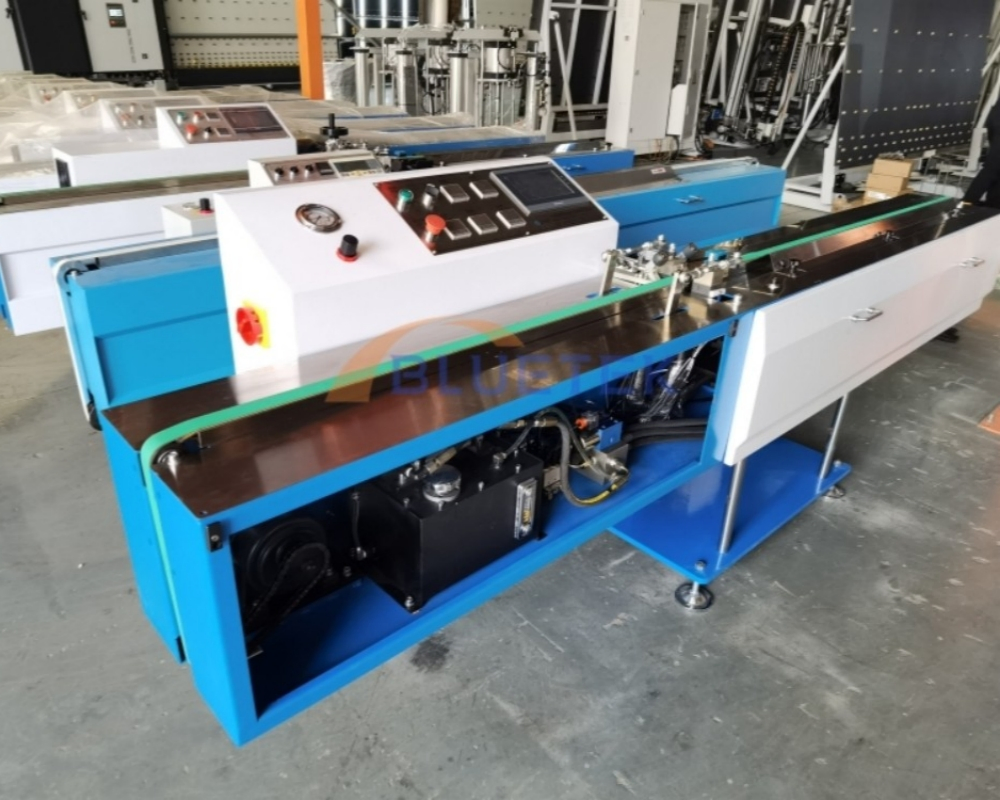

Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
1 / 5
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine
Double Glass Making Machine CNC Automatic Butyl Extruder Machine

Double Glass Making Machine CNC Automatic Butyl Extruder Machine

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Information

Model NO.DJ01
Product NameAutomatic Butyl Extruder Machine
Glass Thickness12-60 mm
Warranty18 Months
Heating Temperature120 ~ 150 ℃
Power Supply380V 50 Hz
Working Pressure0.5~0.8 MPa
Nozzle Range6-27 mm

Product Description

Double Glass Making Machine CNC Automatic Butyl Extruder Machine

This equipment is specifically designed for making double glazing glass, ensuring precise application of butyl sealant on aluminum spacers.

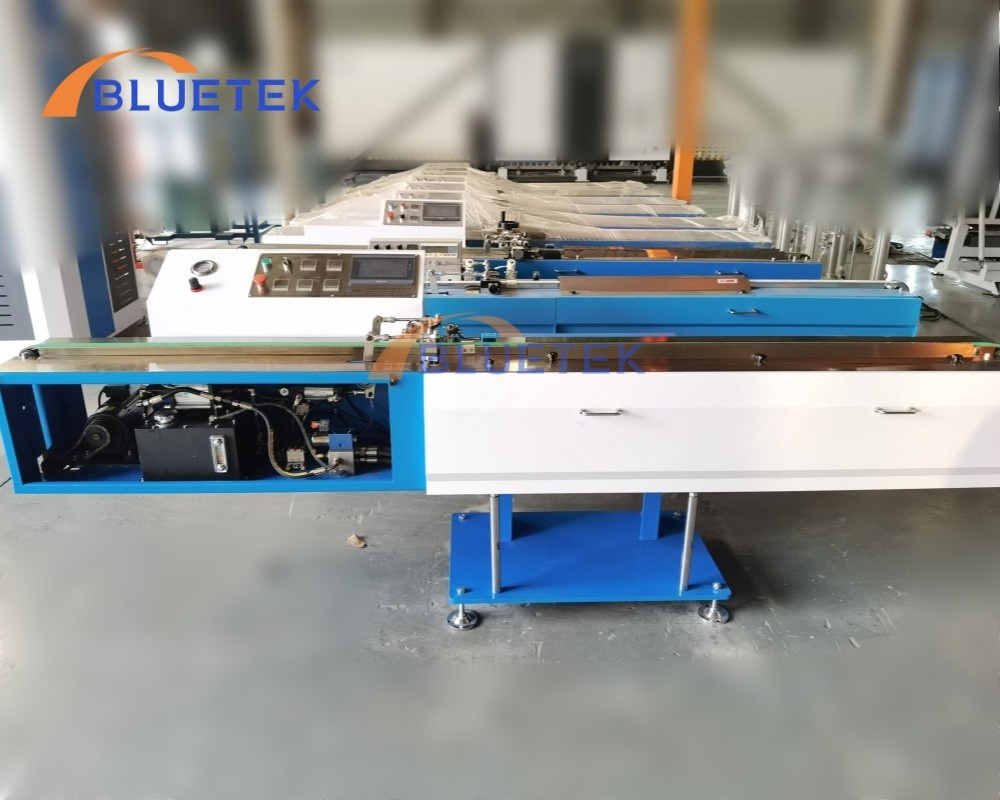

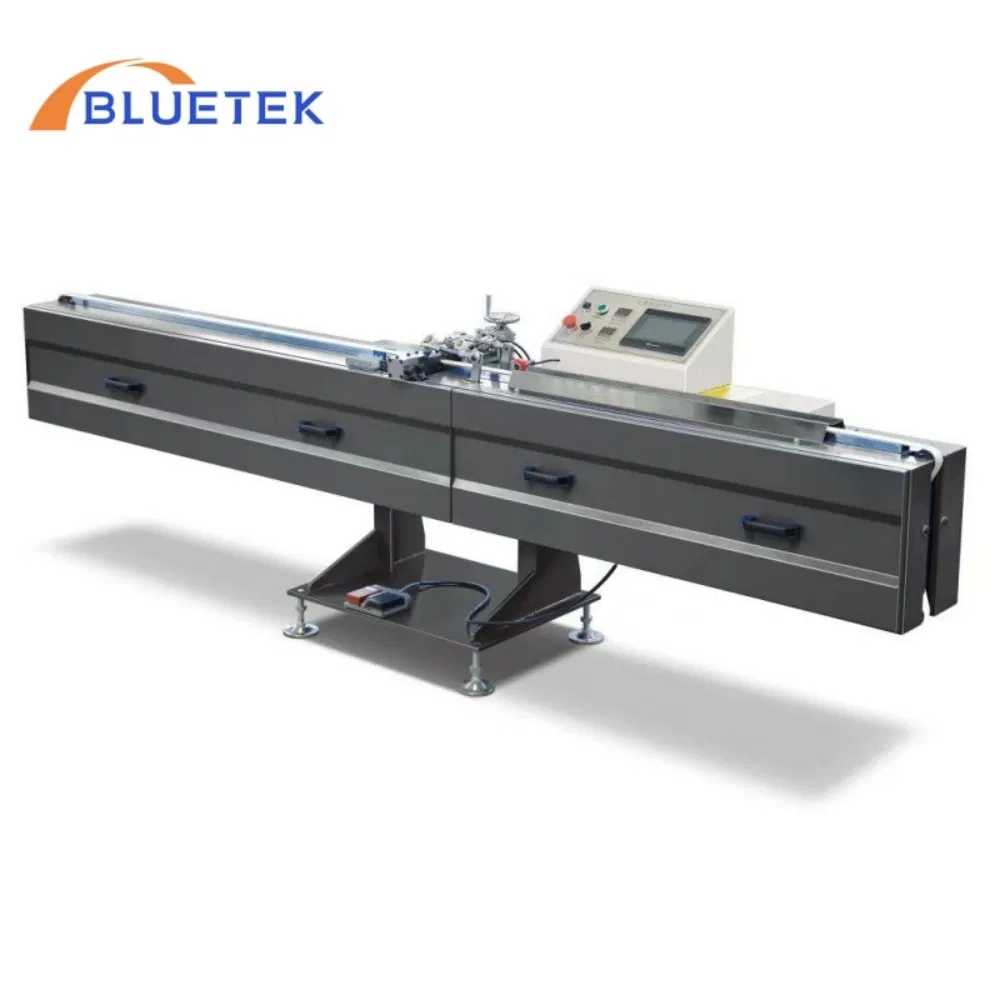

Butyl Extruder Machine Overview Automatic Butyl Extruder Details

Main Features

  • German Pneumatic System: Adopting the original German pneumatic pump system for stable pressure and energy efficiency.
  • Variable Frequency Speed: Speed range of 15-35 meters per minute with 5 optional levels.
  • Advanced Adjustment: Glue width can be adjusted arbitrarily within 6-18.5mm.
  • High Capacity: Large-size glue cylinder with a capacity of up to 14 kilograms.
  • Intelligent Systems: Automatic alarm system for low glue and built-in preheating function.

Technical Specification

Parameter Details
ModelDJ01
Input Power2.5kw
Heating Temperature110ºC ~ 140ºC
Adjustable Range of Nozzle6-27mm
Extrusion Pressure15-20Mpa
Diameter of Glue Tank195mm
Rubber Bucket Capacity14kg
Overall Size3000 * 800 * 1200 mm
Weight480 kgs

Detailed Photos

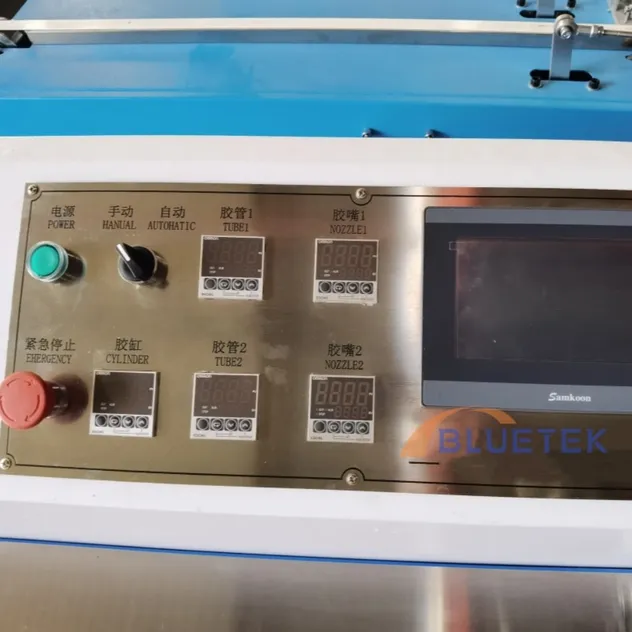

CNC Control Panel

CNC Control Panel

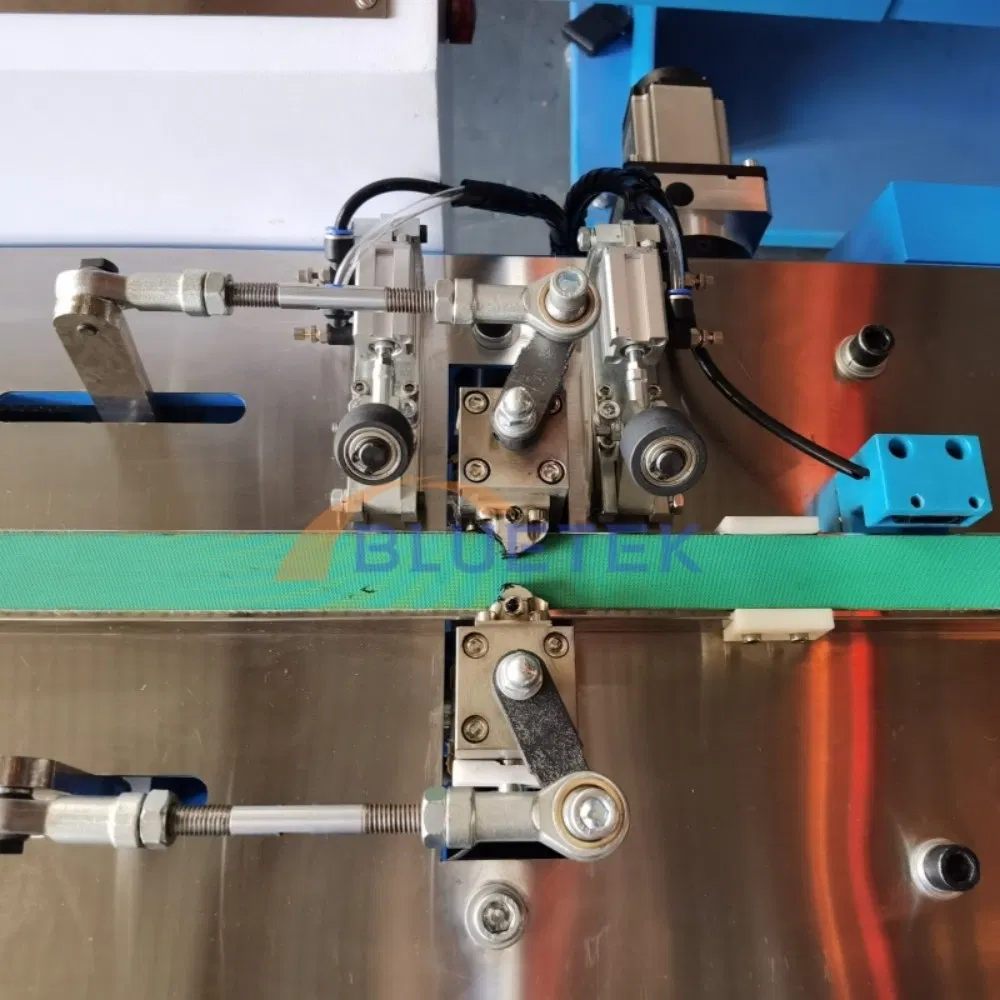

Glue Adjustment System

Advanced Glue Adjustment System (6-18.5mm)

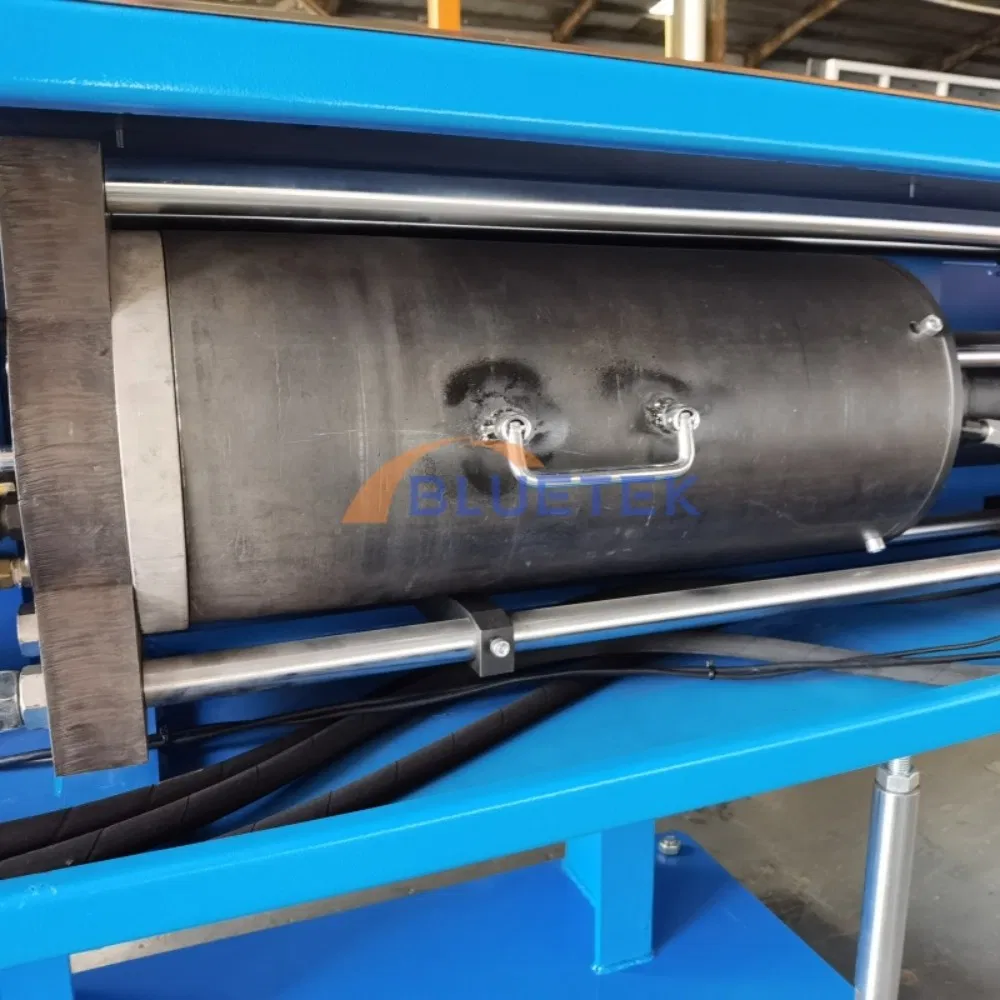

Glue Cylinder

14kg High Capacity Glue Cylinder

Packaging & Shipping

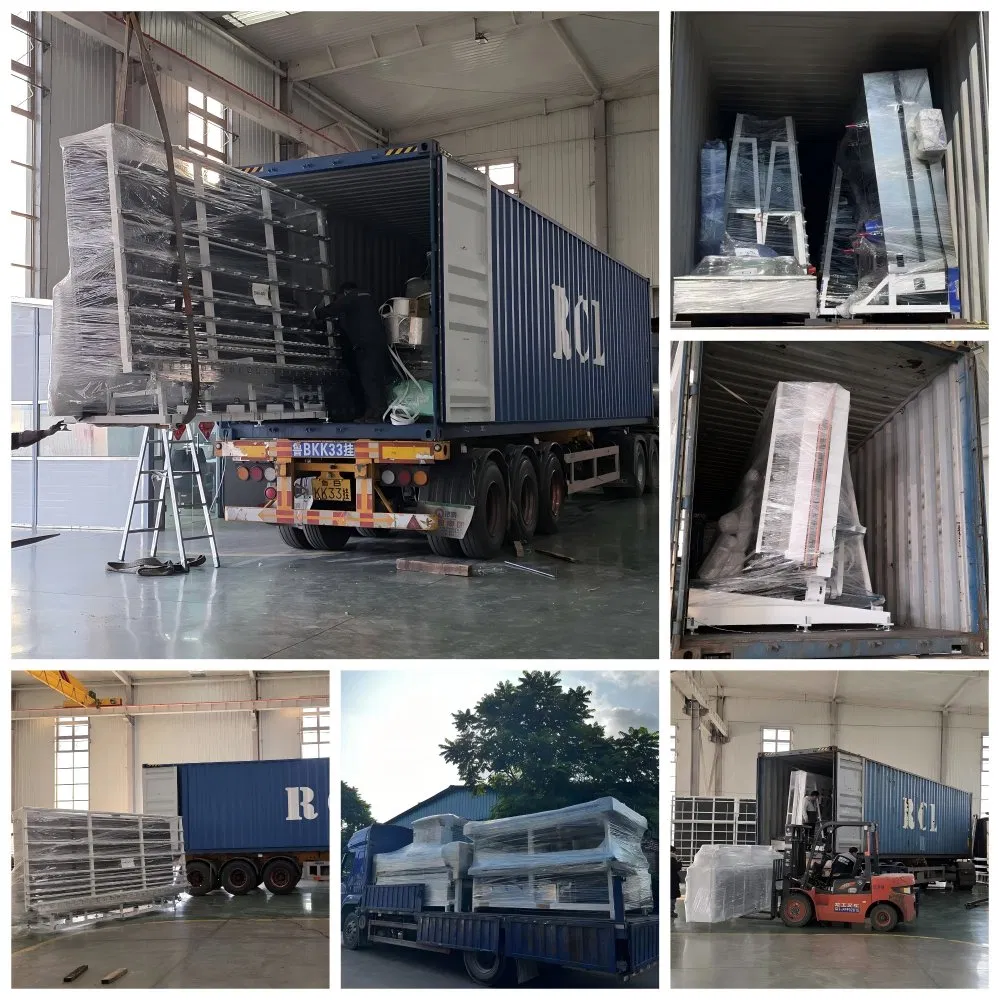

Machine Packaging
LCL (Less than Container Load): Packed in fumigation-free plywood with thickened and raised pallets, fixed with steel wire.
FCL (Full Container Load): Fixed in 20/40-foot containers with plastic film, steel wire, or special packaging tape.

Certifications & Quality Assurance

Certifications

The equipment has passed the EU CE certification and the US UL certification, meeting international safety and quality standards for export to over 50 countries.

Comprehensive After-Sales Support

  • Installation: Professional on-site installation and equipment commissioning.
  • Training: Detailed operation and maintenance training for staff.
  • Maintenance: 18-month warranty with lifelong technical support.
  • Response: Quick remote support via telephone/video and 24/7 consulting.

Related Glass Processing Solutions

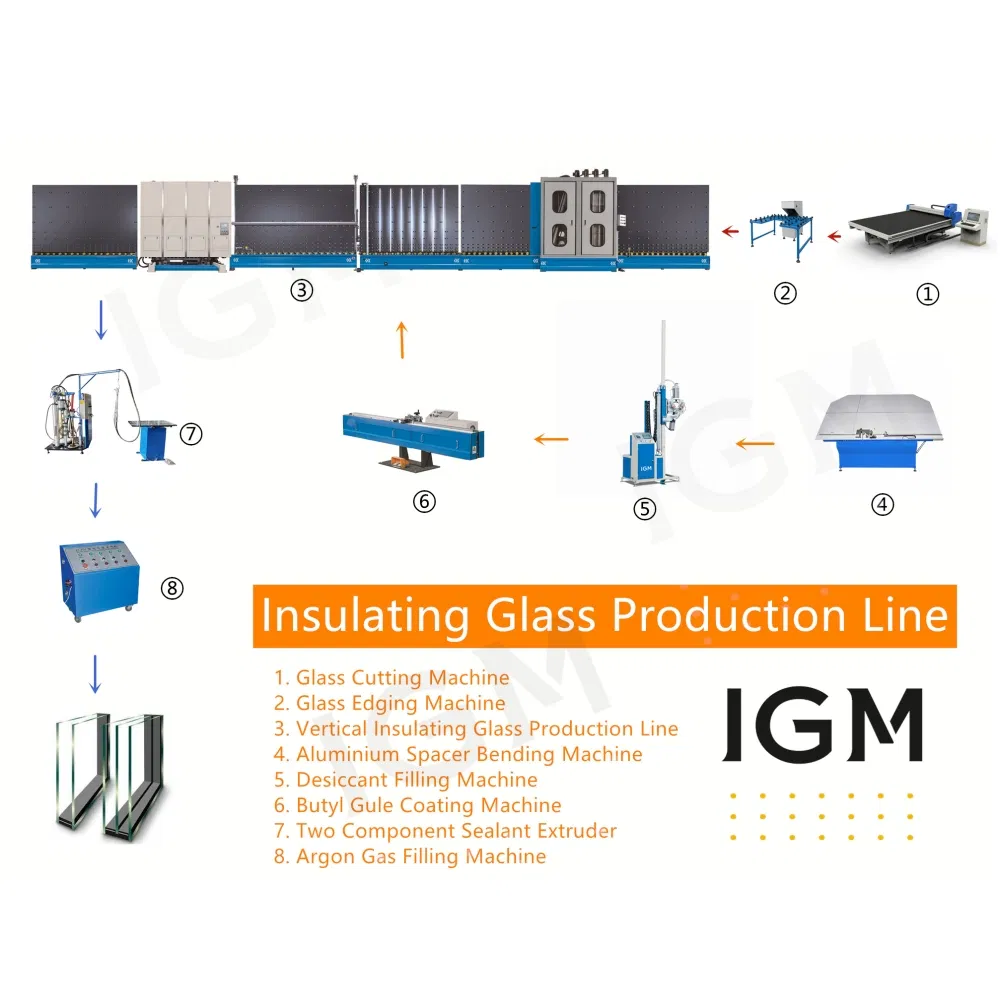

Related Glass Machines
  • Glass Cutting Machine (CNC Auto/Semi-auto)
  • Glass Edge Edging & Grinding Machines
  • Aluminum Spacer Bending Machine
  • Desiccant Filling Machine
  • Argon Gas Filling Equipment

Frequently Asked Questions

Q1: What is the maximum glue capacity of the DJ01 Butyl Extruder? A: The machine is equipped with a large-size glue cylinder that can hold up to 14 kilograms of glue at a time.
Q2: How adjustable is the glue nozzle for different spacer sizes? A: The nozzle has an adjustable range of 6mm to 27mm, while the advanced glue adjustment system allows for precision within 6-18.5mm.
Q3: Does the machine support high-speed production? A: Yes, it features a variable frequency speed control conveying system with 5 optional speed levels, ranging from 15 to 35 meters per minute.
Q4: What kind of warranty and service is provided? A: We provide an 18-month warranty period along with lifelong after-sales service, including remote technical guidance and on-site support if required.
Q5: Is the machine compatible with international power standards? A: The standard power supply is 380V 50Hz, but the machine is built to meet EU CE and US UL certification standards for global compatibility.
Q6: How does the machine handle low glue levels? A: The equipment includes an automatic alarm system that alerts the operator when the glue is running out to prevent production downtime.
