Innovation Double Glazing Aluminum Spacer Adjustable Bending Double Glazed Insulating Glass Machine

Customization:	Available
Application:	Building Material
Certification:	CE, FDA, ISO, PCI, PDA, UR

Send Inquiry

Product Description

📋 Basic Specifications

Model	BL-J02
Control System	Automatic, PLC Control, Semi-Automatic
Power Supply	380V 50Hz
Total Power	4kw
Aluminum Bar Spec	5.5-26.5mm
Max Aluminum Bar Size	2000*2000mm
Min Aluminum Bar Size	300*300mm
Air Pressure	0.7MPa
Production Capacity	800 Sets Per Month

⚙️ Product Description

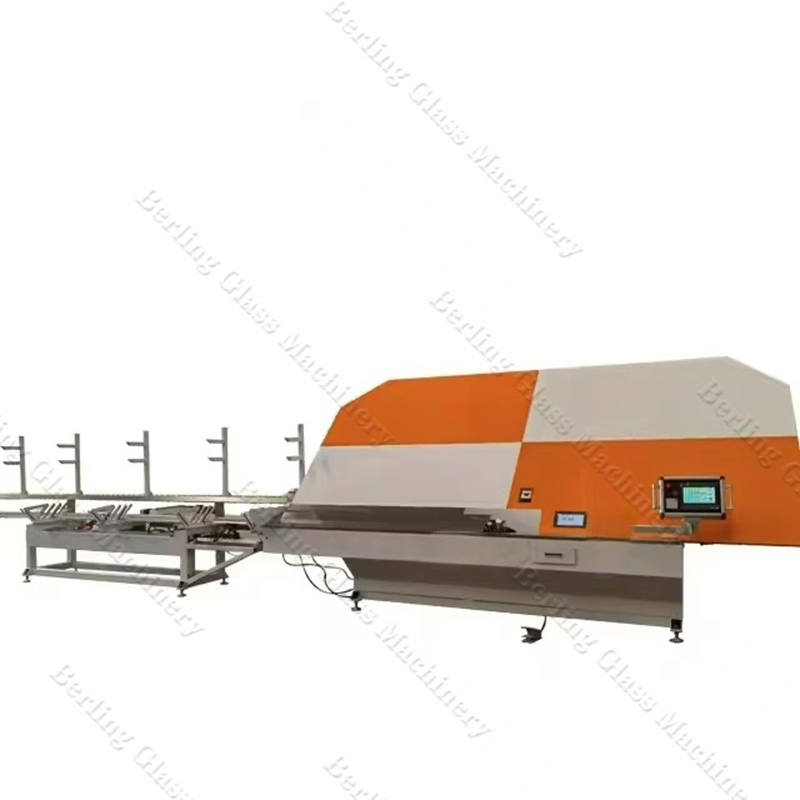

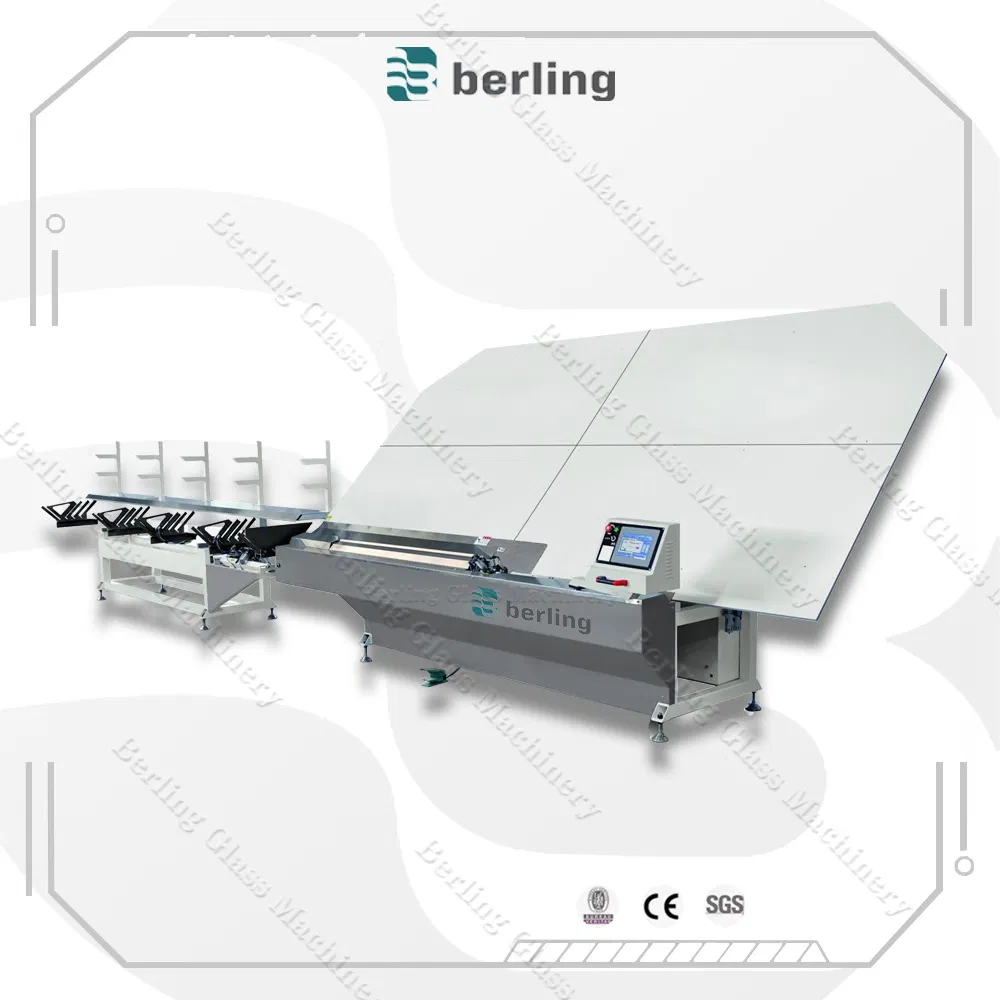

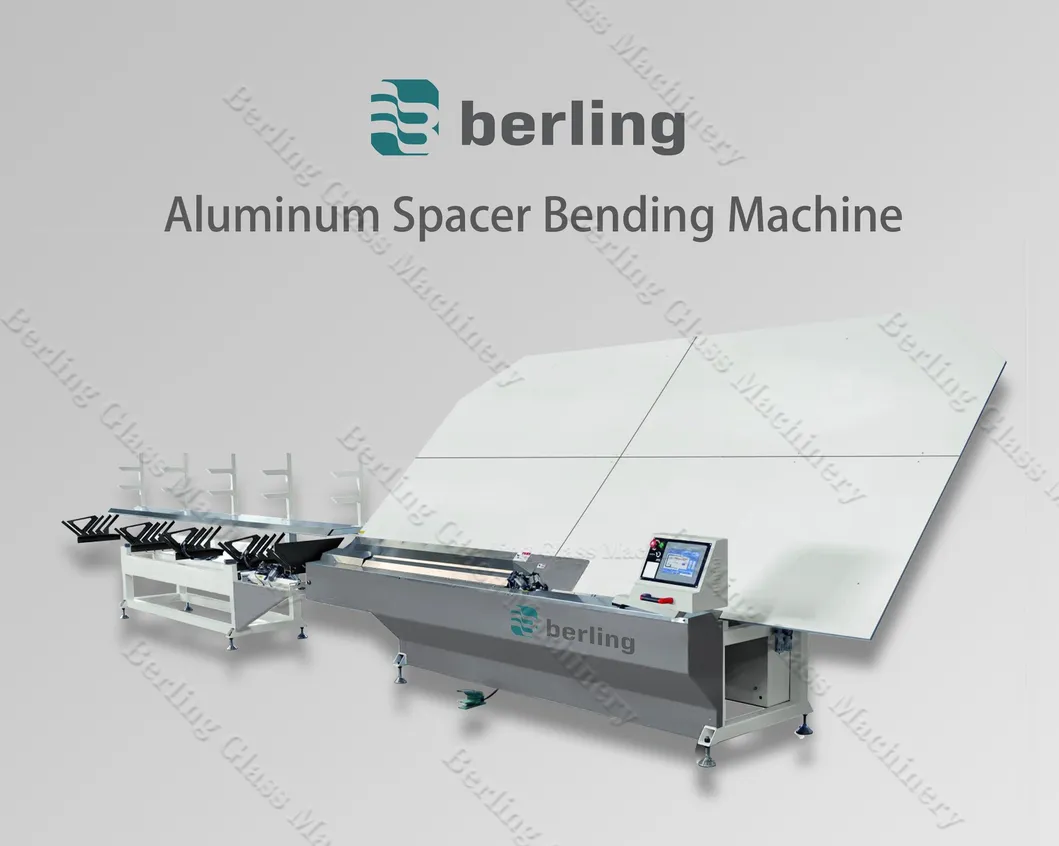

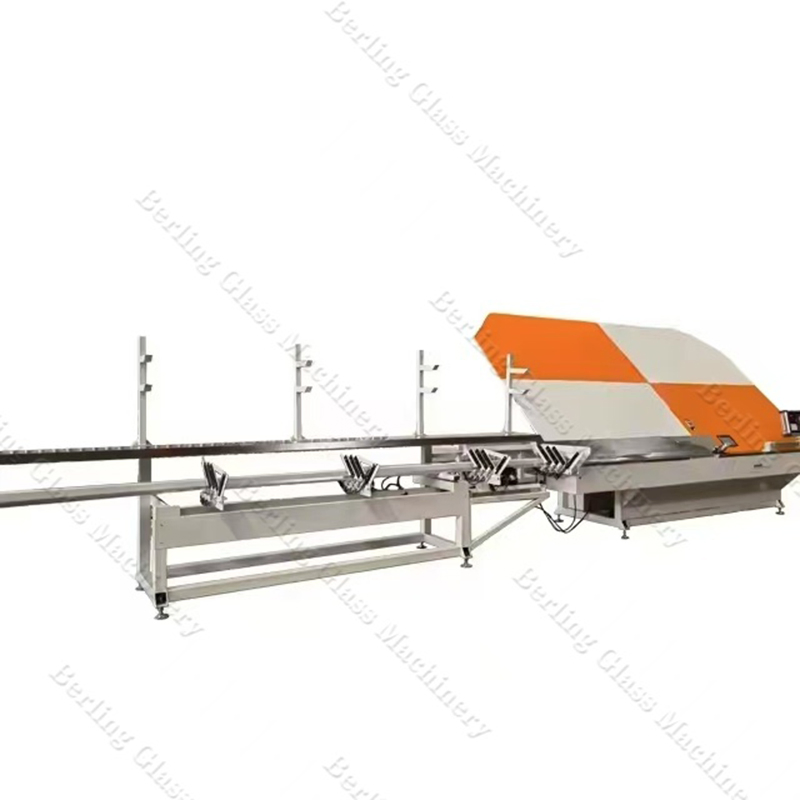

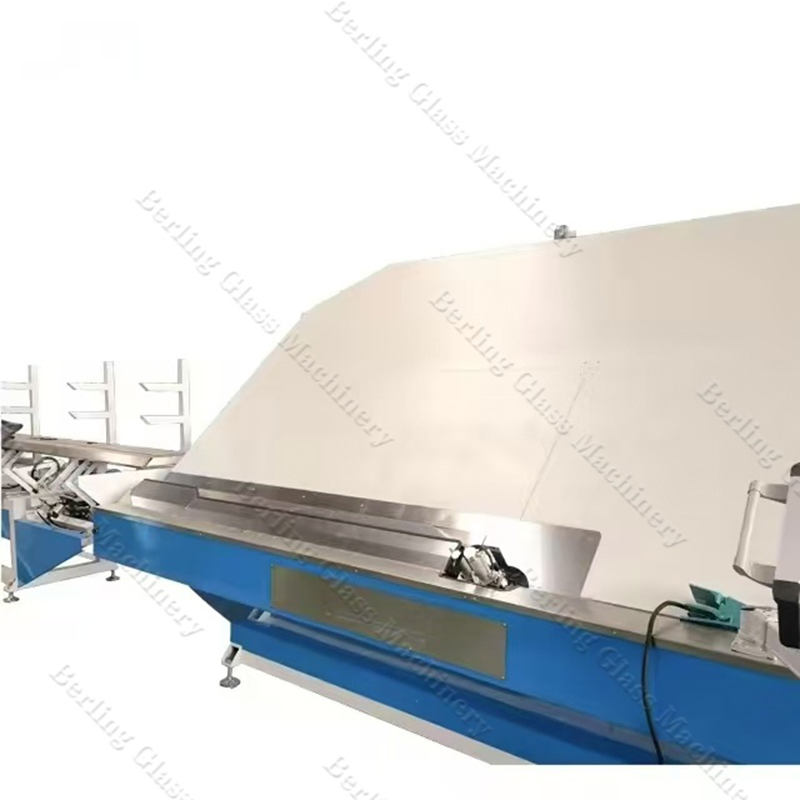

Automatic Aluminum Spacer Bar Bending Machine
This fully automatic equipment is designed for manufacturing grooved aluminum insulating glass. It replaces the traditional four-side pin-type assembly, allowing for the creation of various convex polygonal aluminum frames from a single aluminum strip. This process significantly enhances frame strength and improves the sealing longevity of insulating glass units, particularly for LOW-E glass production.

Feature	BL-J02 (Automatic)	BL-J03 (Semi-Auto)
Total Power	4.0KW	2.0KW
Max Bar Size	2000*2000MM	2500*2500MM
Bending Speed	<20S/UNIT	/
Bending Angle Error	±0.3°	±0.3°
Aluminum Strip Thickness	6.5MM	6.5MM

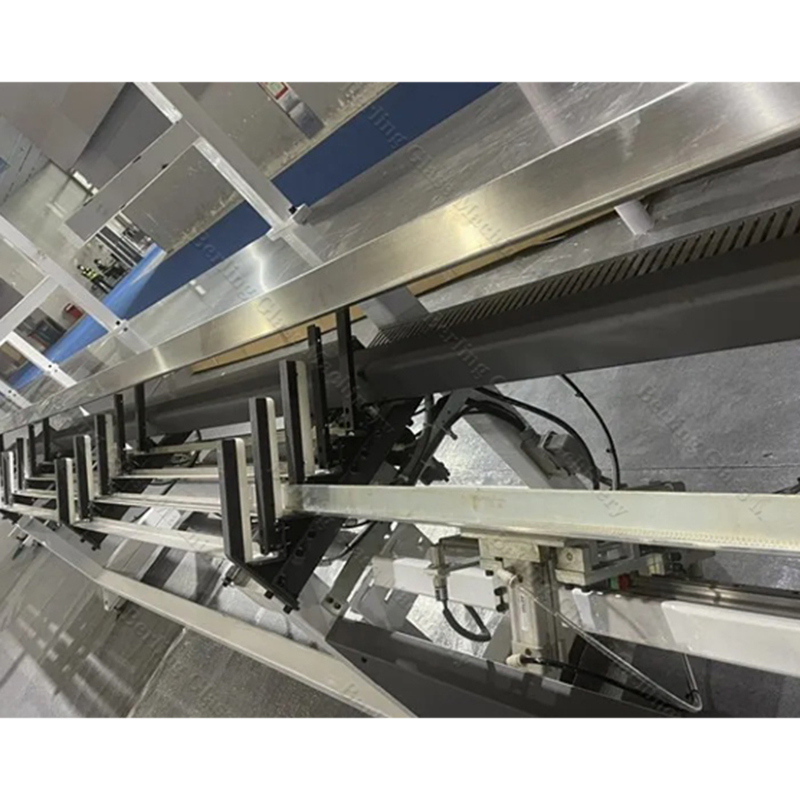

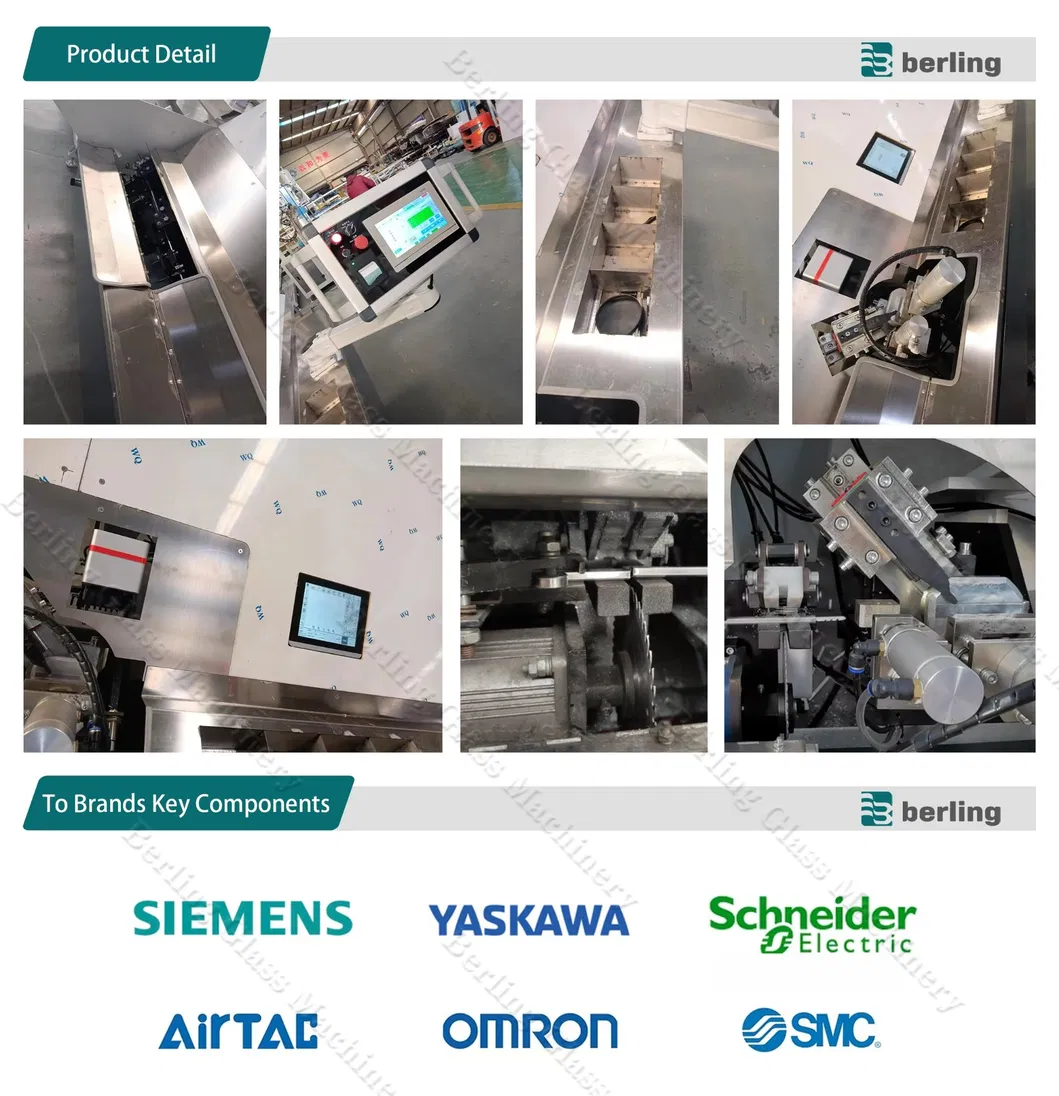

📸 Detailed Photos

⭐ Key Advantages

Bends both common cold-dial and high-frequency welding aluminum bars.
High speed and efficient bending rate.
Superior bending effect, optimized for butyl rubber application.
High-precision steel construction for long-term durability.
Compatible with three common sizes of aluminum bar mechanisms.
Optimization software minimizes spacer waste during production.

🛠️ Machinery Line & Support

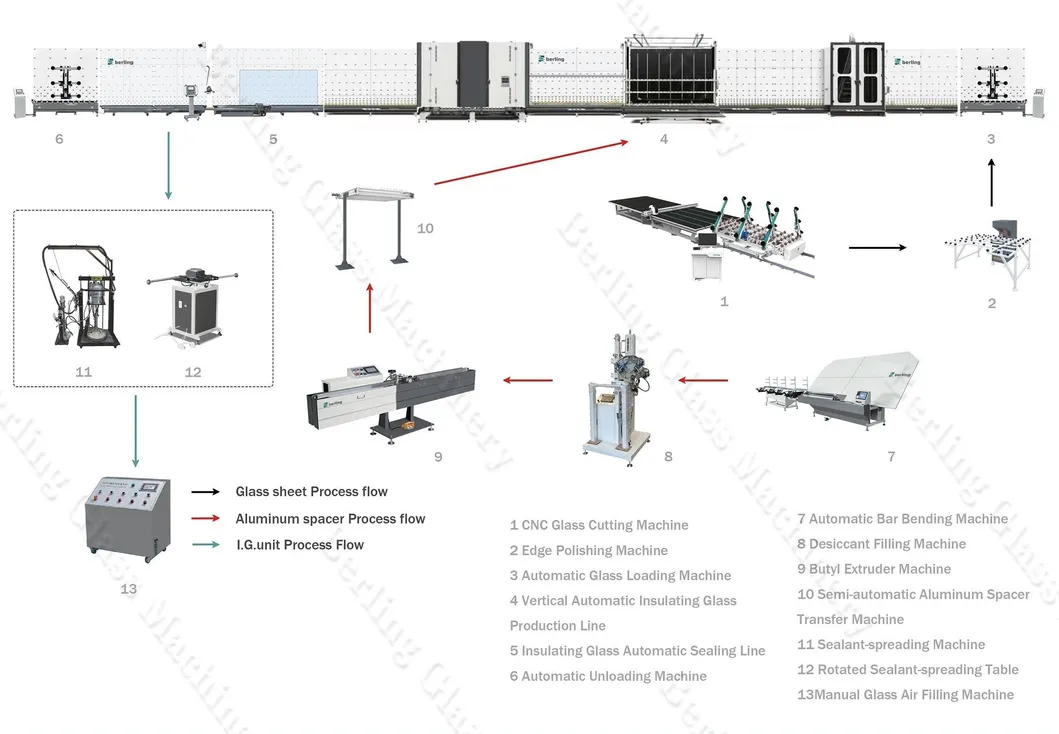

We provide a comprehensive selection of individual machines and full production line planning. Our focus is on enhancing glass processing efficiency through advanced machinery including insulating glass lines, washing machines, automatic cutting tables, and laser processing equipment.

📦 Packaging & Service

❓ Frequently Asked Questions

1. What materials can the bending machine handle? The machine is capable of bending common cold-dial aluminum bars as well as high-frequency welding aluminum bars with thicknesses around 6.5mm.

2. How accurate is the bending angle? The equipment provides high precision with a bending angle error of only ±0.3°, ensuring a perfect fit for insulating glass frames.

3. What is the production efficiency of the automatic model? The BL-J02 model can complete a unit in less than 20 seconds (based on a 1000×1000mm frame), allowing for high-volume output.

4. Does the machine support different spacer sizes? Yes, it supports aluminum bar specifications ranging from 5.5mm to 26.5mm and includes mechanisms for three commonly used sizes.

5. How is the quality of the machinery ensured? Quality is guaranteed through pre-production sample evaluations and a rigorous final inspection of every machine before shipment.

6. What control system does the machine use? The machine utilizes a professional PLC control system, offering options for fully automatic or semi-automatic operation to suit different production needs.
