| Model NO. | DJ01 / DJ02 | Glass Thickness | 12-60 mm |
|---|---|---|---|
| Product Name | Automatic Butyl Extruder Machine | Working Pressure | 0.5~0.8 MPa |
| Power Supply | 380V 50 Hz | Heating Temp. | 120 ~ 150 ℃ |
| Nozzle Range | 6-27 mm | Warranty | 18 Months |
| Origin | China | Production Capacity | 100 Sets / Year |

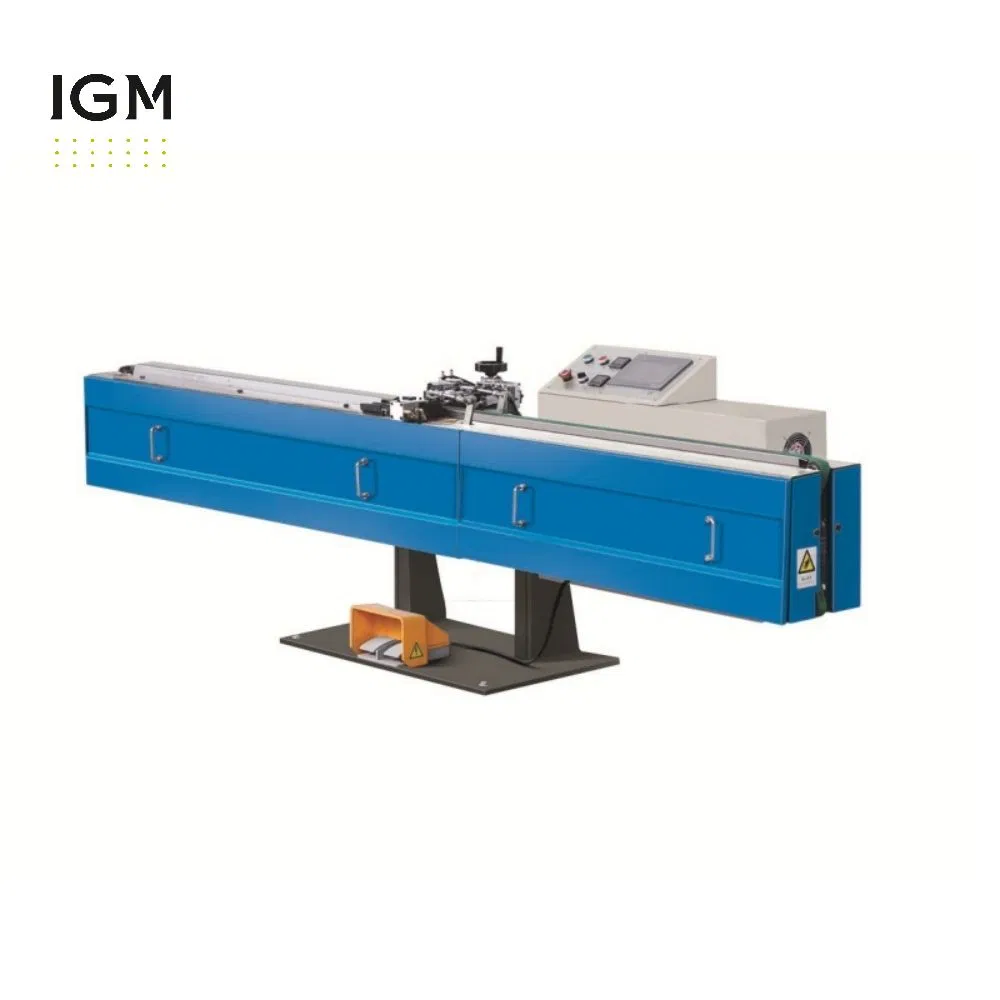

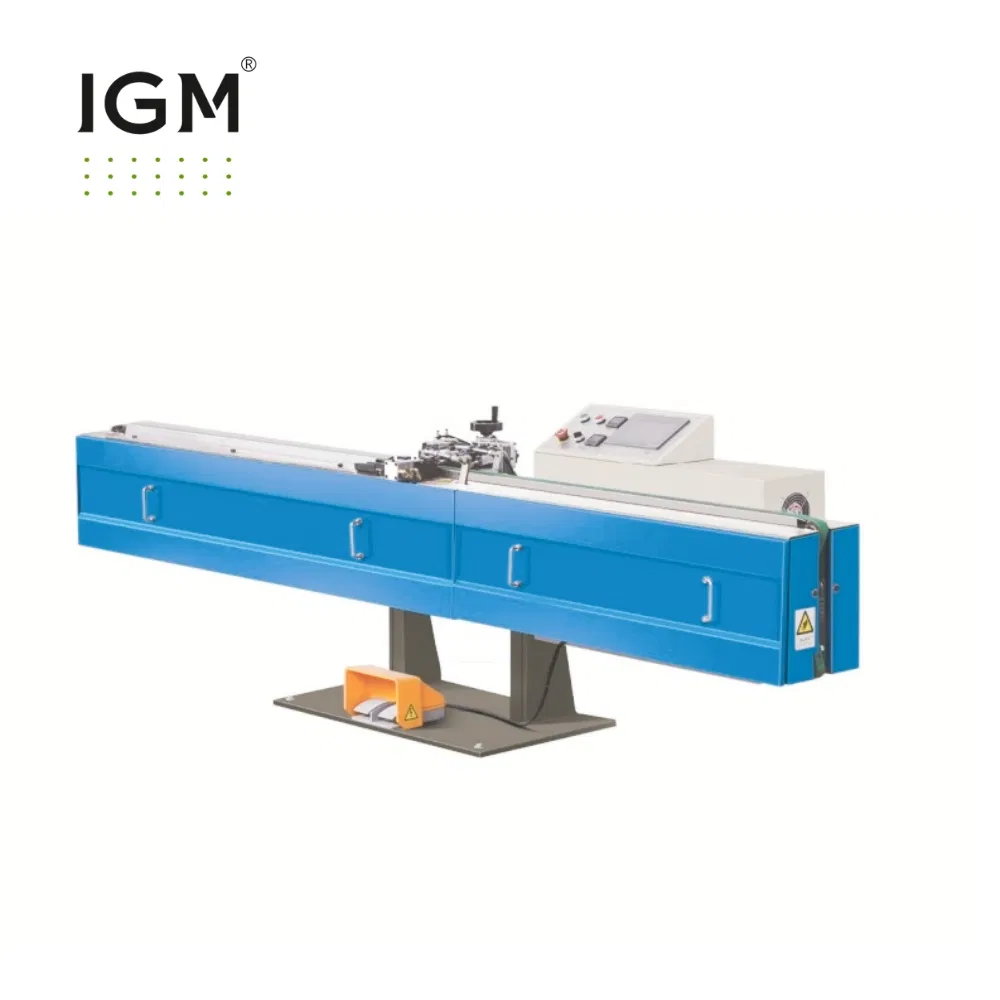

Double Glazing Glass Aluminium Spacer Automatic Butyl Extruder Machine
Application: Specialized equipment for making double glazing glass by coating butyl glue on both sides of the aluminum spacer frame.
| Parameter Item | Specifications |
|---|---|
| Input Power | 2.5 Kw |
| Extrusion Pressure | 10-15 Mpa |
| Diameter of Glue Tank | 195mm |
| Overall Size | 3000*800*1200 mm |
| Weight | 480 kgs |
| Operation Manual / Video | Included (√) |
LCL (Less than Container Load): Meticulously packed in fumigation-free plywood cases with thickened elevated pallets, secured with high-strength steel wire.
FCL (Full Container Load): Protected by robust plastic film and secured within 20 or 40-foot containers. Specialized packaging tape and optional wooden boxes are available for maximum safety.
We specialize in the design and manufacturing of high-quality machinery for Aluminum windows, UPVC windows, and double glazing solutions. Our engineering focus is on precision, efficiency, and international standards.
