Double Glazing Glass Two Component Sealant Spreading Sealing Extruder Machine for Insulating Glass Processing Line

Machine Information

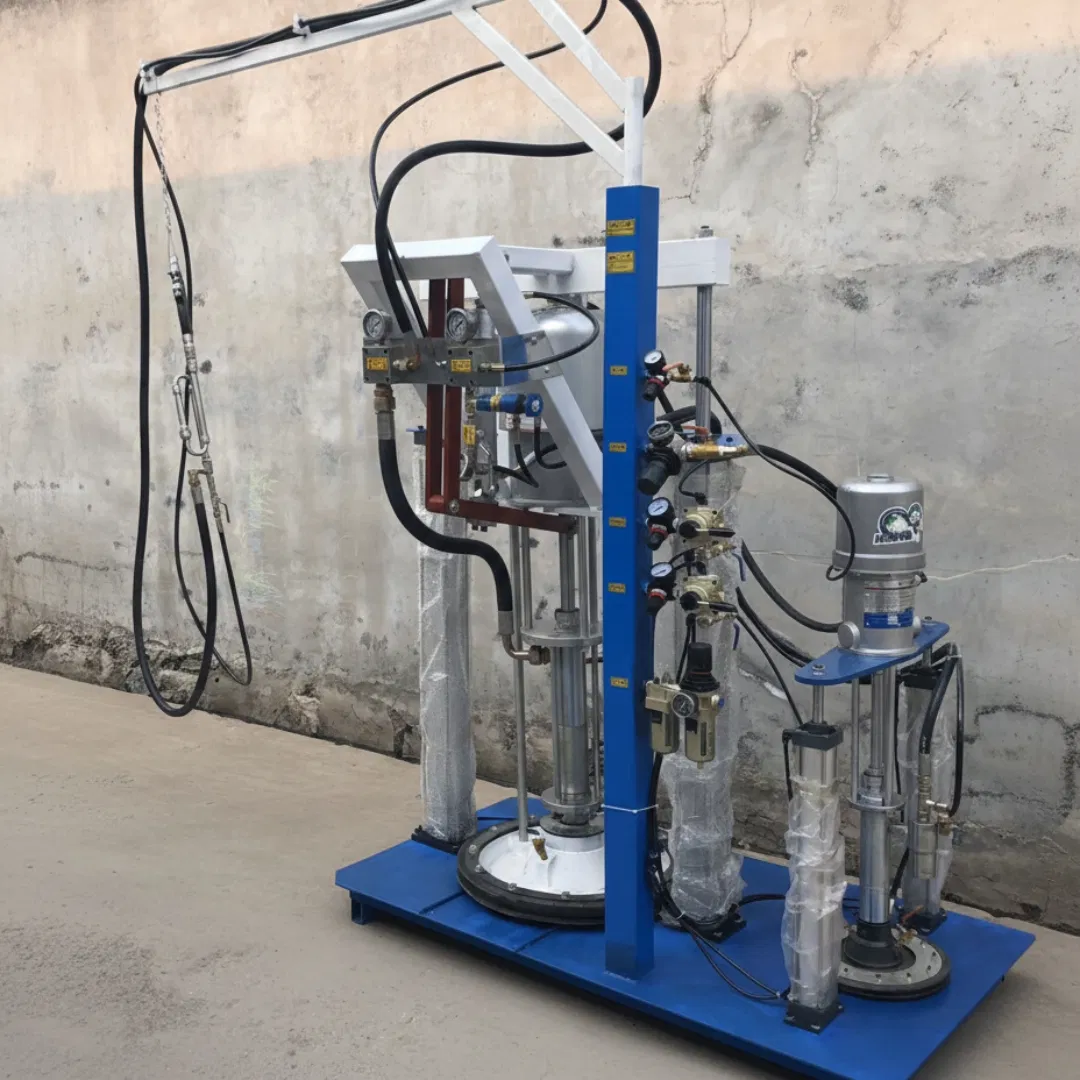

This machine is a specialized adhesive application device for producing insulated glass, curtain wall glass, and window and door frames, achieving the mixing and application of components A and B in a single step for two-stage sealing. It is particularly suitable for adhesives requiring precise mixing ratios and meets the high-efficiency, high-quality, and high-yield production line needs of window, curtain wall, and insulated glass deep-processing enterprises.

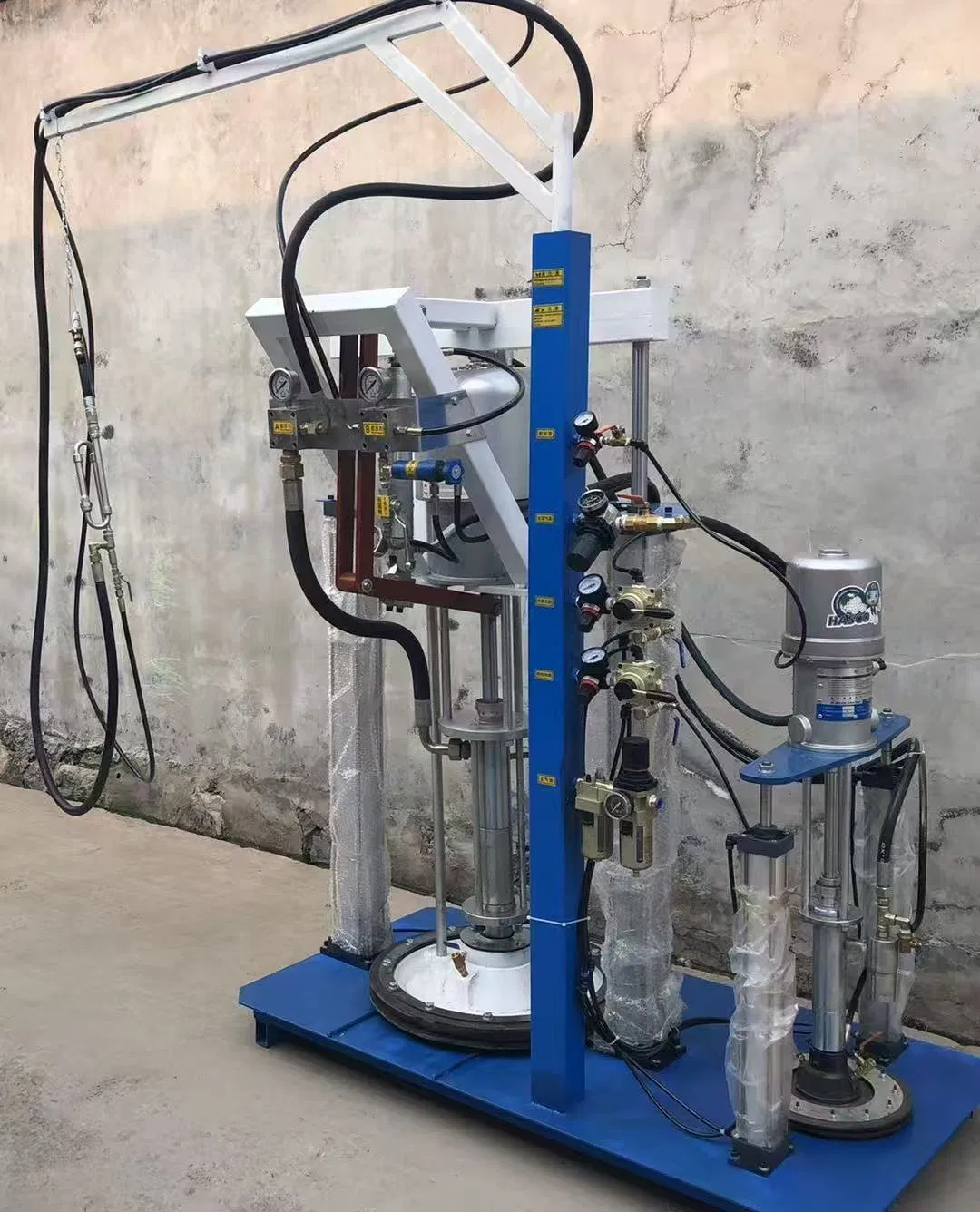

The frame is integrally welded, allowing operation with just one air hose. The gantry frame and welded triangle form a stable structure, overcoming the swaying that occurs during cantilever beam operation. The control panel is clearly visible, with a clearer display and simpler, more responsive button operation. The stainless steel glue gun mixing mandrel is durable and provides a more uniform glue mixing effect. A newly configured internal air tank device ensures more stable pressure. The B pump uses a double column and a double-seal pressure plate, completely solving the problem of easy oxidation and leakage of black component glue. The optimized pipeline design solves the problem of slow flow rate found in similar products.

• 01 Insert the rope from the glue gun holder into the hole on the top of the post.
• 02 Connect rubber tubes (A & B) to respective outlets, wrap with raw rubber tape and tighten.
• 03 Connect the 12 air hose from the air pump to the main air source.
• 04 Control the white glue (A) pressing plate using the lifting system. Release air via outlet valve until glue appears.
• 05 Repeat process for black glue (B) auxiliary material, ensuring no air is trapped in the pressing plate.
• 06 Open working valves, close reflux valve, and start application onto the glass.
