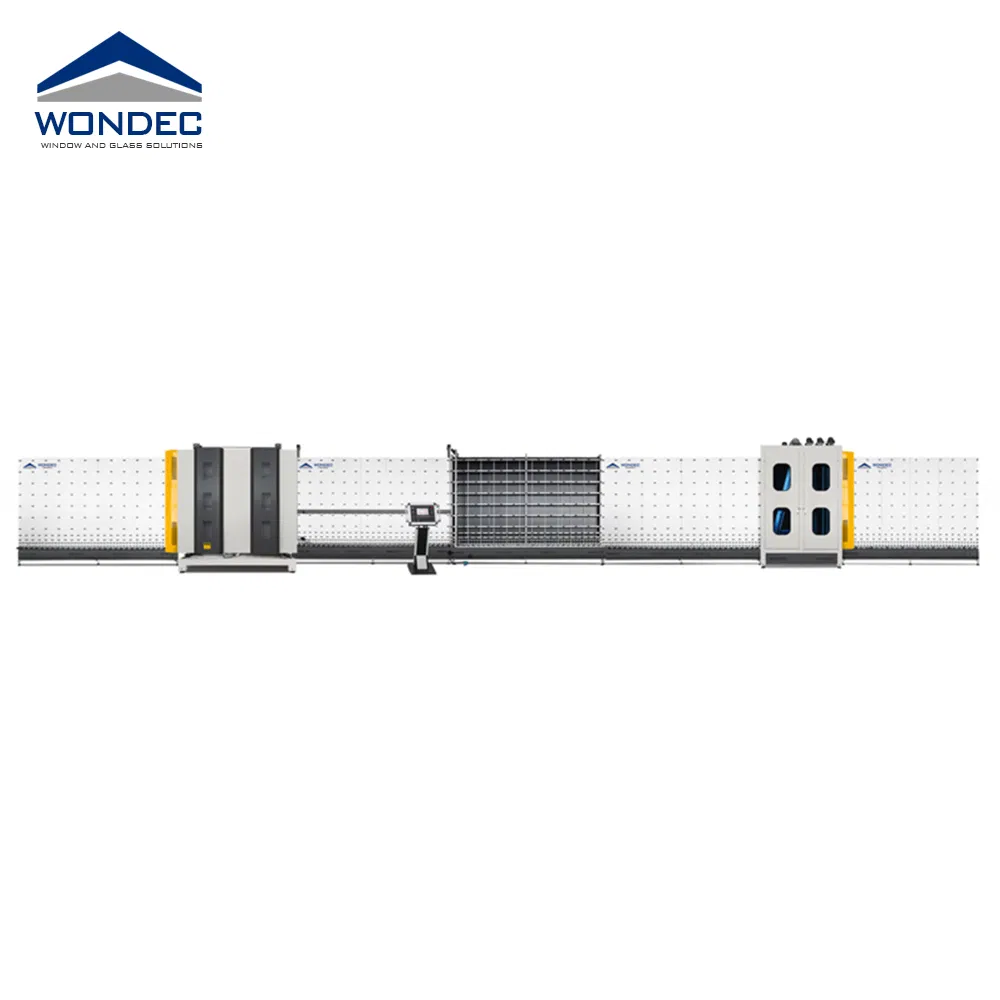

Double Pane Windows Glass Automatic Production Line

📊 Basic Information

Model NO.

WLBZ2025

Type

Insulating Glass Production Line

Structure

Vertical

Washing Type

Ultrasonic Glass Washing

Key Selling Points

Easy to Operate, Automatic, High-Accuracy

Warranty

1 Year

Specification

20000*2500*2900mm

Capacity

60 Units

🔍 Product Description

Proven quality and flexible construction set for the most diverse requirements. This insulating glass line is specially designed for the production of coated insulating glass units with a wide range of fixed spacers.

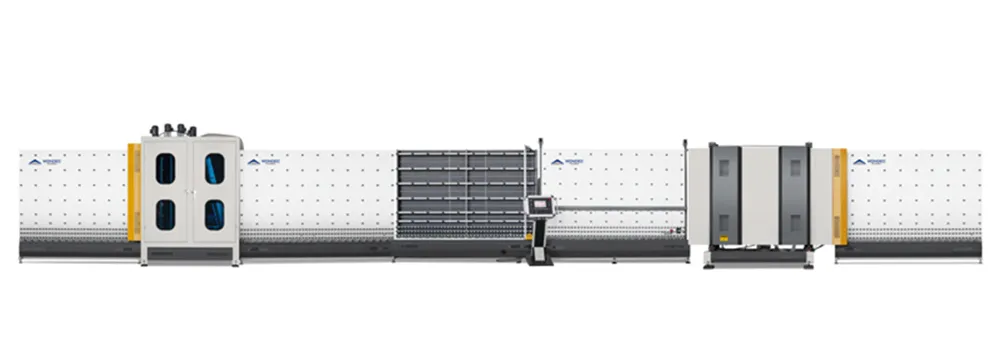

💡 How does the insulating glass line work?

The glass sheets are thoroughly cleaned and dried in the washing machine.
At the following frame mounting station, the glasses are inspected and the spacer frame is set manually.
The gas filling press takes care of the assembly, both gas filling and pressing are finished simultaneously.
Final sealing ensures the necessary stability and durability of the units.

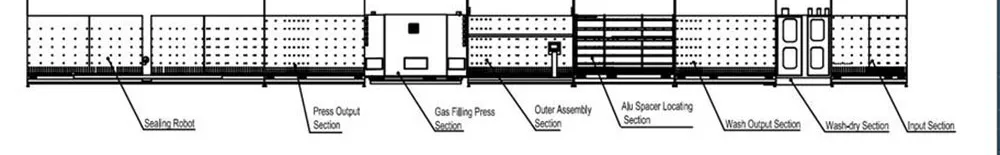

📸 Technical Section Details

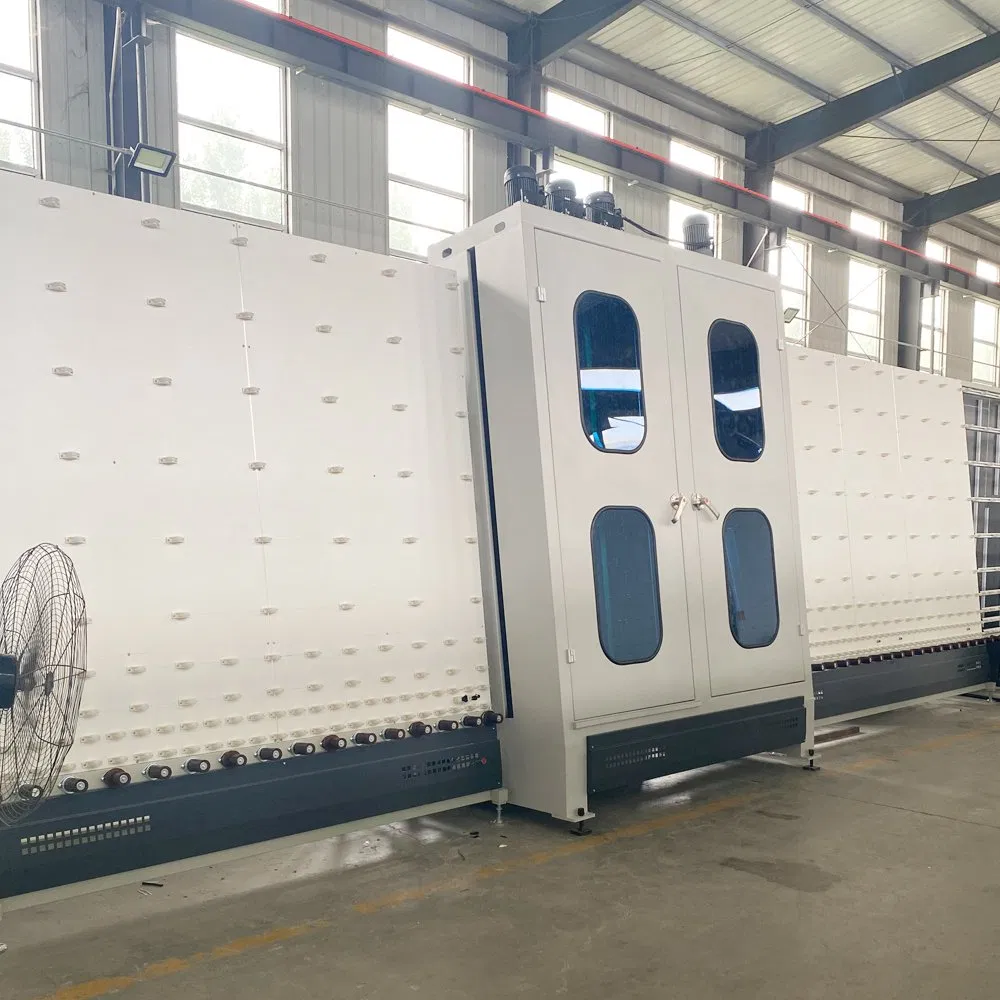

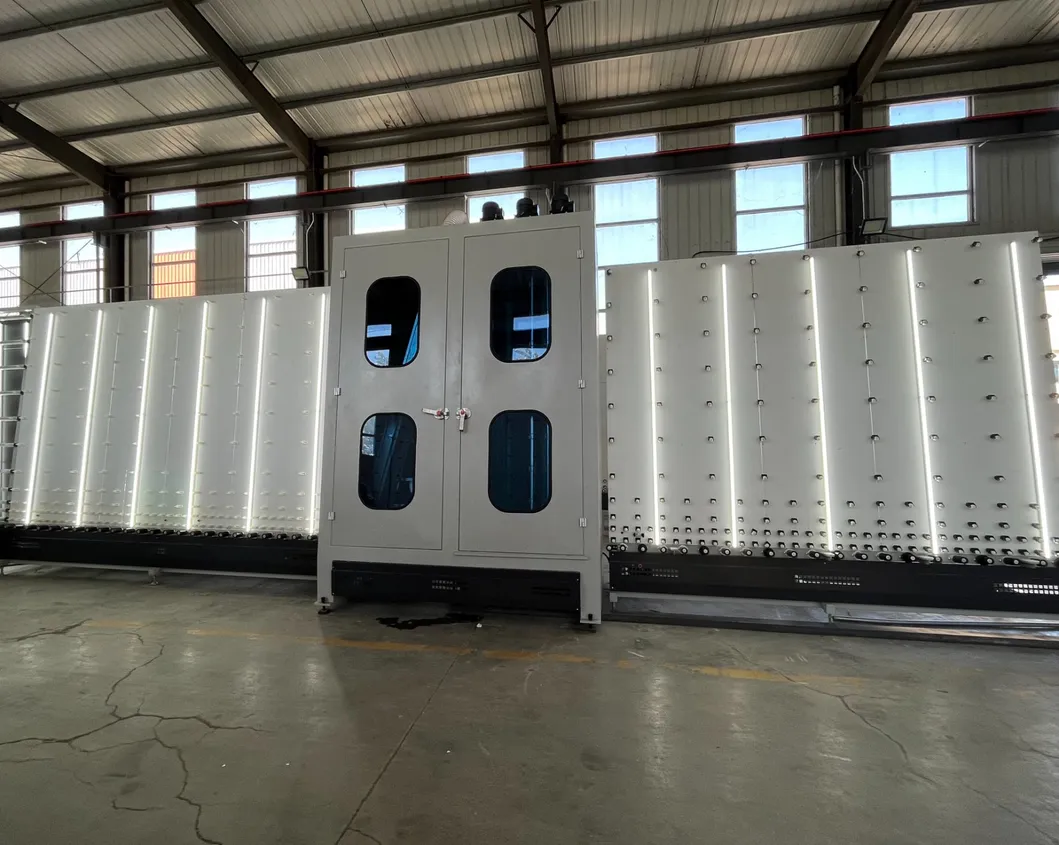

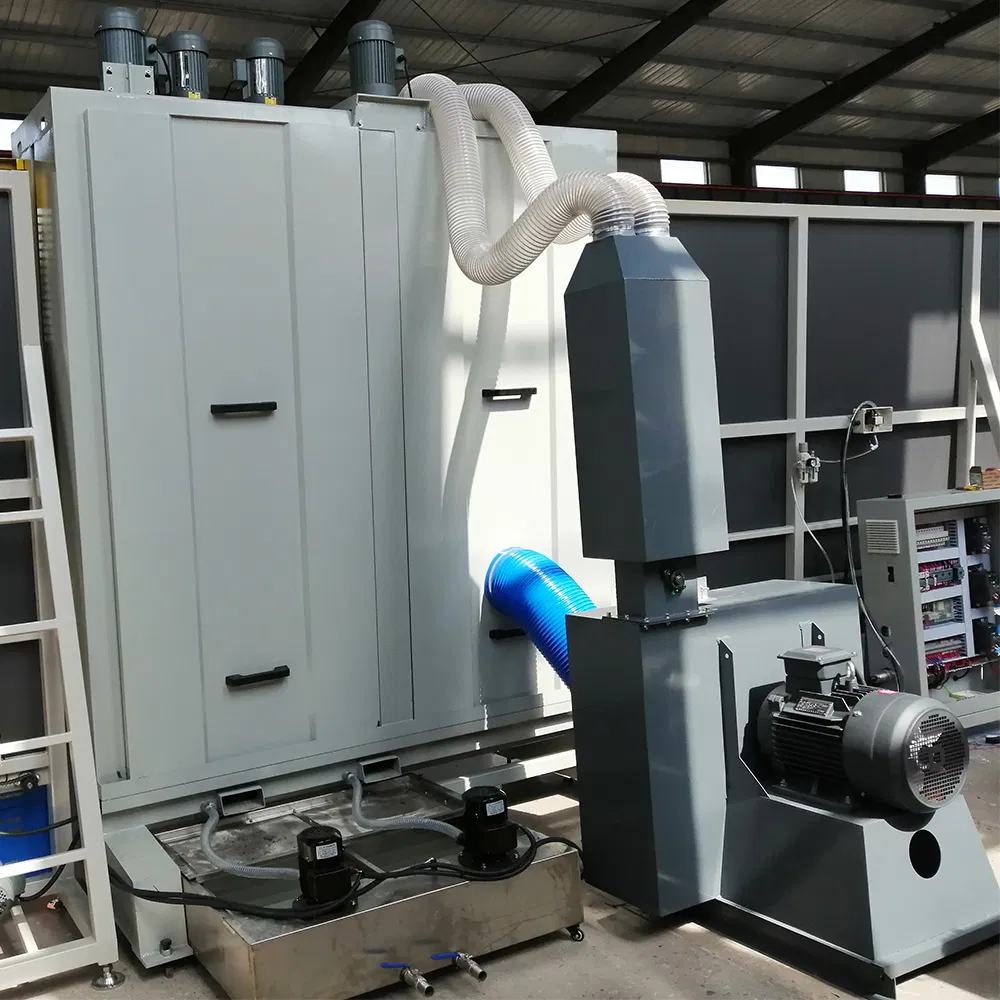

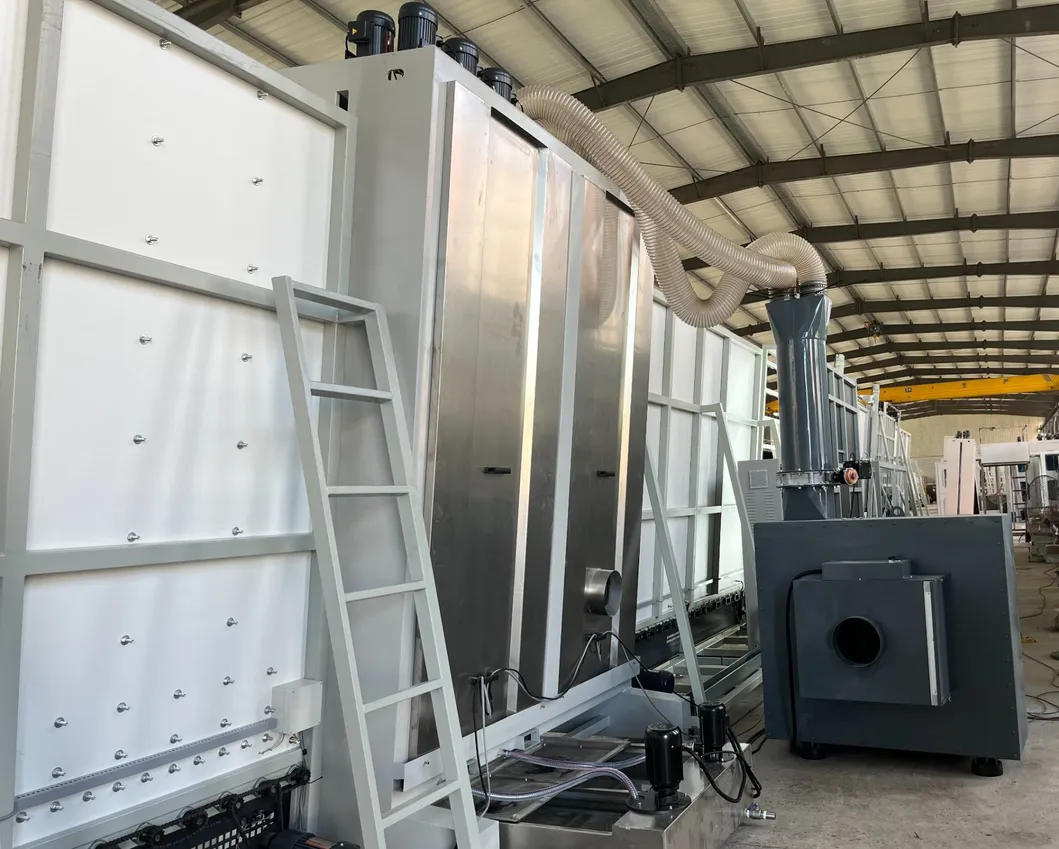

Section 01-03: Washing & Drying

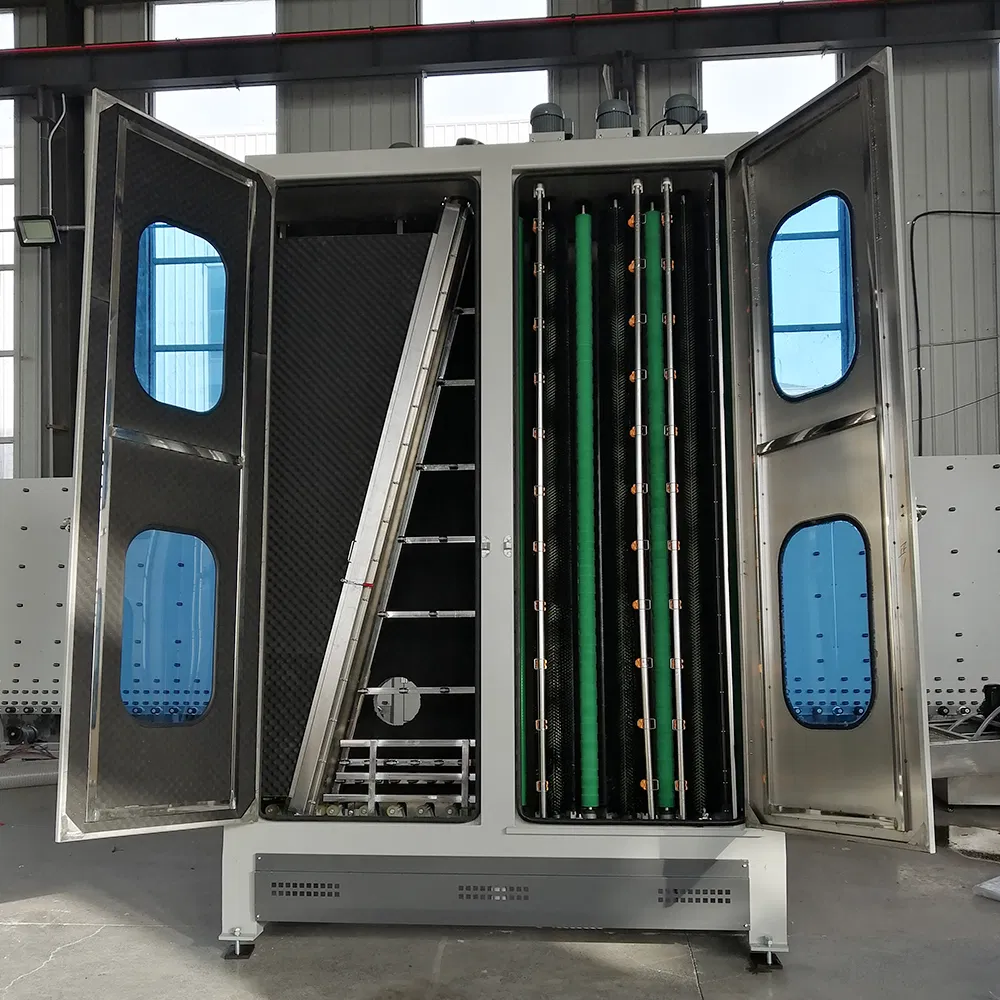

Stainless steel material and corrosion-resistant components are used for the entire washing area. Three pairs of brushes are driven by independent motors to ensure continuous operation.

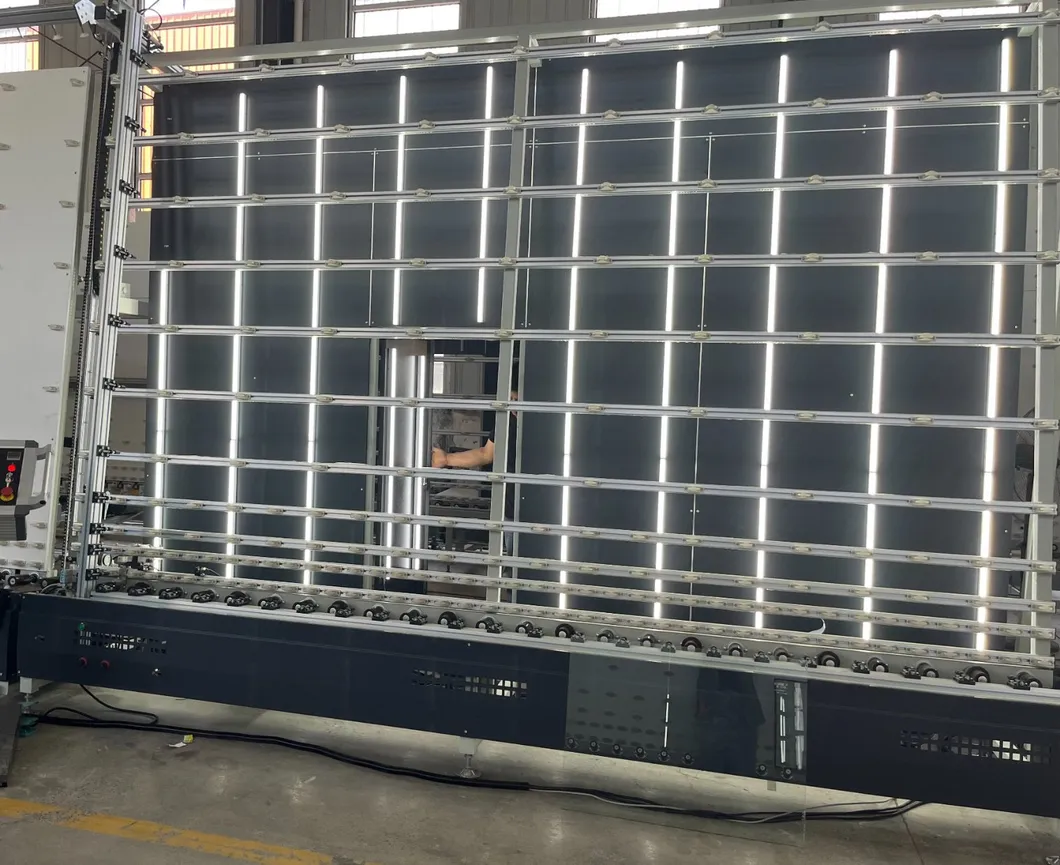

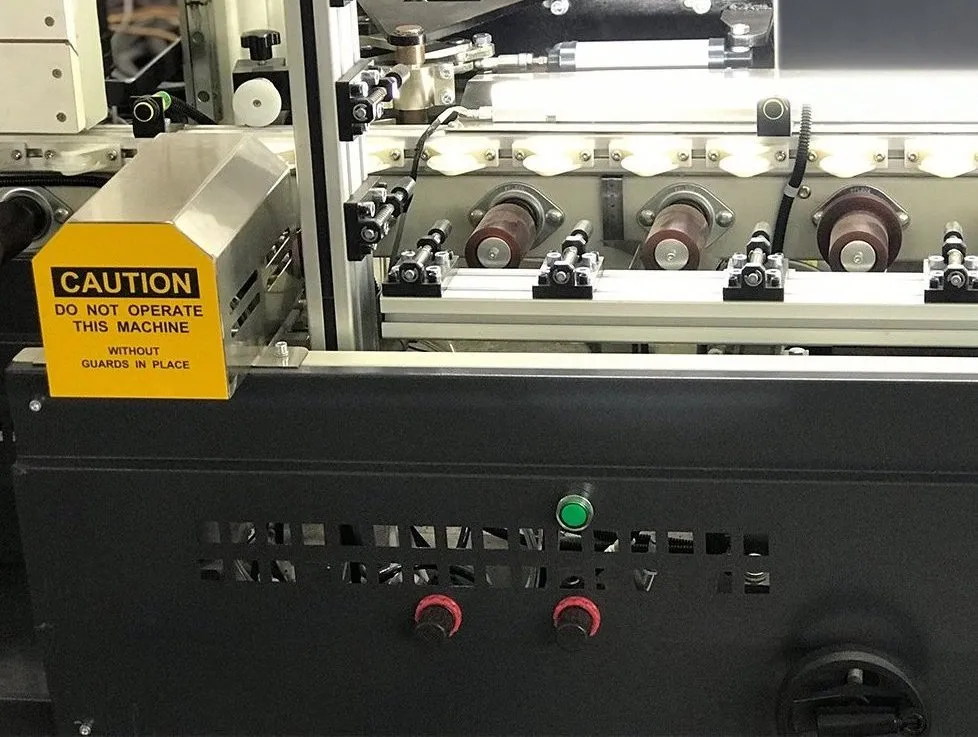

Section 04-07: Assembly & Pressing

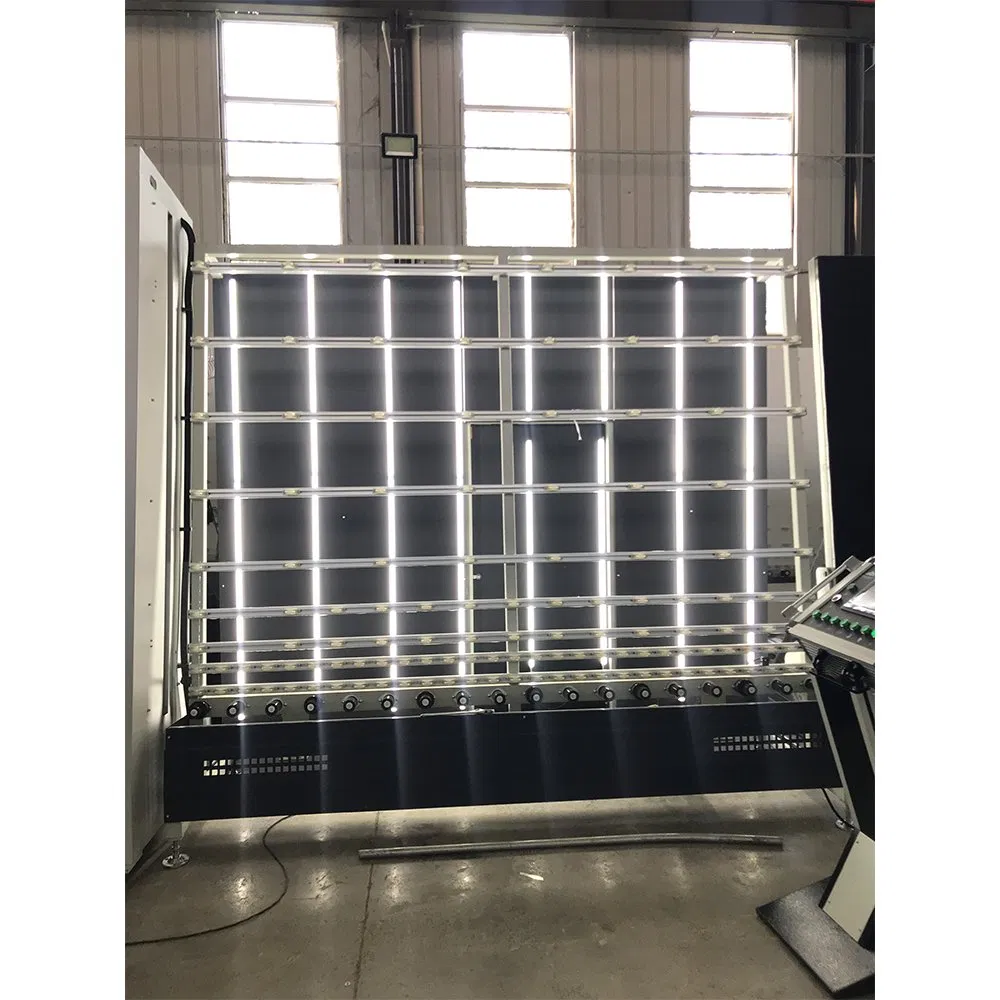

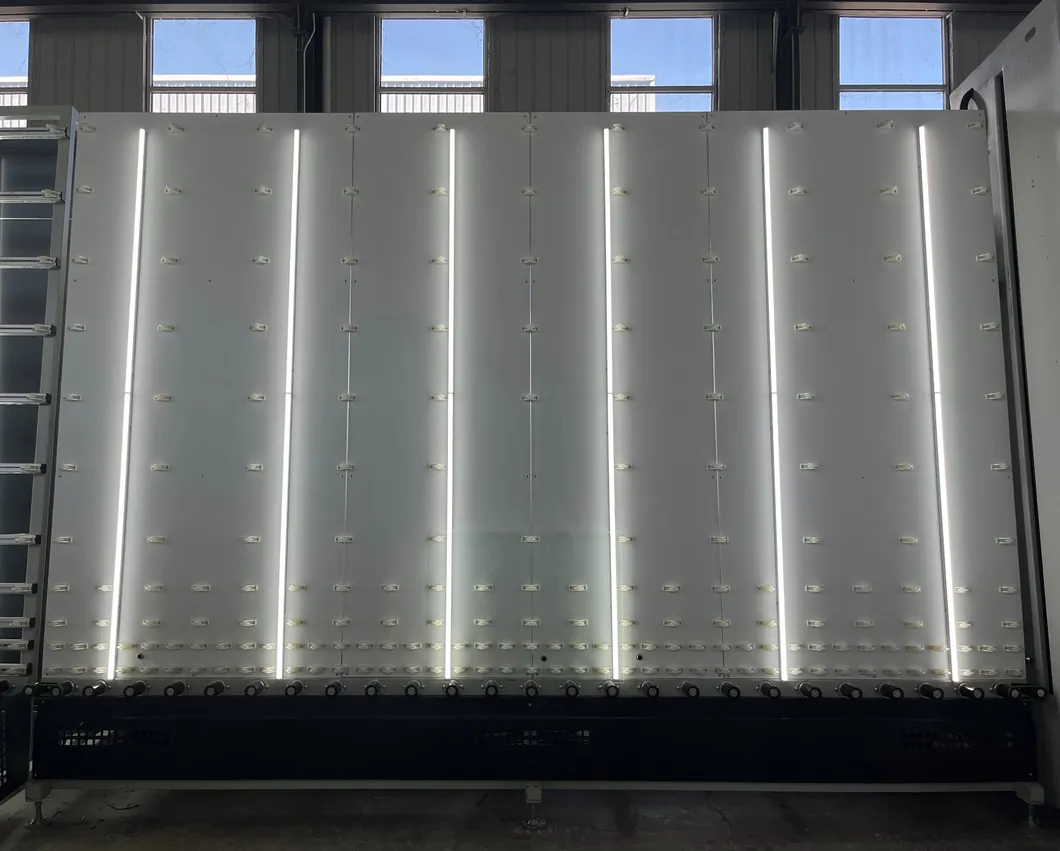

Equipped with high-quality LED lamps for light inspection. The panel press is controlled by a high-precision Servo motor, ensuring a denser steel frame for a stronger machine body.

⚙️ Product Parameters

Technical Parameter	Value (WLBZ2025)
Total Power	29kw
Max Glass Size	2000x2500mm
Min Glass Size	300*500mm
Single Glass Thickness	3~12mm
Max I.G. Unit Thickness	12~80mm
Glass Washing Speed	3~12m/min
Working Speed	2~48m/min
Air Flow	0.8m³/min
Overall Dimension	2000025002900mm

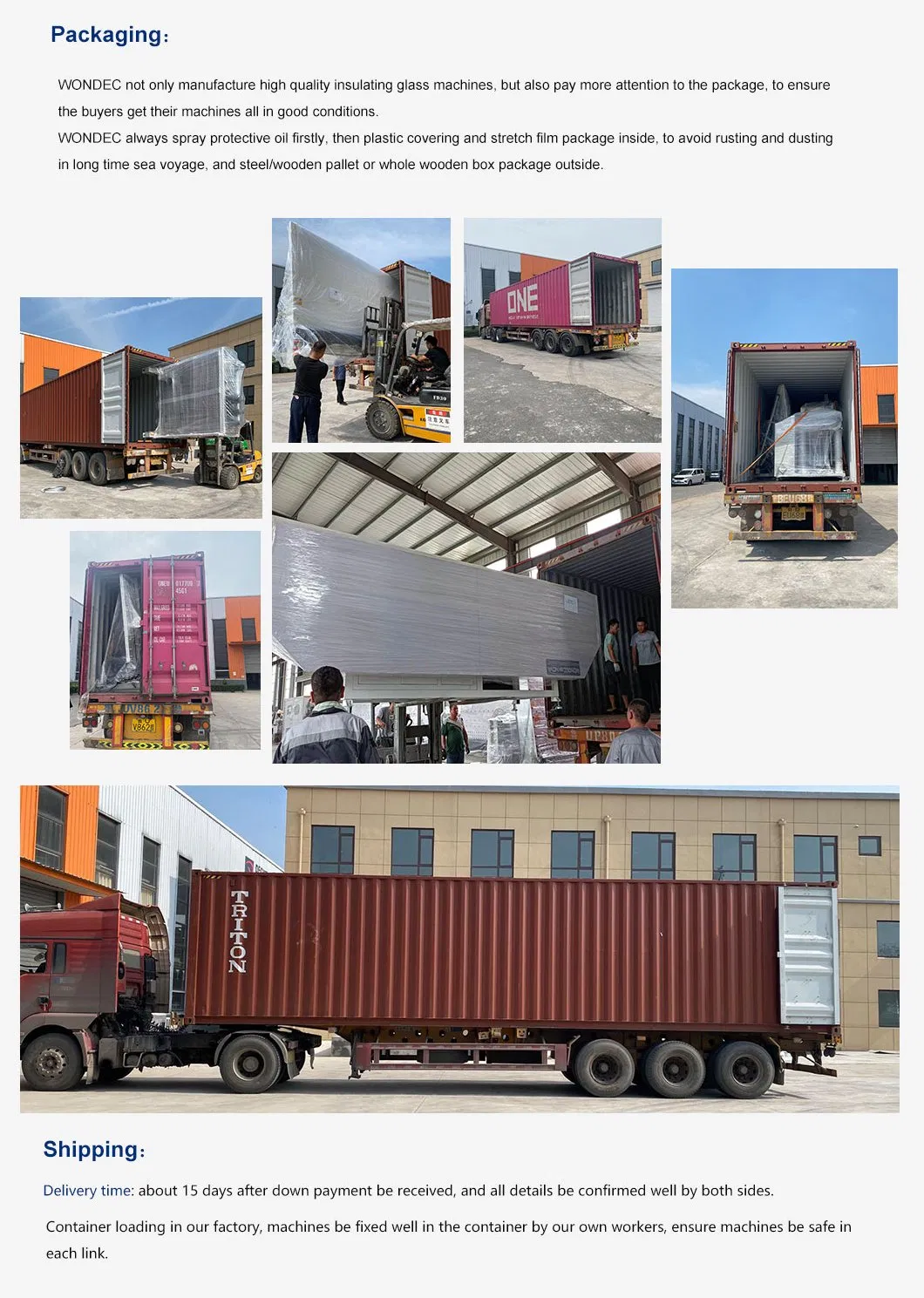

📦 Packaging & Shipping

🛠️ Service Support

Pre-sales Service:

Customized equipment footprint layout based on your facility size.
Professional technical drawings provided based on layout requirements.

After-sales Service:

Weekly production progress reports with technical details.
Full equipment installation, debugging, and personnel training.
English operation manuals and lifetime technical support.

❓ Frequently Asked Questions

Which countries are your products exported to?

Our equipment has been exported to over 50 countries and regions, including North America, South America, Europe, Russia, India, and Turkey.

How do we learn to operate the machinery?

We provide comprehensive paper instructions in English and offer hands-on training until your staff can operate the machine proficiently.

How is the quality control managed?

The entire production procedure undergoes strict inspection. Every component is checked before assembly, and every completed machine is tested rigorously before leaving the factory.

What happens if the machine encounters a problem?

Free replacement parts are provided during the warranty period. We offer 24/7 technical support via video, mail, and instant messaging to resolve any issues.

What documents are provided after shipment?

After shipment, we provide all original documents including the packing list, commercial invoice, bill of lading, and any other required certificates via DHL.

Is on-site installation available in my country?

Yes, we can arrange for professional engineers to visit your factory to install the machine and conduct training for your personnel.
