Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
1 / 5
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass
Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass

Economic Automatic Aluminum Spacer Hot Butyl Sealant Extruder Coating Machine for Double Glass

Customization: Available
Certification: CE, CE, ISO
Condition: New
Send Inquiry

Product Description

📊
Basic Information
ModelDJJ05Control SystemAutomatic, PLC Control, Touch Screen
Glass Thickness3 mm - 19 mmTypeInsulating Glass Production Line
StructureHorizontalPower Supply380V/50Hz
Total Power2.24kwWeight600kgs
Glue Nozzle Distance4-30mmExtruding Pressure16-19MPa
Gluing Temp130-160 DegreeConveyor Speed0-35m/Min
🔧
Product Description
Brief Introduction: The machine is special equipment for coating two sides of aluminum spacer. It offers evenly coating glue, high production efficiency, manual nozzle adjustment, and high automation.

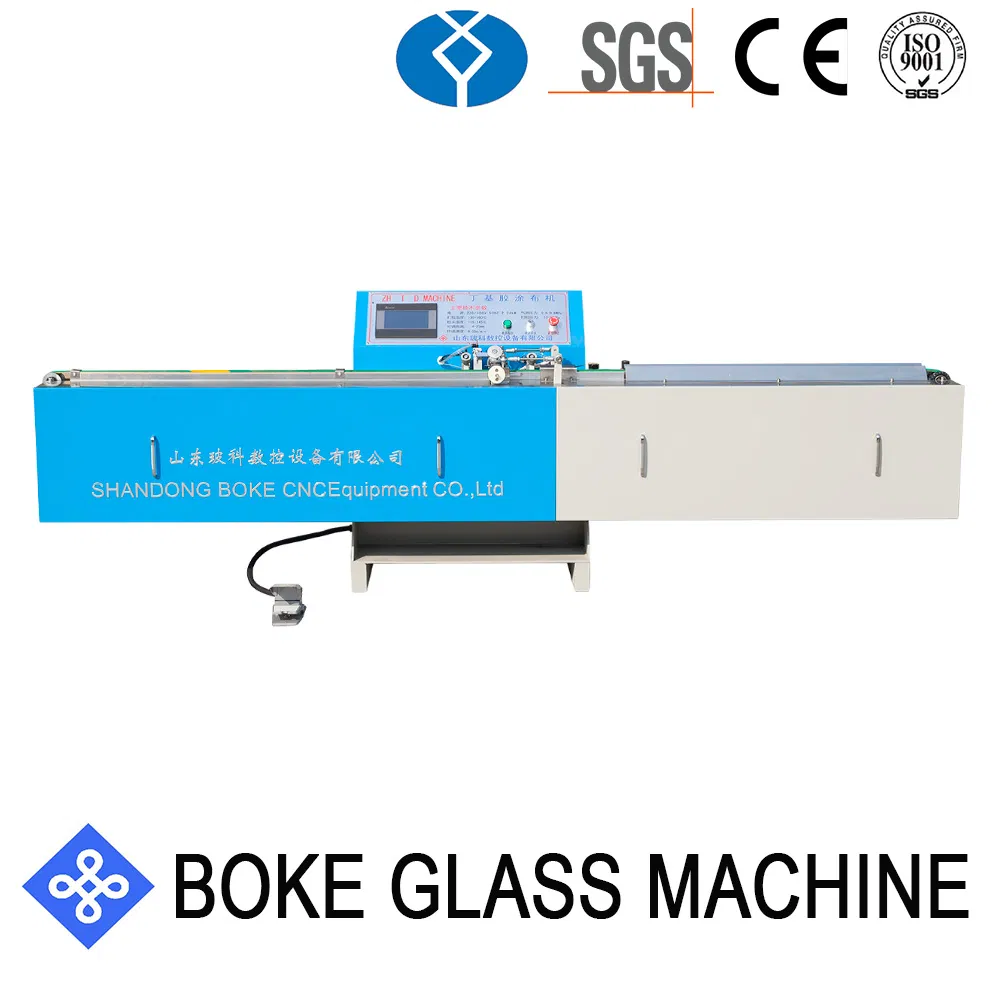

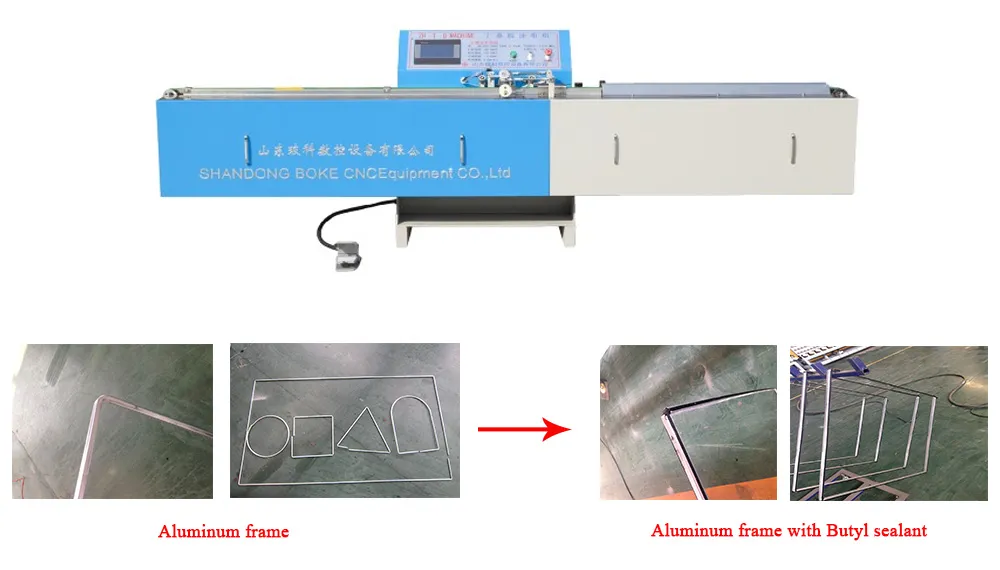

Butyl Coating Machine
Main Features
  • Adopts stainless steel hairline board for a neat appearance.
  • Four variable frequency speed control system.
  • Advanced gas-liquid pressurization system for stable pressure.
  • Glue tanker (Ø200mm, L450mm) suitable for all butyl types.
  • Automatic warning system when butyl is depleted.
  • 24-hour timing boot to save preheat time.
  • Touch screen man-machine interface for easy operation.
  • Capability to glue round spacers.
Machine Detail 1

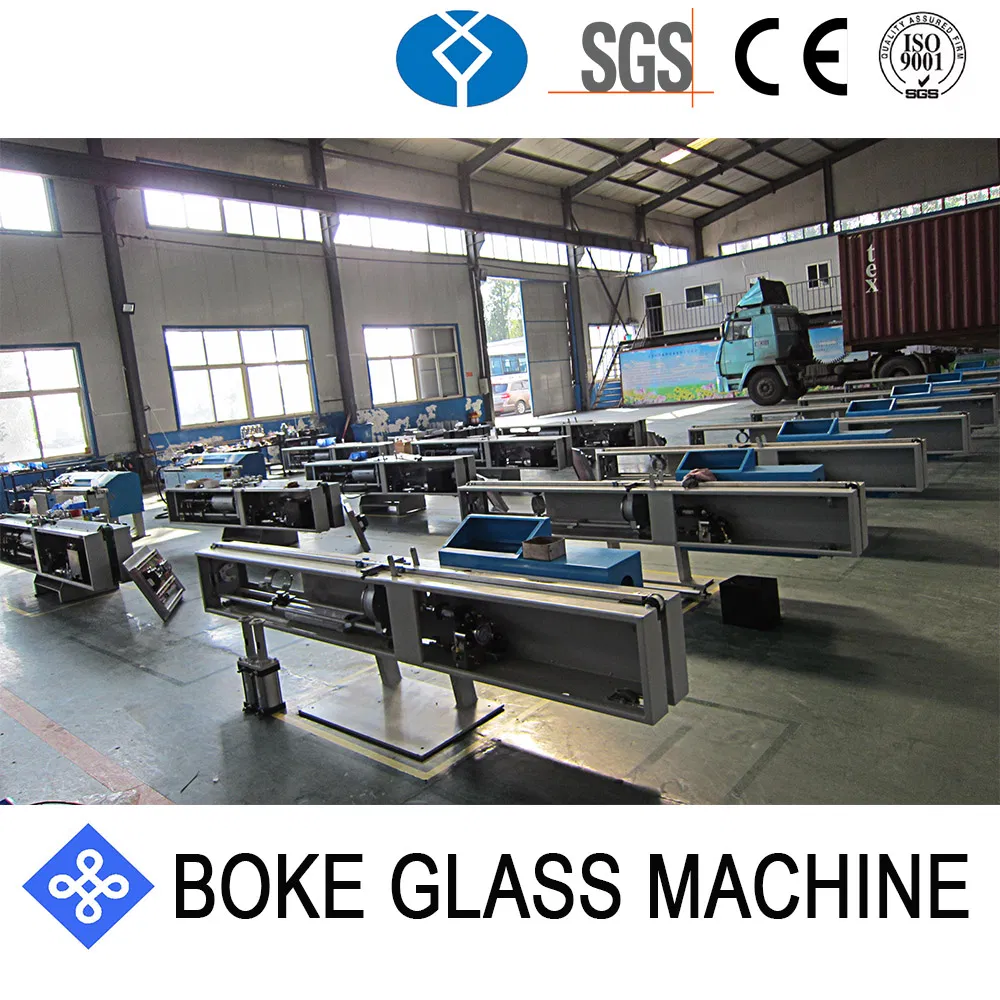

Machine Detail 2
📋
Technical Parameters
ParameterValue
Air Pressure0.6-0.8 Mpa
Gluing Temperature130-160ºC
Speed of Conveyer0-35 m/min
Outline Dimension3000 x 630 x 970 mm
Total Weight600 kg
Key Components
ComponentBrandOrigin
PLC/Touch ScreenSiemensGermany
Frequency ConverterSiemensGermany
Photoelectric SwitchOMRONJapan
Switch PowerSchneiderFrance
CylinderAirTACChina

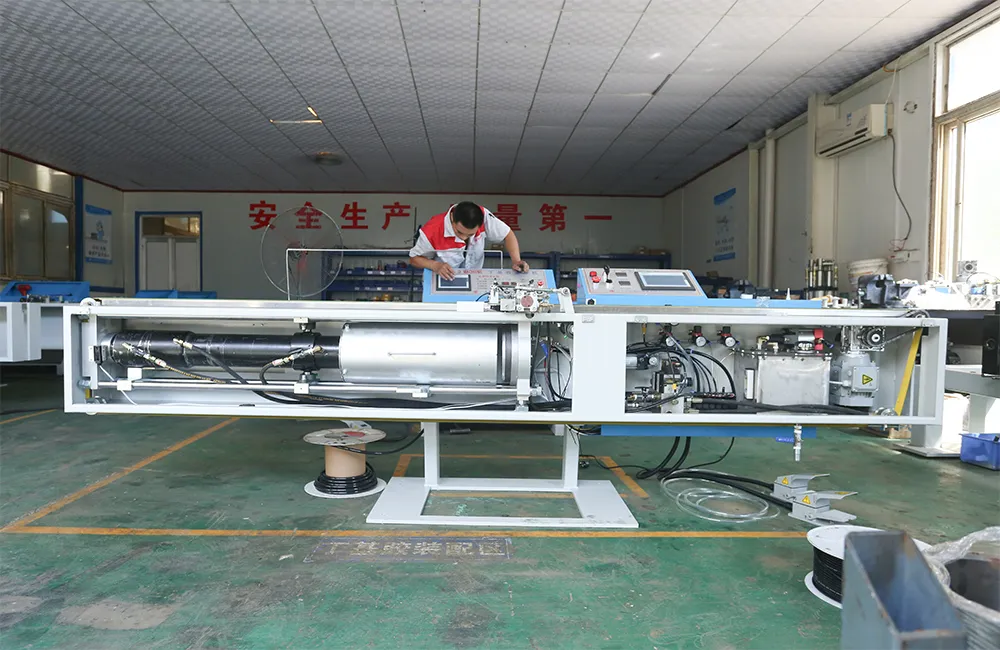

Components 1

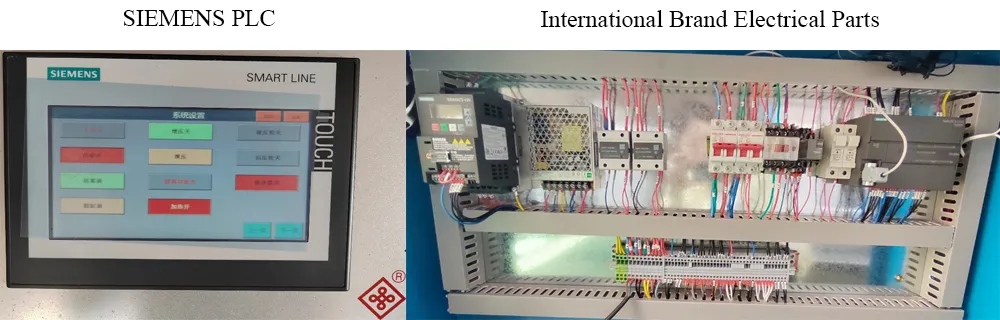

Components 2
📜
Certifications

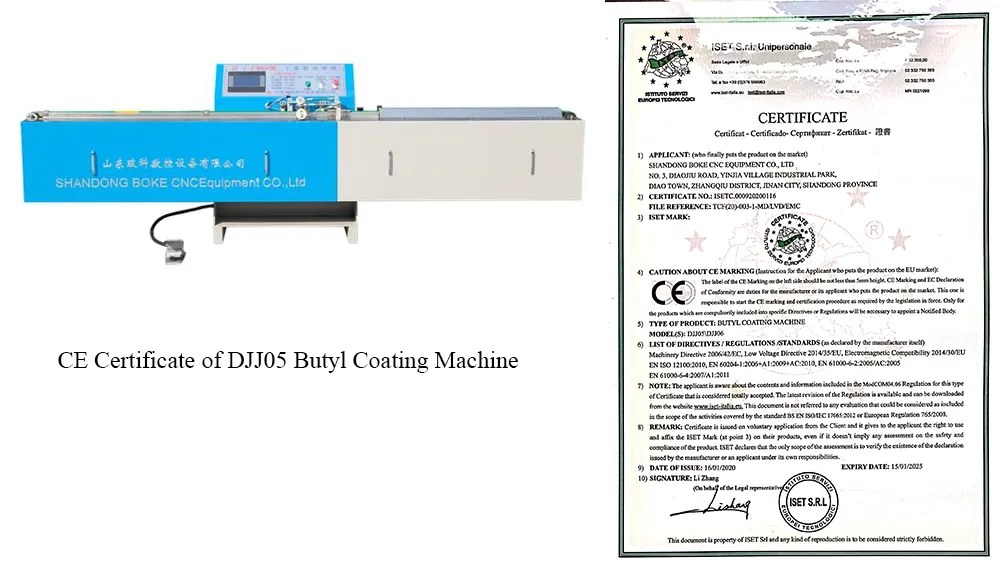

CE Certificate
🏭
Manufacturing & Support

Our insulating glass processing equipment range includes:

  • Insulating glass production lines
  • Sealing robots
  • Desiccant filling machines
  • Automatic aluminum spacer bending machines

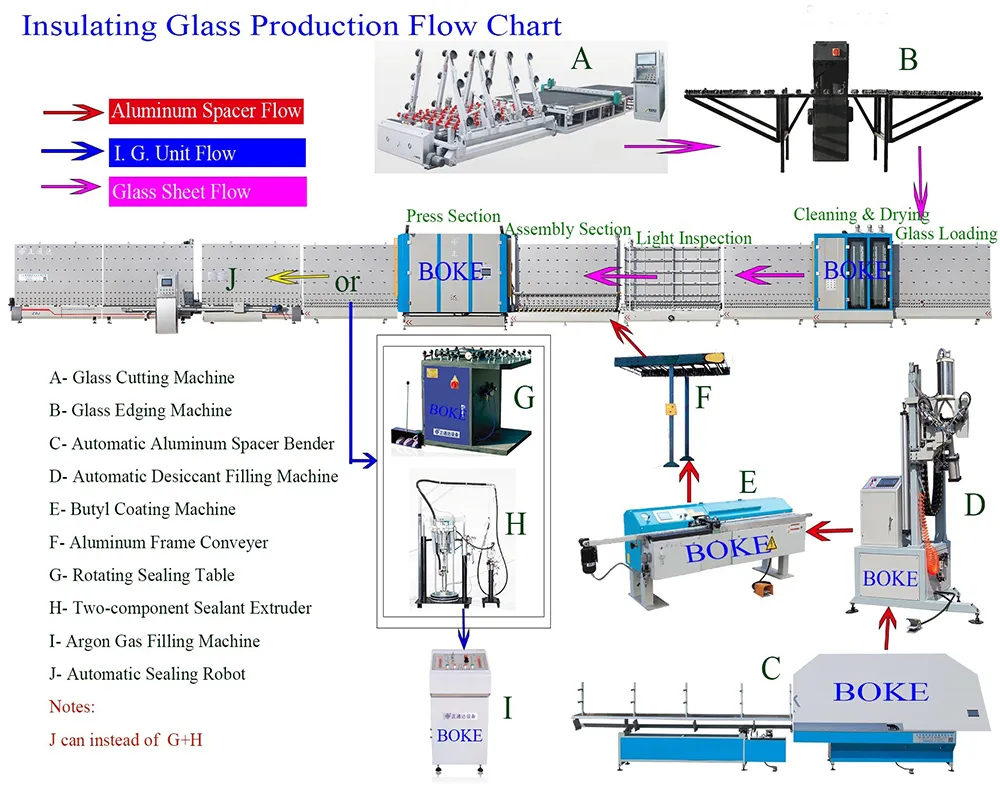

Production 1

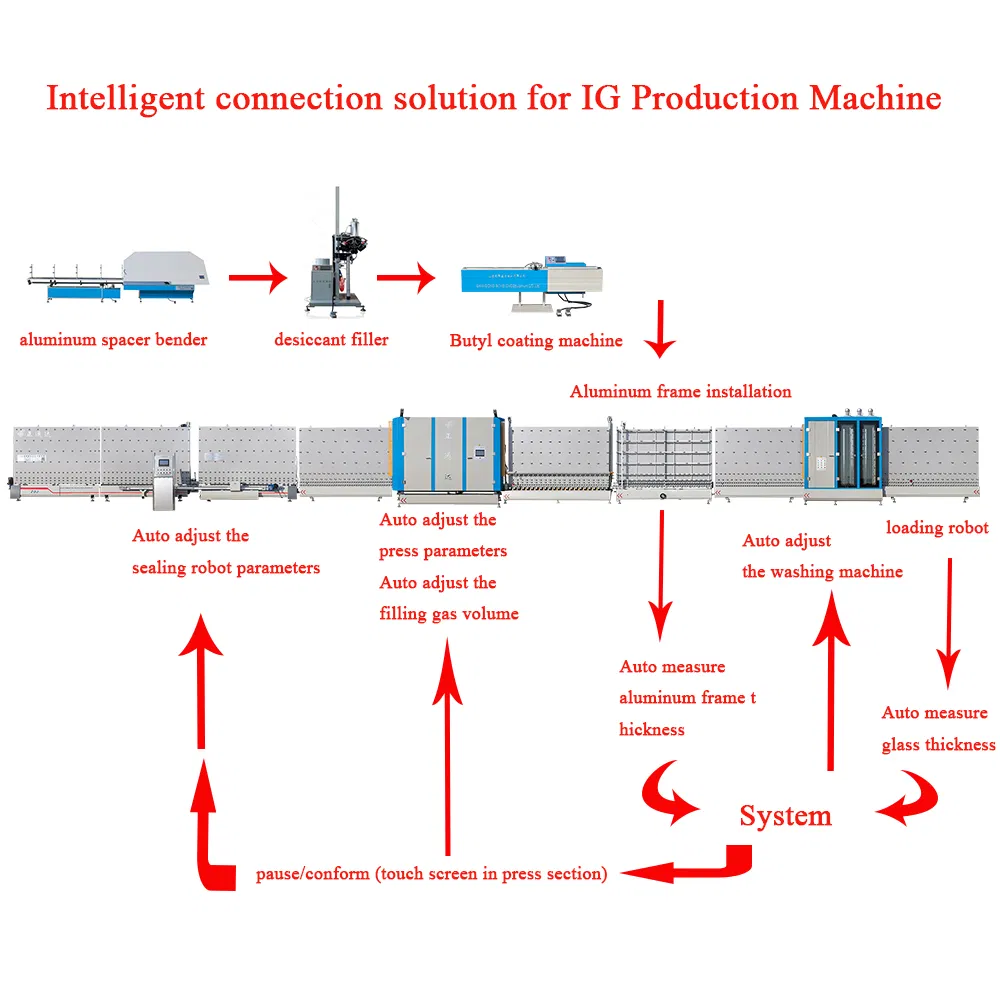

Production 2

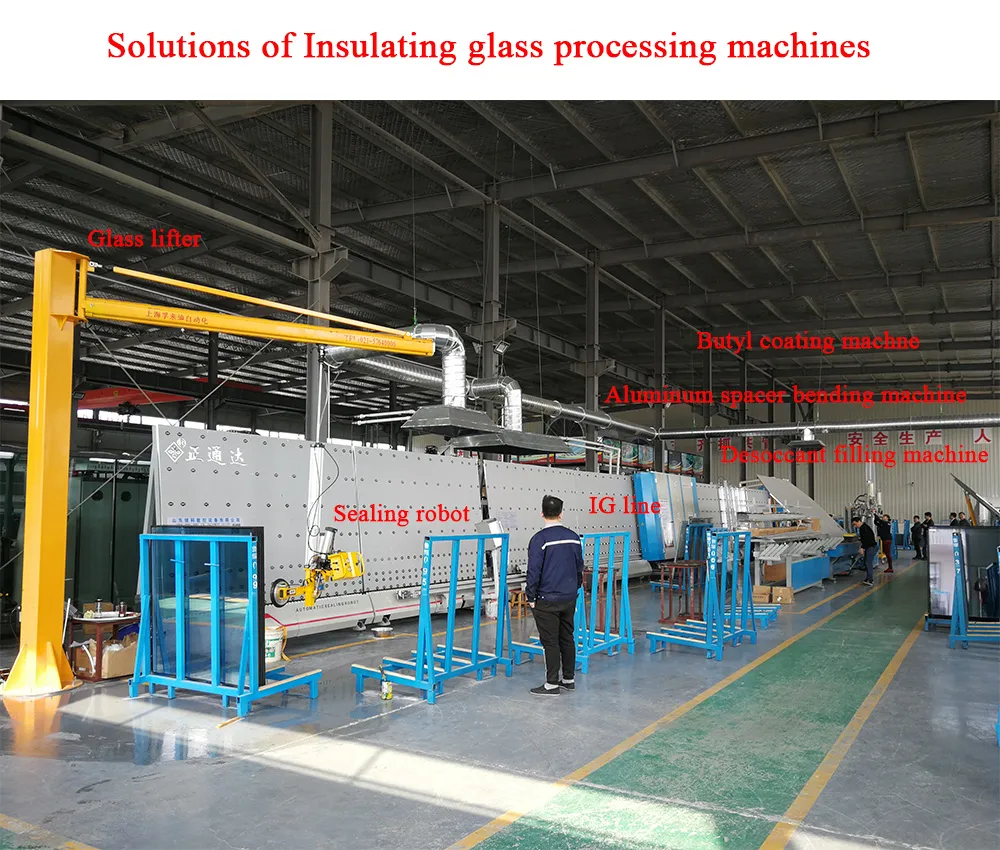

Production 3

Our facility includes 20,000 square meters of production plant. We have obtained ISO9001 and CE certifications, alongside numerous national invention patents through continuous product optimization.

Factory View
🌟
Our Advantages
  • Industry Experience: Over 22 years of expertise in the IG production line field.
  • Market Proven: More than 5,000 IG lines supplied globally.
  • Innovation: Holder of 13 patent rights.
  • Quality Assurance: Machines manufactured under strict ISO9001:2008 standards.
  • Service Team: Dedicated after-sales service team providing overseas support.

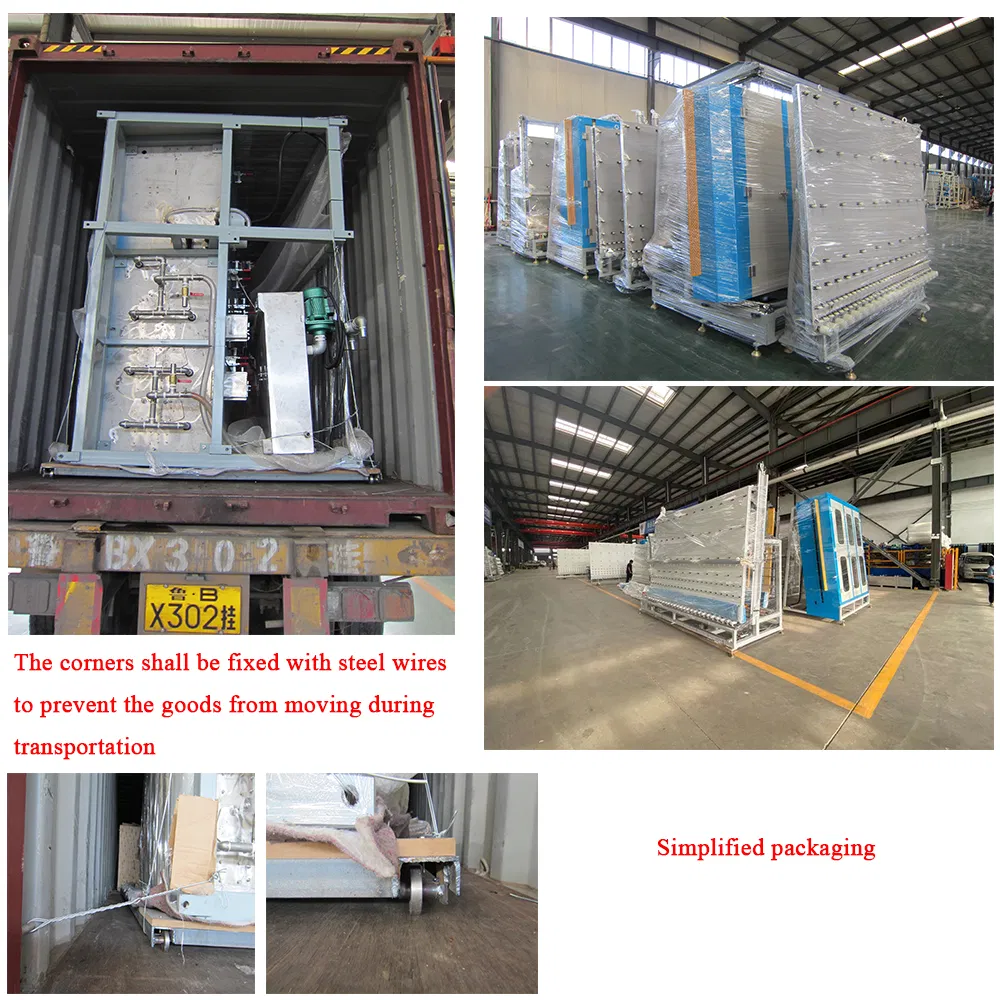

Global Supply
Frequently Asked Questions
Q1: What is the glass thickness range for this machine? A: The DJJ05 Butyl Coating Machine supports a glass thickness range from 3 mm to 19 mm.
Q2: What is the recommended gluing temperature? A: The optimal gluing temperature for the butyl sealant is between 130°C and 160°C.
Q3: Does the machine support curved or round spacers? A: Yes, the machine is designed with the flexibility to glue both standard aluminum spacers and round spacers.
Q4: What control systems are integrated into the machine? A: It features high-end automation using Siemens PLC control, Siemens touch screen interface, and variable frequency speed control.
Q5: How does the machine handle low sealant levels? A: The machine is equipped with a glue jar warning system that alerts the operator when the butyl sealant is about to be used up.
Q6: What is the delivery time after placing an order? A: Generally, it takes 30 working days for a single machine and up to 45 working days for a complete production line.
