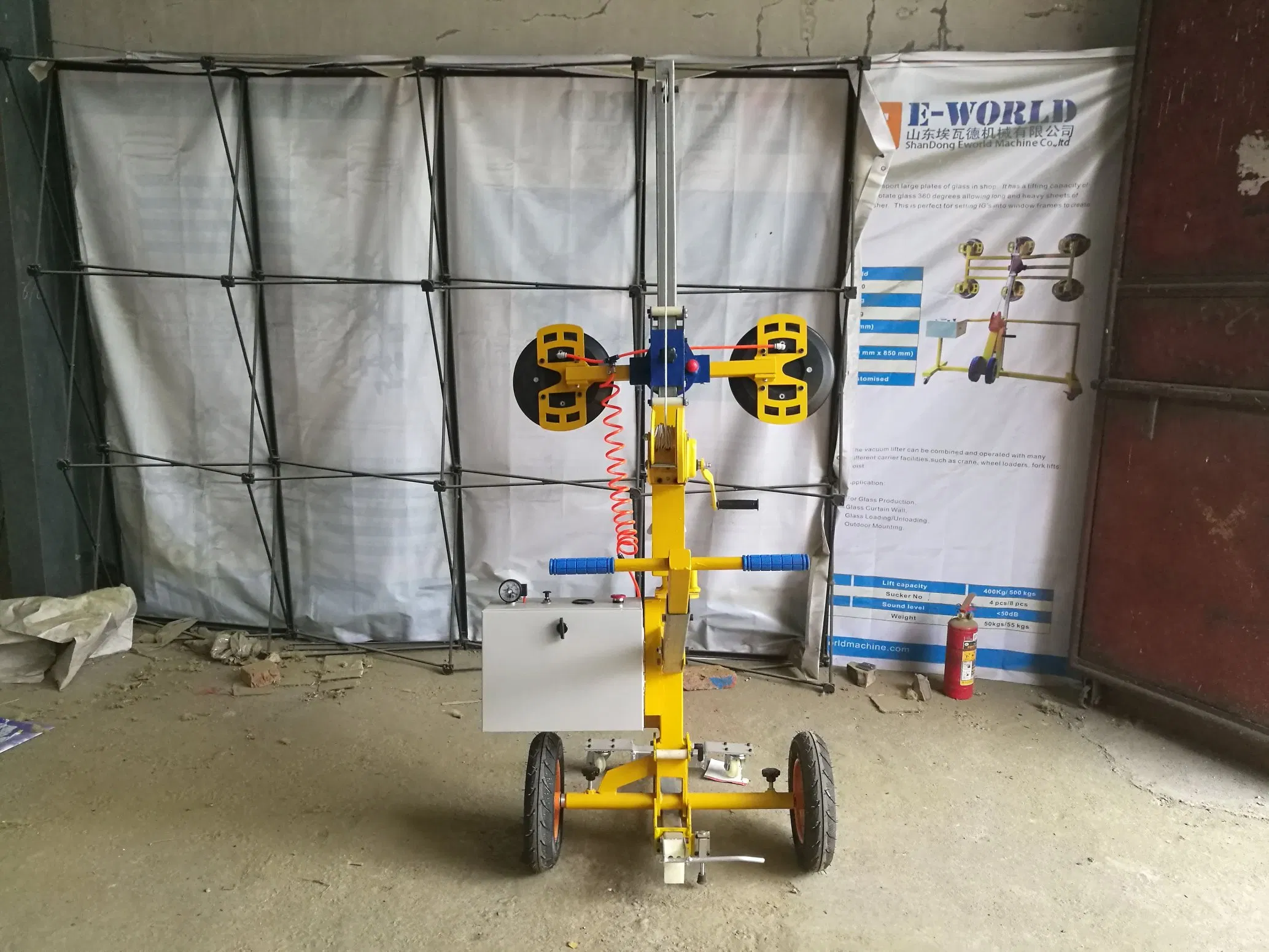

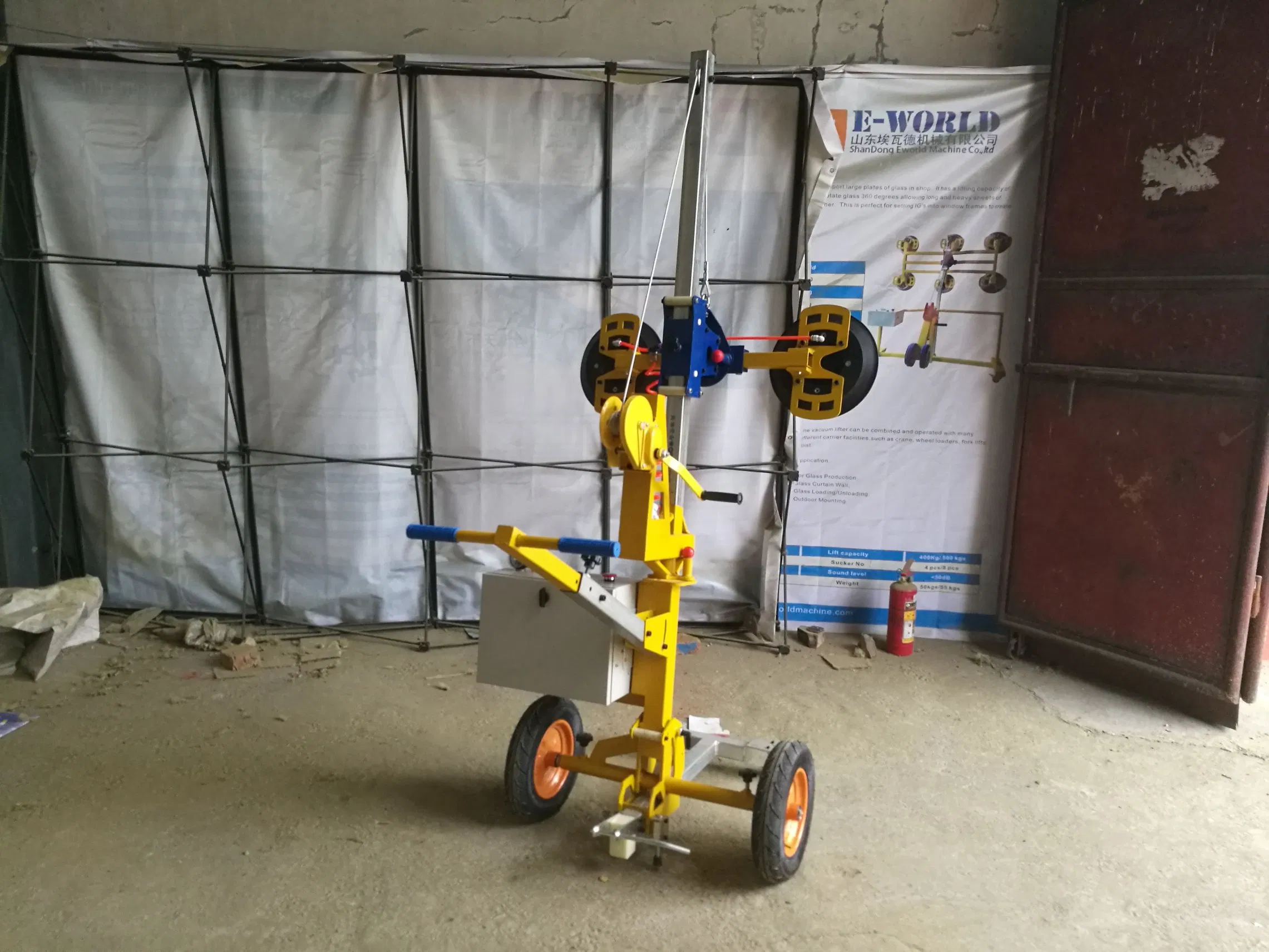

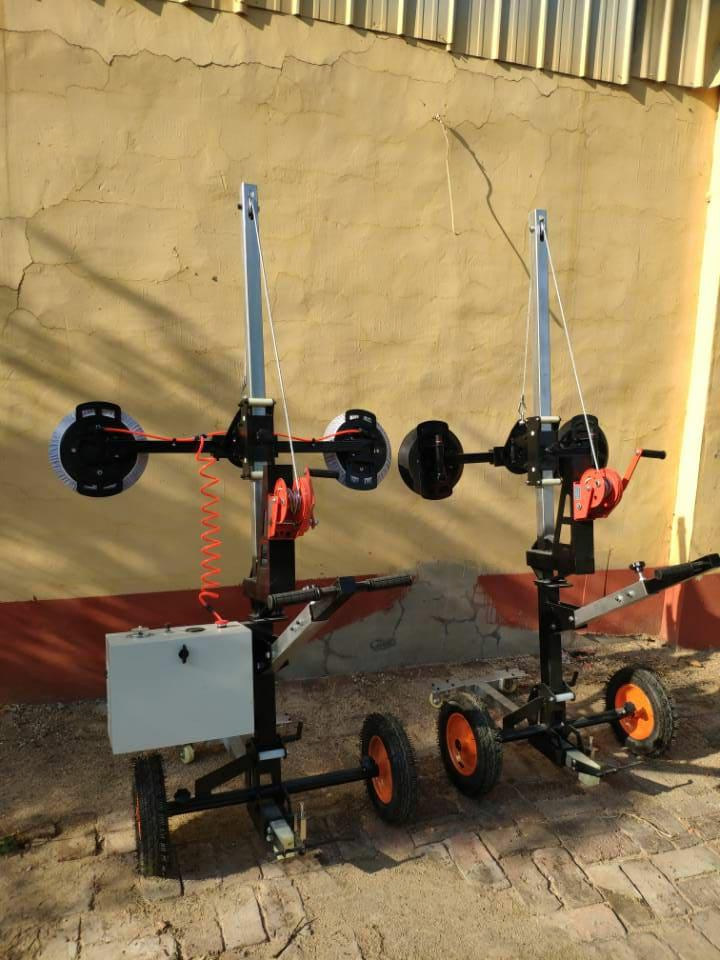

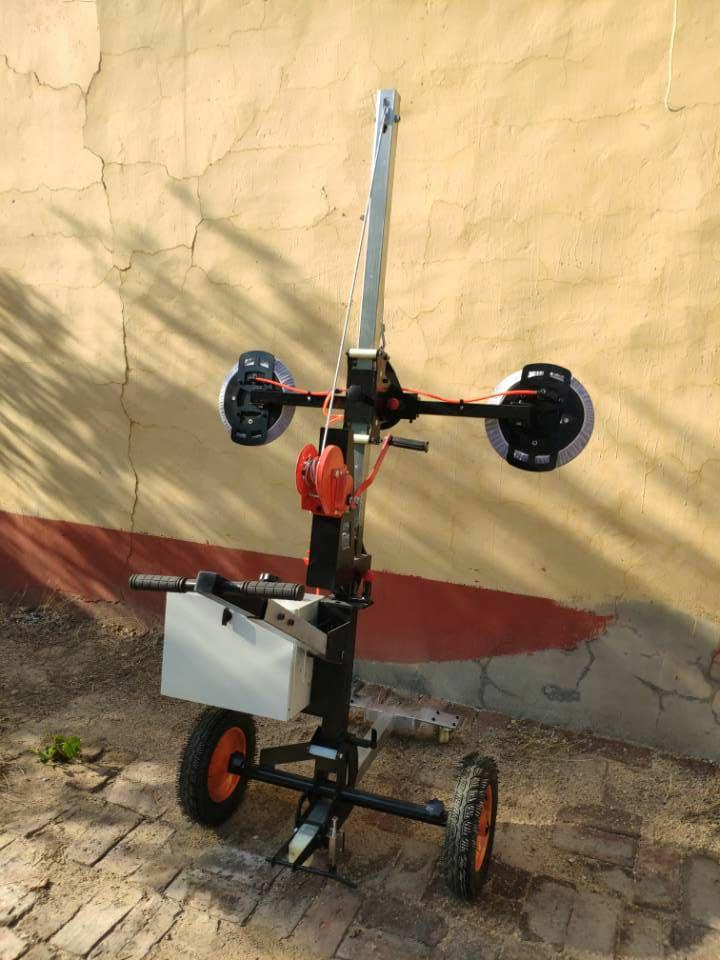

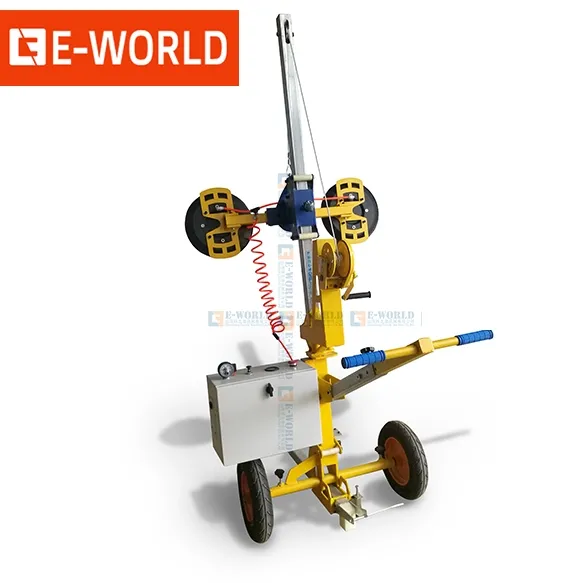

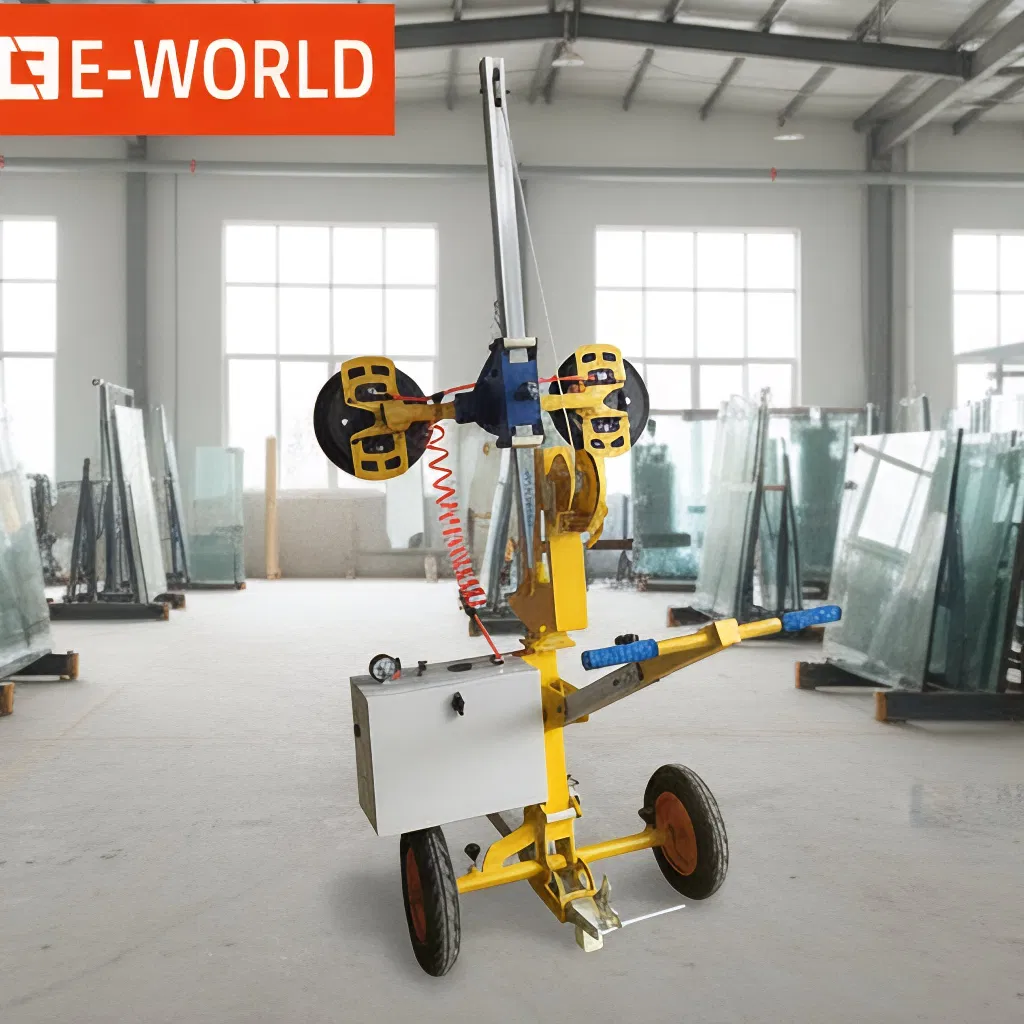

Our vacuum glass lifter is designed for both workshop and heavy-duty outdoor installations, providing superior lifting performance for large-sized glass panels. Safe glass handling is at the core of our design.
Easily inclines glass panels for precise positioning during installation.

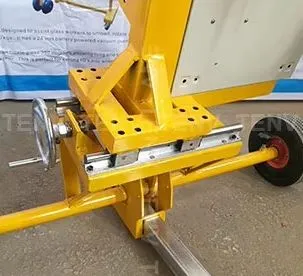

Allows smooth and flexible maneuverability for complex handling tasks.
Ensures a secure grip with reliable high-quality suction cups.
Stable performance with long-lasting battery operation for outdoor use.
| No. | Specification | Details |
|---|---|---|
| 1 | Model | PB200 |
| 2 | Work Load Limit | 150-200 kg |
| 3 | Net Weight | 65 kg |
| 4 | Suction Cup Diameter | 12" (300 mm) |
| 5 | Number of Suction Cups | 2 pcs |
| 6 | Max Glass Size (Recommended) | 1800 × 2500 mm |
| 7 | Min Glass Dimension | 750 × 850 mm |
| 8 | Rotation Angle | 90° left, 90° right |

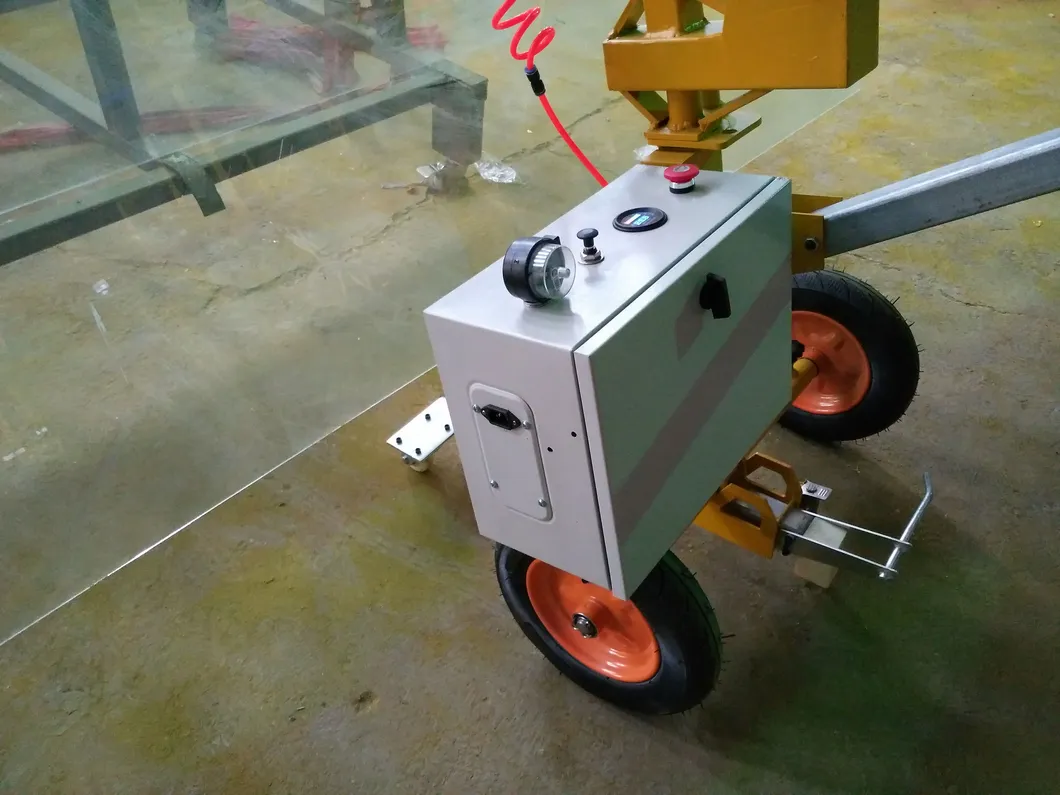

The intelligent control system displays voltage, battery usage, and working hours automatically in cycles, ensuring stable and long-lasting performance during critical operations.

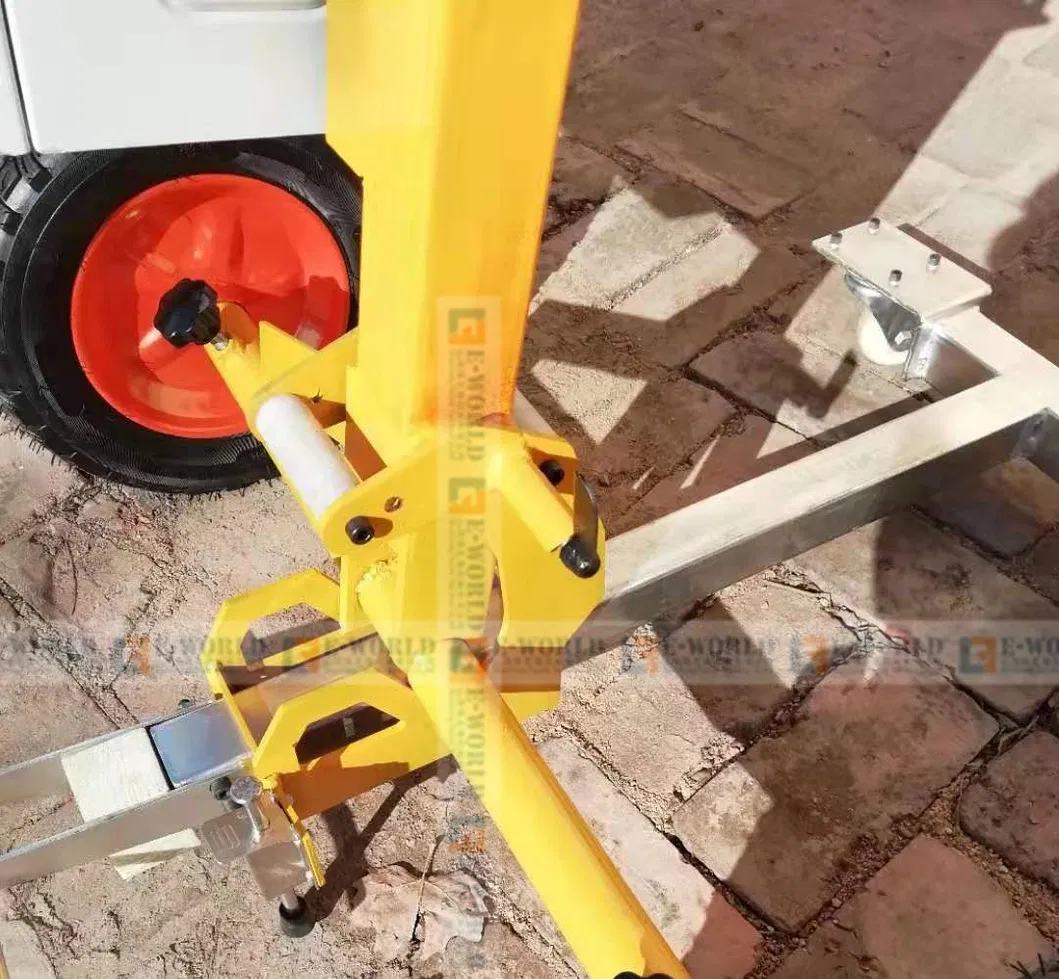

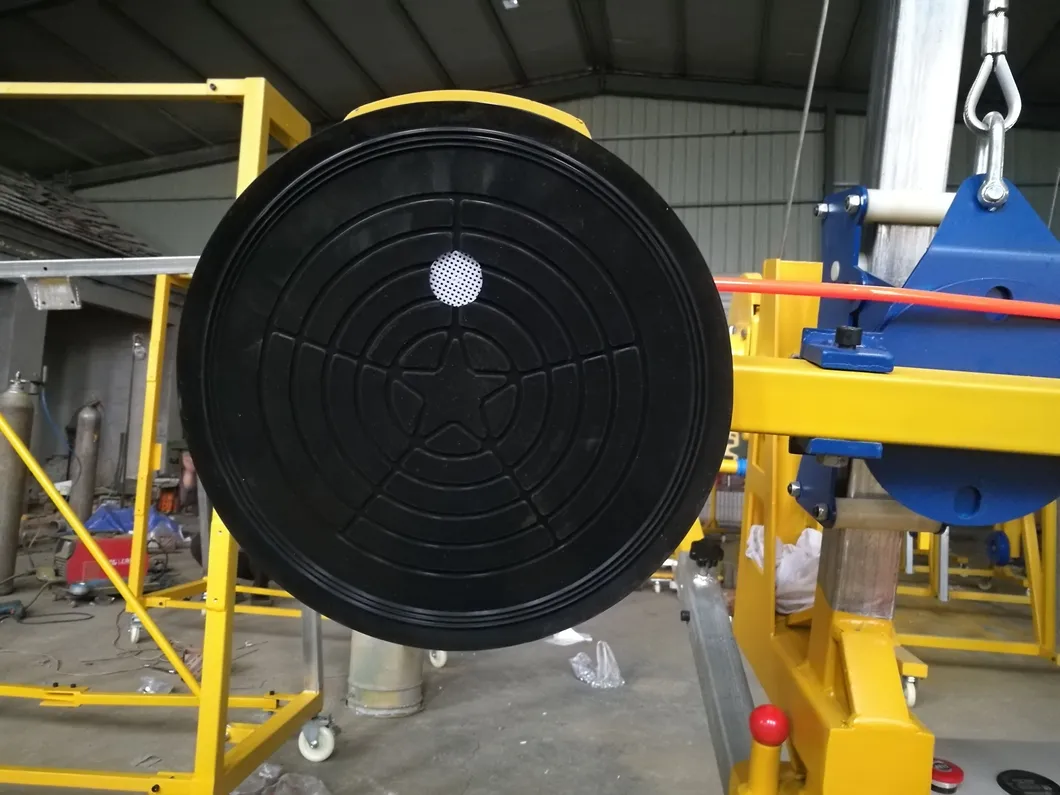

Featuring 300mm diameter suction cups made of high-quality materials for durability and strong adsorption. The height is fully adjustable to adapt the machine's setup based on actual site needs.
Specializing in glass deep processing machines with certified quality. Each machine undergoes rigorous quality control, ensuring that every component meets high standards before leaving the factory.
