| Model NO. | FGS | Processing Thickness | 3-12mm |
| Voltage | 380V | Product Name | Glass Four Side Edger Production Line |
| Keywords | Glass Four Side Edger | Working Speed | 1-40m /Min |
| Air Pressure | ≥0.6MPa | Production Capacity | 500 Sets/Year |

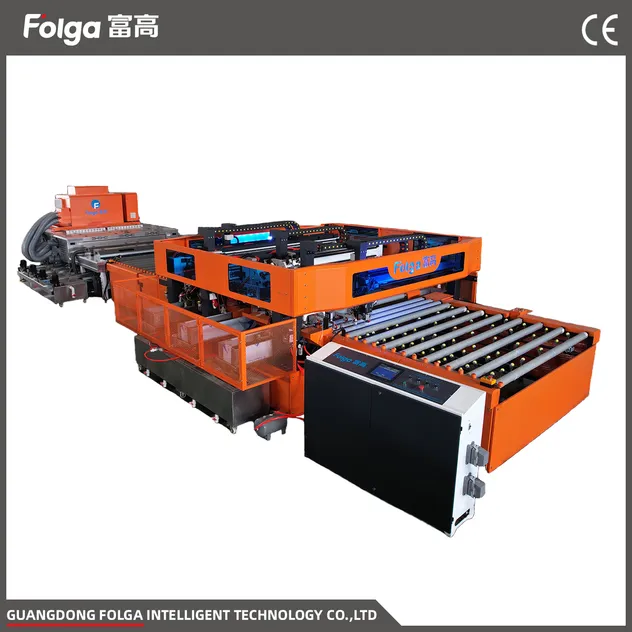

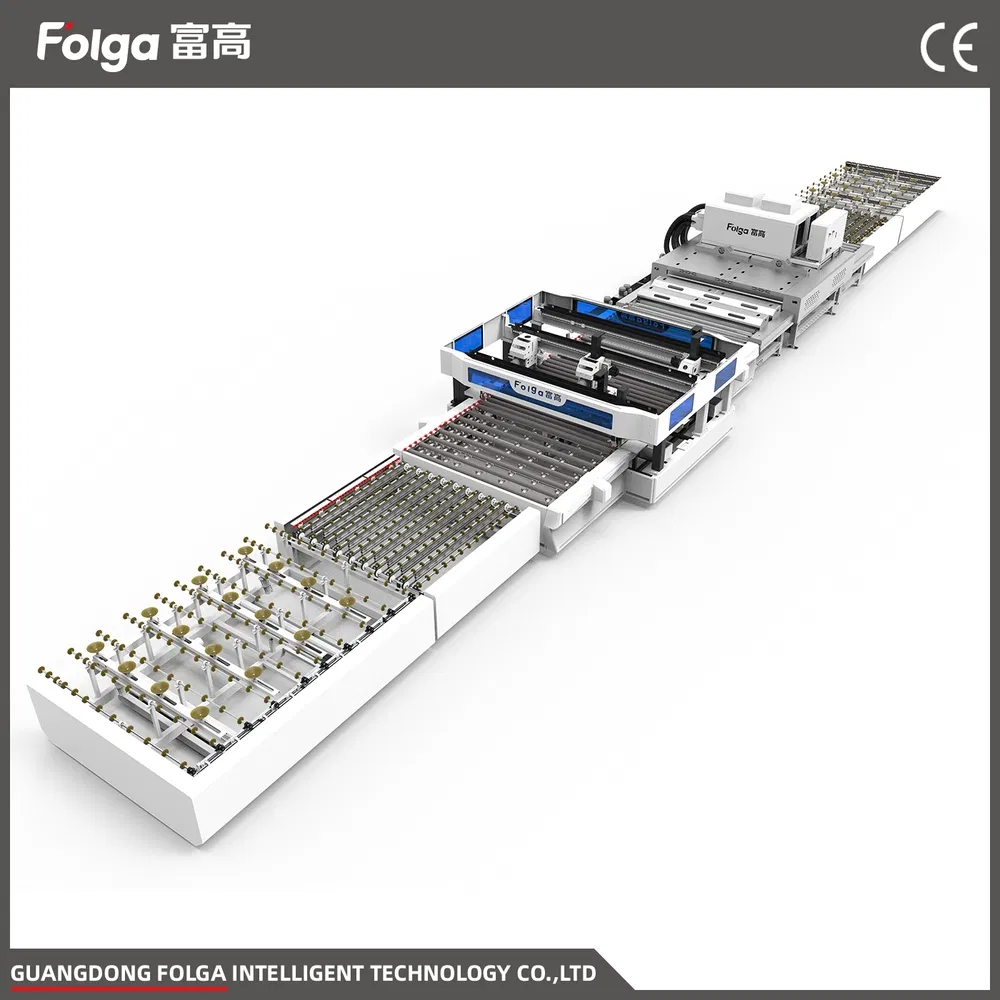

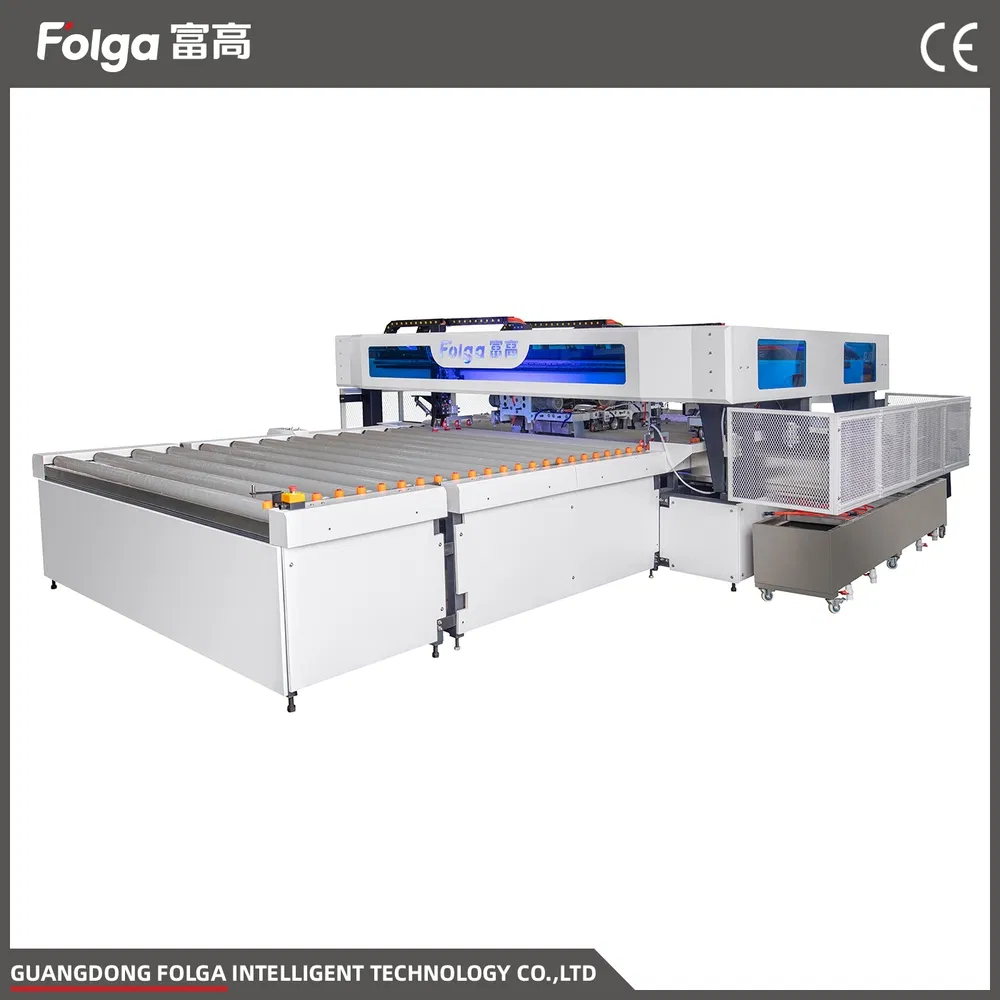

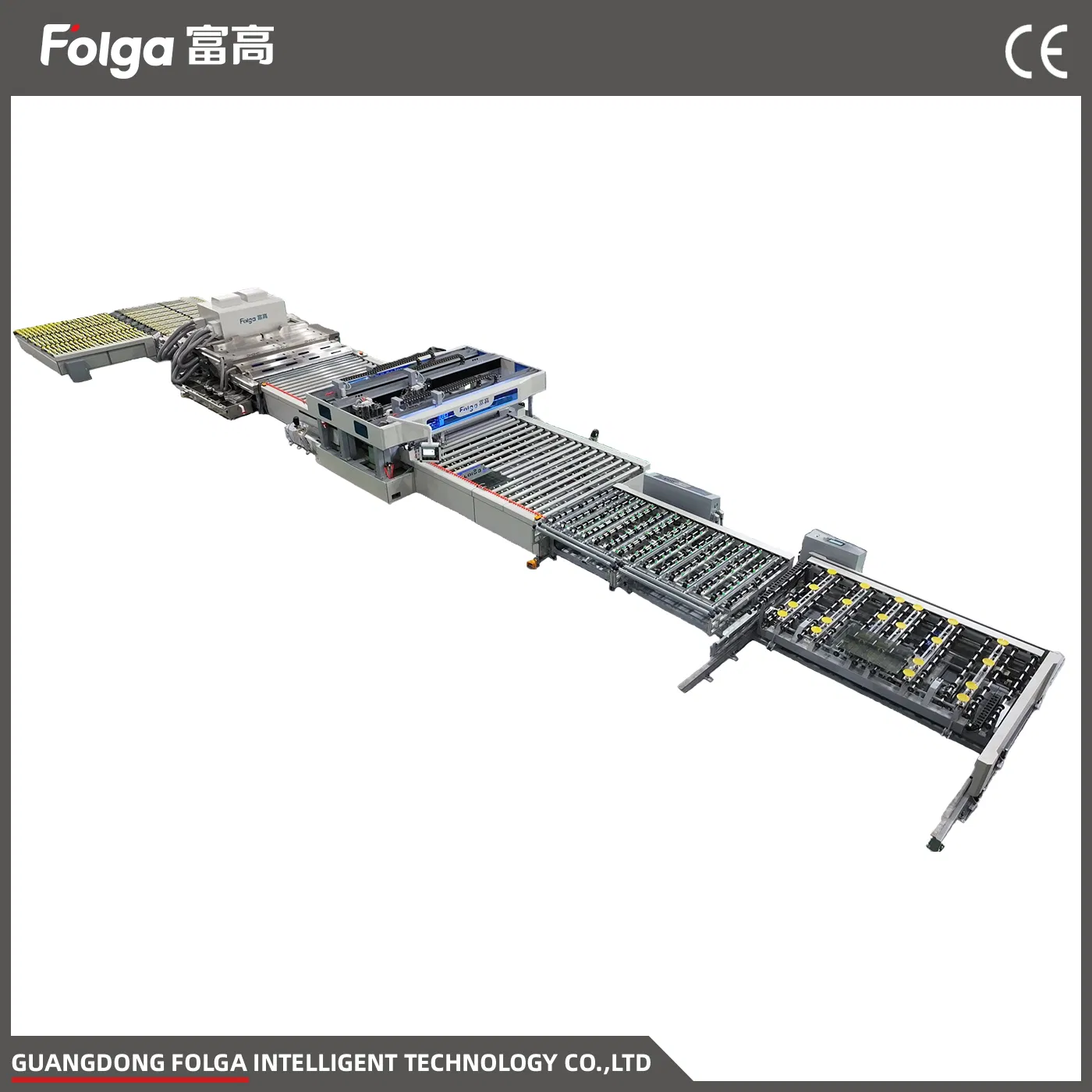

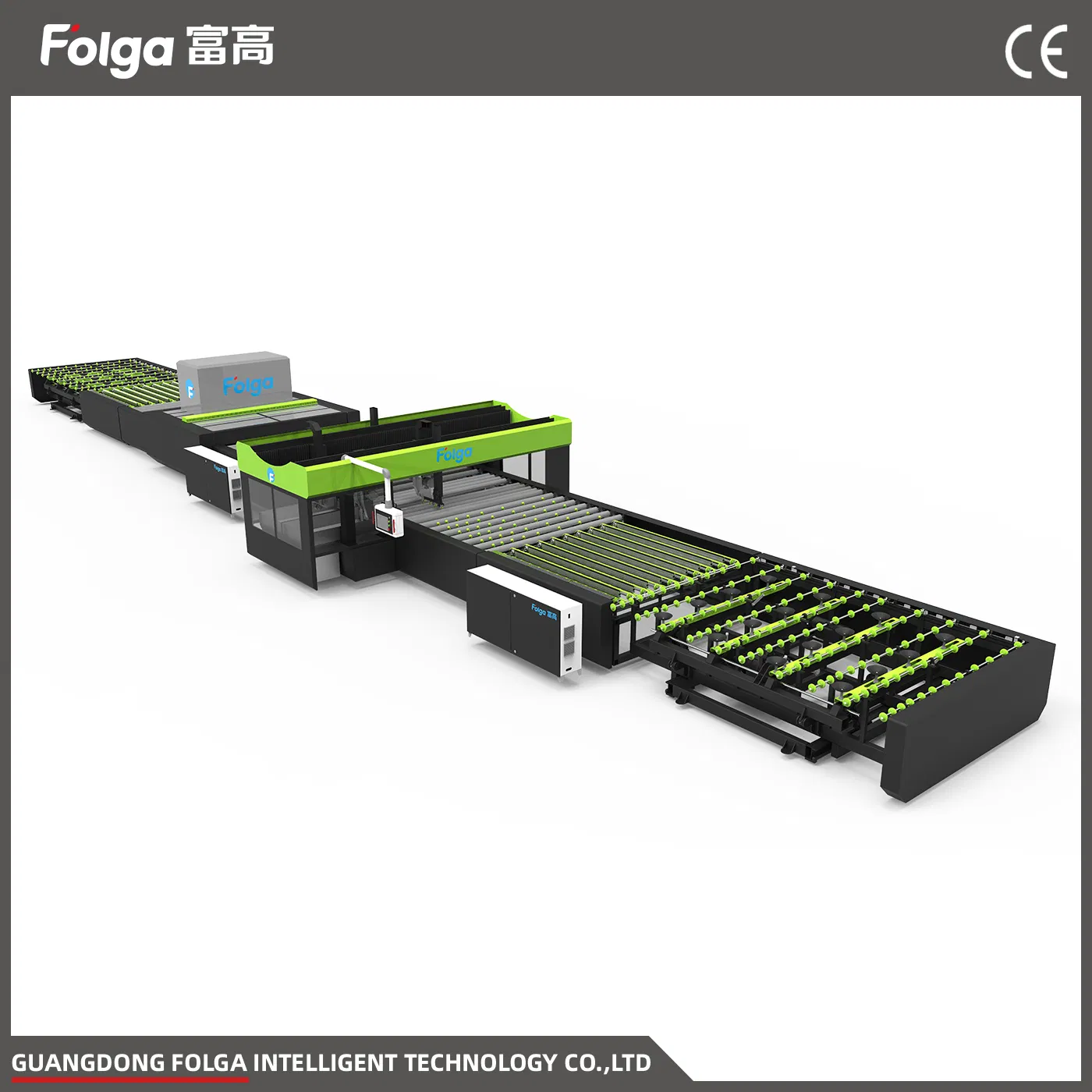

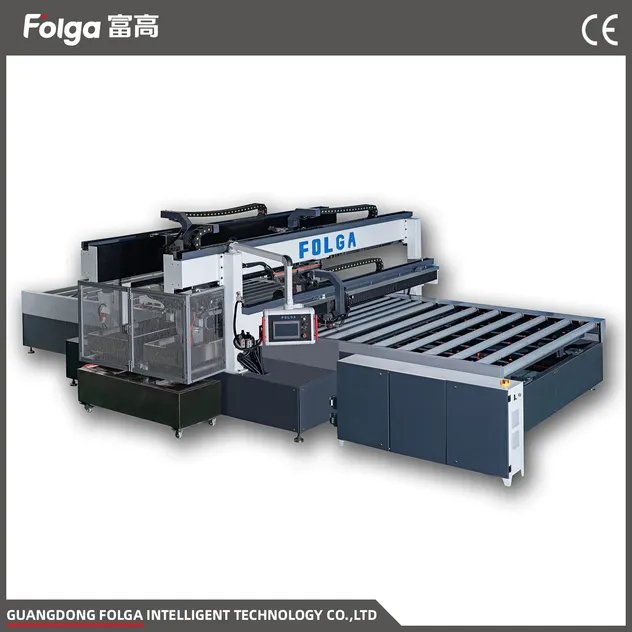

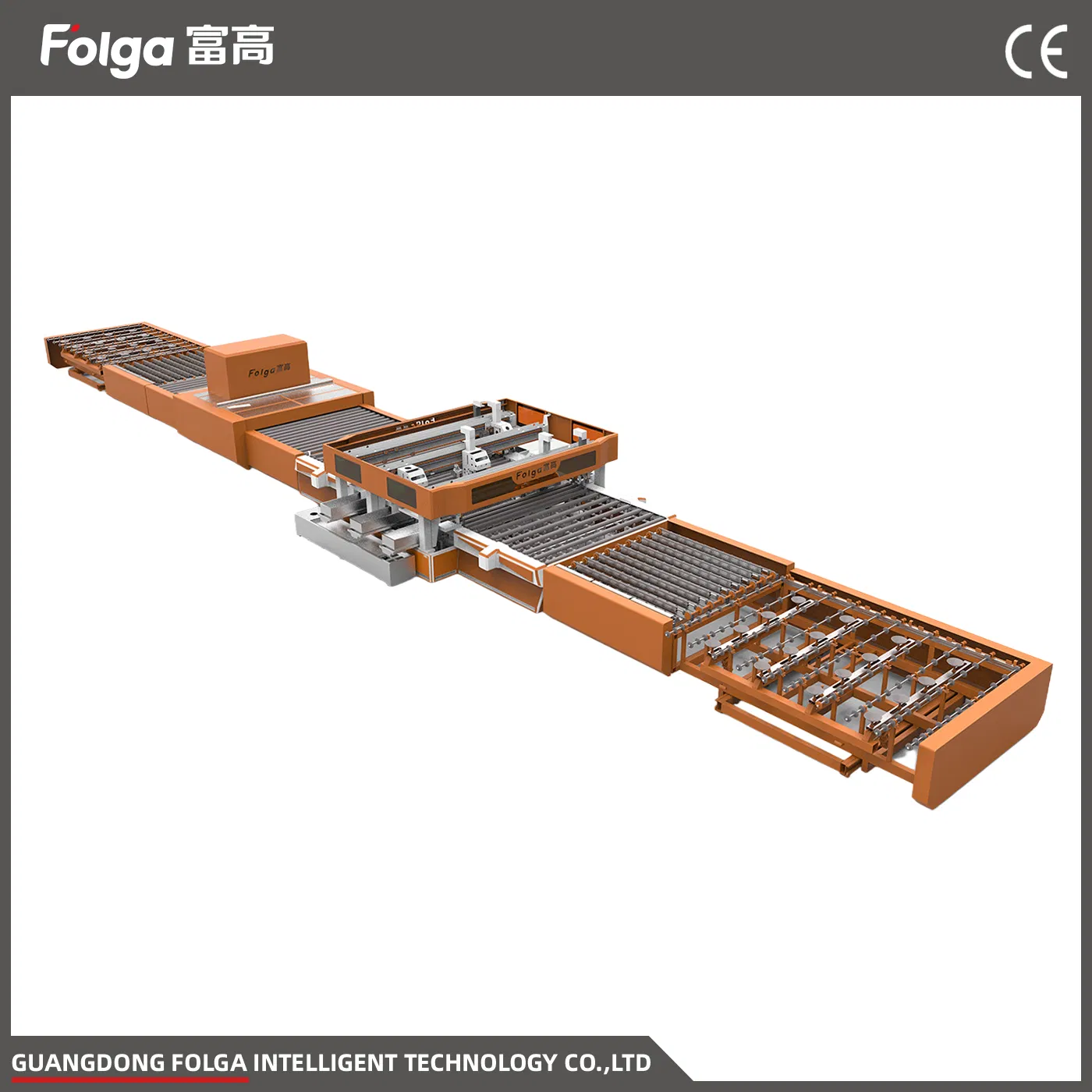

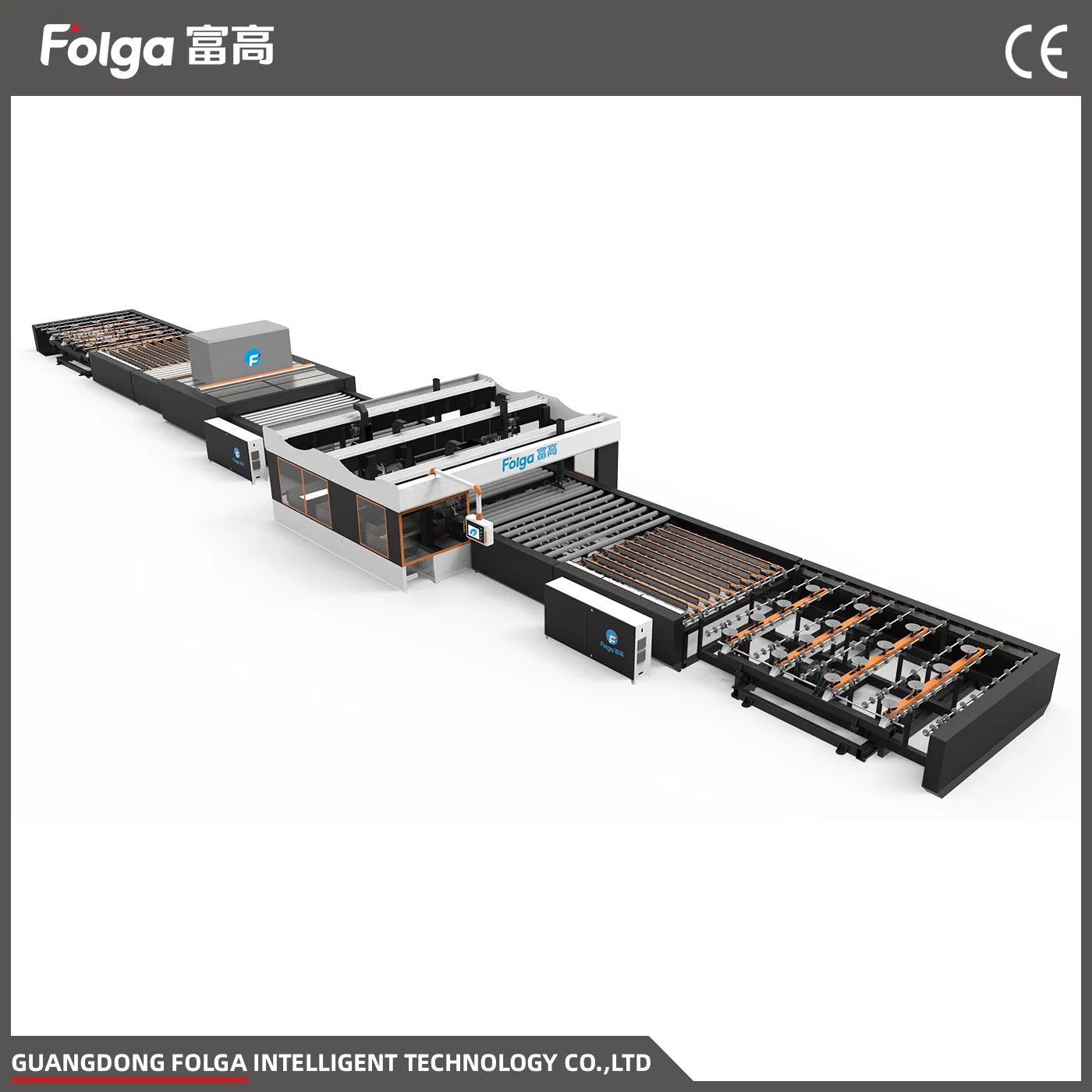

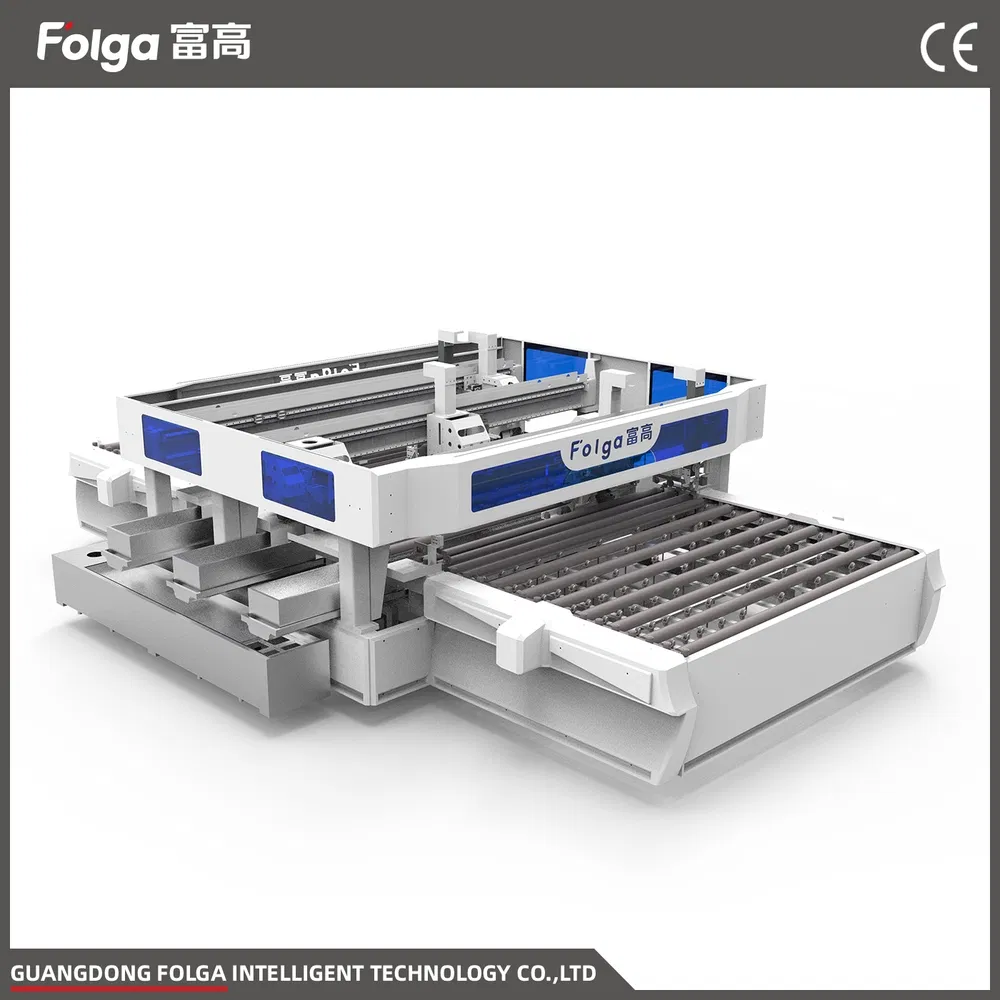

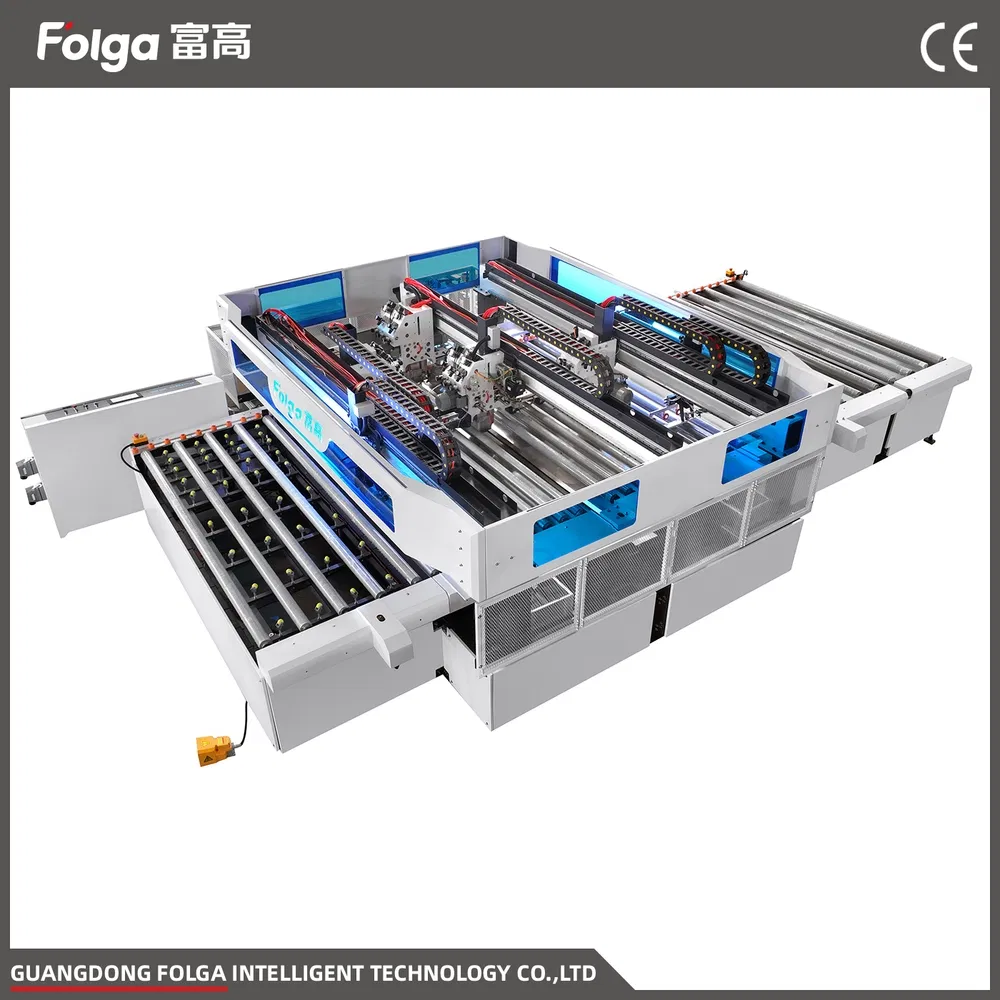

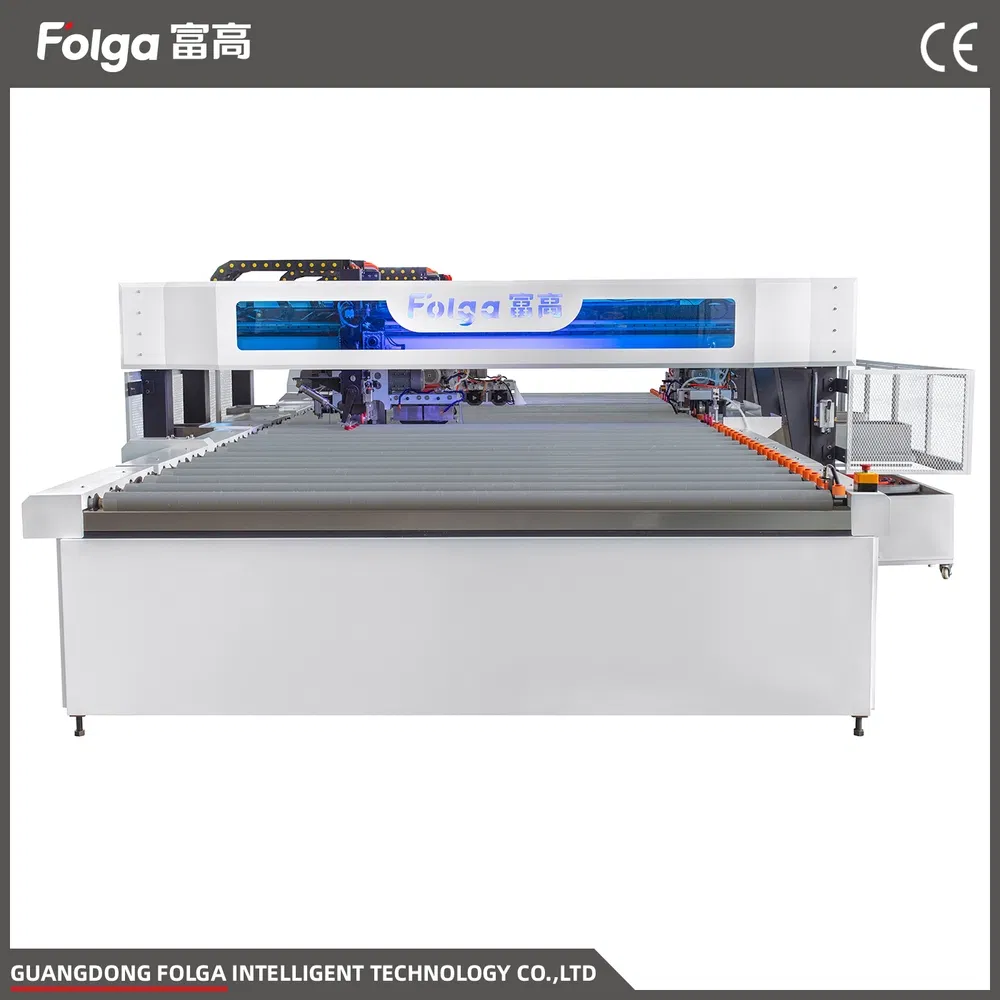

The Glass Seaming Machine (also known as Glass Four Side Edger) is a state-of-the-art automatic glass edging machine designed for high-efficiency processing of rectangular and square flat glass sheets. This horizontal glass seamer features advanced four-side simultaneous grinding technology, capable of completing chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min.

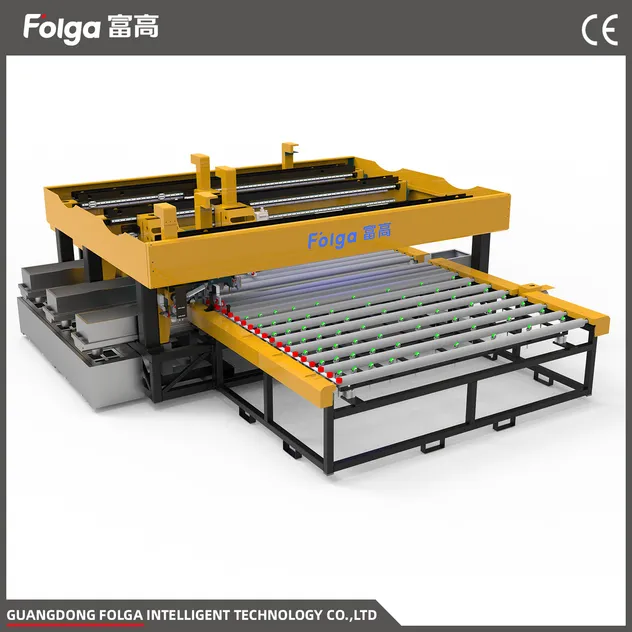

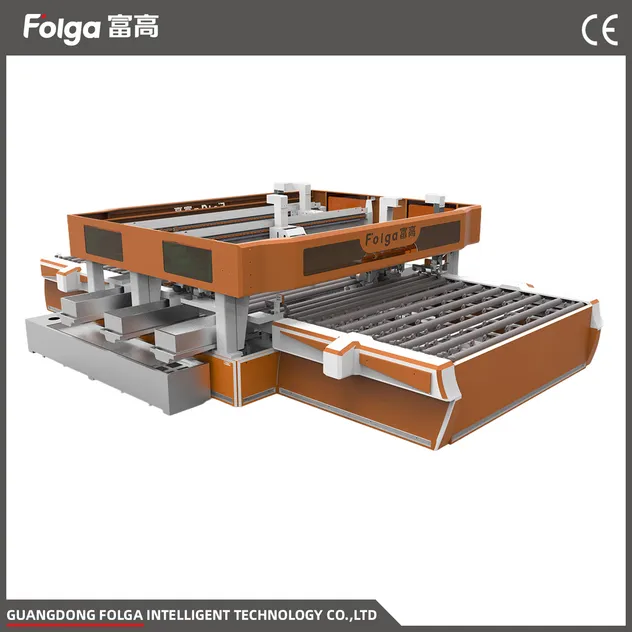

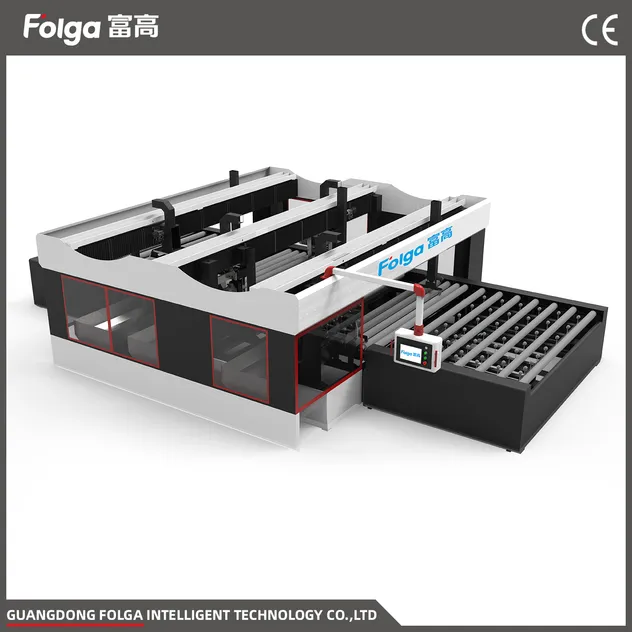

Innovative "three bridges" structure with 4 sets of grinding head mechanisms enables simultaneous up & down chamfering.
Exclusive cylinder-probe positioning design prevents direct contact with glass surfaces, eliminating scratches.
Bottom edge grinding wheels feature a specialized "double edger bowl" structure for flawless finishes.
| Technical Parameters | |
|---|---|
| Glass Thickness | 3-25mm |
| Max. Edge Grinding | 5mm |
| Max. Chamfer Grinding | 2mm |
| Working Speed | 1-30m /min |
| Size Changing Speed | 1-18m /min |
| Parallel Error | ≤0.2mm /m |
| Diagonal Error | ≤0.5mm /m |
| Single Machine Power | 42kw(12motors) |
FULL SERVO & BUS PLC CONTROL: Integrated system provides exceptional stability, precision, and real-time production monitoring.
PRECISION TRANSMISSION: Powered by gear racks and servo motors with linear guides ensuring 40m/min movement speeds.
INTEGRATED CLEANING: Outlet section equipped with spray nozzles and air blowers for high-end glass applications.
SMART FACTORY READY: Compatible with MES and ERP software integration for data tracking.
