Electric Lifts for Glass Handling and Stacking CE

Customization:	Available
After-sales Service:	Lifelong Maintenance
Warranty:	12 Months

Send Inquiry

Product Description

Basic Info.

Model NO.

XDL-1000kg

Cup Quantity

Max Loading Cap

500kg - 2000kg

Max Loading Size

1500X3000mm or 2000X6000mm

Suction Cup Dia

200mm

Suction Cup Raw

Rubber

Electric Power

220V/380V

Frequency

50/60Hz

Vacuum Pressure

0.04-0.06MPa

Vacuum Pump

Oil-Less Vacuum Pump

Vacuum Alarm

Yes (1.5 Second)

Surface Painting

Coated

Package Size

345.00cm * 80.00cm * 80.00cm

Package Weight

390.000kg

Product Description

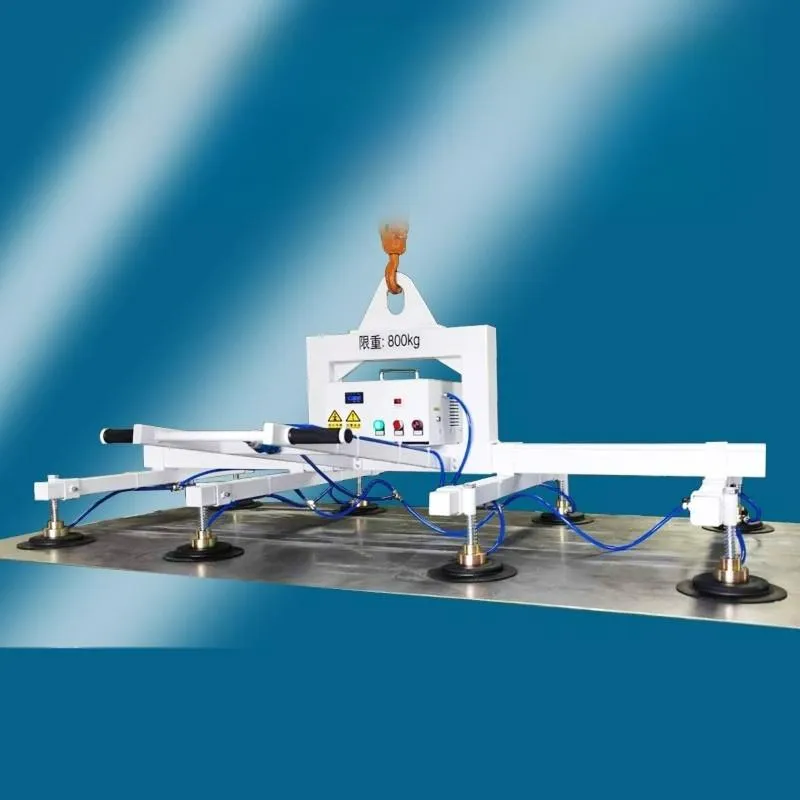

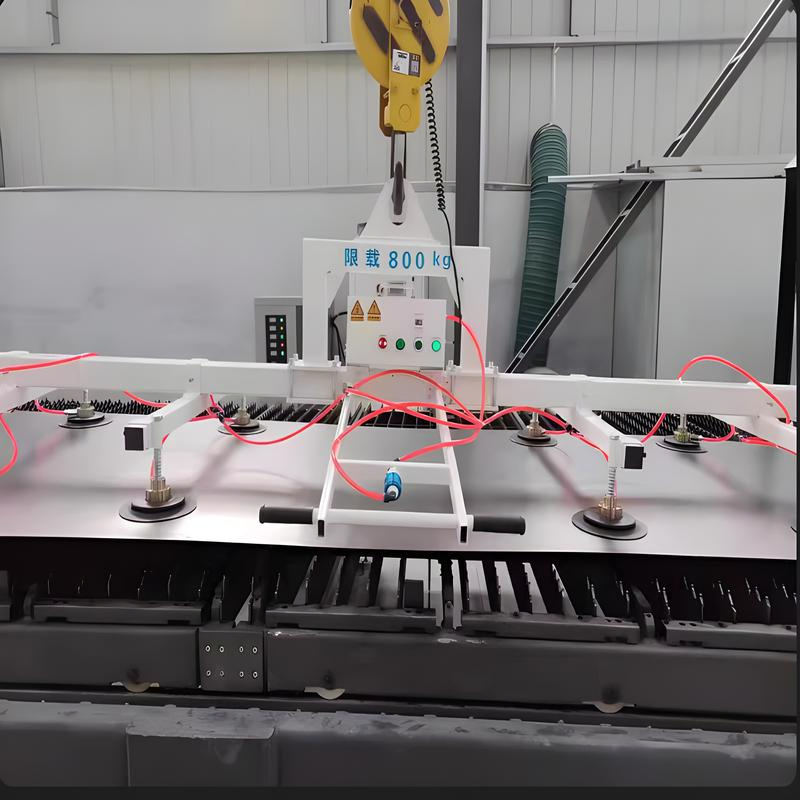

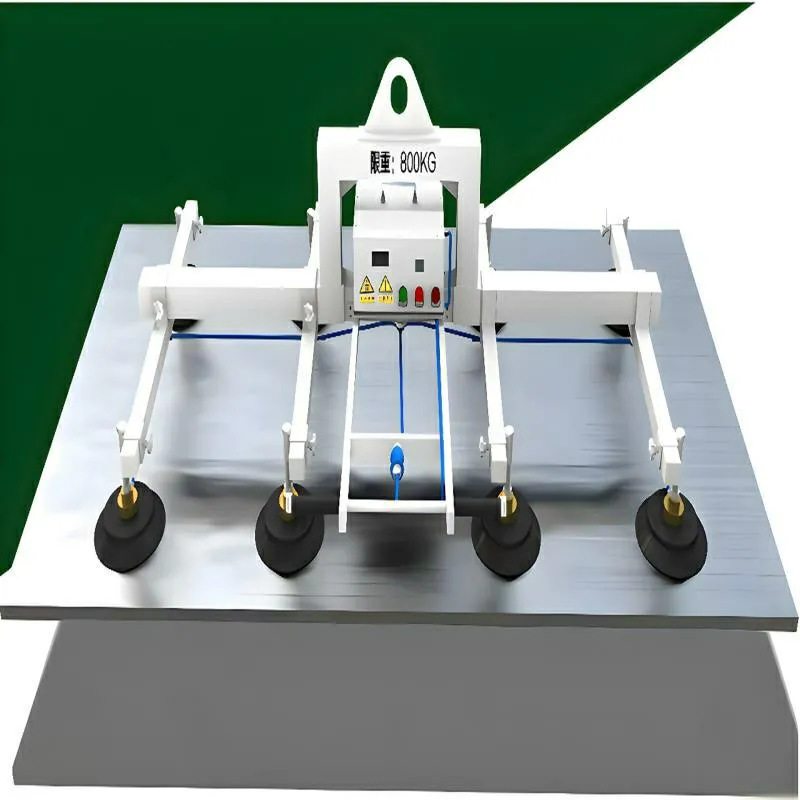

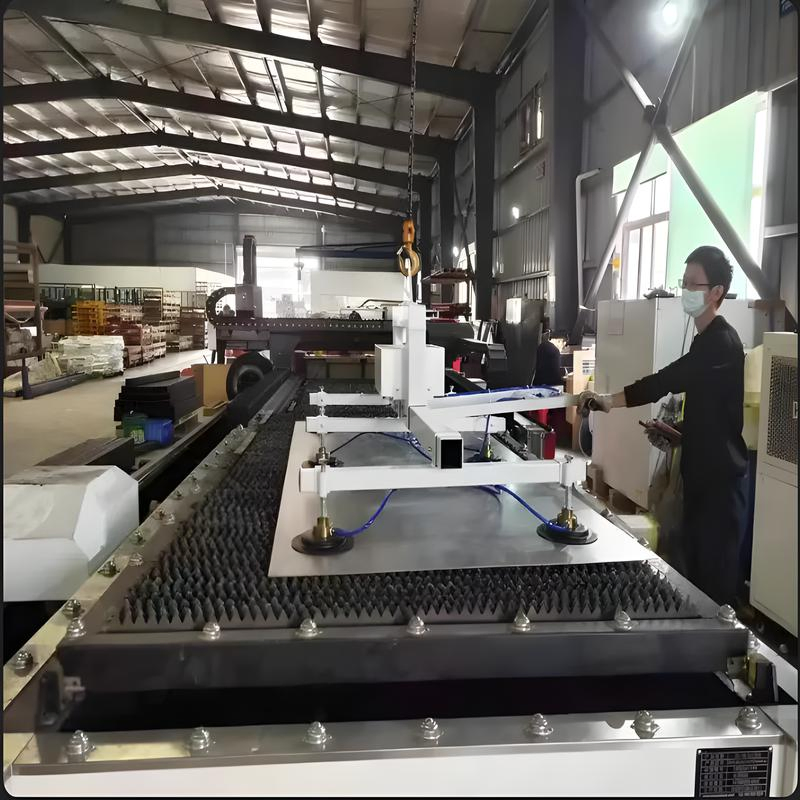

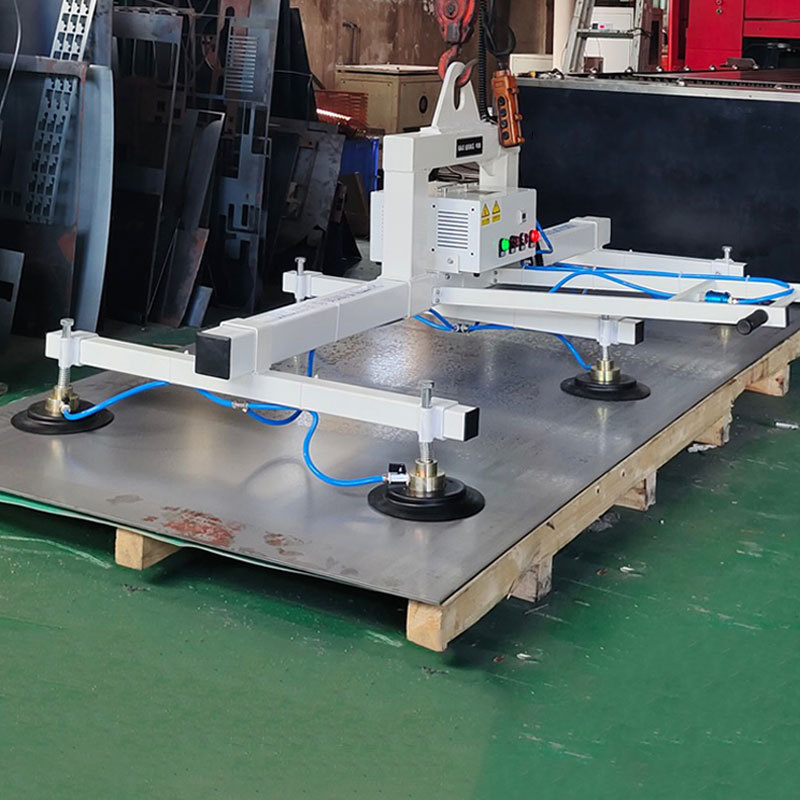

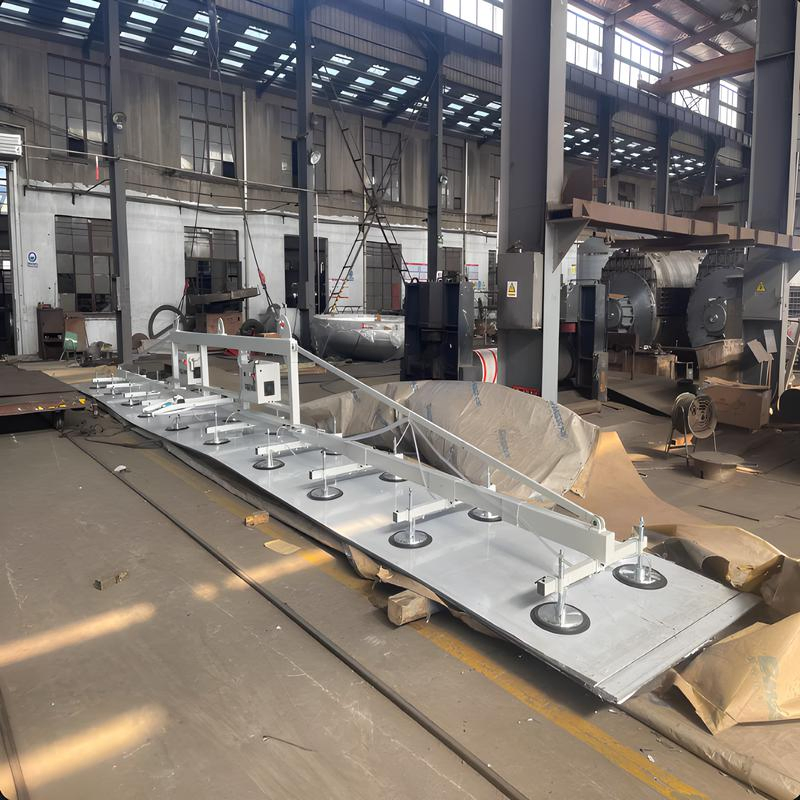

The electric-powered vacuum lifter employs an electric vacuum pump to create a vacuum that adheres to and lifts the workpieces. In place of conventional plate clamps, vacuum suction pads are utilized to grip and elevate slabs. This device is extensively applied in the laser cutting, manipulation, and hoisting of facade glass, stone, steel slabs, and other flat materials.

🏗️

Jib Crane Component: A light-duty industrial crane composed of a column, a slewing arm drive device, and an electric hoist. It features light weight, large span, and high lifting capacity.

Technical Specifications

Model	Length	Capacity	Sucker Qty	Sucker Dia	Voltage	Gross Weight
XDL300-2M	2m	300kg	4pcs	200mm	220/380V	110kg
XDL600-2M	2m	600kg	6pcs	200mm	220/380V	120kg
XDL800-2M	2m	800kg	8pcs	200mm	220/380V	125kg
XDL1000-3M	3m	1000kg	10pcs	200mm	220/380V	180kg
XDL2000-5M	5m	2000kg	20pcs	200mm	220/380V	290kg

Usage & Performance

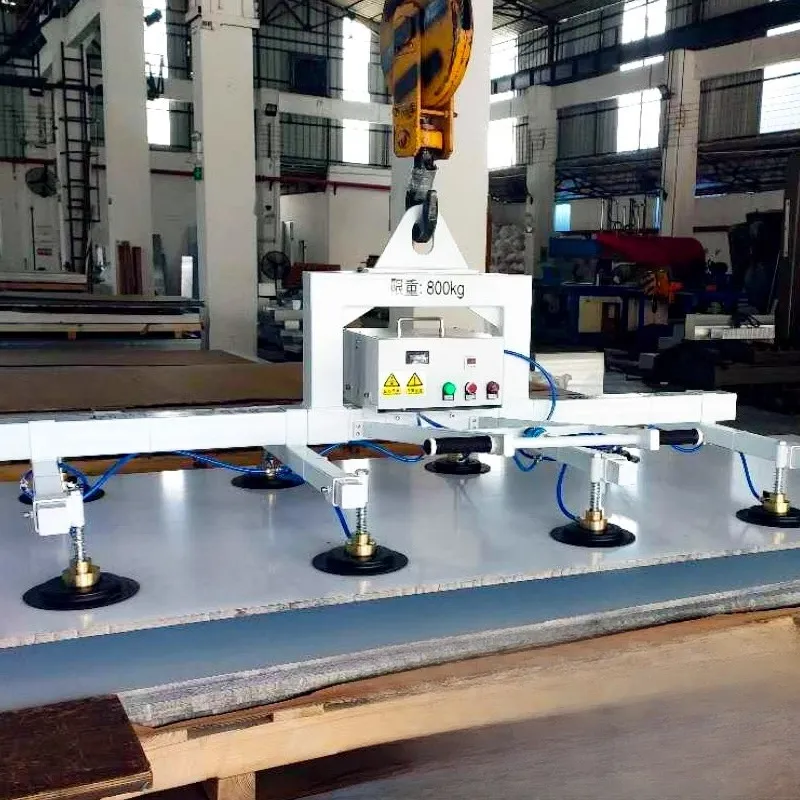

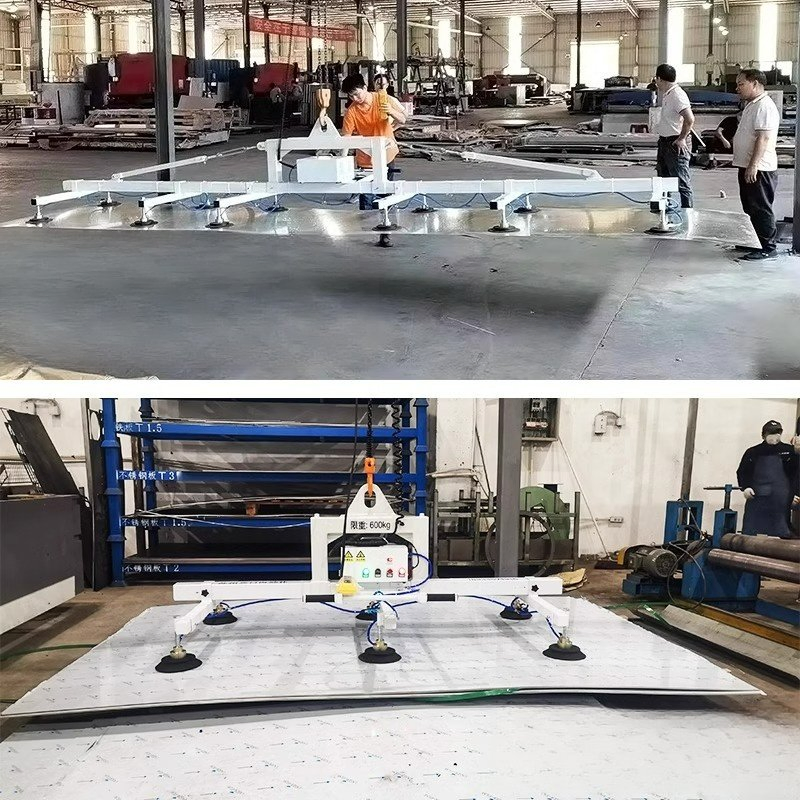

Applicable Industries: Construction sites, glass factories, window factories. Suitable for thick metal and precision processing condition lifting work.

Usage Scenarios: Open-air warehouses, material yards, railway stations, port terminals, indoor workshops.
Jib Types: Wall Type, Column Type, Mobile Type.
Rotation: Manual & Electric (0~360 degrees).

🛡️

High Safety Performance: Equipped with air-cut protection and automatic braking. In case of sudden power loss, the plate remains in place for a period without falling.

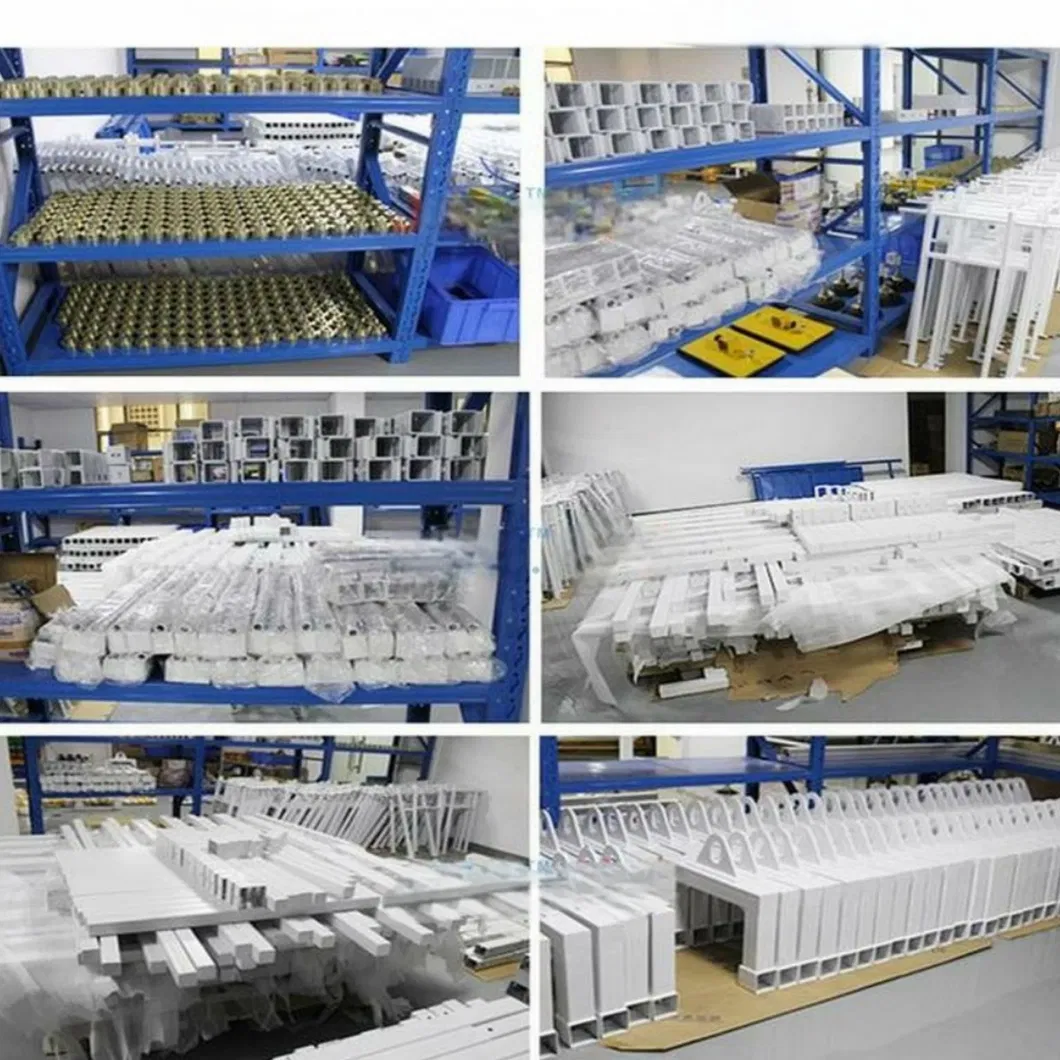

Manufacturing Excellence

Our shipment process includes 7 rigorous inspection and testing stages:

1. Seal integrity test

2. Pressure retention test

3. Leakage identification

4. Overload stress test

5. Incoming goods exam

6. Acoustic level evaluation

7. Aesthetic condition review

Why Choose Our Solutions?

Compatible with aluminum sheets, stainless steel sheets, and plates up to 400°C.
Utilizes premium imported vacuum pumps and valves.

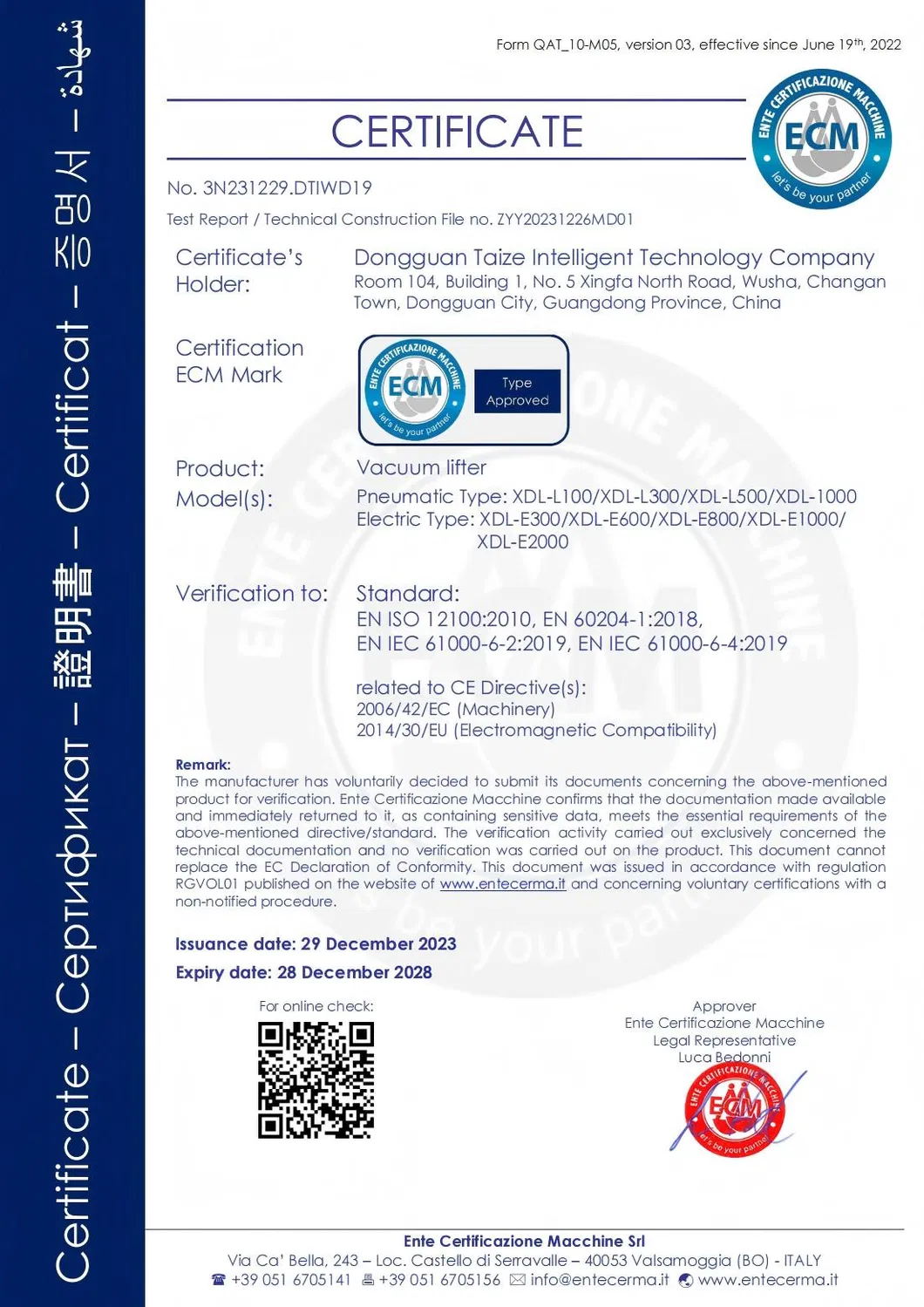

ISO9001 certified manufacturing and CE accredited products.
12-month guarantee with ongoing servicing for life.
Accumulator and pressure sensors for maximum safety assurance.

Frequently Asked Questions

What materials can this vacuum lifter handle?

It is designed for flat materials including facade glass, stone slabs, steel slabs, aluminum sheets, and stainless steel sheets.

What is the maximum lifting capacity?

The system supports various capacities from 300KG up to a maximum load of 2000KG, depending on the specific model and configuration.

What happens if there is a sudden power failure?

The equipment is equipped with an automatic braking device and air-cut protection. This ensures the workpiece remains adhered to the suction pads for a period of time to prevent accidents.

Are the specifications customizable?

Yes, we support customized sizes, varying suction cup quantities, and different structural configurations to meet specific industrial requirements.

Can the lifter handle high-temperature materials?

Yes, our solutions are suitable for applications with plates at temperatures reaching up to 400 degrees Celsius.

What is the warranty and support policy?

All products come with a 12-month guarantee, lifelong maintenance support, and dedicated engineer assistance.
