Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
1 / 5
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets
Electric Lifts for Handling and Stacking Glass Sheets

Electric Lifts for Handling and Stacking Glass Sheets

Customization: Available
After-sales Service: Lifelong Maintenance
Warranty: 12 Months
Send Inquiry

Product Description

Technical Parameters
Model NO.
XDL-1000kg
Cup Quantity
10
Max Loading Cap
500kg - 2000kg
Max Loading Size
1500X3000mm / 2000X6000mm
Cup Quantity Z
4-20PCS
Suction Cup Dia
200mm
Suction Cup Raw
Rubber
Electric Power
220V/380V
Frequency
50/60Hz
Vacuum Pressure
0.04-0.06MPa
Vacuum Pump
Oil-Less Vacuum Pump
Vacuum Alarm
Yes (1.5 Second)
Machine Height
850mm
Package
Plywood Box
HS Code
8428909090
Product Overview

Industrial Vacuum Lifter & Jib Crane Solutions

The electric-powered vacuum lifter employs an electric vacuum pump to create a vacuum that adheres to and lifts workpieces. In place of conventional plate clamps, vacuum suction pads are utilized to grip and elevate slabs. This device is extensively applied in laser cutting, manipulation, and hoisting of facade glass, stone, steel slabs, and other flat materials.

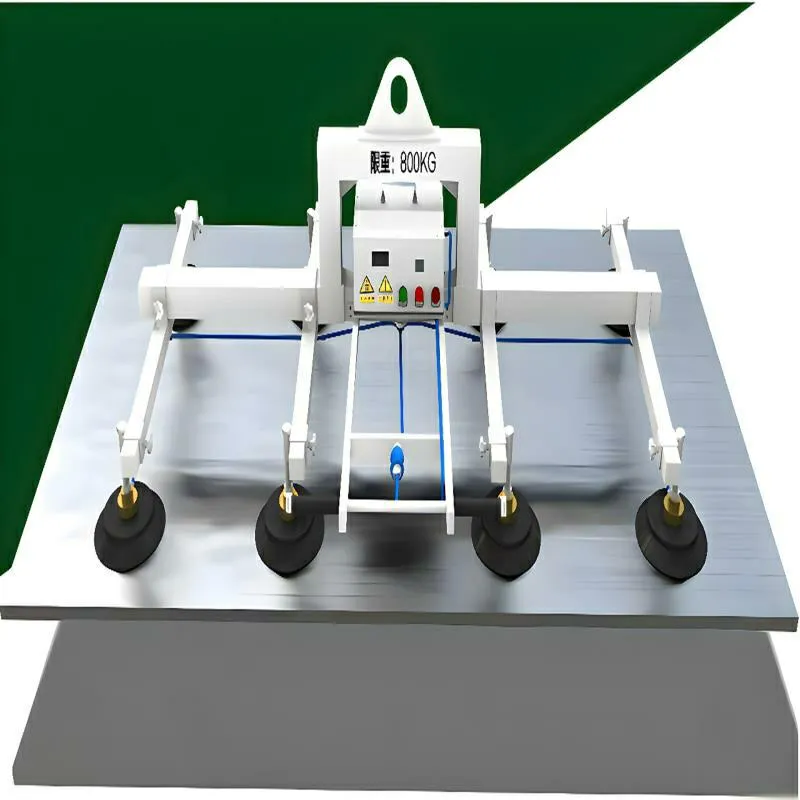

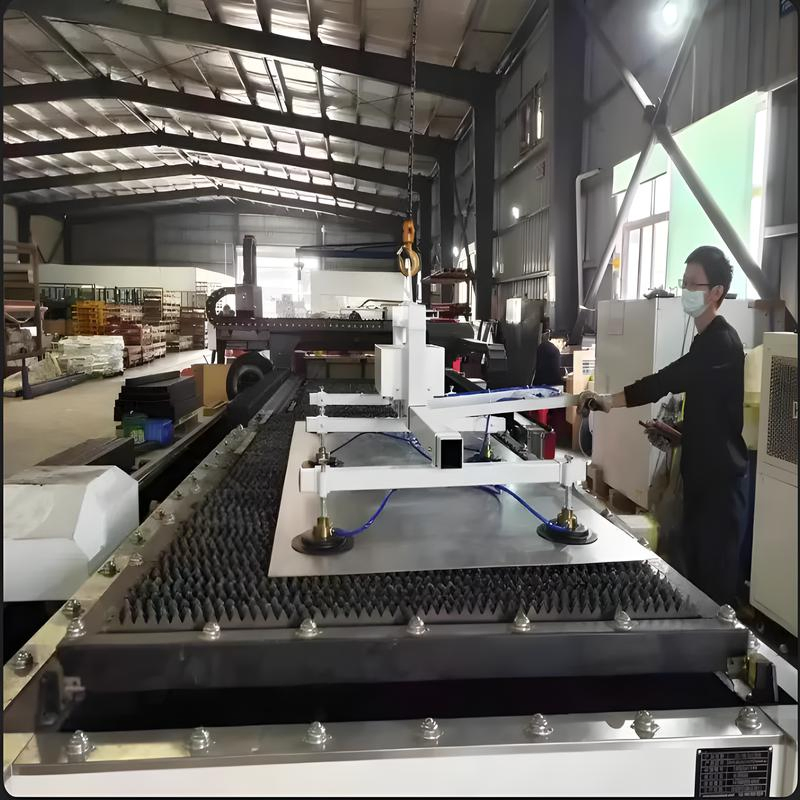

Vacuum Lifter Operation

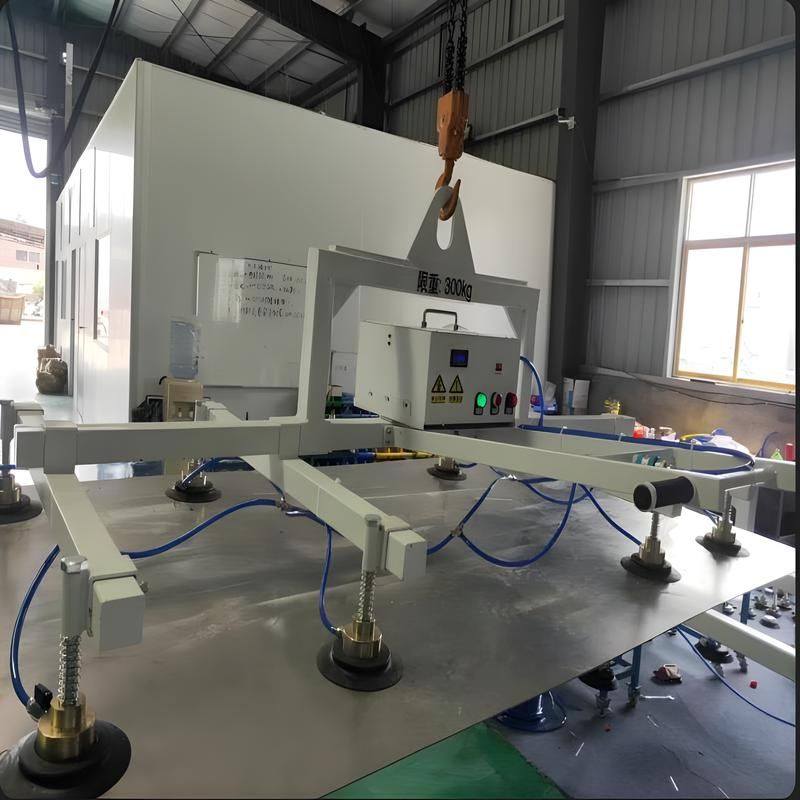

Electric Lifting Equipment

🌟 Automation and Efficiency:

Electric laser feeding machines offer full automation, enabling unmanned operation for laser loading and unloading, which can operate 24/7 without manual intervention. This increases the utilization rate of laser cutting machines significantly.

Model Specifications
Model Length Capacity Sucker Qty Sucker Diameter Voltage Gross Weight
XDL300-2M2m300kg4pcs200mm220/380V110kg
XDL600-2M2m600kg6pcs200mm220/380V120kg
XDL800-2M2m800kg8pcs200mm220/380V125kg
XDL800-3M3m800kg8pcs200mm220/380V135kg
XDL1000-3M3m1000kg10pcs200mm220/380V180kg
XDL1000-5M5m1000kg10pcs200mm220/380V190kg
XDL2000-5M5m2000kg20pcs200mm220/380V290kg

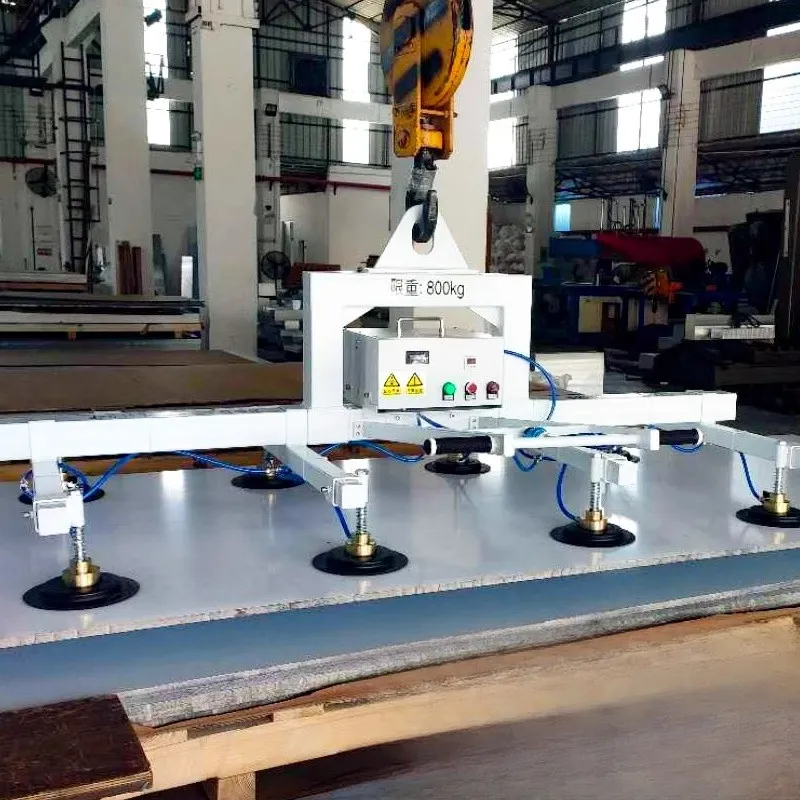

Applicable Industries

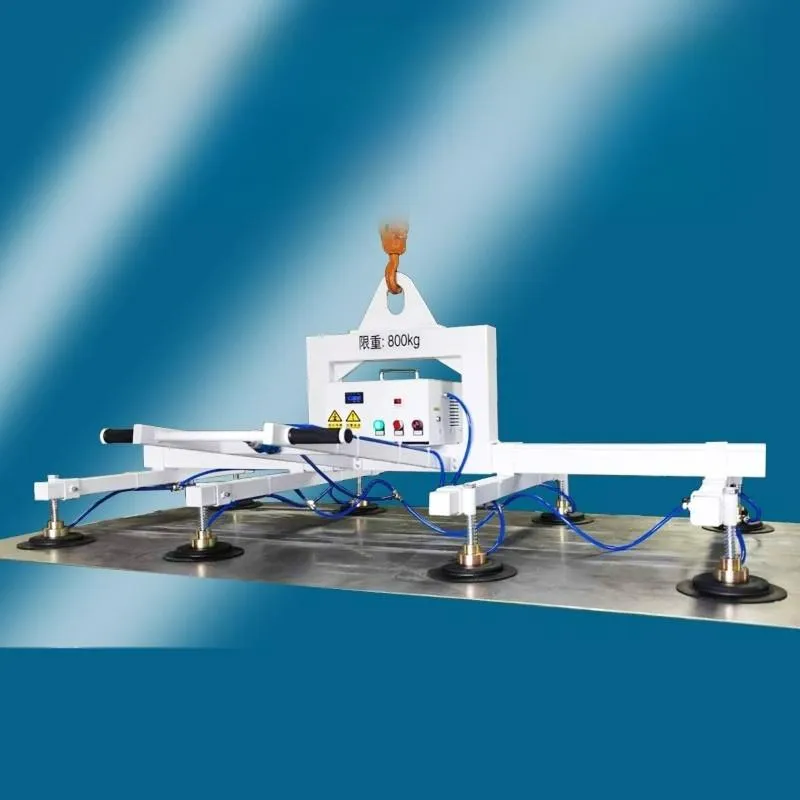

Usage Scenarios

📍 Applicable Industries:

  • Construction sites and glass factories
  • Window manufacturing facilities
  • Metal and precision processing

🛠️ Features & Types:

  • Jib Types: Wall, Column, or Mobile Type
  • Rotation: Manual & Electric (0~360°)
  • Safety: Air-cut protection & automatic braking
Quality Assurance & Safety

Our shipment process includes 7 rigorous inspection and testing stages to guarantee the delivery of top-tier products:

Seal integrity & Pressure retention test
Leakage identification
Overload stress test
Incoming goods examination
Acoustic level evaluation
Aesthetic condition review
Safety Testing

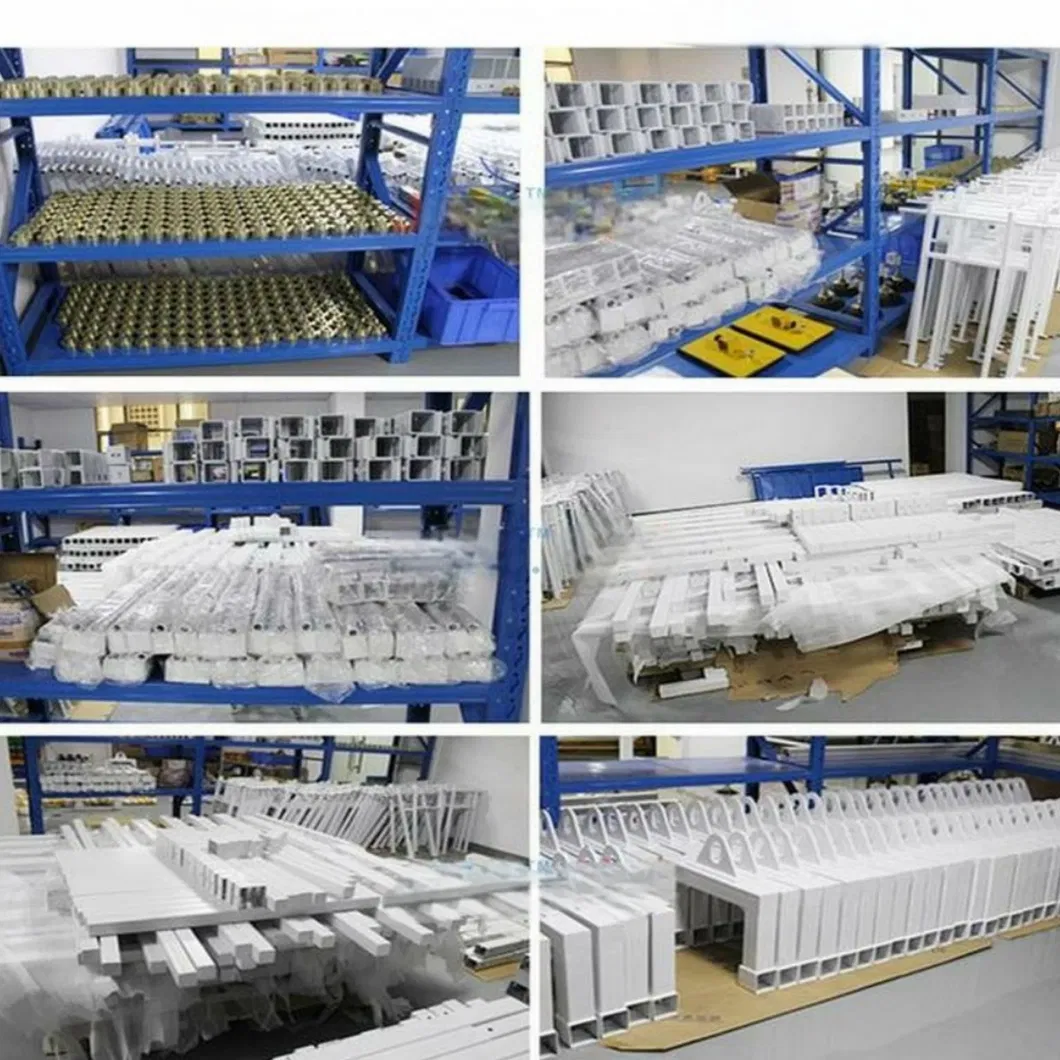

Quality Control
Product Layout 1
Product Layout 2
Frequently Asked Questions
1. What materials can be handled with this vacuum lifter?
It is designed for flat materials including facade glass, stone slabs, steel sheets, aluminum, and stainless steel sheets.
2. Does the equipment stay safe during a power failure?
Yes, the equipment features air-cut protection and an automatic braking device. The plate will remain held in place for a period of time if power is lost.
3. Can the lifting capacity be customized?
Yes, we support customized sizes and configurations with a maximum loading capacity of up to 2000KG.
4. What are the available rotation options?
We offer both manual and electric rotation methods, supporting a rotation angle of 0 to 360 degrees.
5. Can it handle high-temperature plates?
Yes, certain configurations are suitable for application with plates at temperatures up to 400 degrees Celsius.
6. What certifications does the product hold?

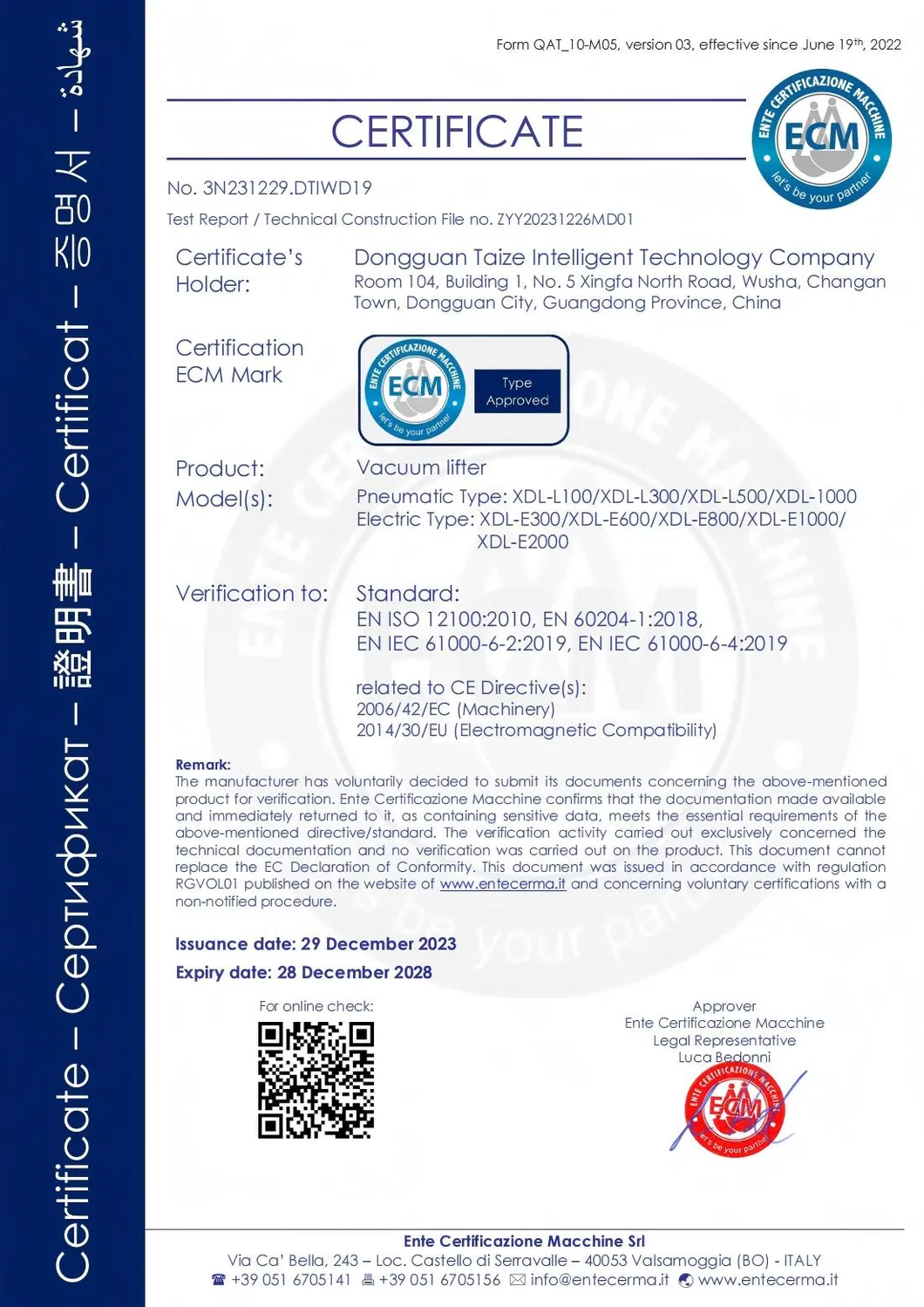

The manufacturing processes are ISO9001 certified and the products have garnered CE accreditation.
