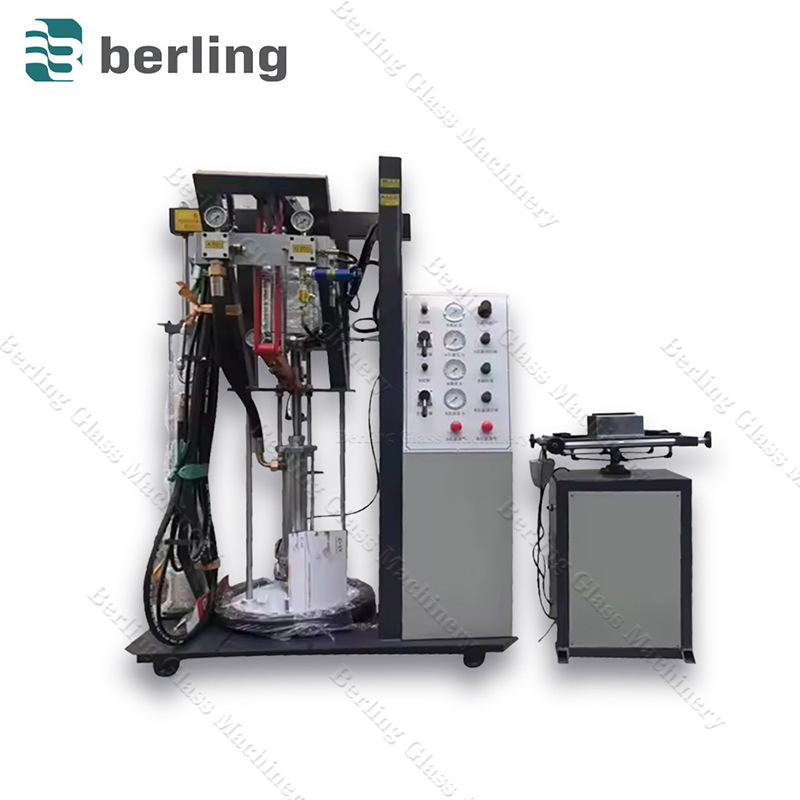

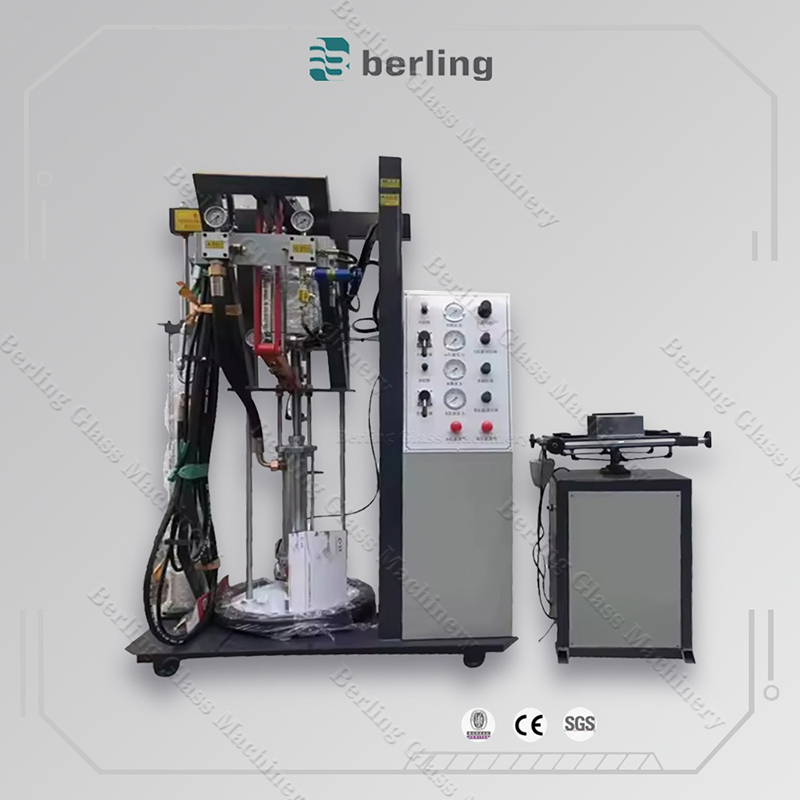

Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
1 / 5
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System
Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System

Energy Efficiency Two-Component Sealant Coating Extruder Machine Line with Pneumatic Working System

Customization: Available
Glass Thickness: 3-25mm
Maximum Glass Size: 1750*950*1980mm
Send Inquiry

Product Description

Basic Information

Model NO.:BL-T03
Power Supply:220/380/415/480V, 50/60Hz
Warranty:1 Year
Dimensions:1750*950*1980 mm
Weight:510 Kg
Power:18kw
Key Selling Points:Easy to Operate
Core Components:Motor, PLC, Pump
Production Capacity:500 Set/Sets Per Month

Product Description

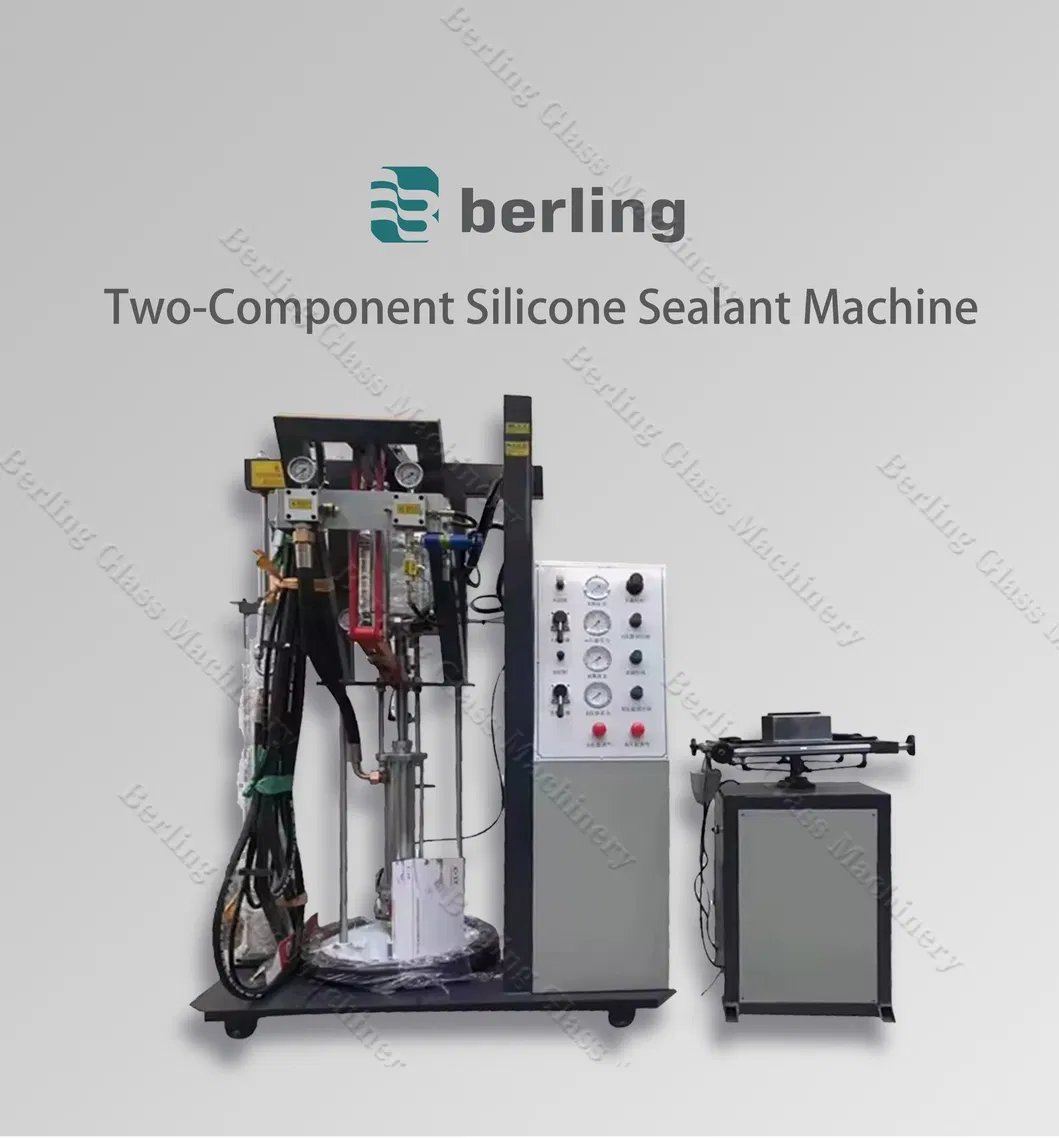

Sealant Coating Extruder

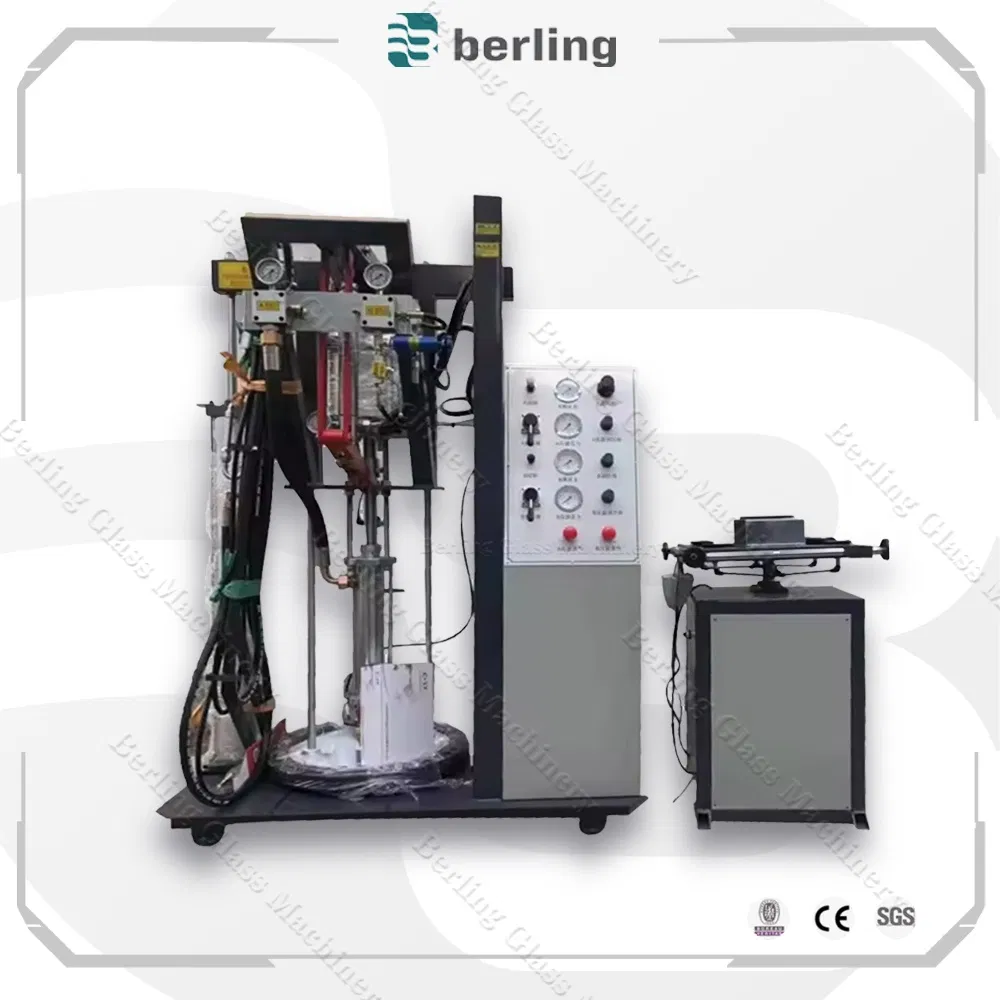

Equipment Detail

Equipment Advantages

  • Suitable for mass production of insulating glass and curtain walls.
  • Pneumatic control, easy to operate.
  • Main and auxiliary motor all adopt advanced technology, stable power, large sealant output.
  • Integrated structure of base material pump, curing agent pump and proportioning pump to avoid leaking.
  • Special device in pumps to avoid running idle.
  • Multichannel filtering device eliminates impurities into the pump body.

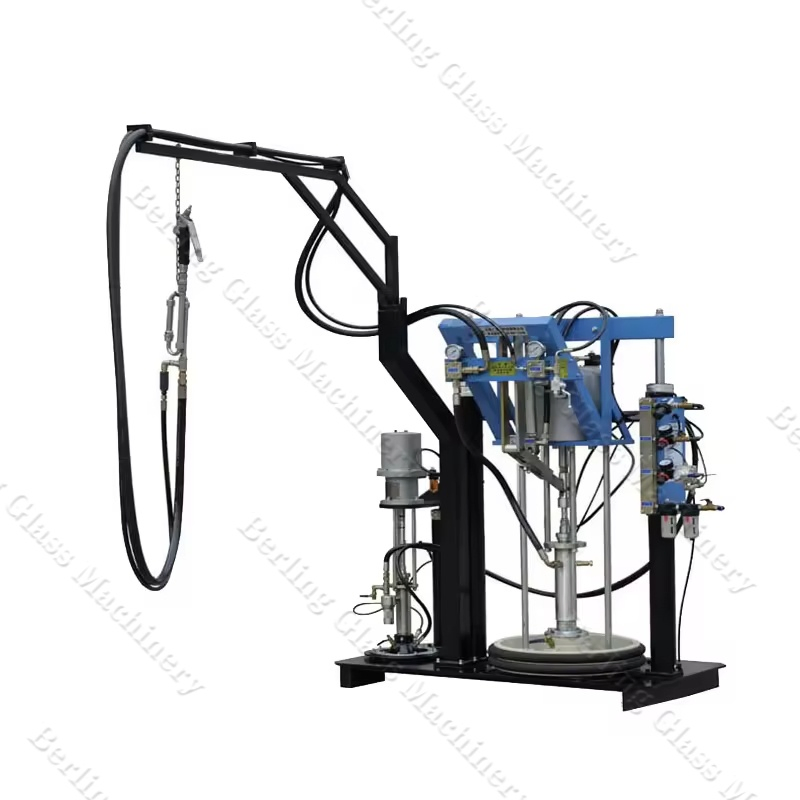

  • Universal device on rotating arm, flexible and portable.

Product Parameters

Parameter Item Technical Specifications
ModelBL-T03
Mixing Ratio6:1 ~ 14:1
Material Drum55 Gallon (200L)
Curing Agent Drum5 Gallon (20L)
Max. Air Consumption0.8 m³/min
Max. Dispensing Pressure32 MPa
Output4 ~ 10 L/min
Air Supply Pressure0.6 ~ 1.0 MPa
Glass Thickness Compatibility3-25 mm
Glue Pressure Ratio50:1

Detailed Photos & Scenarios

Detailed View

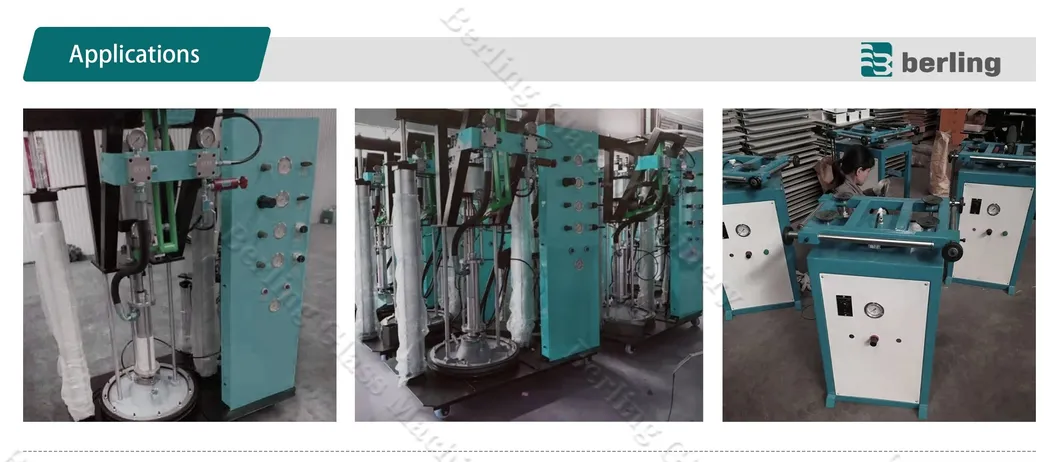

Application Scenario
Our Advantages
Production Facility
Exhibition Presence

Packaging & Certifications

Packaging and Shipping
Certifications

Frequently Asked Questions

What materials can this extruder handle?
The BL-T03 is designed for two-component sealants, specifically for the production of insulating glass and curtain walls.
What is the production output of the machine?
The machine offers a high output ranging from 4 to 10 liters per minute, suitable for mass production environments.
Is the mixing ratio adjustable?
Yes, the mixing ratio is adjustable between 6:1 and 14:1 to accommodate different sealant requirements.
What are the power requirements?
It supports multiple voltage configurations including 220V, 380V, 415V, and 480V at either 50Hz or 60Hz.
How does the machine prevent sealant leakage?
It features an integrated structure for the base material pump, curing agent pump, and proportioning pump to minimize potential leakage points.
What is the standard warranty period?
The equipment comes with a 1-year warranty covering core components like the motor, PLC, and pump.
