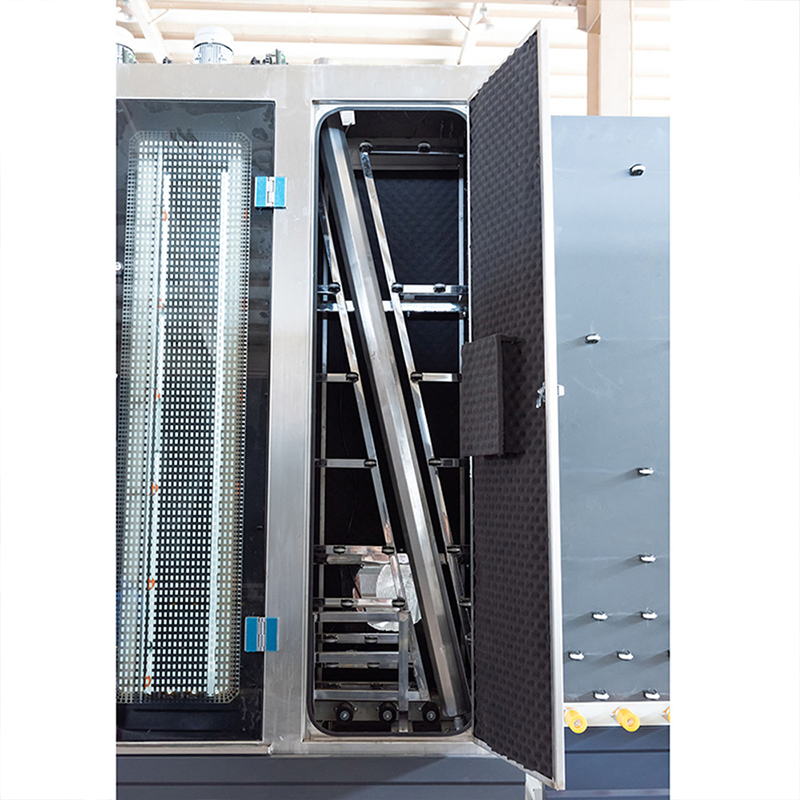

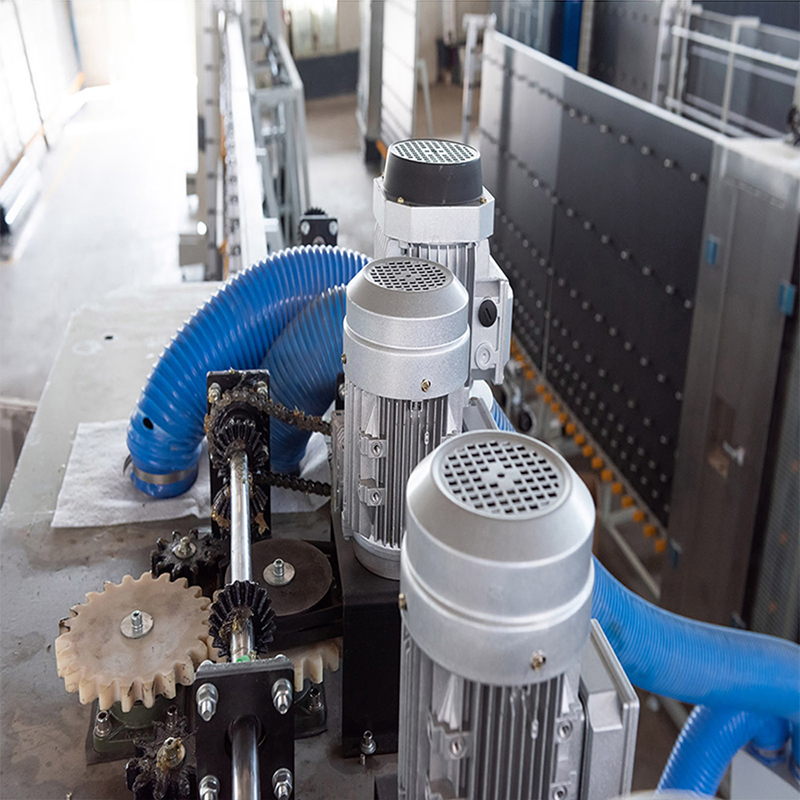

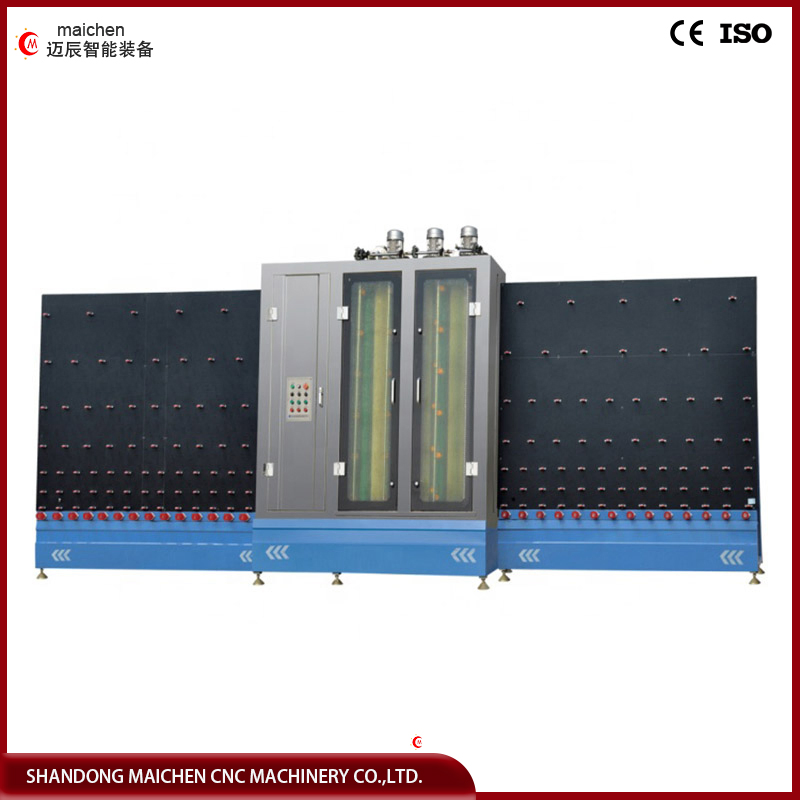

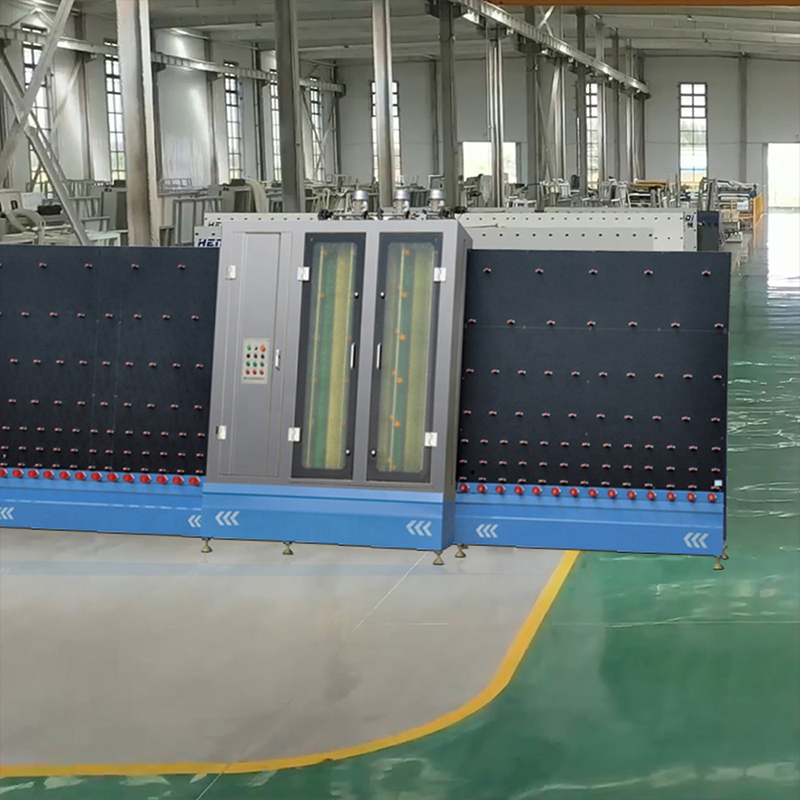

Insulating Glass Machine Energy-Saving Drying Design Efficient Vertical Glass Washing Machine

Customization: Available
Certification: CE, ISO
Glass conveyor speed: 0~8m/Min

Product Description

Basic Specifications
Model NO. LQ2000
Glass Thickness 3-19 mm
Power Supply 380V/50Hz
Total Power 19kw
Max Glass Size 2000X3000mm
Min Glass Size 300X400mm
Cleaning Speed 0~8m/Min
Overall Dimension 8500X2100X3050mm
Production Capacity 200 units Per Day
Product Description

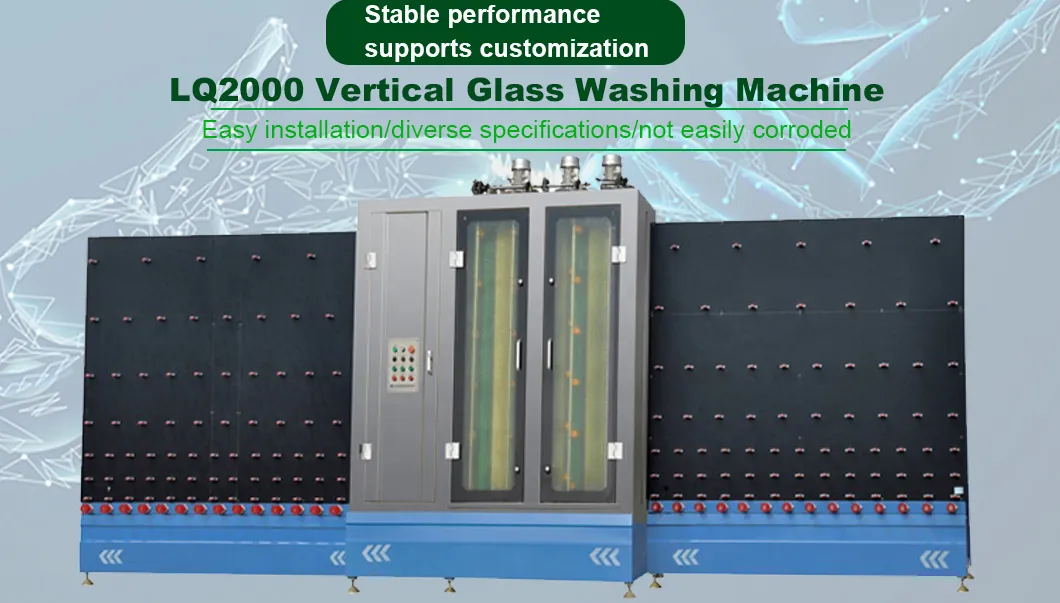

Vertical Glass Washing Machine Overview
🛡️
Durable Construction: The cleaning area and water system are entirely made of high-grade stainless steel for long-term durability.
⚙️
Floating Transmission: Advanced floating design of the cleaning transmission mechanism, suitable for glass thicknesses from 3mm to 18mm.
🚀
Intelligent Operation: The transmission system utilizes intelligent frequency conversion to ensure efficient operation across the cleaning area.
💧
Energy Efficiency: Unique drying design ensures superior drying effects while significantly reducing energy consumption.

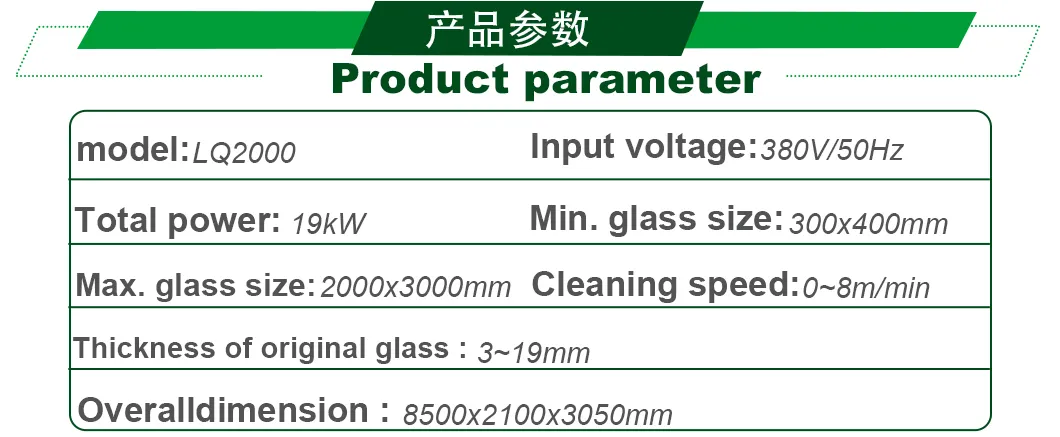

Technical Parameters
Technical Parameters
Product Name Vertical Glass Washing Machine
Package Gross Weight 2100.000kg
Package Size 870.00cm * 230.00cm * 325.00cm
Detailed Images

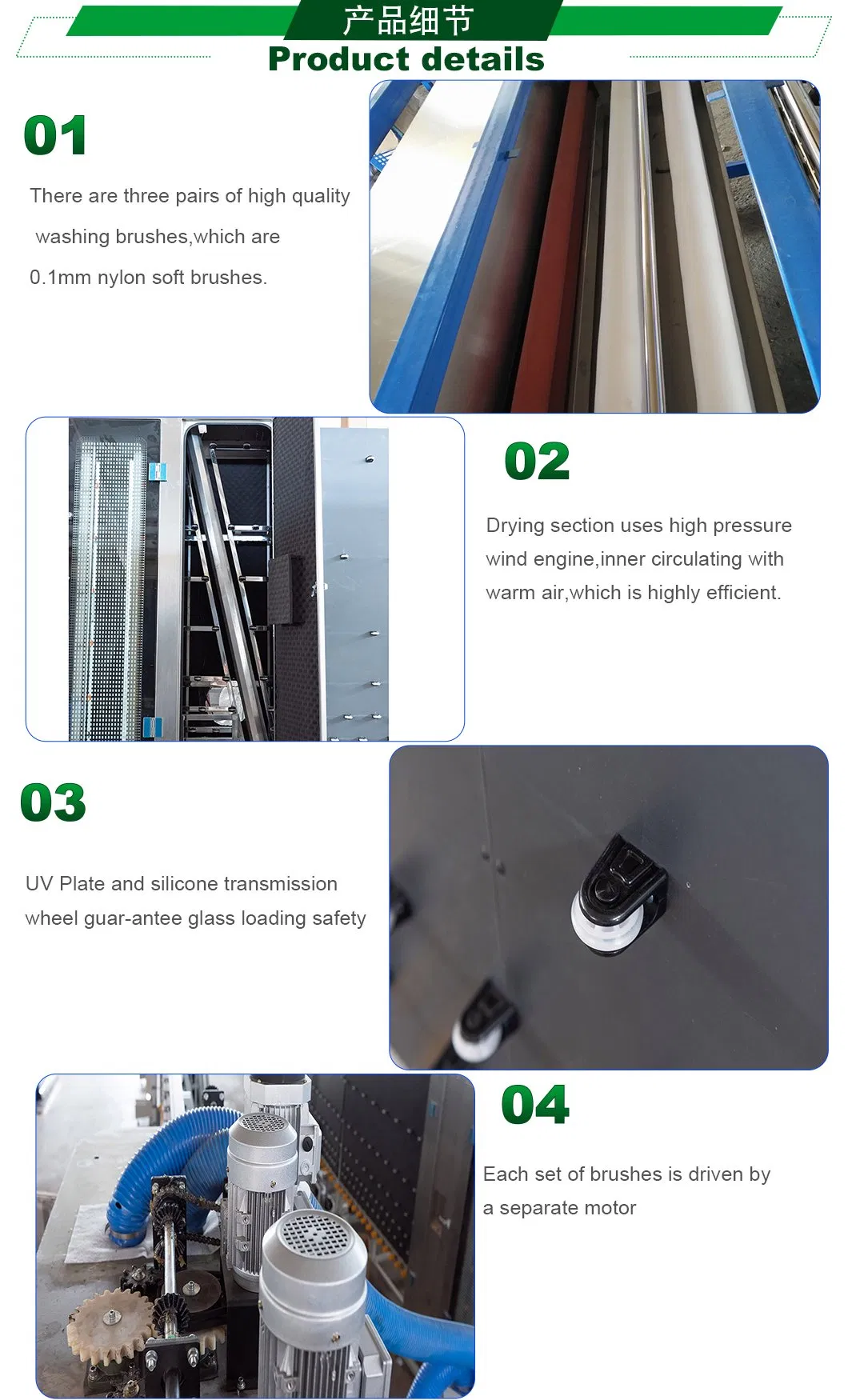

Machine Detail 1

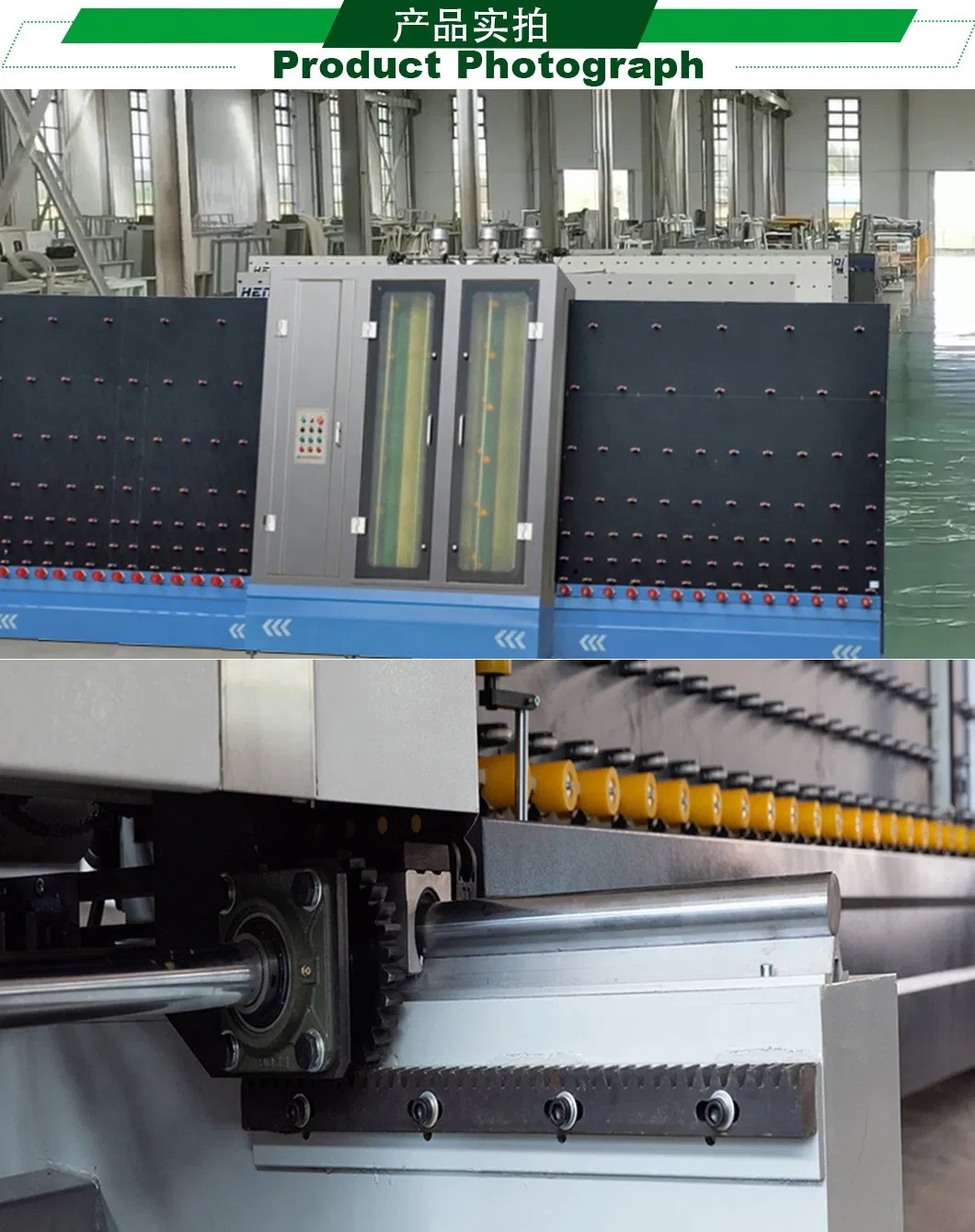

Machine Detail 2
Machine Detail 3
Packaging & Logistics
Packaging display

We provide a complete logistics service system and can package goods according to your specific requirements to ensure safe transit.

Manufacturing Capability

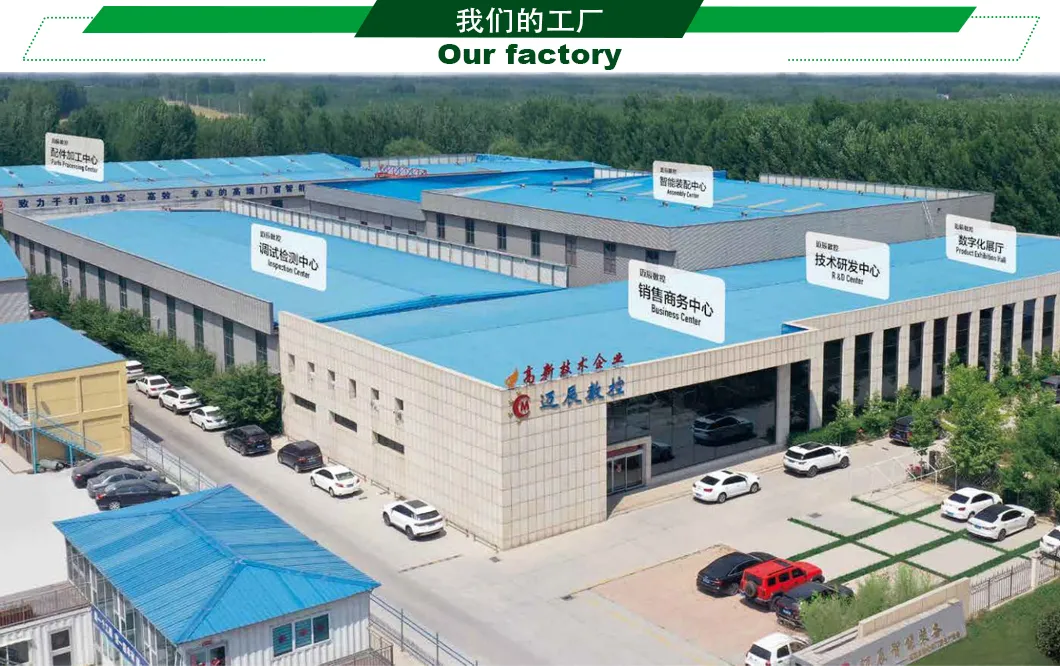

Factory Overview

Operating since 2015, we are a modern enterprise integrating technology development and machinery manufacturing. With over 22,000 square meters of assembly workshops, our facility is equipped with vertical, horizontal, and gantry machining centers, ensuring strong manufacturing capacity and strict quality management.

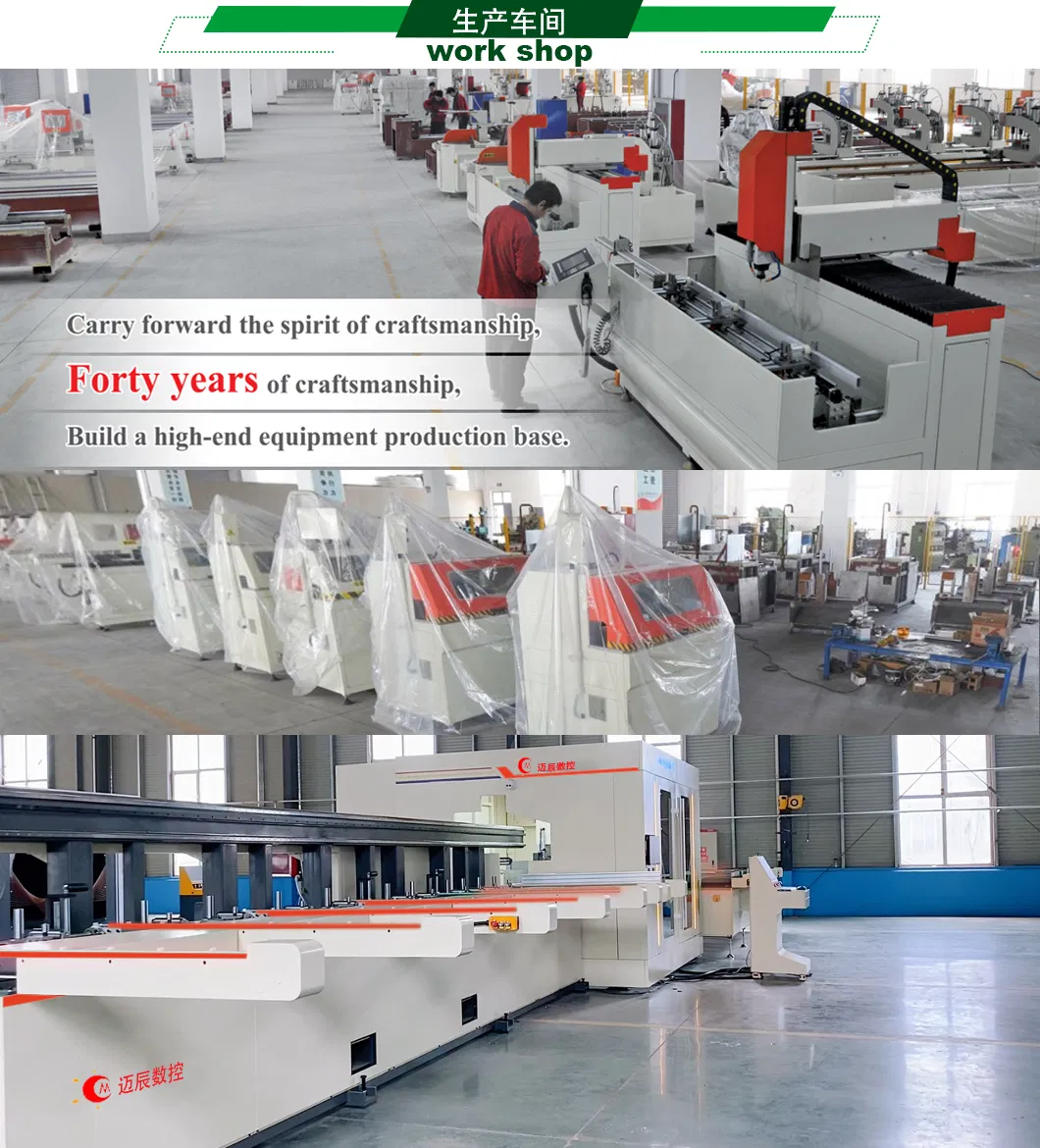

Workshop Details
Honor & Global Presence
Certificate 1
Certificate 2
Customer Visit 1
Customer Visit 2
Customer Visit 3
Frequently Asked Questions
1. Is your company a trading company or a factory?
We are a factory and trade integration, with over 10 years of focus on Upvc, Aluminum Window and Door Equipment, insulating glass equipment, and curtain wall equipment.
2. What is the delivery time after an order is placed?
Generally, it takes about 15 days. If we have the items in inventory, we can arrange shipment within 5 days. Lead times vary by specific items and quantities.
3. What kind of warranty and after-sales service do you provide?
We provide a 12-month warranty. Our professional after-sale team offers perfect technical support and helps customers solve problems encountered during use even after the warranty period.
4. How do you ensure product quality?
Each machine undergoes 100% quality examination and testing before shipment. All machines meet ISO and CE certification standards.
5. What should we do if we don't know how to operate the machine?
We provide comprehensive video training showing installation and operation. Additionally, we can provide online assistance from our engineers or send an engineer to your location.
6. Can the equipment be customized?
Yes, we can adjust technical specifications and packaging according to your specific production requirements and glass dimensions.
